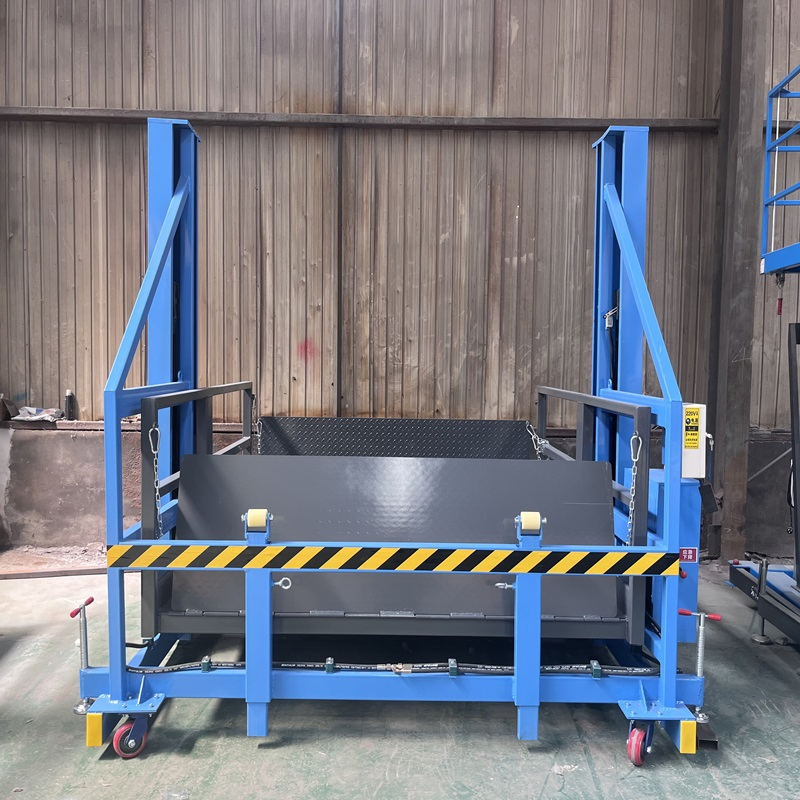

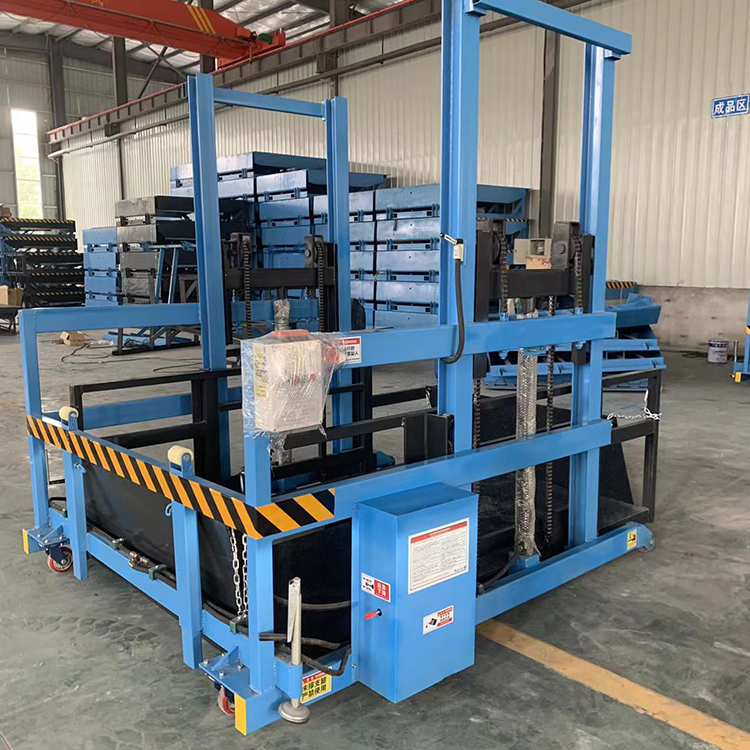

Movable Platform Container Loading Platform Mobile Lifting Platform for Container Trucks
Movable Platform Container Loading Platform Mobile Lifting Platform for Container Trucks
Movable Platform Container Loading Platform Mobile Lifting Platform for Container Trucks
Movable Platform Container Loading Platform Mobile Lifting Platform for Container Trucks
Movable Platform Container Loading Platform Mobile Lifting Platform for Container Trucks
1 / 5
Movable Platform Container Loading Platform Mobile Lifting Platform for Container Trucks
Movable Platform Container Loading Platform Mobile Lifting Platform for Container Trucks
Movable Platform Container Loading Platform Mobile Lifting Platform for Container Trucks
Movable Platform Container Loading Platform Mobile Lifting Platform for Container Trucks
Movable Platform Container Loading Platform Mobile Lifting Platform for Container Trucks

Movable Platform Container Loading Platform Mobile Lifting Platform for Container Trucks

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

i

Basic Information

Model NO.:SJYD
Application:Workshop, Shipboard, Warehouse, Building Crane
Lift Mechanism:Lift Chain
Driven Type:Hydraulic
Feature:Rainproof
Certification:CE, ISO 9001
Control Mode:Wireless Remote Control
Maximum Height:1700mm
Package Size:330.00cm * 197.00cm * 970.00cm
Gross Weight:1000.000kg
★

Product Description

The mobile loading and unloading platform adopts a high-strength guide rail structure and hydraulic lifting. It offers convenient movement without the need for pits. It can be seamlessly used with manual or electric pallet trucks to achieve one-person rapid loading and unloading operations, serving as a safe and efficient modern platform.

✔ 24V Safe voltage control
✔ Wireless remote control
✔ IP44 Industrial waterproof plug
✔ Emergency descending device
✔ Travel limit protection device
✔ High-strength patterned steel plate

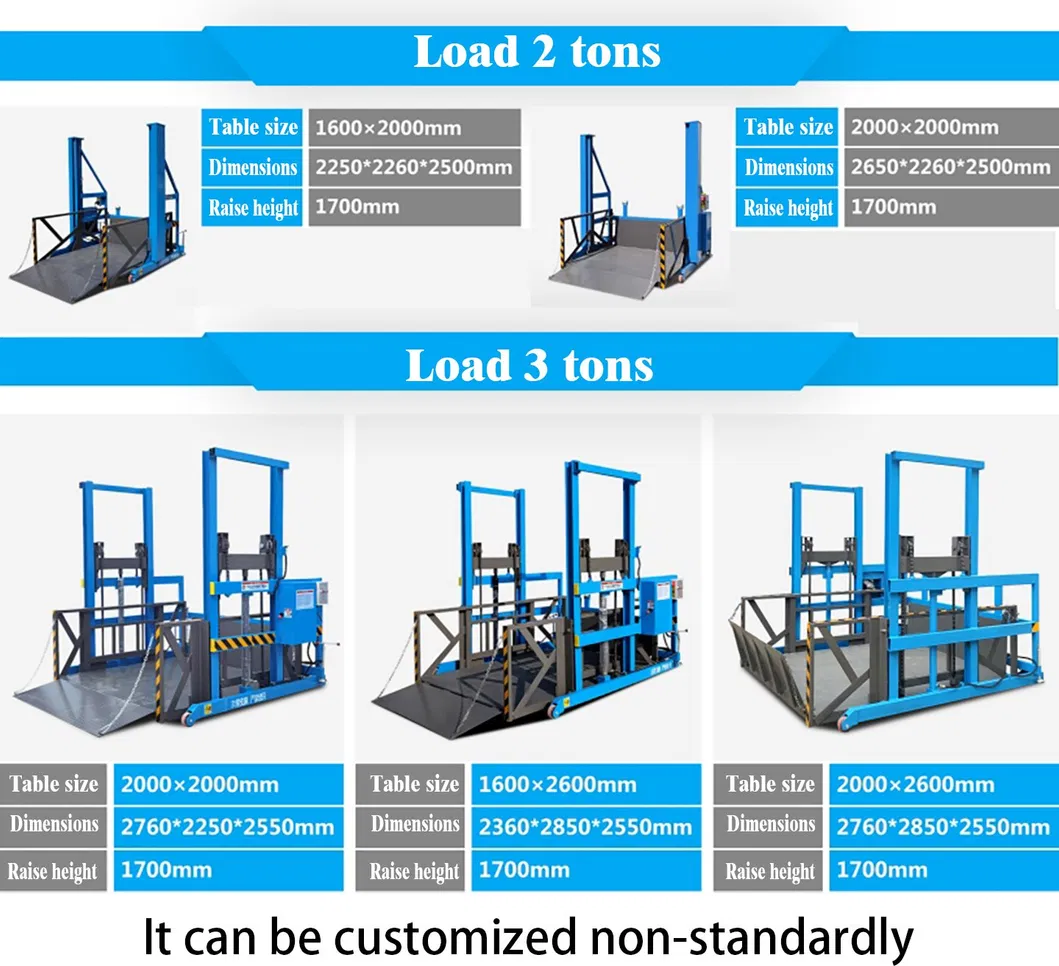

Model Table Size Lifting Height Load Capacity Panel Material Power Dead Weight
SJYD-2T 1600*2000mm 1700mm 2000KG 4.5mm Patterned Steel 2.2kw/3kw 718KG
2000*2000mm 1700mm 2000KG 4.5mm Patterned Steel 2.2kw/3kw 800KG
SJYD-3T 1600*2000mm 1700mm 3000KG 4.5mm Patterned Steel 4kw 988KG
2000*2000mm 1700mm 3000KG 4.5mm Patterned Steel 4kw 1060KG
1600*2600mm 1700mm 3000KG 4.5mm Patterned Steel 4kw 1108KG
2000*2600mm 1700mm 3000KG 4.5mm Patterned Steel 4kw 1200KG
📷

Visual Display

Loading Platform 1
Loading Platform 2
Loading Platform 3

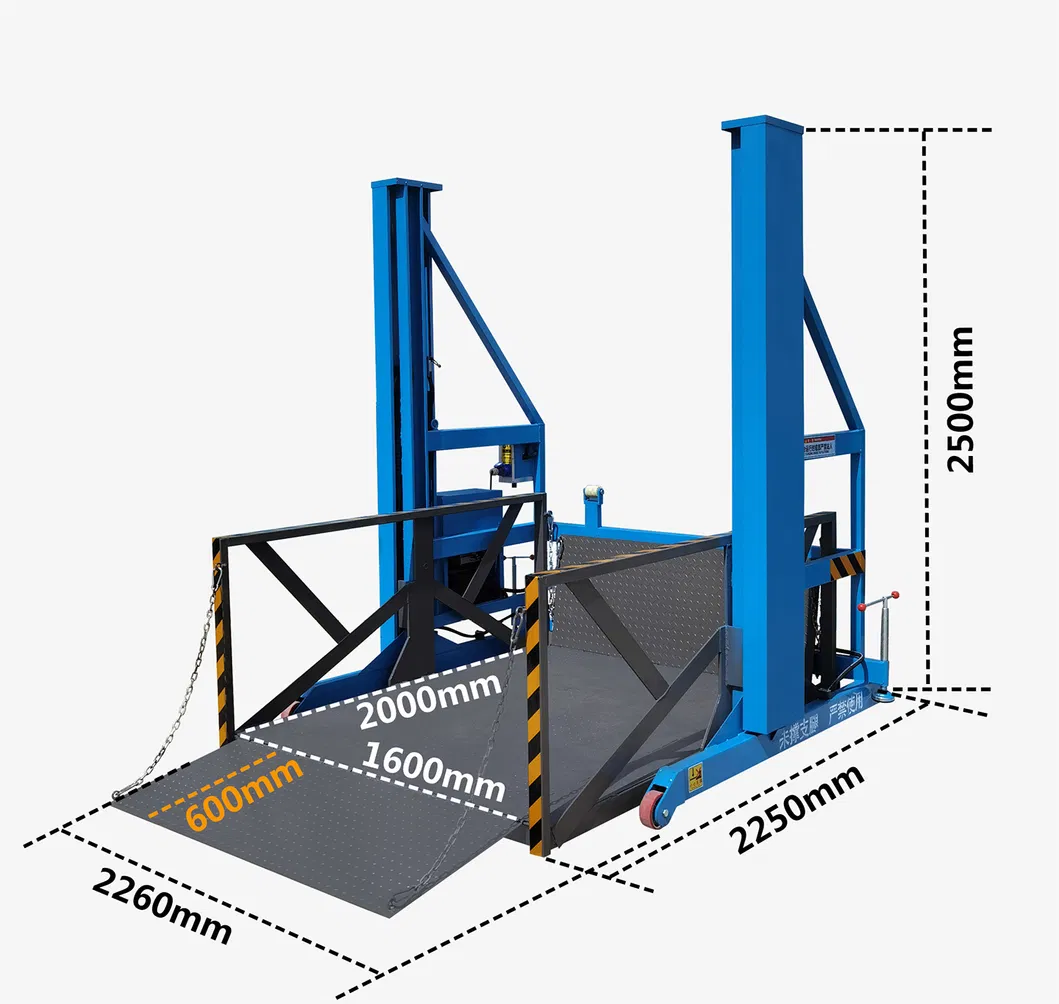

Loading Platform 4

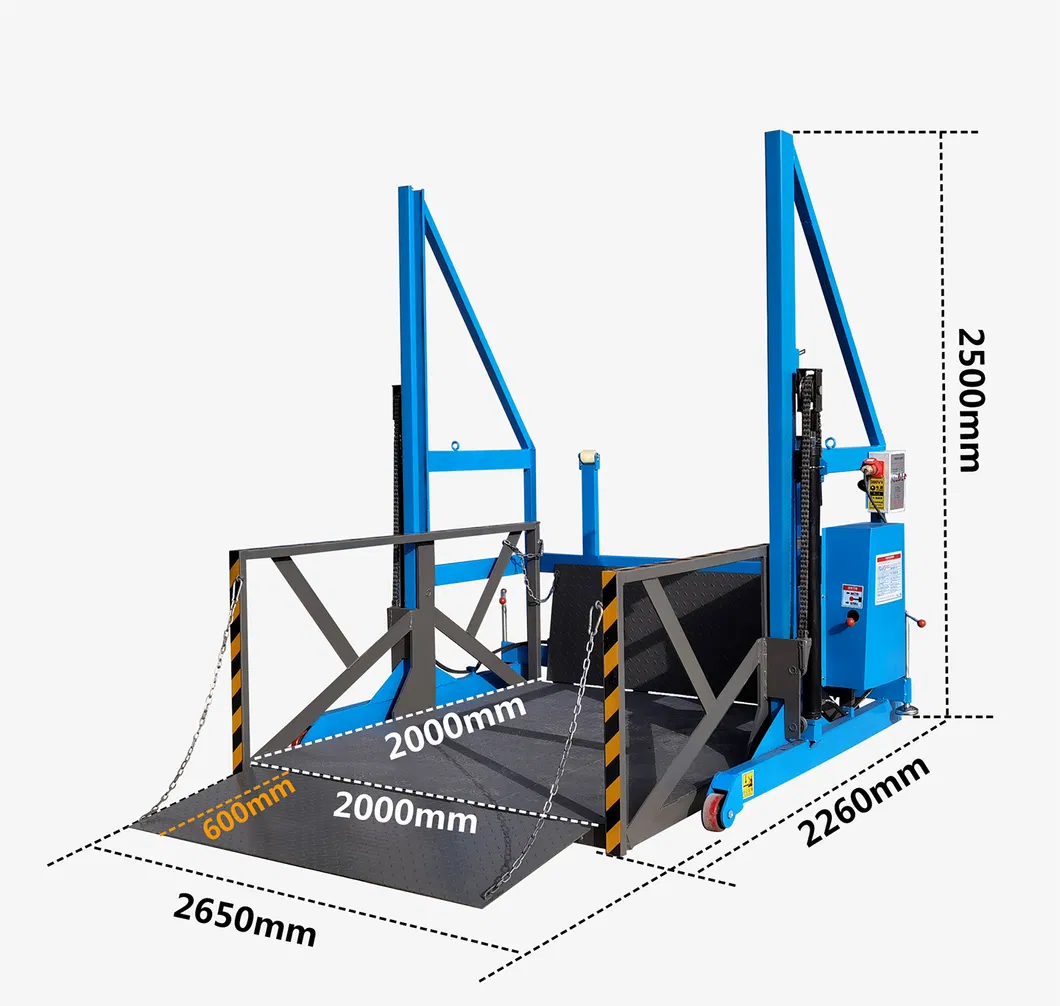

Loading Platform 5

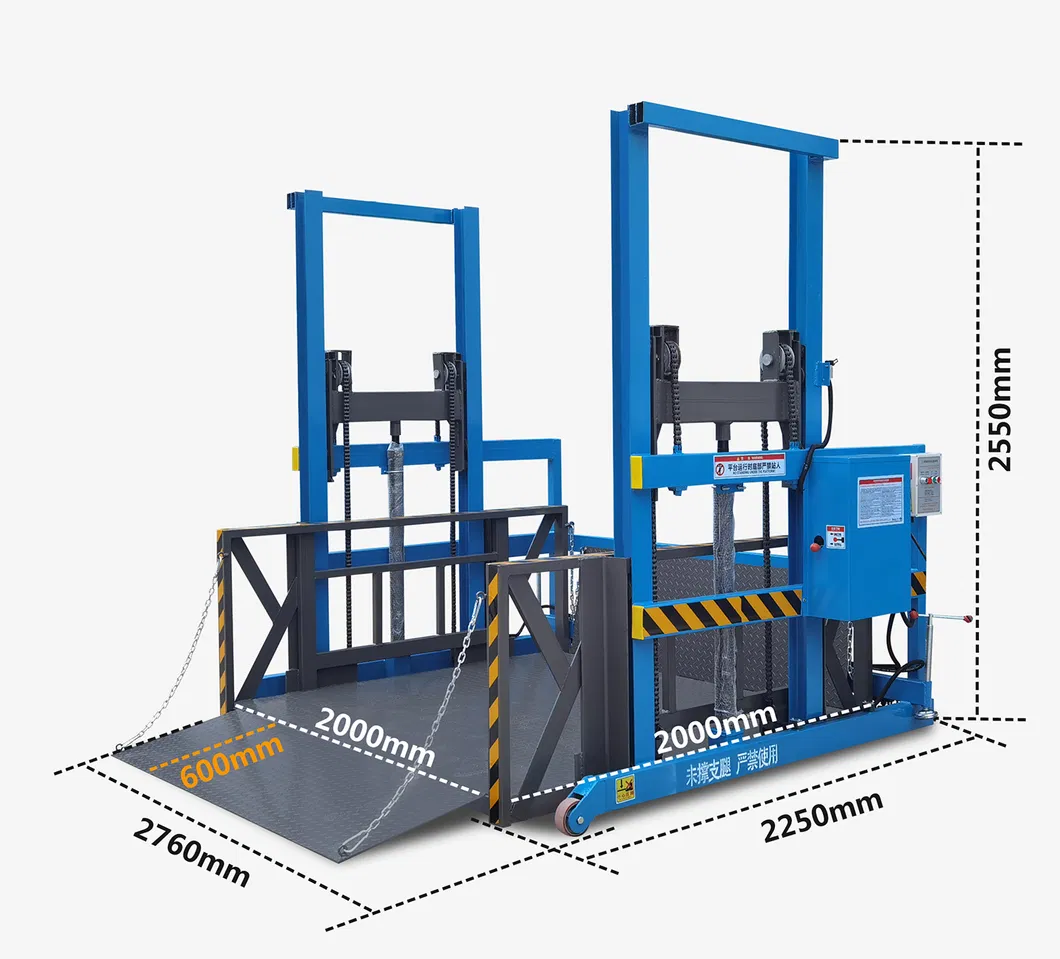

Loading Platform 6

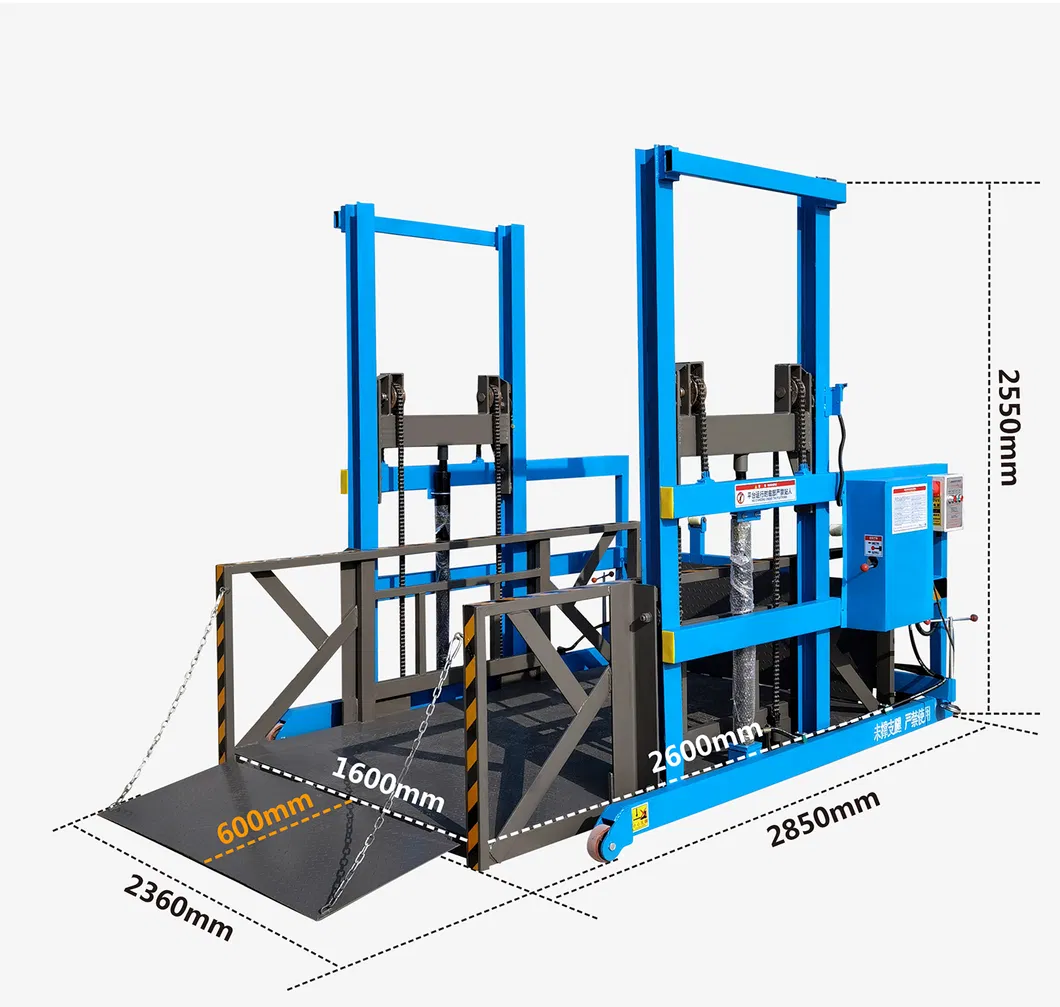

Loading Platform 7

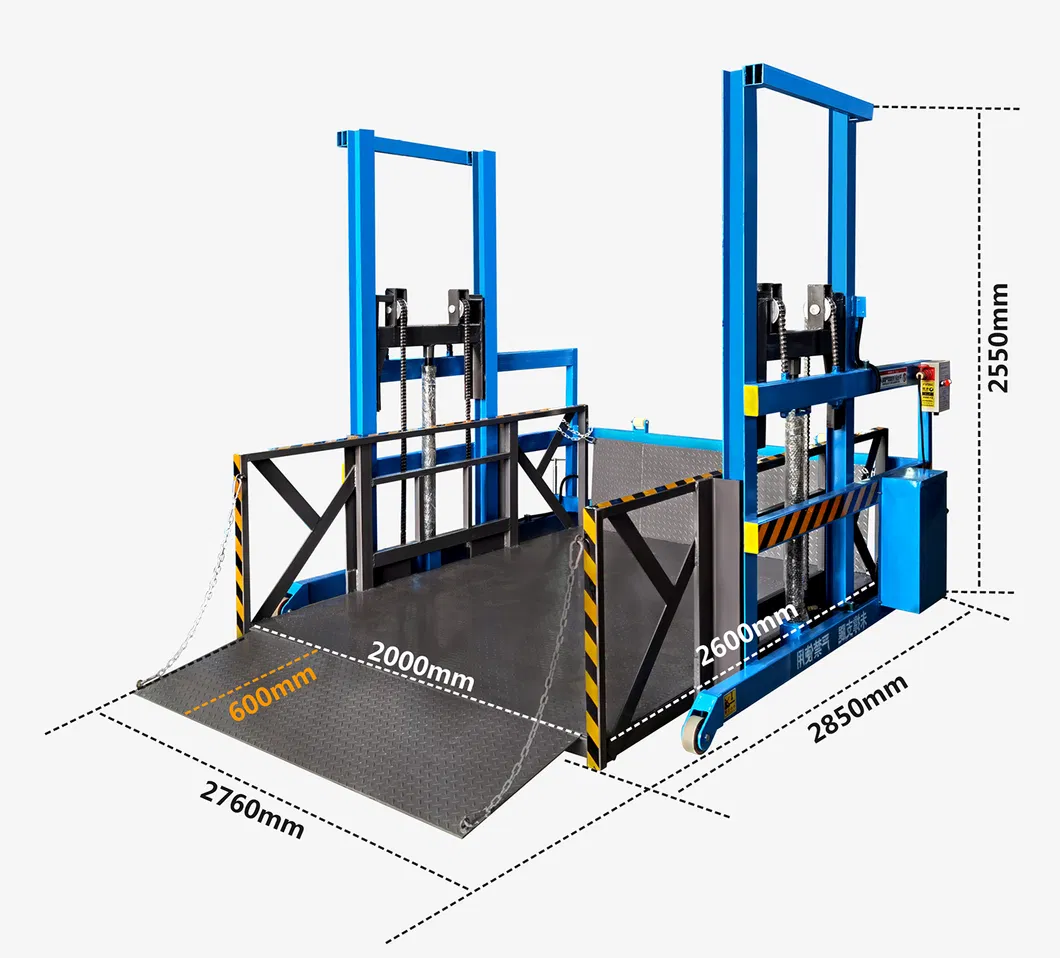

Loading Platform 8

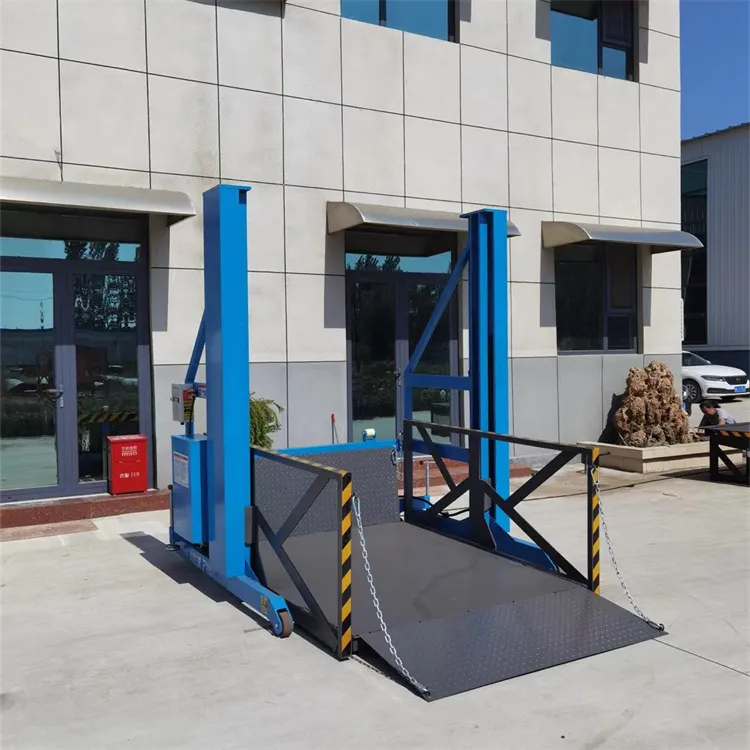

Loading Platform 9

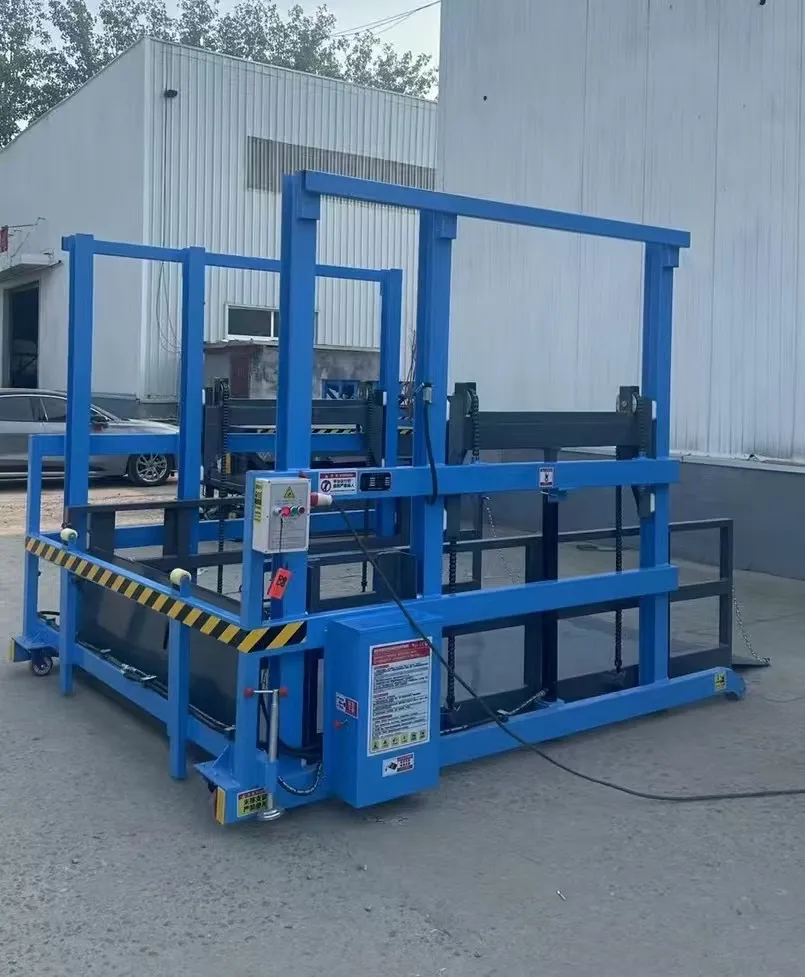

Loading Platform 10

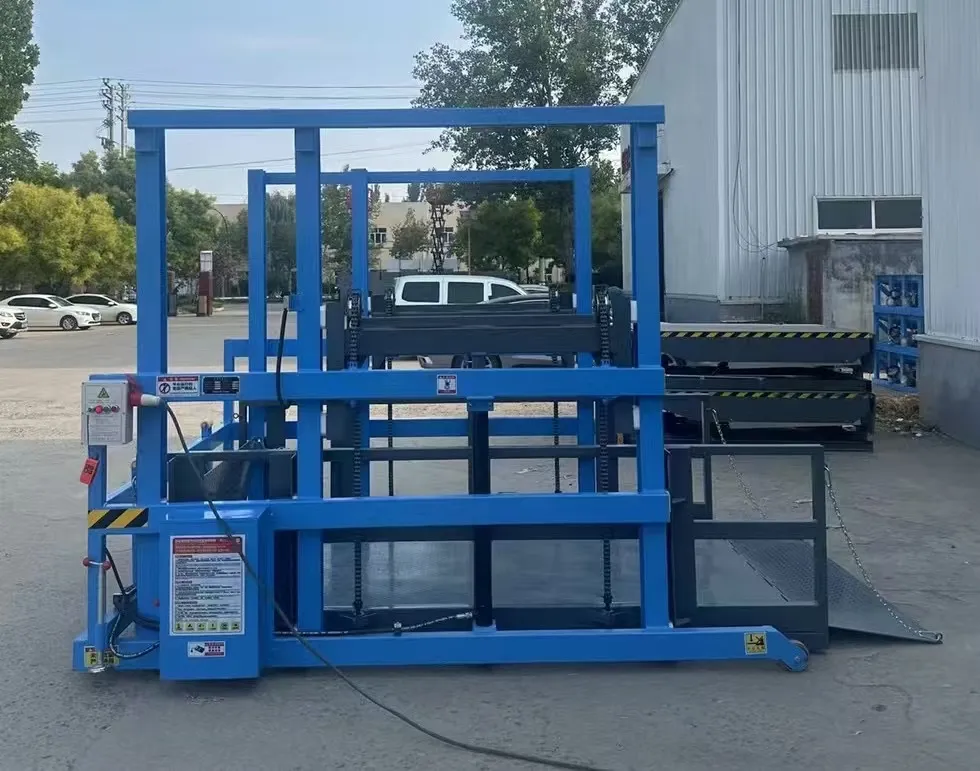

Loading Platform 11

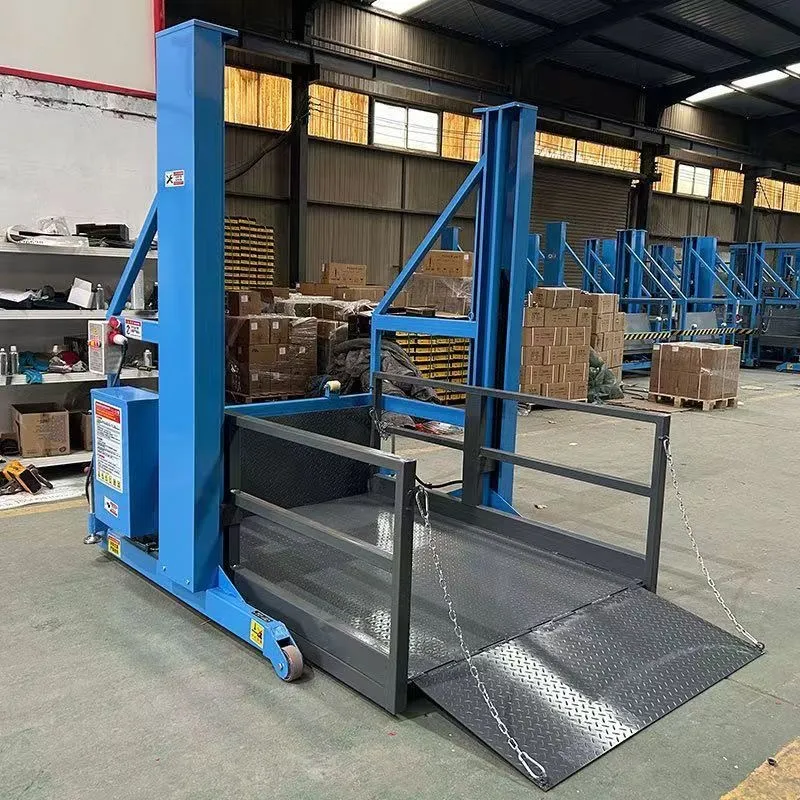

Loading Platform 12
?

Frequently Asked Questions

What is the maximum load capacity of the SJYD series?
The SJYD series offers two main configurations: the SJYD-2T with a capacity of 2000KG and the SJYD-3T with a capacity of 3000KG.
Does this platform require a foundation pit for installation?
No, this mobile loading platform is designed for convenience and does not require any pits, making it suitable for immediate use in various locations.
How is the lifting platform controlled safely?
It is controlled via a 24V safe voltage system with a wireless remote control, ensuring operators can manage the platform from a safe distance.
What safety devices are included for power failures?
The platform is equipped with an emergency descending device that allows for safe lowering in the event of a power failure.
Is the equipment suitable for outdoor or wet conditions?
Yes, the platform features a rainproof design and uses an IP44 rated industrial waterproof aviation plug for protection against the elements.
