Basic Information
Application
Workshop, Shipboard, Warehouse, Building Crane
Lift Mechanism
Lift Chain
Certification
CE, ISO 9001
Product Description
⚙

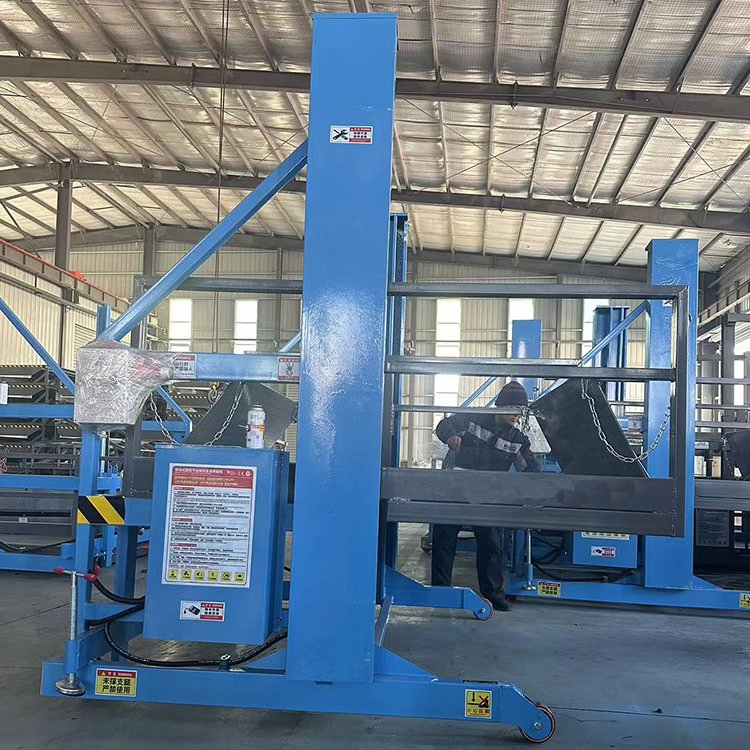

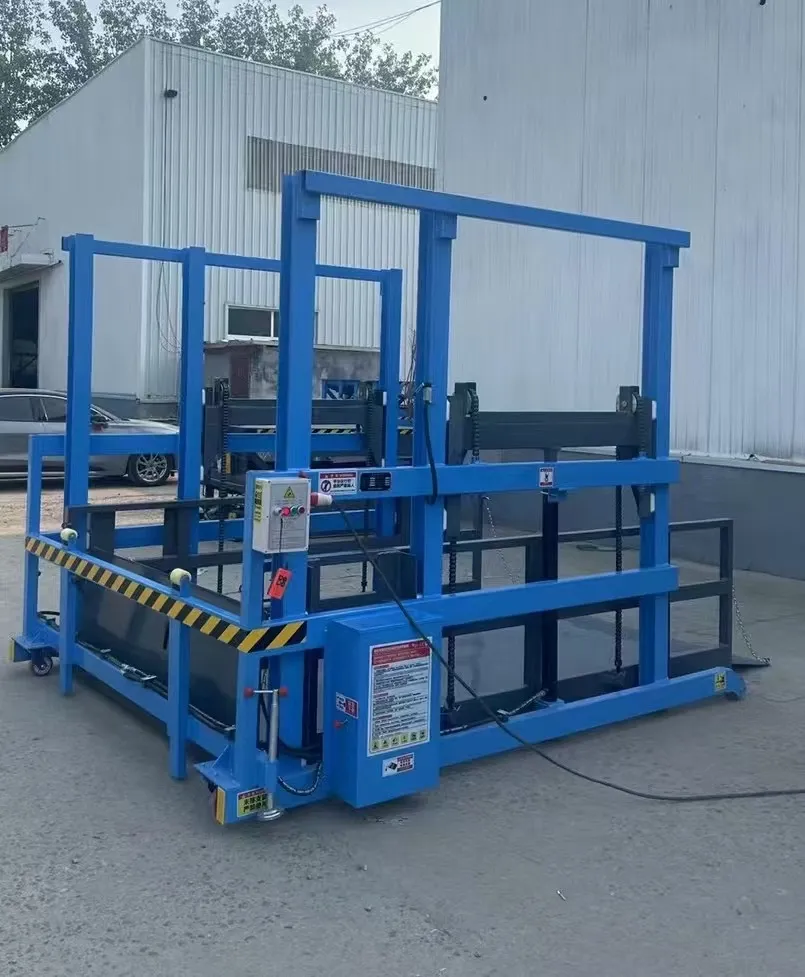

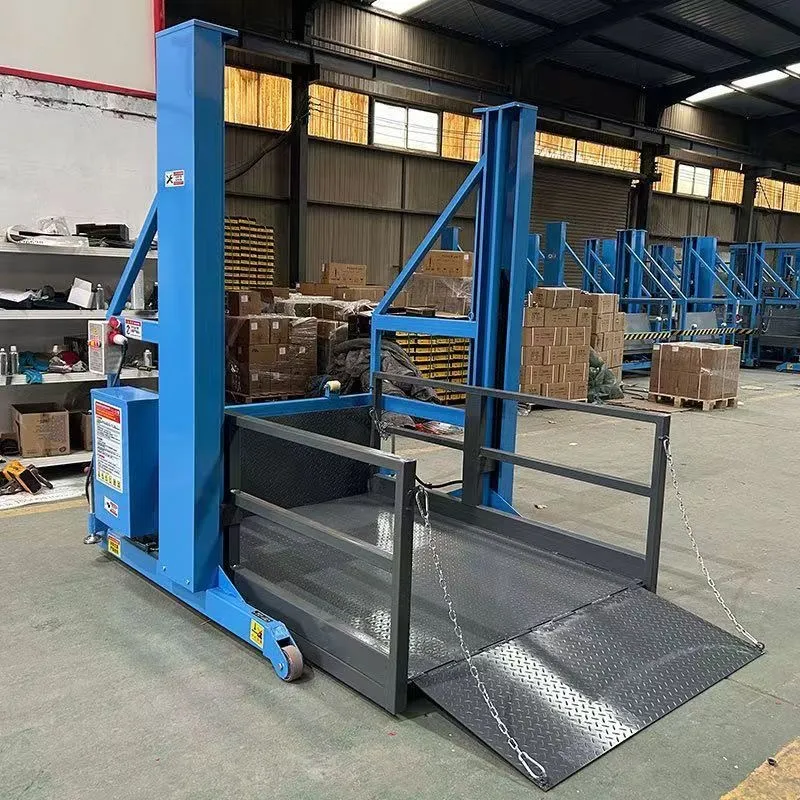

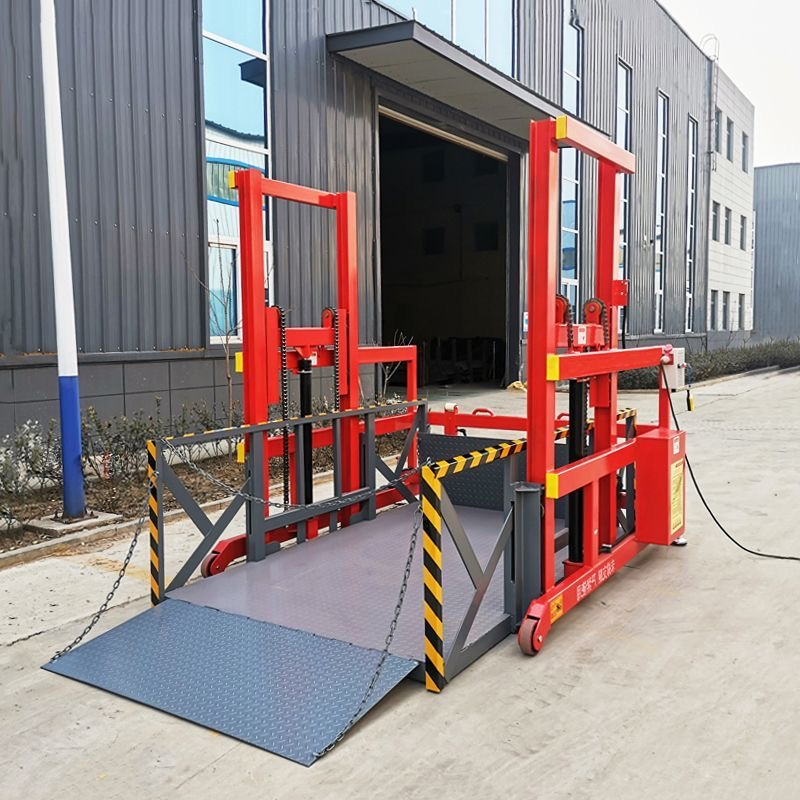

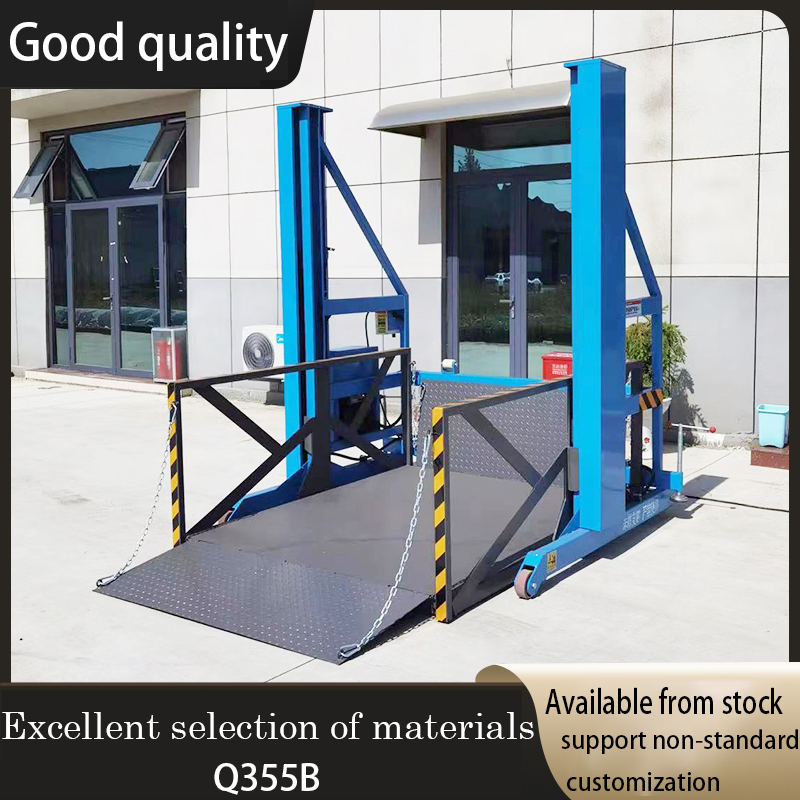

The mobile loading and unloading platform adopts high-strength guide rail structure, hydraulic lifting, convenient movement, no need for pits, and can be used with manual or electric pallet trucks to achieve one-person rapid loading and unloading operations, which is a safe and efficient modern loading and unloading platform.
⚡
It is controlled by 24V safe voltage with wireless remote control. Industrial waterproof aviation plug (degree of protection: IP44). It is equipped with a power failure emergency descending device and a travel limit device.

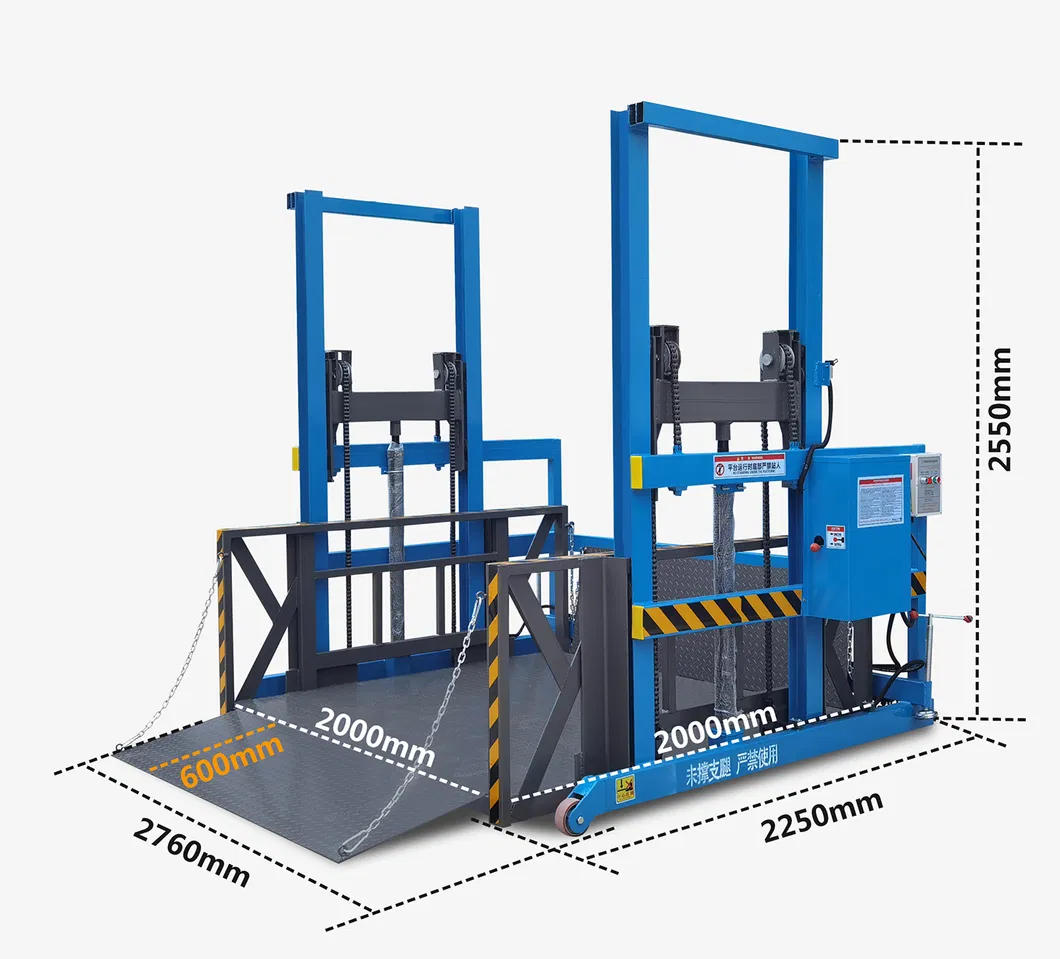

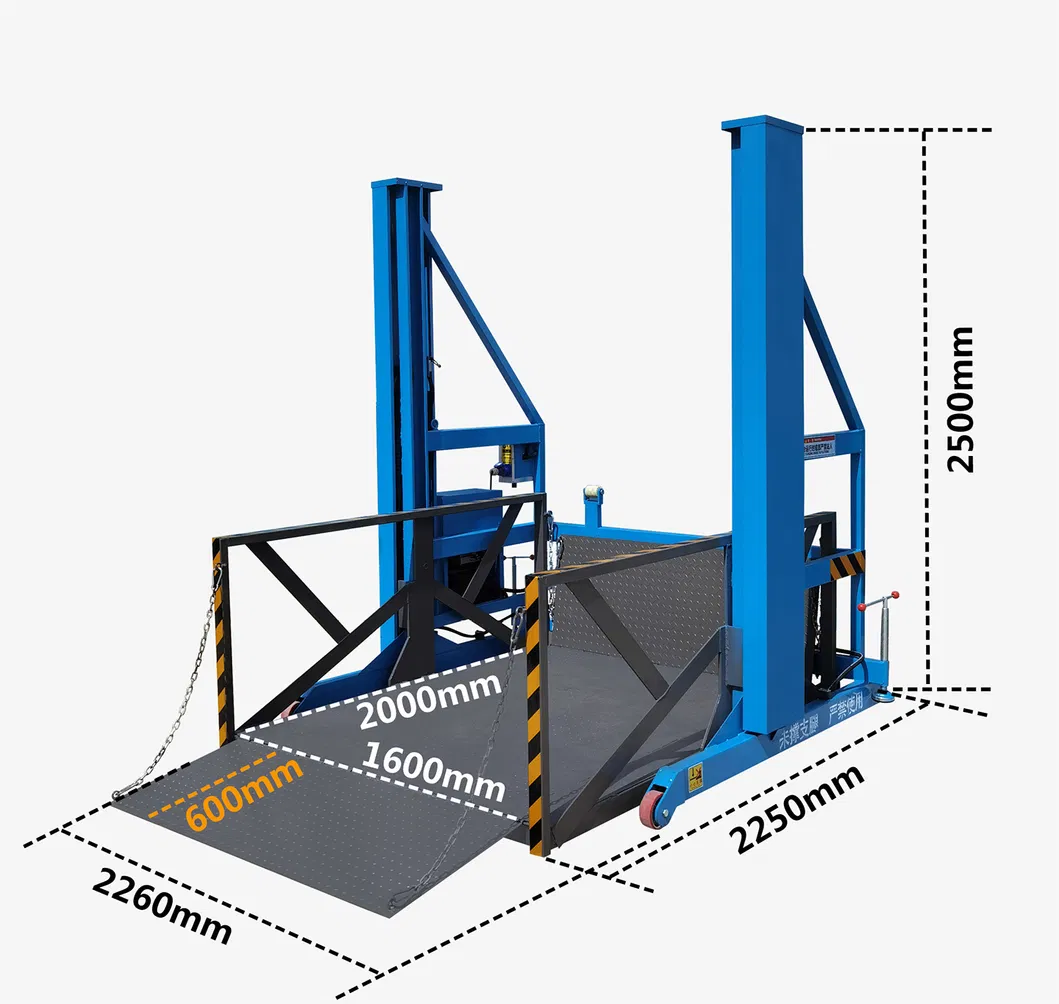

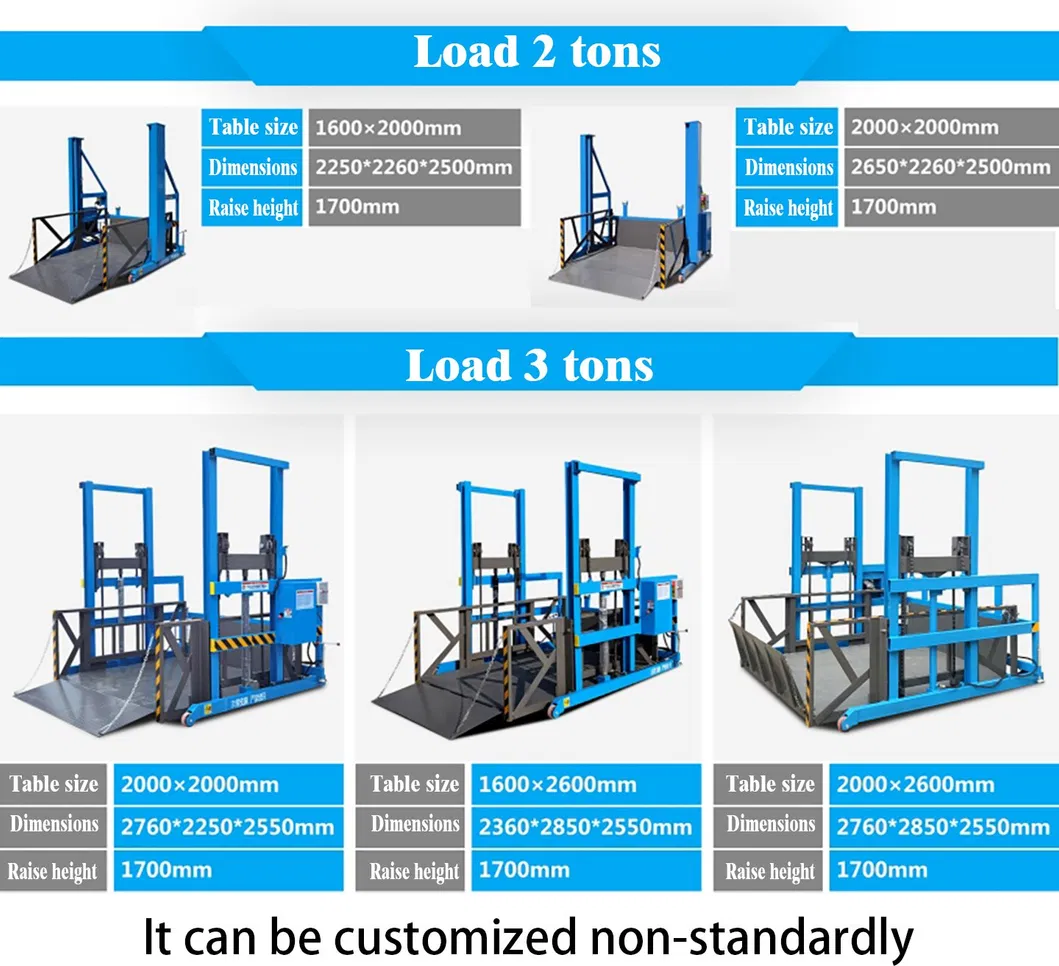

| Model |
Table size |
Lifting height |
Load |
Panel material |
Power |
Dead weight |
| SJYD-2T |
1600*2000mm |
1700mm |
2000KG |
4.5mm Patterned steel plate |
2.2kw/3kw |
718KG |

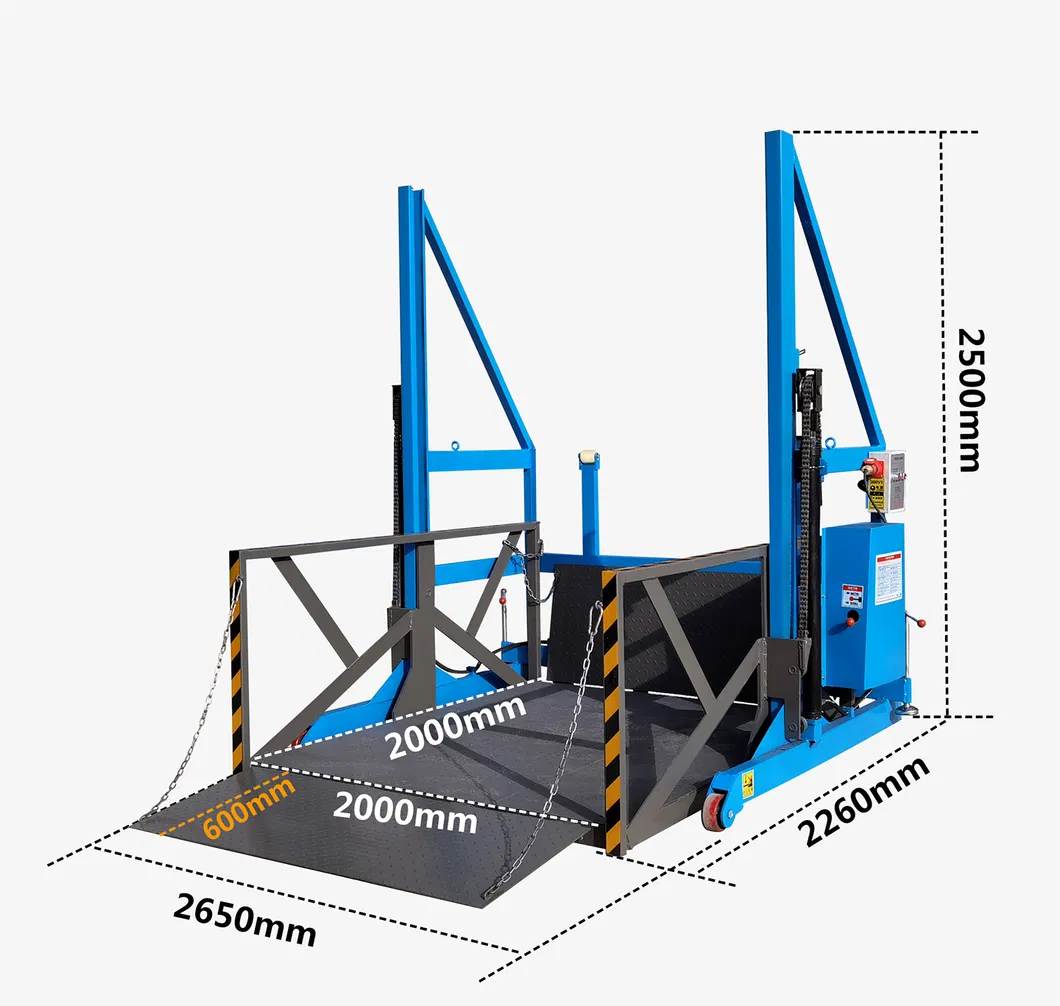

| 2000*2000mm |
1700mm |
2000KG |
4.5mm Patterned steel plate |
2.2kw/3kw |
800KG |
| SJYD-3T |
1600*2000mm |
1700mm |
3000KG |
4.5mm Patterned steel plate |
4kw |
988KG |
| 2000*2000mm |
1700mm |
3000KG |
4.5mm Patterned steel plate |
4kw |
1060KG |

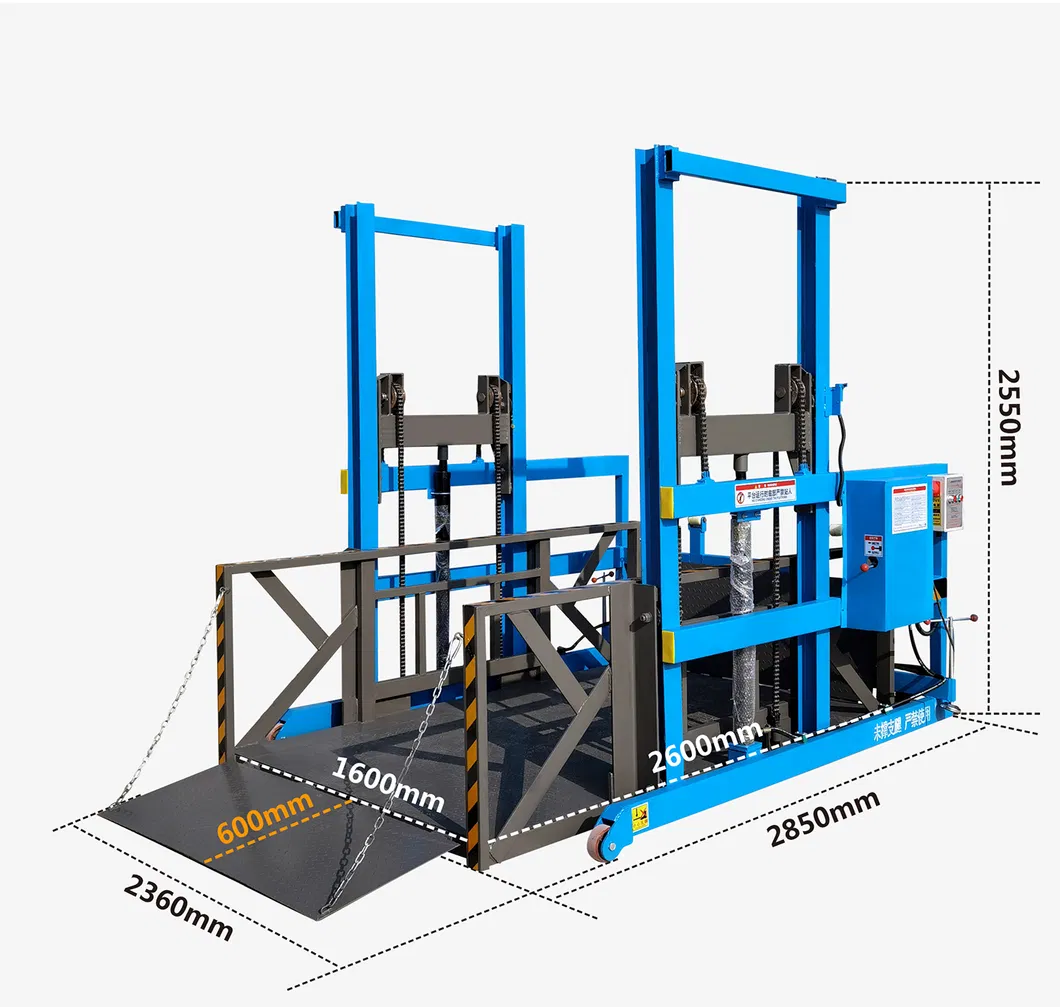

| 1600*2600mm |
1700mm |
3000KG |
4.5mm Patterned steel plate |
4kw |
1108KG |

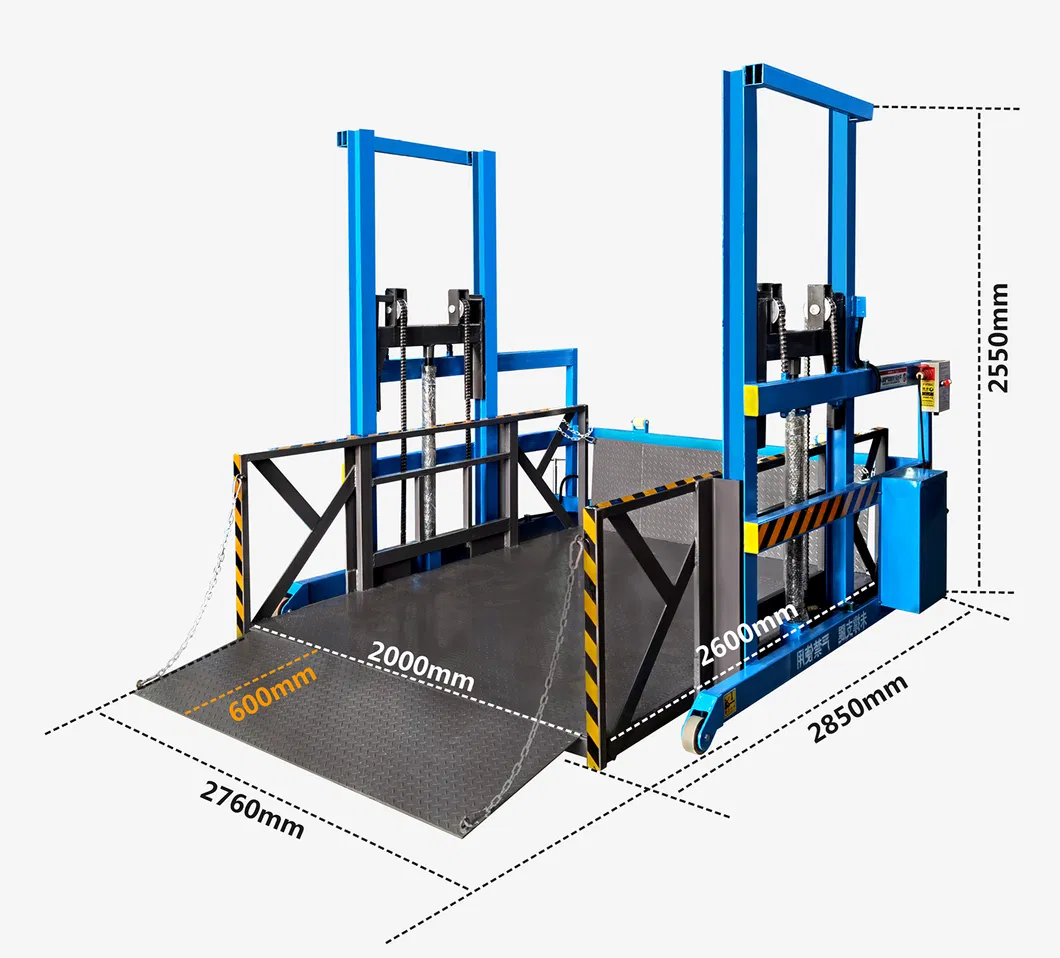

| 2000*2600mm |
1700mm |
3000KG |
4.5mm Patterned steel plate |
4kw |
1200KG |

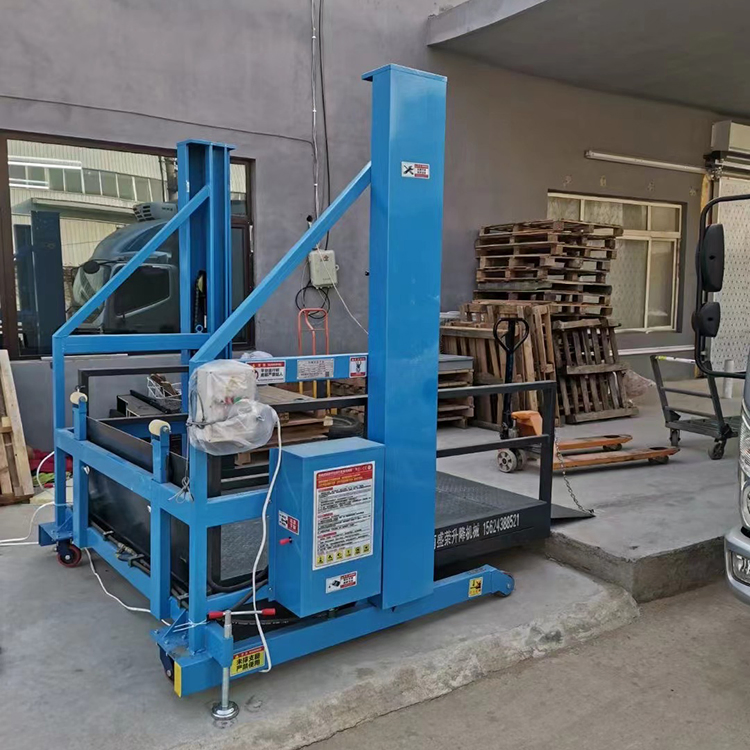

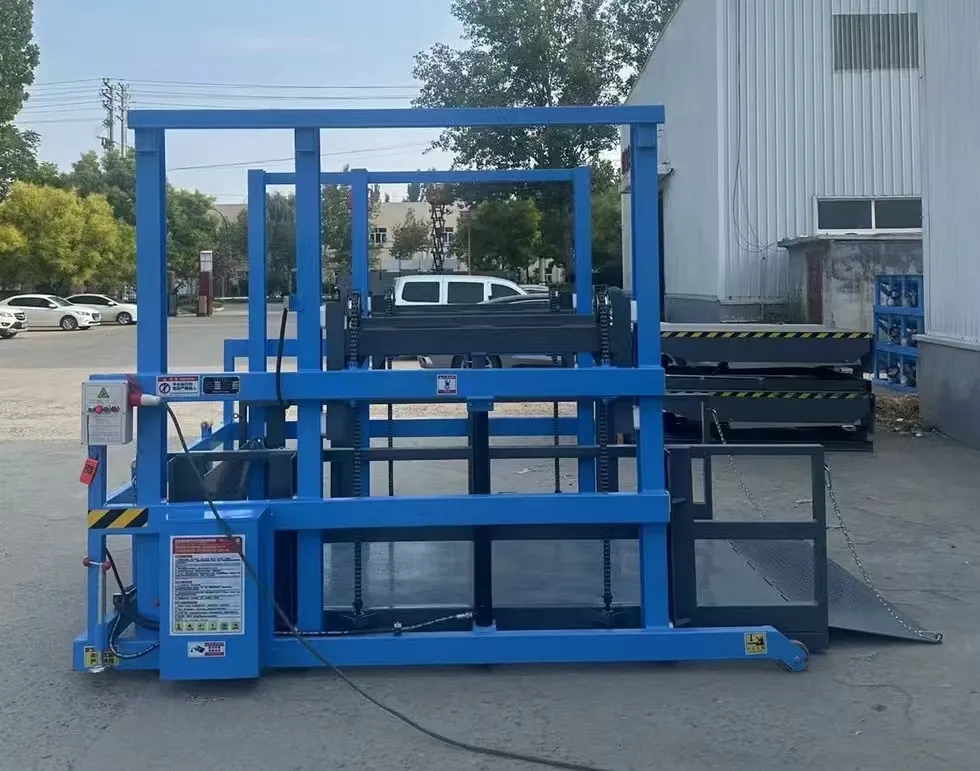

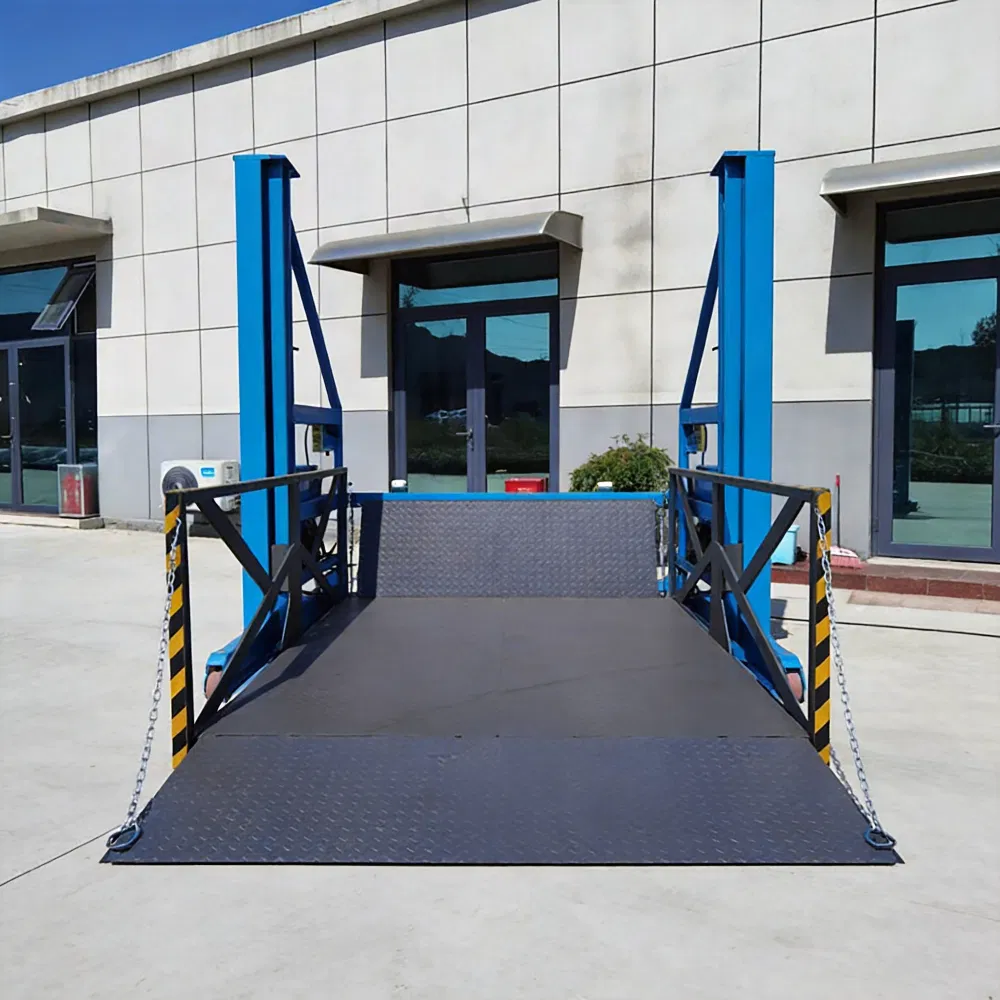

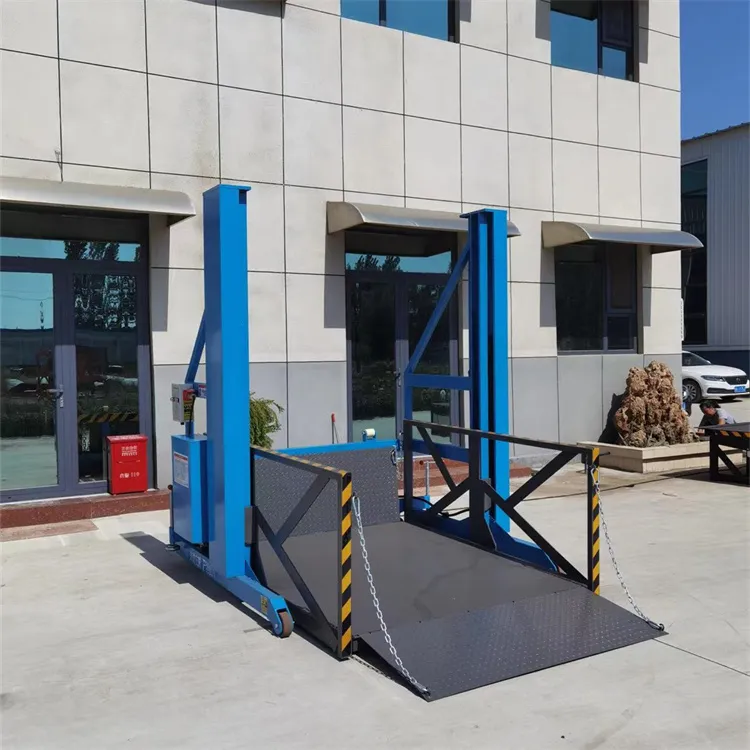

Product Gallery
Frequently Asked Questions
What is the maximum load capacity of these platforms?
The platforms are available in 2 Tons (2000KG) and 3 Tons (3000KG) specifications to suit different industrial requirements.
Does the installation require a foundation pit?
No, these mobile loading and unloading platforms are designed for convenience and do not require any pit construction, making them easy to move and deploy.
How is the lifting height controlled safely?
The system uses a 24V safe voltage wireless remote control and includes a travel limit device to ensure the platform stops at the correct height.
What happens if there is a power failure during operation?
The platform is equipped with a power failure emergency descending device, allowing the lift to be lowered safely even without electrical power.
What material is used for the platform surface?
The platform uses 4.5mm patterned steel plate, providing a high-strength and anti-slip surface for safe loading and unloading.
Is the equipment suitable for outdoor use?
Yes, it features an industrial waterproof aviation plug with an IP44 protection rating, making it resilient in various working environments.
