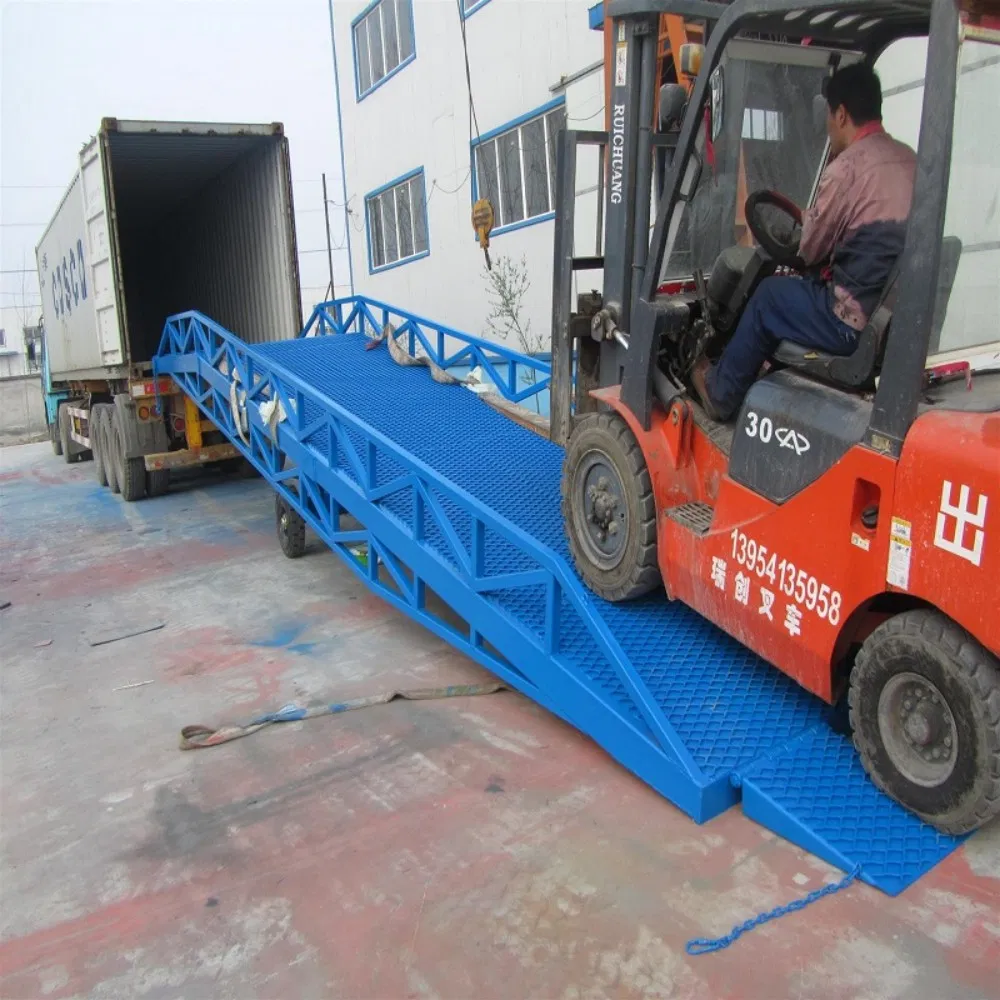

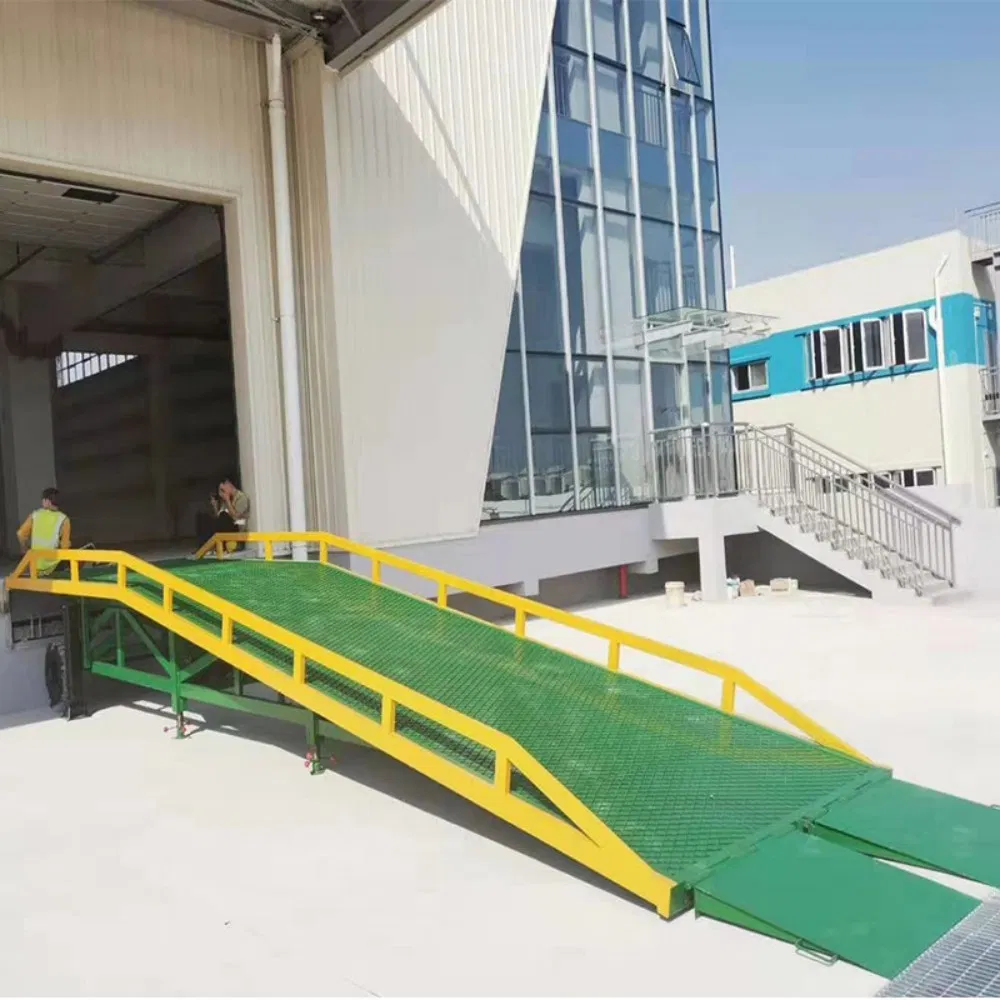

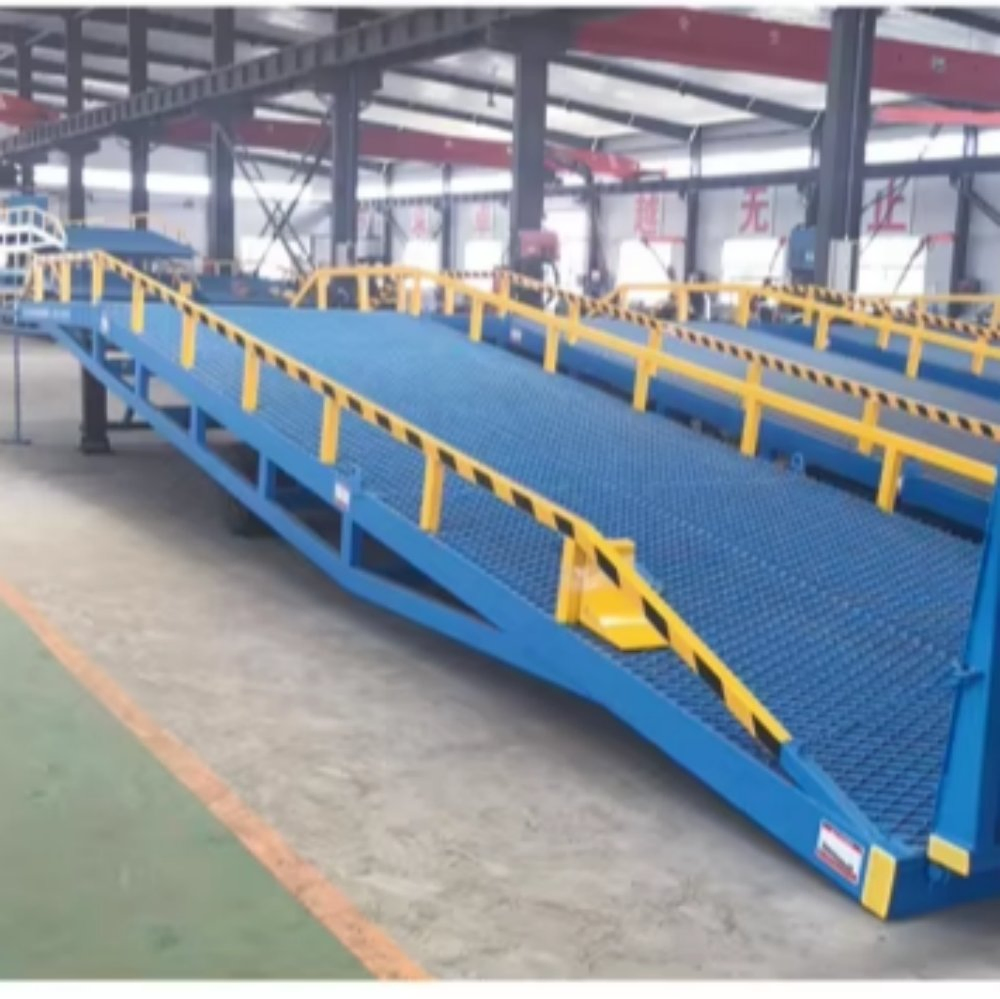

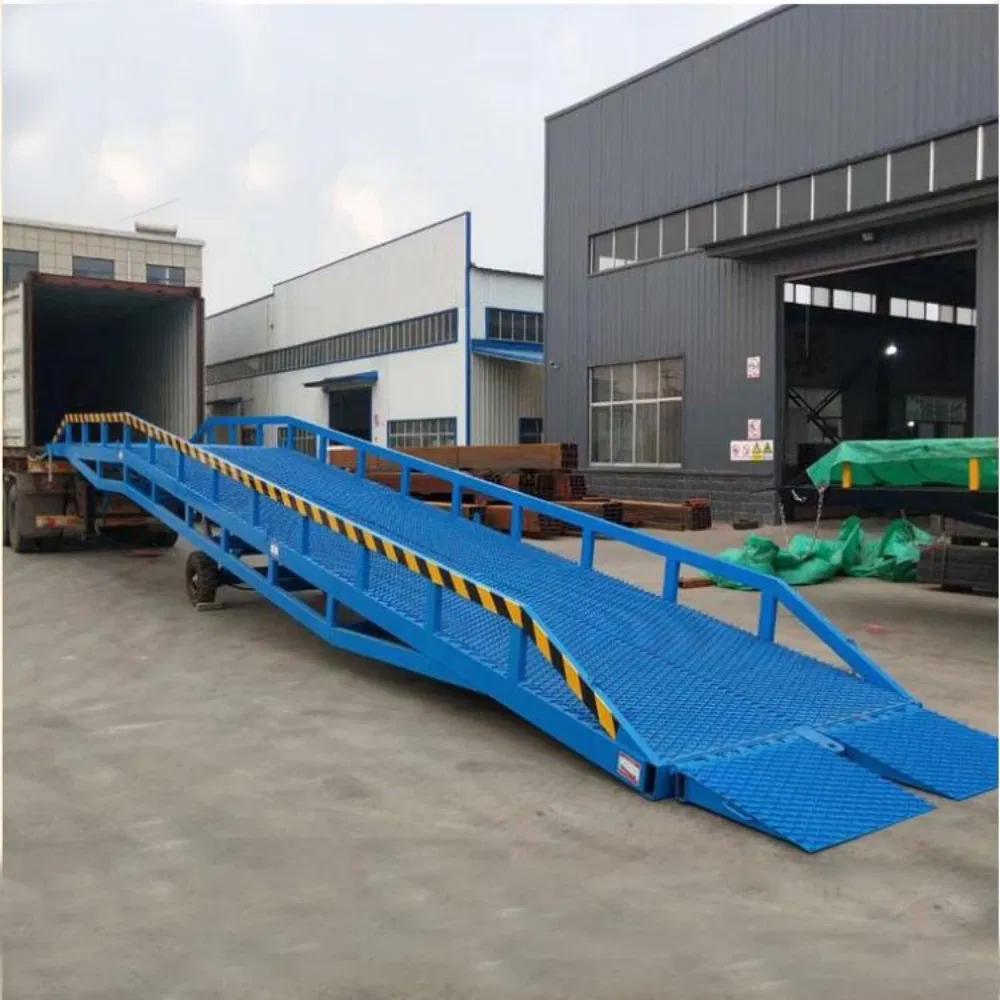

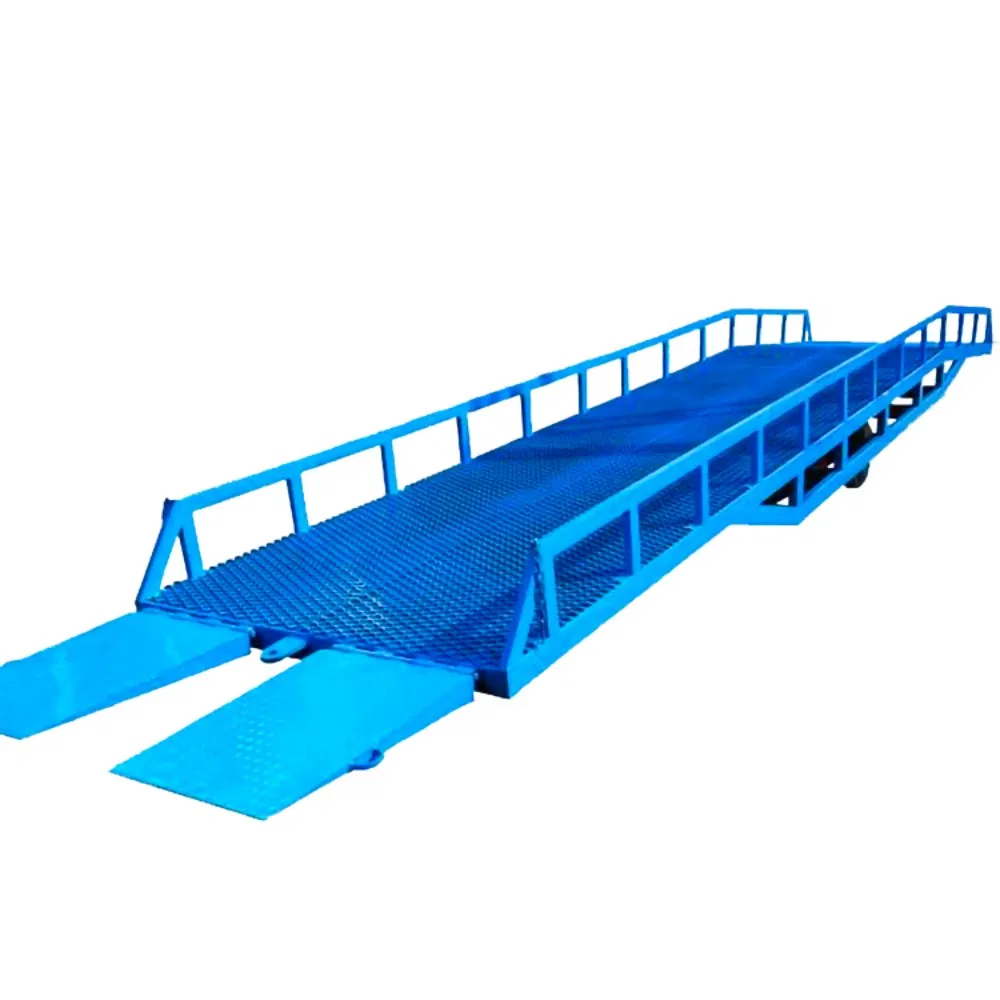

6t 8t 10t 12t Manual Electric Ramp Cargo Forklift Truck Mobile Boarding Bridge Hydraulic Dock Leveler

Customization: Available
After-sales Service: Online Support
Warranty: 1 Year

Product Description

!

Basic Information

Model NO.
Mobile Loading Ramp
Application
Workshop, Shipboard, Warehouse, Building
Lift Mechanism
Scissor Lift
Driven Type
Hydraulic
Certification
GS, CE
Material
Steel
Power Source
Manual
Load Capacity
6t / 8t / 10t / 12t / 15t

Product Description

A mobile boarding bridge, also known as a mobile loading dock, is a device that creates a temporary passage between the truck and the ground. It is made of high-strength materials and has a robust structure that can withstand the pressure of heavy loads. The design of the mobile boarding bridge allows goods to be easily transported from the ground to the truck, or unloaded from the truck to the ground, which greatly improves the efficiency of logistics and transportation.

A dock leveler, also referred to as a dock ramp or loading dock leveler, is a mechanical device utilized to bridge the gap between a loading dock and a truck or trailer. Its primary objective is to facilitate the safe and efficient loading and unloading of goods or materials.

Dock levelers ensure a seamless transition between the dock and the truck bed, enabling smooth movement of forklifts and other material handling equipment. They compensate for differences in height and potential unevenness, guaranteeing a stable and secure transfer of goods.
Mobile Loading Ramp Overview

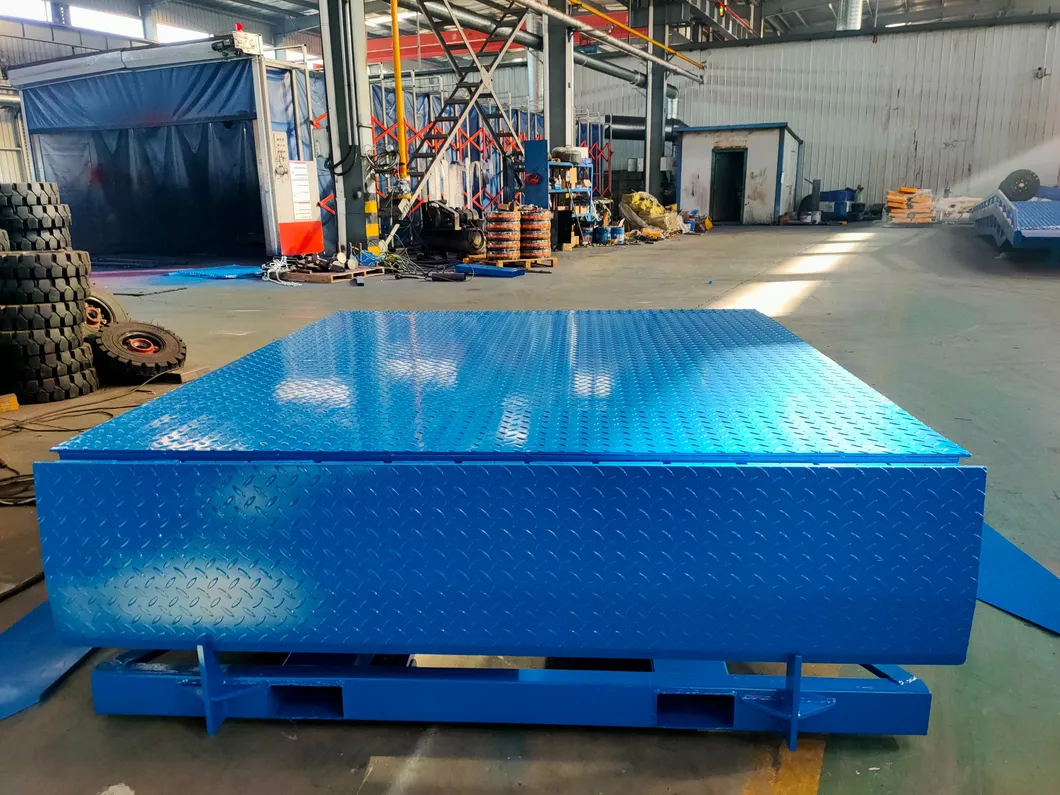

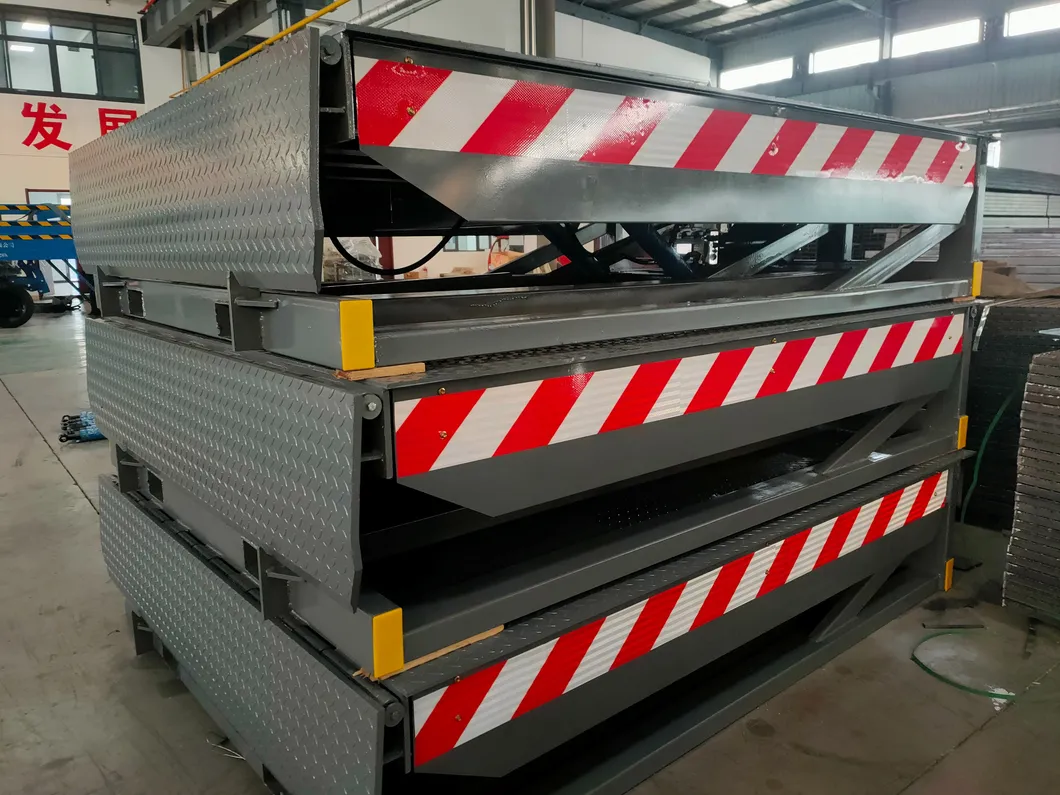

Mobile Boarding Bridge Details Hydraulic Dock Leveler Operation

Technical Specifications

Model MFQY-6 MFQY-8 MFQY-10 MFQY-12 MFQY-15
Overall Size 11300*2100 11300*2100 11300*2100 11300*2100 11300*2100
Slope Length 7150mm 7150mm 7150mm 7150mm 7150mm
Platform Length 3000mm 3000mm 3000mm 3000mm 3000mm
Load Capacity 6t 8t 10t 12t 15t
Adjustable Range 1100-1800mm 1100-1800mm 1100-1800mm 1100-1800mm 1100-1800mm
Main Beam 160*80*4mm 160*80*4mm 160*80*4mm 200*100*5mm 200*100*6mm

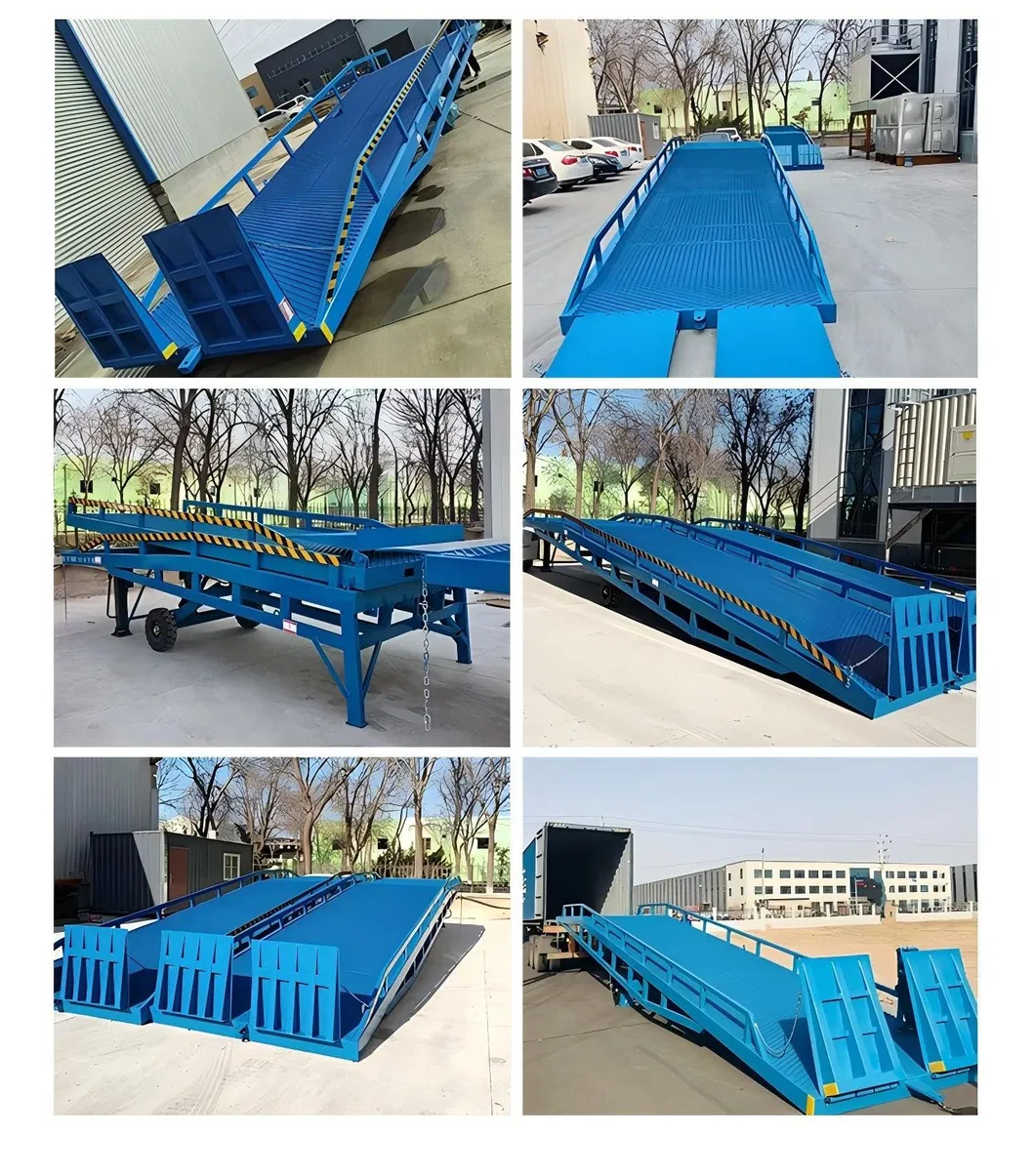

Product Diagram

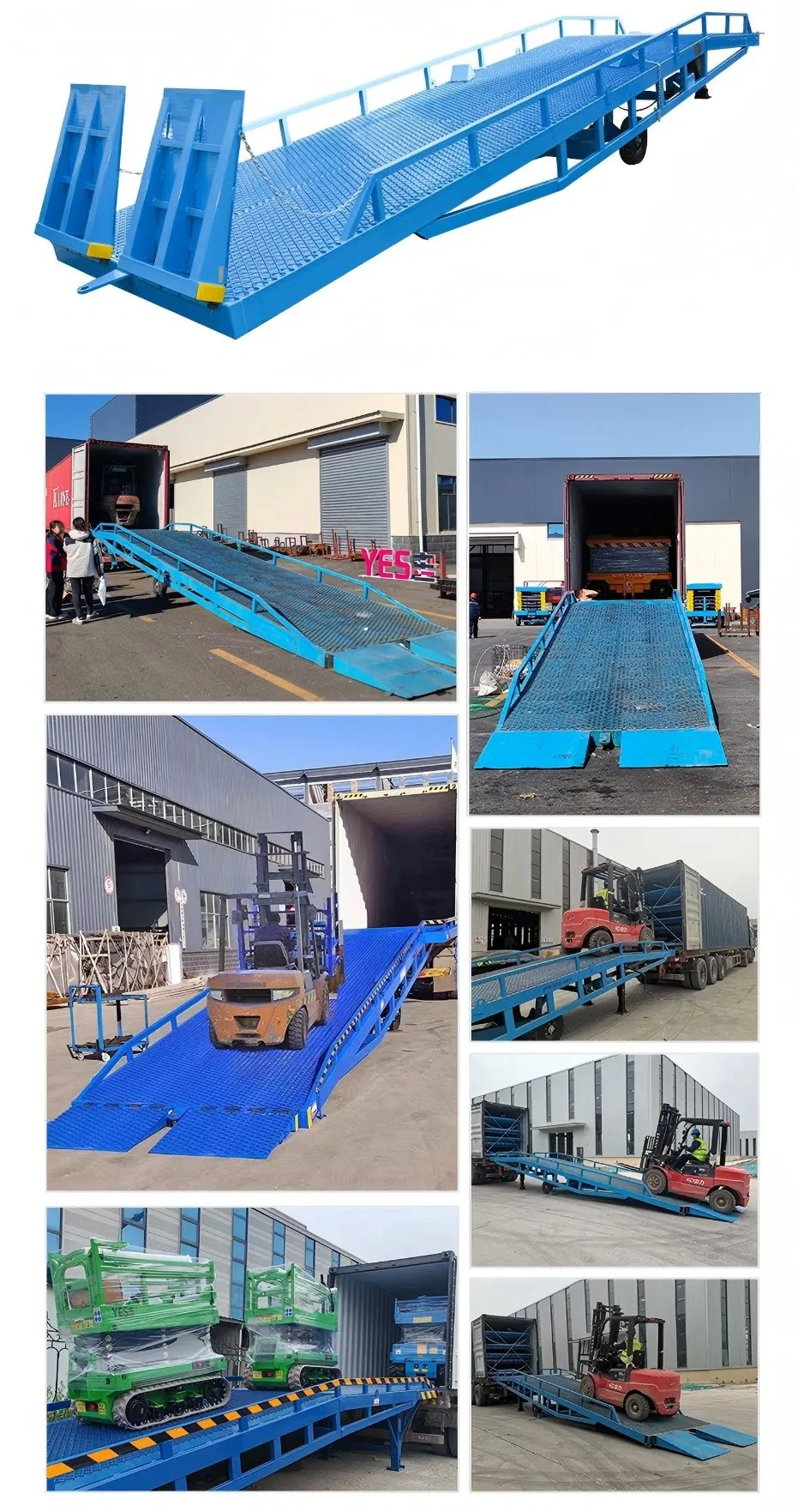

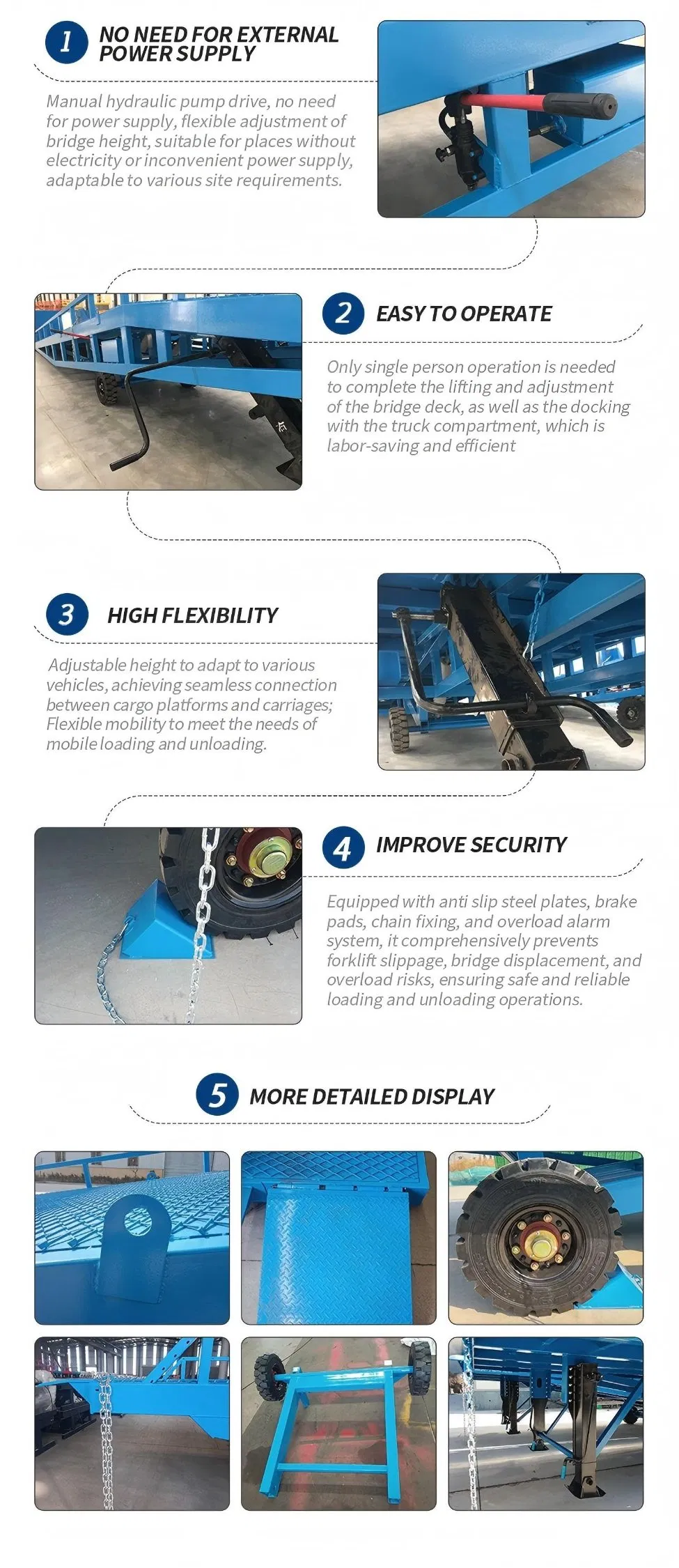

Structure Detail 1 Structure Detail 2

Recommended Products

Recommended Lifting Equipment
i

Manufacturing Excellence

Production Facility Separator

Packaging & Shipping

Packaging Details
?

Frequently Asked Questions

What information should I provide when inquiring?
Please provide details or drawings regarding: A: lift capacity, B: span, C: lift height, D: crane traveling distance, E: power source.
What is your minimum order quantity?
The minimum order quantity (MOQ) is 1 set.
How are the products packaged for delivery?
The main body is packaged with plywood boxes or plastic woven fabrics; spare parts are secured inside plywood boxes for safety.
What is your typical delivery cycle time?
Delivery usually occurs within 10 to 40 days after receiving the advance payment, depending on specific requirements and actual production schedules.
Do you provide additional lifting accessories?
Yes, we can provide various accessories such as hooks, grab buckets, magnets, pulley blocks, locks, wire ropes, and fiber ropes.
Do you support custom OEM/ODM services?
Yes, our factory fully supports OEM/ODM services to meet your specific technical requirements.
