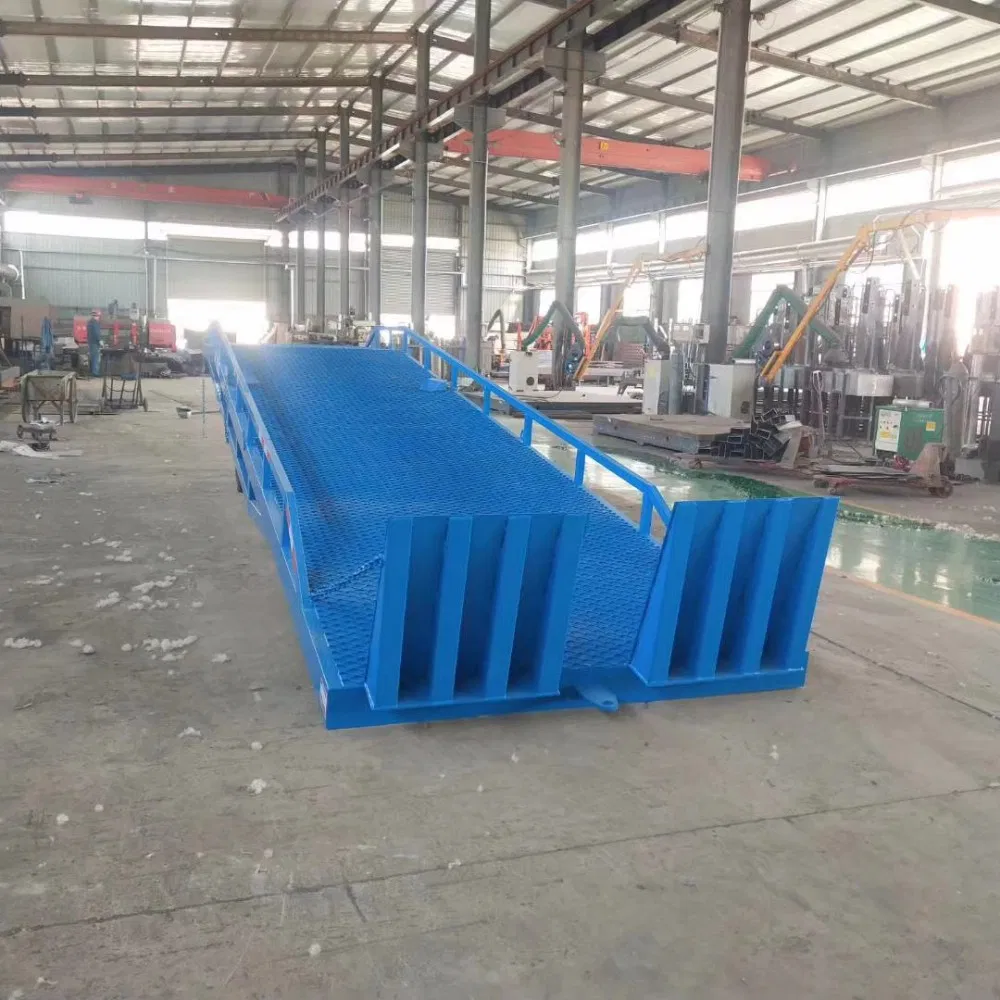

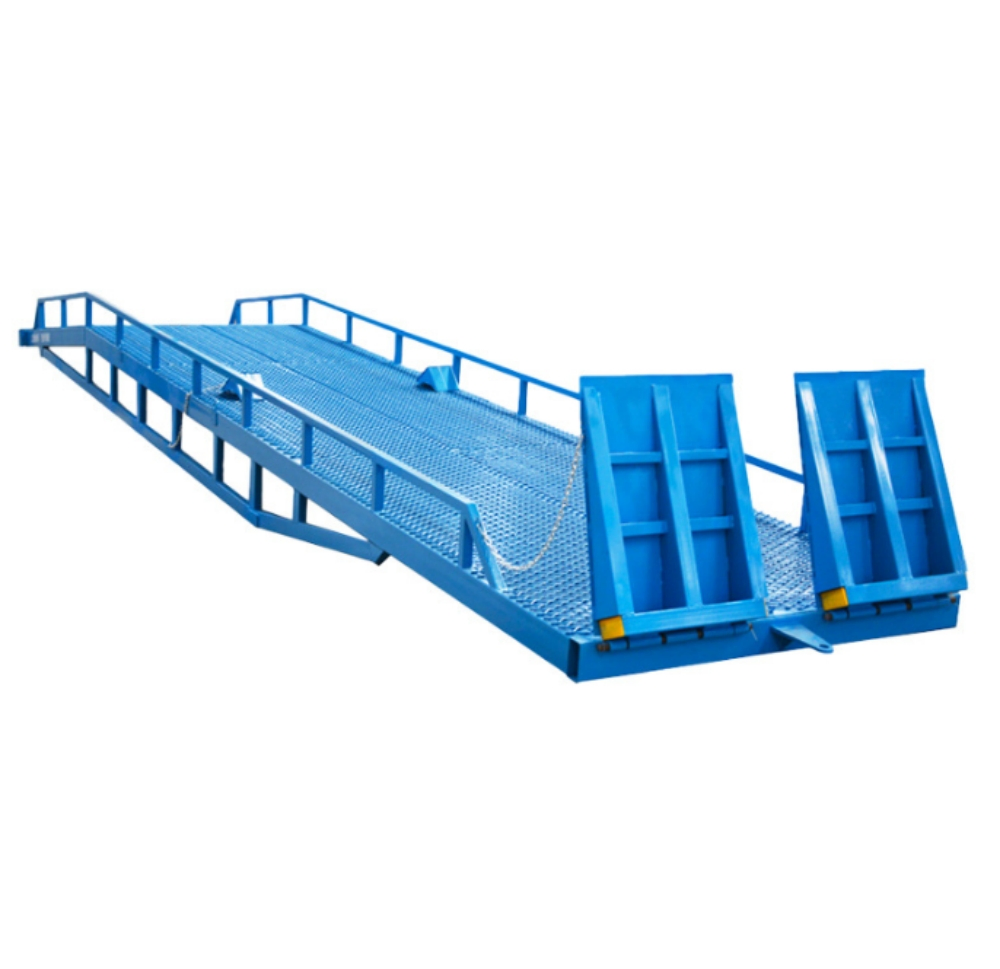

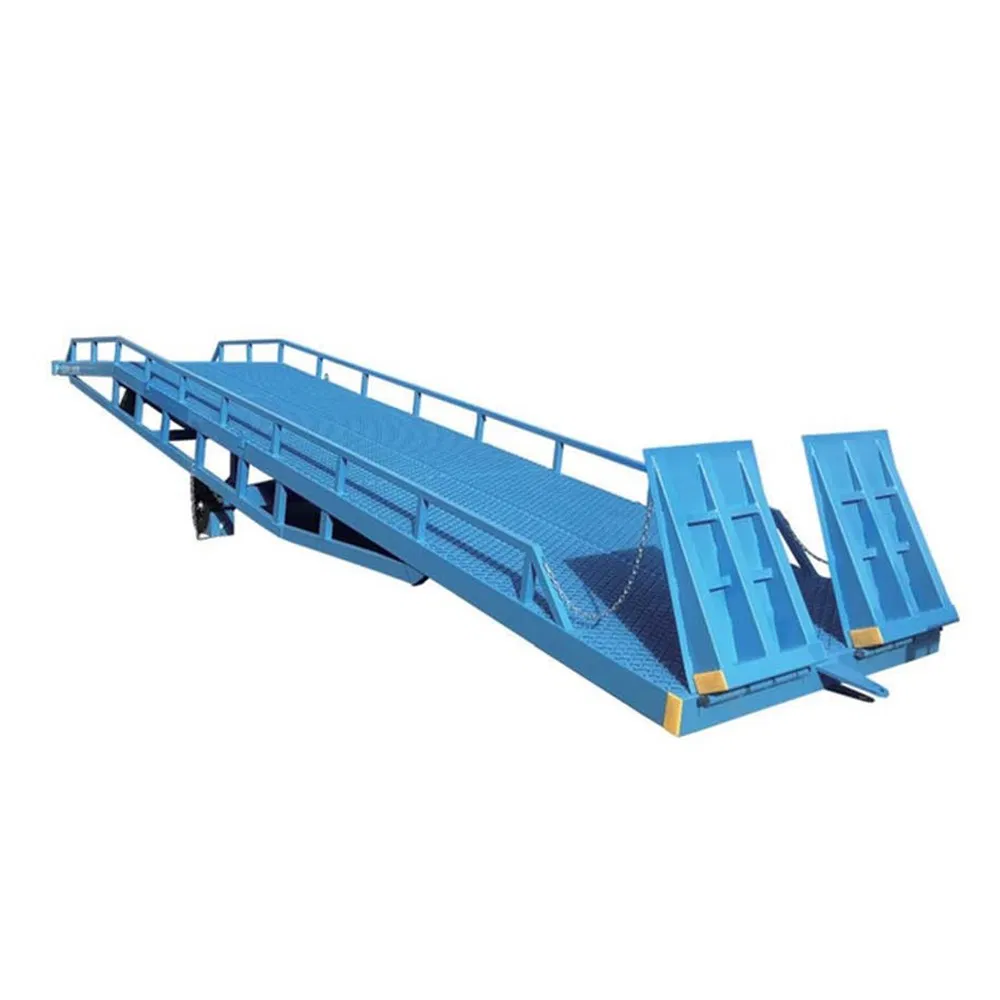

6-10 Ton Foldable Mobile Boarding Bridge New Condition Hydraulic Container Loading Unloading Platform for Restaurant Industries

Customization: Available
After-sales Service: Online Support
Warranty: 1 Year

Product Description

i

Basic Information

Model NO.
Mobile Loading Ramp
Application
Workshop, Shipboard, Warehouse, Building Cranes
Lift Mechanism
Scissor Lift
Driven Type
Hydraulic
Running Mode
Moving
Certification
GS, CE
Material
Steel
Power Source
Manual
Load Capacity
6tons to 15tons
Production Capacity
5000 pieces/Year
D

Product Description

Mobile Boarding Bridge

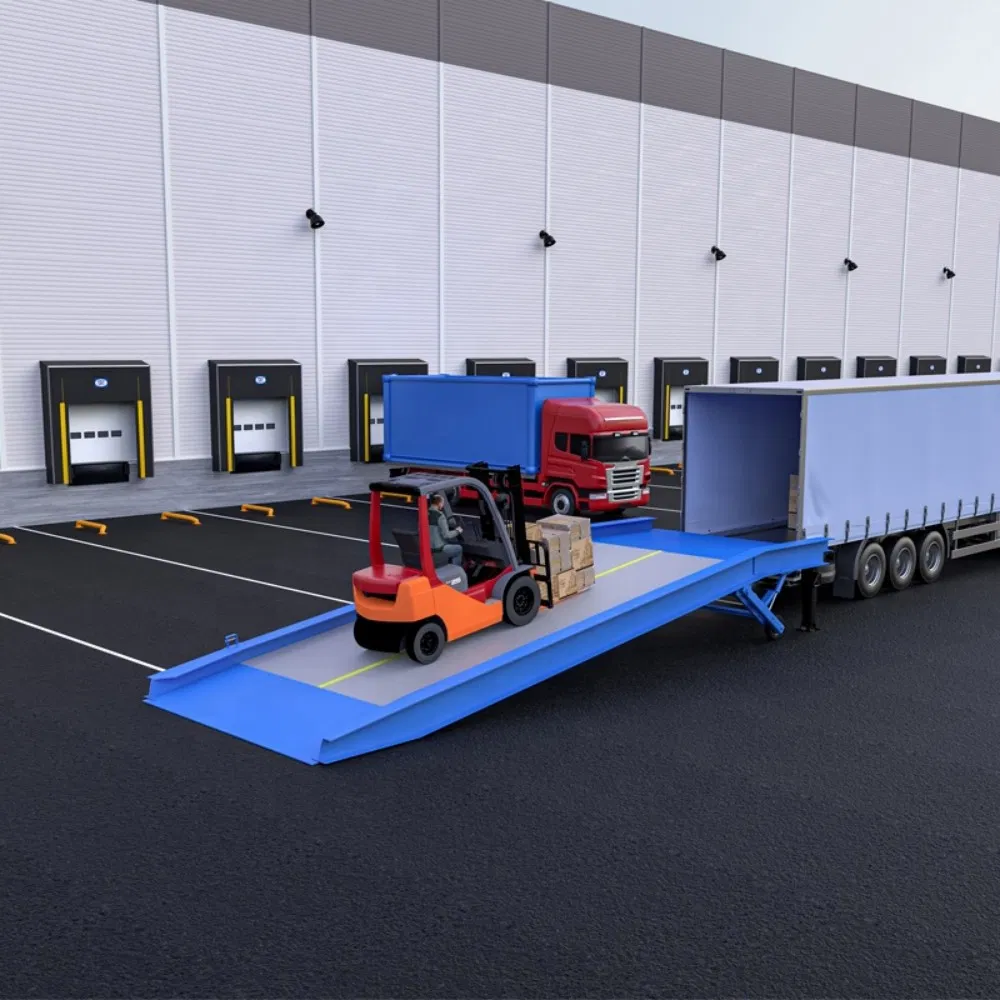

A mobile boarding bridge, also known as a mobile loading dock, is a device that creates a temporary passage between the truck and the ground. It is made of high-strength materials and has a robust structure that can withstand the pressure of heavy loads. The design of the mobile boarding bridge allows goods to be easily transported from the ground to the truck, or unloaded from the truck to the ground, which greatly improves the efficiency of logistics and transportation.

A dock leveler, also referred to as a dock ramp or loading dock leveler, is a mechanical device utilized to bridge the gap between a loading dock and a truck or trailer. Its primary objective is to facilitate the safe and efficient loading and unloading of goods or materials. Dock levelers ensure a seamless transition between the dock and the truck bed, enabling smooth movement of forklifts and other material handling equipment.

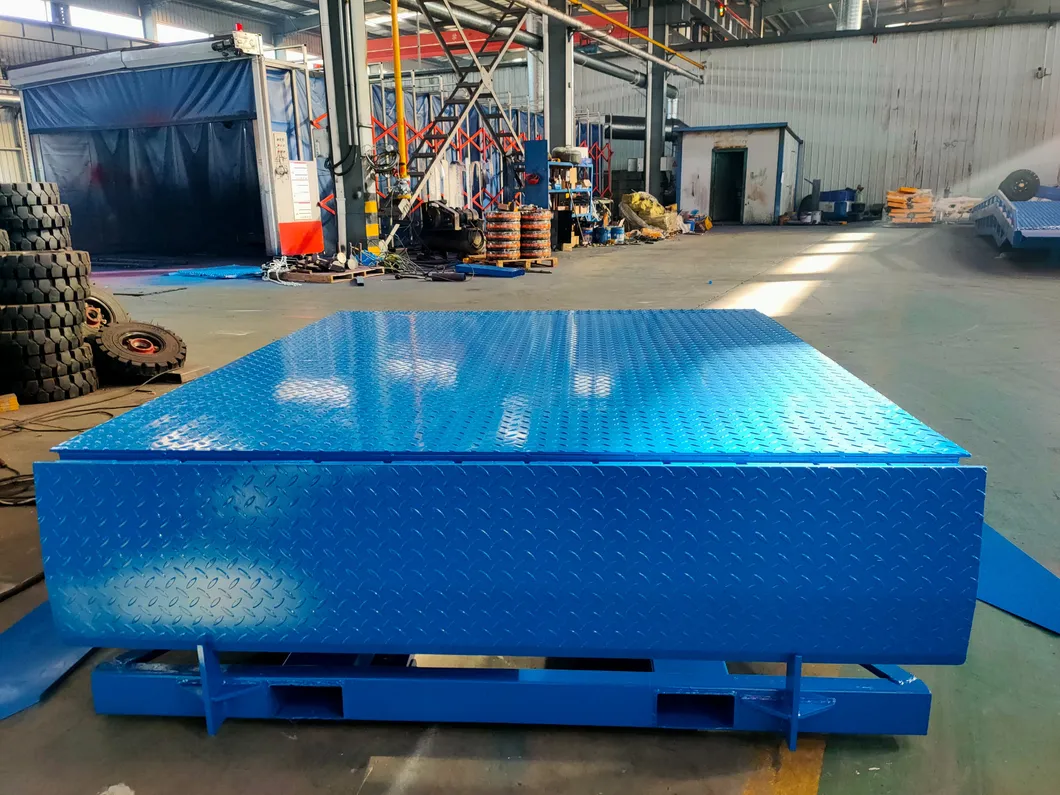

Loading Platform View 1

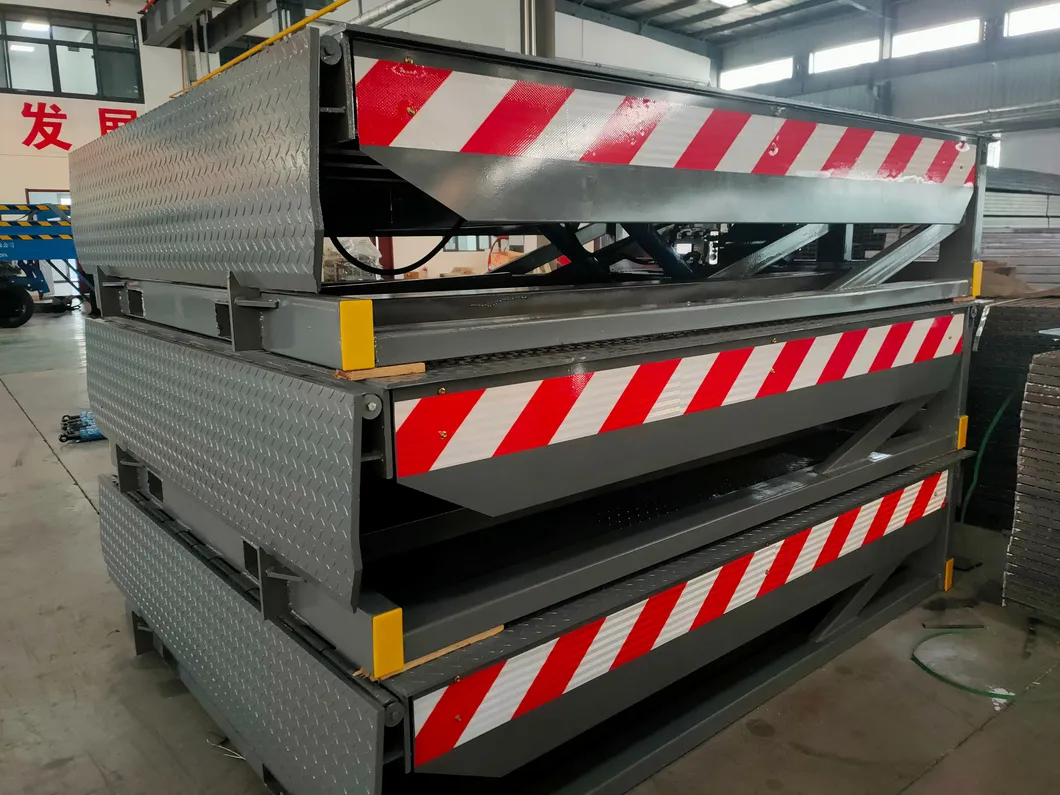

Loading Platform View 2
T

Technical Specifications

Model MFQY-6 MFQY-8 MFQY-10 MFQY-12 MFQY-15
Overall Size 11300*2100 11300*2100 11300*2100 11300*2100 11300*2100
Slope Length 7150mm 7150mm 7150mm 7150mm 7150mm
Platform Length 3000mm 3000mm 3000mm 3000mm 3000mm
Width 2100mm 2100mm 2100mm 2100mm 2100mm
Load Capacity 6t 8t 10t 12t 15t
Adjustable Range 1100-1800mm 1100-1800mm 1100-1800mm 1100-1800mm 1100-1800mm
Main Beam 160*80*4mm 160*80*4mm 160*80*4mm 200*100*5mm 200*100*6mm
Overall Weight ±2200kg ±2400kg ±2600kg ±3300kg ±4000kg
V

Product Details & Gallery

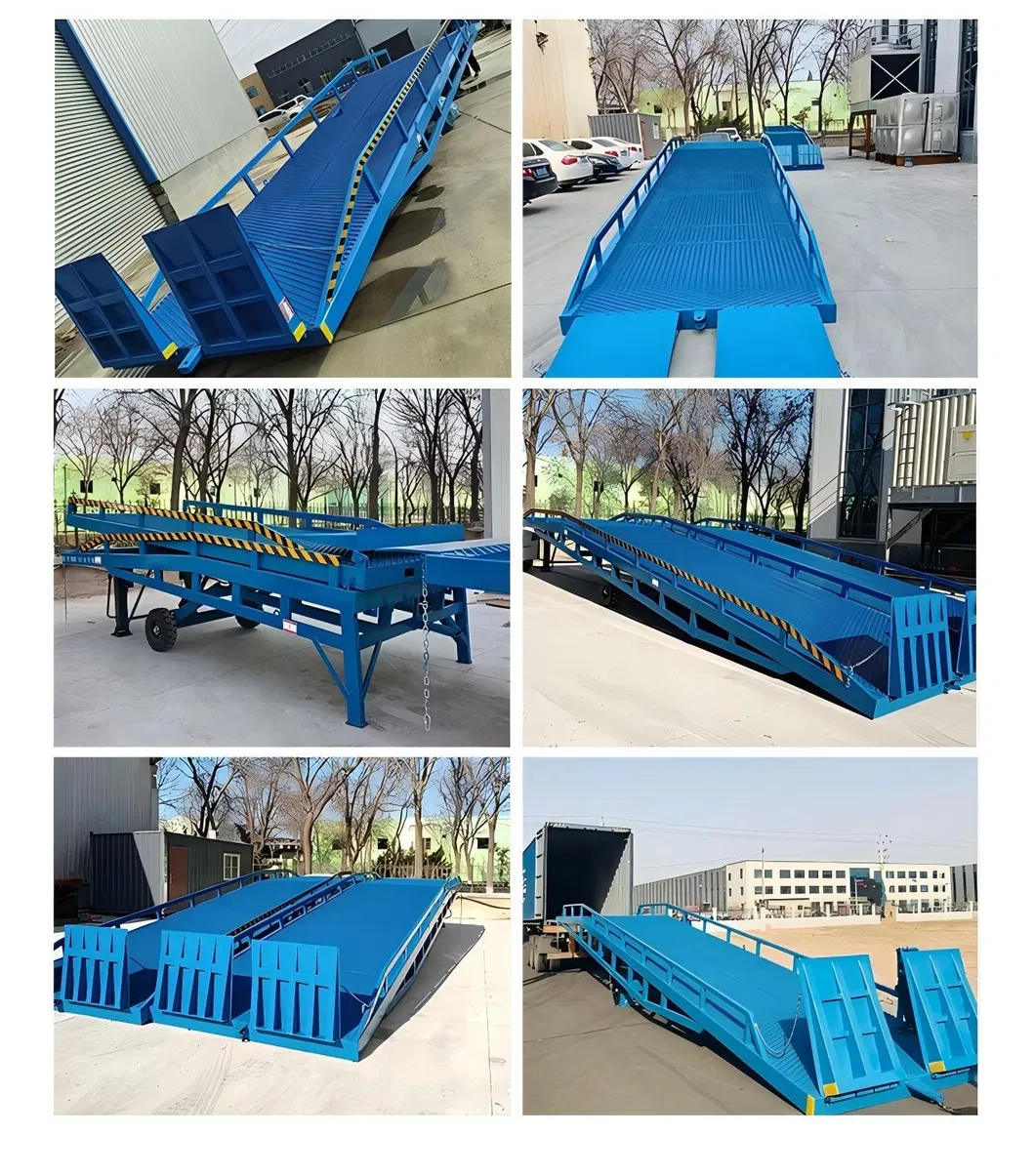

Structure Detail 1

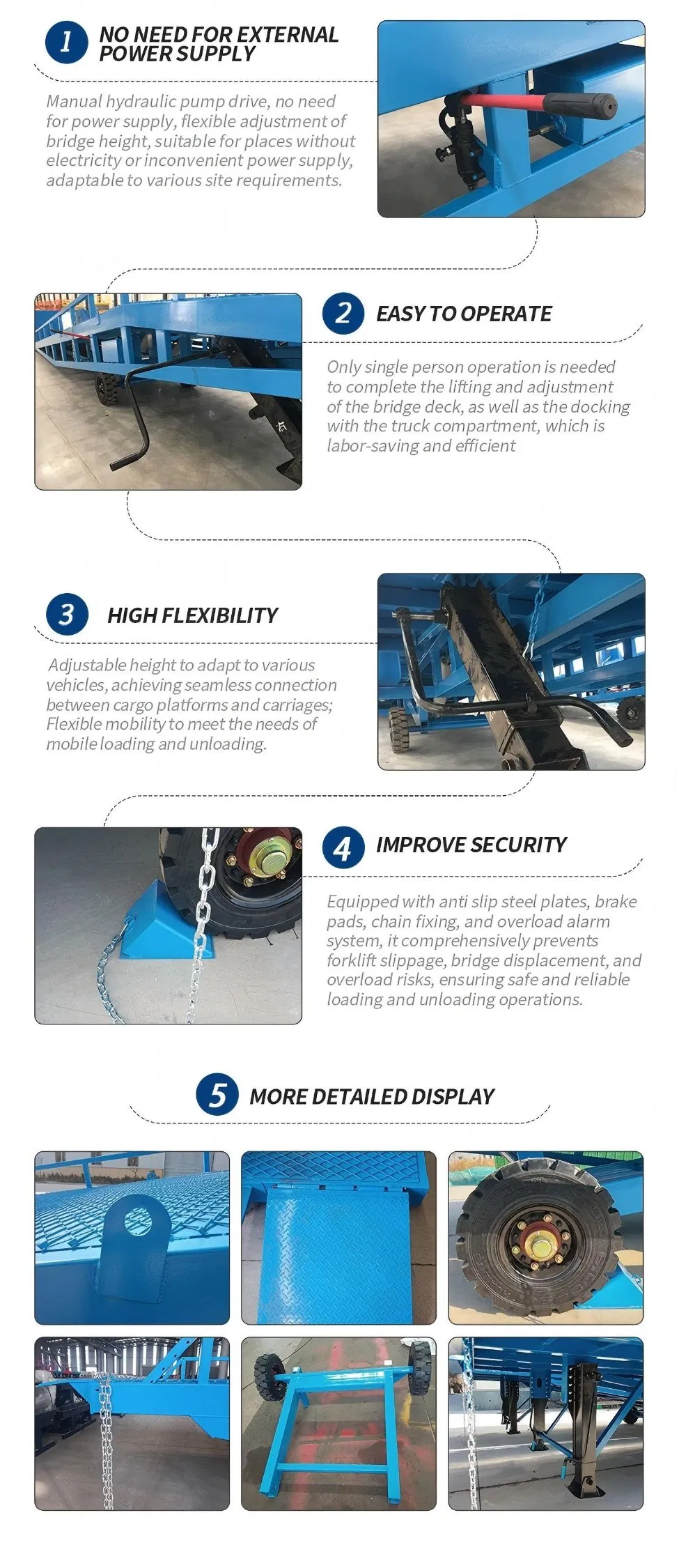

Structure Detail 2

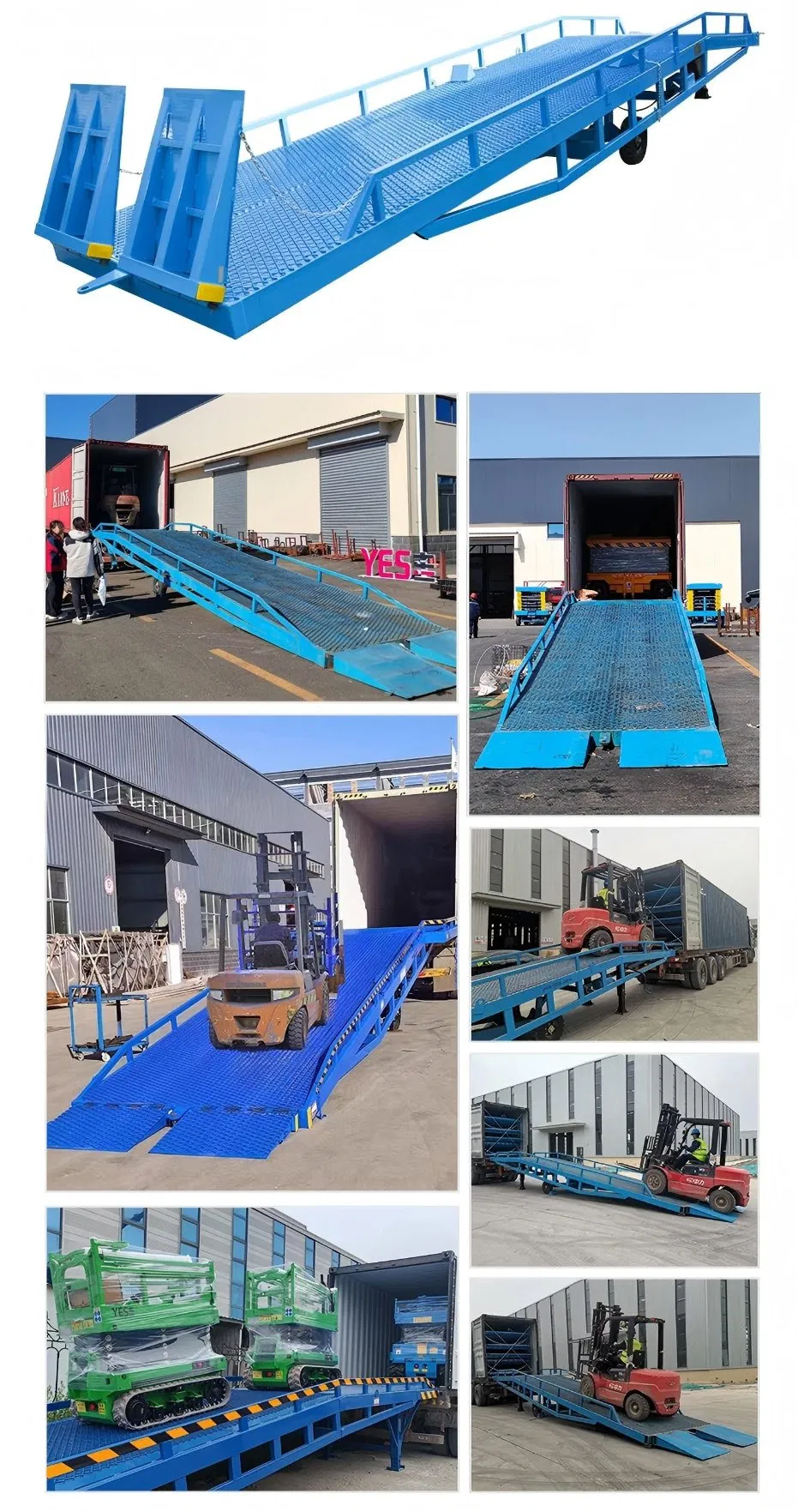

Structure Detail 3
R

Recommended Solutions

Recommended Products
L

Packaging & Shipping

Packaging Process
?

Frequently Asked Questions

What information should I provide when making an inquiry?
Please provide details or drawings if possible, including: lift capacity, span, lift height, crane traveling distance, and power source.
What is your minimum order quantity (MOQ)?
Our minimum order quantity is 1 set.
How are the products packaged for delivery?
The main body is packaged with plywood boxes or plastic woven fabrics. Spare parts are securely placed inside plywood boxes for protection.
What is the typical delivery cycle time?
Delivery usually occurs within 10, 25, or 40 days after receiving the advance payment, depending on detailed requirements and actual production schedules.
Do you provide additional lifting accessories?
Yes, we can provide various crane accessories such as hooks, grab buckets, magnets, pulley blocks, locks, wire ropes, and fiber ropes.
Do you offer custom OEM/ODM services?
Yes, our factory fully supports OEM and ODM services to meet your specific technical requirements.
