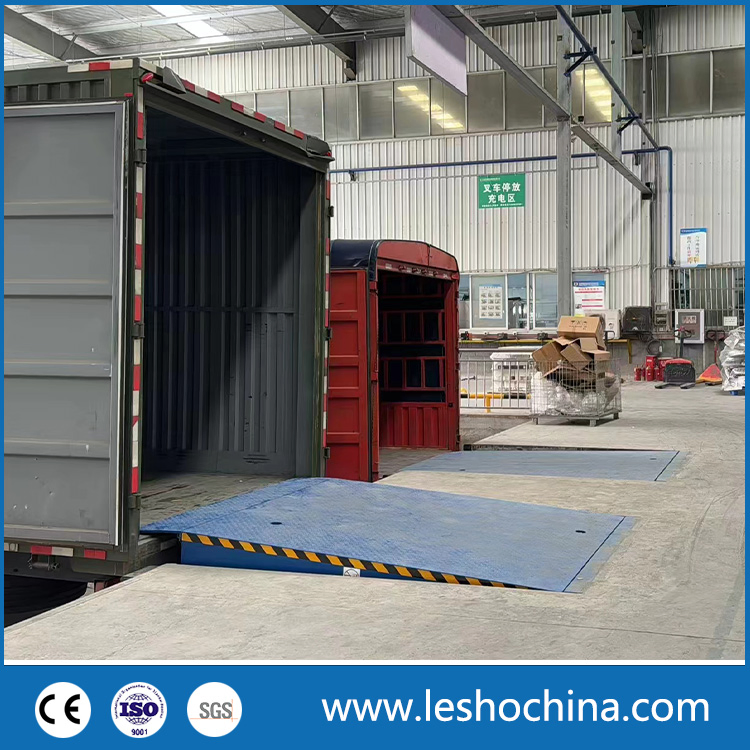

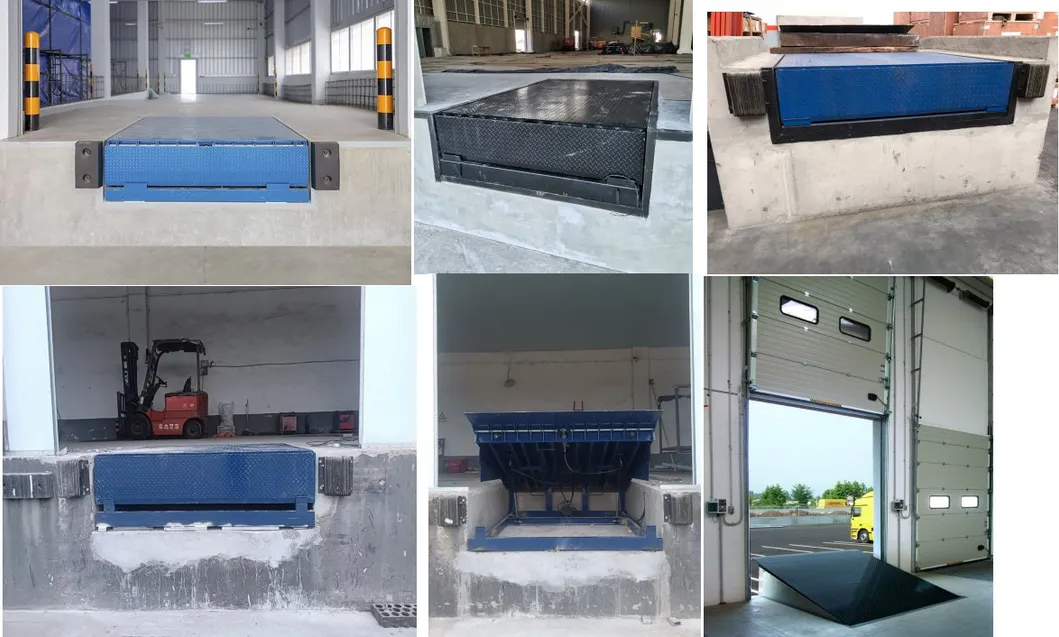

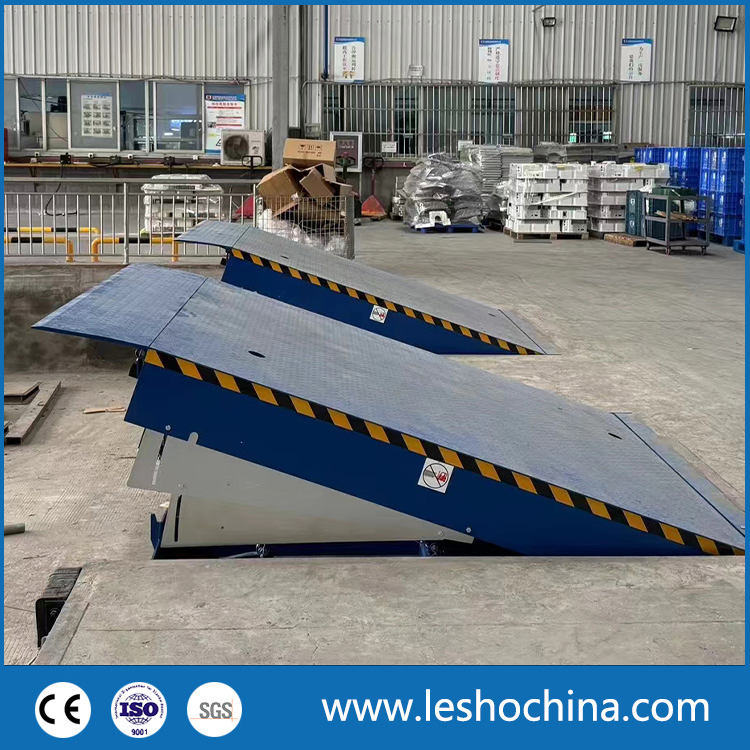

Automatic Stationary Fixed Hydraulic Dock Leveler or Dock Ramp

The dock leveler is the best solution to adjust the height difference between the loading platform and the container truck.

The height can be adjusted arbitrarily, the adjustment range is large, the loading and unloading efficiency is improved, and the manpower is saved.

Widely used for large enterprises with frequent loading and unloading vehicles, warehouses, stations, docks, logistics bases, postal transportation, distribution, etc.

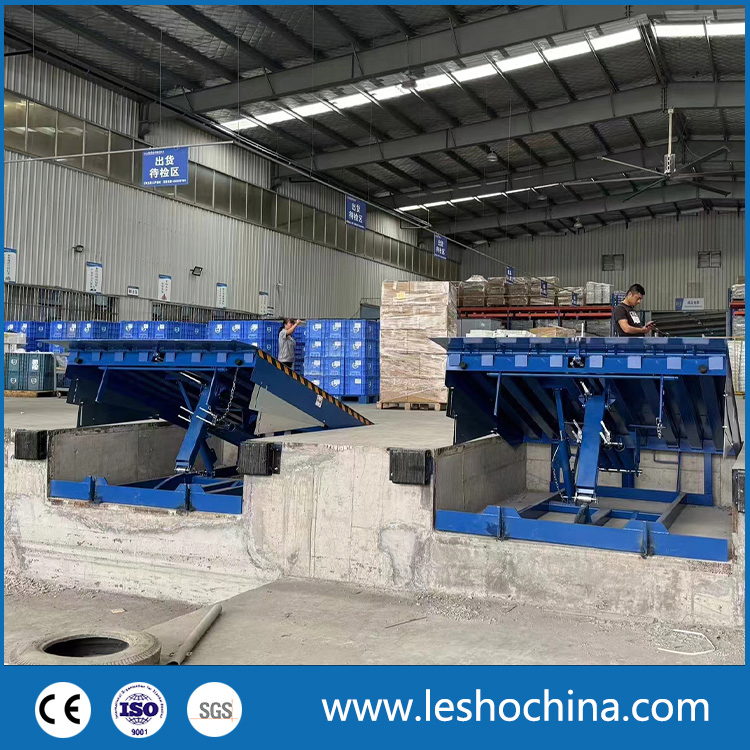

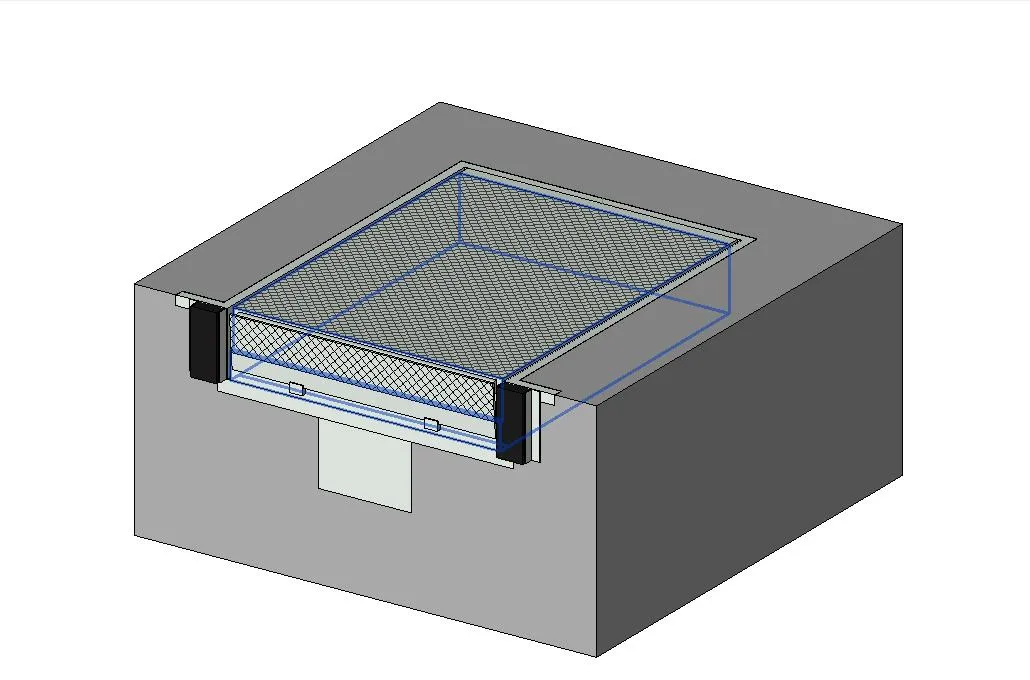

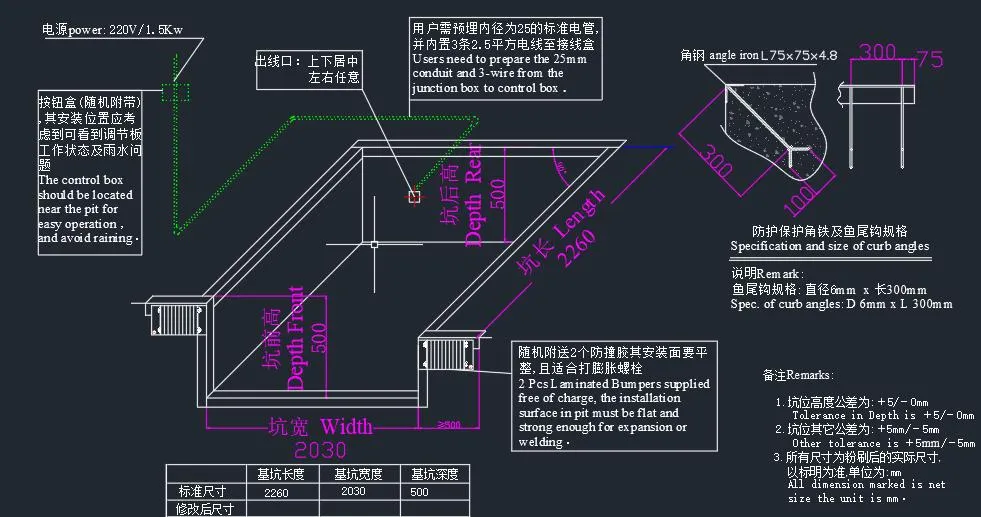

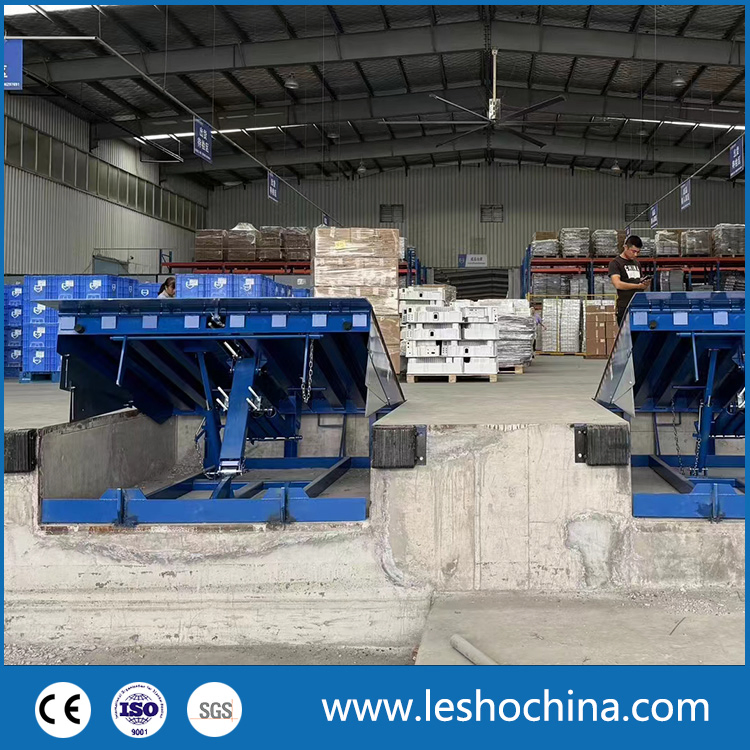

Accurate shop drawings to show the pit dimension clearly, ensuring accurate construction without misunderstanding.

• Width=1830mm, Length=2000m, Height=500mm
• Width=2000mm, Length=2000m, Height=500mm
• Width=2000mm, Length=2500m, Height=500mm

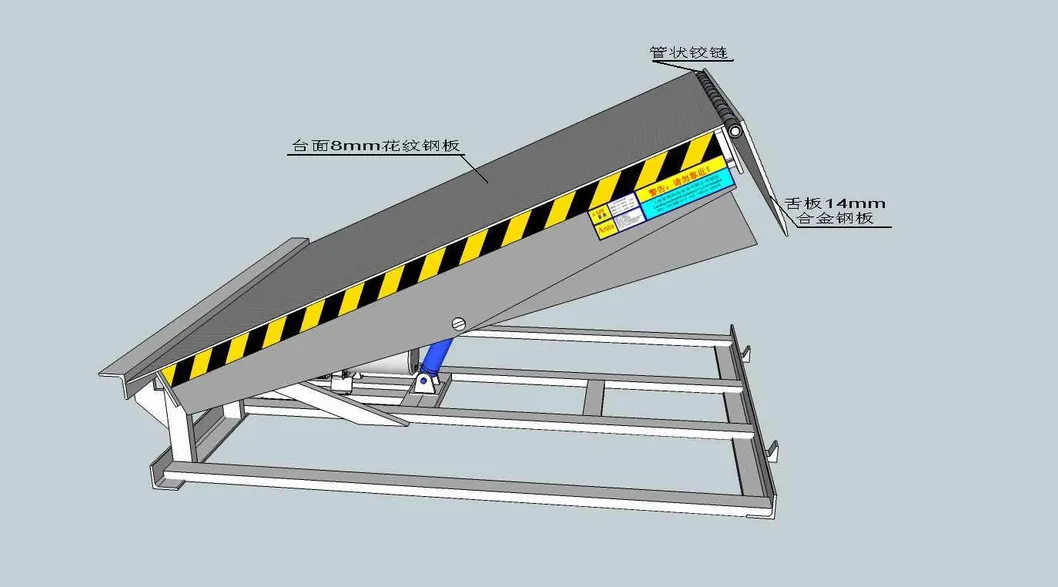

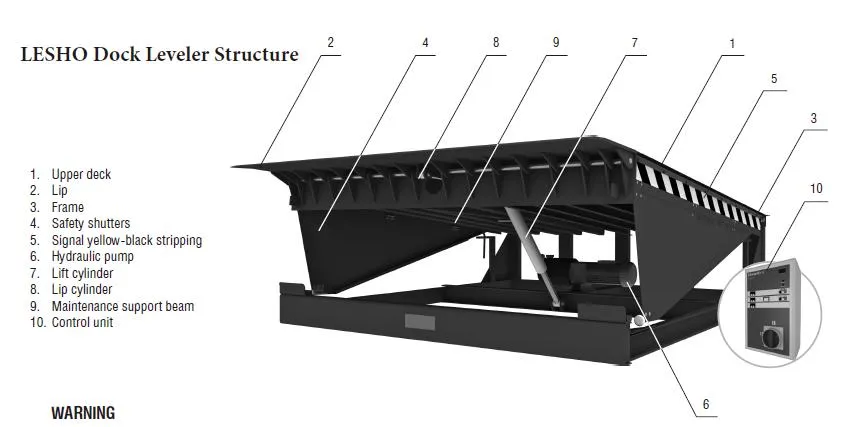

• Surface sheet: 6mm-8mm thick whole set steel plate based on capacity.
• Whole-piece steel sheet design for higher strength and longer life.
• Underneath support: High-density steel tube or C-channel.
• Surface treatment: Blasting and powder coating for rust proofing.

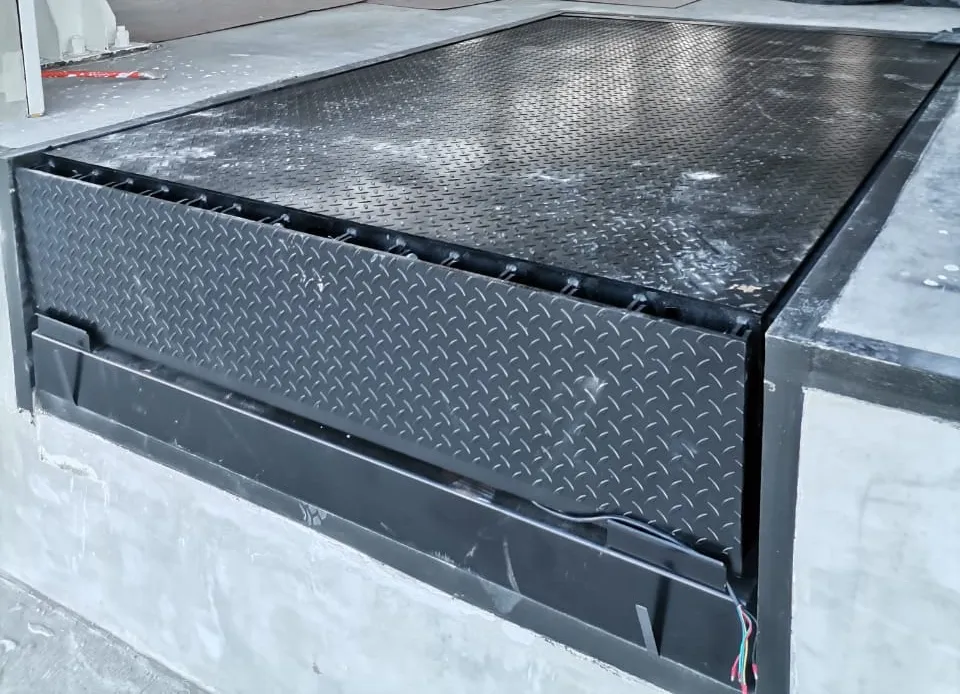

Top Lip: 12-16mm thick steel with special embossed anti-skidding treatment.

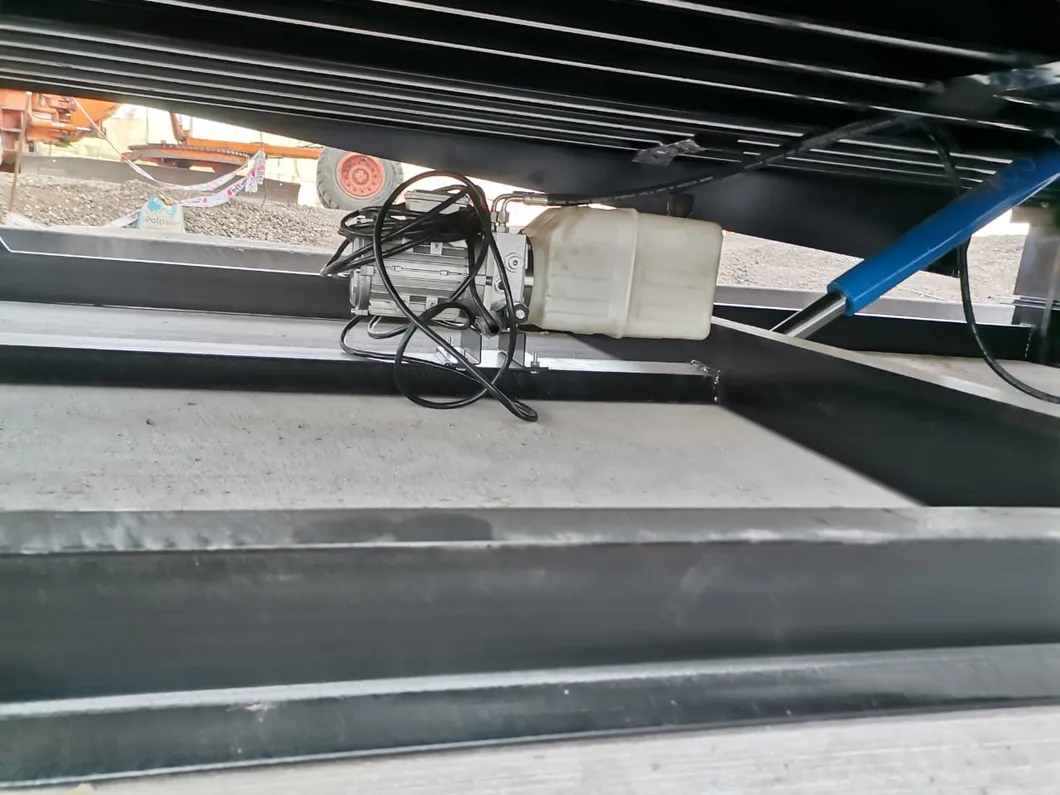

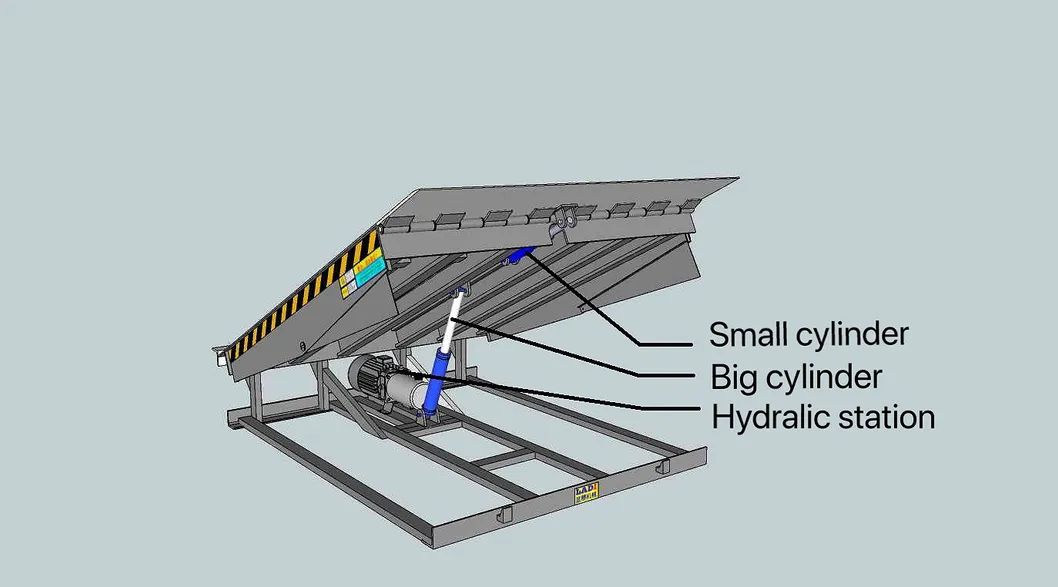

Hydraulic Motor: 3-phase 380V/50Hz, 0.75KW-1.5KW with overheating self-protection.

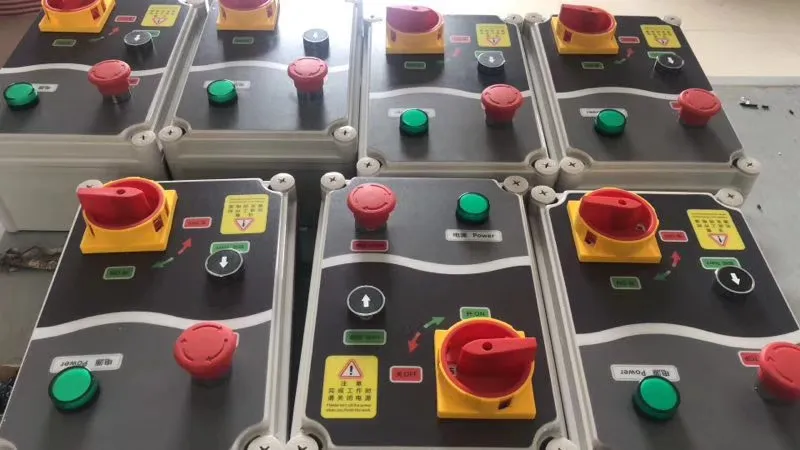

Control Panel: Multi-function with one-touch operation, power switch, and emergency stop.

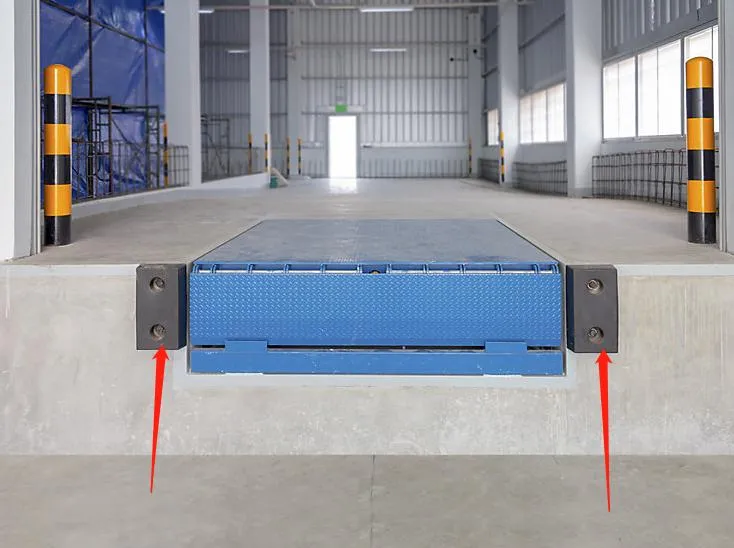

Dock Bumper: Wear-proof high-strength rubber fixed with expansion bolts.

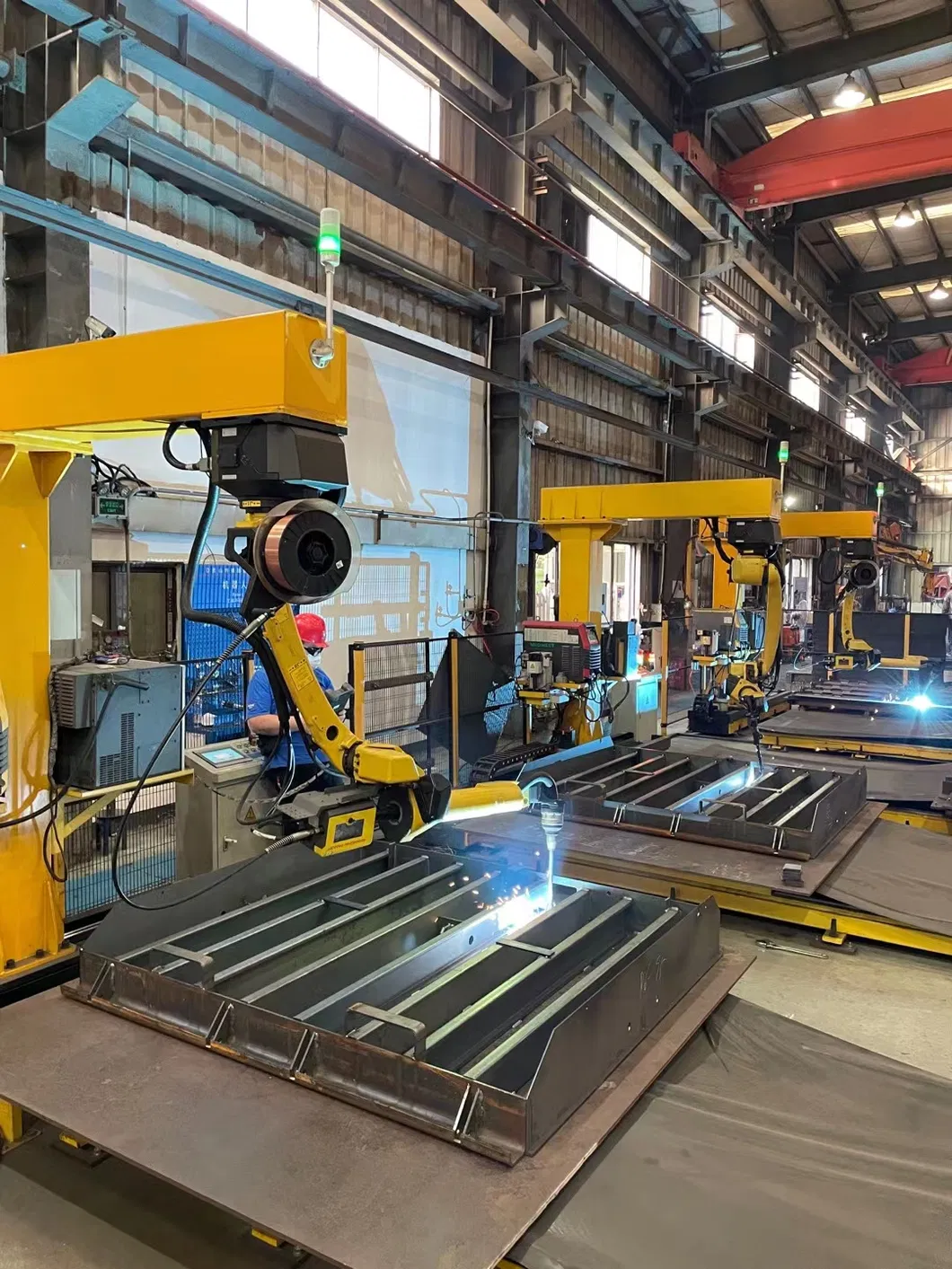

Welding Robot technology ensures the welding work is accurate and robust.

• Assembly bears 120% nominal load; recovery after static pressure.
• Anti-skid groove milling on high-strength 8mm+ platform plate.
• Heat-treated Hinge and Shaft to reduce deformation.
• European imported hydraulic drive station for stable, high-frequency work.
• Epoxy resin paint coating for high anti-corrosion.

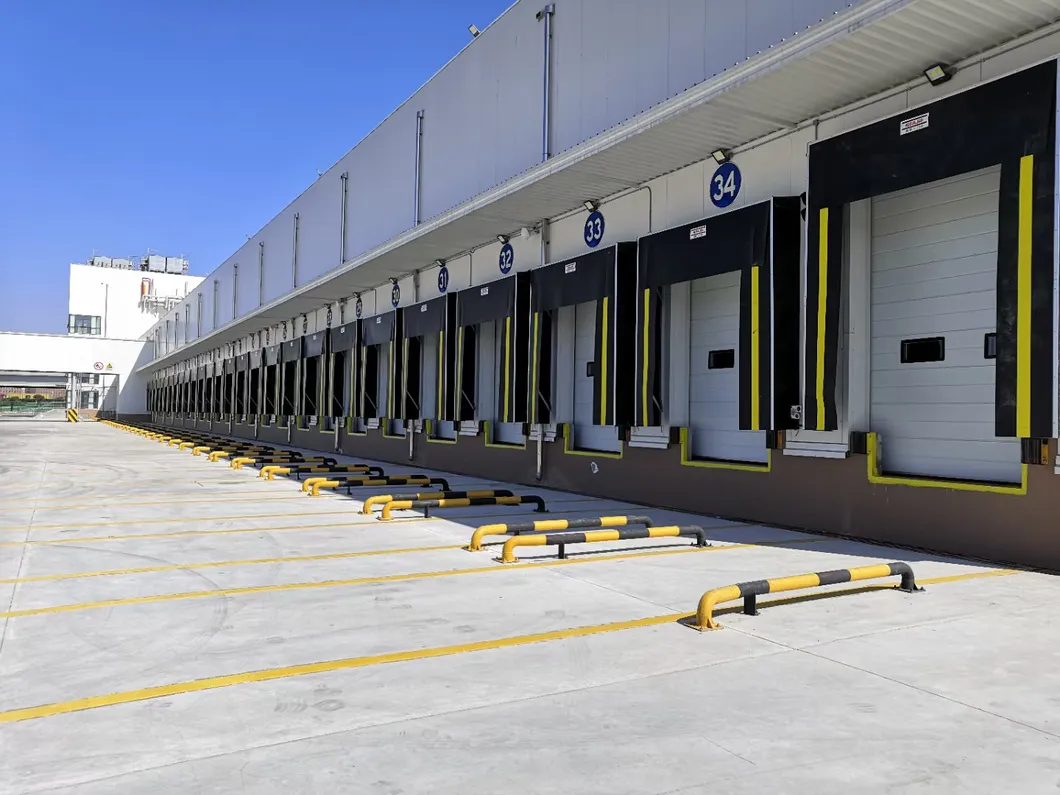

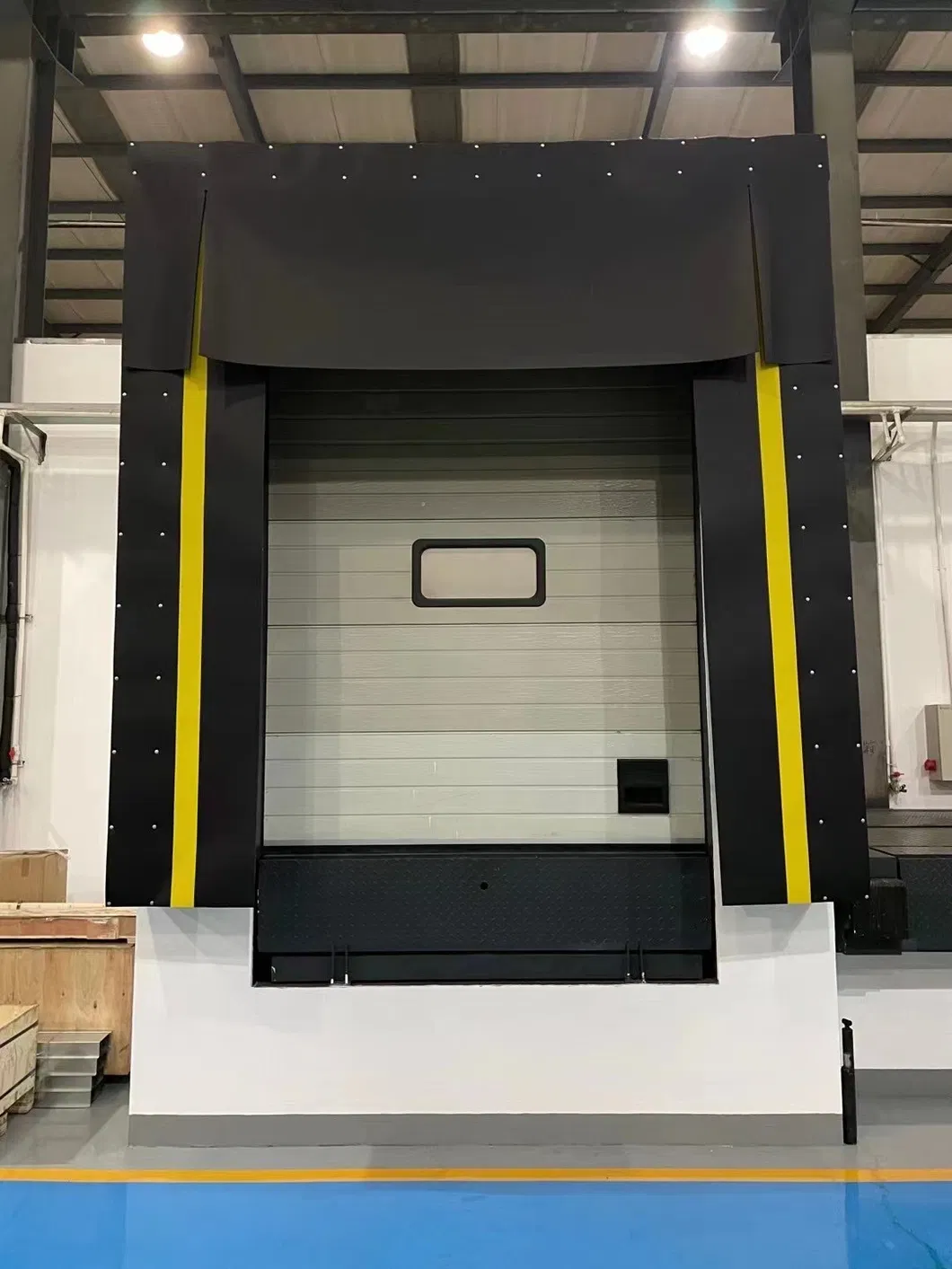

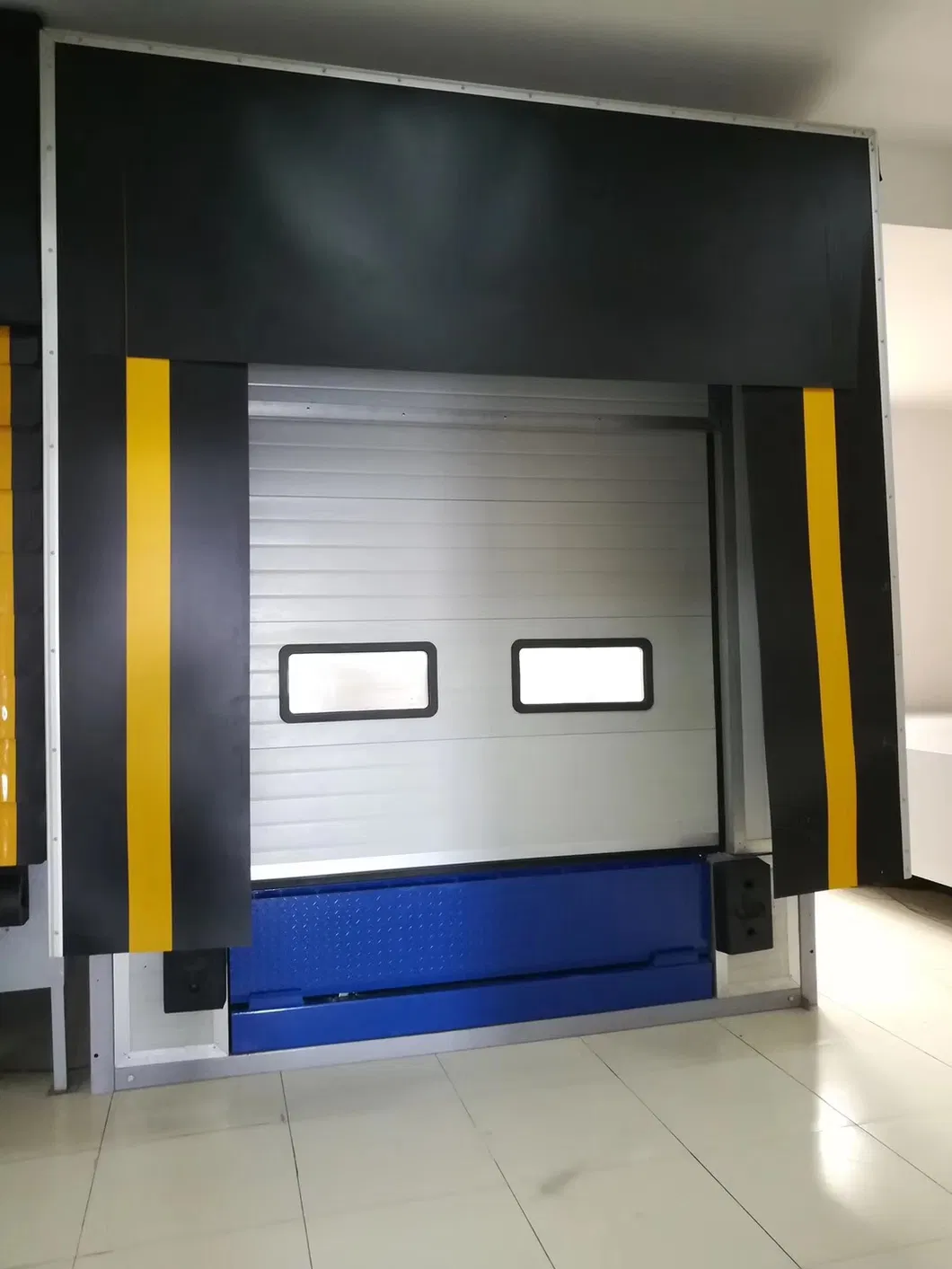

Full assembly includes Overhead Door, Dock Leveler, and Dock Shelter/Seal for improved efficiency.

One 40ft HQ container can load 20 sets of standard size dock levelers (L2000*W2000*H600mm).
