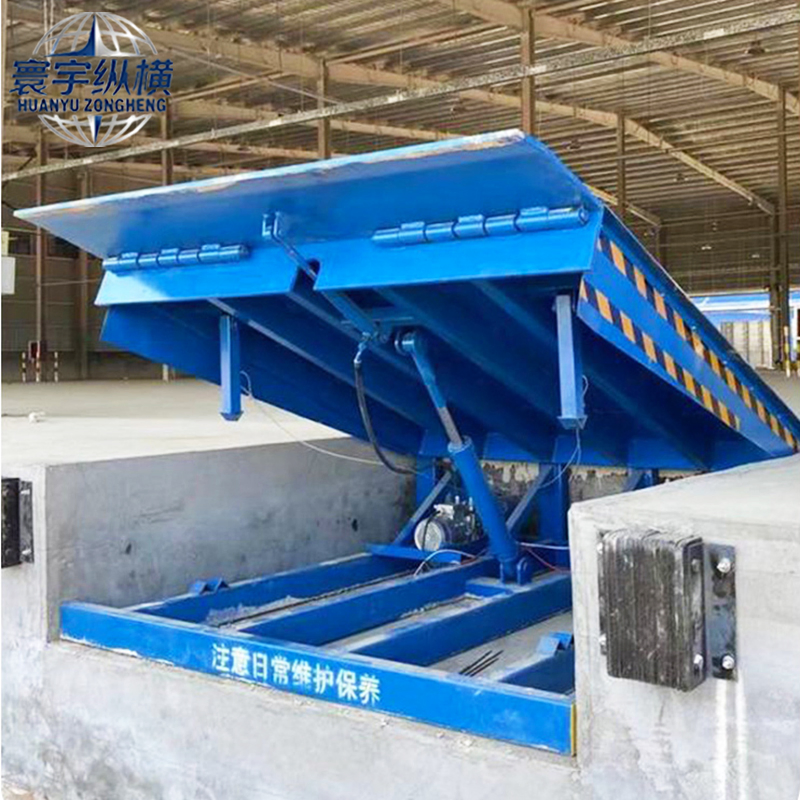

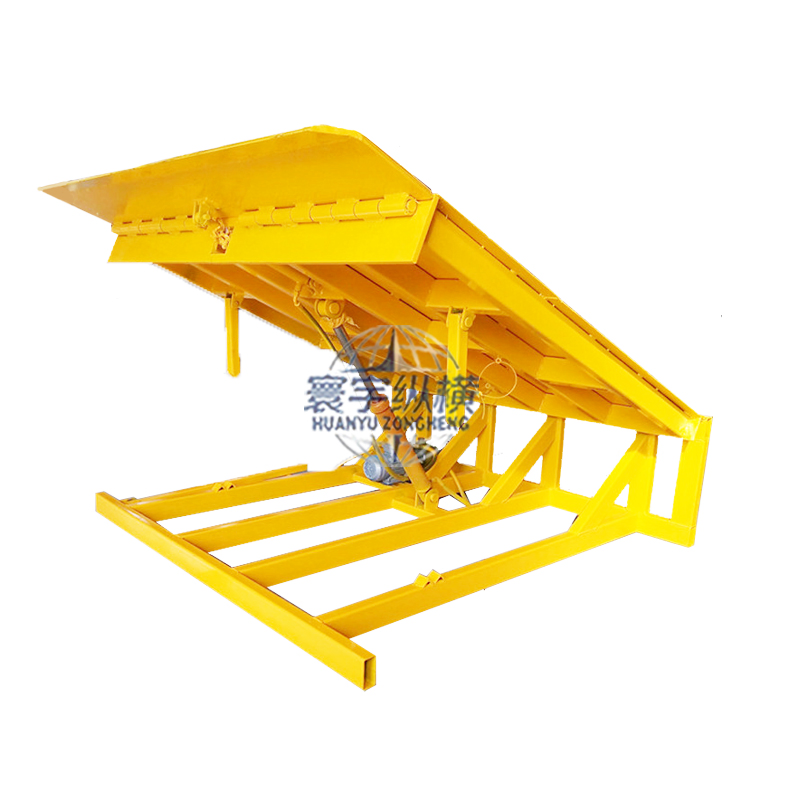

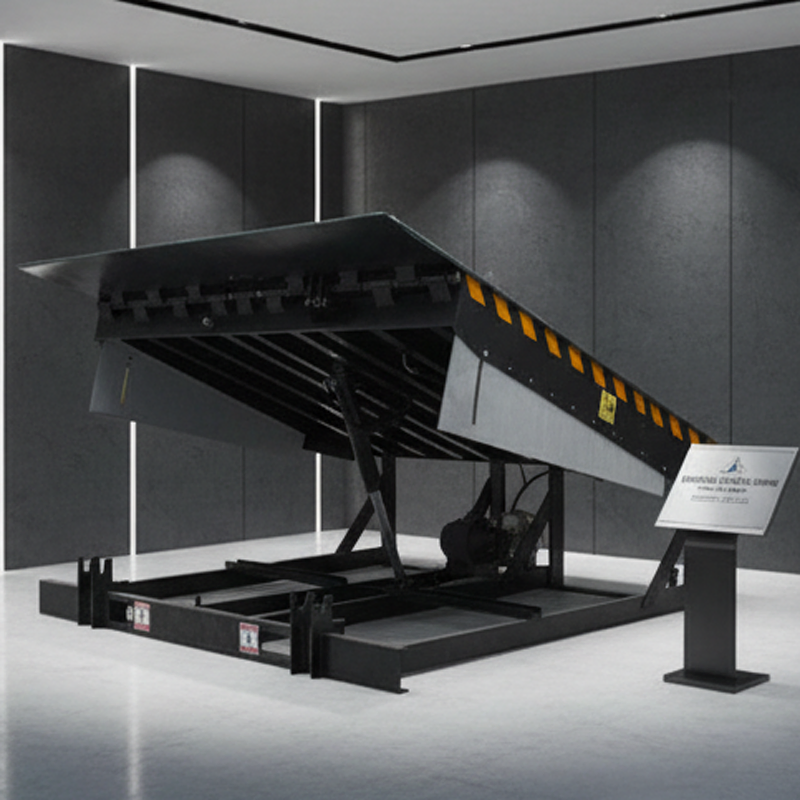

Automatic Electric Hydraulic Dock Leveler 6-15 T Loading Platform for Efficient Warehouse Container Loading Logistics Anti-Slip

Customization:	Available
After-sales Service:	Online Support
Warranty:	1 Year

Basic Specifications

ApplicationWorkshop, Shipboard, Warehouse, Building Crane

Lift MechanismTelescoping Lift

Driven TypeHydraulic

FeatureExplosion-Proof, Insulating

CertificationGS, CE, RoHS, ISO 9001

MaterialHigh Strength Steel

Load Capacity6000-15000kgs

Power SourceManual/Electric

HS Code8428909090

Package Size200.00cm * 200.00cm * 60.00cm

Product Description

⚙️

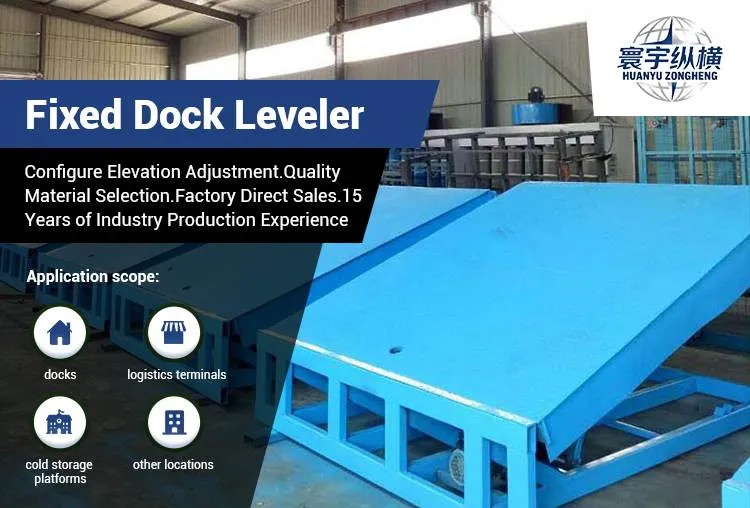

The Dock Leveler is designed for high-efficiency loading and unloading at logistics terminals, docks, and cold storage platforms. Our range includes Hydraulic, Telescoping, Mechanical, and Air-powered solutions to meet diverse industrial needs.

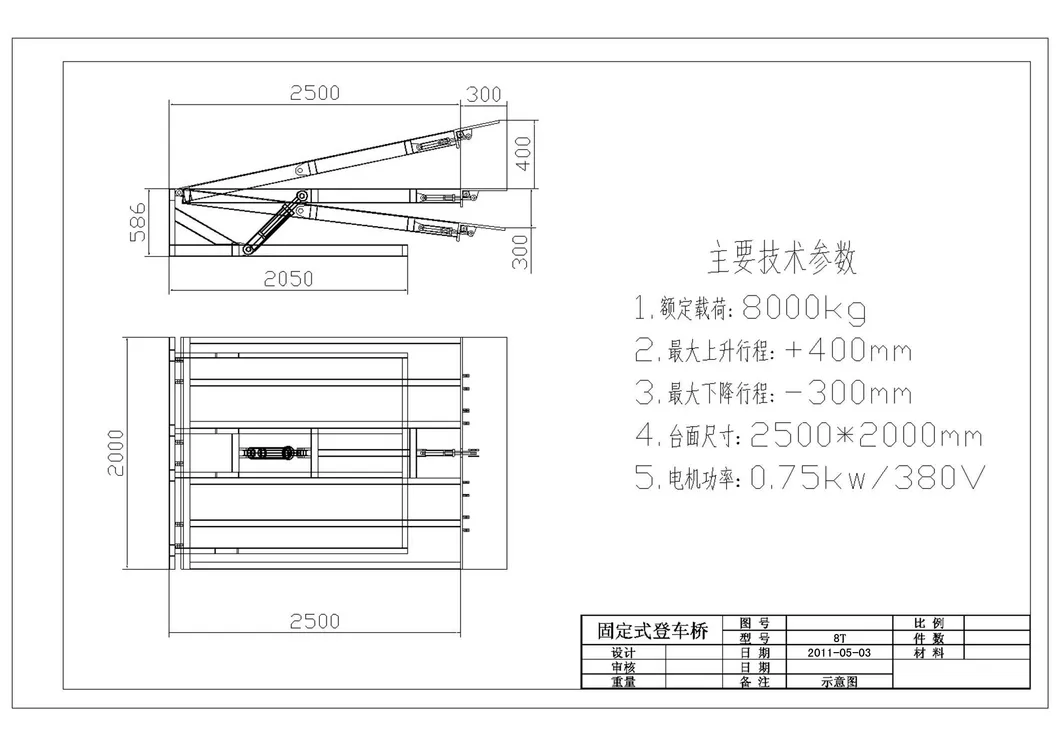

Technical Parameters

Model	Capacity (T)	Platform Size	Distance	Lip Board	Motor Power
DCGQ6	6	2500*2000mm	100	400mm	0.75KW
DCGQ8	8	2500*2000mm	100	400mm	0.75KW
DCGQ10	10	2500*2000mm	100	400mm	0.75KW
DCGQ12	12	2500*2000mm	100	400mm	0.75KW
DCGQ6	6	2000*2000mm	100	400mm	0.75KW
DCGQ8	8	2000*2000mm	100	400mm	0.75KW

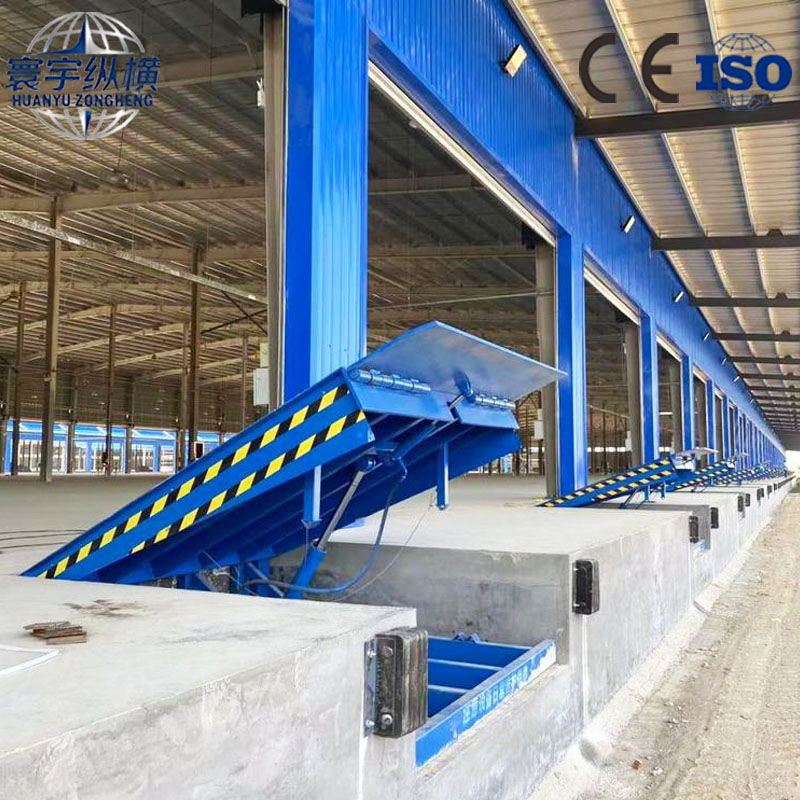

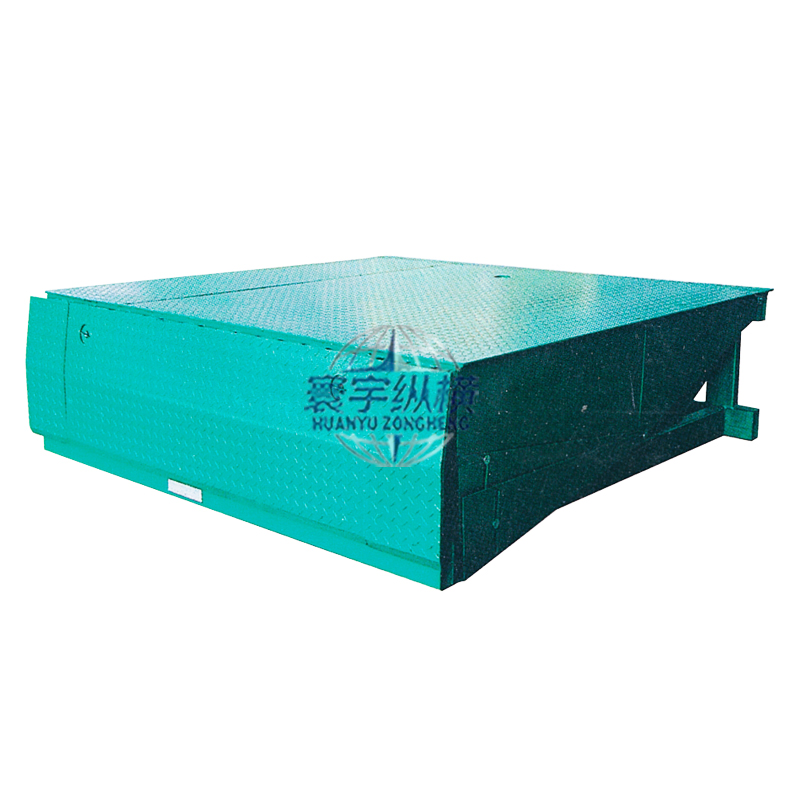

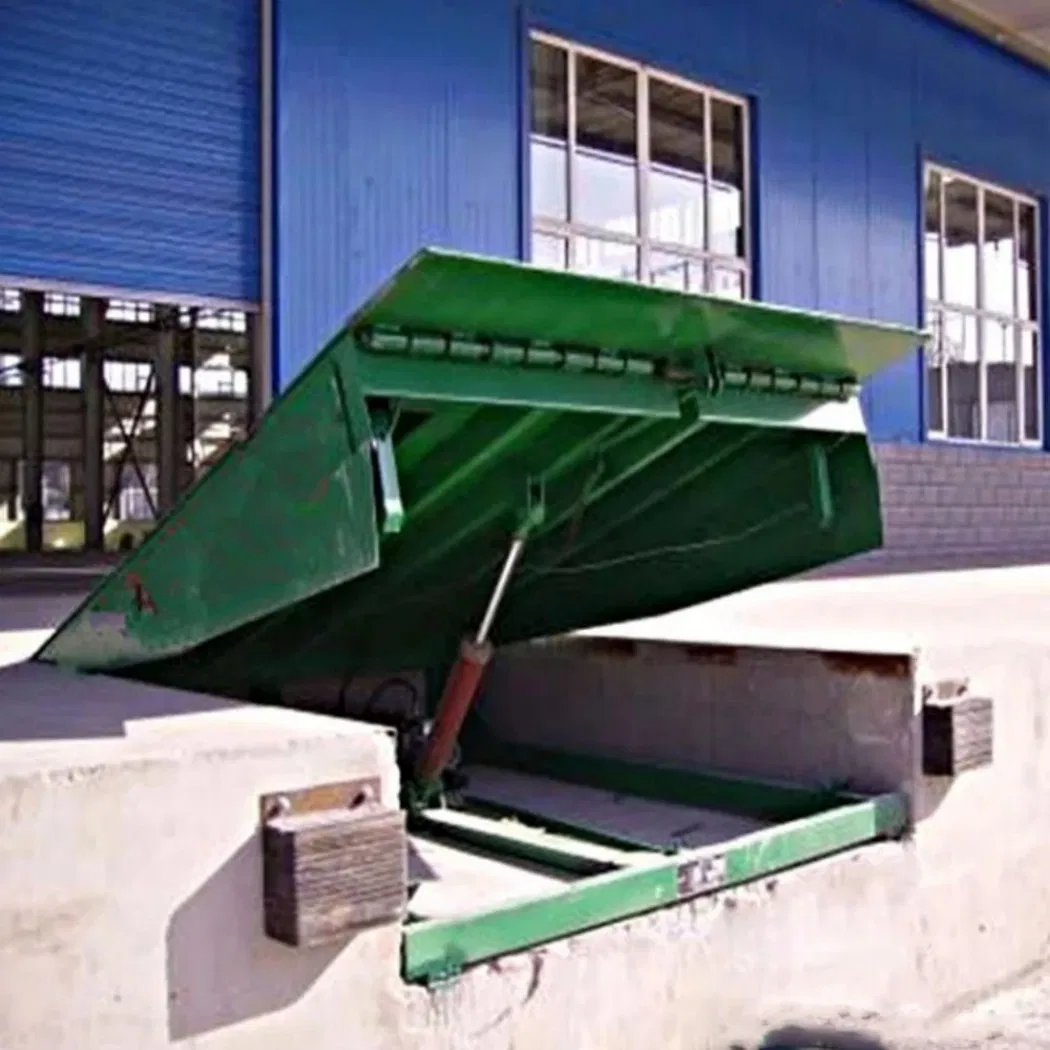

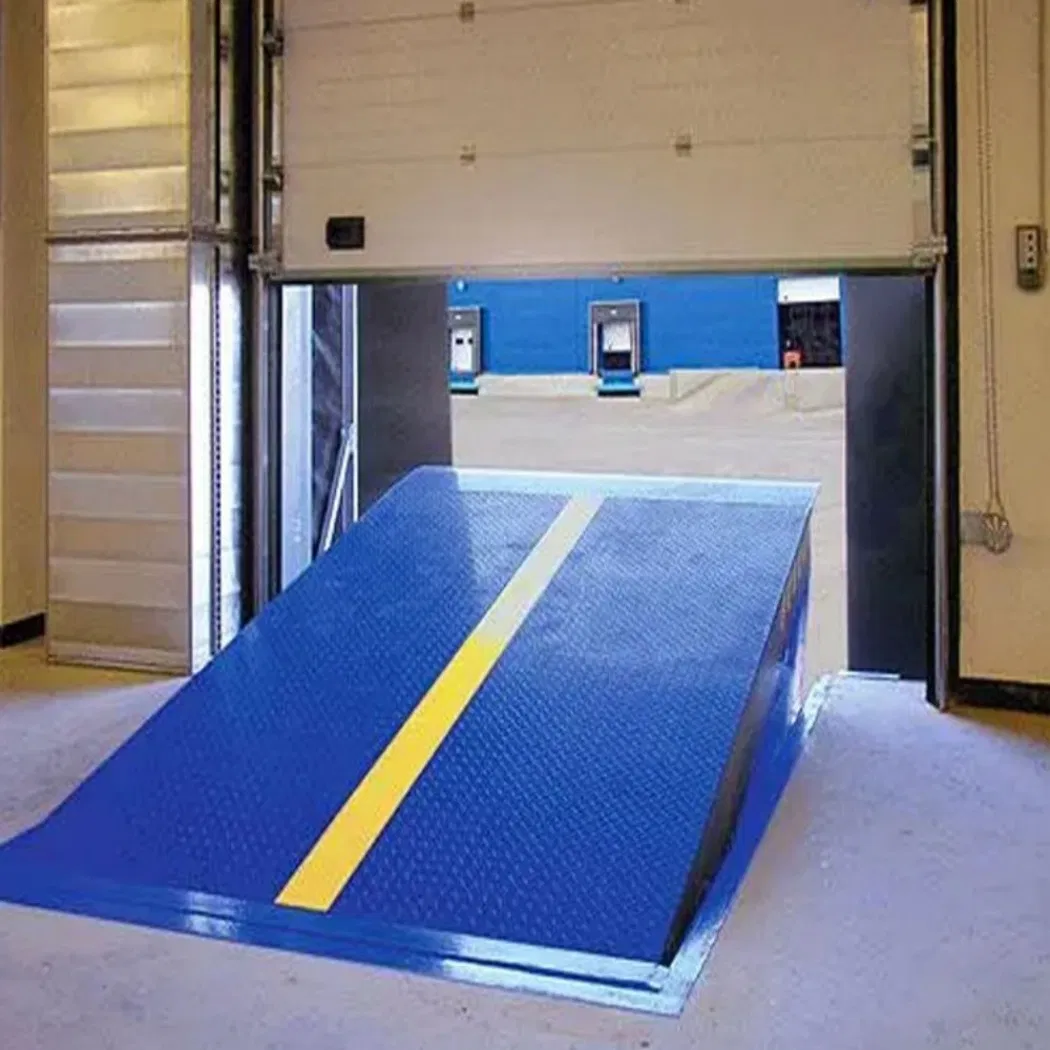

Product Showcase

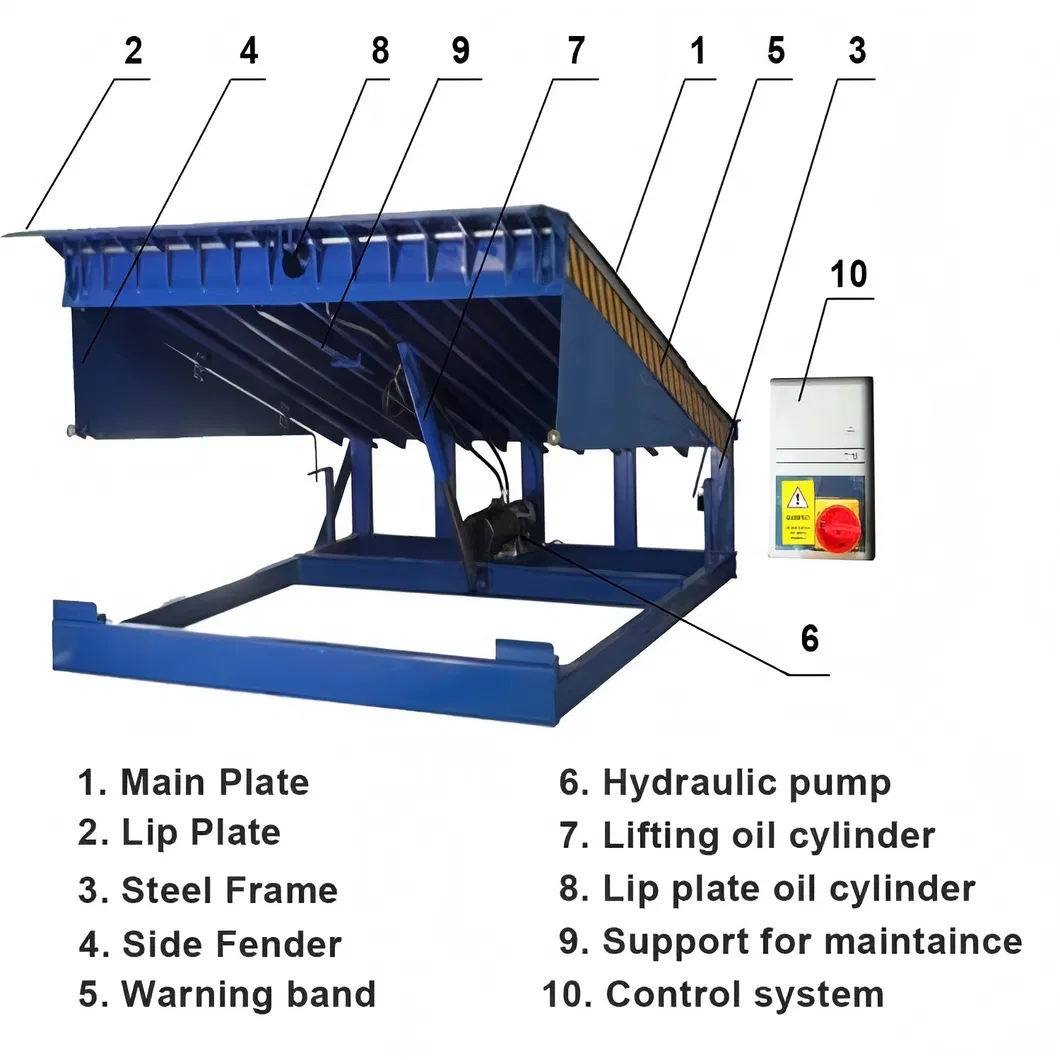

Key Structural Features

System & Design: Fully hydraulic-electric controlled mechanism with reliable speed limitation valves. Maintenance-free design for long-term heavy-duty operation.

Safety Standards: Full-range foot guards, penetrating safety support bars, and emergency stop devices minimize accident risks for personnel.

Heavy Duty Deck: The main plate uses 8mm high-strength embossed non-slip steel reinforced with 14# I-beam steel for maximum durability.

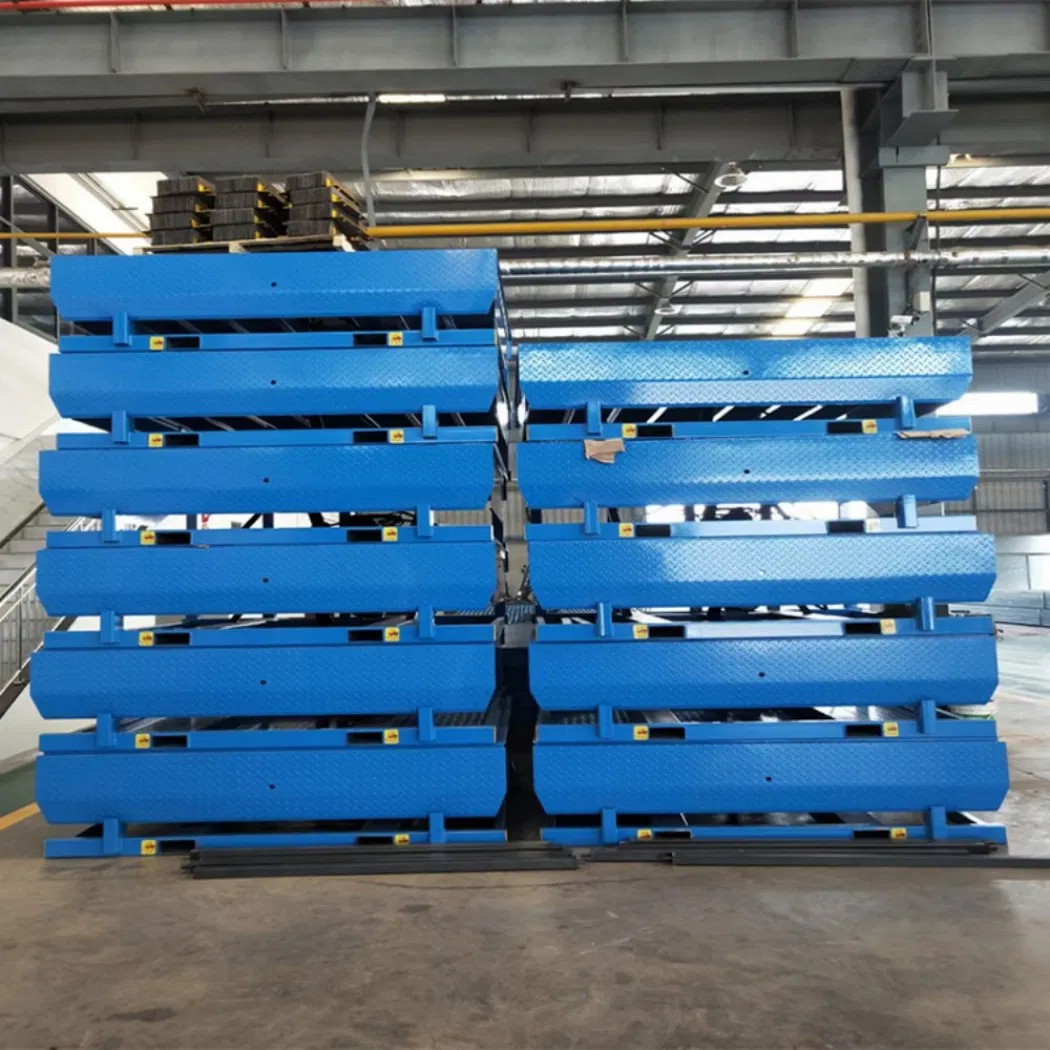

Production & Capability

Our manufacturing facility integrates design, production, and installation. Equipment complies with national industry standards and has obtained ISO and CE safety certifications. We offer a wide range of specifications including wrapping machines and boarding bridges, sold worldwide with high customer praise.

Packaging & Logistics

Frequently Asked Questions

What information is required for an inquiry?

Please provide the lift capacity, span, lift height, traveling distance, and power source requirements.

What is your minimum order quantity?

The minimum order quantity is 1 set.

How are the products packaged?

The main body is packaged in plywood boxes or plastic woven fabrics. Spare parts are securely packed inside plywood boxes.

What is the typical delivery cycle?

Delivery usually occurs within 10 to 40 days after receiving advance payment, depending on specific requirements.

Do you provide additional lifting accessories?

Yes, we can provide accessories such as hooks, grab buckets, magnets, pulley blocks, and wire ropes.

Do you offer customized services?

Yes, our factory supports full OEM/ODM services to meet custom operational needs.
