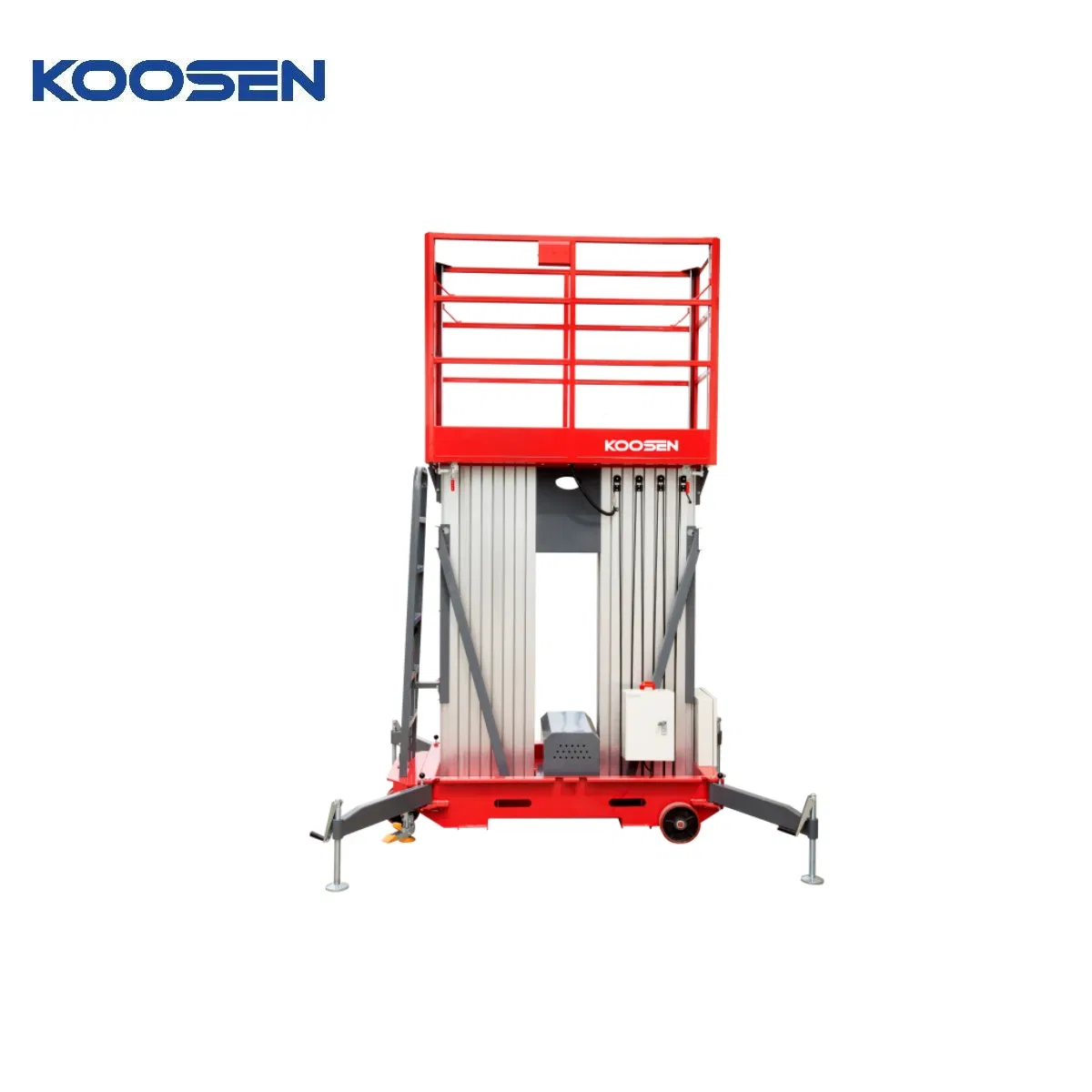

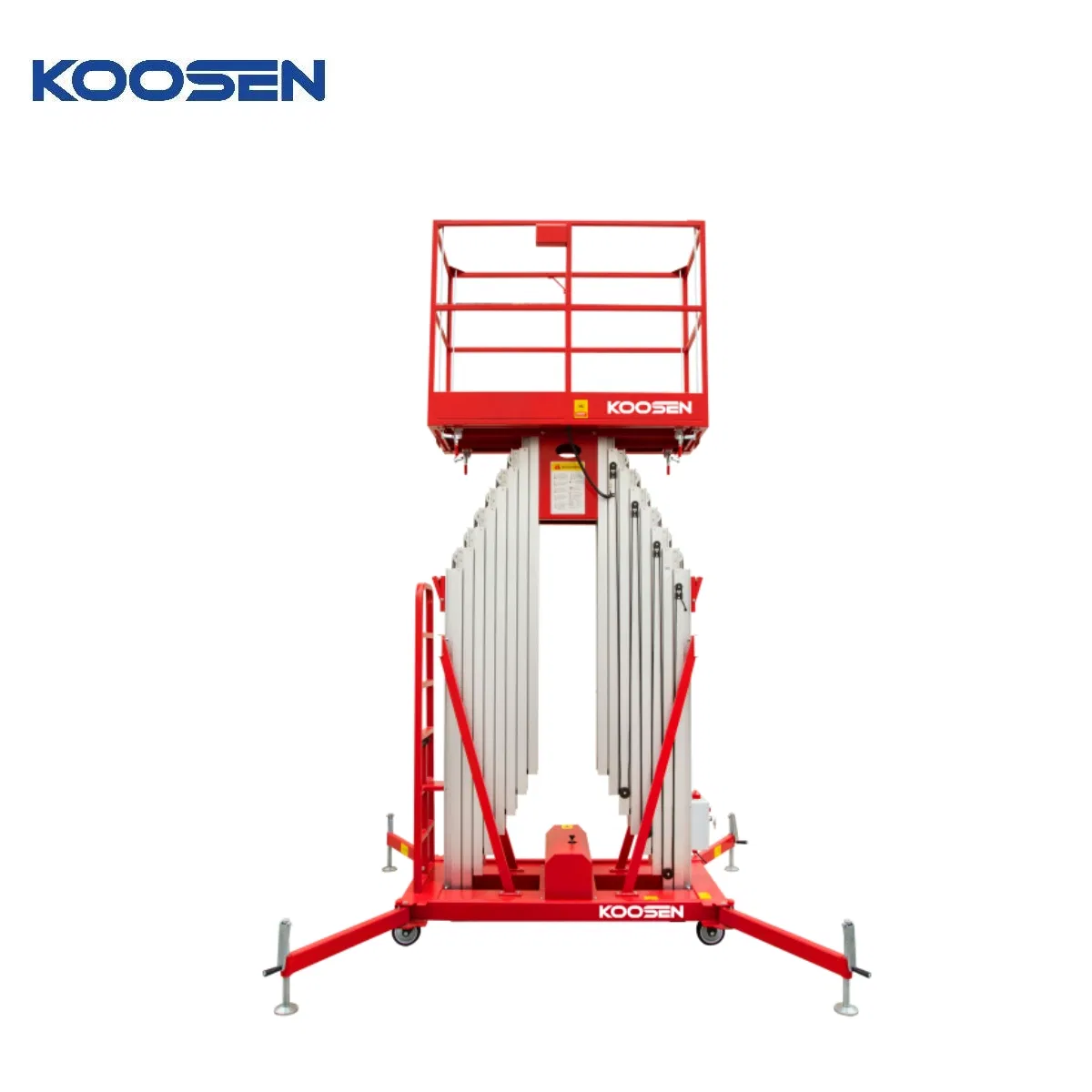

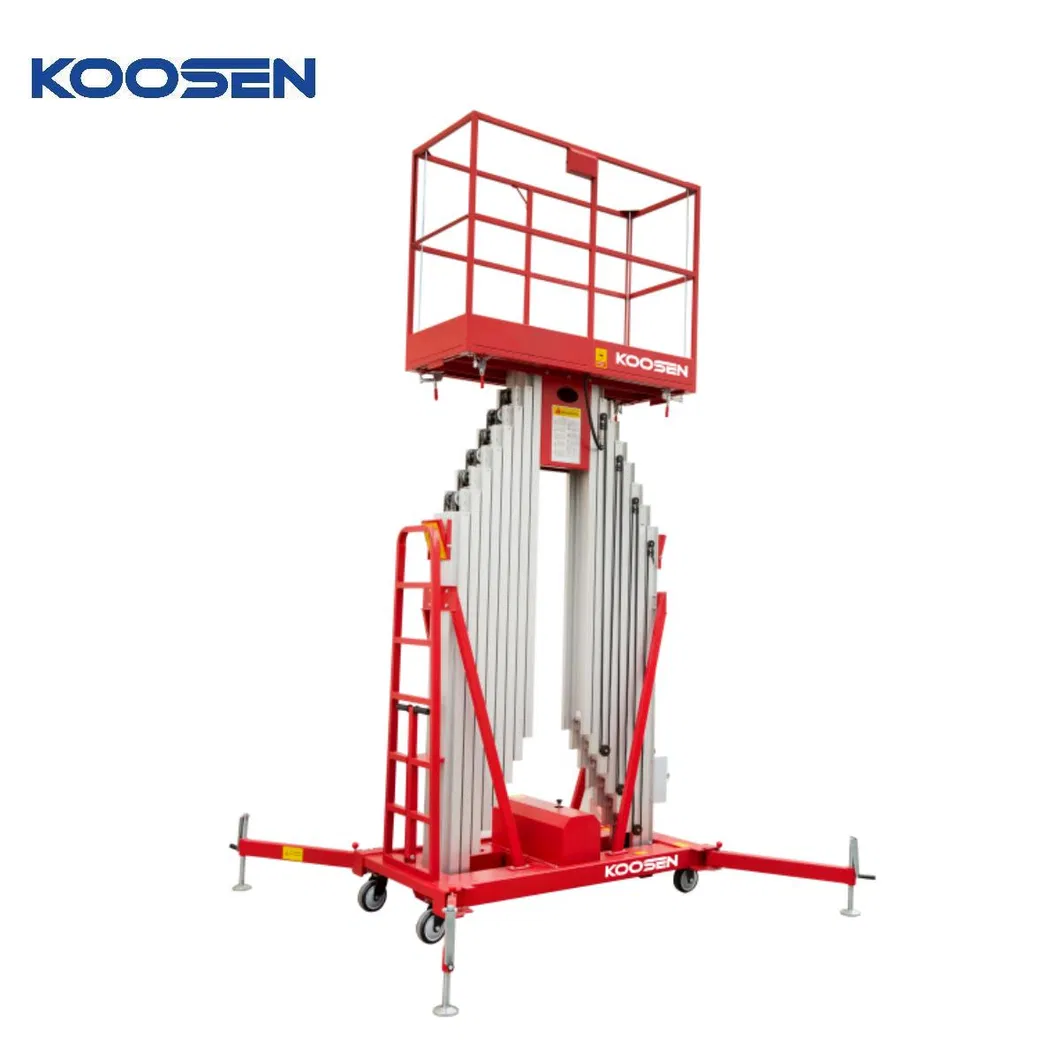

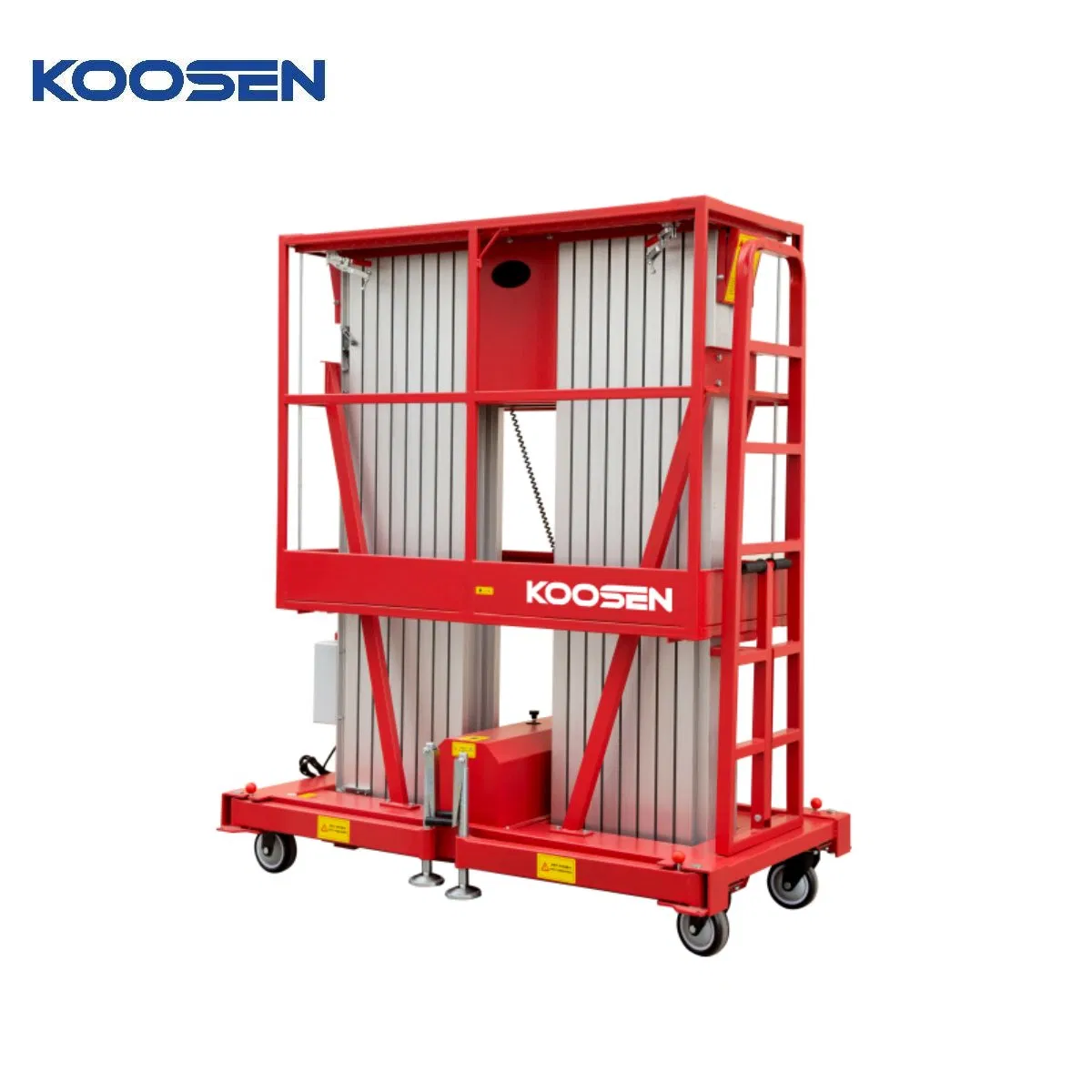

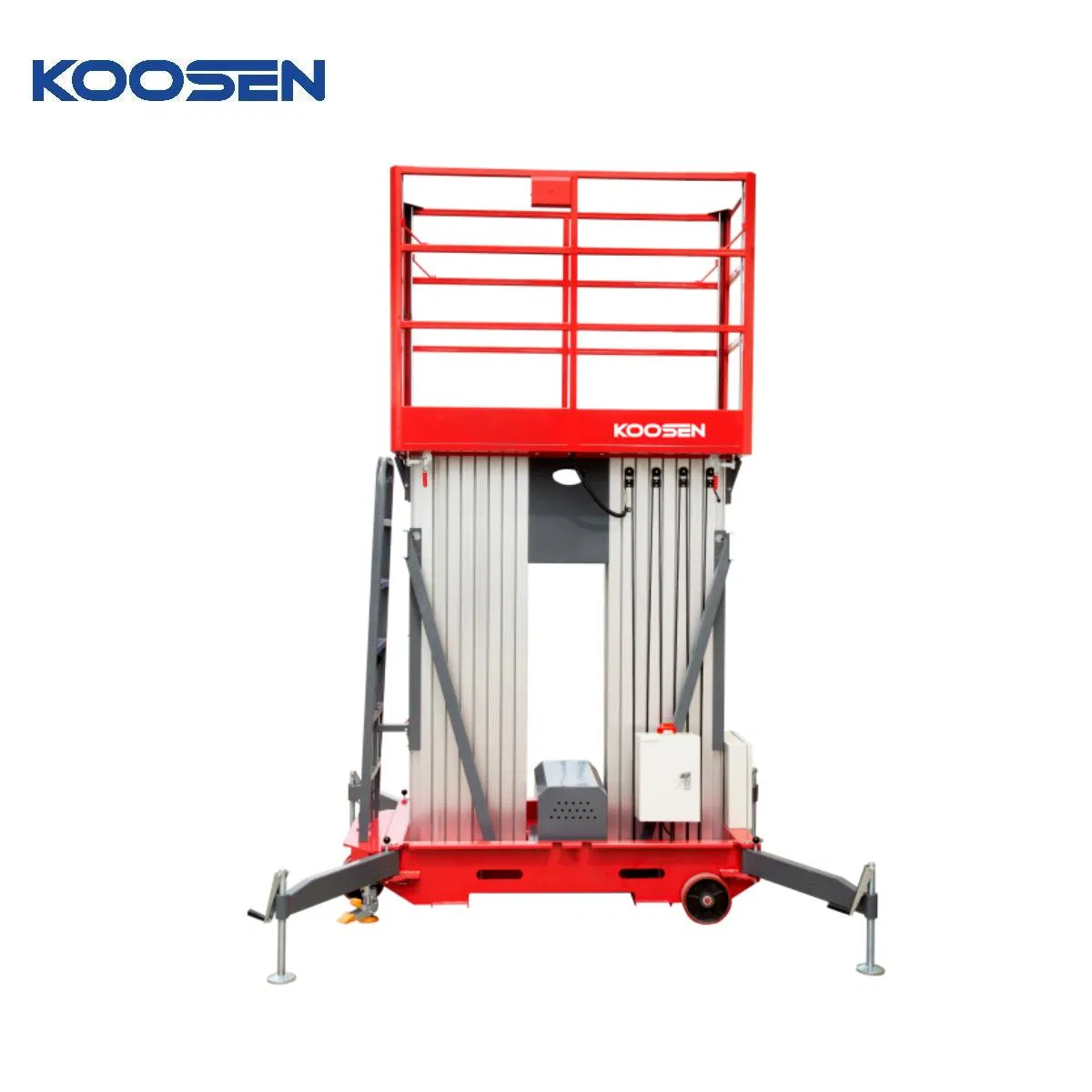

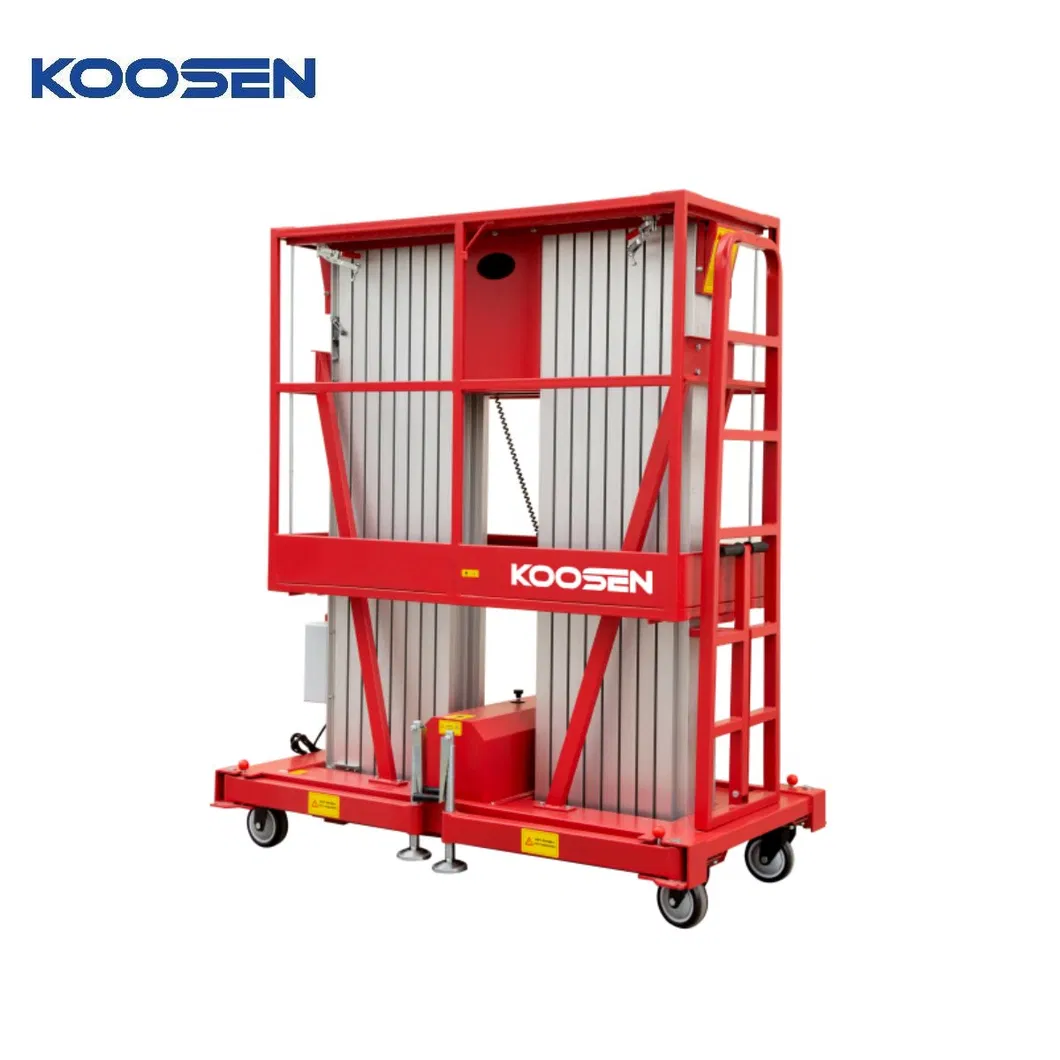

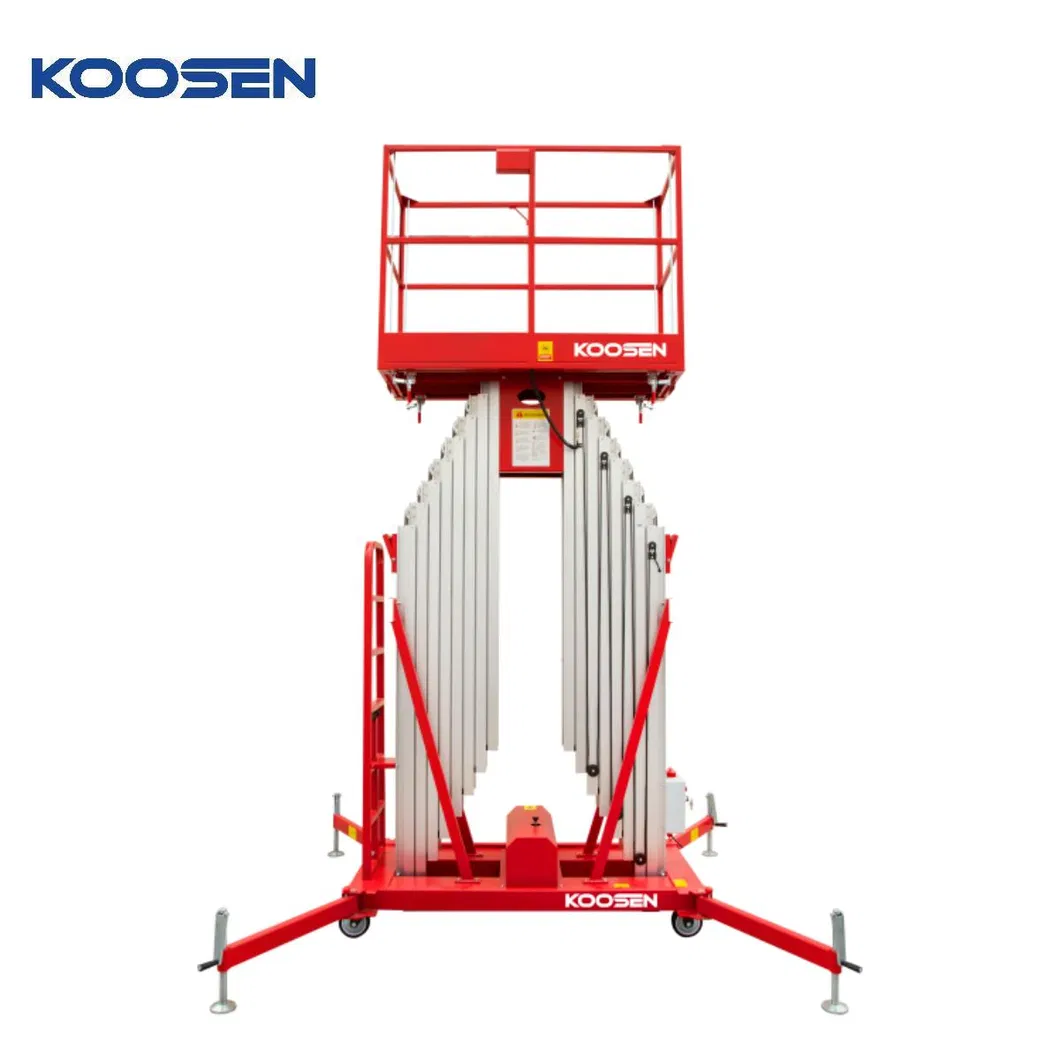

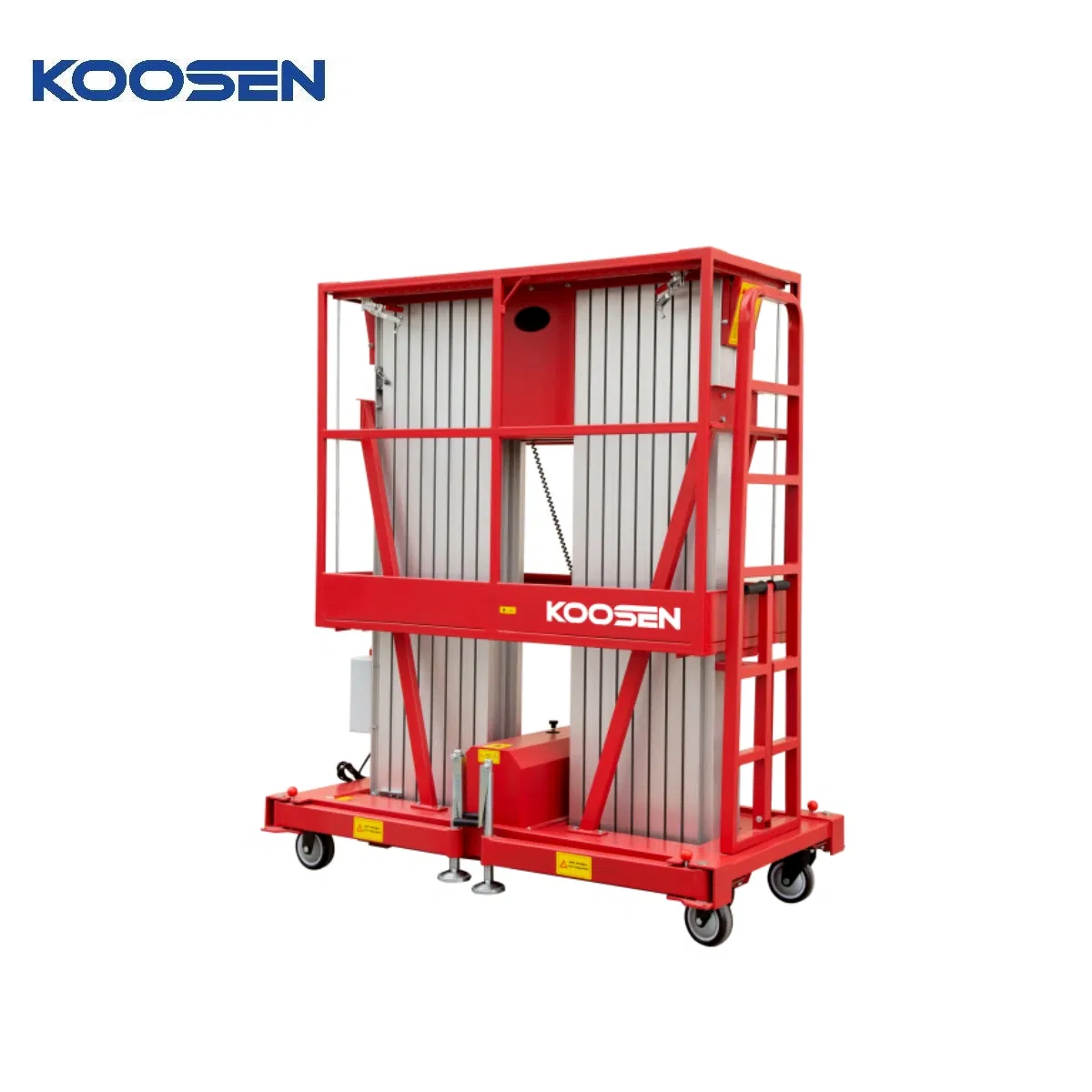

The vertical mast lift AWP with swing outriggers is compact and very user-friendly. The AWP series is available with a working height that varies from 8 meters to 14 meters. These platforms are easy to move, extremely manoeuvrable and fit easily through normal doorways.
Loading and unloading is simplified through an advanced tilting system mounted on every platform. The AWP series features a specially constructed base for maximum stability. Rise and fall rates are optimized for efficiency. Available with 230V (AC) or battery (DC) power options.
| Model | AWP14-2000 | AWP12-2000 | AWP10-2000 | AWP8-2000 | AWP6-2000 |
|---|---|---|---|---|---|
| Working Height | 16.00m | 14.00m | 12.00m | 10.00m | 8.00m |
| Platform Floor Height | 14.00m | 12.00m | 10.00m | 8.00m | 6.00m |
| Overall Length | 1.90m | 1.76m | 1.76m | 1.54m | 1.54m |
| Overall Width | 1.16m | 1.00m | 1.00m | 1.00m | 1.00m |
| Overall Height | 2.35m | 2.00m | 2.00m | 2.00m | 2.00m |
| S.W.L (Load) | 150kg | 200kg | 200kg | 200kg | 200kg |
| Lifting Motor (AC) | 1.5kW | 1.1kW | 1.1kW | 1.1kW | 1.1kW |
| Overall Weight | 904kg | 830kg | 800kg | 680kg | 630kg |
