Basic Information
Model NO.
Mobile Loading Ramp
Application
Workshop, Shipboard, Warehouse, Building
Lift Mechanism
Scissor Lift
Product Description

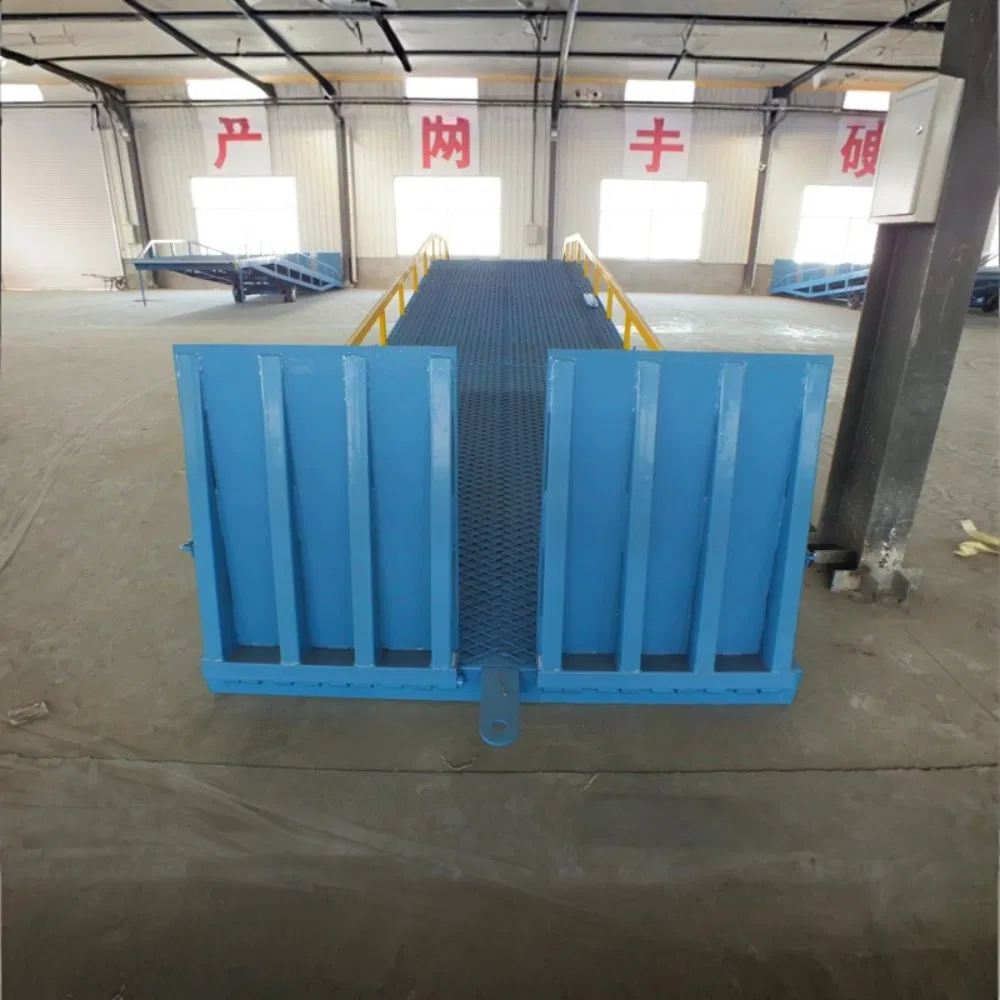

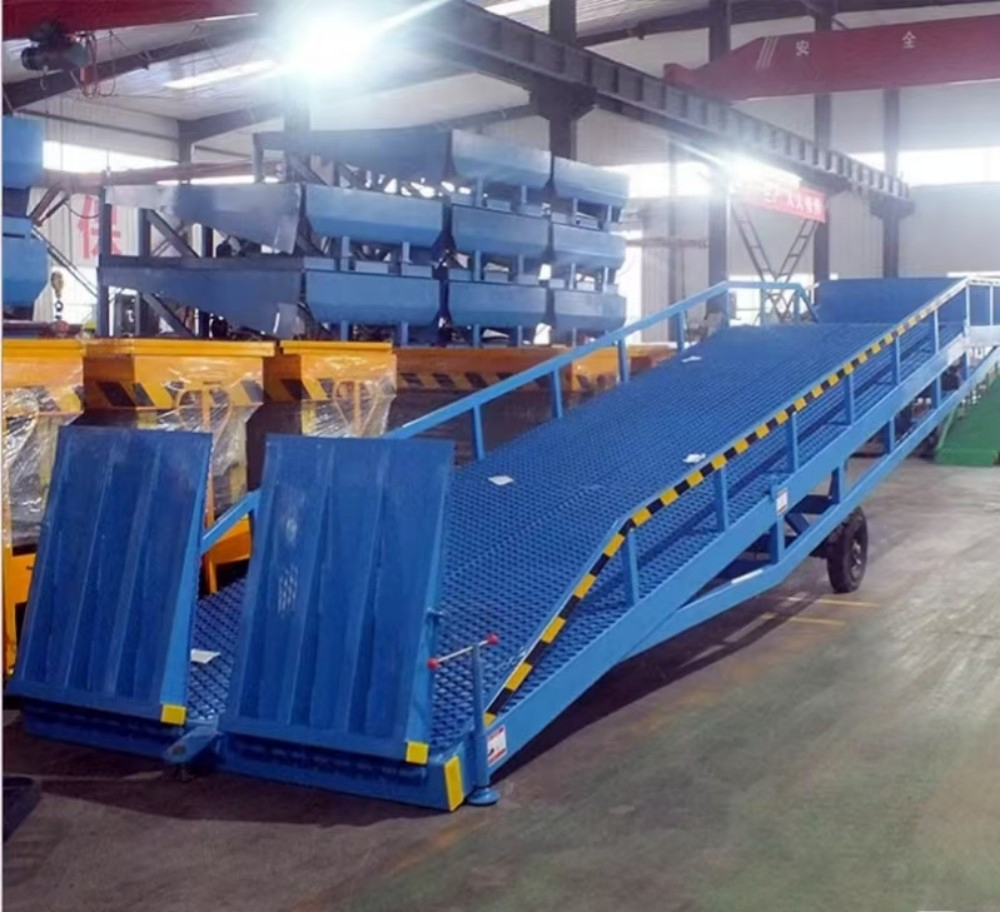

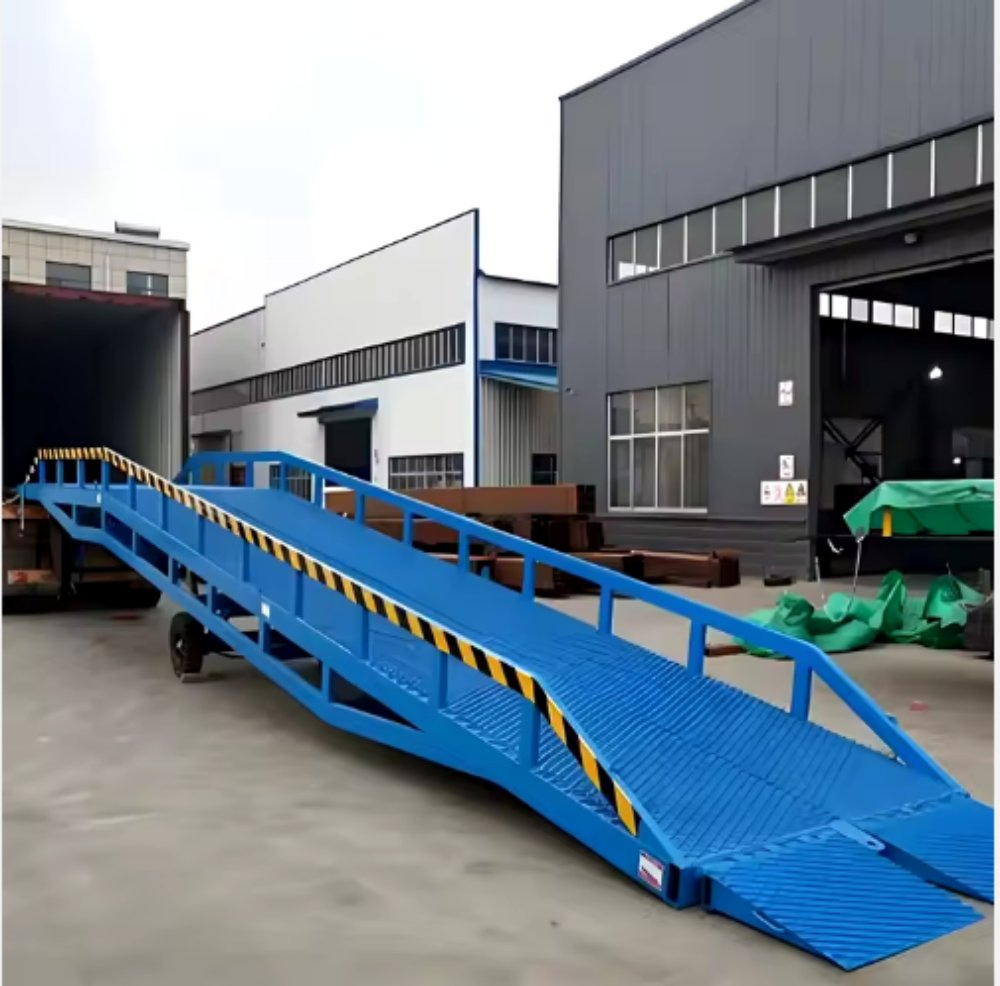

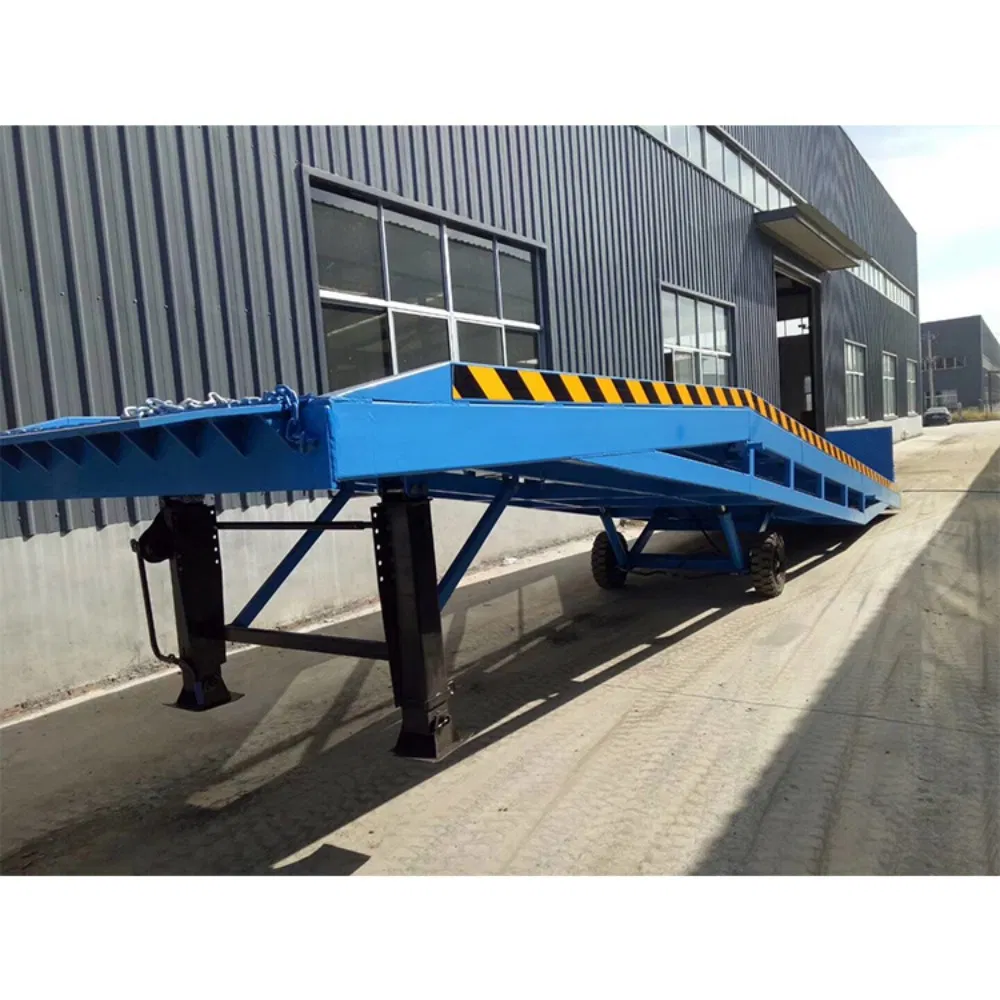

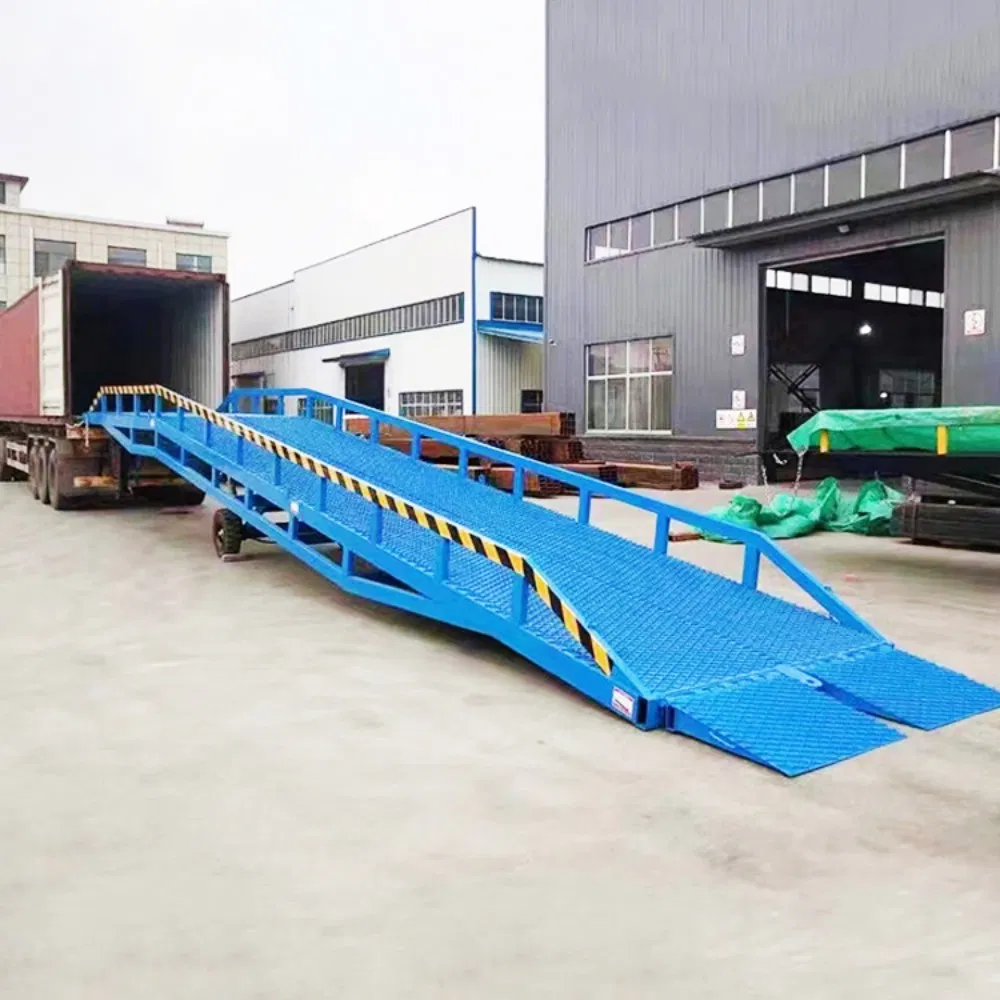

A mobile boarding bridge, also known as a mobile loading dock, is a device that creates a temporary passage between the truck and the ground. It is made of high-strength materials and has a robust structure that can withstand the pressure of heavy loads. The design of the mobile boarding bridge allows goods to be easily transported from the ground to the truck, or unloaded from the truck to the ground, which greatly improves the efficiency of logistics and transportation.

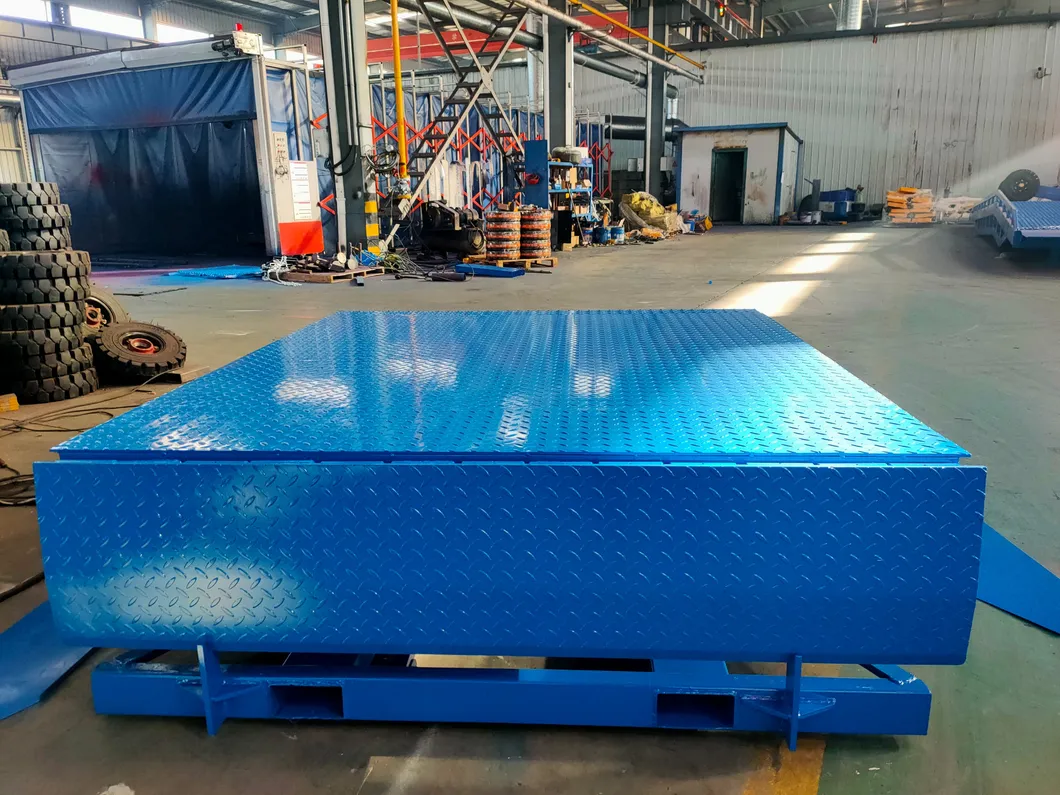

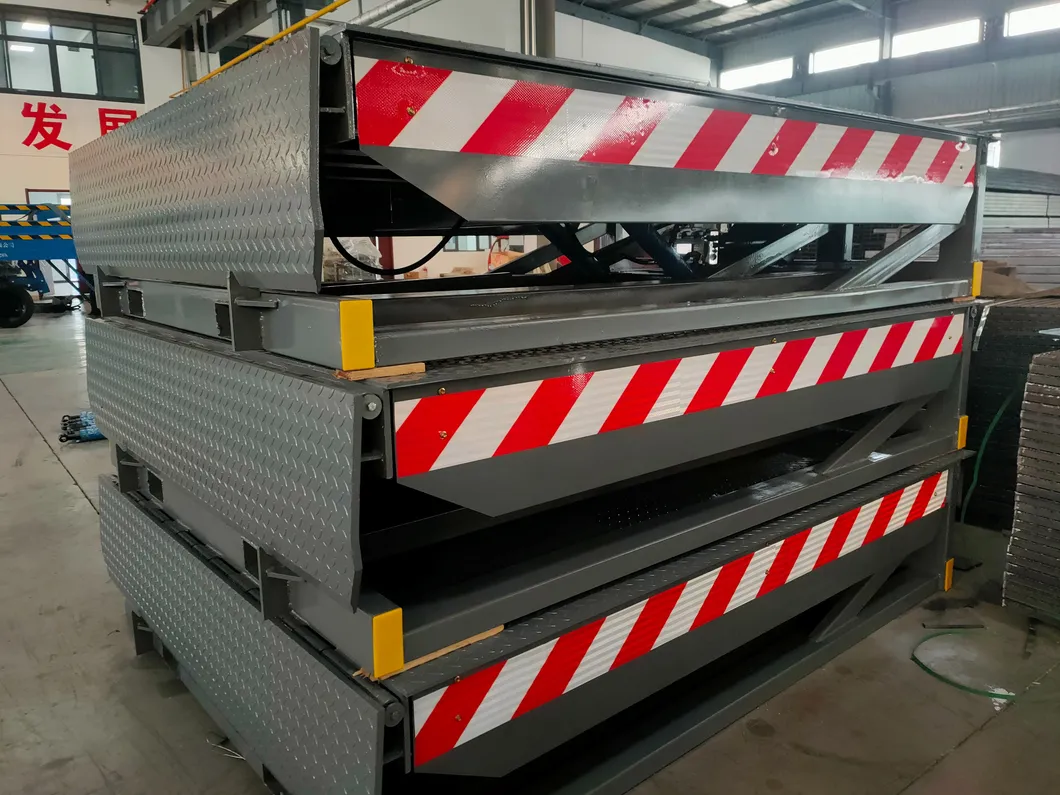

Dock levelers ensure a seamless transition between the dock and the truck bed, enabling smooth movement of forklifts and other material handling equipment. They compensate for differences in height and potential unevenness, guaranteeing a stable and secure transfer of goods.
Technical Specifications
| Model |
MFQY-6 |
MFQY-8 |
MFQY-10 |
MFQY-12 |
MFQY-15 |
| Overall size | 11300*2100 | 11300*2100 | 11300*2100 | 11300*2100 | 11300*2100 |
| Slope length (L) | 7150mm | 7150mm | 7150mm | 7150mm | 7150mm |
| Platform length (L) | 3000mm | 3000mm | 3000mm | 3000mm | 3000mm |
| Width | 2100mm | 2100mm | 2100mm | 2100mm | 2100mm |
| Load Capacity | 6t | 8t | 10t | 12t | 15t |
| Adjustable Range | 1100-1800mm | 1100-1800mm | 1100-1800mm | 1100-1800mm | 1100-1800mm |
| Power Source | Manual hydraulic pump + hand leg | Manual pump + hand legs + aux legs |
| Weight | ±2200kg | ±2400kg | ±2600kg | ±3300kg | ±4000kg |

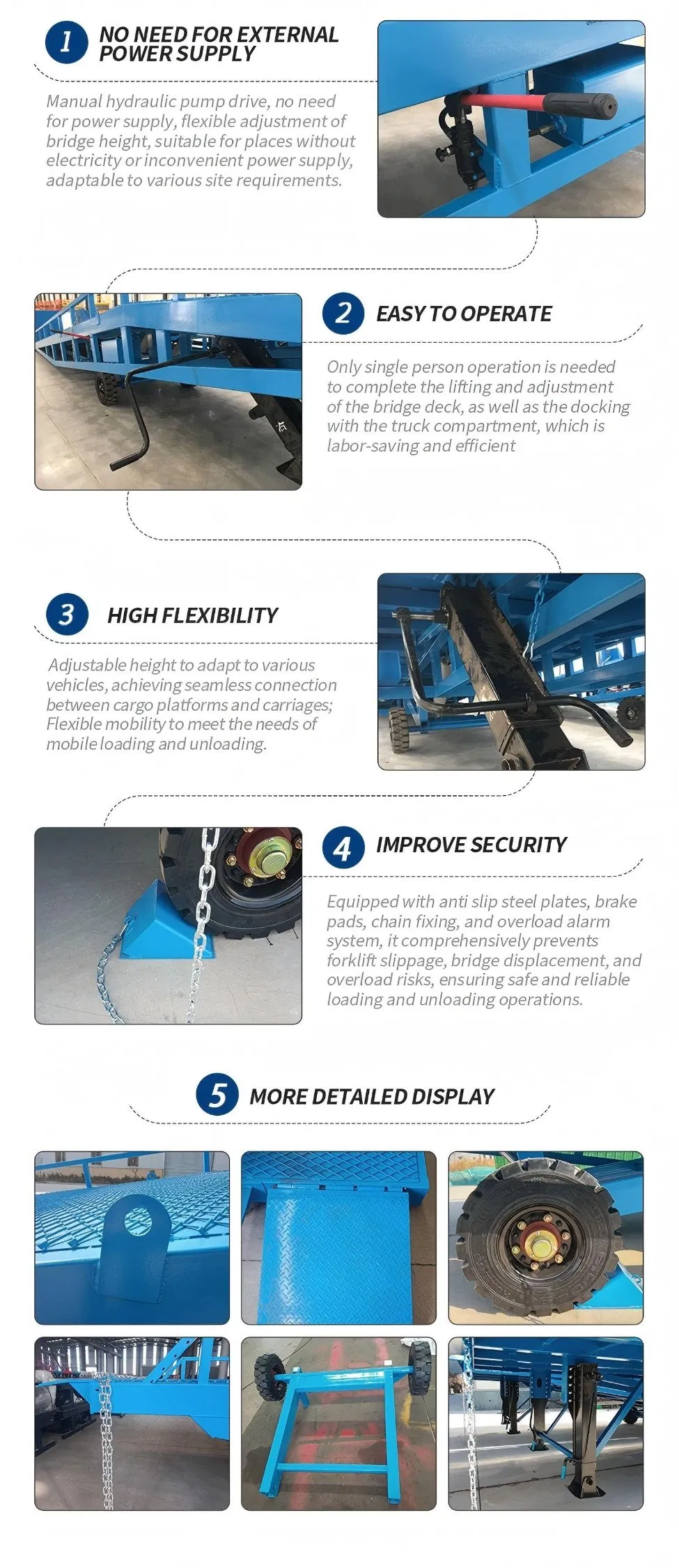

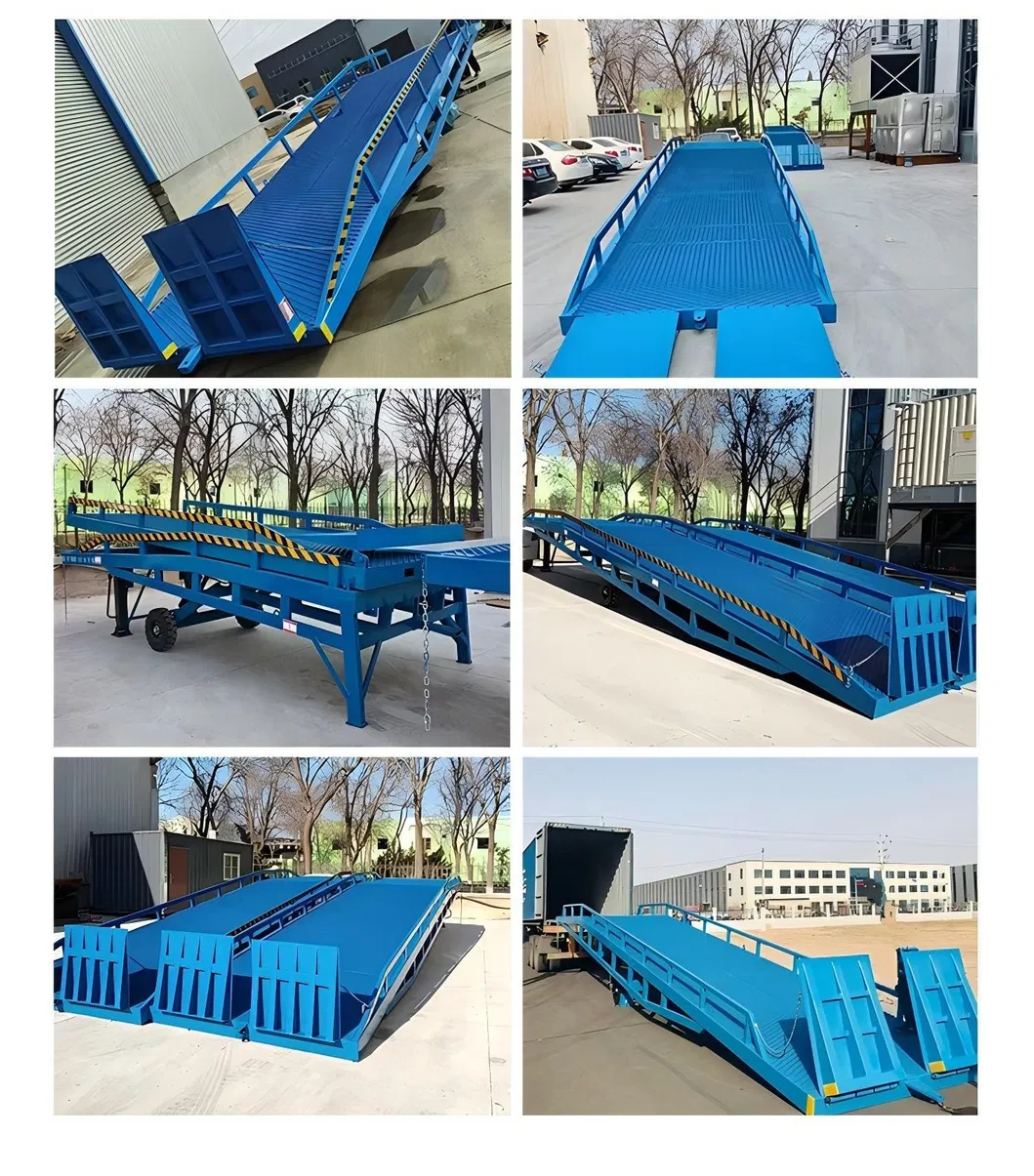

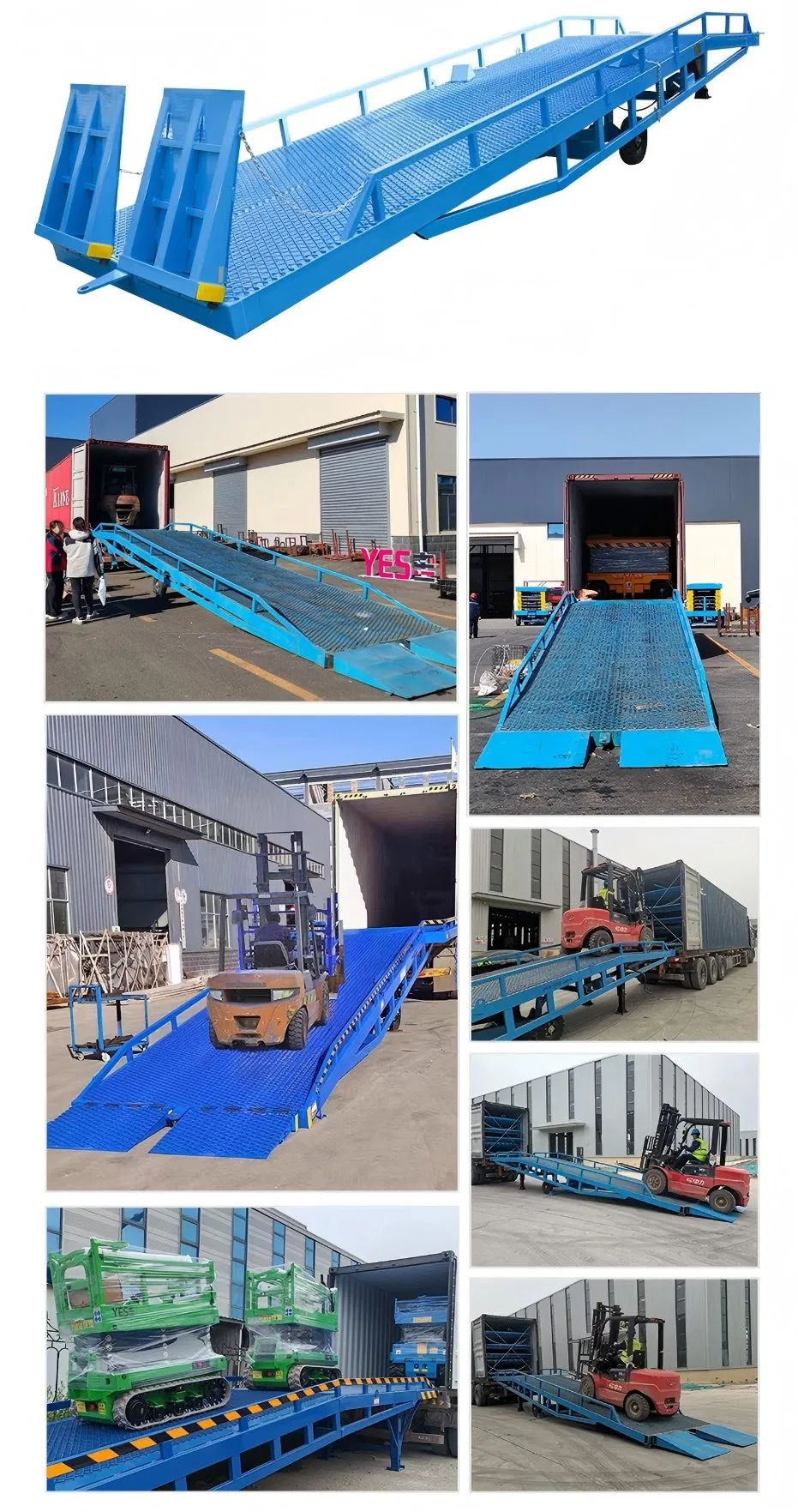

Product Details & Packing
Frequently Asked Questions
Q: What information should I provide for an inquiry?
A: Providing more details or drawings is better. Please specify: A: lift capacity, B: span, C: lift height, D: crane traveling distance, E: power source.
Q: What is your minimum order quantity (MOQ)?
A: Our minimum order quantity is 1 set.
Q: How are the products packaged for shipping?
A: The main body is packaged with plywood boxes or plastic woven fabrics. Spare parts are protected inside plywood boxes.
Q: What is the typical delivery cycle time?
A: Delivery usually takes within 10 to 40 days after receiving the advance payment, depending on detailed requirements and actual production status.
Q: Do you provide lifting accessories?
A: Yes, we can provide any type of accessories such as hooks, grab buckets, magnets, pulley blocks, locks, wire ropes, and fiber ropes.
Q: Do you offer customized OEM/ODM services?
A: Yes, our factory fully supports OEM and ODM services to meet specific client requirements.
