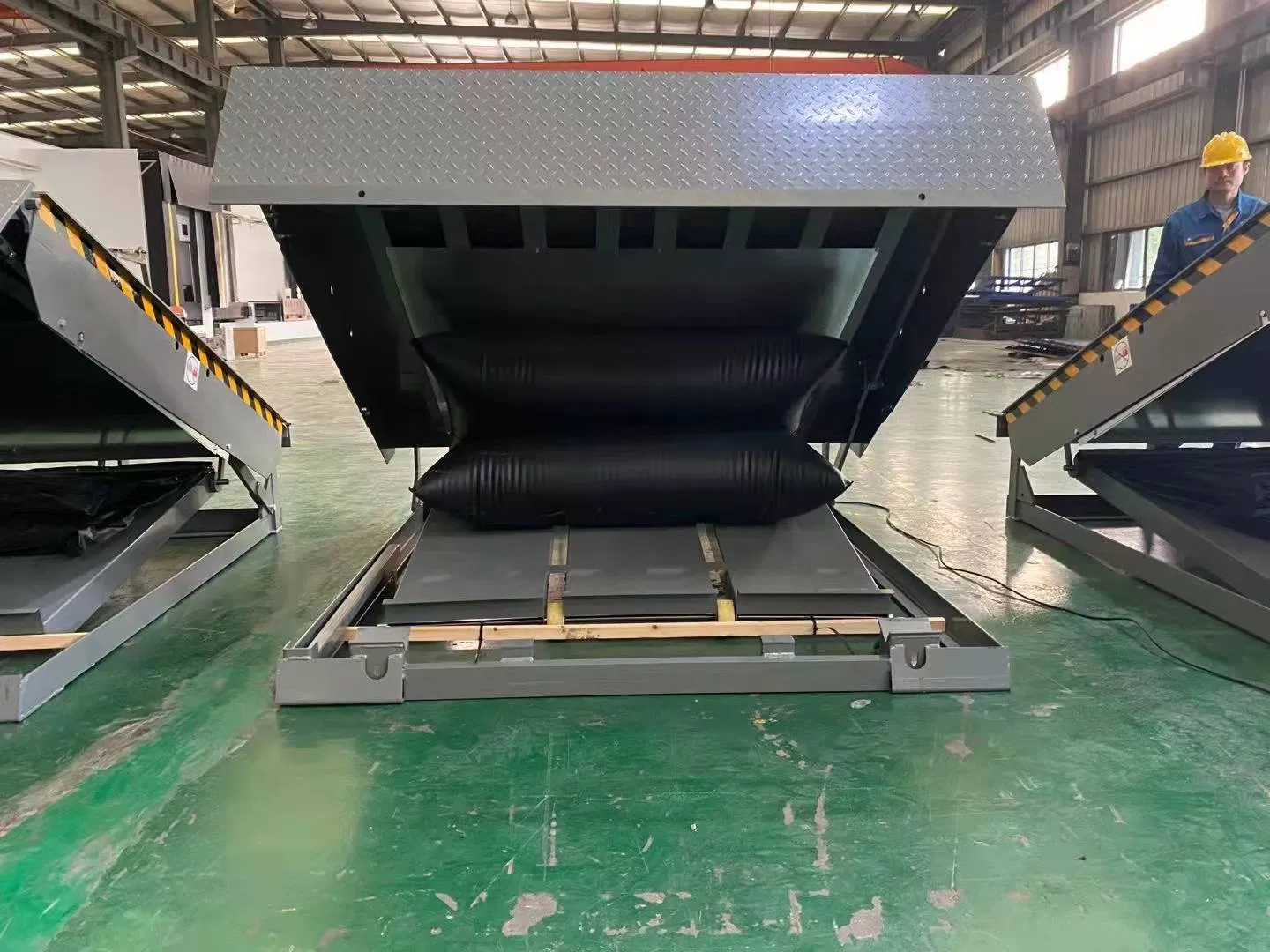

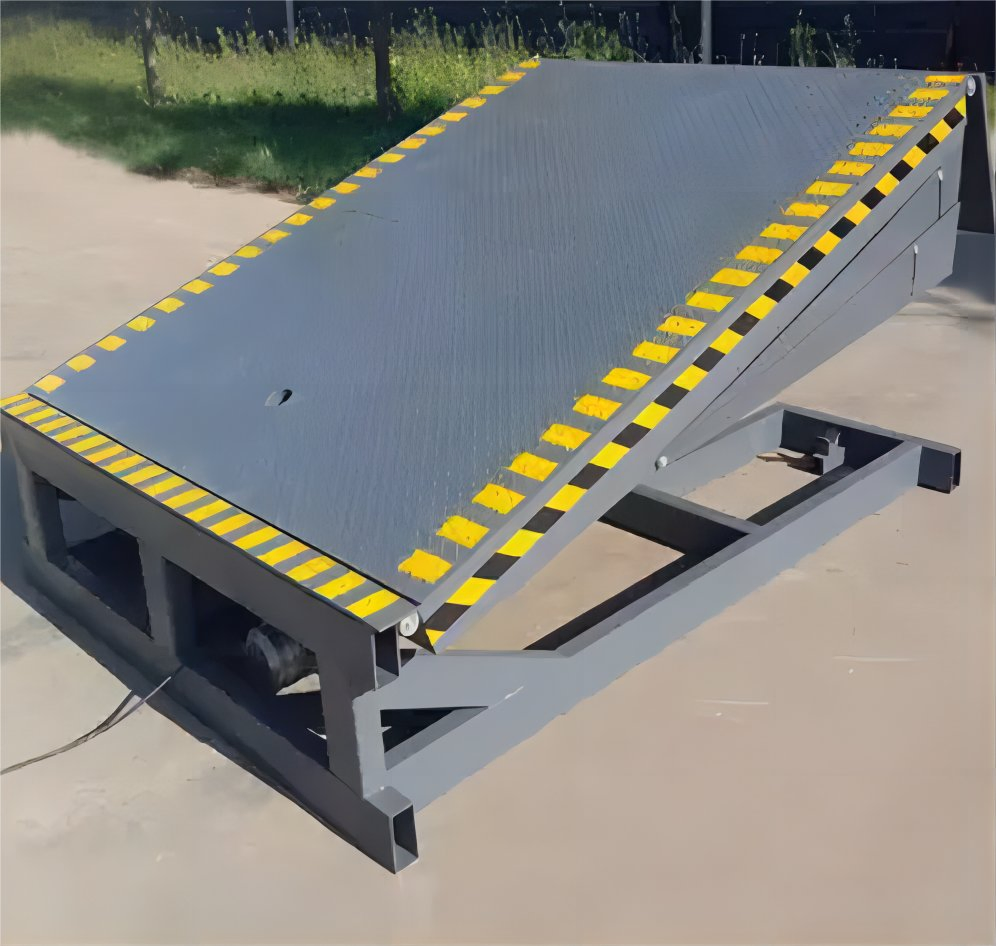

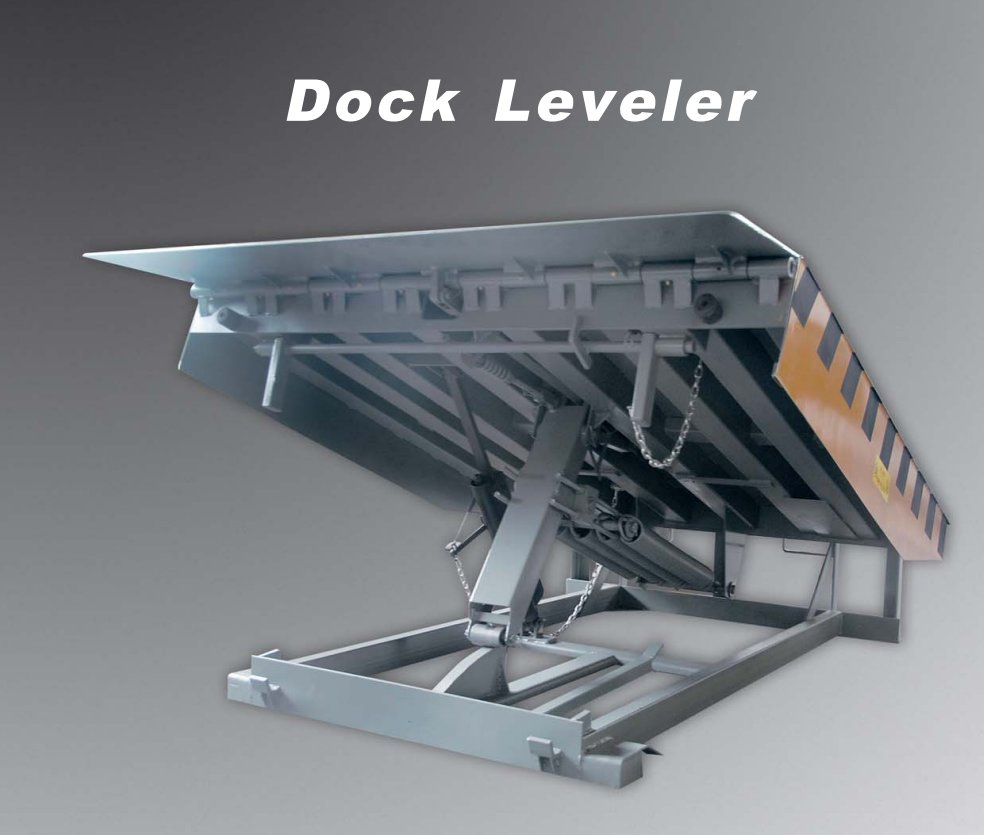

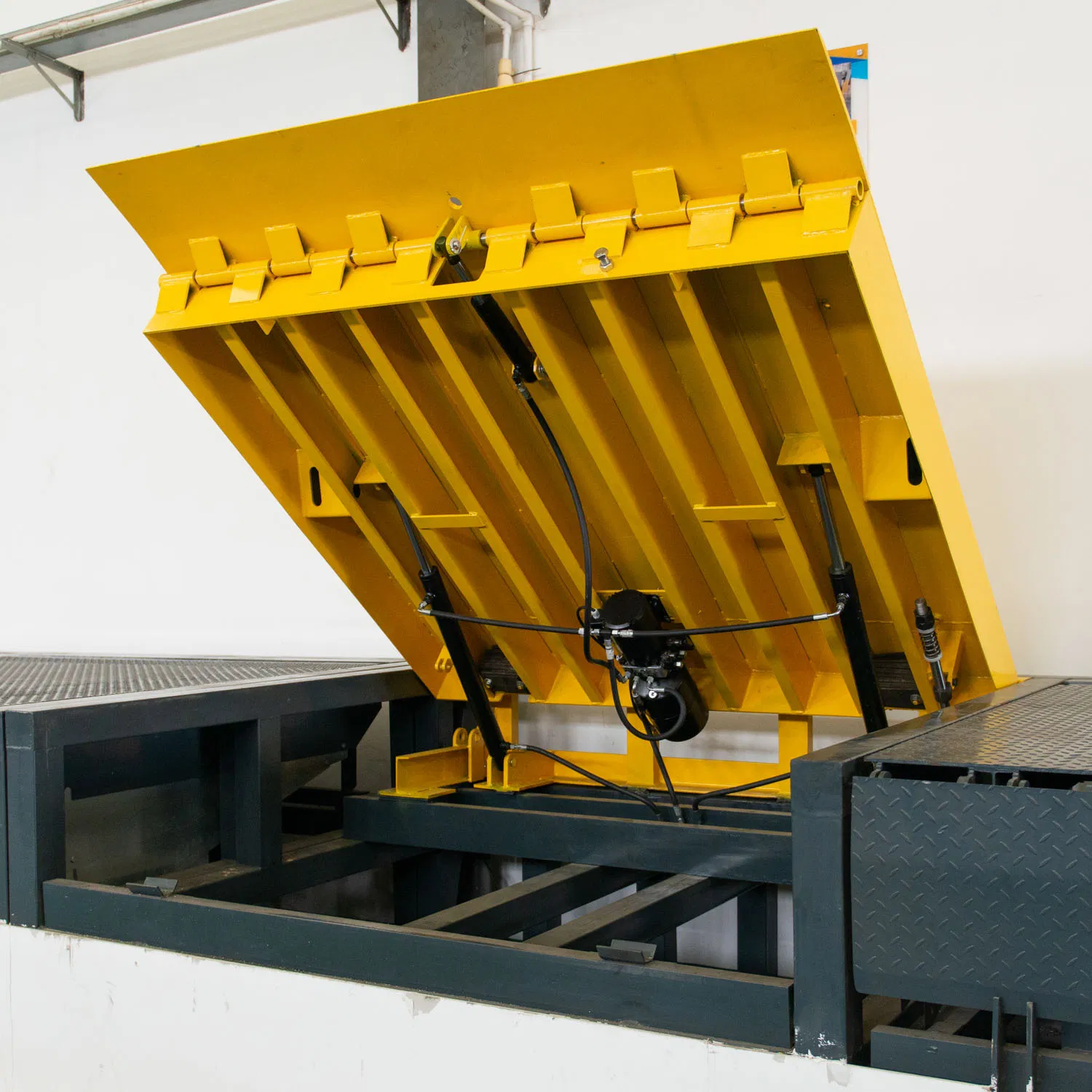

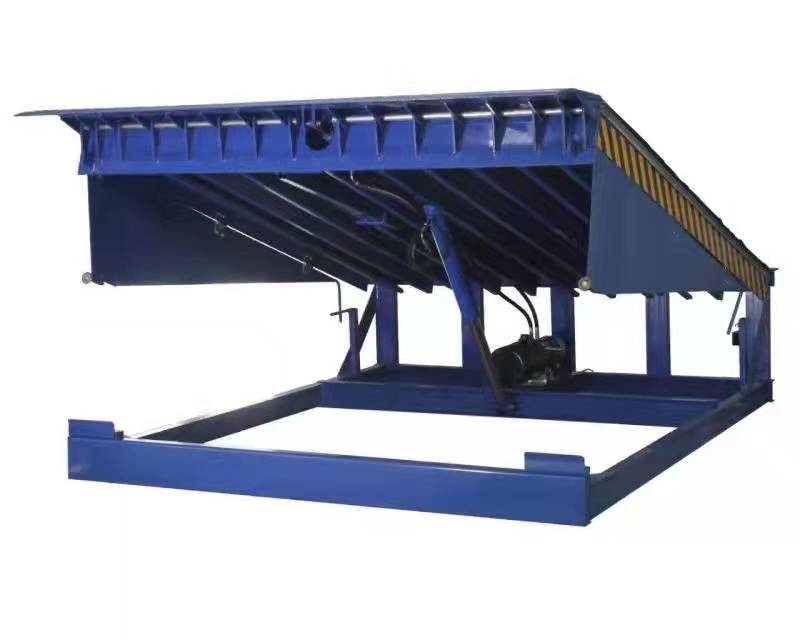

Retractable Hydraulic Electric Forklift Dock Ramp Dock Leveler Cargo Loading Lift Yard Ramp Container Ramp

Customization:	Available
After-sales Service:	Yes
Warranty:	12 Months After Delivery

Basic Specifications

Model NO.

XF-O-2500

Lift Mechanism

Hydraulic Cylinder

Carrying Capacity

6t / 8t / 10t

Moves

Stationary

Driven Type

Hydraulic

Feature

Explosion-Proof

Certification

CE, ISO 9001

Voltage

220V 50Hz / 380V 50Hz

Power

0.75 Kw / 1.5kw

Specification

2000*2000*600 mm

Origin

Made in China

HS Code

84254290

Packaging & Delivery

Package Size

200.00cm * 200.00cm * 60.00cm

Gross Weight

1000.000kg

Transport Package

Wrapping Film

Product Presentation

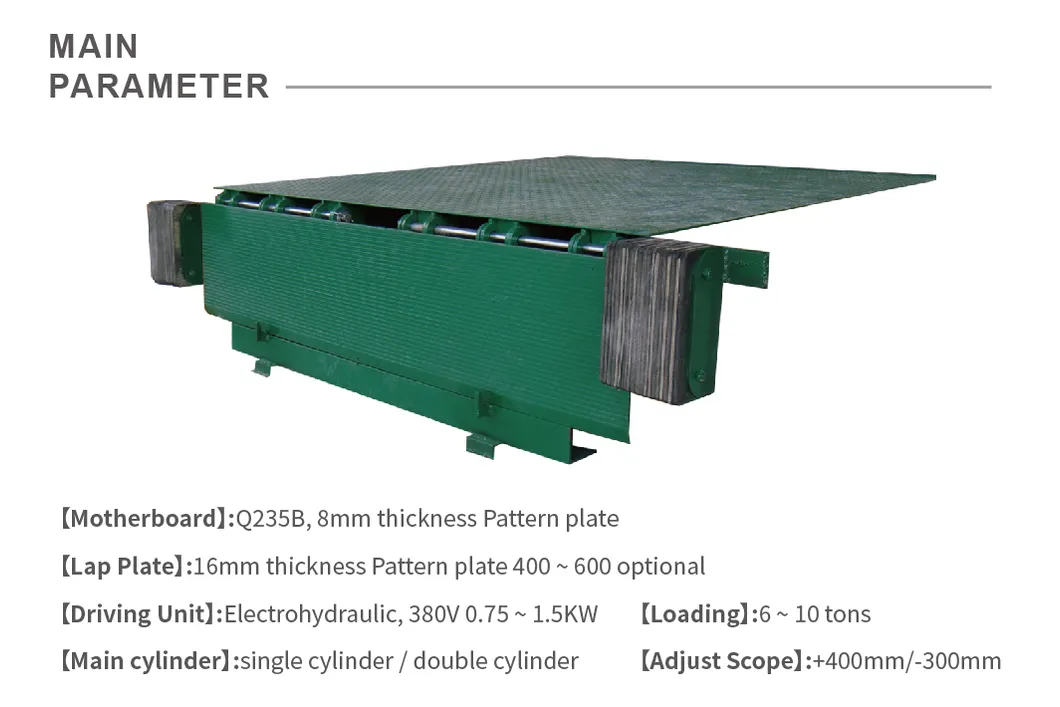

Technical Parameters

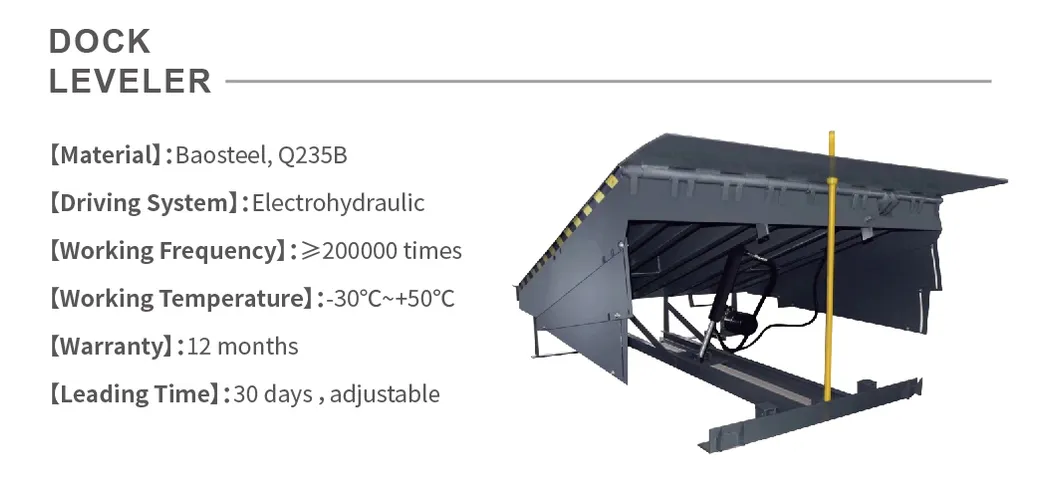

DETAILED SPECIFICATIONS

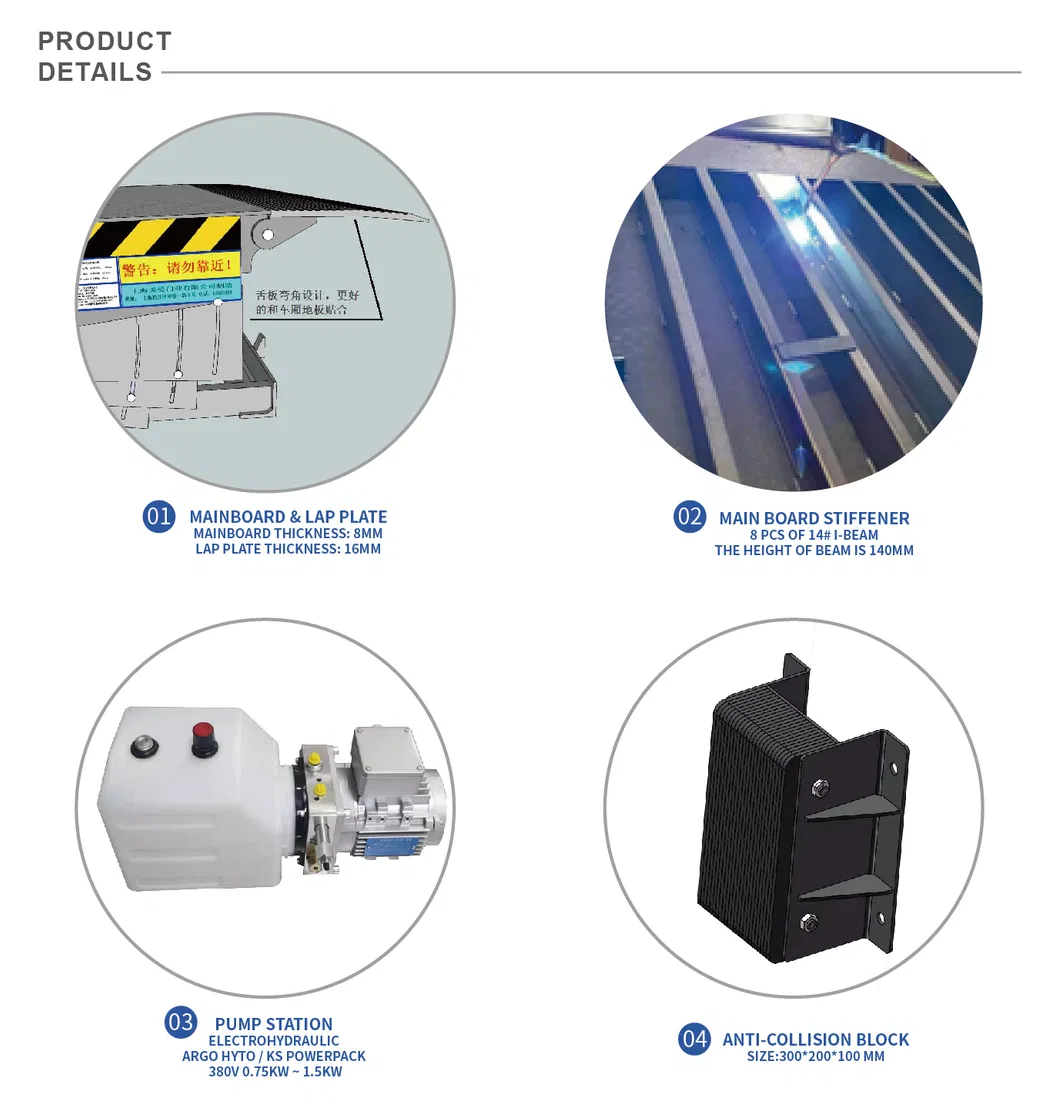

Main Board	Q235B steel plate with anti-slide pattern, thickness: 6 / 8 mm; blasting surface treatment and powder coating
Lap Plate	Q235B steel plate with anti-slide pattern, thickness: 14 / 16mm; blasting and powder coating
Loading Weight	Dynamic load: 6T / 8T / 10T / 12 T / 15T
Driving System	Electrohydraulic, Local brand / ARGO HYTO powerpack, 380V 0.75KW ~ 1.5KW
Control System	Standard 380V English interface
Adjust Scope	+400mm / -300mm
Adjust Time	Up ≤ 16S; Down ≤ 10S
Sealing Parts	Brand: NOK A505 Complete set of seals for oil cylinder
Main Cylinder	Single cylinder / double cylinders
Main Board Stiffener	8 pcs of 14# I-Beam, the height of Beam is 140mm
Side Baffles	Automatic retraction to ensure safety
Working Temperature	-30ºC ~ +50ºC
Safety Part	Explosion proof valve
Working Frequency	≥ 200,000 times

Frequently Asked Questions

What is the maximum load capacity for this dock leveler?

The system supports dynamic loads of 6T, 8T, 10T, 12T, and 15T depending on the specific model configuration.

Can this equipment operate in cold storage environments?

Yes, the hydraulic system and components are designed to operate efficiently within a temperature range of -30ºC to +50ºC.

What safety features are integrated into the dock ramp?

It includes an explosion-proof safety valve, automatic retraction side baffles for toe protection, and a Q235B anti-slide pattern steel plate.

What are the power requirements for the hydraulic system?

The unit requires a power supply of 220V or 380V at 50Hz, with a motor power ranging from 0.75Kw to 1.5Kw.

What is the expected service life of the lifting mechanism?

The equipment is built for high-frequency industrial use, with a rated working frequency of 200,000 times or more.

What is the adjustment range of the dock leveler?

The leveler offers a flexible adjustment scope of +400mm upwards and -300mm downwards to accommodate various truck heights.
