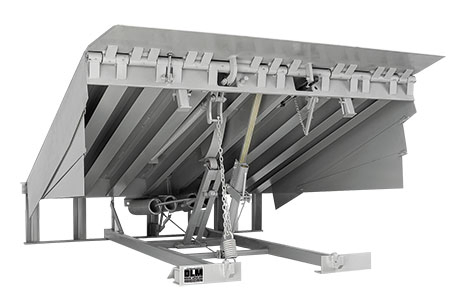

Hydraulic Electric Movable Lifting Table Cylinder Dock Platform Lift Dock Leveler Unloading Dock Ramps
Hydraulic Electric Movable Lifting Table Cylinder Dock Platform Lift Dock Leveler Unloading Dock Ramps
Hydraulic Electric Movable Lifting Table Cylinder Dock Platform Lift Dock Leveler Unloading Dock Ramps
Hydraulic Electric Movable Lifting Table Cylinder Dock Platform Lift Dock Leveler Unloading Dock Ramps
Hydraulic Electric Movable Lifting Table Cylinder Dock Platform Lift Dock Leveler Unloading Dock Ramps
1 / 5
Hydraulic Electric Movable Lifting Table Cylinder Dock Platform Lift Dock Leveler Unloading Dock Ramps
Hydraulic Electric Movable Lifting Table Cylinder Dock Platform Lift Dock Leveler Unloading Dock Ramps
Hydraulic Electric Movable Lifting Table Cylinder Dock Platform Lift Dock Leveler Unloading Dock Ramps
Hydraulic Electric Movable Lifting Table Cylinder Dock Platform Lift Dock Leveler Unloading Dock Ramps
Hydraulic Electric Movable Lifting Table Cylinder Dock Platform Lift Dock Leveler Unloading Dock Ramps

Hydraulic Electric Movable Lifting Table Cylinder Dock Platform Lift Dock Leveler Unloading Dock Ramps

Customization: Available
After-sales Service: Yes
Warranty: 12 Months
Send Inquiry

Product Description

Basic Info.

Model NO.
XF-O-2500
Lift Mechanism
Hydraulic Cylinder
Carrying Capacity
6t / 8t / 10t
Moves
Stationary
Driven Type
Hydraulic
Feature
Explosion-Proof
Certification
CE, ISO 9001
Voltage
220V 50Hz / 380V 50Hz
Specification
2000*2000*600 mm
HS Code
84254290

Packaging & Delivery

Package Size
200.00cm * 200.00cm * 60.00cm
Gross Weight
1000.000kg

Product Description

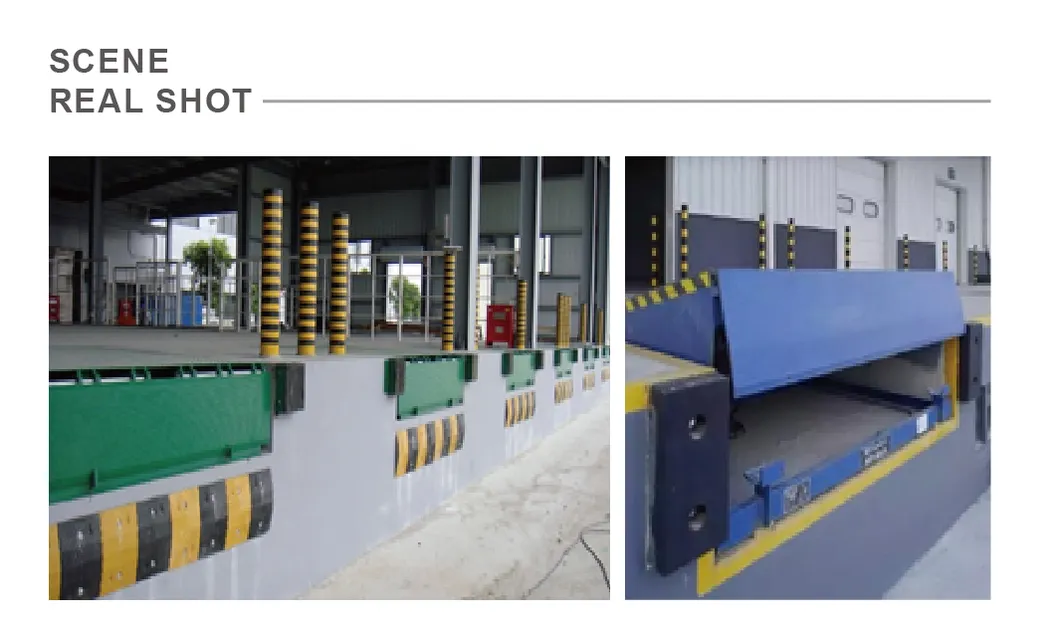

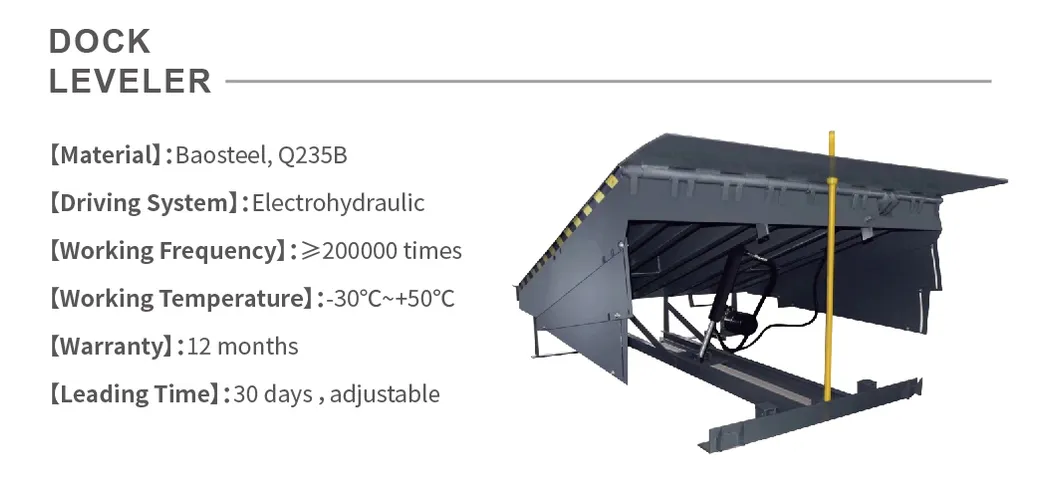

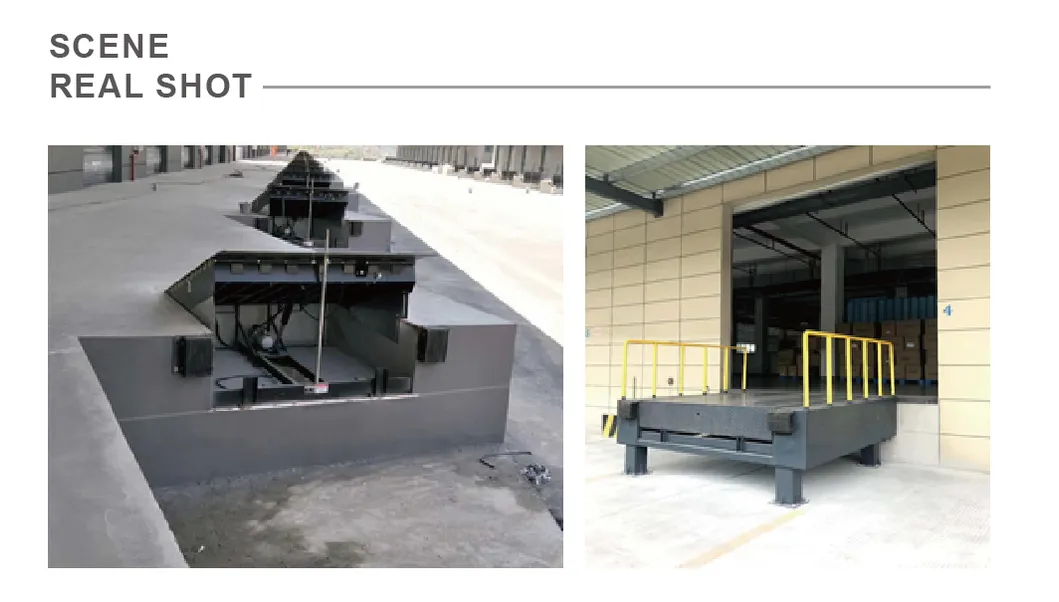

Hydraulic Dock Leveler 1 Hydraulic Dock Leveler 2 Hydraulic Dock Leveler 3

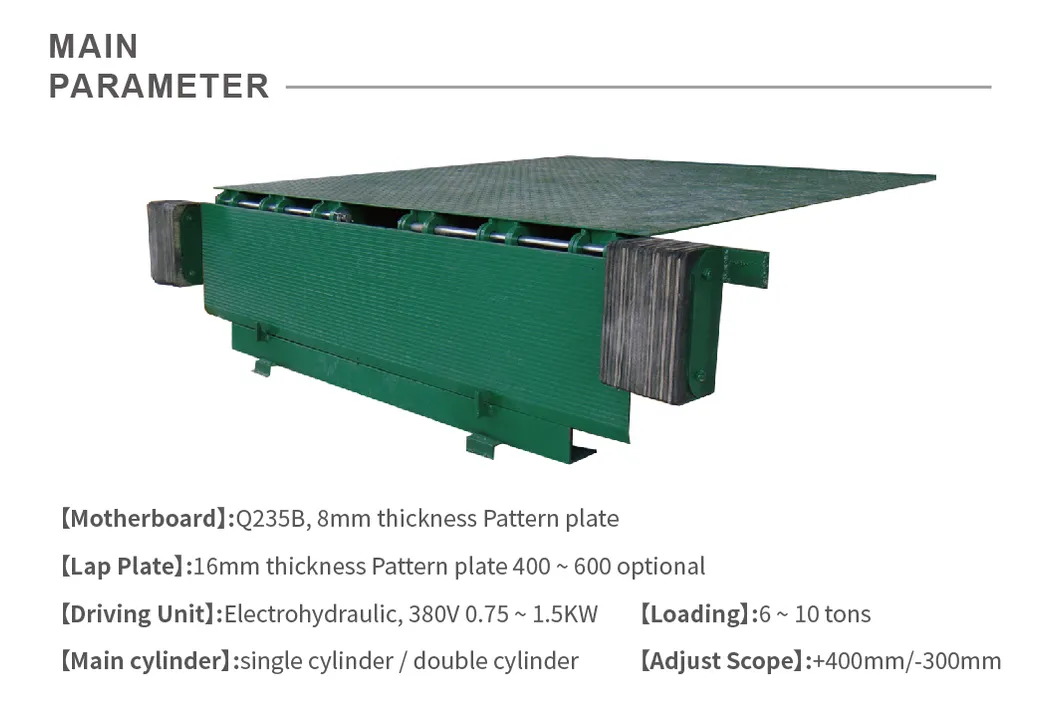

Hydraulic Dock Leveler 4 Hydraulic Dock Leveler 5
MORE PARAMETERS
Main BoardQ235B steel plate with anti-slide pattern, thickness: 6 / 8 mm; blasting surface treatment and powder coating
Lap PlateQ235B steel plate with anti-slide pattern, thickness: 14 / 16mm; blasting and powder coating
Loading WeightDynamic load: 6T / 8T / 10T / 12 T / 15T
DrivingElectrohydraulic, 380V 0.75KW ~ 1.5KW
Control SystemStandard 380V English interface
Adjust Scope+400mm / -300mm
Adjust TimeUp ≤ 16S ; Down ≤ 10S
Sealing PartsBrand: NOK A505 Complete set of seals for oil cylinder
Main cylinderSingle cylinder / double cylinders
Working Pressure8Mpa ±1Mpa
Working Temperature-30ºC ~ +50ºC
Safety PartExplosion proof valve
Working Frequency≥ 200,000 times
Technical Drawing Process Flow

Frequently Asked Questions

What are the available load capacities for this dock leveler?
The system supports dynamic loads of 6T, 8T, 10T, 12T, and 15T to accommodate various industrial needs.
Does the equipment operate in extreme temperatures?
Yes, the hydraulic system is designed to function reliably in temperatures ranging from -30ºC to +50ºC.
What safety features are included?
The unit is equipped with explosion-proof valves, side baffles for automatic retraction, and high-pressure oil pipes (60Mpa) for maximum safety.
What is the surface treatment of the steel plates?
All main boards and lap plates undergo blasting surface treatment followed by a durable powder coating for anti-slide and anti-corrosion protection.
Is the control system easy to use?
The equipment features a standard 380V English interface control system for intuitive and efficient operation.
What is the adjustment range of the platform?
The platform offers a flexible adjustment scope of +400mm upwards and -300mm downwards.
