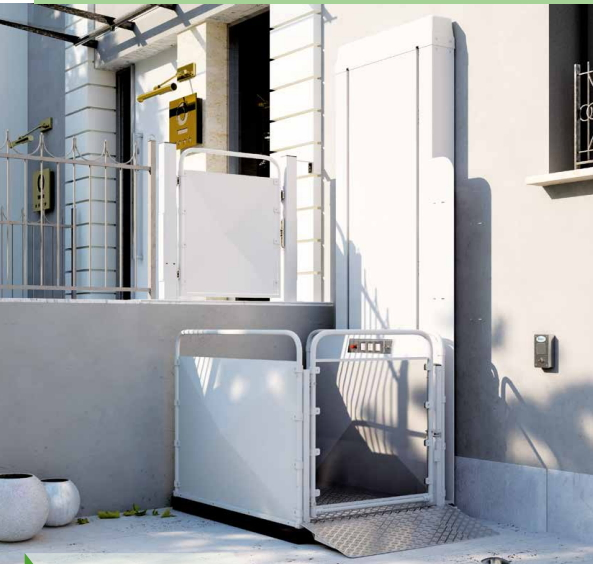

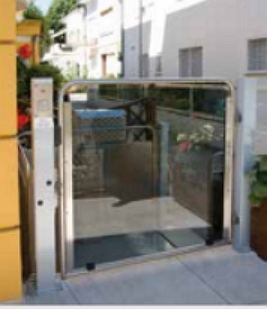

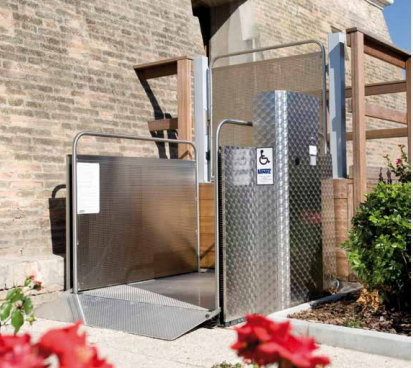

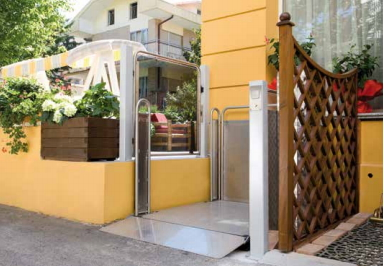

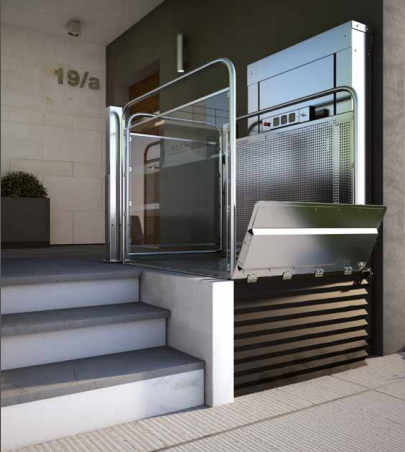

The BLP10 platform lift is the ideal solutions for assuring the accessibility of:
Easy & Safe: Easy installation and safety in operation make this an ideal system for freedom of access to buildings of all types, assuring wheelchair users independent personal mobility. Available with two travel distances: 800mm and 1000mm.
Quick Installation: Adapts perfectly to all functional and aesthetic needs. It does not require a pit of any kind; the installation can be customized to the existing structures.
Easy and Safety to Use: Thanks to its electric lock, the gate is automatically opened when the platform reaches the top. The on-board and floor control panels are equipped with keys and can be used easily.
Excellent Construction: Features include a stainless steel structure (optional), design with attention to every detail, and state-of-the-art active and passive safety features, as well as a well-proven mechanical drive system.
| Specification | Standard | Large | Extra Large |
|---|---|---|---|
| Travel/ up to (mm) | 800 | 1000 | 1000 |
| Size platform (mm) | 1250x850 | 1400x1120 | 1400x1250 |
| Safe working load (kg) | 250 | 250 | 250 |
| Speed (m/s) | 0.04 | 0.04 | 0.04 |
| Voltage | 230V 1P | 230V 1P | 230V 1P |
| Stops | n, 1 | n, 1 | n, 1 |
| Pit | Not necessary | ||
| Finish | Powder coated steel RAL7040, lifting unit with cataphoresis, black hollow guard, grey metal painted gate posts | ||
| Footrest | Platform finished in non-slip aluminum | ||
