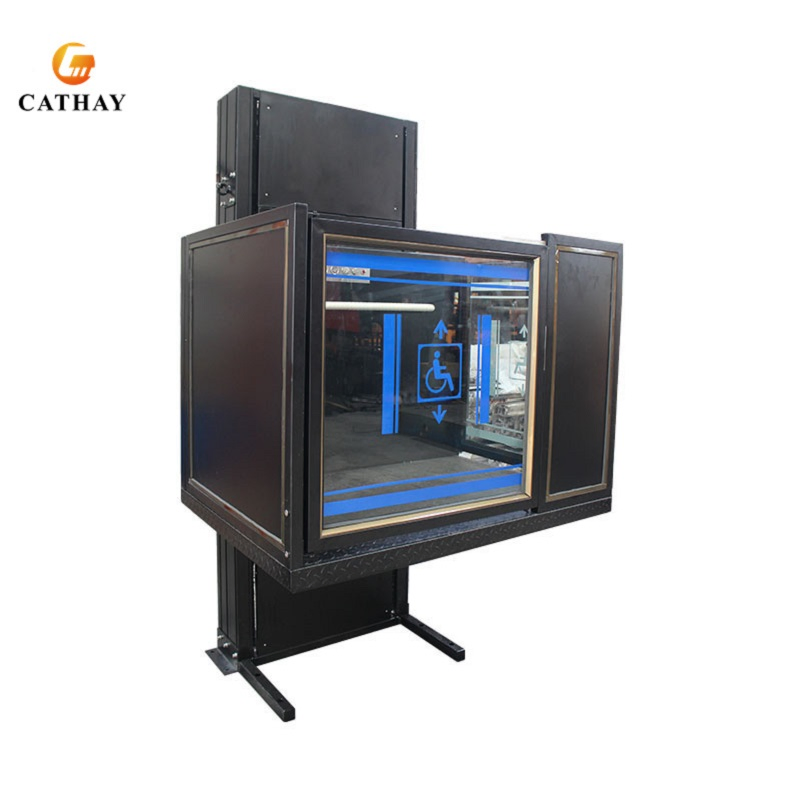

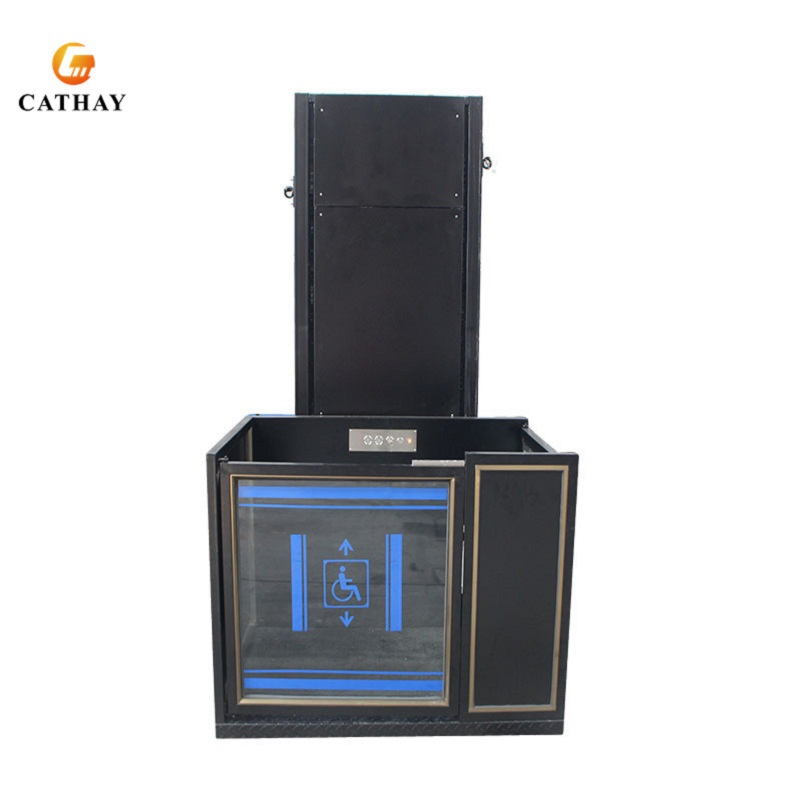

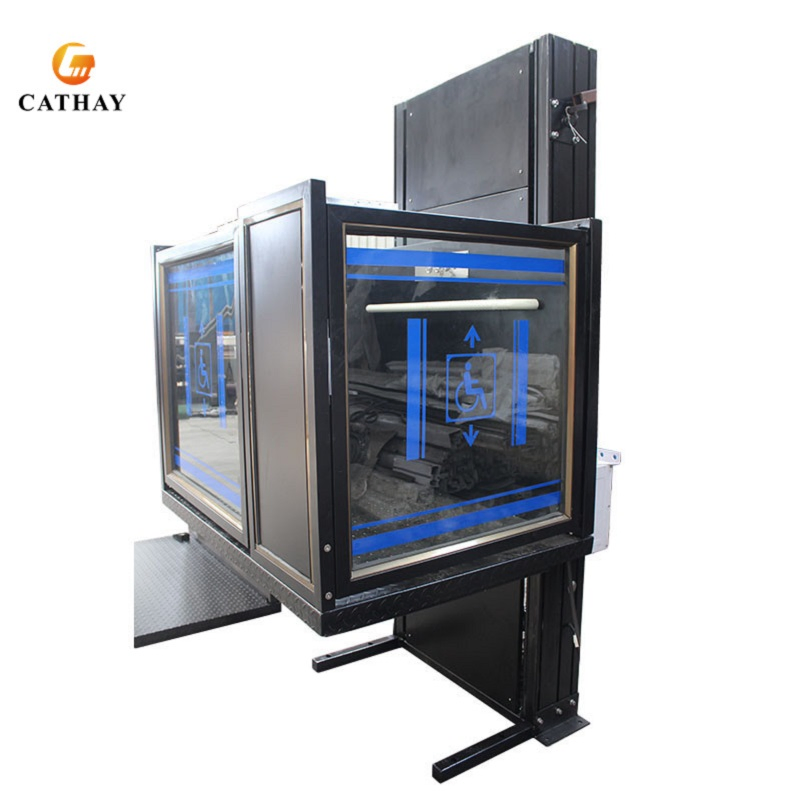

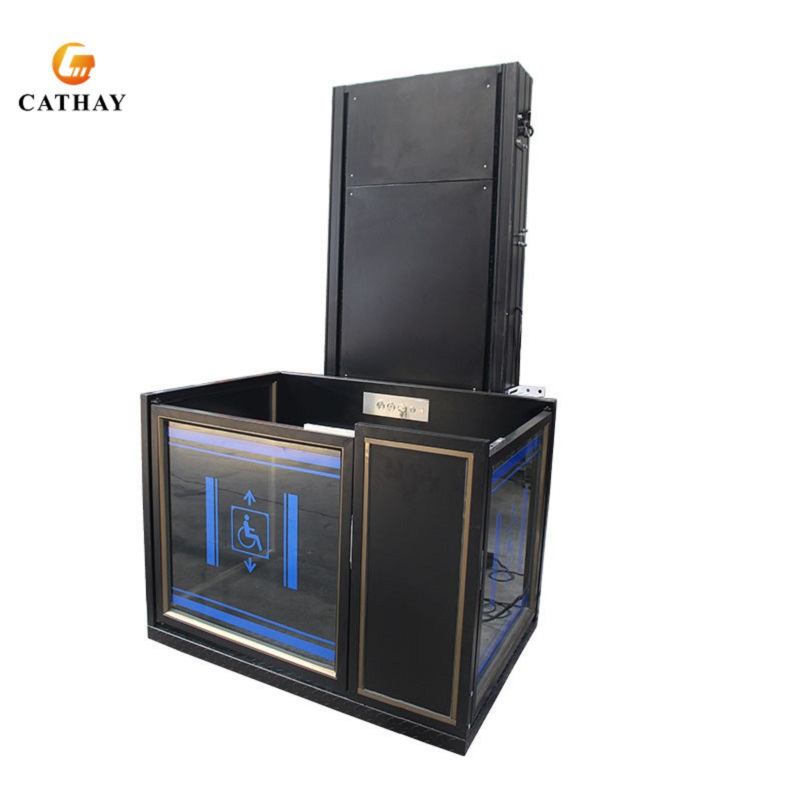

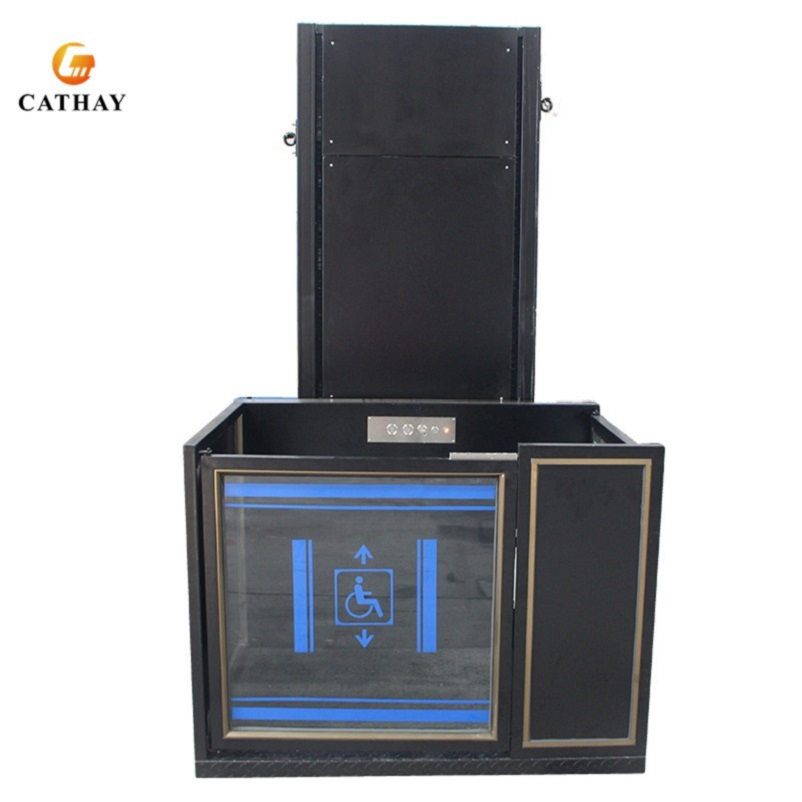

Affordable Wheelchair Lift Accessible Platform Lift Star Lift for Elder and Disabled

Electric Hydraulic Wheelchair Platform Lift

1~12m Electric Indoor & Outdoor Hydraulic Wheelchair Home Platform Elevator for Disabled

Professional OEM & ODM Solutions

The wheelchair home lift/elevator, with a lifting height range of 1~12 meters and a robust lifting capacity of 250kg~500kg, provides an engineered solution to meet diverse needs while ensuring stability and security. Its strong adaptability allows installation in harsh environments and general explosion-proof locations, making it suitable for a variety of settings. The flexible configuration options enable customization of the platform and entry/exit orientation lights to match specific installation environments and user requirements.

Basic Information

Model NO.

HL10 --HL100

Application

Workshop, Shipboard, Warehouse, Building

Lift Mechanism

Lift Chain

Carrying Capacity

250kg~500kg

Driven Type

AC

Feature

Explosion-Proof, Insulating

Certification

GS, CE, RoHS, ISO 9001

Lifting Height

1~12m

Control Voltage

24V

Entrance-Exit

90° or 180°

Technical Parameters

Model	HL10	HL20	HL30	HL40	HL50	HL60	HL80	HL100
Max Platform Height	1000mm	2000mm	3000mm	4000mm	5000mm	6000mm	8000mm	10000mm
Load Capacity	250kg	250kg	250kg	250kg	250kg	250kg	250kg	250kg
Machine Size (mm)	143013002600	143013003600	143013004600	143013005600	143013006600	143013007600	143013009600	1430130011600
Platform Size	1430*1000mm Skid-proof checkered steel
Lifting Speed	0.06~0.2m/s
Drive System	Hydraulic silent pump station and electric motor

* Customized options available: Table size, lifting height, periphery, elevator car, and floor doors can be tailored to specific requirements.

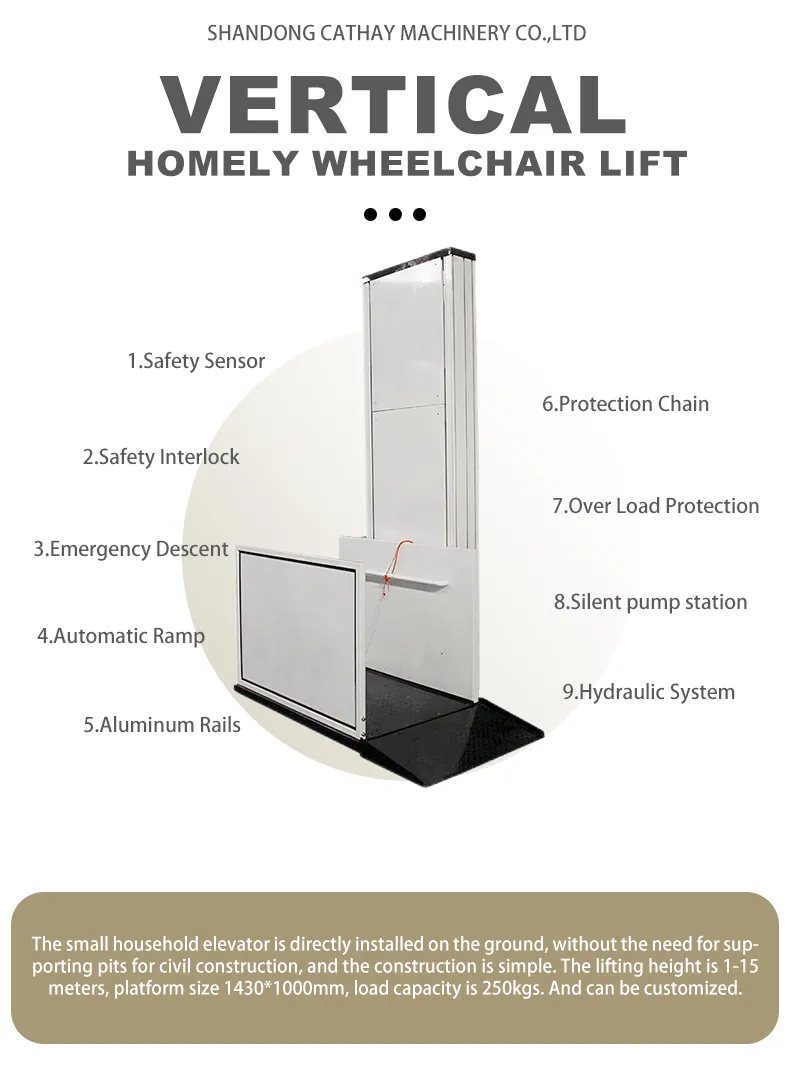

Product Advantages

Key Performance Features

Silent Operation: Equipped with a silent pump station for a noise-free environment.
Easy Installation: Simple setup with minimal maintenance requirements.
Emergency Manual Release: Manual pressure relief function available in case of power outages.
Enhanced Durability: Constructed with high-strength aluminum alloy for long-term use.
Safety Sensor: Protective sensors beneath the car stop the platform immediately if obstacles are detected.

Advanced Safety Systems

Safety Interlock: Automatically locks the platform during malfunction to prevent accidental movement.
Automatic Ramp: Ramp folds up automatically during operation to ensure smooth transitions and safety.
Overload Protection: Overcurrent relay and pressure relief valves prevent operation beyond rated capacity.
Protection Chain: Balance chain system maintains steady movement and prevents sudden drops.

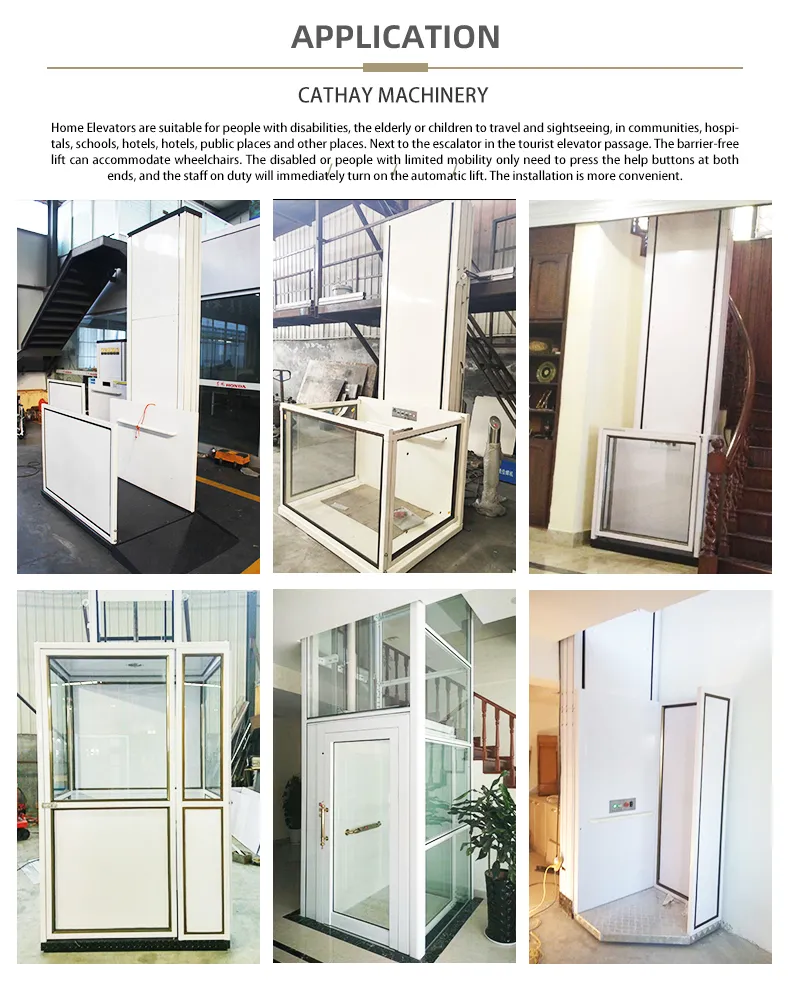

Application & Residential Solutions

These hydraulic wheelchair home lifts provide an efficient and compact way to move between floors in residential spaces. They are ideal for seniors, people with disabilities, and families with mobility challenges. Suitable for both new homes and retrofits, these lifts can be installed indoors or outdoors, fitting perfectly into low-rise buildings.

Quality Inspection & Support

Frequently Asked Questions

What is the maximum lifting height available?

The lift is designed with a versatile range, supporting lifting heights from 1 meter up to 12 meters depending on the model selected.

Is the lift suitable for outdoor installation?

Yes, the platform is engineered for both indoor and outdoor use, capable of operating in temperatures ranging from -20°C to 70°C.

How does the emergency descent function work?

In the event of a power failure, a manual pressure relief valve allows the platform to be lowered safely and controlled by hand.

What are the power requirements for the lift?

The standard voltage options include 110V, 220V, 380V, and 440V. We can customize the motor to match your local power standards (single or three-phase).

Does the lift require a pit for installation?

For heights under 3.0m, it can be installed directly on the floor without a pit. For heights above 3.0m, we recommend installation on both the floor and wall for added stability.

What safety features are included to protect the user?

The lift includes a safety sensor under the platform, an emergency stop button, overload protection, and an automatic ramp to prevent tripping.
