Lifting Function: Driven by an electric hydraulic system with stable and adjustable speeds. Working heights range from 4-18 meters, suitable for exterior cleaning and small-scale construction.
Carrying Capacity: Supports 200-500kg, equipped with overload protection devices to ensure operator and equipment safety.

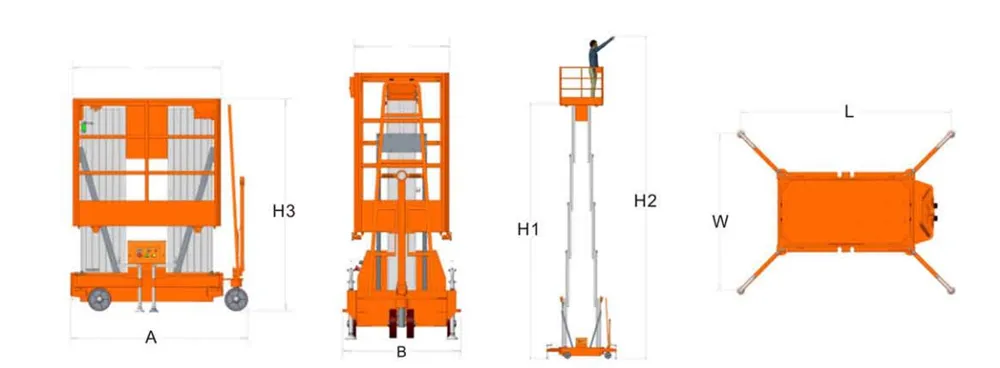

| Model | GTWY802 | GTWY1002 | GTWY1202 |
|---|---|---|---|
| Capacity (kg) | 300 | 250 | 200 |
| Max Platform height H1(m) | 8 | 10 | 12 |
| Max working height H2 (m) | 10 | 12 | 14 |
| Platform size (m) | 1.28X0.66 | 1.54X0.66 | 1.54X0.66 |
| Overall length A (m) | 1.53 | 1.79 | 1.79 |
| Outrigger Footprint(L/W) | 1.65X1.66 | 2.13X1.89 | 2.13X1.94 |
| Lifting motor (AC/DC) | 1.5kW | 1.5kW | 1.5kW |
| Self weight (kg) | 630-670 | 730-770 | 825-865 |

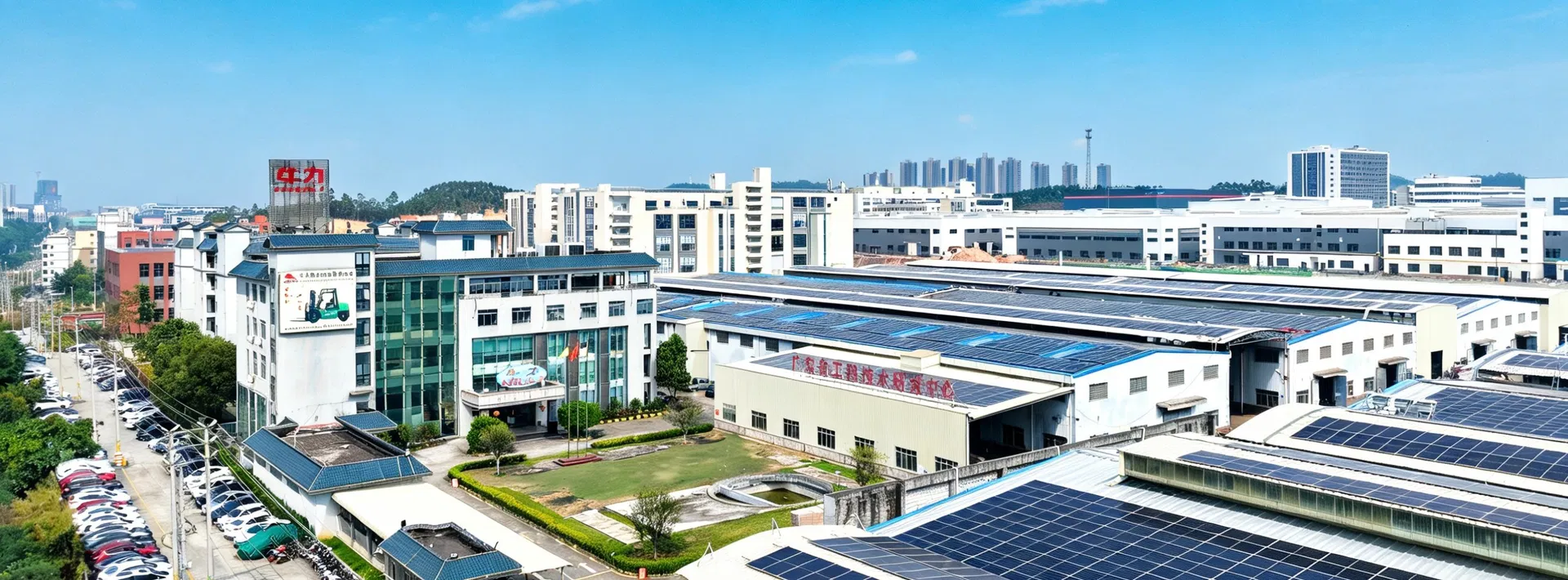

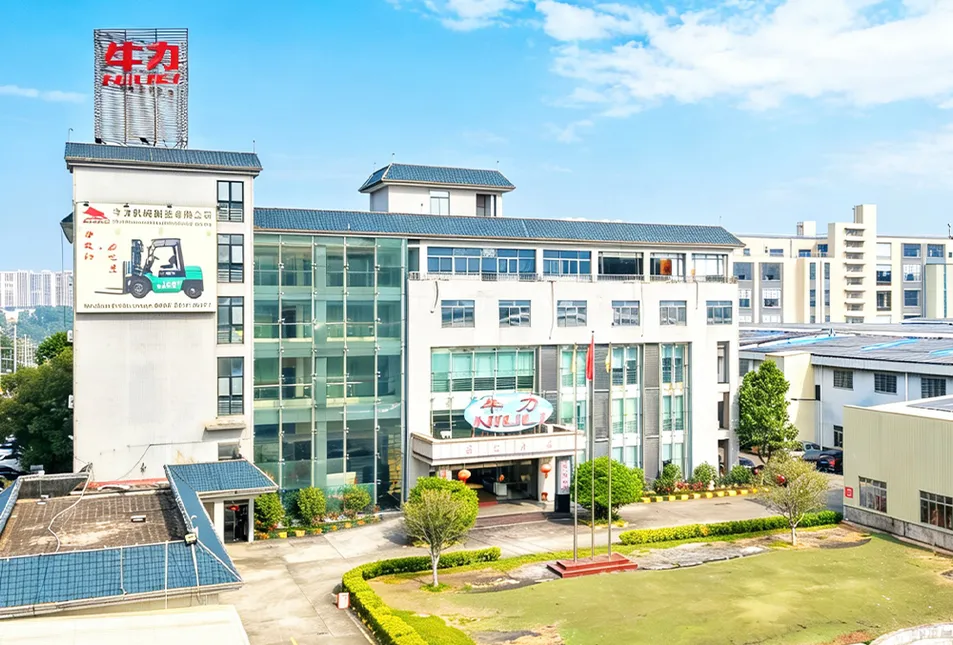

Over 26 years of OEM experience. We produce most components in-house using advanced CNC machinery and automated welding robots to ensure premium quality.
