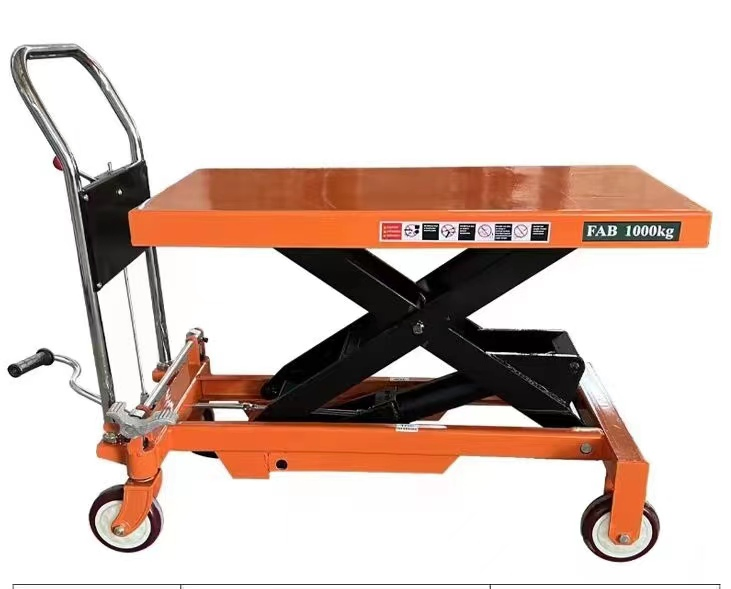

Small Scissor Lift Mobile Hydraulic Mini 1000kg Scissor Lift Platform with 1m Lifting Height
Small Scissor Lift Mobile Hydraulic Mini 1000kg Scissor Lift Platform with 1m Lifting Height
Small Scissor Lift Mobile Hydraulic Mini 1000kg Scissor Lift Platform with 1m Lifting Height
Small Scissor Lift Mobile Hydraulic Mini 1000kg Scissor Lift Platform with 1m Lifting Height
Small Scissor Lift Mobile Hydraulic Mini 1000kg Scissor Lift Platform with 1m Lifting Height
1 / 5
Small Scissor Lift Mobile Hydraulic Mini 1000kg Scissor Lift Platform with 1m Lifting Height
Small Scissor Lift Mobile Hydraulic Mini 1000kg Scissor Lift Platform with 1m Lifting Height
Small Scissor Lift Mobile Hydraulic Mini 1000kg Scissor Lift Platform with 1m Lifting Height
Small Scissor Lift Mobile Hydraulic Mini 1000kg Scissor Lift Platform with 1m Lifting Height
Small Scissor Lift Mobile Hydraulic Mini 1000kg Scissor Lift Platform with 1m Lifting Height

Small Scissor Lift Mobile Hydraulic Mini 1000kg Scissor Lift Platform with 1m Lifting Height

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications
Customized
Available
Standard
International Standard
Material
Steel / Aluminum / Stainless Steel
Driven Type
Hydraulic
Running Mode
Moving
Feature
Explosion-Proof, Insulating, Emergency Stop
Control Methods
Hand Operated
Anti-Corrosion
Yes
Structure
Scissor Structure
Capacity Range
150kg to 1000kg

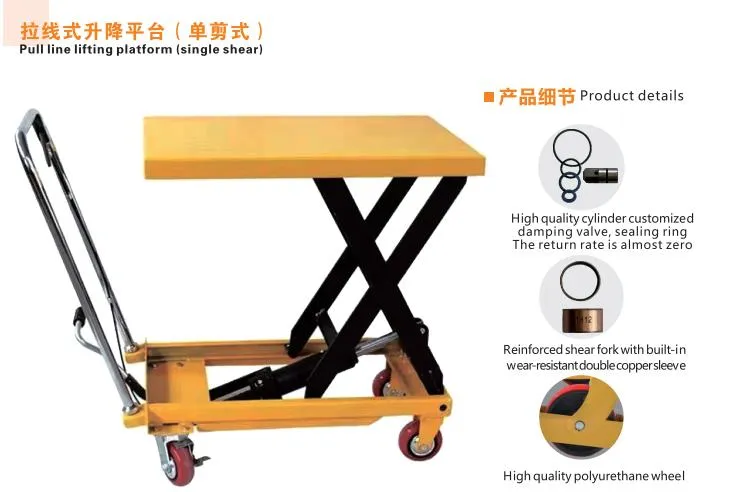

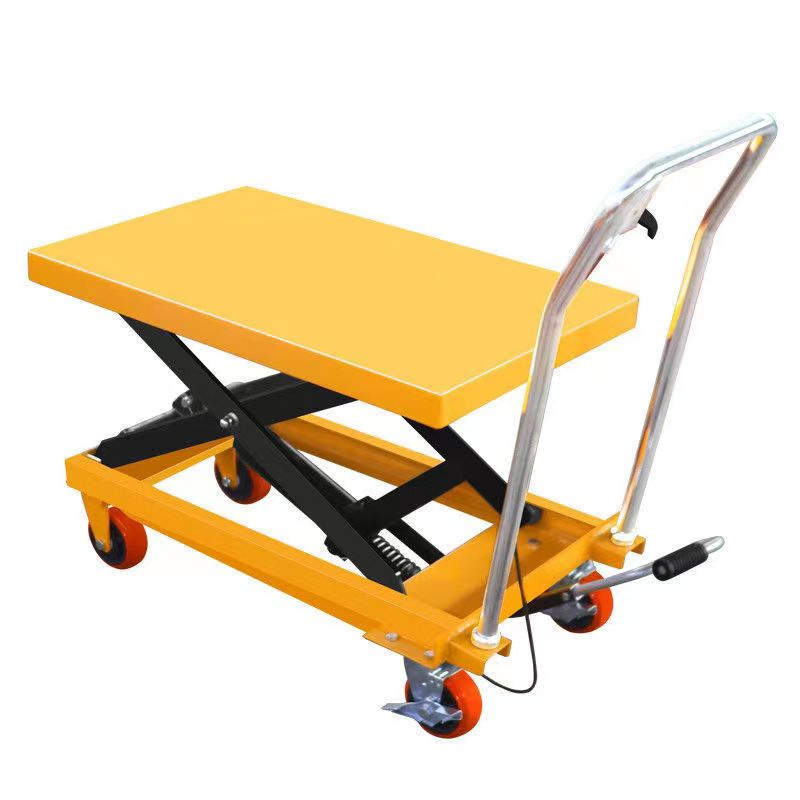

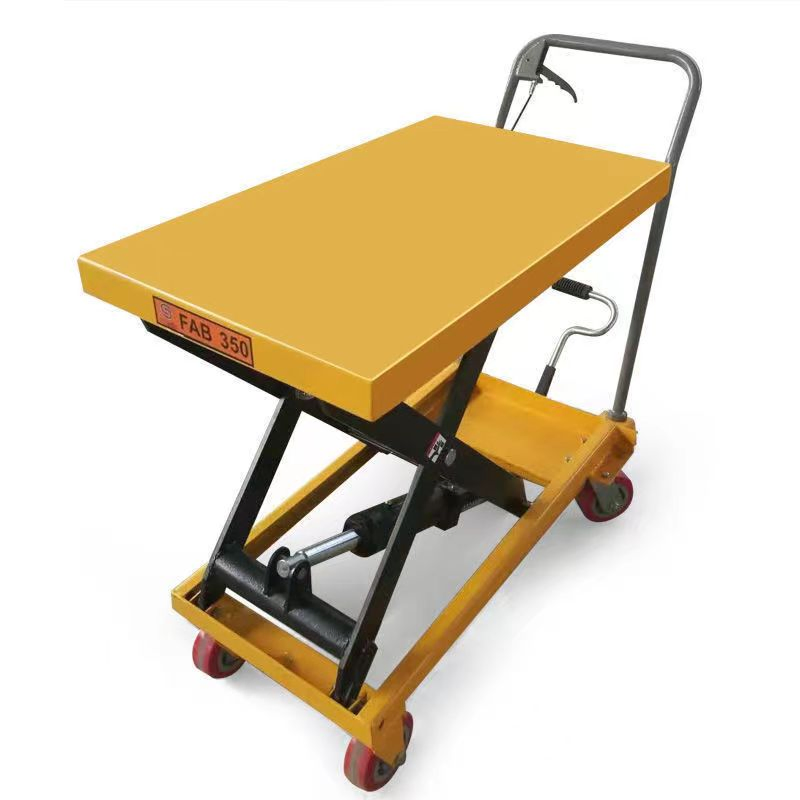

Pull Line Lifting Platform (Single Shear)

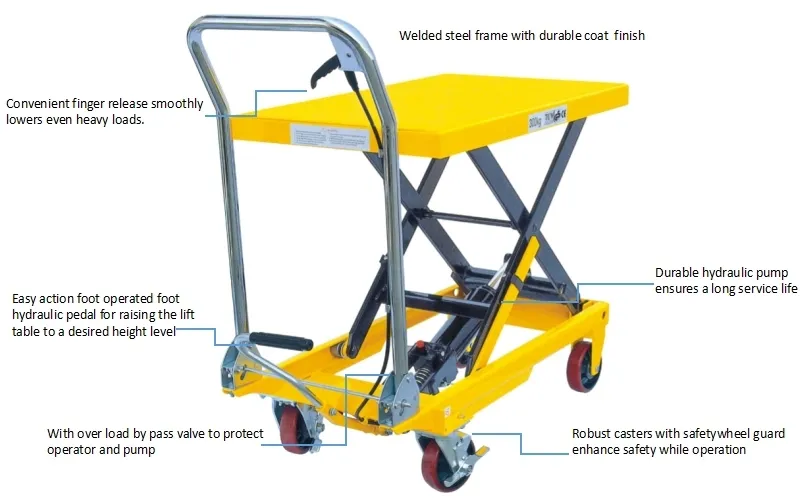

Single Shear Lifting Platform
Product Details
Key Features:
  • The foot rod connects the hydraulic system to lift the platform to the required position.
  • Overload protection device (pressure limiting valve) ensures safety by controlling the body within the limited load range.
  • Wheels are made of polyurethane material: anti-noise, anti-slip, and anti-wear.
  • Descending control allows the oil pump to drop smoothly after pressure relief by lifting the wrench.
Product Parameters 150kg Model 350/500kg Model
Minimum Platform Height210mm280mm
Maximum Height After Lifting720mm900mm
Size of Platform700*450*40mm820*500*50mm
Diameter of Wheel100mm125mm
Height of Handle Above Ground730mm950mm
Self-Weight42kg70/74kg

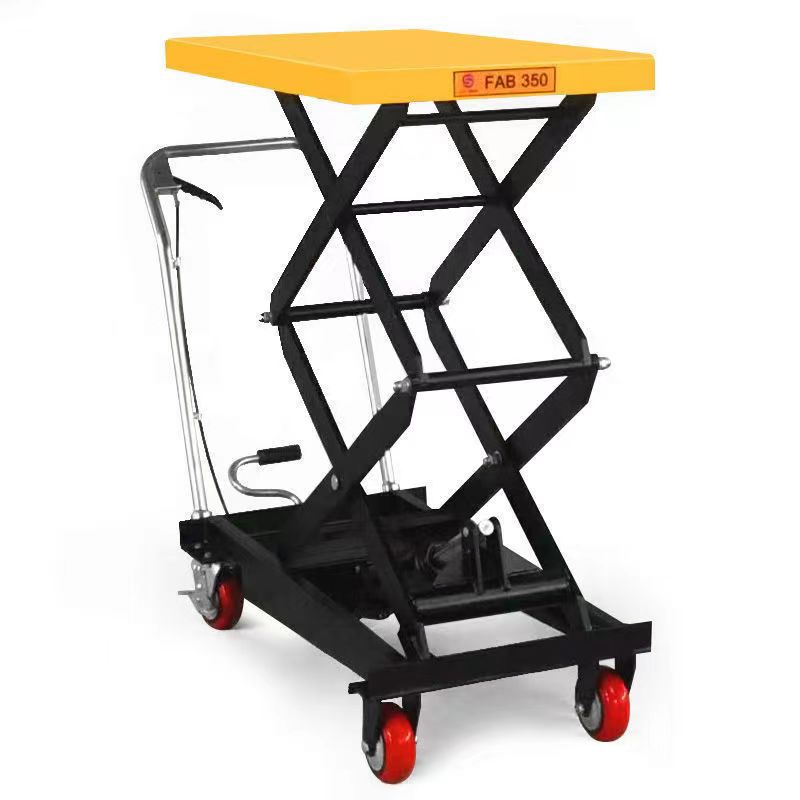

Pull Line Lifting Platform (Manual Double Shear Integrated Pump)
Advanced Performance:
  • Simple and compact structure with excellent lifting stability based on specialized production technology.
  • Anti-clipping fork design to prevent operational injuries.
  • Ideal for production lines, material online/offline transport, and automobile engine bracket lifting.
  • Configurable workbench forms, power modes, and control systems based on environmental requirements.

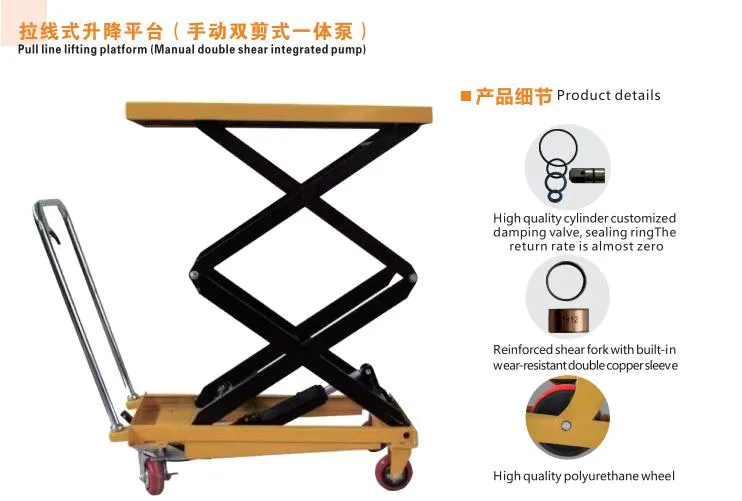

Double Shear Integrated Pump
Product Parameters 150kg 350/500kg (Low) 350/500kg (High)
Minimum Height302mm350mm400mm
Maximum Lifting Height1220mm1300mm1500mm
Size of Platform700*450*40mm920*500*50mm920*500*50mm
Diameter of Wheel100mm125mm125mm
Self-Weight50kg97/99kg100/106kg

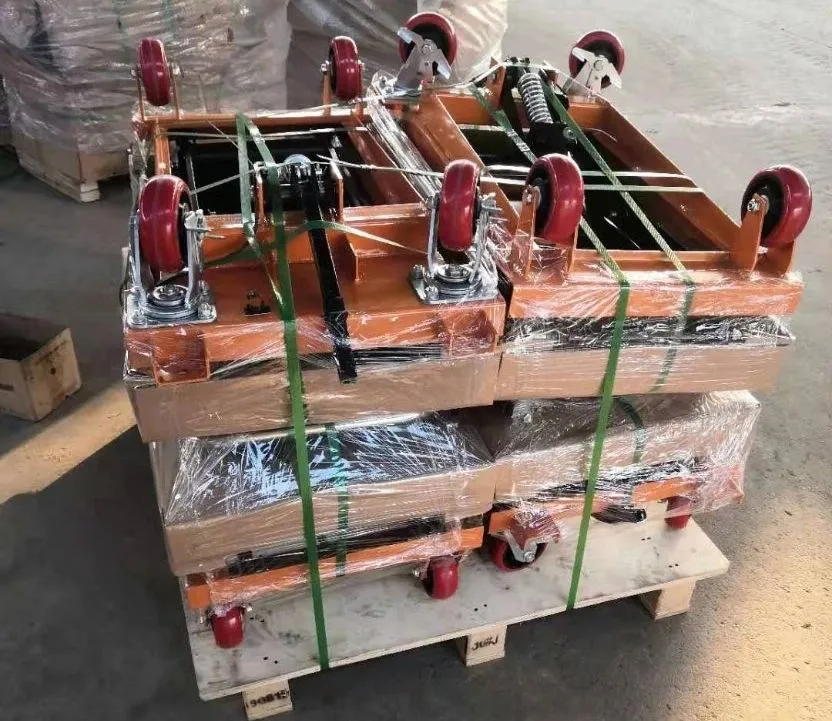

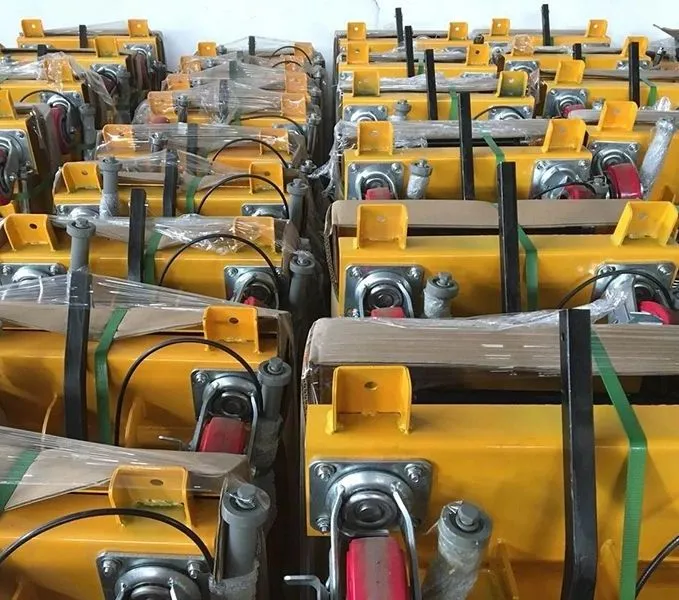

Packaging & Shipping
Customization Services

We provide comprehensive customization for various lifting products. If you have specific designs or technical drawings, we can manufacture products to meet your exact requirements. If you're unsure of the specifications, simply let us know your intended usage, and we will provide professional recommendations and drawings for your reference.

Frequently Asked Questions
How can I receive a detailed quotation?
Please provide your technical requirements including material grade, load capacity, lifting height, and any surface treatment needs. Our engineers will review and respond within 3-5 working days.
Can I request a sample to verify the quality?
Yes, samples are available upon price confirmation. While there is a sample fee, it is refundable once your first bulk order exceeds our MOQ requirements.
Do you support OEM manufacturing?
Absolutely. We offer OEM services where product packing and specifications can be designed according to your specific brand requirements.
What materials are used for the platform?
Standard platforms are made of high-quality Steel, but we also offer Aluminum or Stainless Steel options based on your working environment.
Are the lifting platforms safe for heavy-duty use?
Yes, each unit is equipped with a pressure limiting valve for overload protection and an emergency stop feature to ensure maximum operator safety.
What are the typical lead times for production?
Production capacity is approximately 1,000 pieces per month. Specific lead times depend on the order volume and customization details.
