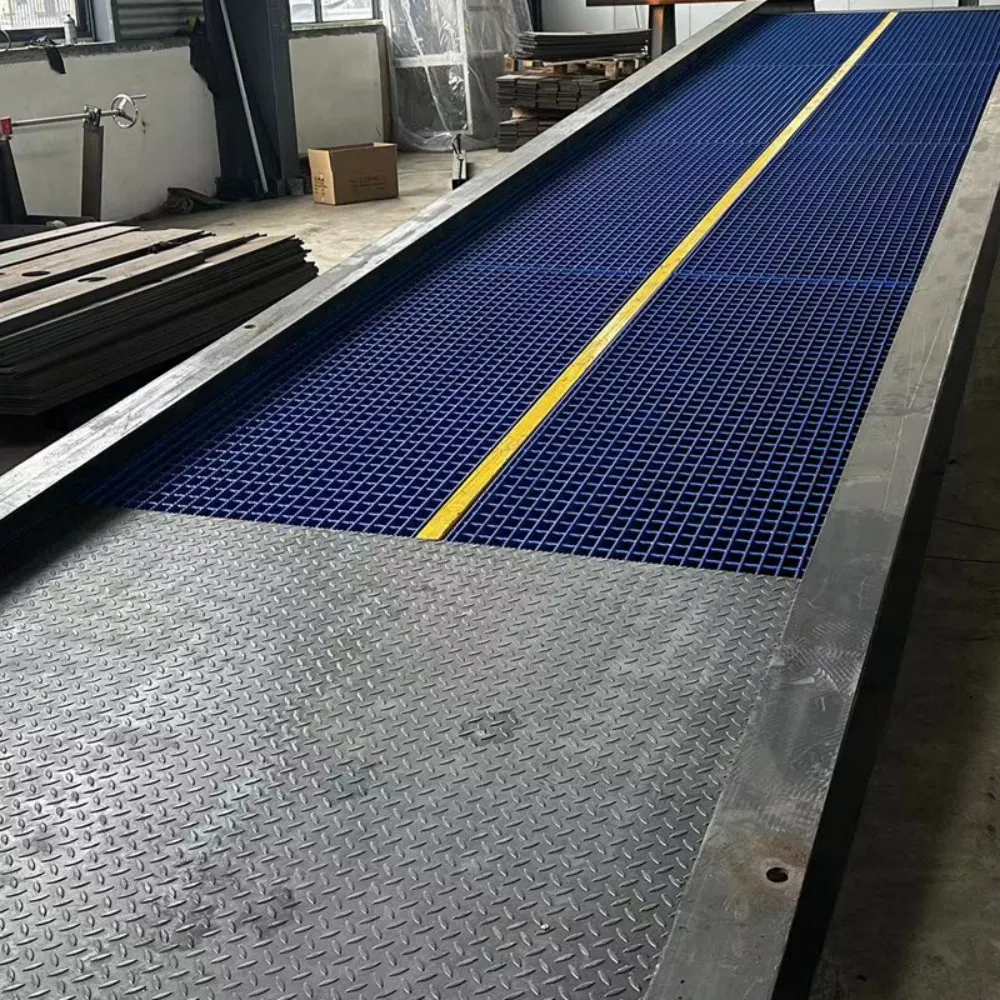

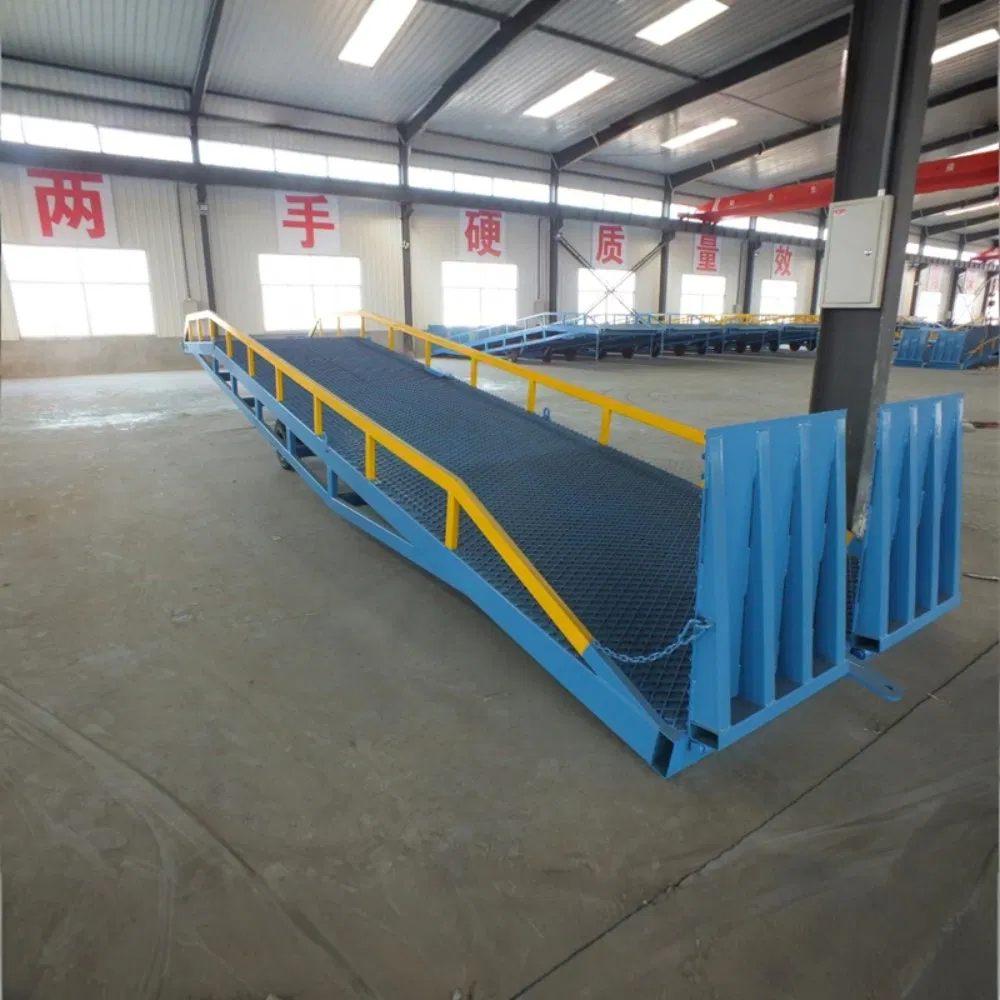

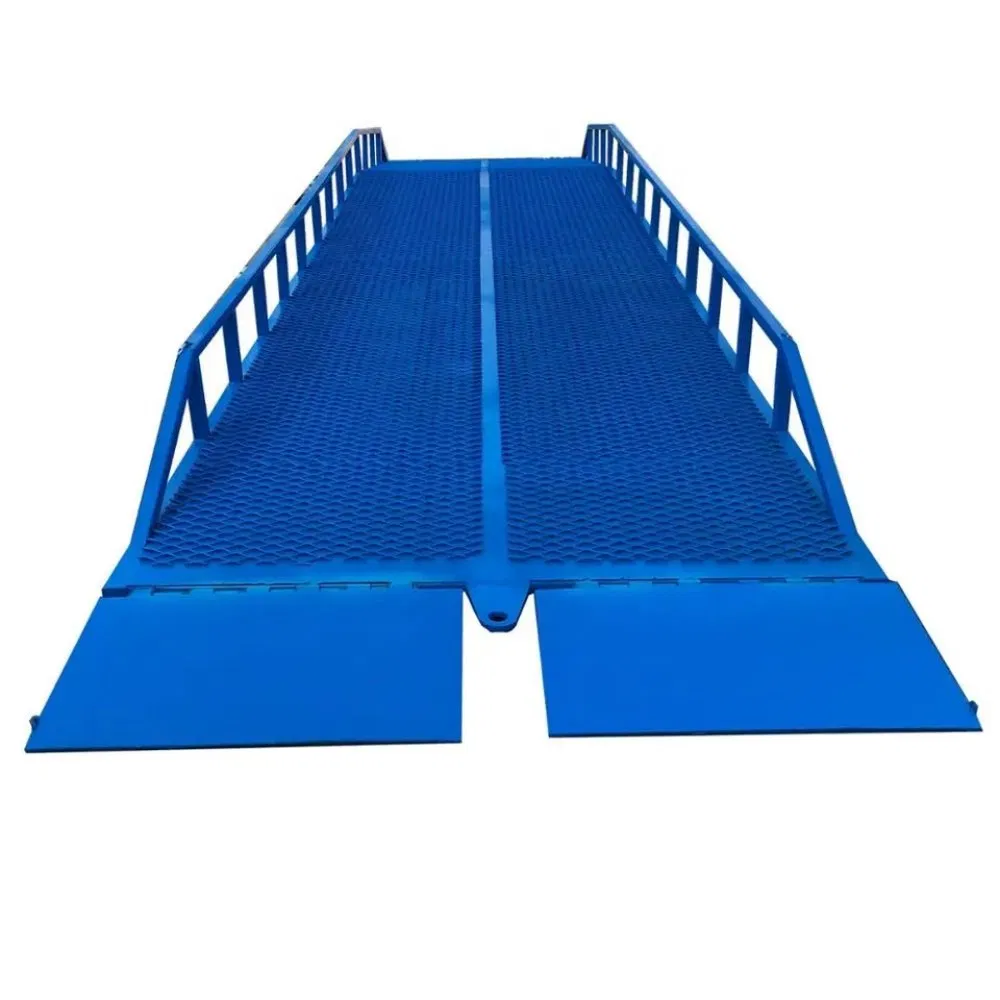

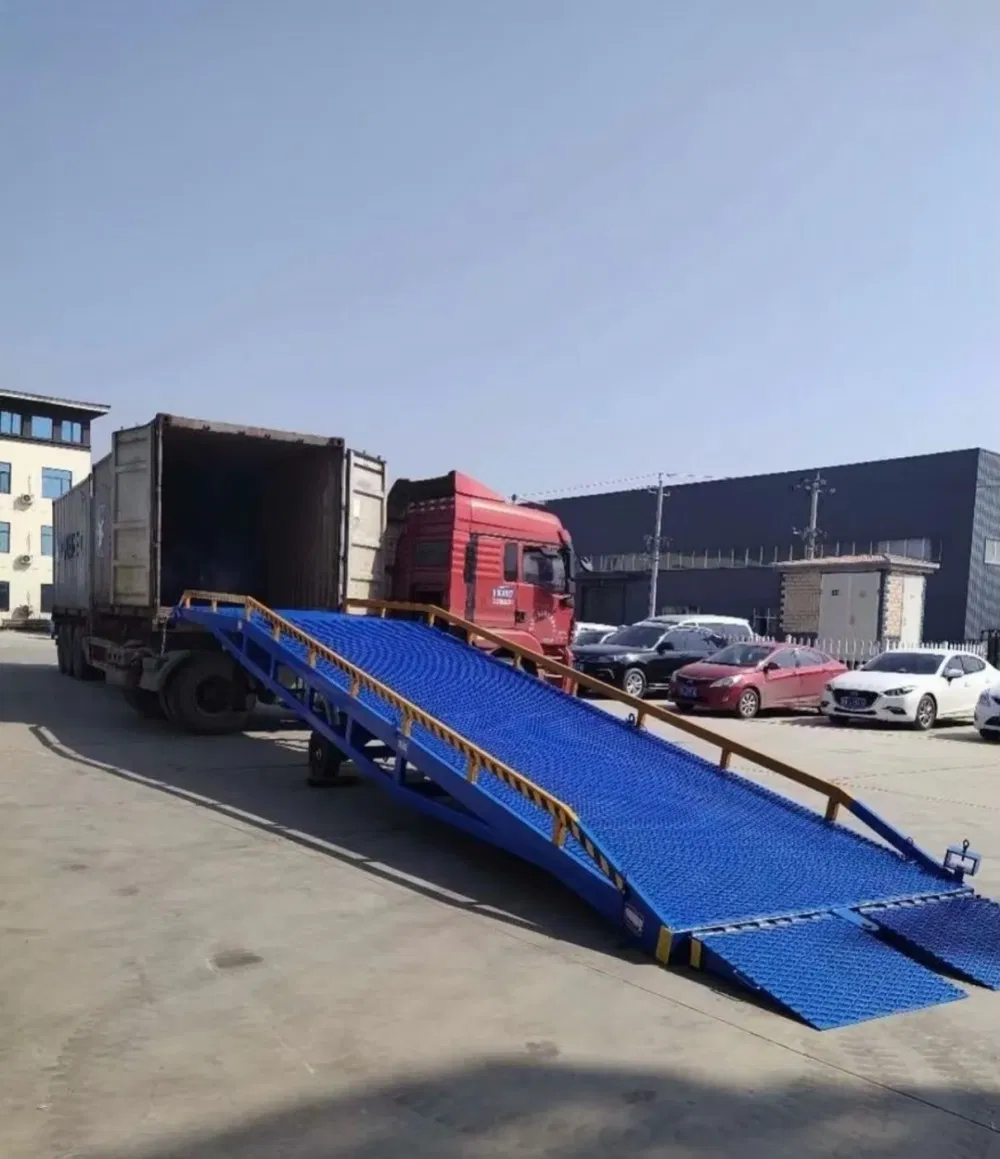

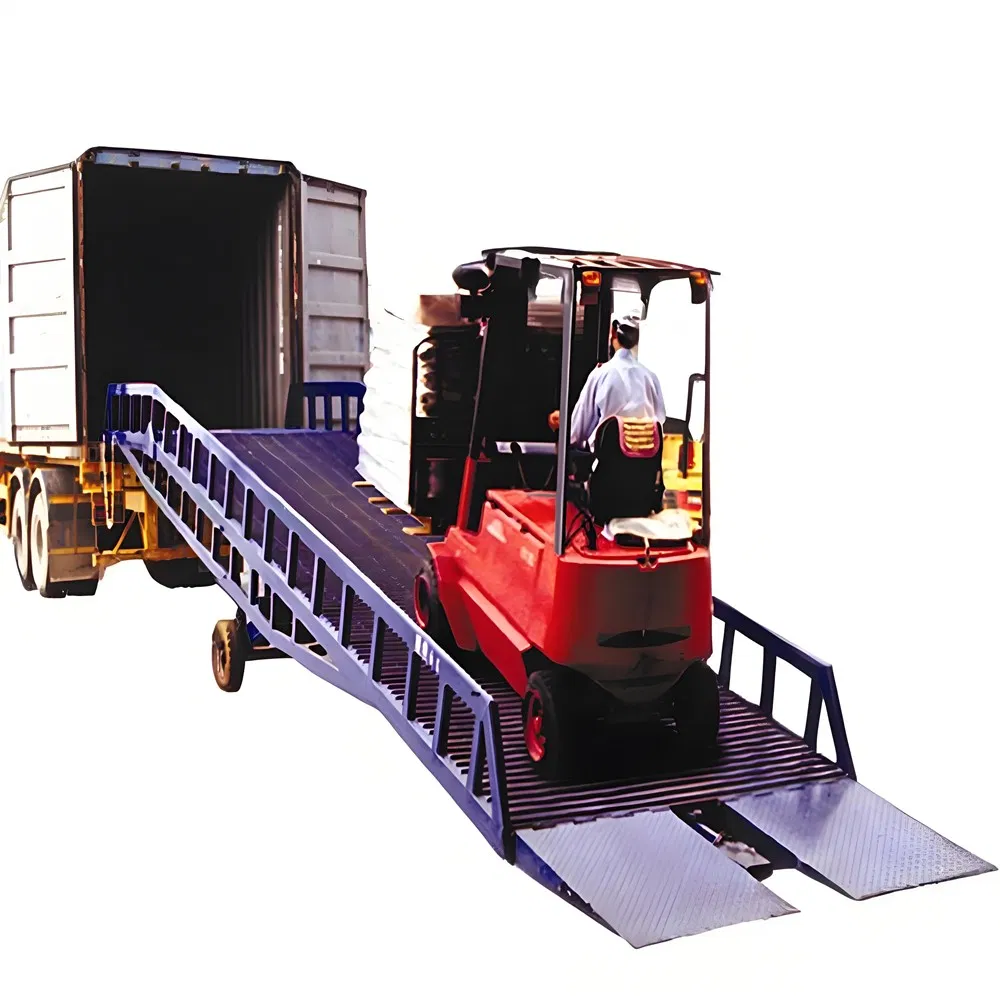

10t 6t Strong Frame Mobile Boarding Bridge Electric Loading Truck Loading Yard Ramp Hydraulic Loading Dock Ramp

Customization: Available
After-sales Service: Online Support
Warranty: 1 Year

Product Description

Overview & Basic Info
Model NO.Mobile Loading Ramp
Lift MechanismScissor Lift
Driven TypeHydraulic
Power SourceManual
MaterialSteel
CertificationGS, CE
Load Range6 - 15 Tons
ConditionNew
Product Description
Loading Yard Ramp Header

A mobile boarding bridge, also known as a mobile loading dock, is a device that creates a temporary passage between the truck and the ground. It is made of high-strength materials and has a robust structure that can withstand the pressure of heavy loads. The design of the mobile boarding bridge allows goods to be easily transported from the ground to the truck, or unloaded from the truck to the ground, which greatly improves the efficiency of logistics and transportation.

Dock levelers ensure a seamless transition between the dock and the truck bed, enabling smooth movement of forklifts and other material handling equipment. They compensate for differences in height and potential unevenness, guaranteeing a stable and secure transfer of goods.

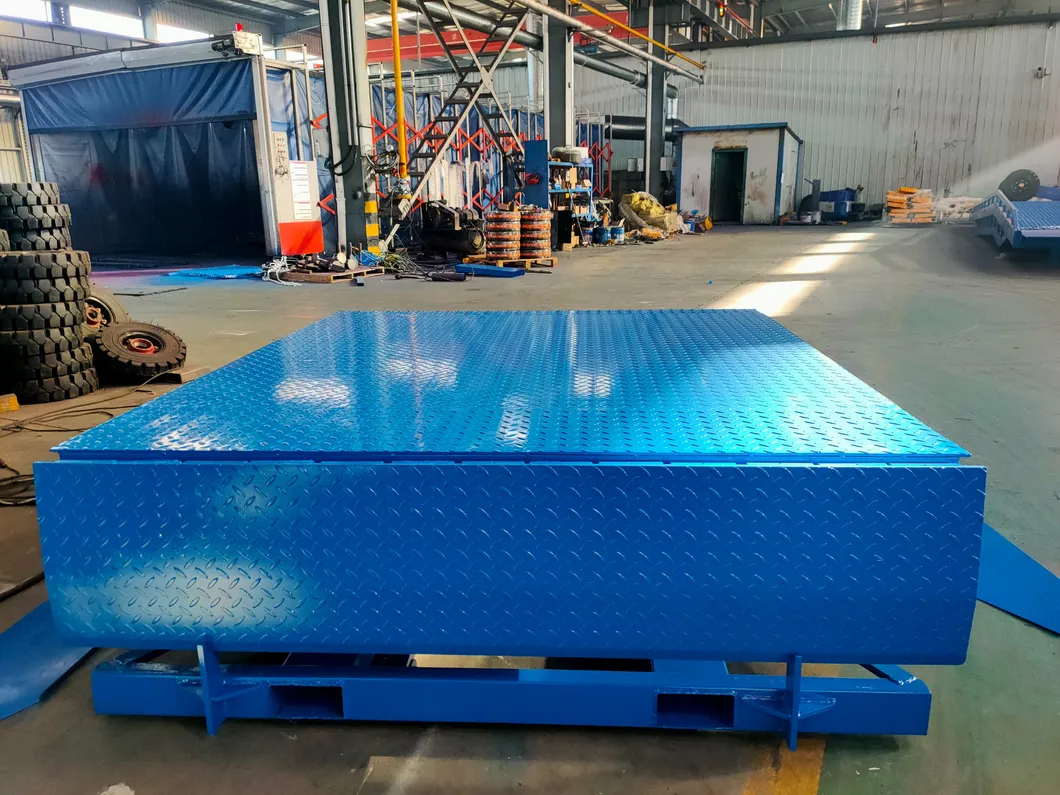

Loading Ramp View 1

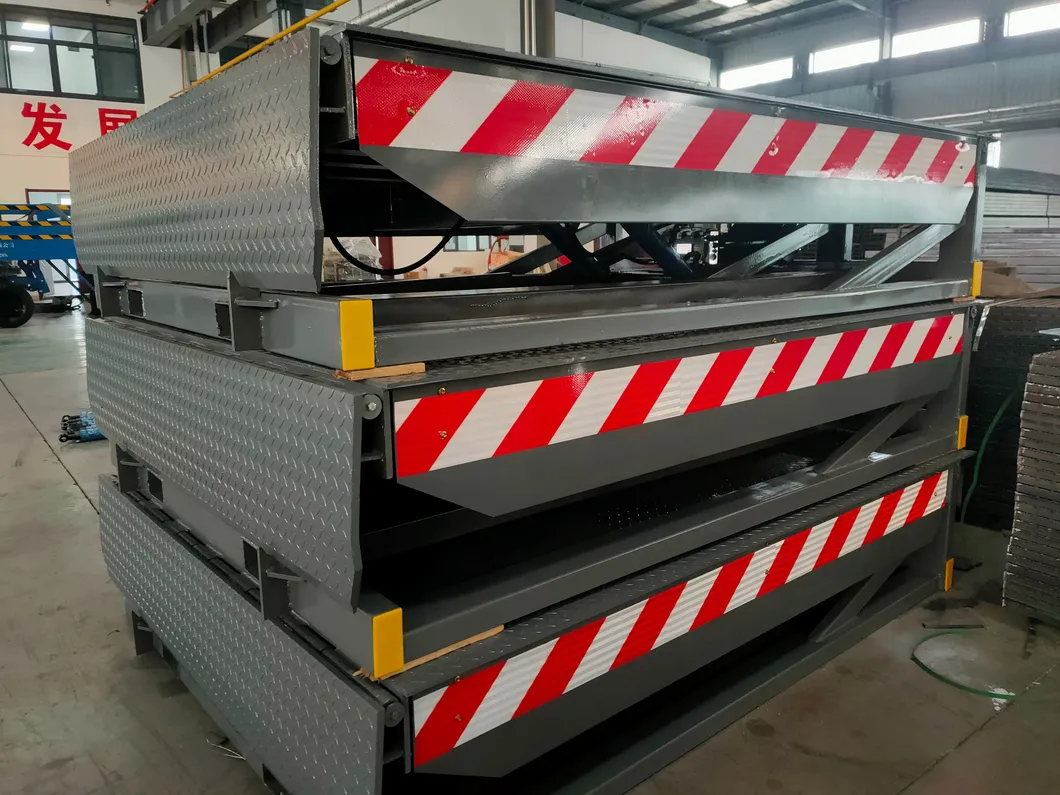

Loading Ramp View 2
Technical Specifications
Model MFQY-6 MFQY-8 MFQY-10 MFQY-12 MFQY-15
Overall size 11300*2100 11300*2100 11300*2100 11300*2100 11300*2100
Slope length 7150mm 7150mm 7150mm 7150mm 7150mm
Load Capacity 6t 8t 10t 12t 15t
Adjustable range 1100-1800mm 1100-1800mm 1100-1800mm 1100-1800mm 1100-1800mm
Main beam 160*80*4mm 160*80*4mm 160*80*4mm 200*100*5mm 200*100*6mm
Overall weight ±2200kg ±2400kg ±2600kg ±3300kg ±4000kg
Quality & Construction Details

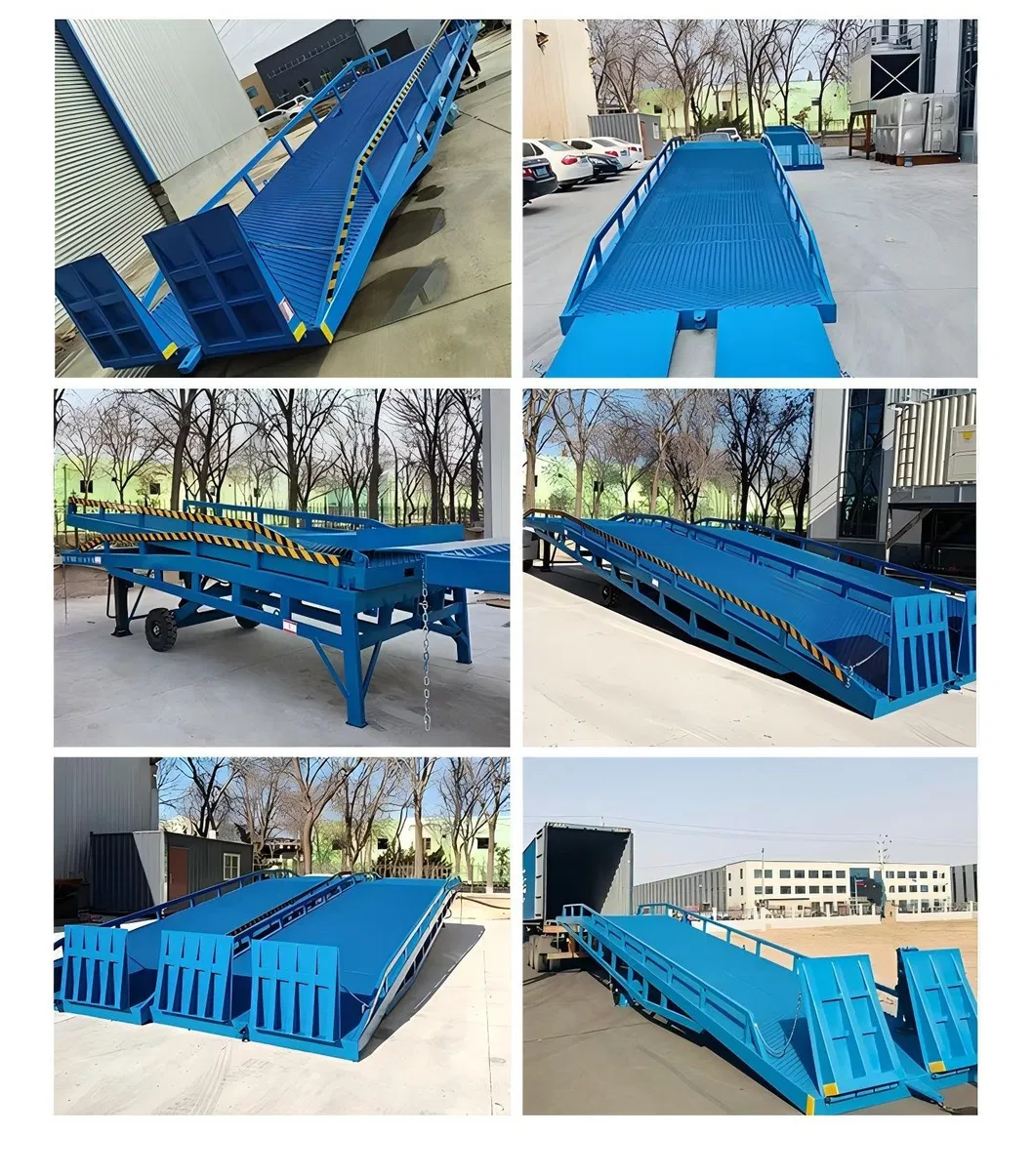

Construction Detail 1
Construction Detail 2

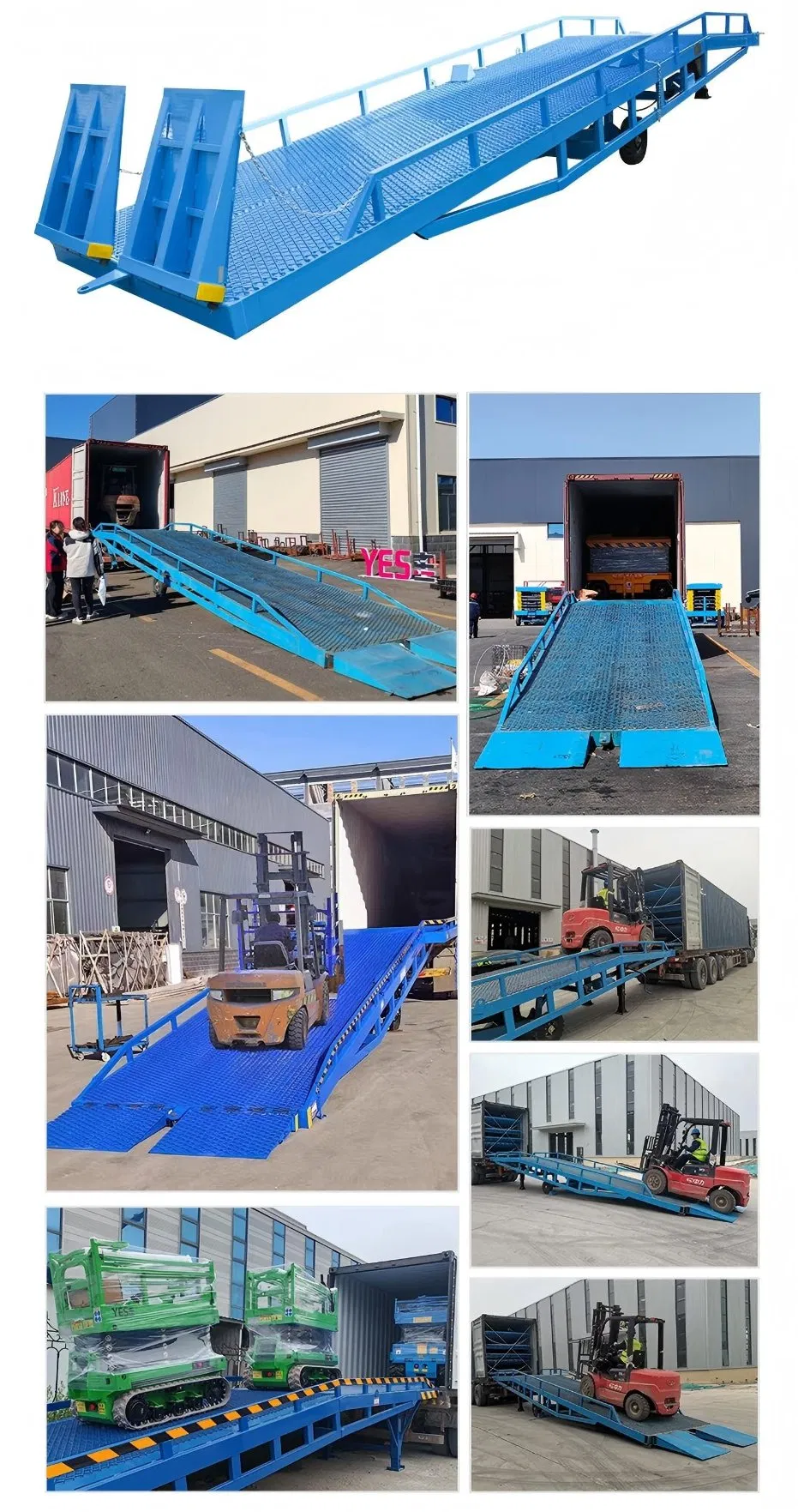

Construction Detail 3
Packaging & Shipping
Recommended Products
Packaging Process
? Frequently Asked Questions
What information should I provide for an inquiry?
Please provide the lift capacity, span, lift height, traveling distance, and power source. More details or drawings are better for an accurate quote.
What is your minimum order quantity (MOQ)?
Our minimum order quantity is 1 set.
How is the product packaged for shipping?
The main body is packaged with plywood boxes or plastic woven fabrics. Small spare parts are protected inside separate plywood boxes to ensure safety during transport.
What is the typical delivery cycle time?
Delivery usually occurs within 10 to 40 days after receiving the advance payment, depending on detailed requirements and current production schedules.
Do you provide lifting accessories?
Yes, we provide various accessories such as hooks, grab buckets, magnets, pulley blocks, locks, wire ropes, and fiber ropes.
Do you support custom OEM/ODM services?
Yes, our factory fully supports OEM and ODM services to meet specific technical requirements.
