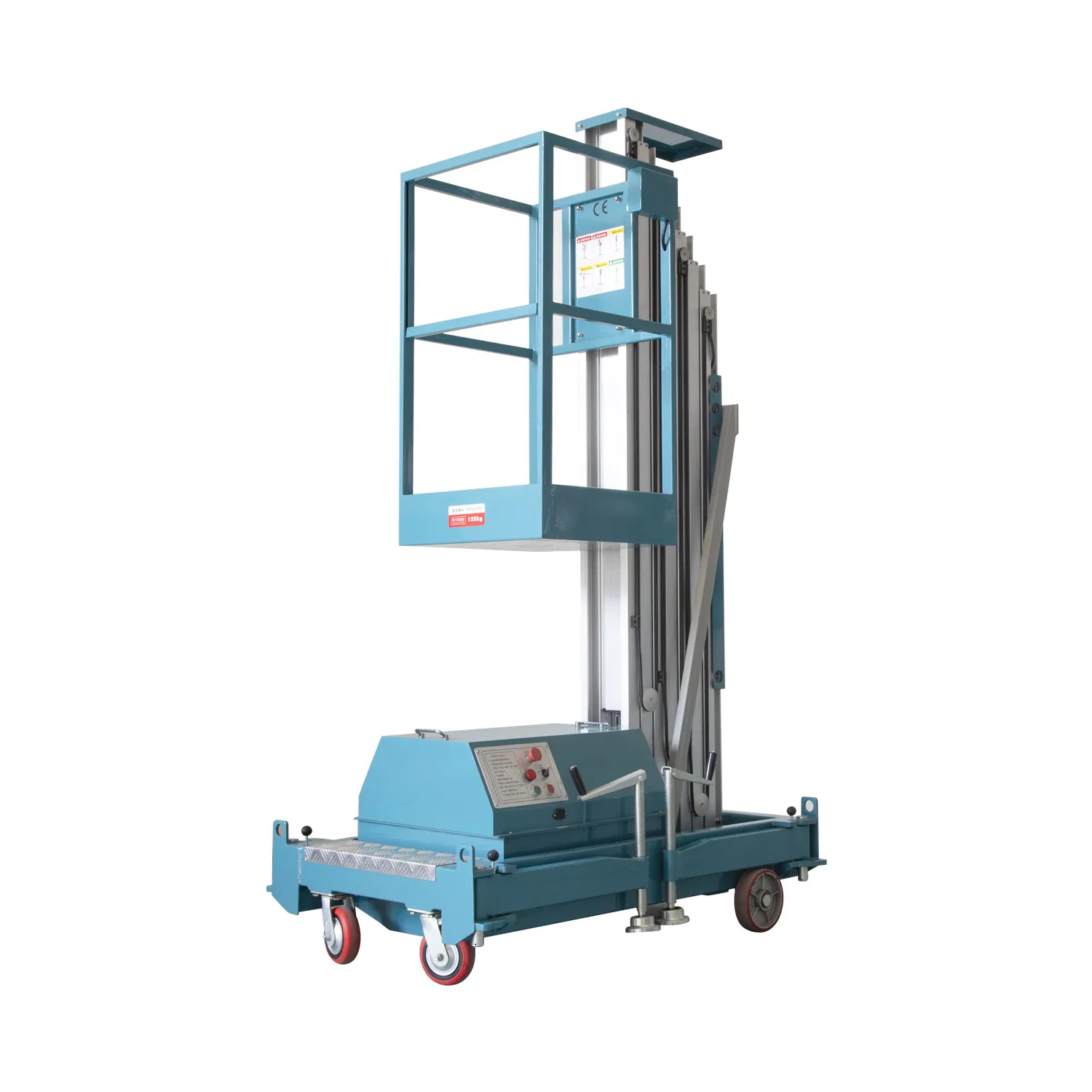

Mini Small Aerial Work Platform Man Elevator Lift Platform

Customization: Available
Warranty: 1 Year
Application: Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane

Product Description

i

Basic Specifications

Model NO.
GTWY9-100
Lift Mechanism
Lift Chain
Carrying Capacity
Middle-Level
Driven Type
AC
Certification
CE, ISO 9001, QC Issued by Gov.
Material
Aluminium Alloy
Max Platform Height
9m
Max Working Height
11m
Platform Size
0.60*0.55m
Overall L*W*H
1.38*0.85*1.98m
Production Capacity
200 Units Per Month
HS Code
8428909090

Single Mast Aerial Work Platform

This Single Mast Aerial Work Platform is a modern solution designed for efficient and safe overhead tasks. Ideal for single-passenger use, it combines a lightweight structure with high stability.

  • Application: Specially designed for single passenger use in various indoor and outdoor maintenance environments.
  • Key Features: Small footprint, reduced weight, and easily moved. It is designed to access limited passageways and is the most ideal equipment for aerial work to replace traditional ladders or riggers with higher efficiency and security.

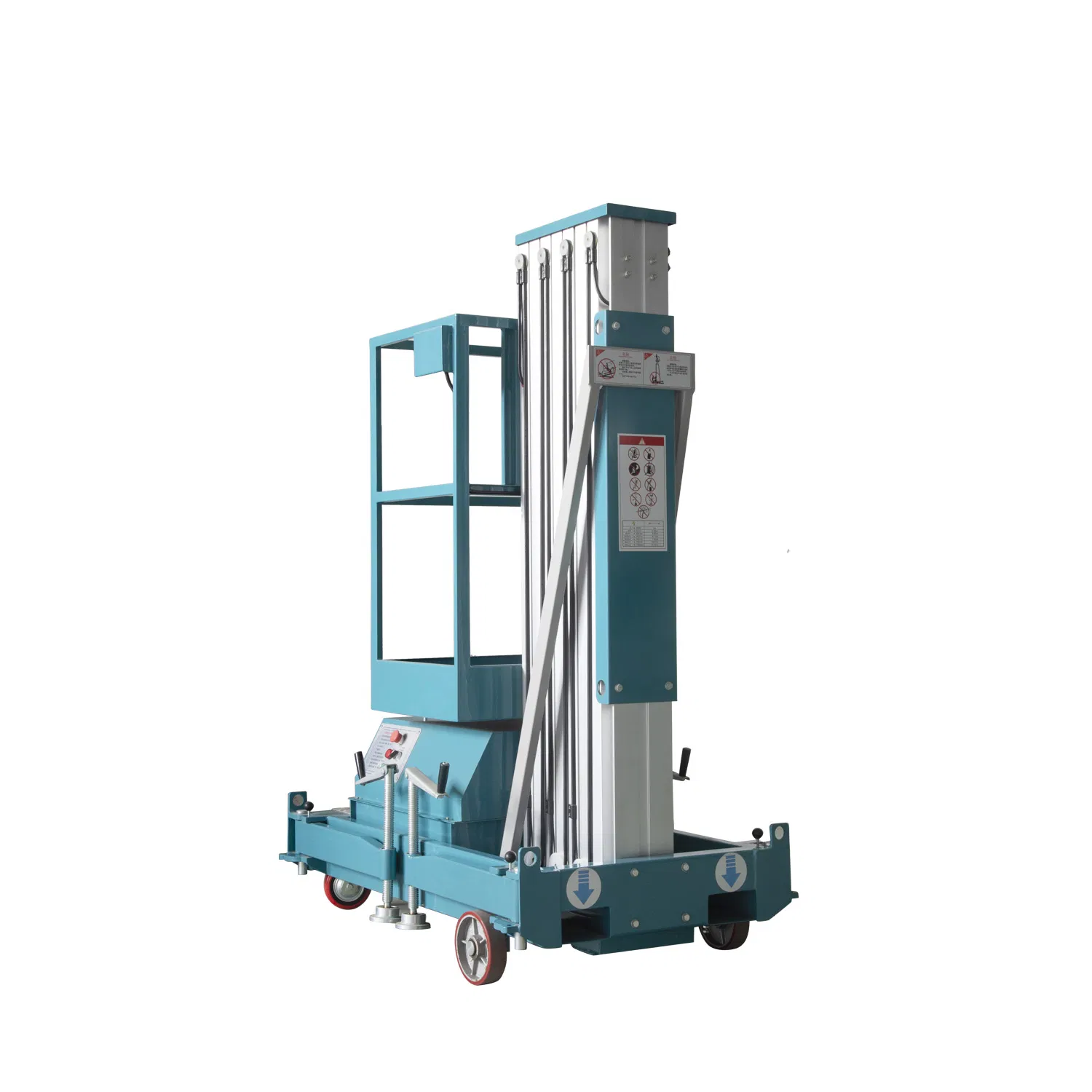

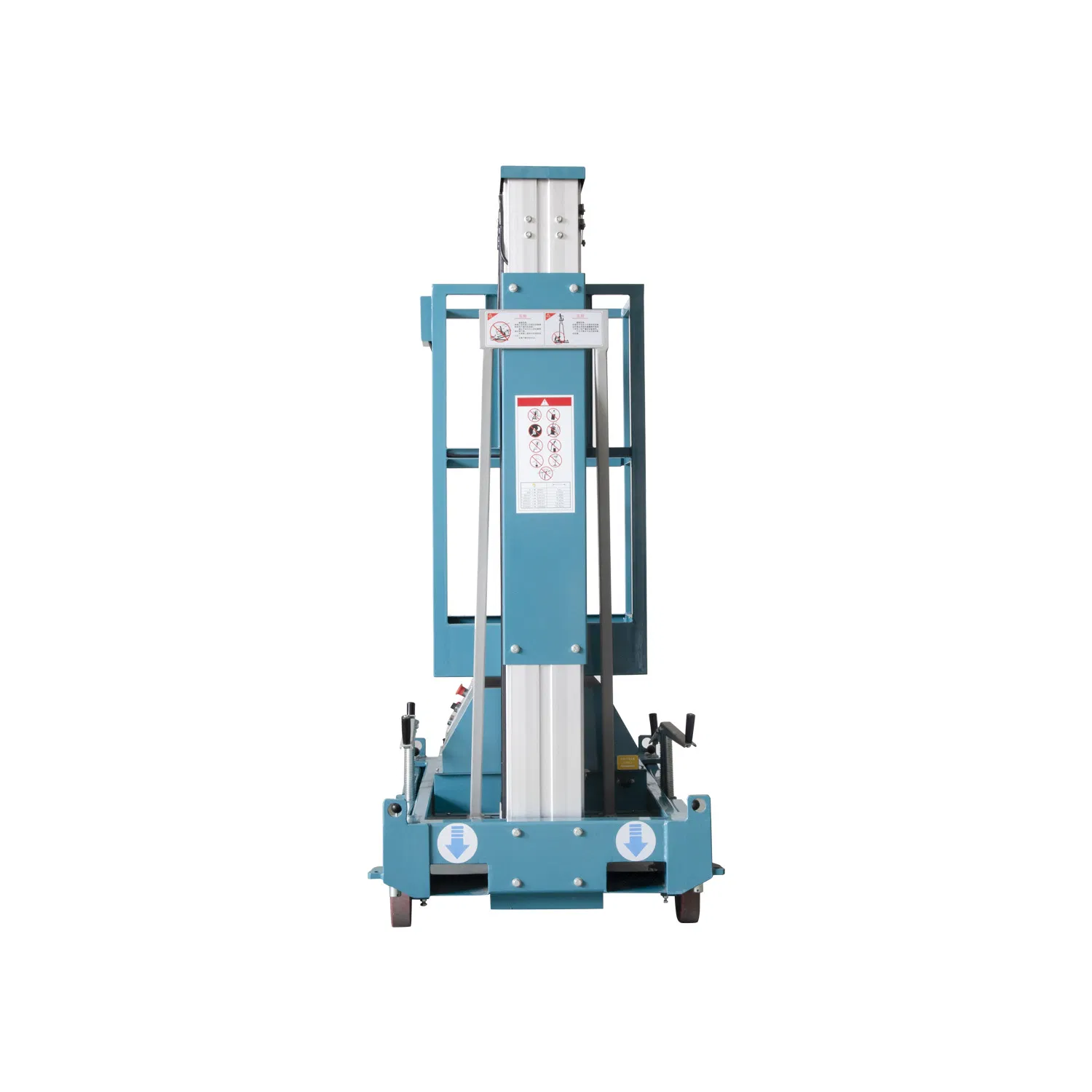

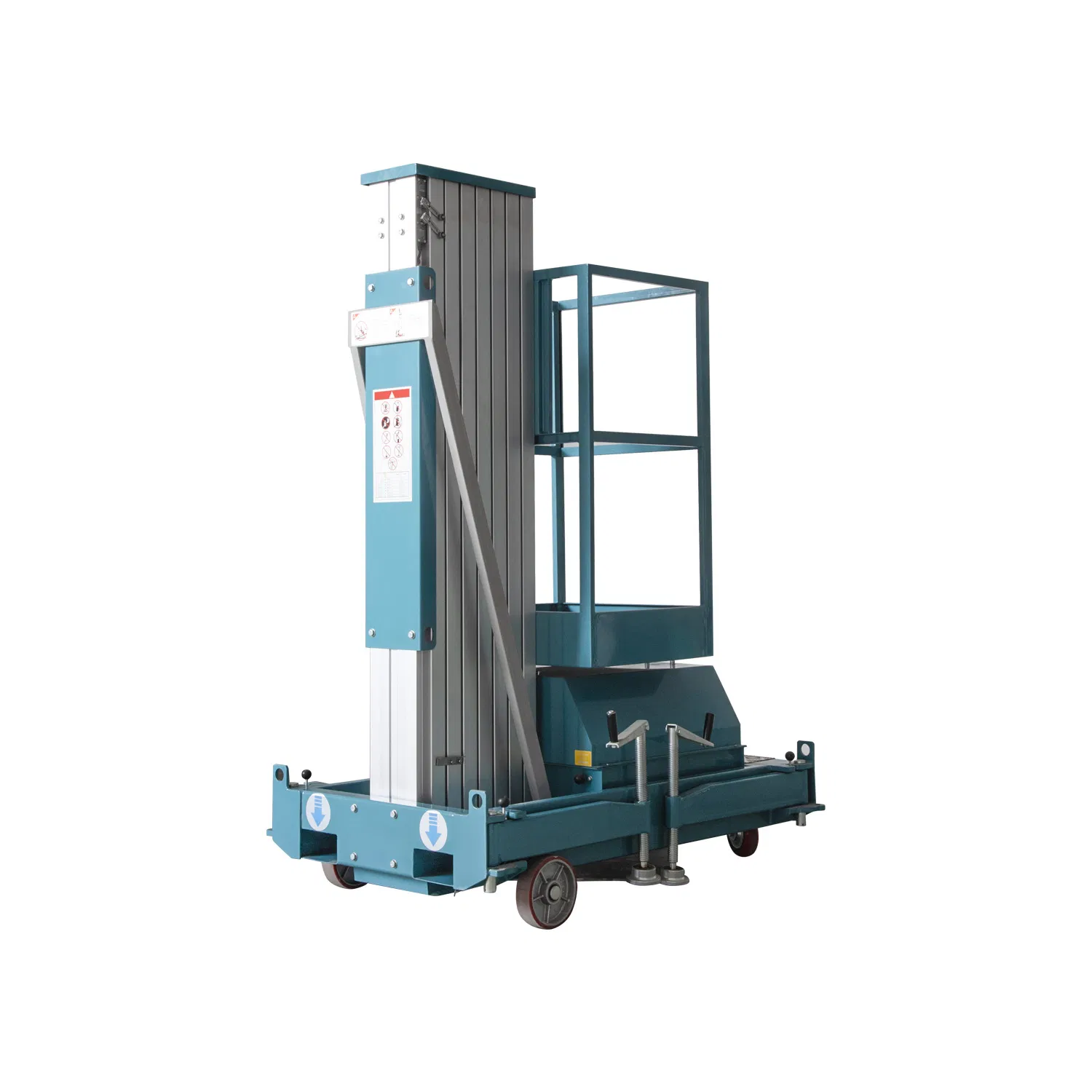

Aerial Work Platform Display

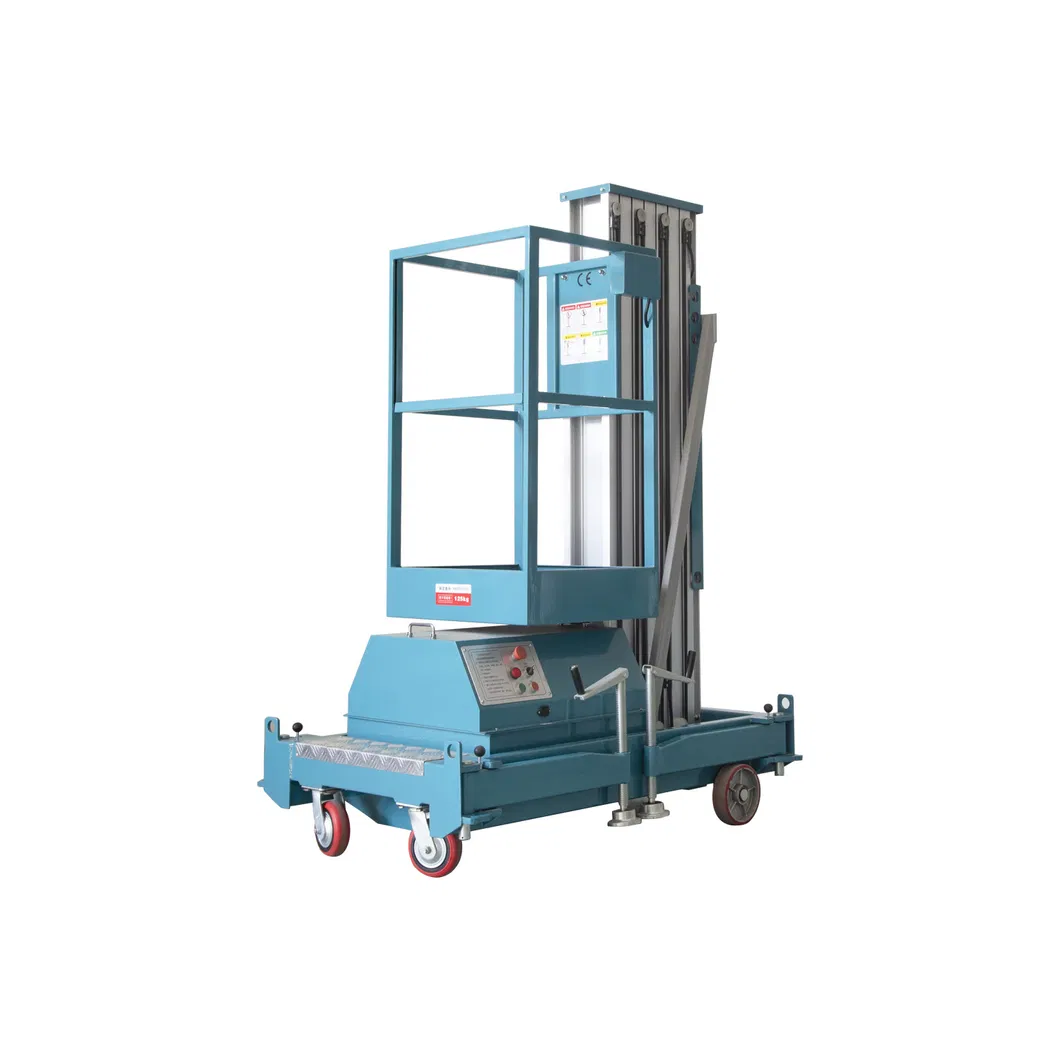

Work Platform View 1

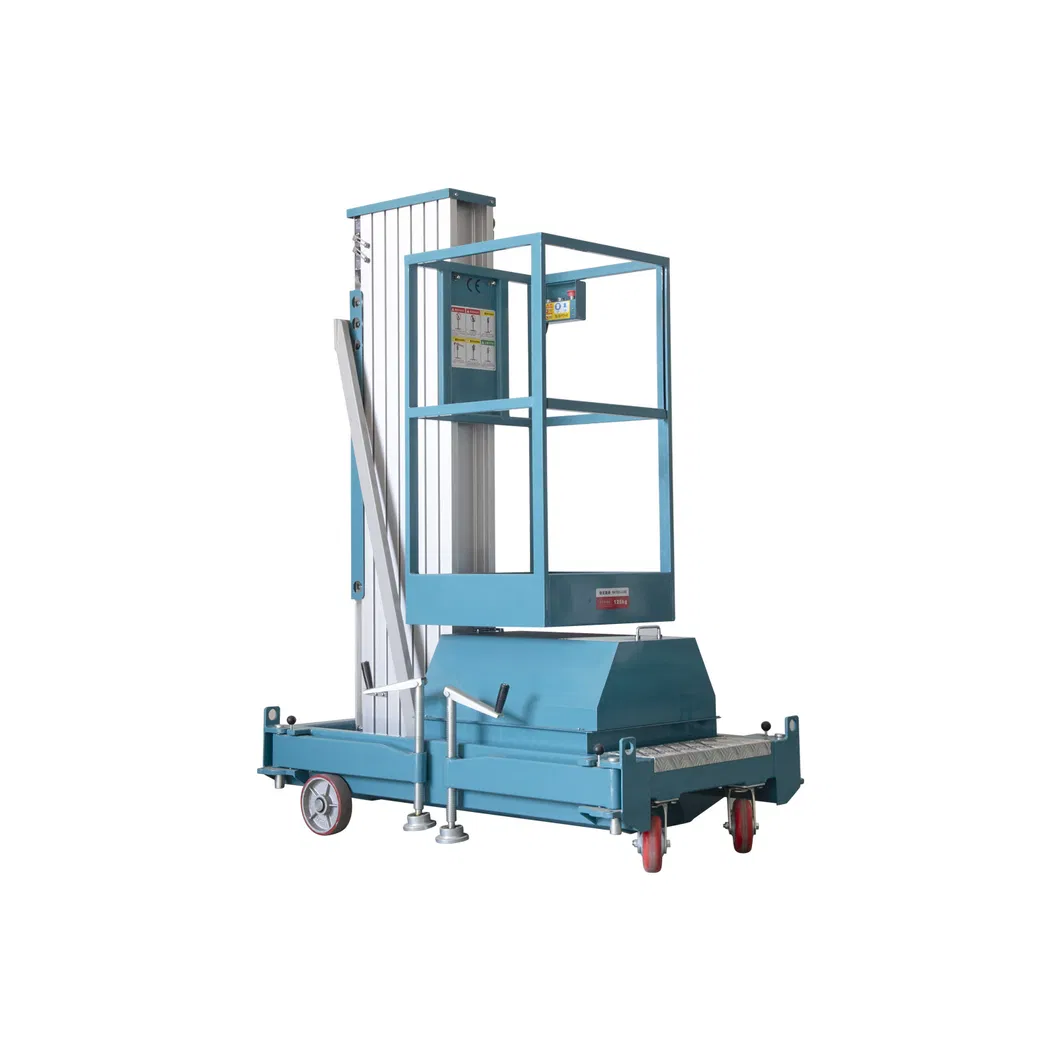

Work Platform View 2
Work Platform View 3

Standard Configuration

  • Power supply: Single phase AC (AC220V).
  • Move mode: Manual (Default).
  • Driving unit: One unit hydraulic pump, small volume and low noise.
  • Adjustable outriggers with screws for perfect platform leveling.
  • Electric limit switch to automatically cut off power at maximum height.
  • Ground and platform control modes for flexible operation.
  • Emergency lowering system and antiskid staircase included.
  • Built-in stroke protection block in the hydraulic cylinder.

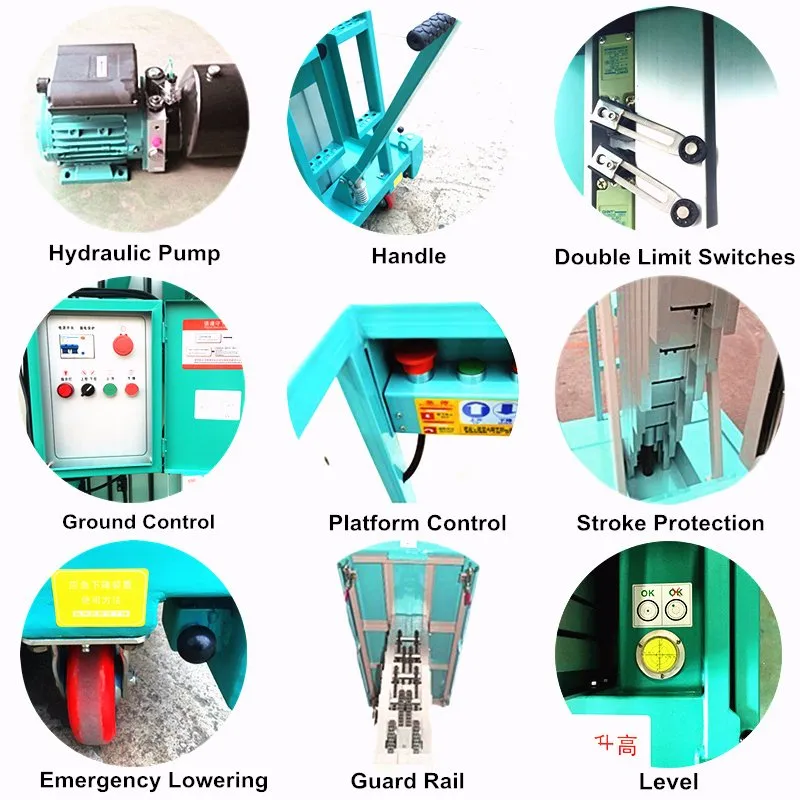

Hydraulic System Detail
📋

Technical Parameters

Model GTWY4-100 GTWY6-100 GTWY8-100 GTWY9-100 GTWY10-100
Safe working load(kg)150150125125125
Max height of platform(m)468910
Max working height(m)5.77.79.710.711.7
Overall length (m)1.051.321.321.381.42
Overall width(m)0.750.800.800.850.85
Overall height (m)1.651.651.981.982.10
Platform size (m)0.6x0.550.6x0.550.6x0.550.6x0.550.6x0.55
Weight (AC kg)185260300326350

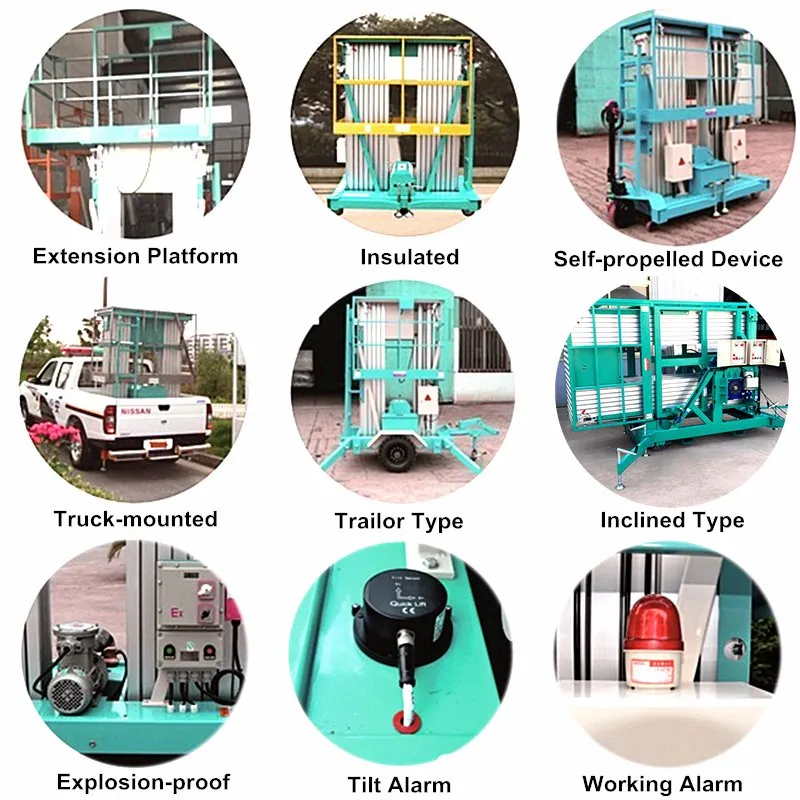

Optional Configuration

● DC Battery power with charger for outdoor use.
● Electric moving device for long-distance travel.
● Trailer base for outdoor operations.
● Explosion-proof electrical system & valve.
● Overload alarm & Tilt alarm systems.
● AC power socket on the platform.

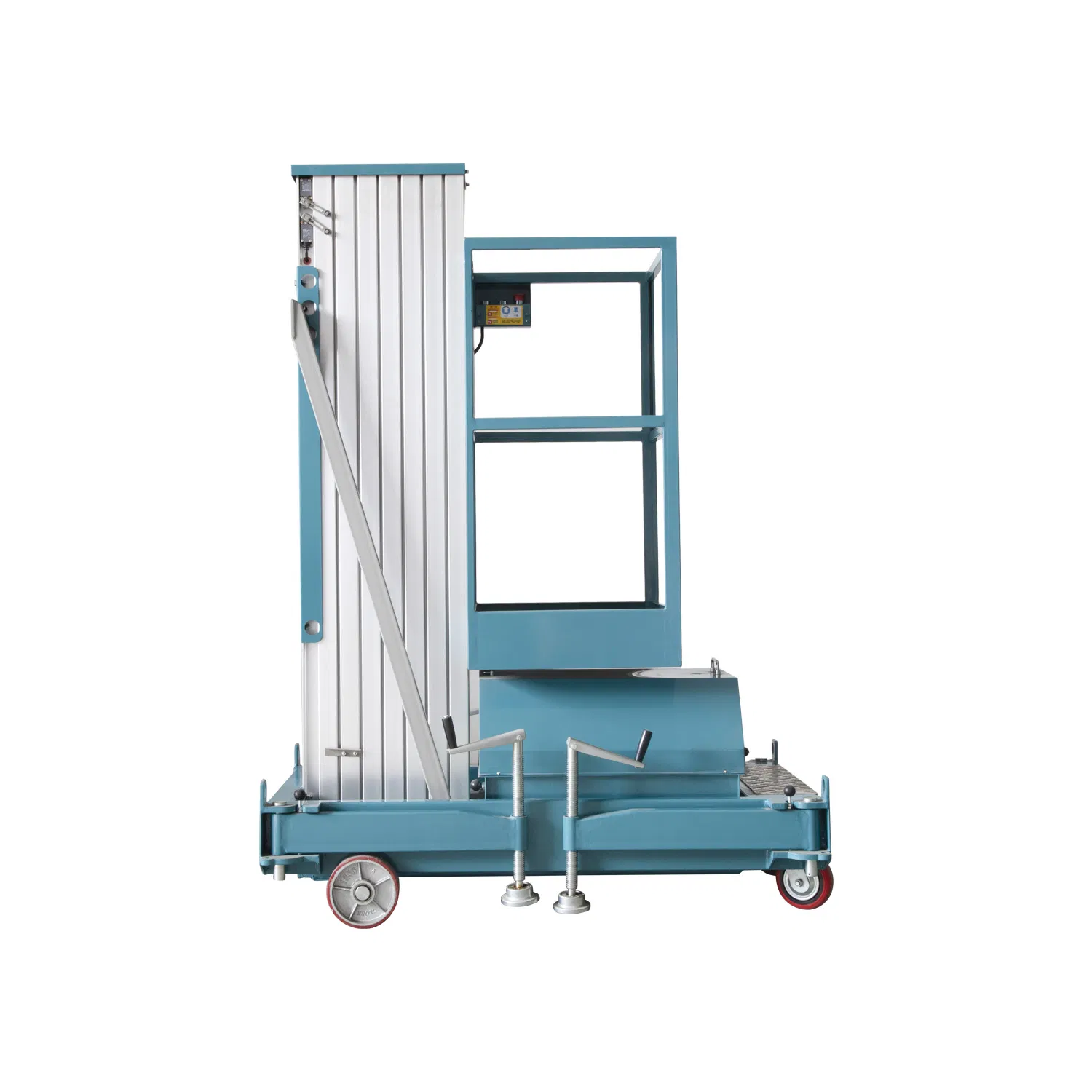

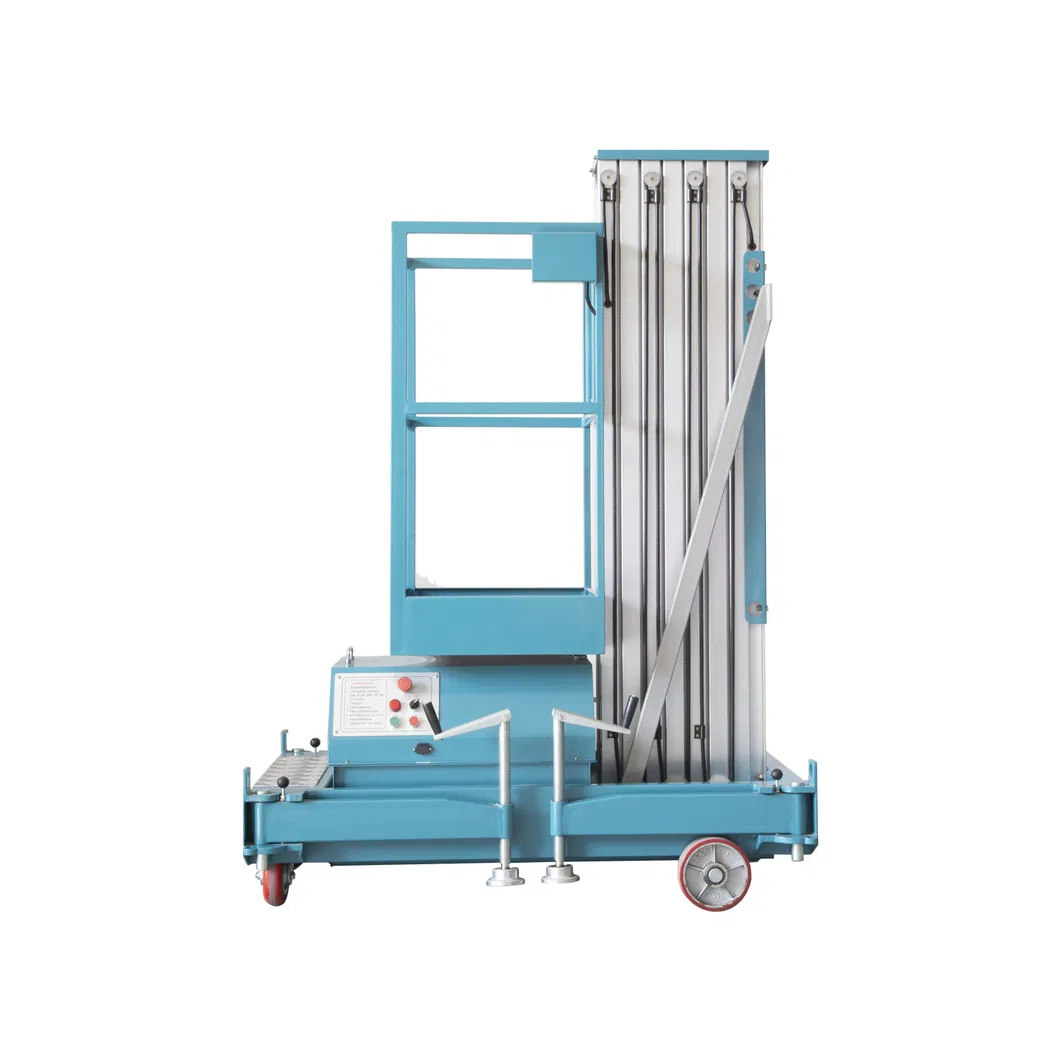

Side View

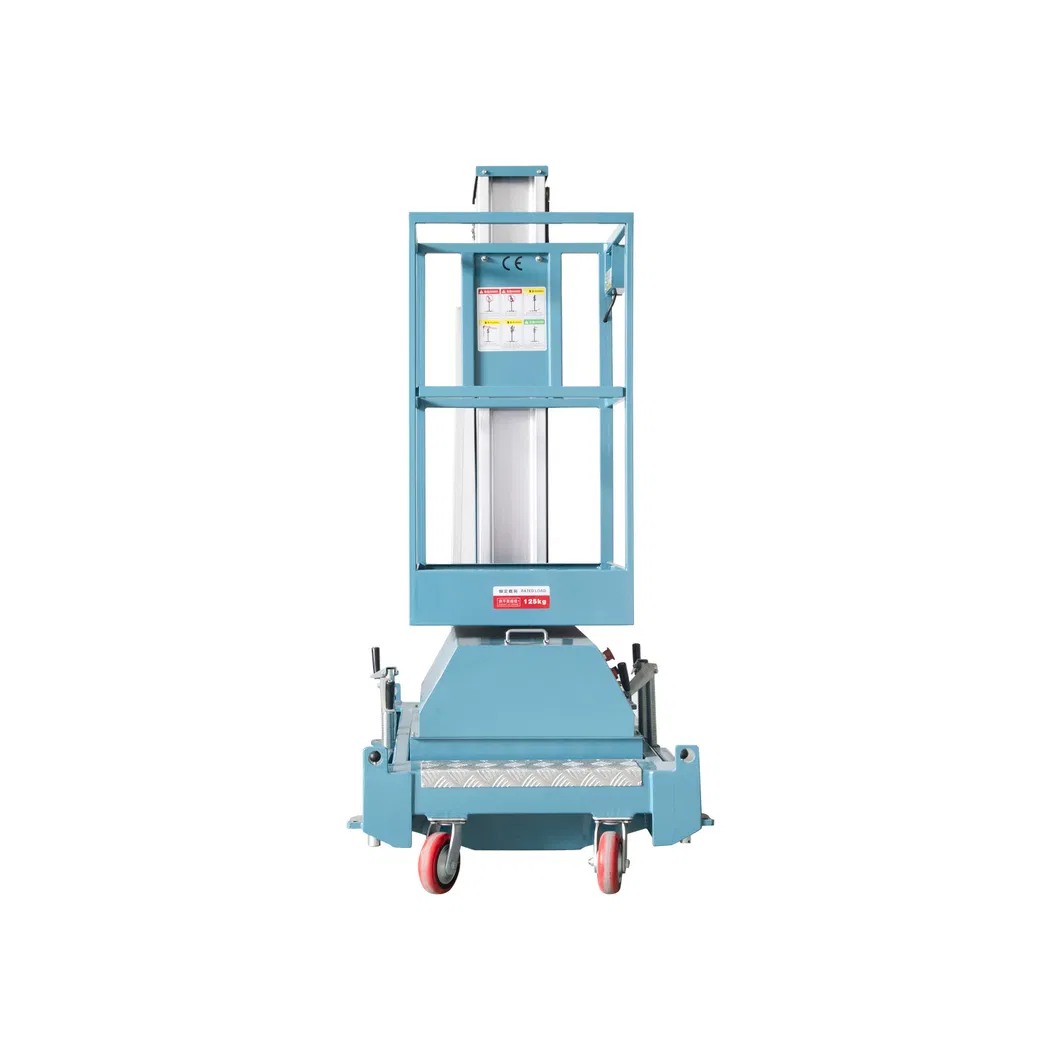

Control System
Structure Detail

Quality & Warranty

Certificates

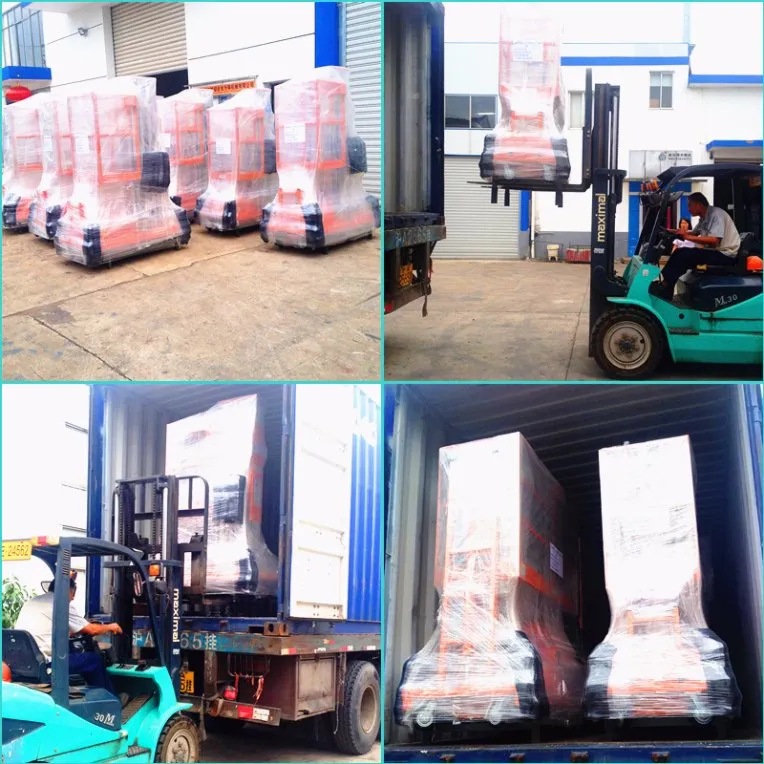

Packing Process
Customer Base

Warranty Terms:

  • One year warranty for the whole machine (excluding man-made faults).
  • Free replacement parts for non-human factor problems during warranty.
  • 24-hour technical support via email or online communication.
  • User-friendly English manual for operation and maintenance.

Frequently Asked Questions

Q1: What is the maximum working height of the GTWY9-100 model? A1: The GTWY9-100 model features a maximum platform height of 9 meters and a maximum working height of 10.7 meters.
Q2: Can the platform be used outdoors without a direct power source? A2: Yes, while the standard configuration uses AC220V power, you can choose the optional DC battery configuration for outdoor operations.
Q3: How many people can the single mast platform carry? A3: This series is specifically designed for a single passenger with a safe working load of up to 150kg depending on the model.
Q4: Is the equipment easy to transport through narrow doors? A4: Absolutely. Its small footprint and compact overall width (starting from 0.75m) allow it to easily access limited passageways and standard doorways.
Q5: What materials are used in the construction of the mast? A5: The platform is constructed using high-quality Aluminium Alloy, ensuring it is both lightweight and durable.
Q6: What safety features are included? A6: Safety features include an emergency lowering system, leveling outriggers with indicators, electric limit switches, and antiskid staircases.
