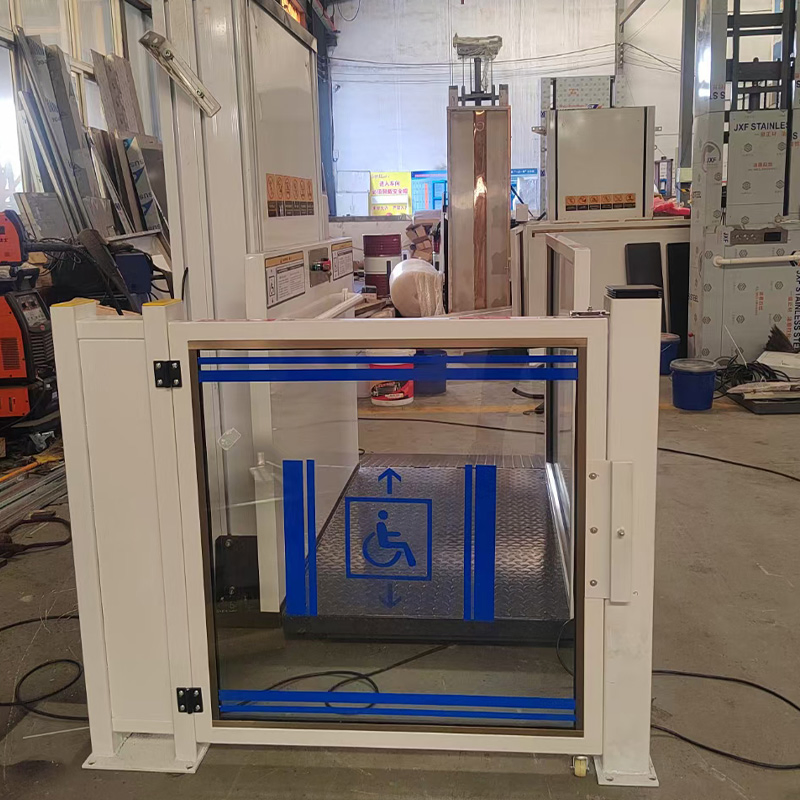

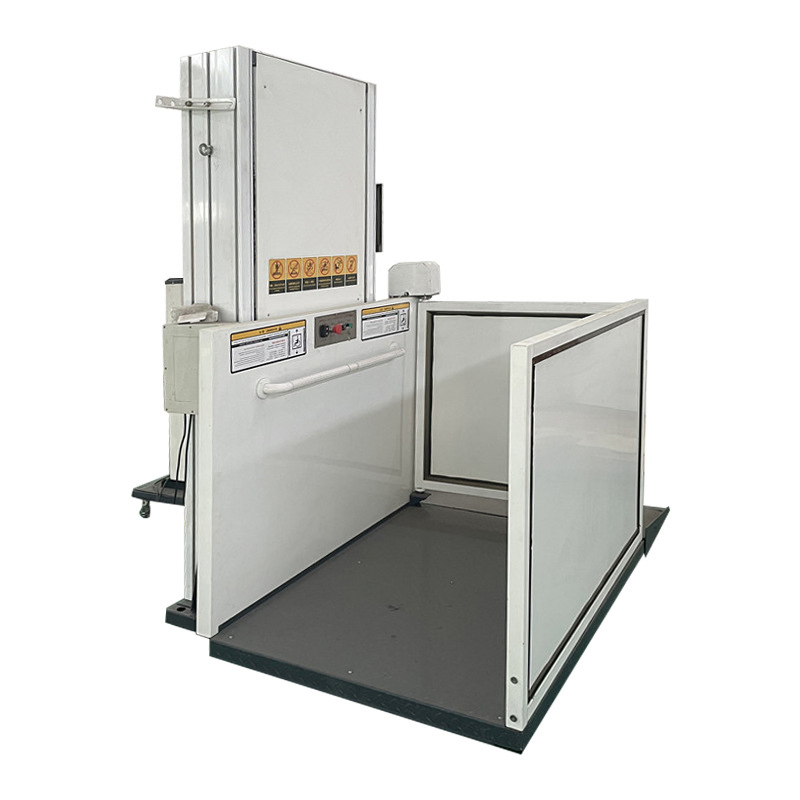

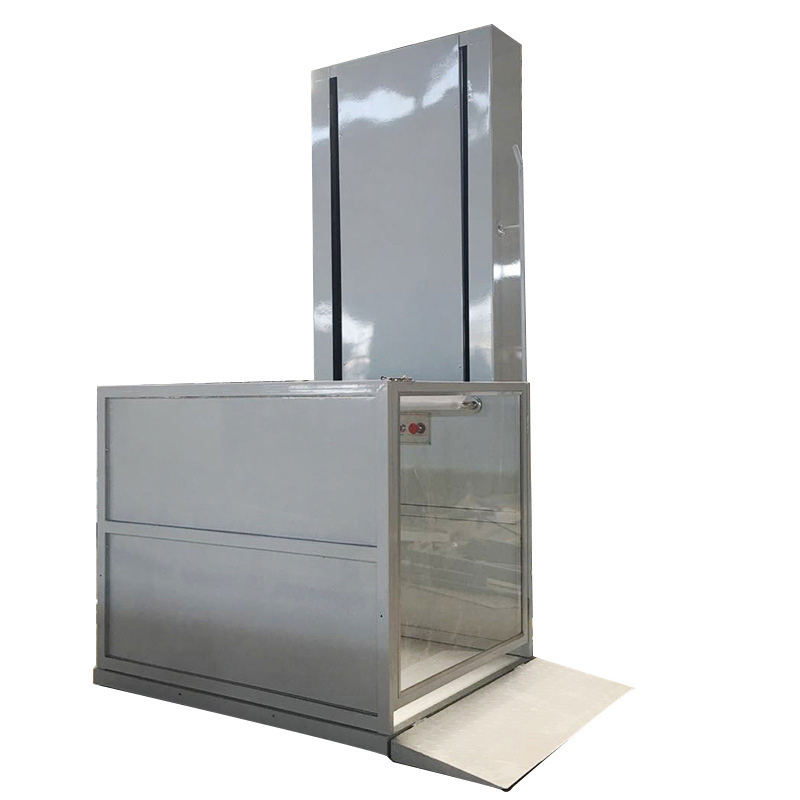

Versatile Lifting Platform for Wheelchair Users in Residential Spaces

Customization: Available
After-sales Service: Online
Warranty: 1 Year

Product Description

📋

Basic Information

Model NO.WL0.35-1
Lift MechanismLift Chain
Carrying CapacityLight Level (300kg)
Driven TypeHydraulic
Running ModeStationary
FeaturesExplosion-Proof, Insulating
CertificationCE, RoHS, ISO 9001
ApplicationHome Lift, Wheelchair Lift, Porch Lift, Household Elevator
📦

Packaging & Delivery

Package Size70.00cm * 120.00cm * 120.00cm
Gross Weight500.000kg
Package TypeWooden Box

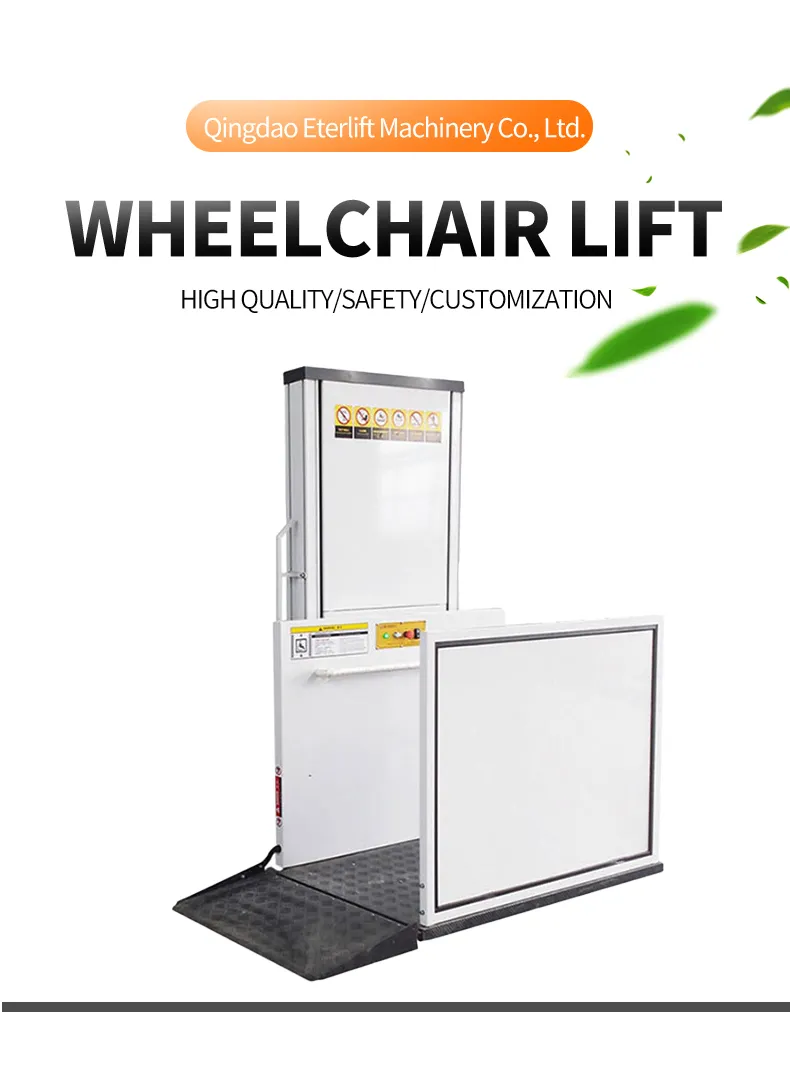

Wheelchair Lifting Platform
⚙️

Product Parameters

Parameter Specification Details
PowerWorldwide voltage customization available
Lifting height1500mm (Standard) / Up to 9m (Customized)
Platform size1430mm(L) x 1000mm(W)
Speed40mm/s
Load capacity300kg
In and out direction90° Or 180°
Platform typePattern non-slip metal plate
Net weight>400kg
Motor1.5KW 220V/AC Or 110V/AC
EnvironmentIndoor and outdoor (-20°C - 60°C)
InstallationNo foundation pit required (fixed to concrete ground)
Safety ControlsEmergency stop button & Aluminum alloy safety bar
🖼️

Product Details & Display

🛡️

Safety & Protection Measures

Bottom Obstruction Detection (Anti-Touch Function)

Designed to safeguard against injury by detecting objects or obstacles beneath the platform during descent. Utilizing sensor strips or pressure plates, the lift will immediately halt and reverse slightly upwards to prevent entrapment.

  • Automatic detection with zero manual input.
  • Fast response time essential for safety.
  • Employs mechanical sensors and infrared proximity technology.
Comprehensive Anti-Fall Systems
  • Automatic Safety Barriers: Guardrails elevate automatically during motion to prevent accidental rolling.
  • Mechanical Locking: Acts as a parking brake when the platform reaches a landing.
  • Speed Governors: Halts the lift if acceleration exceeds safety limits.
  • Emergency Stop: Easily accessible button for instantaneous halting.
  • Back-up Power: Manual override or battery support for power outages.
  • Slip-resistant Surface: High-traction pattern to ensure wheelchair stability.

Frequently Asked Questions

What is the maximum lifting height available?
The standard lifting height is 1500mm, but we can customize the design to reach up to 9 meters depending on requirements.
Does this lift require a foundation pit for installation?
No, it is designed for no-foundation installation and can be fixed directly to a flat concrete ground.
What happens if there is a power outage during use?
The lift includes a back-up power supply or manual override to safely lower the user during an unexpected power cut.
Can the lift be used outdoors?
Yes, the system is engineered for both indoor and outdoor environments, with a working temperature range of -20°C to 60°C.
What safety sensors are included to protect bystanders?
The lift features a bottom obstruction detection system (sensor strip or pressure plate) that stops and reverses the platform if it touches anything beneath it.
Is the platform surface safe for wet conditions?
Yes, the platform uses a pattern non-slip metal plate to provide maximum traction and prevent slipping.
