■ Basic Information
Lift Mechanism
Scissor Lift
Carrying Capacity
Weight Level
Power Source
24V DC or 48V
Travel Speed(Raised)
0.5km/H
Lift Drive / Actuation
Electric Motor
Overall Size
2480*1390*(2200-2635)mm
Production Capacity
8000 Pieces Per Month
■ Product Description
✔
Lifting height ranges from 6m to 16m for versatile industrial applications.
✔
Electric model available in both Wheel or Track/Crawler configurations for different terrains.
✔
Special design for challenging working environments including grassland and rough construction ground.
| Model |
DX06LD |
DX08LD |
DX10LD |
DX12LD |
| Capacity | 450kg | 450kg | 320kg | 320kg |
| Extendable Platform Cap. | 113kg | 113kg | 113kg | 113kg |
| Max Platform Height | 6m | 8m | 9.75m | 11.75m |
| Max Working Height | 8m | 10m | 12m | 14m |
| Overall Length | 2470mm | 2470mm | 2470mm | 2470mm |
| Overall Width | 1390mm | 1390mm | 1390mm | 1390mm |
| Overall Height (Rail Open) | 1745mm | 2400mm | 2530mm | 2670mm |
| Platform Size | 2270*1120mm | 2270*1120mm | 2270*1120mm | 2270*1120mm |
| Lifting Motor | 48v/4kw | 48v/4kw | 48v/4kw | 48v/4kw |
| Drive Speed | 2.4km/h | 2.4km/h | 2.4km/h | 2.4km/h |
| Net Weight | 2400kg | 2550kg | 2840kg | 3000kg |

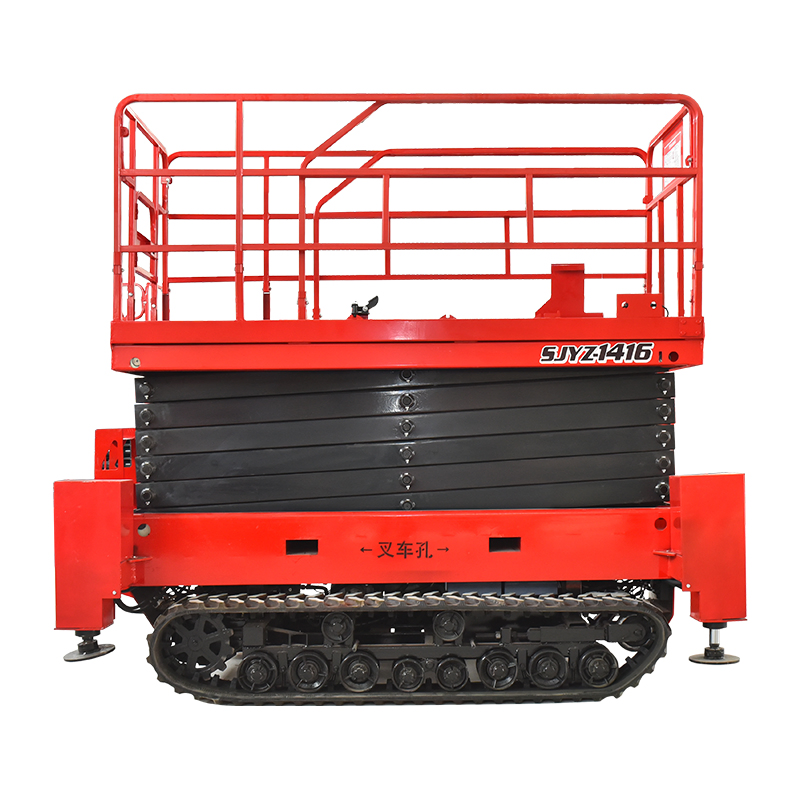

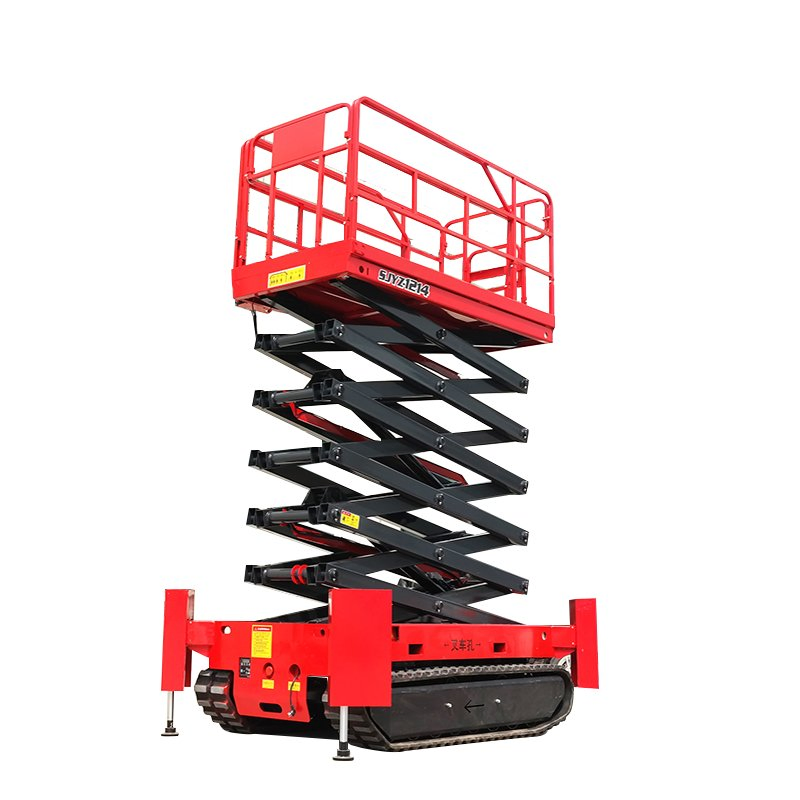

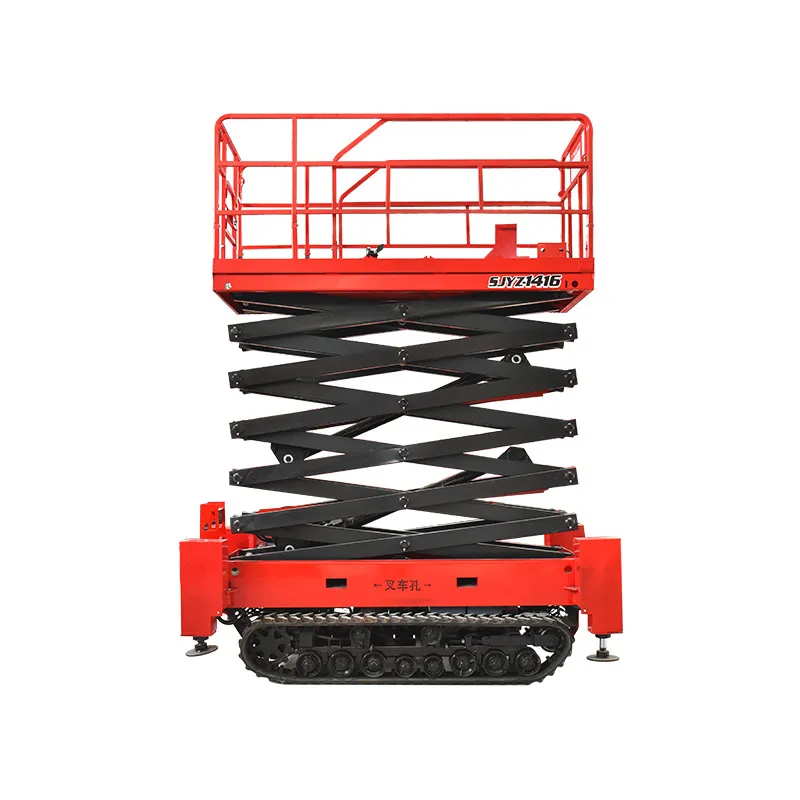

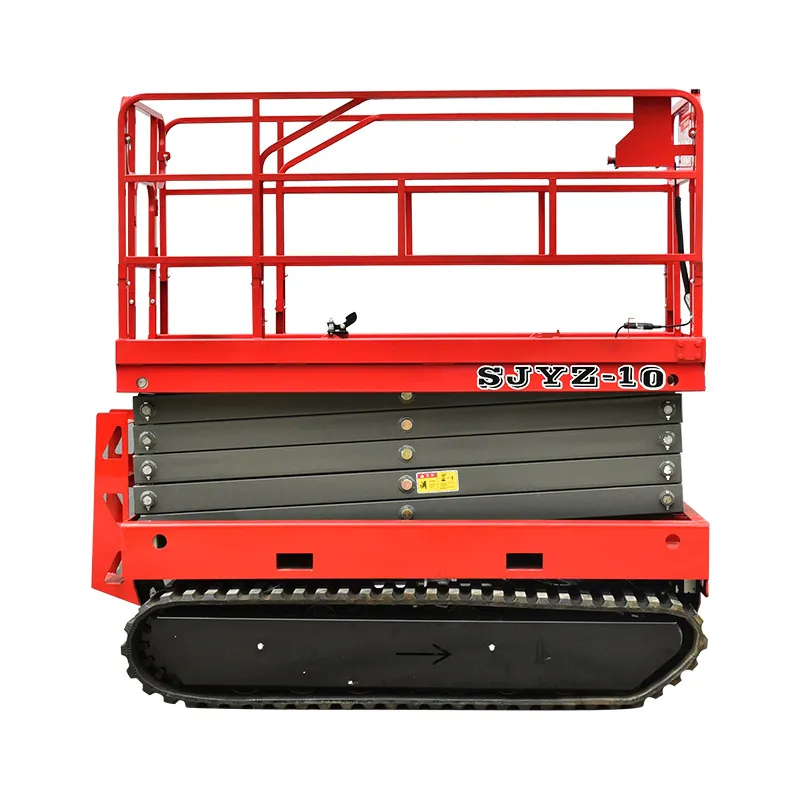

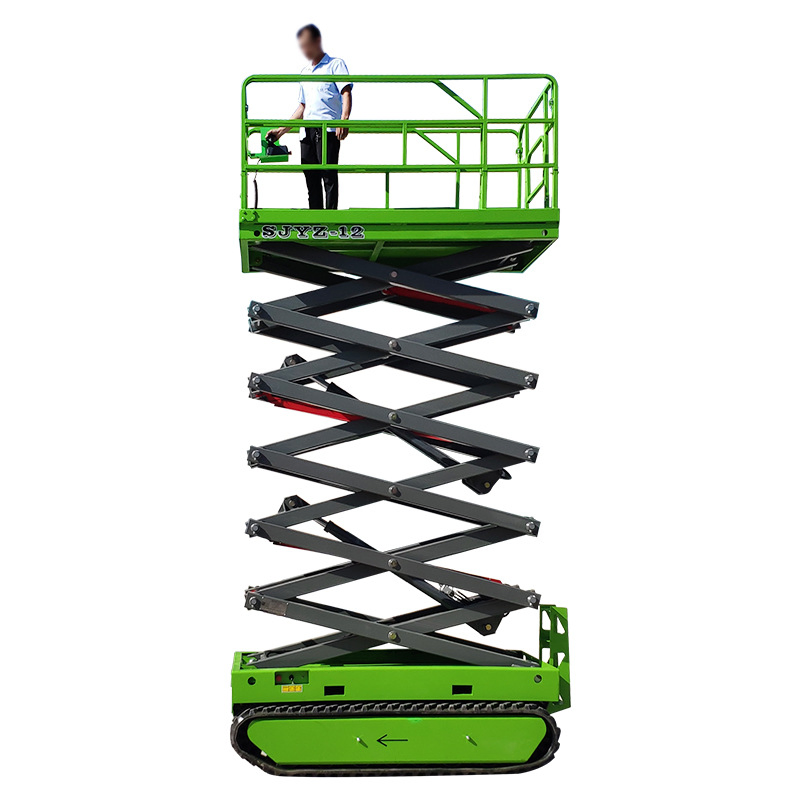

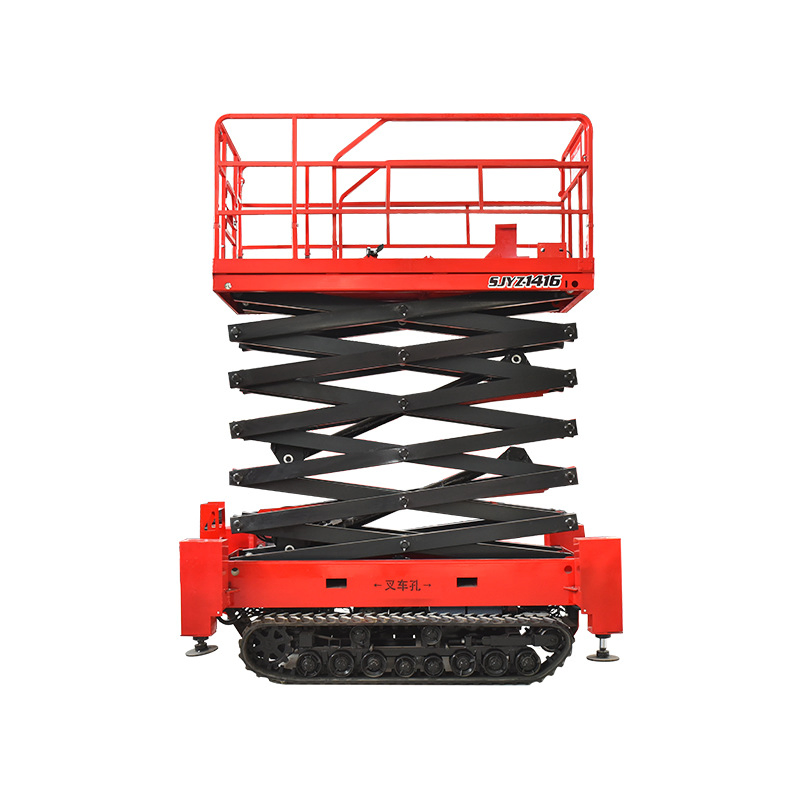

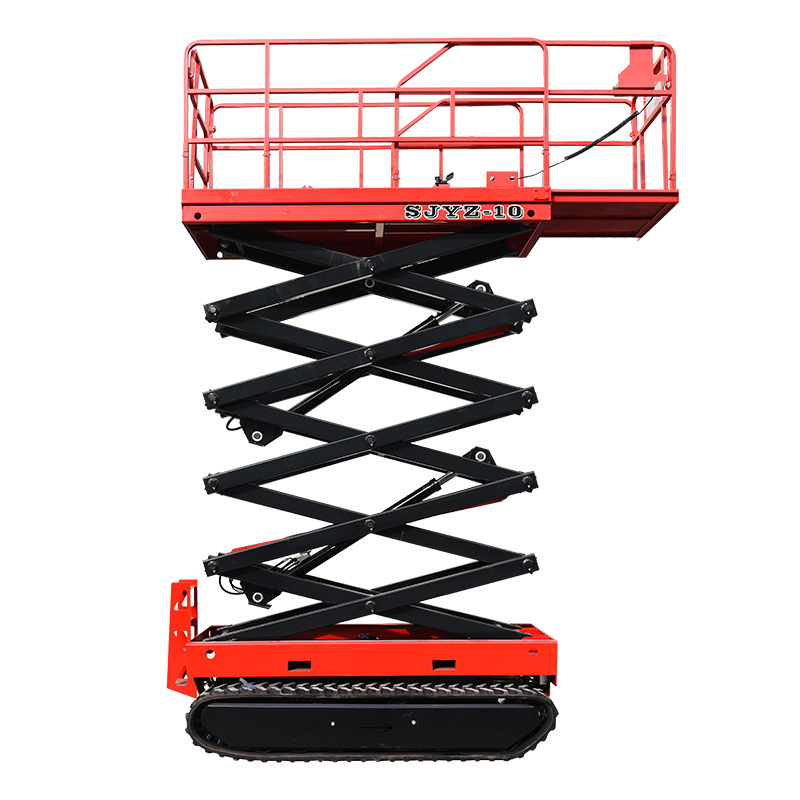

Rough Terrain Crawler Scissor Lift is specifically designed for challenging workspaces. The crawler design provides essential assistance for the lift to traverse rough obstacles, such as grassland and uneven construction sites. This Crawler Type Scissor Lift adopts a robust track system to ensure maximum accessibility and stability.
■ Frequently Asked Questions
What is the maximum working height of this scissor lift?
The working height ranges from 6 meters up to 14 meters depending on the specific model selected.
What terrains is the crawler scissor lift suitable for?
The crawler design is specifically built for rough terrains, including grasslands, soft soil, and uneven construction grounds where wheeled lifts might struggle.
What is the load capacity of the platform?
The main platform can carry between 320kg and 450kg, and the extendable platform has a capacity of 113kg.
What type of power source does it use?
It is an electric-driven model powered by a 24V or 48V DC battery system, making it suitable for both indoor and outdoor use.
Is the platform extendable?
Yes, the platform features an extension of 900mm to provide additional reach for workers.
What are the safety features?
The lift includes hydraulic driven explosion-proof features, steady guard rails, and a stable crawler chassis to prevent drifting on rough terrain.
