Basic Info.
Carrying Capacity
Weight Level
Certification
GS, CE, ISO 9001
Voltage
380 V, 50 Hz, 3 Phase
Specification
1000-4000kgs
Product Description

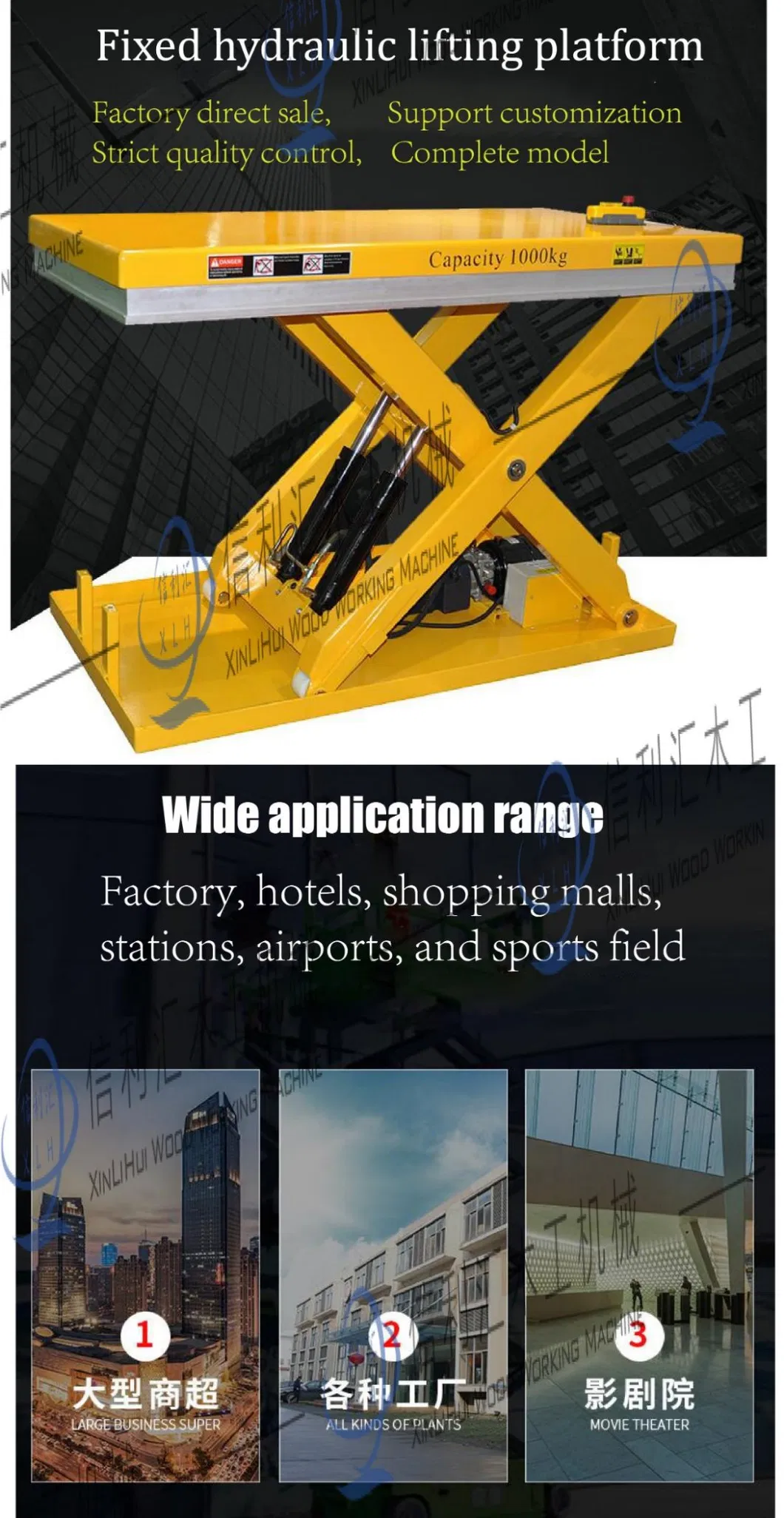

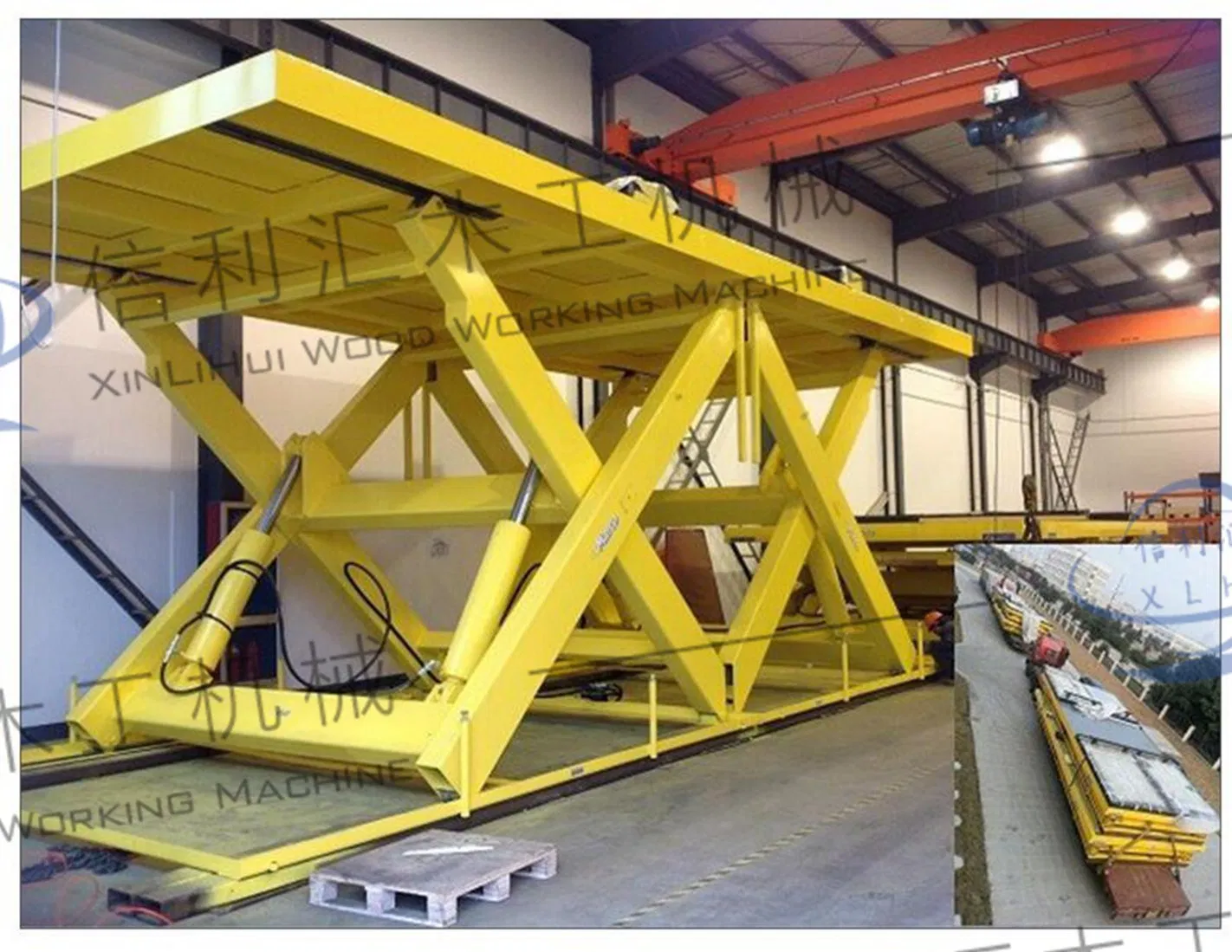

Fixed lifting platforms are versatile special equipment for aerial work. Its scissor mechanical structure makes the lifting platform have higher stability, wide working platform and high carrying capacity, which makes the working range of the aerial work larger and suitable for multiple people to work at the same time. It makes work more efficient and safer.

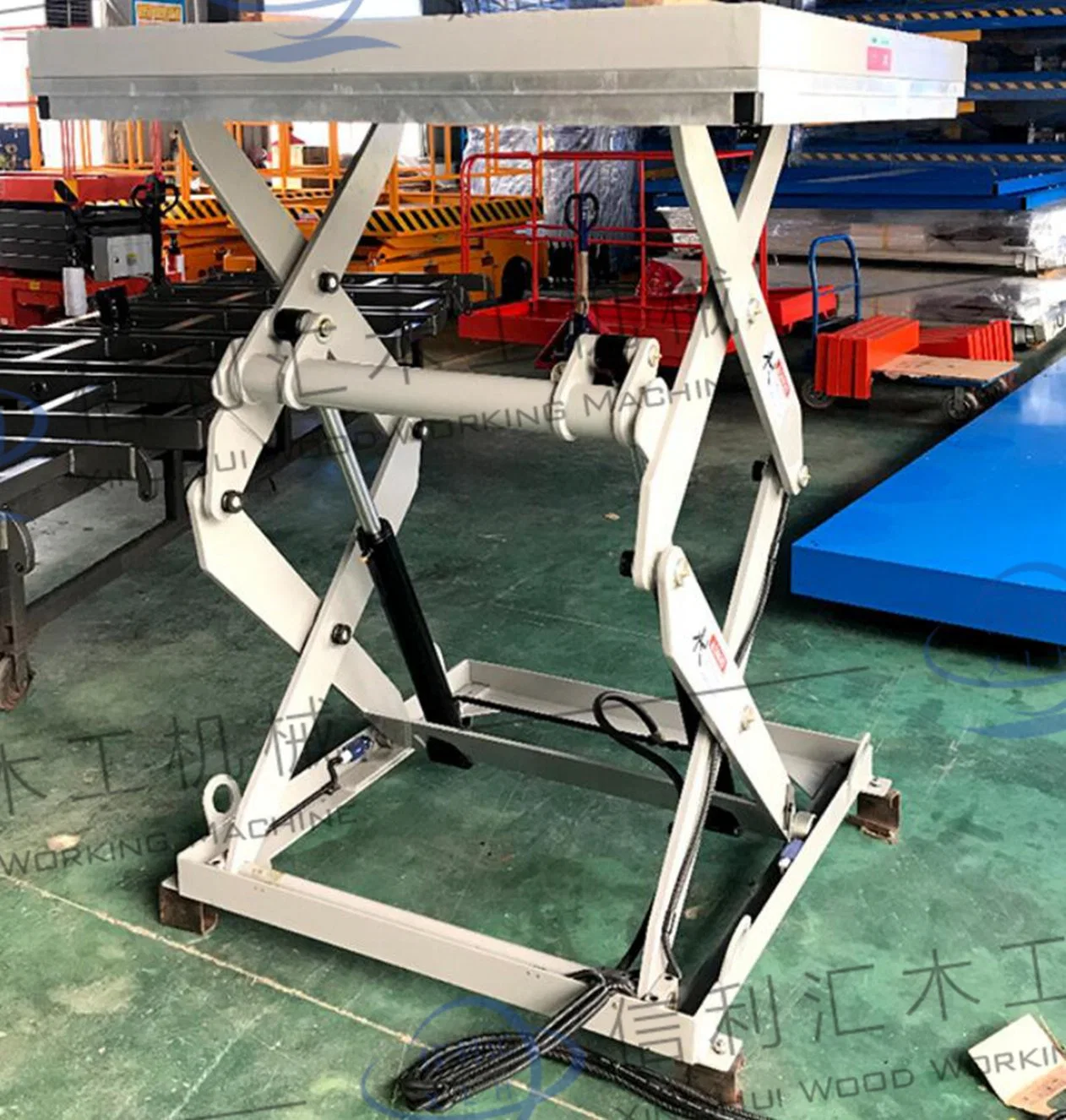

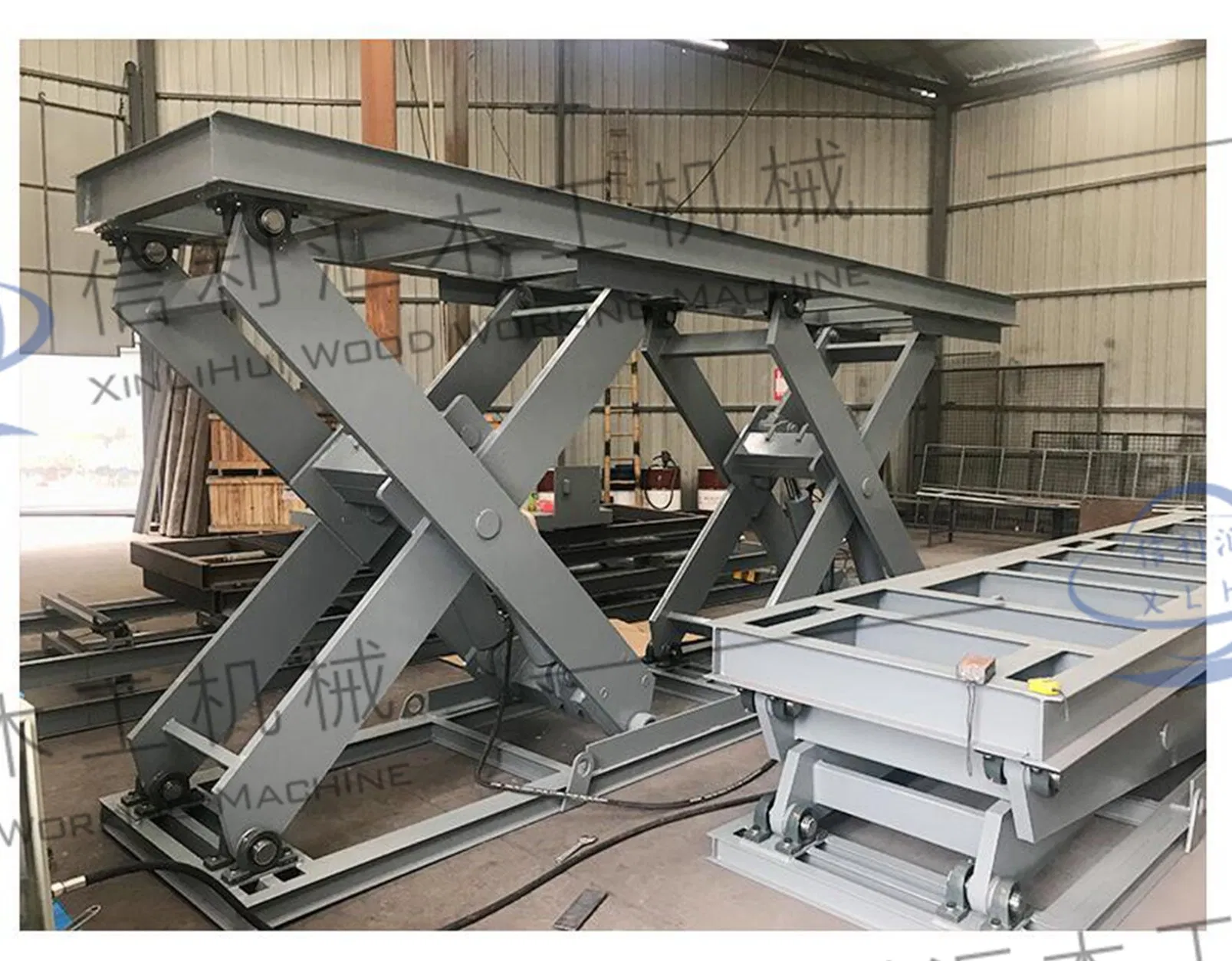

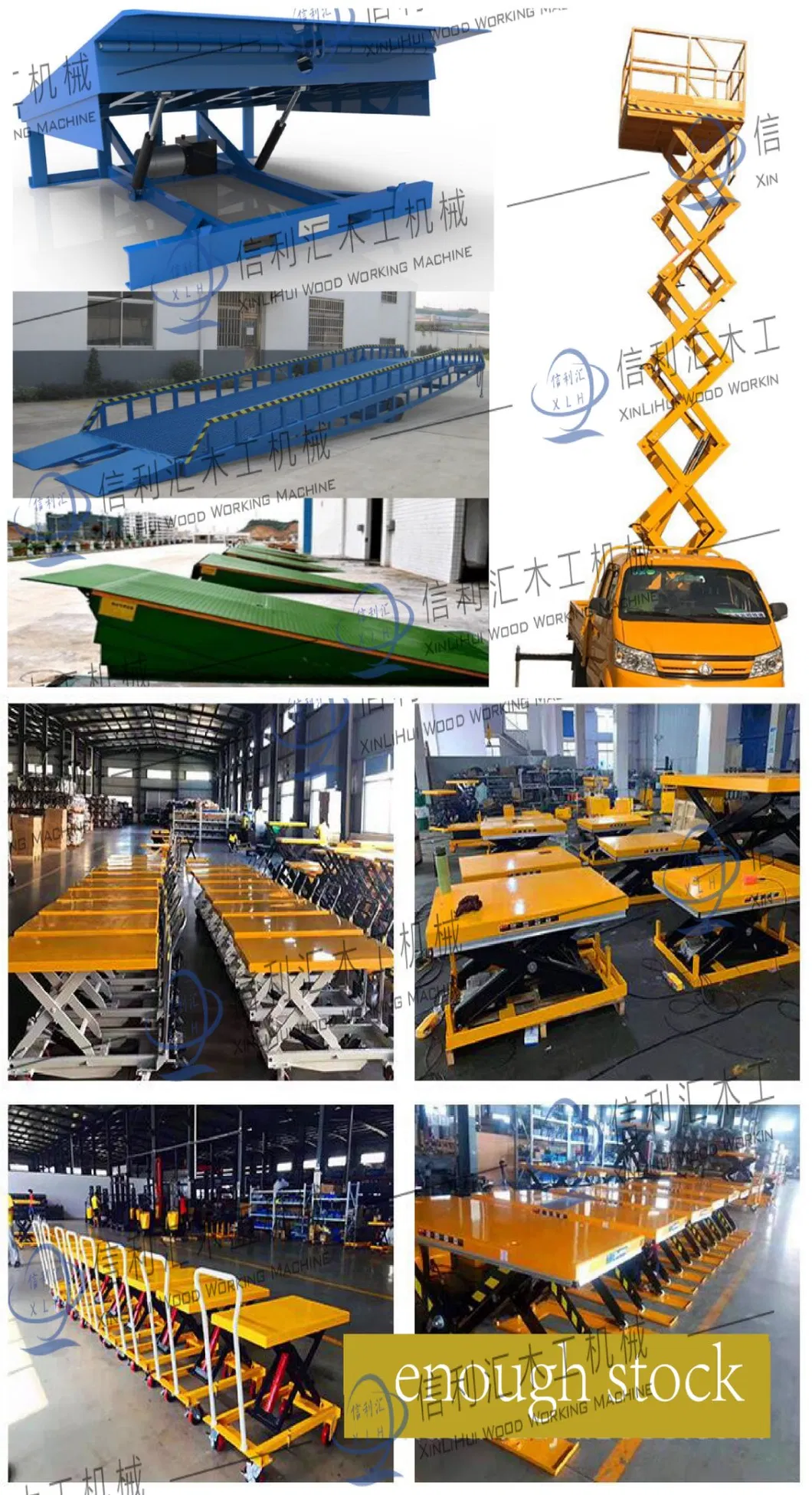

Detail machine pictures, all photos are for 100% real shooting!
Technical Specifications
| Model |
Capacity (kg) |
Lowered Height (mm) |
Raised Height (mm) |
Platform Size (mm) |
Base Frame Size (mm) |
Lift Time (sec) |
Power Pack |
Weight (kg) |
| HW1001 | 1000 | 205 | 990 | 820×1300 | 640×1240 | 20~25 | 380V, 1.1kw | 160 |
| HW1003 | 1000 | 240 | 1300 | 850×1700 | 640×1580 | 30~35 | 380V, 1.1kw | 200 |
| HW2001 | 2000 | 230 | 1000 | 850×1300 | 785×1220 | 20~25 | 380V, 2.2kw | 235 |
| HW2004 | 2000 | 250 | 1300 | 1000×1700 | 785×1600 | 25~35 | 380V, 1.5kw | 300 |
| HW4001 | 4000 | 240 | 1050 | 1200×1700 | 900×1600 | 30~40 | 380V, 2.2kw | 375 |
| HW4006 | 4000 | 300 | 1400 | 1200×2200 | 900×2000 | 45~50 | 380V, 2.2kw | 505 |

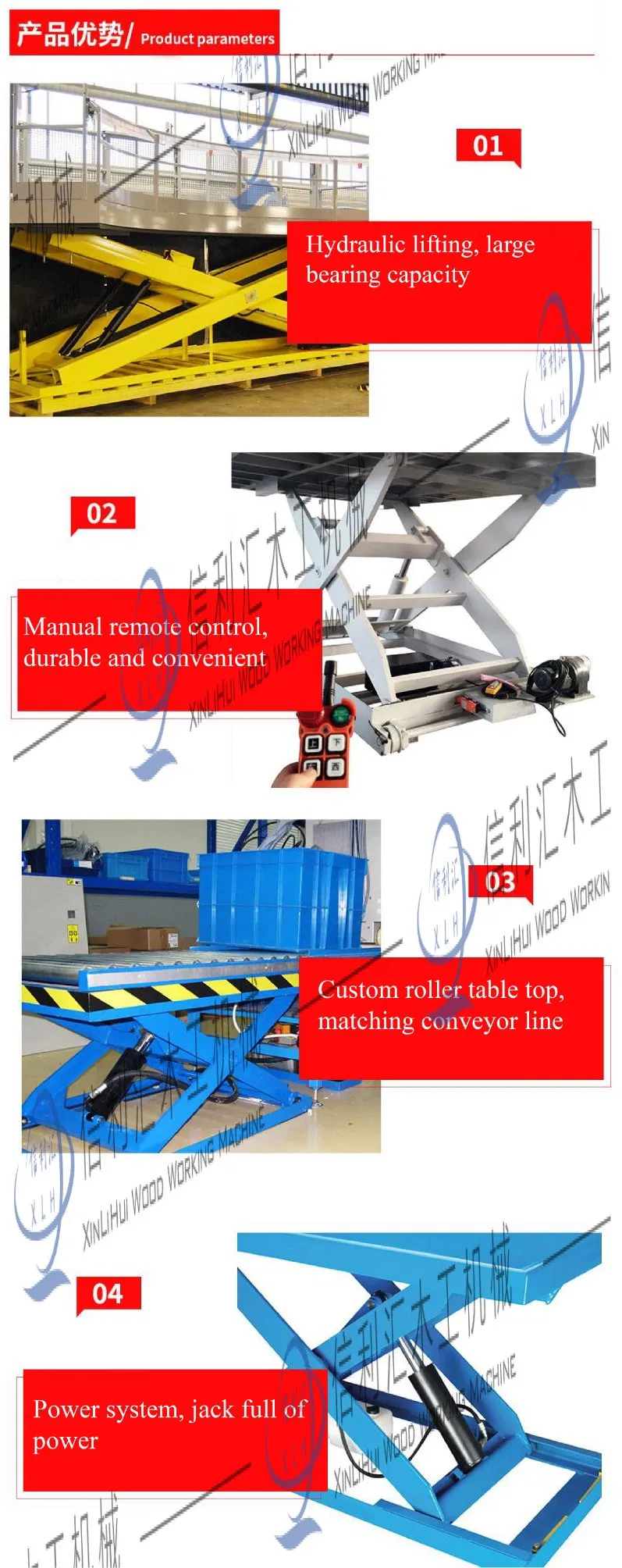

Advantages & Safety Features
✔
Heavy Duty Design: Meets EN norm and ANSI/ASME safety standards for versatile applications.
✔
Aluminum Safety Bar: Prevents descent immediately upon contact with any obstructions.
✔
Internal Power Pack: Equipped with relief valves for overload protection and controlled speed.
✔
Check Valve System: Heavy duty cylinders stop the table from lowering in case of hose burst.
Other Models & Equipment
Frequently Asked Questions
What is the standard warranty for the lifting platforms?
We provide a 12-month warranty from the date of delivery.
Are the lift tables compliant with international safety standards?
Yes, our HW series lift tables meet EN norms and ANSI/ASME safety standards.
Can the platform color and voltage be customized?
Yes, the painting color can be made according to your needs, and we support different voltage requirements like 380V/50Hz/3Phase.
What safety features prevent the table from falling if a hose bursts?
Our tables use heavy duty cylinders equipped with a drainage system and a check valve to prevent descent in case of a hose burst.
How long is the typical delivery detail?
Standard delivery is approximately 15 days after the receipt of payment.
Is the lifting platform suitable for in-floor pit applications?
Yes, these models are designed for both above-floor and in-floor pit installations.
