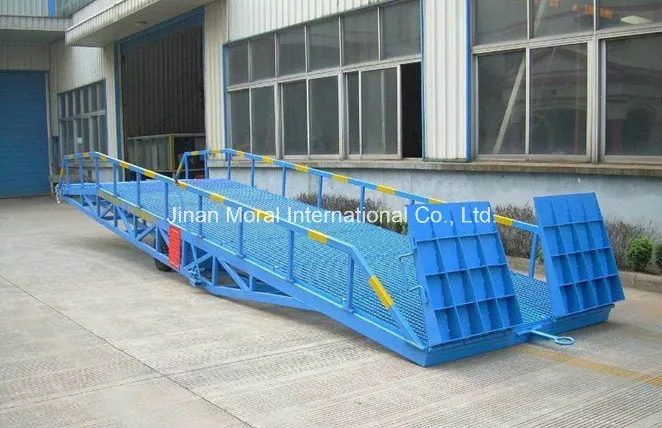

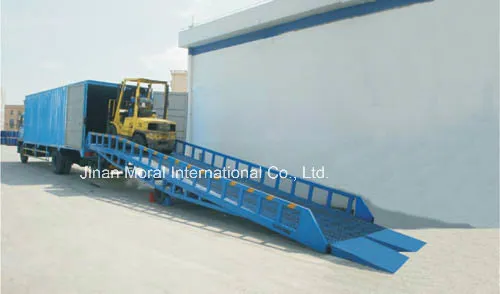

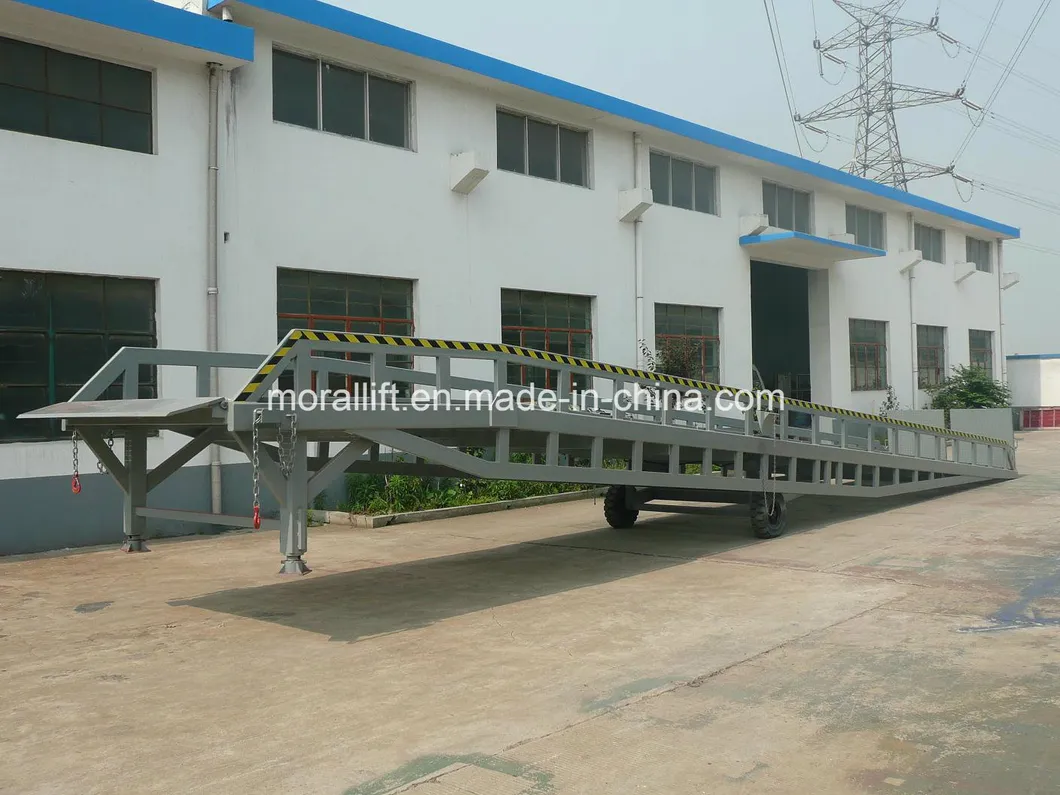

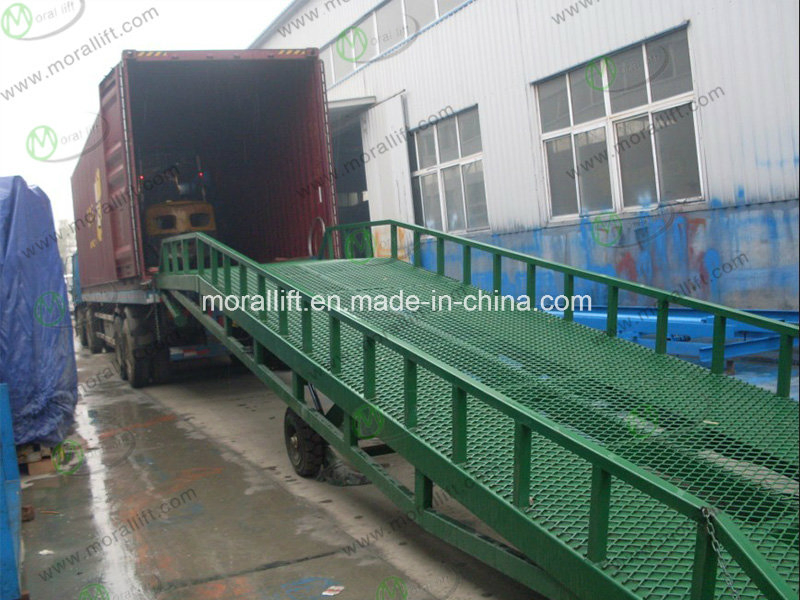

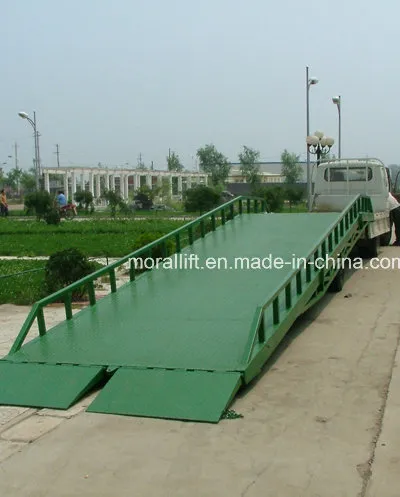

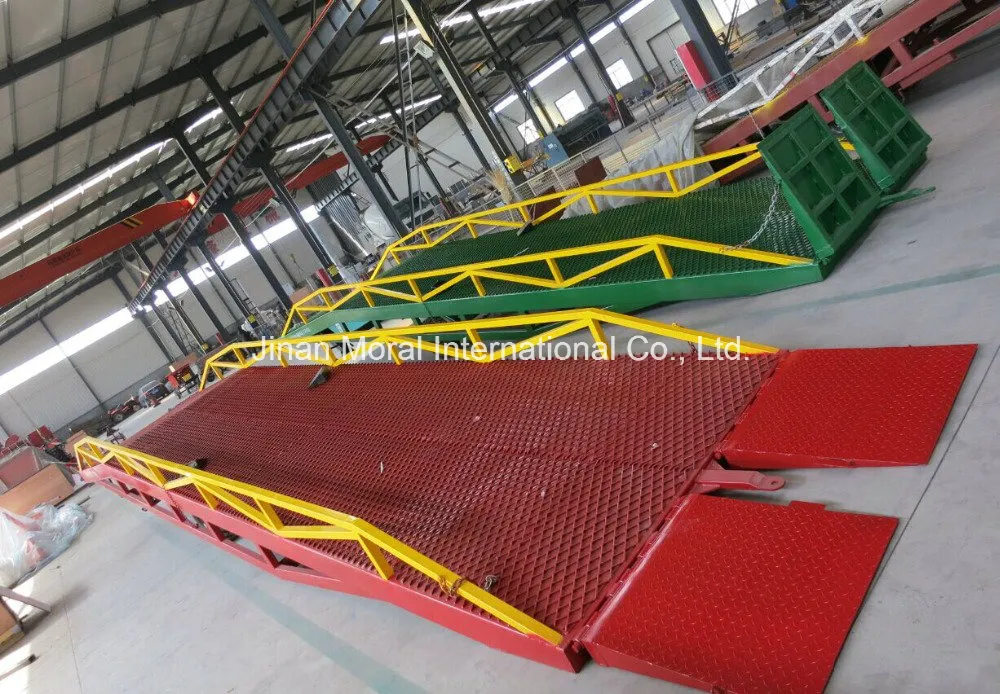

The Mobile Hydraulic Loading Ramp is a specialized auxiliary equipment designed for rapid loading and unloading of goods. Its height adjustment feature allows forklifts and other moving vehicles to enter directly into the truck to handle cargo. This dock ramp is mobile and controlled by a manual hydraulic system, allowing a single operator to manage the process efficiently, reducing labor costs and significantly increasing productivity.
Equipped with a handle pump and return valve. Lift the ramp slowly by moving the handle; unscrew counterclockwise to lower the ramp under its own weight.
Solid tires that do not require inflation, paired with brake pads to guarantee durable and safe operation.
High-strength manganese steel skeleton in a truss structure ensures large carrying capacity and high bearing strength.
Prevents tubing rupture. If a pipeline failure occurs, the valve locks automatically to prevent the ramp from falling.

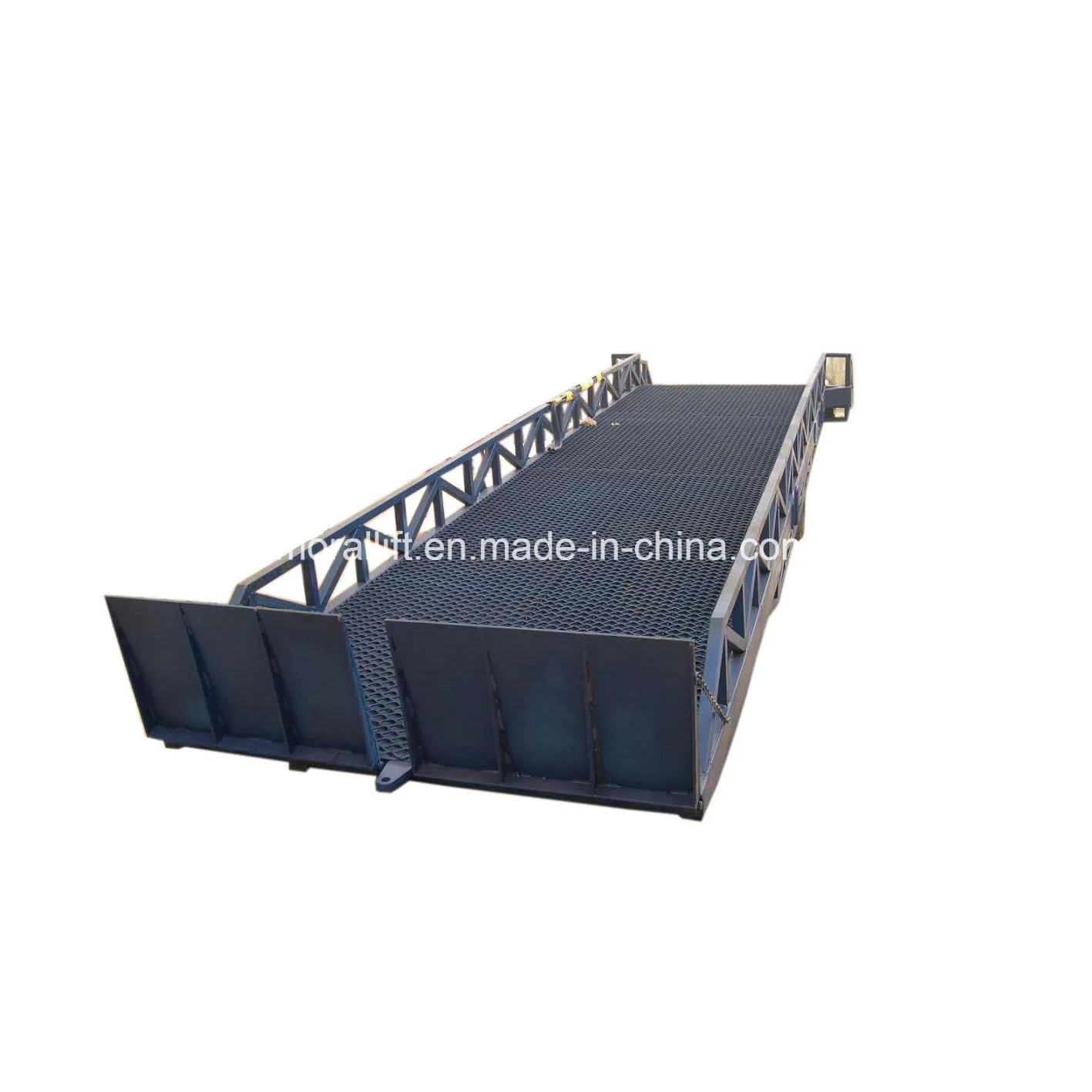

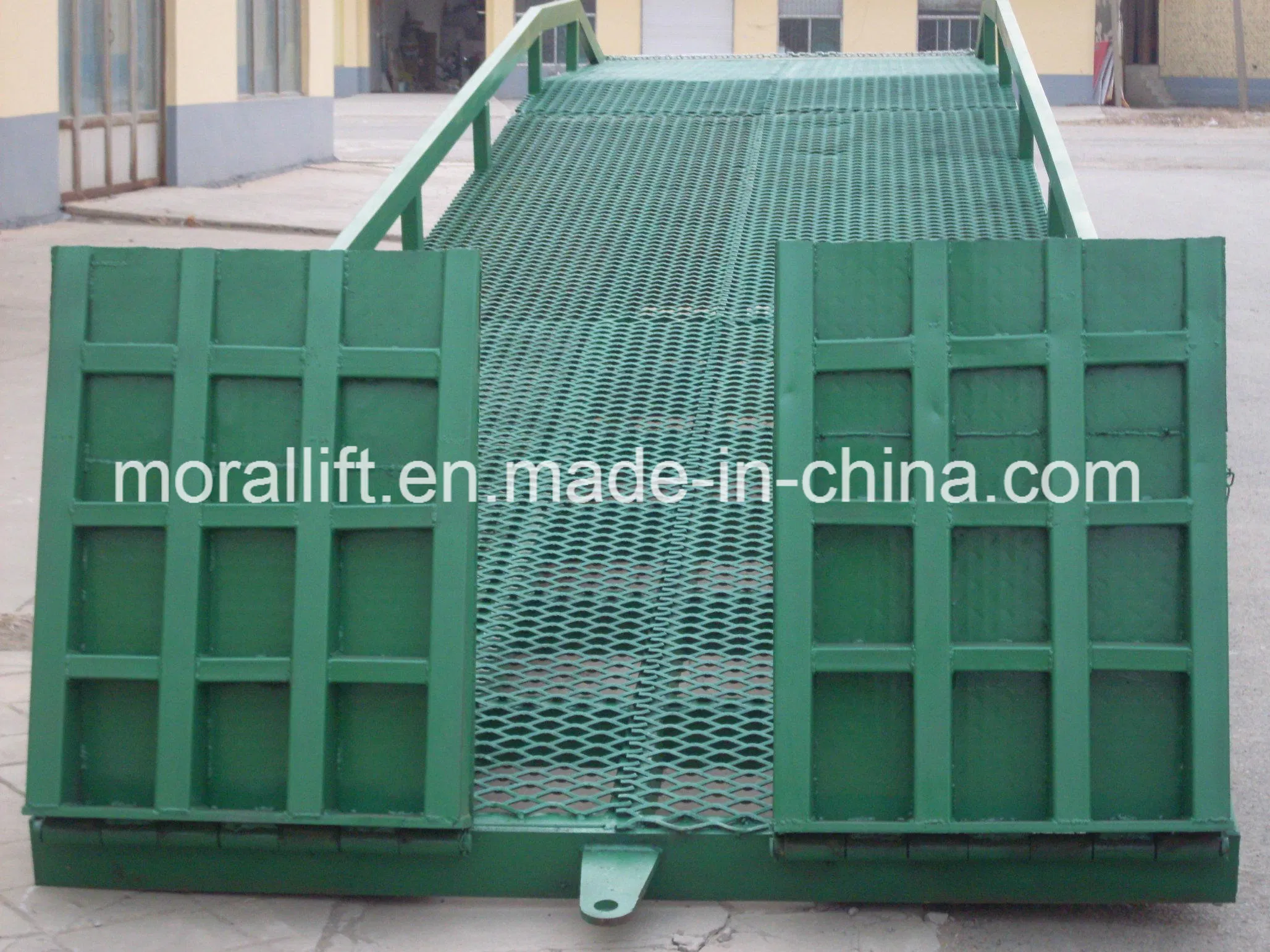

Features slippery anilox steel plates. The hollow mesh design prevents grease, dirt, and ice accumulation while improving traction.
Ensures stability and prevents the vehicle from overturning when gravity concentrates on the tail during forklift entry.
| Model # | Load Capacity (T) | Working Height (m) | Max Elevation | Dimensions (m) | Operation |
|---|---|---|---|---|---|
| YDCQ-5 | 5 | 1.0~1.7 | ≤ 13° | 11 × 2.08 × 1.3 | Manual/Electric |
| YDCQ-6 | 6 | 1.0~1.7 | ≤ 13° | 11 × 2.08 × 1.3 | Manual/Electric |
| YDCQ-8 | 8 | 1.0~1.7 | ≤ 13° | 11 × 2.08 × 1.3 | Manual/Electric |
| YDCQ-10 | 10 | 1.0~1.7 | ≤ 13° | 11 × 2.08 × 1.3 | Manual/Electric |
| YDCQ-12 | 12 | 1.0~1.7 | ≤ 13° | 11 × 2.08 × 1.3 | Manual/Electric |
| YDCQ-15 | 15 | 1.0~1.7 | ≤ 13° | 11 × 2.08 × 1.3 | Manual/Electric |
