Description:

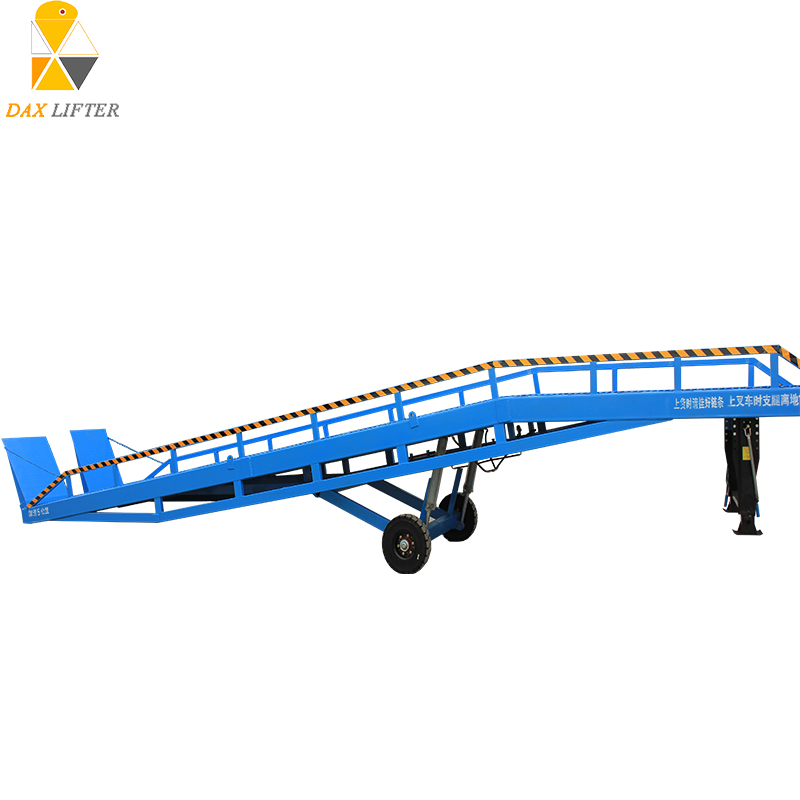

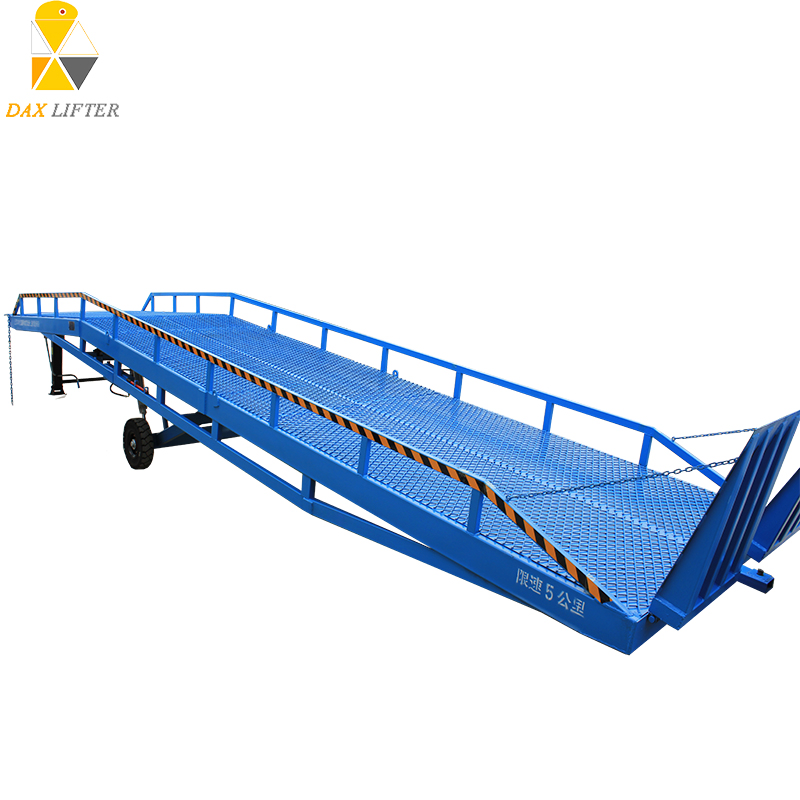

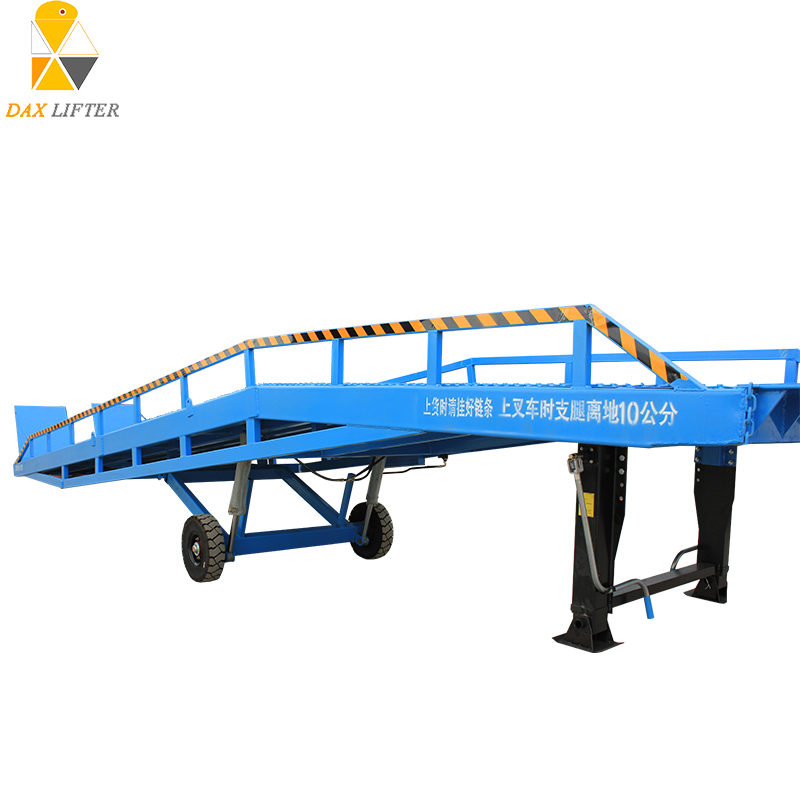

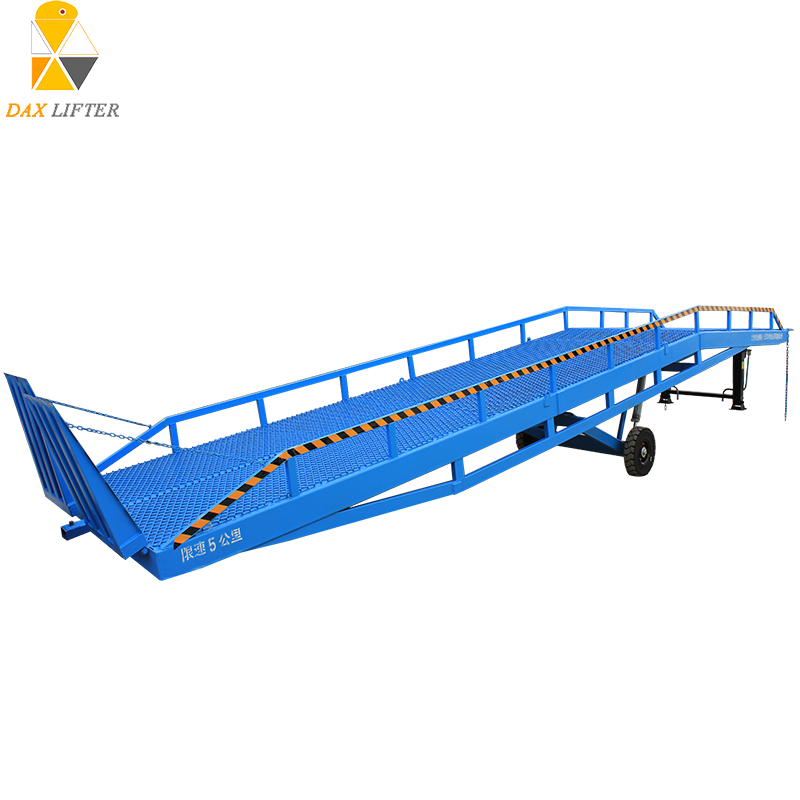

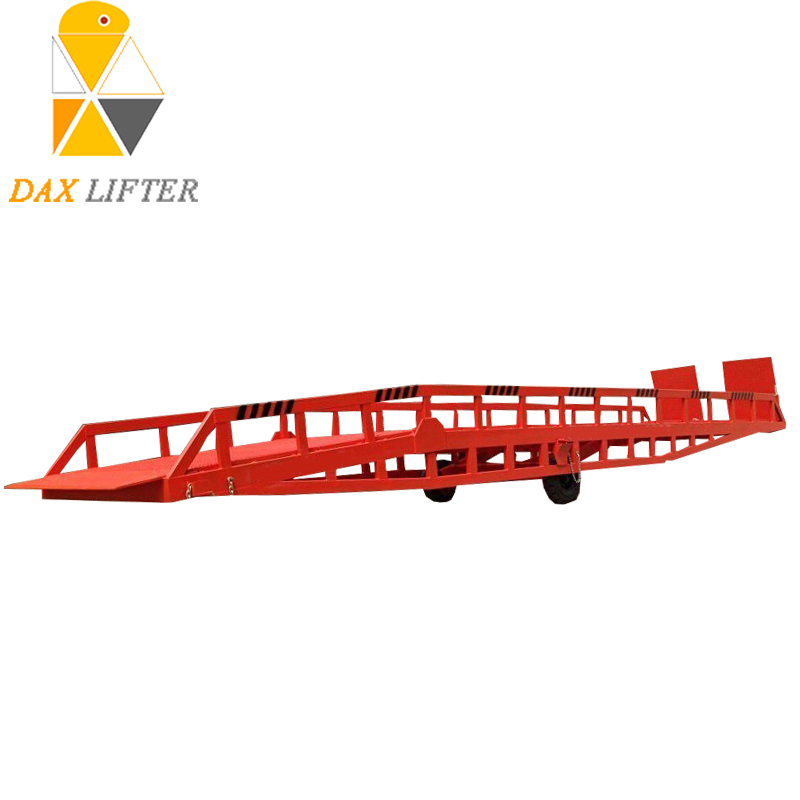

Confidence and repairability are the core of our MDR series. These mobile dock ramps are equipped with high-quality wheels, making it easier to be towed and moved to different work sites. Constructed from high-performance steel, these ramps ensure you spend more time on the job and less time on routine maintenance.
| Model | MDR-8 | MDR-10 | MDR-12 | MDR-15 |
|---|---|---|---|---|

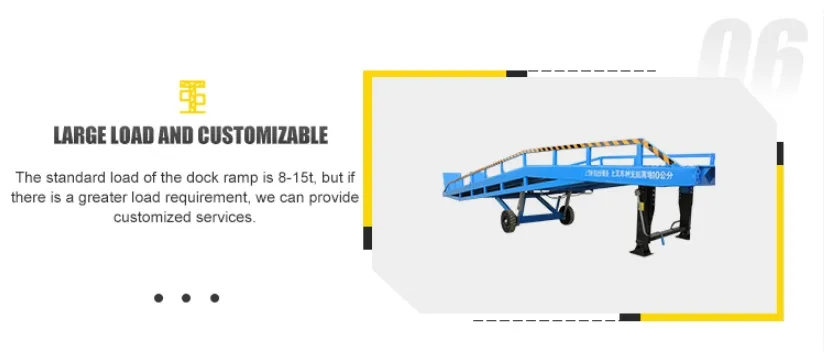

| Capacity | 8t | 10t | 12t | 15t |
| Platform Size | 11400*2100*1100mm | |||
| Steel Plate Thickness | 3mm | 4mm | 5mm | 6mm |
| Steel Grating Size | 6mm | 8mm | ||
| Lifting Height Range | 1100-1750mm | |||
| Girder Specs | 80*160*4mm | 100*200*5mm | ||
| Tire Type | 600-9 Solid rubber | 700-9 Solid rubber | ||
| Operation | Manually | |||
| Net Weight | 2300kg | 2450kg | 3000kg | 3600kg |
Global presence with successful deliveries to the United Kingdom, Germany, Netherlands, Serbia, Australia, Saudi Arabia, Sri Lanka, India, New Zealand, Malaysia, Canada, and more.
High-quality construction using shot blasting and plastic spraying surface treatments for long-lasting durability.
Competitive pricing combined with excellent operational performance.
Comprehensive after-sales service to ensure your equipment remains in top condition.
