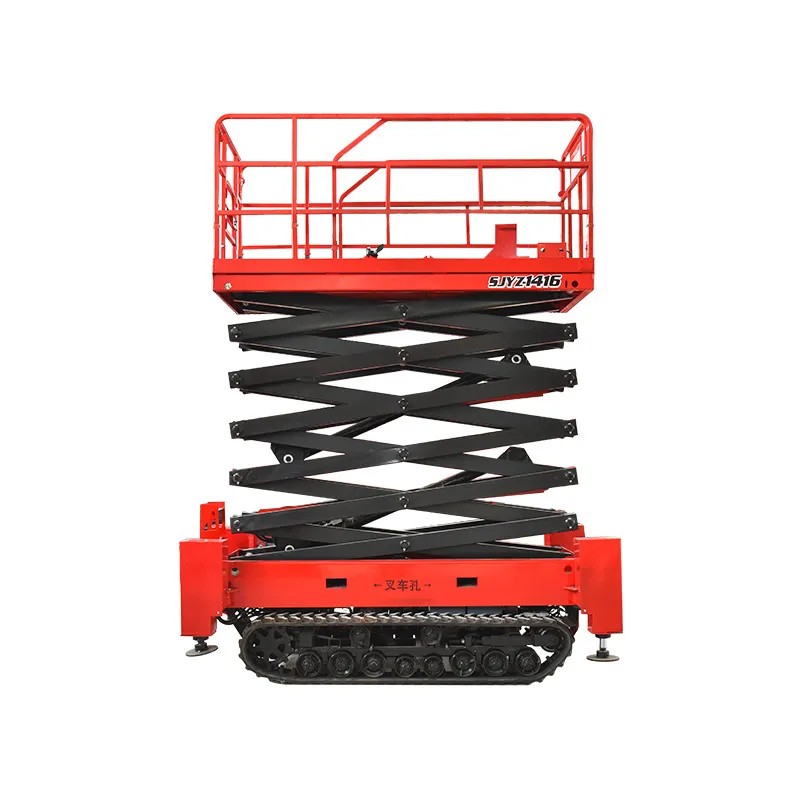

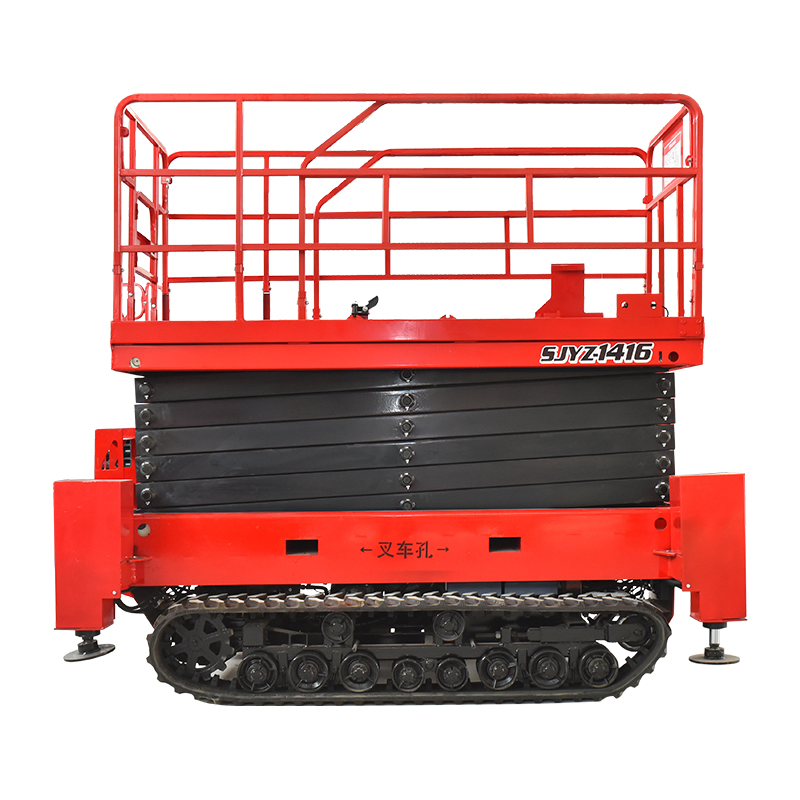

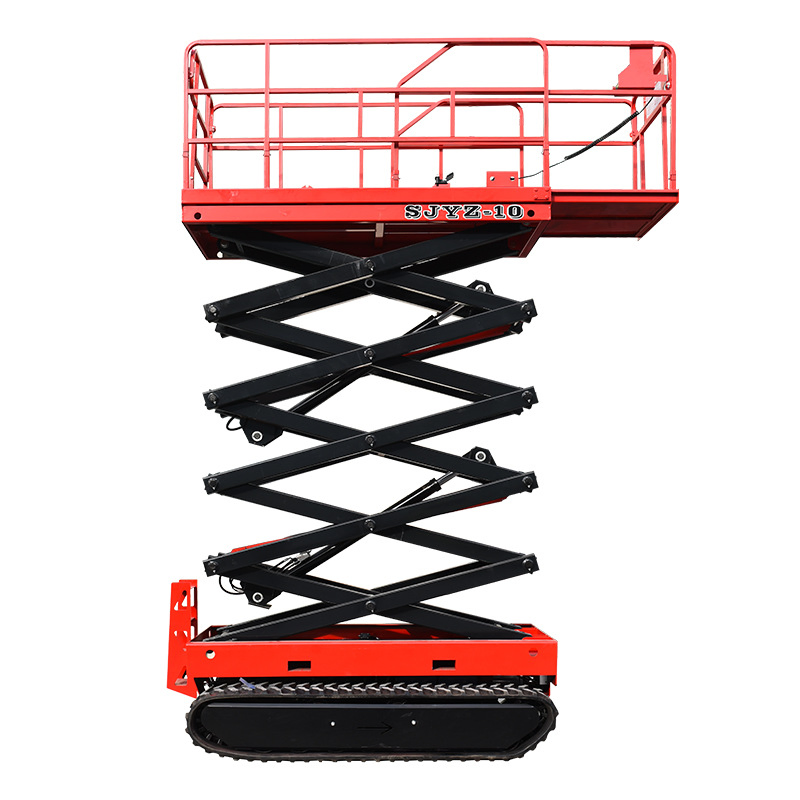

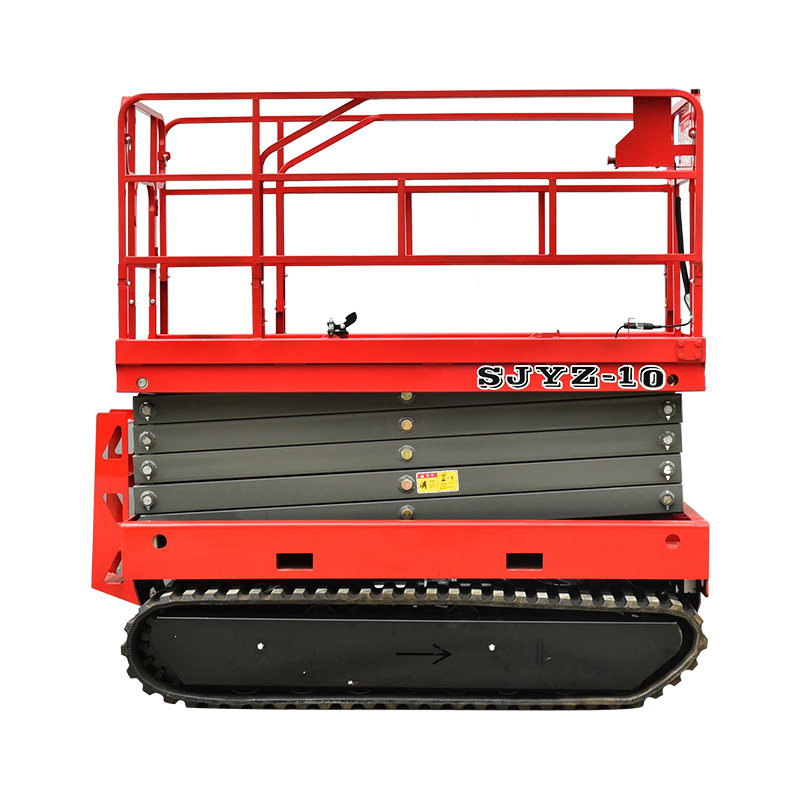

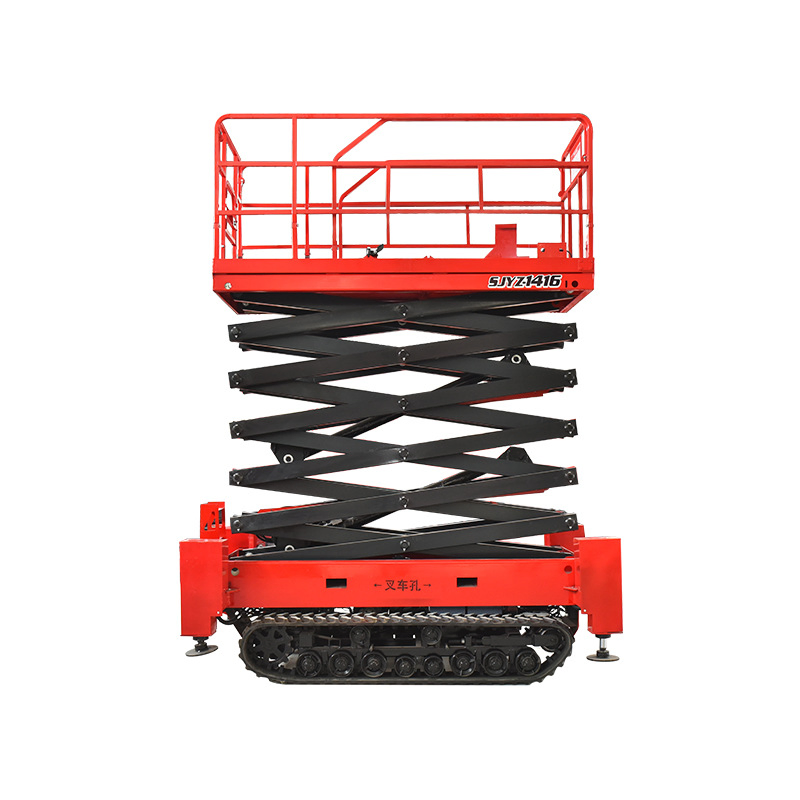

Pallet Lifter 6-12m Hydraulic Electric Crawler Wheels Scissor Lifting Platform on Tracks

1 / 5

Pallet Lifter 6-12m Hydraulic Electric Crawler Wheels Scissor Lifting Platform on Tracks

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

Crawler Type

Lift Mechanism

Scissor Lift

Driven Type

Hydraulic

Power Source

24V DC or 48V

Table Size

2270*1120mm

Load Capacity

320kg-450kg

Working Height

6-12m

Feature

Explosion-Proof / Rough Terrain

Travel Speed

0.5km/H (Raised)

Production Capacity

8000 Units Per Month

Product Overview

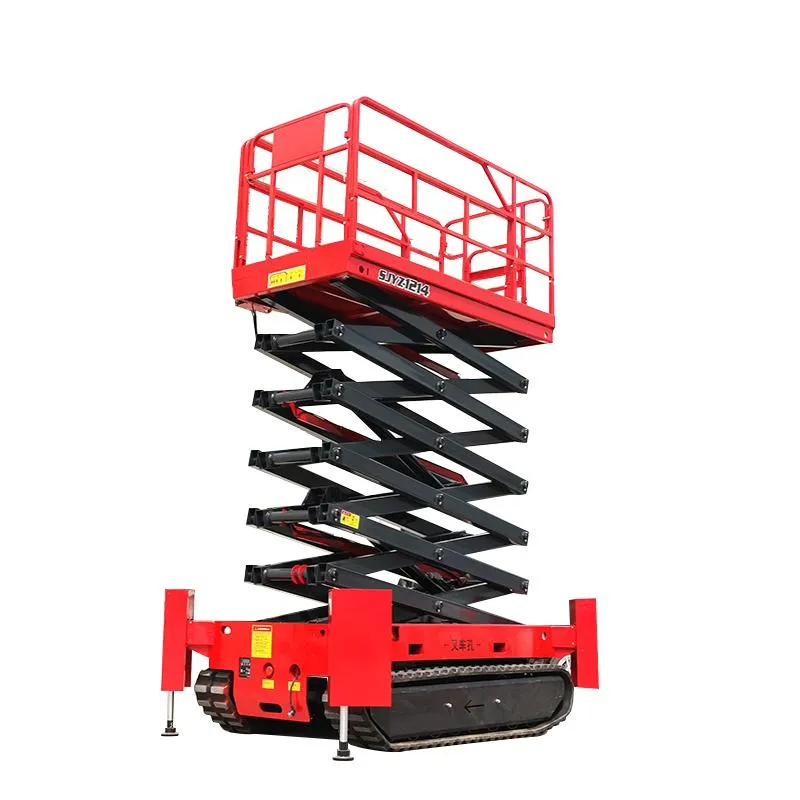

This Rough Terrain Crawler Scissor Lift is specifically designed for challenging working environments. The integrated crawler design provides exceptional stability and mobility, allowing the lift to navigate through rough obstacles that standard wheeled lifts cannot handle.

Ideal for grasslands and uneven construction grounds.
Lifting heights available from 6m to 16m.
Electric driven models with powerful track systems.
High-strength scissor mechanism for maximum safety.

Model	DX06LD	DX08LD	DX10LD	DX12LD
Capacity	450kg	450kg	320kg	320kg
Max Platform Height	6m	8m	9.75m	11.75m
Max Working Height	8m	10m	12m	14m
Overall Length	2470mm	2470mm	2470mm	2470mm
Overall Width	1390mm	1390mm	1390mm	1390mm
Platform Size	2270*1120mm	2270*1120mm	2270*1120mm	2270*1120mm
Extendable Platform	900mm	900mm	900mm	900mm
Lifting Motor	48v/4kw	48v/4kw	48v/4kw	48v/4kw
Net Weight	2400kg	2550kg	2840kg	3000kg

Frequently Asked Questions

1. What are the main advantages of a crawler-type scissor lift? The primary advantage is its ability to operate on soft, uneven, or rough terrain like mud, grass, and gravel where wheeled lifts might get stuck. The tracks distribute weight more evenly, reducing ground pressure.

2. How much weight can the crawler scissor lift carry? Our standard models range from 320kg to 450kg in capacity, which is sufficient for 2-3 workers plus their tools and materials.

3. Can the platform be extended for more space? Yes, our crawler scissor lifts come with an extendable platform of 900mm, providing extra reach and a larger working area for operators.

4. What is the power source for these machines? The units are powered by a high-capacity 48V DC battery system, making them eco-friendly, quiet, and suitable for various working environments.

5. Is the machine explosion-proof? Yes, this model features explosion-proof specifications, making it suitable for specialized industrial environments where safety requirements are stringent.

6. Can it climb slopes? The crawler design is built for rough terrain and can handle significant gradients compared to standard models, though specific limits depend on the model and load.
