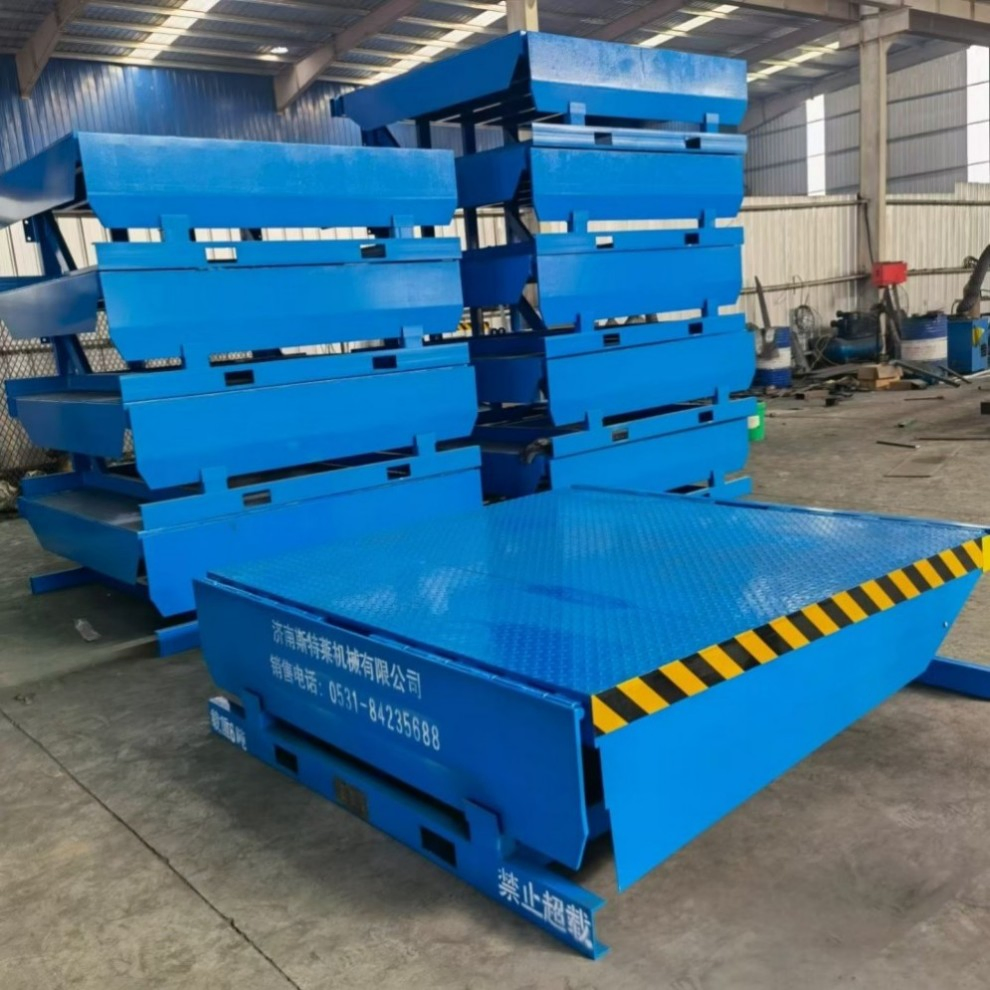

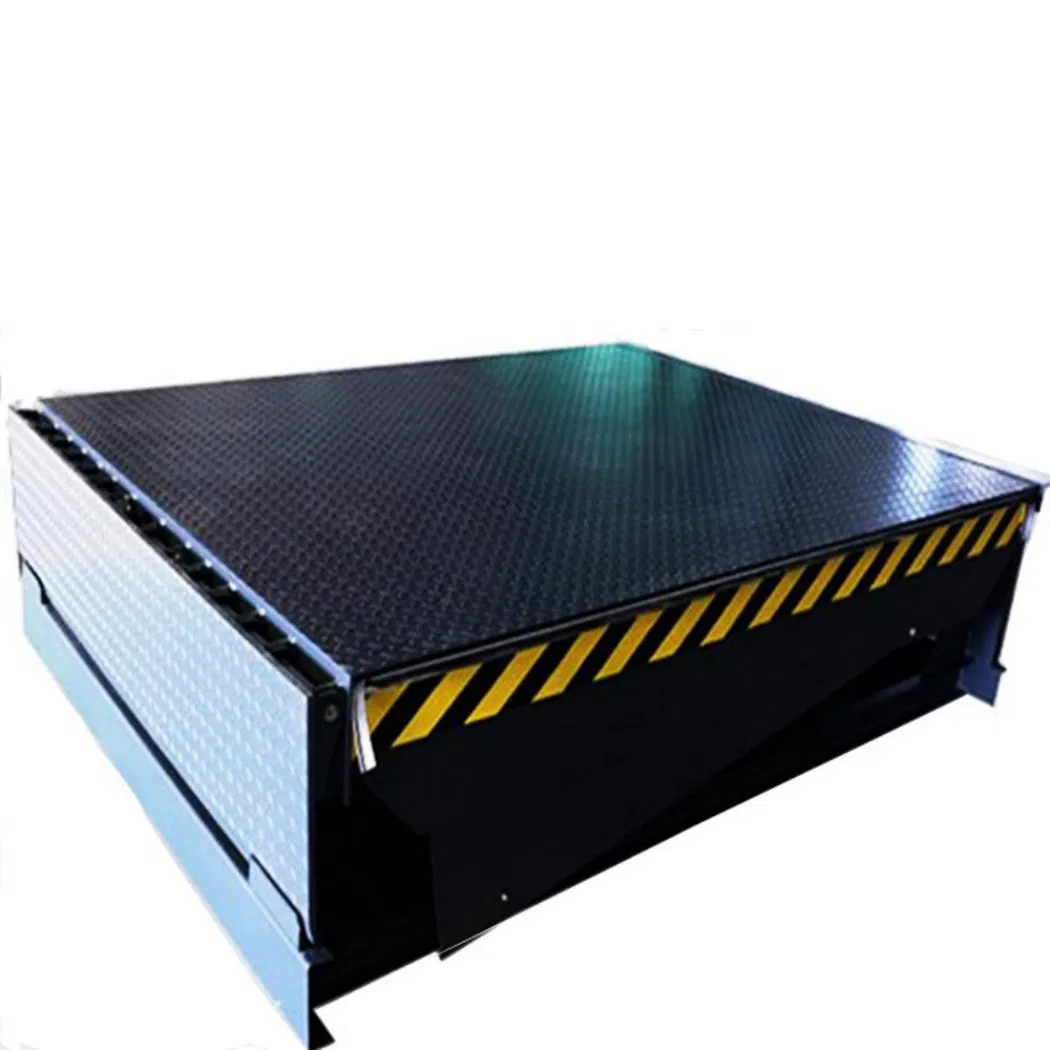

High Quality Dock Ramp Loading Platform Fixed Mobile Hydraulic Dock Leveler
The Dock Leveler is designed for use in docks, logistics terminals, cold storage platforms and other locations where the efficient loading and unloading of goods is essential. We offer a wide range of dock levelling solutions, including Hydraulic dock levelers, Telescoping lip dock levelers, Mechanical dock levelers, Vertical standing dock levelers, Air-powered dock levelers, EOM dock levelers and EOD dock levelers.

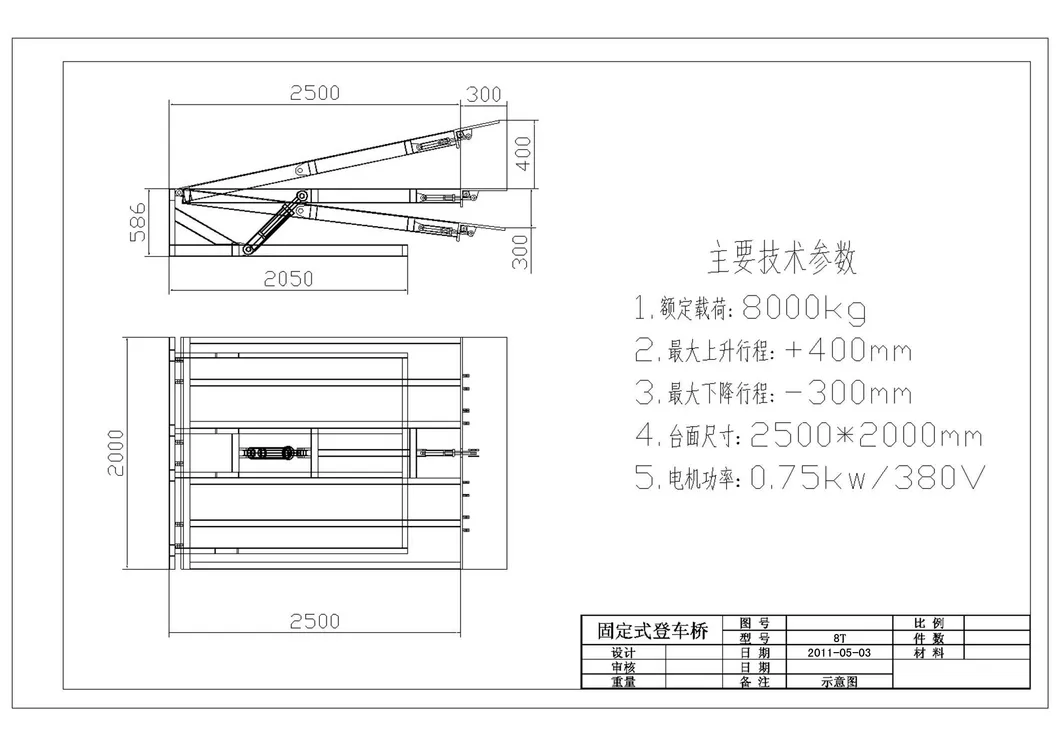

| Model | Capacity (T) | Platform Size | Lip Size | Motor Power |
|---|---|---|---|---|
| DCGQ6 | 6 | 2500*2000mm | 400mm | 0.75KW |
| DCGQ8 | 8 | 2500*2000mm | 400mm | 0.75KW |
| DCGQ10 | 10 | 2500*2000mm | 400mm | 0.75KW |
| DCGQ12 | 12 | 2500*2000mm | 400mm | 0.75KW |

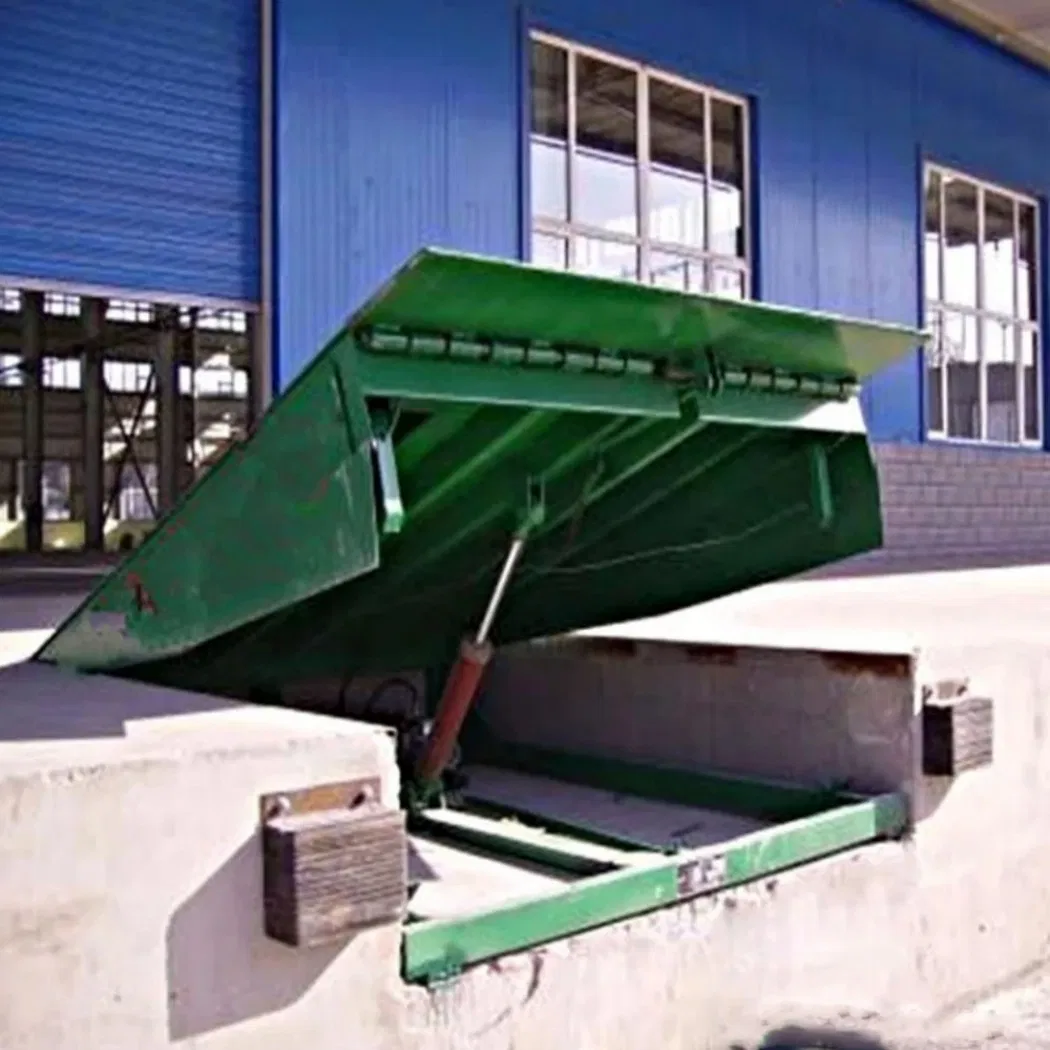

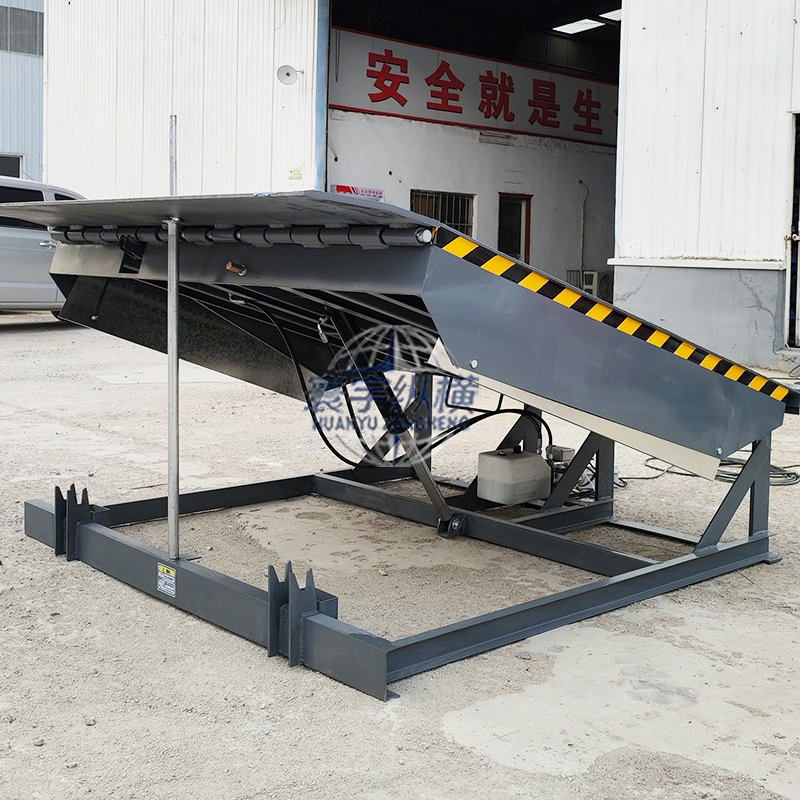

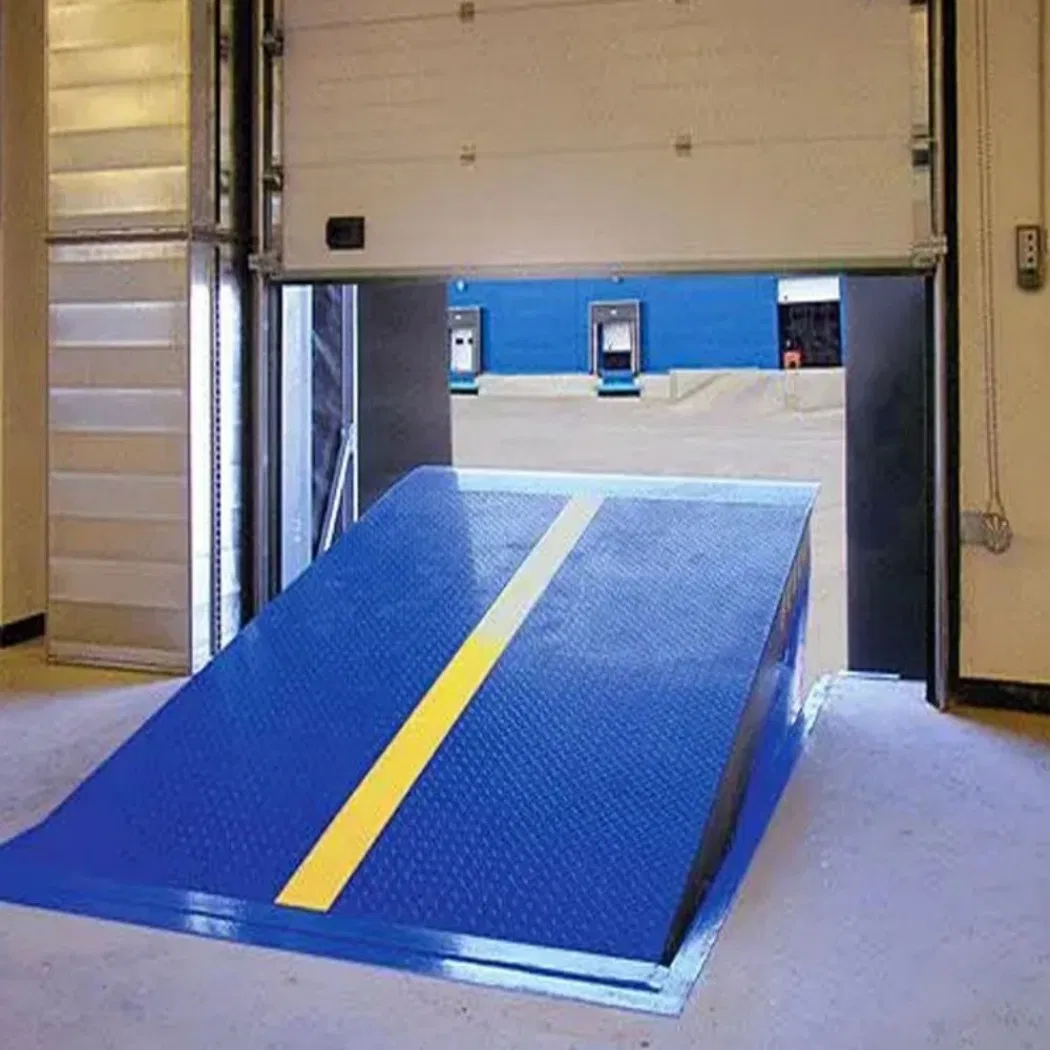

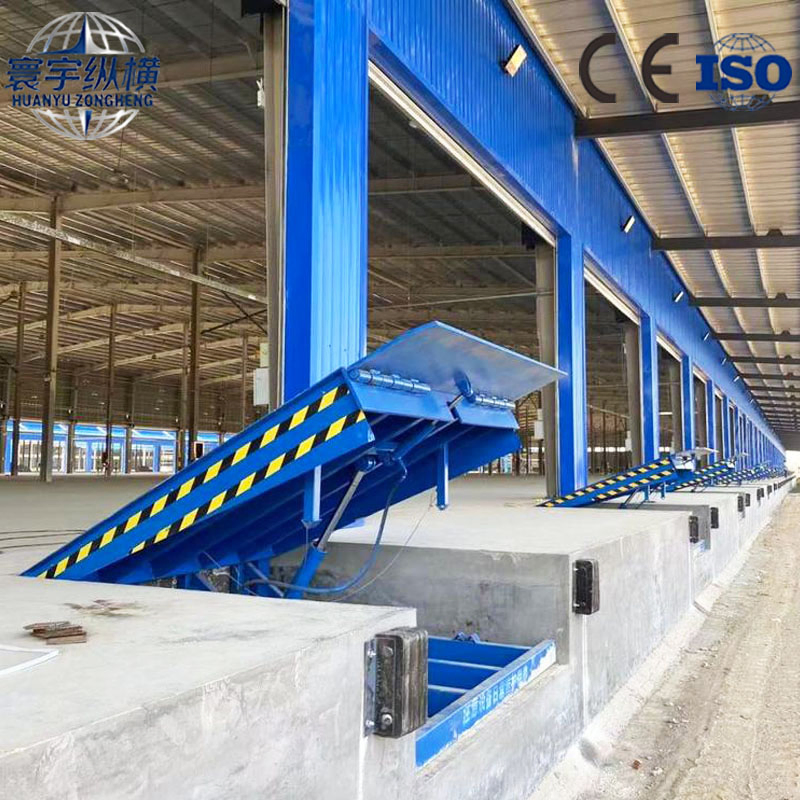

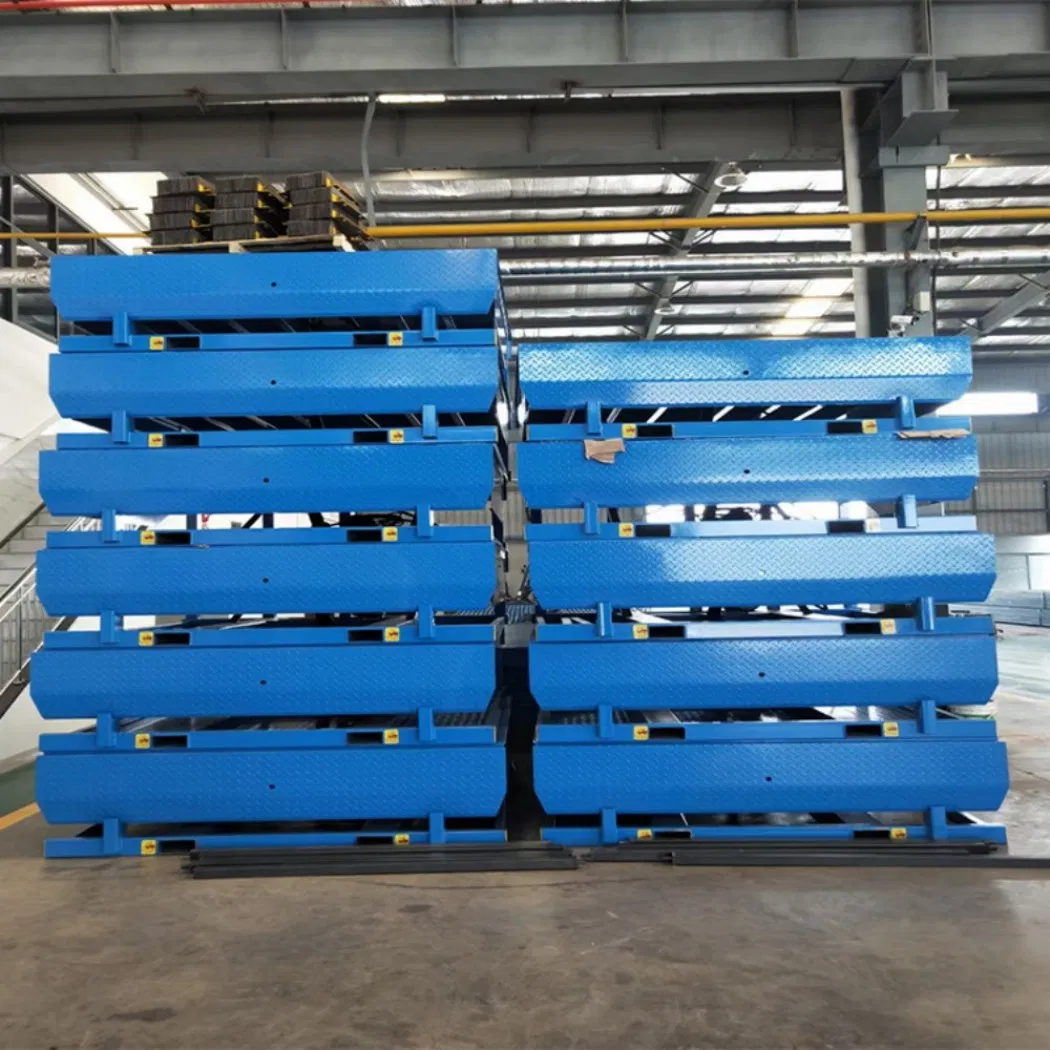

Fixed Hydraulic Dock Leveler is an excellent auxiliary equipment for efficient material handling. It can move freely within containers, providing lightweight and efficient operation. Loading docks are equipped with anti-slip surfaces, anti-crush aprons, and emergency stop devices to minimize accident risks and ensure the safety of personnel and goods.
| System | Free maintenance design idea for a long run using application. |
| Design | Hydraulic driving system for main deck and lip. Collection of Pump, Pipe, and Tank in one part. Hydraulic Velocity fuse (≤75 mm) for automatic stopping. |
| Safety | Full range foot guard; penetrating safety support bar; front tubular hinge with 25mm diameter latch; galvanized long shaft for anti-rust protection. |
| Structure | Main plate made of 8mm high strength embossed non-slip steel. Extension lip 15mm thickness. 14# I-beam steel reinforcement. Sandblasting treatment for superior coating adhesion. |

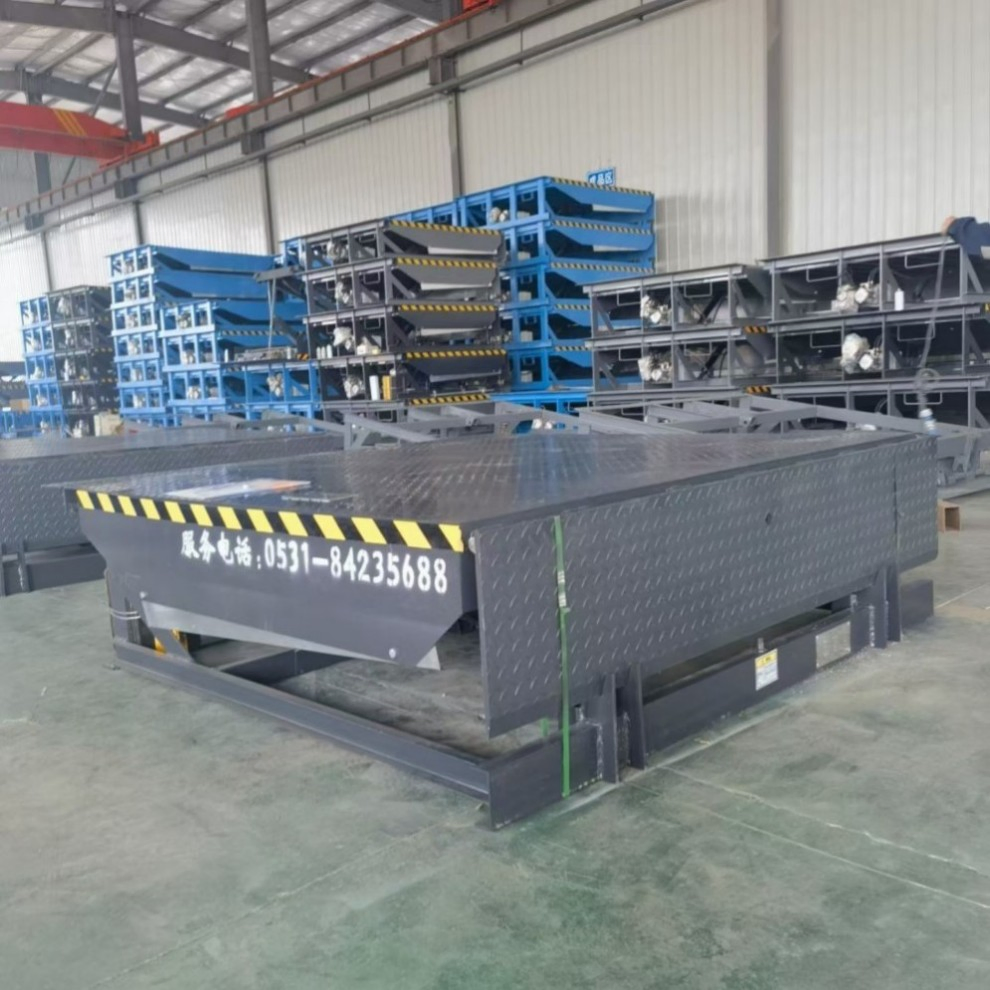

Located in a major production base for lifting platforms, the enterprise is a modern technology-based manufacturing enterprise integrating design, production, sales, installation, and after-sales service. Our product portfolio consists of multiple series, mainly including Wrapping Machines, lifting work platforms, and vehicle boarding bridges.
The equipment produced has successively obtained ISO system certification, CE safety certification, and multiple national invention patents. Complying with industry standards, the products are widely used in industries such as glass products, papermaking, chemicals, building materials, textiles, beverages, electronics, food, and metallurgy.
