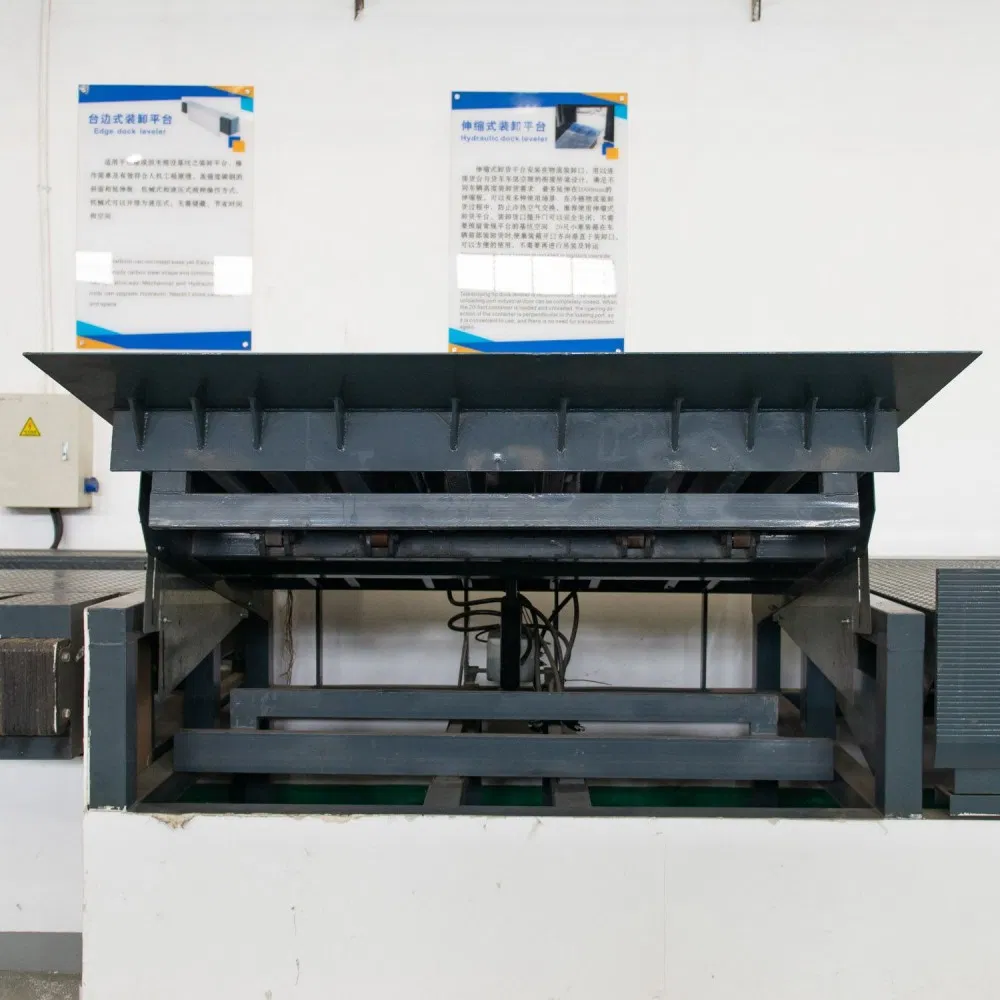

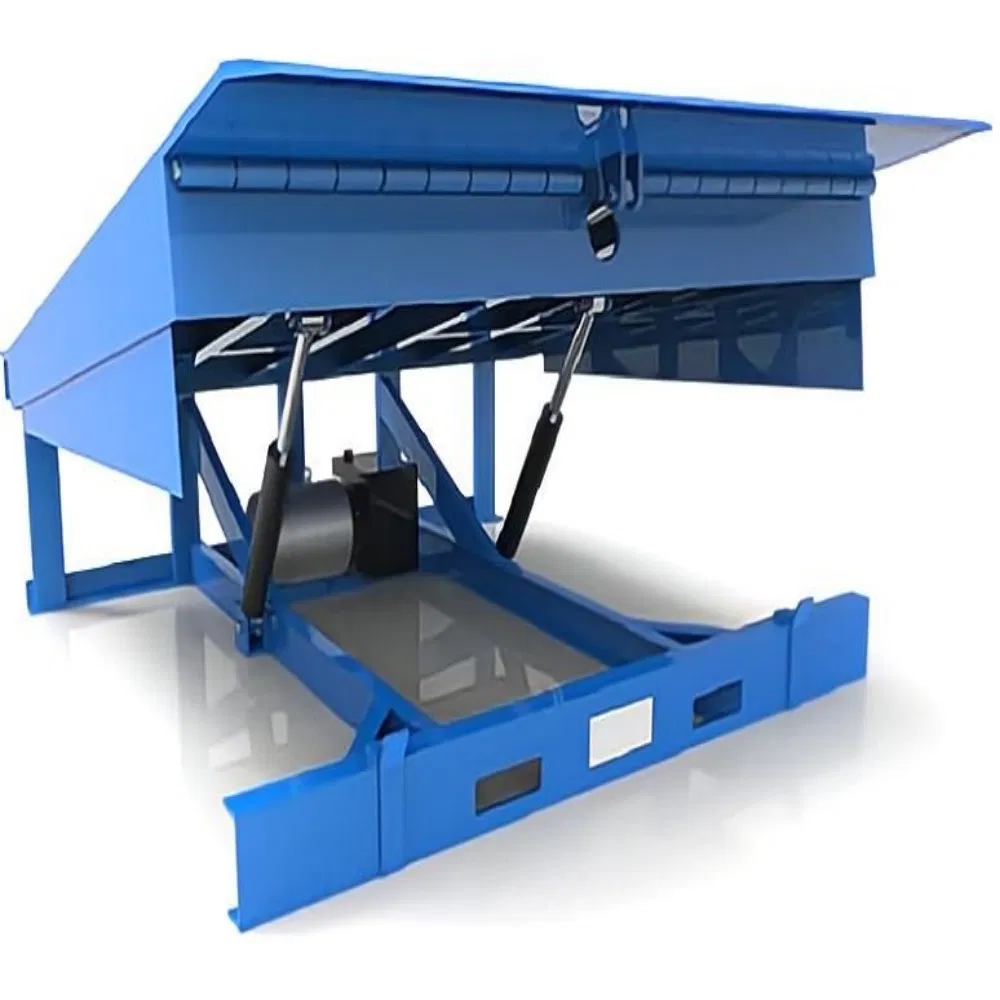

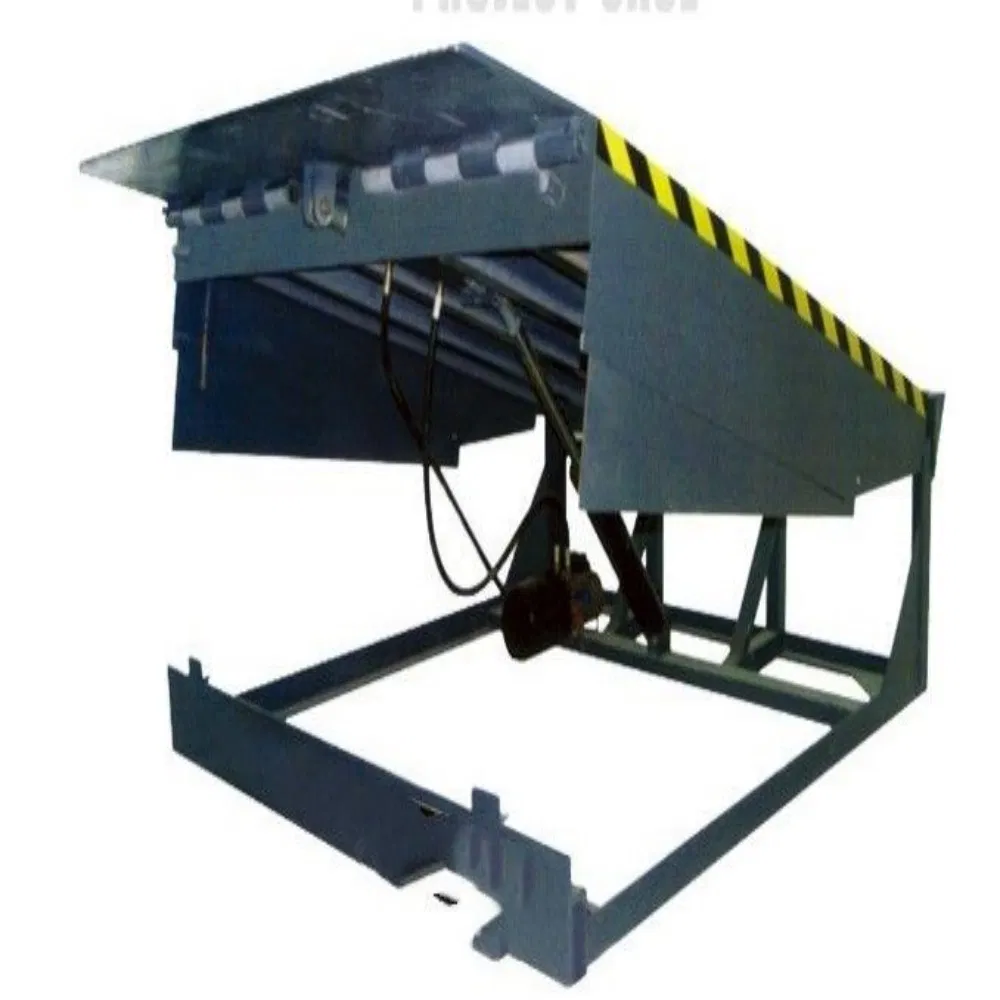

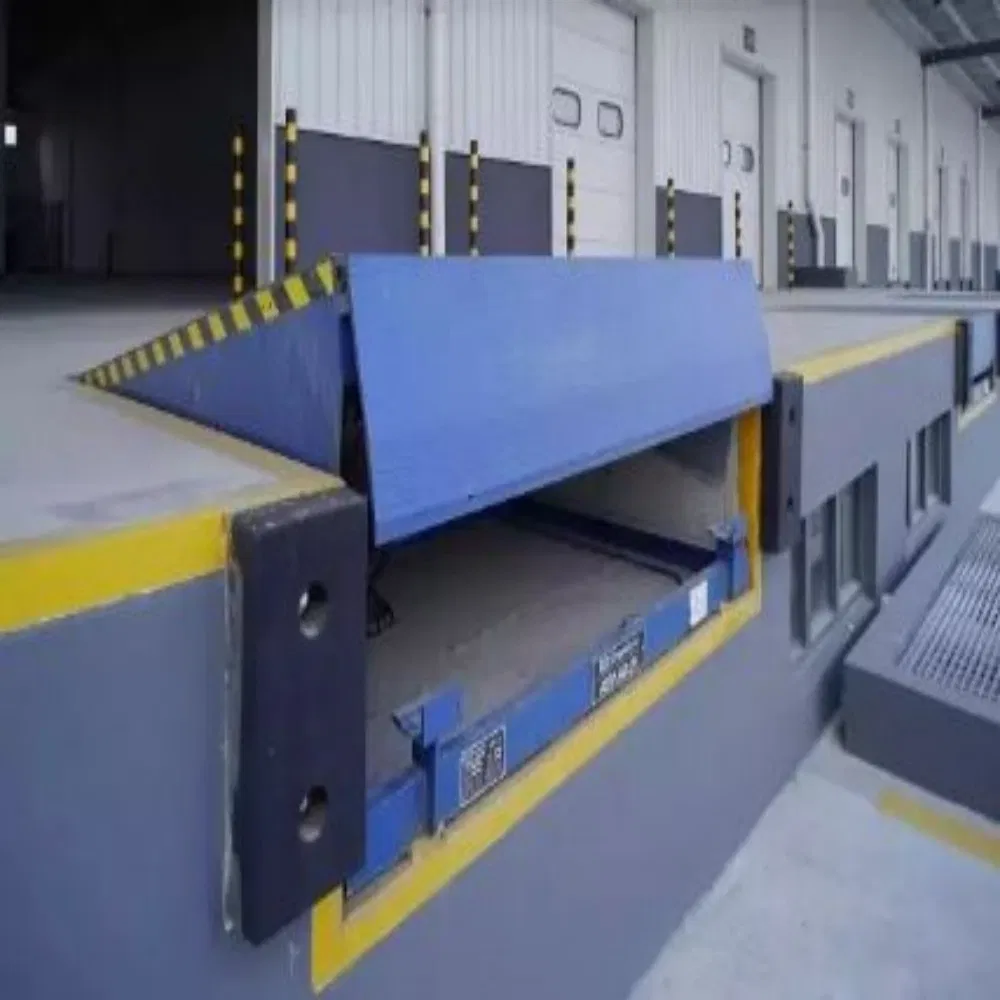

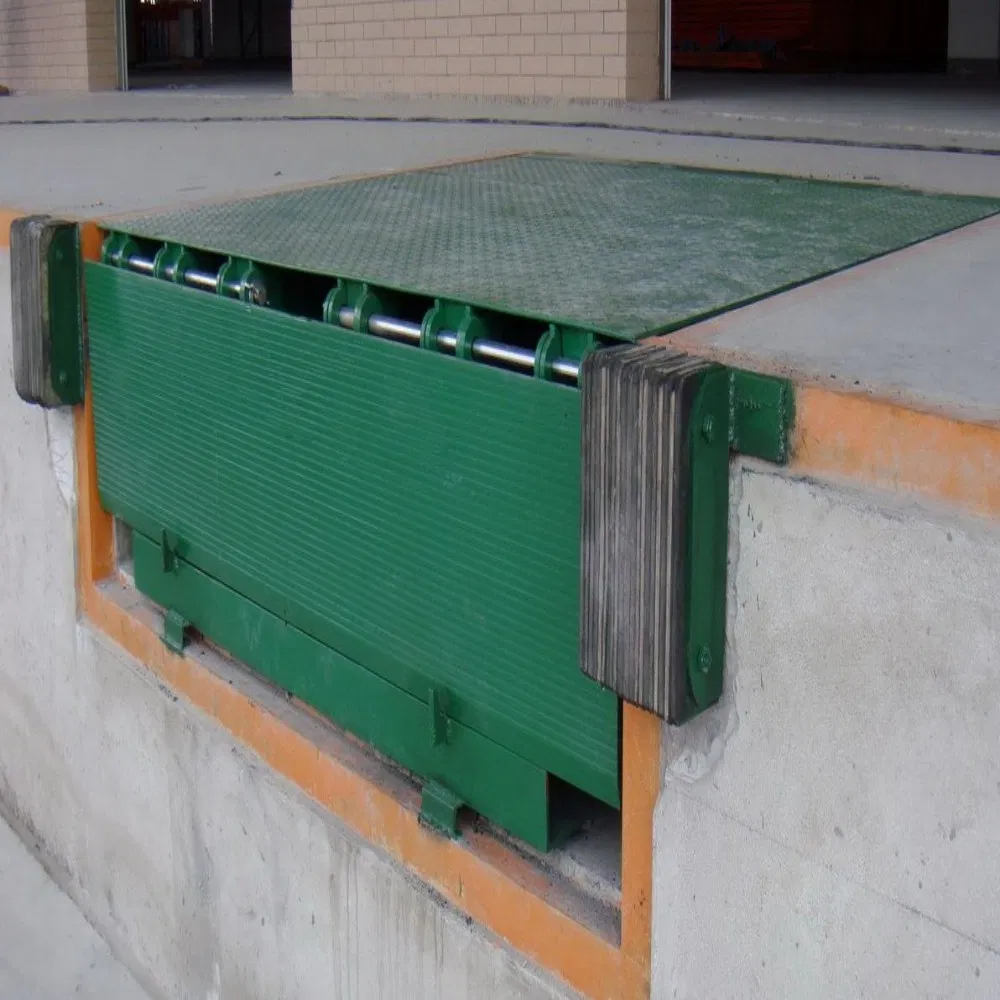

Heavy Duty Hydraulic Car Container Unloading Adjustable Loading Ramp Stationary Dock Leveler Lifting Platform
Heavy Duty Hydraulic Car Container Unloading Adjustable Loading Ramp Stationary Dock Leveler Lifting Platform
Heavy Duty Hydraulic Car Container Unloading Adjustable Loading Ramp Stationary Dock Leveler Lifting Platform
Heavy Duty Hydraulic Car Container Unloading Adjustable Loading Ramp Stationary Dock Leveler Lifting Platform
Heavy Duty Hydraulic Car Container Unloading Adjustable Loading Ramp Stationary Dock Leveler Lifting Platform
1 / 5
Heavy Duty Hydraulic Car Container Unloading Adjustable Loading Ramp Stationary Dock Leveler Lifting Platform
Heavy Duty Hydraulic Car Container Unloading Adjustable Loading Ramp Stationary Dock Leveler Lifting Platform
Heavy Duty Hydraulic Car Container Unloading Adjustable Loading Ramp Stationary Dock Leveler Lifting Platform
Heavy Duty Hydraulic Car Container Unloading Adjustable Loading Ramp Stationary Dock Leveler Lifting Platform
Heavy Duty Hydraulic Car Container Unloading Adjustable Loading Ramp Stationary Dock Leveler Lifting Platform

Heavy Duty Hydraulic Car Container Unloading Adjustable Loading Ramp Stationary Dock Leveler Lifting Platform

Customization: Available
After-sales Service: Yes
Warranty: 12 Months
Send Inquiry

Product Description

📋 Basic Information
Model NO.
XF-O-2500
Lift Mechanism
Hydraulic Cylinder
Carrying Capacity
6t / 8t / 10t
Moves
Stationary
Driven Type
Hydraulic
Feature
Explosion-Proof
Certification
CE, ISO 9001
Voltage
220V 50Hz / 380V 50Hz
Power
0.75 Kw / 1.5kw
HS Code
84254290
Production Capacity
10000/ Year
Origin
Made in China
📦 Packaging & Delivery
Package Size
200.00cm * 200.00cm * 60.00cm
Gross Weight
100.000kg
Transport Package
Wrapping Film
🛠️ Product Description

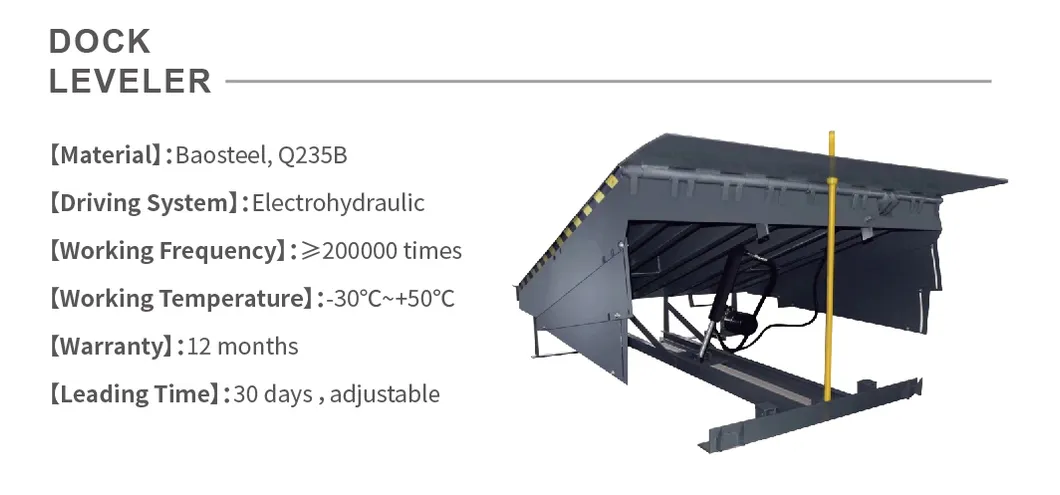

Hydraulic Loading Ramp 1

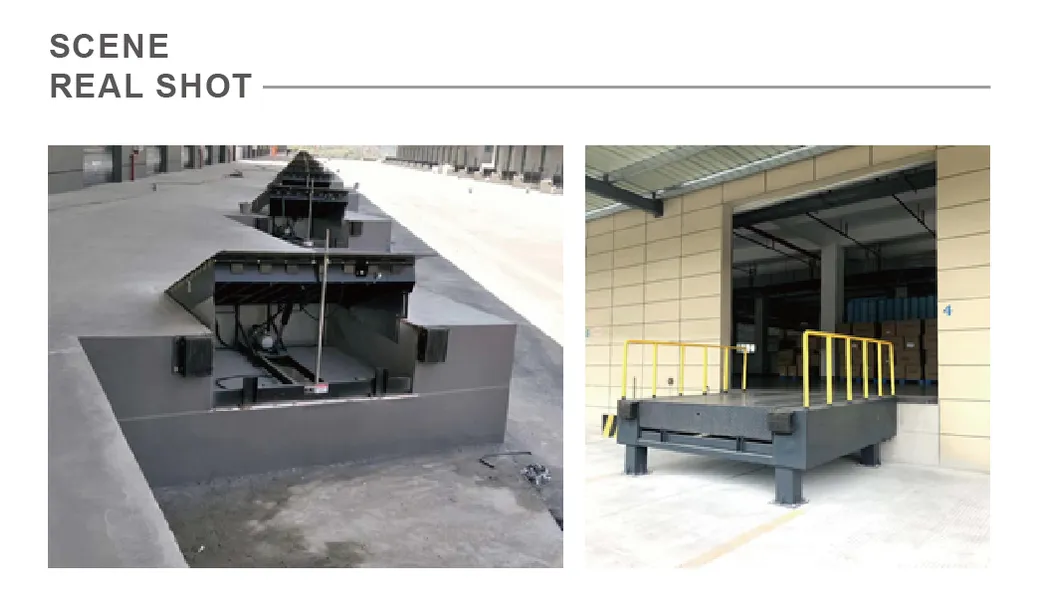

Hydraulic Loading Ramp 2

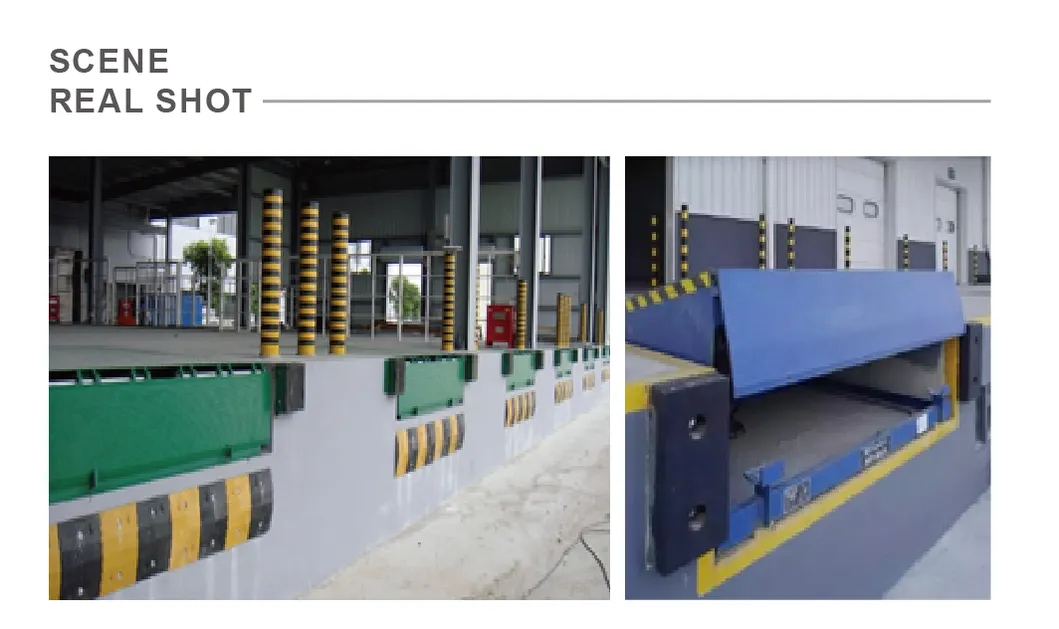

Hydraulic Loading Ramp 3

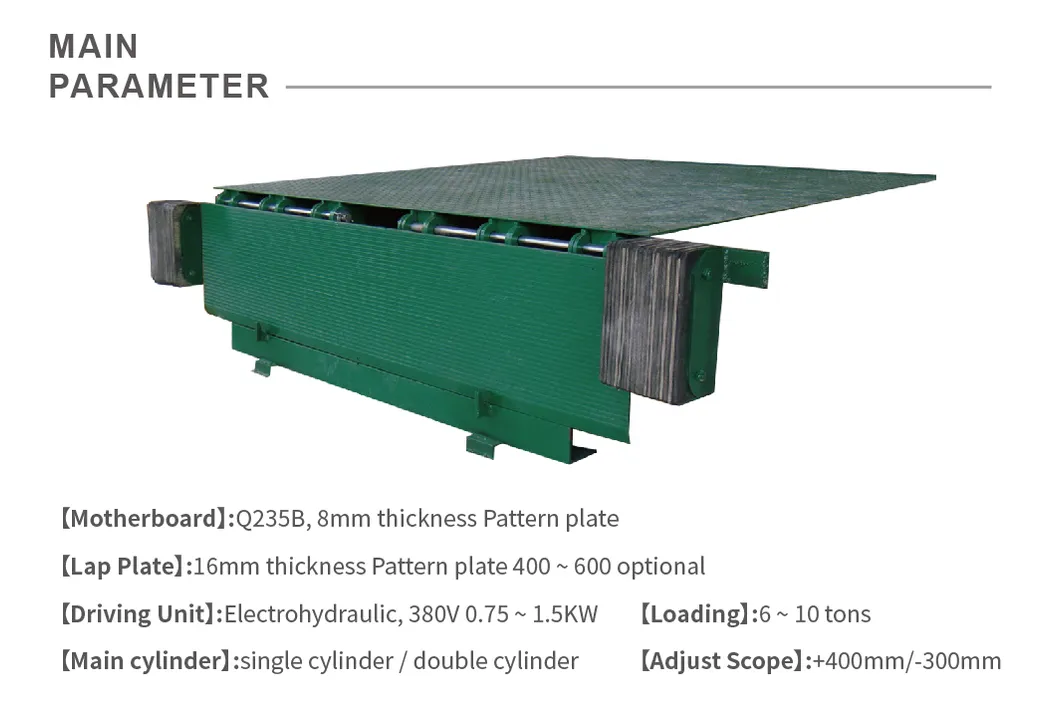

Hydraulic Loading Ramp 4
DETAILED TECHNICAL PARAMETERS
Main BoardQ235B steel plate with anti-slide pattern, thickness: 6/8 mm; blasting surface treatment and powder coating
Lap PlateQ235B steel plate with anti-slide pattern, thickness: 14/16mm; blasting and powder coating
Loading WeightDynamic load: 6T / 8T / 10T / 12 T / 15T
Driving SystemElectrohydraulic, Local brand / ARGO HYTO powerpack, 380V 0.75KW ~ 1.5KW
Control SystemStandard 380V English interface
Adjust Scope+400mm / -300mm
Adjust TimeUp ≤ 16S ; Down ≤ 10S
Sealing PartsBrand: NOK A505 Complete set of seals for oil cylinder
Main Board Stiffener8 pcs of 14# I-Beam, height of Beam is 140mm
Working Temperature-30ºC ~ +50ºC
Safety PartsExplosion proof valve and automatic retraction side baffles
Working Frequency≥ 200,000 times
Detailed Dimension
Product Application
Key Features:
• High-quality Q235B steel construction with anti-slide pattern.
• Advanced electrohydraulic driving system for smooth operation.
• Durable NOK seals ensuring long-term cylinder reliability.
• Built-in explosion-proof valves and safety side baffles for operator protection.
❓ Frequently Asked Questions
What is the maximum loading capacity of this dock leveler?
The stationary dock leveler supports dynamic loads of 6T, 8T, 10T, 12T, and up to 15T depending on the specific model requirements.
What materials are used for the main platform?
The platform is constructed from high-strength Q235B steel plate with an anti-slide pattern, featuring a thickness of 6mm to 8mm for the main board and 14mm to 16mm for the lap plate.
Can this equipment operate in extreme cold weather?
Yes, the hydraulic system and components are designed to operate efficiently within a temperature range of -30ºC to +50ºC.
What safety features are included?
It is equipped with an explosion-proof valve for the hydraulic system, automatic retraction side baffles to prevent toe injury, and anti-collision bumpers.
What are the power requirements?
The standard configuration supports 220V 50Hz or 380V 50Hz power supply with a motor power ranging from 0.75KW to 1.5KW.
What certifications does the product hold?
The product is fully certified with CE and ISO 9001, meeting international safety and quality management standards.
