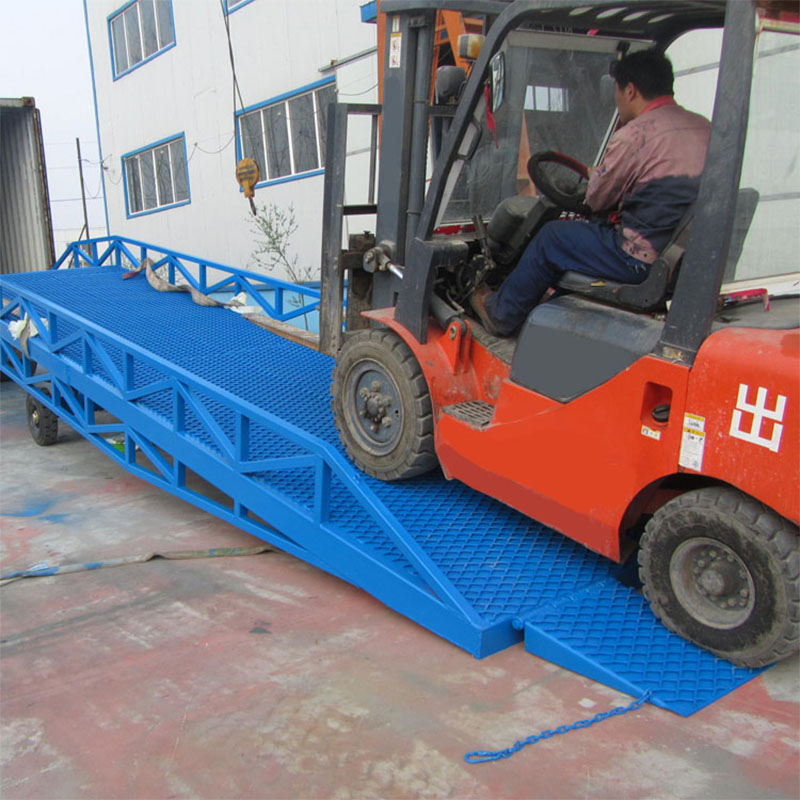

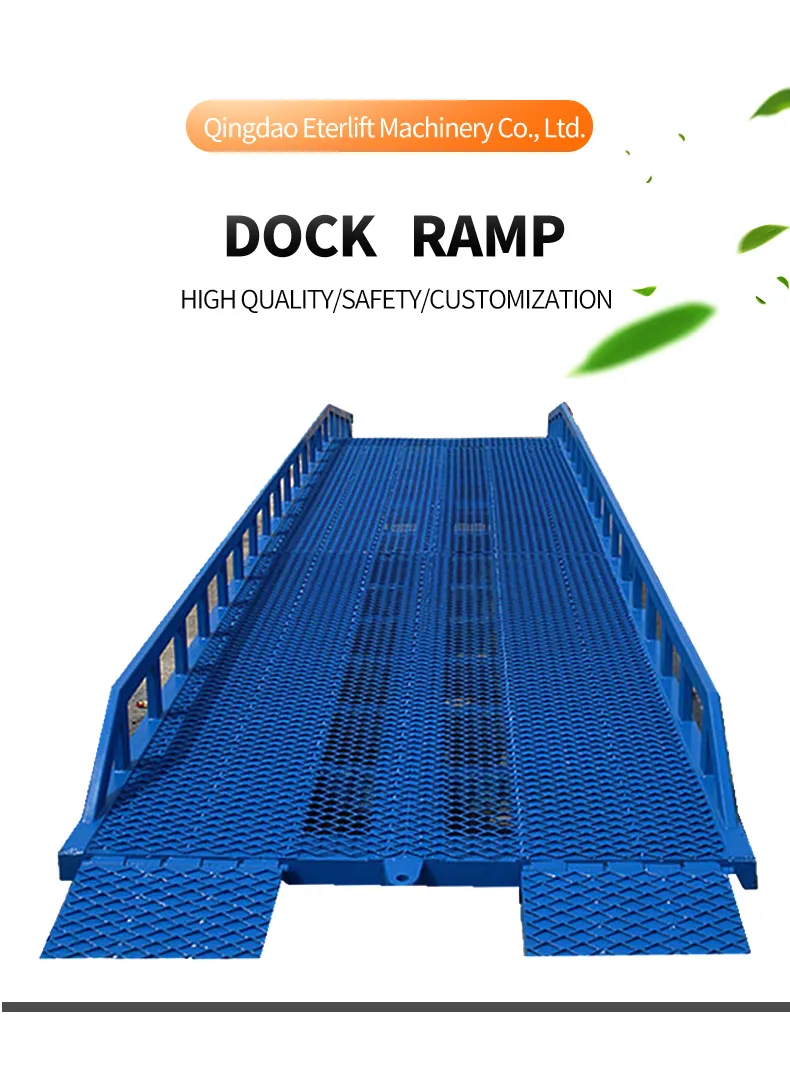

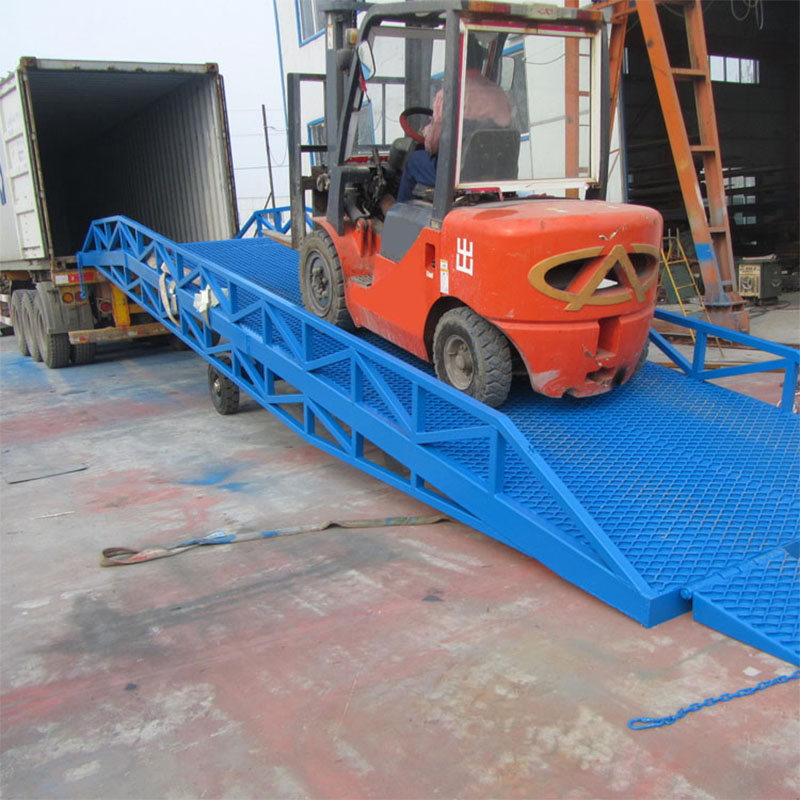

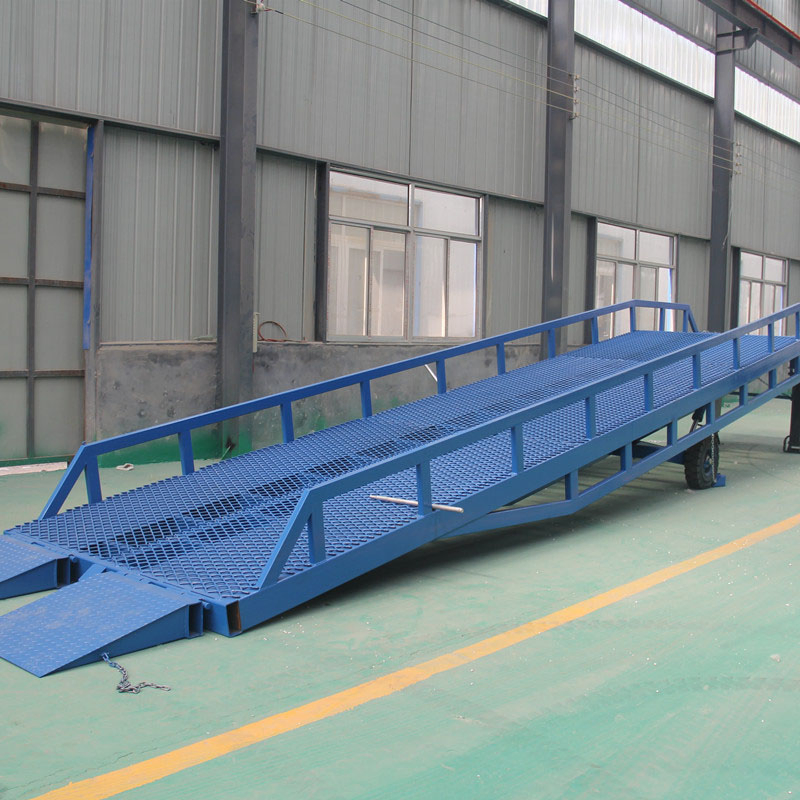

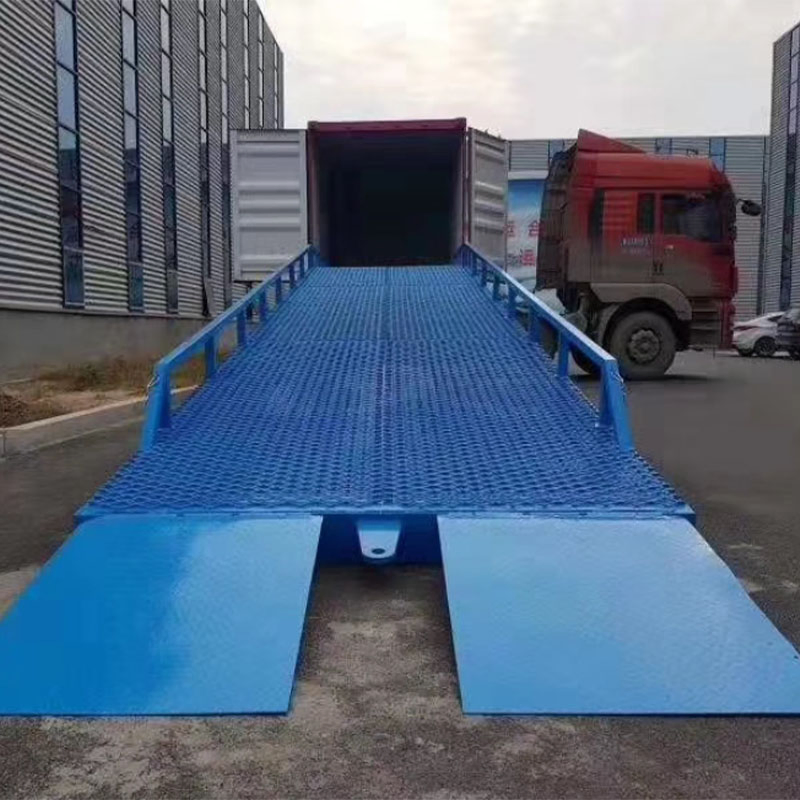

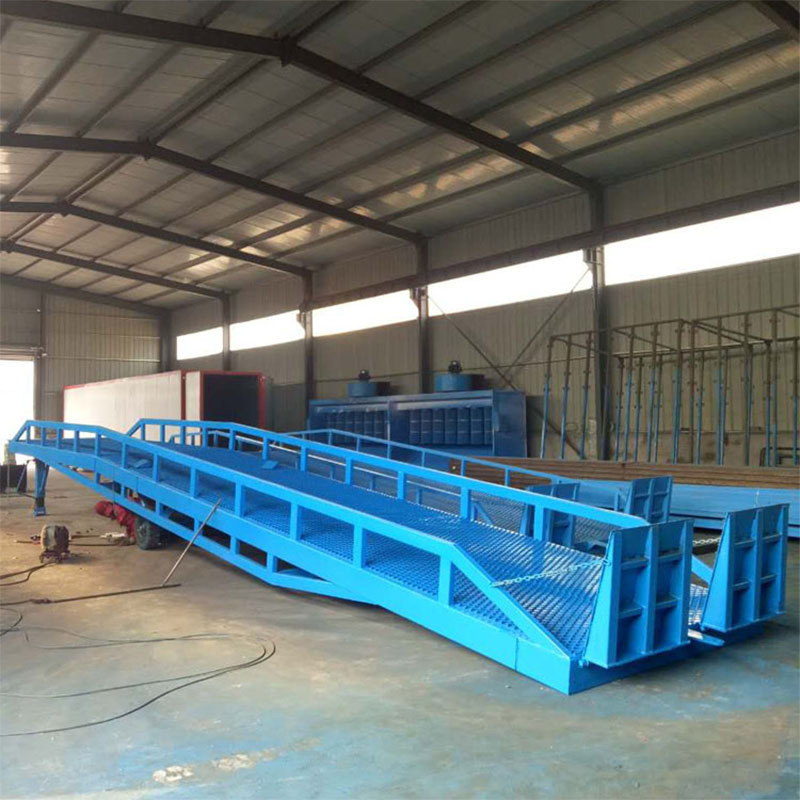

Heavy-Duty CE Certified Electric Hydraulic Dock Ramps for Loading

1 / 5

Heavy-Duty CE Certified Electric Hydraulic Dock Ramps for Loading

Customization:	Available
After-sales Service:	Online
Warranty:	1 Year

Send Inquiry

Product Description

📋 Basic Information

Model NO.

DR6-6

Application

Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane

Lift Mechanism

Screw Lift

Carrying Capacity

Weight Level

Moves

Moving

Driven Type

Hydraulic

Running Mode

Moving

Feature

Explosion-Proof, Insulating

Certification

CE, RoHS, ISO 9001

Transport Package

Wooden Box

Origin

China

⚙️ Product Description

Model No.	EDR-6	EDR-8	EDR-10	EDR-12
Load Capacity (t)	6	8	10	12
Platform Size (mm)	11000*2000
Overall Size(mm)	1100020001400
Lifting Height(mm)	1000~1800
Lip Width (mm)	400
Tail Board Length (mm)	800
Operating	Manually
Platform Materials	3mm checked steel plate +7mm steel screen
Lip Materials	14mm Q235B plate
Tyre	500-8 solid tyre
Cylinder Pin	45# Ø50 rod steel*4
Lifting Hydraulic Cylinder	HGS series Ø80/45*2
Lip Hydraulic Cylinder	HGS series Ø40/25
Hydraulic Oil Pipe	Double wire mesh high pressure tubing 2-10-43MPa
Hydraulic Oil	ML series antiwear hydraulic oil 6L
Net Weight(kg)	2450

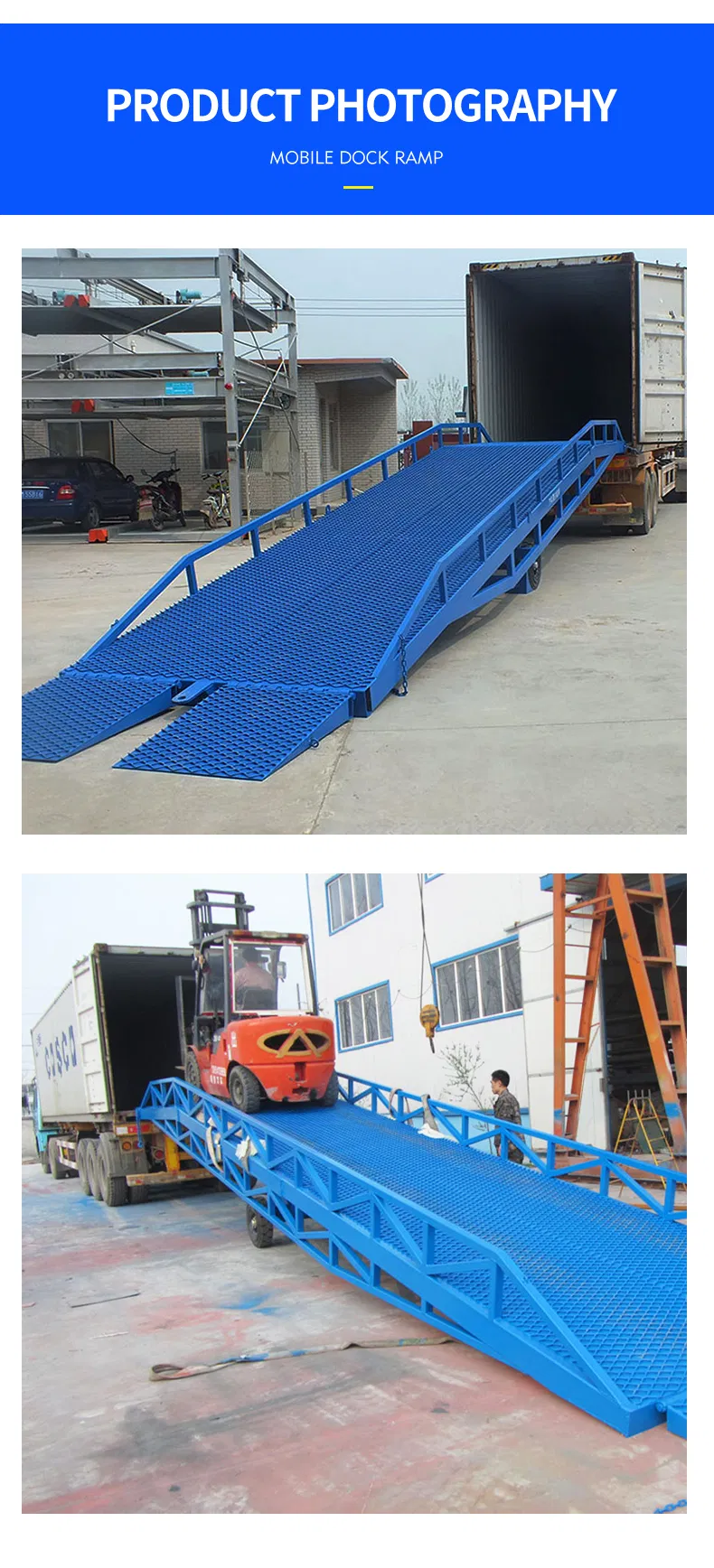

🖼️ Product Gallery

❓ Frequently Asked Questions

What is the maximum load capacity of these hydraulic dock ramps?

The load capacity ranges from 6 tons up to 12 tons depending on the specific model selected (EDR-6 to EDR-12).

What safety features are included?

Our dock ramps are explosion-proof and feature insulating properties, combined with 3mm checked steel plate and 7mm steel screen for enhanced grip and safety.

What certifications does the product hold?

The product is fully certified with CE, RoHS, and ISO 9001 standards, ensuring high quality and international compliance.

Can the lifting height be adjusted?

Yes, the lifting height is adjustable between 1000mm and 1800mm to accommodate different truck heights and loading requirements.

What kind of tires are used for movement?

The ramps are equipped with 500-8 solid tires, which are durable and suitable for heavy-duty industrial environments.

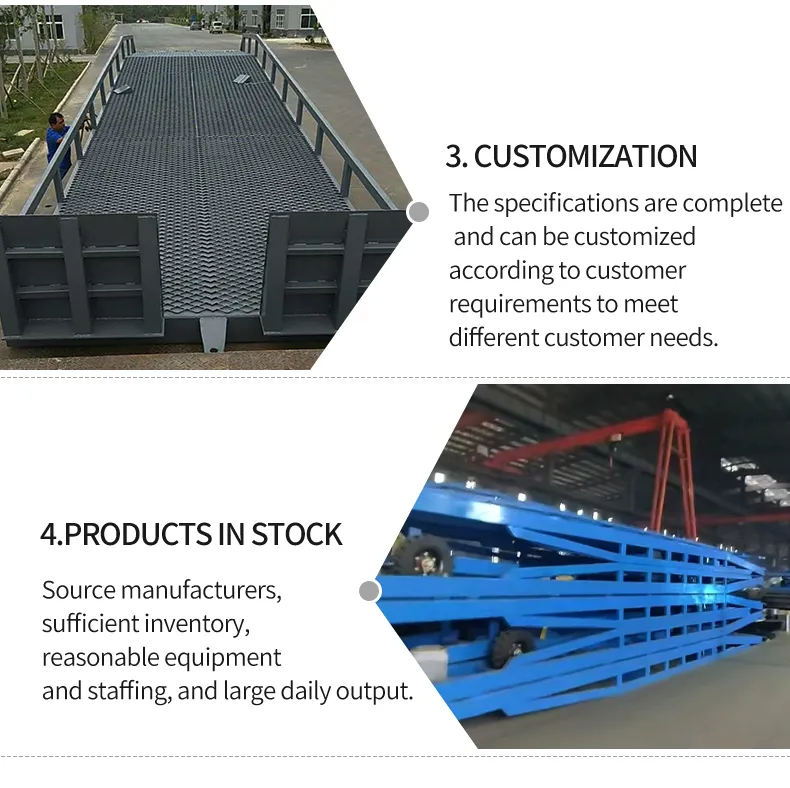

Is the platform customizable?

Yes, specifications can be customized to meet specific workshop, warehouse, or building site requirements.
