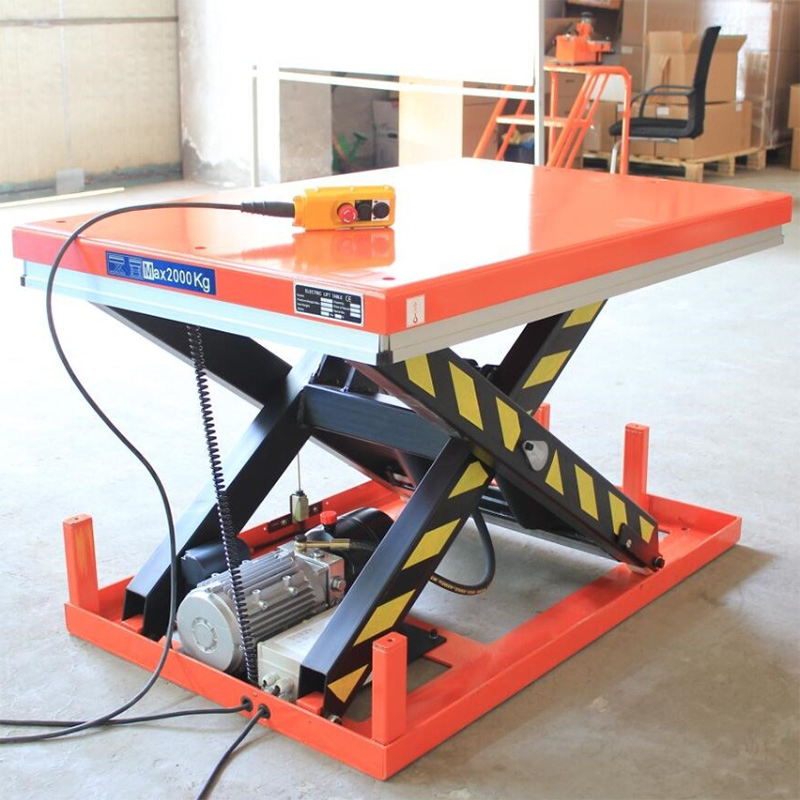

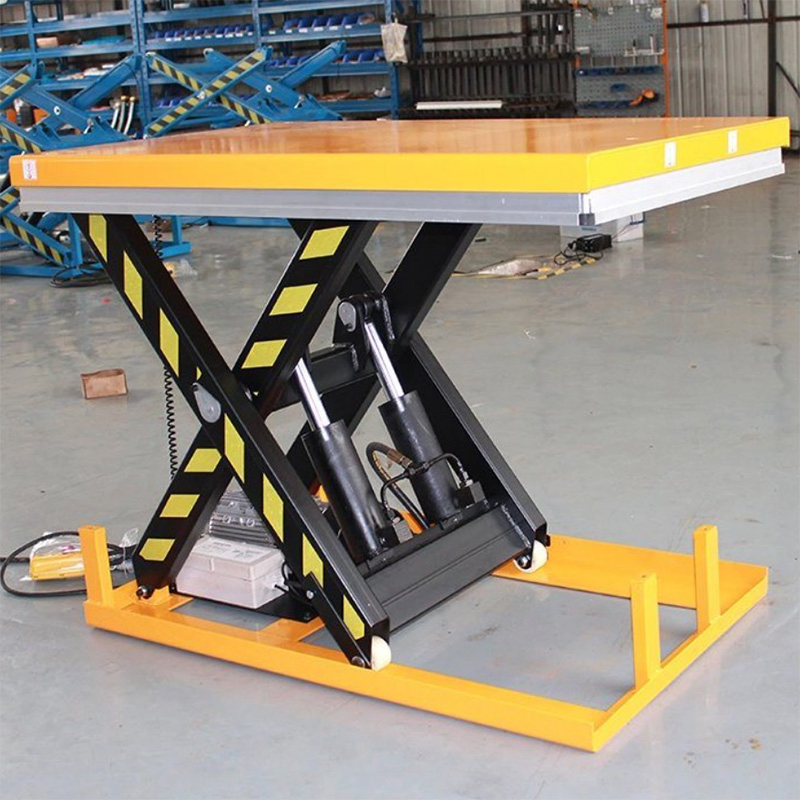

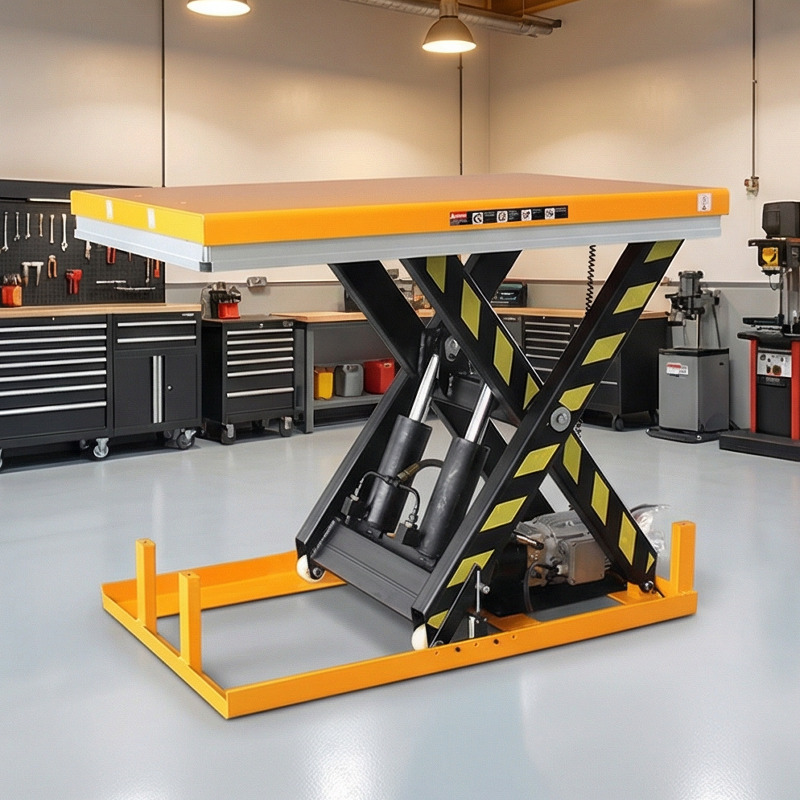

Dock Custom Electric Hydraulic Small Vertical Indoor Outdoor Warehouse Stationary Fixed Cargo Freight Loading Scissor Lift Table Work Platform

1 / 5

Dock Custom Electric Hydraulic Small Vertical Indoor Outdoor Warehouse Stationary Fixed Cargo Freight Loading Scissor Lift Table Work Platform

Customization:	Available
After-sales Service:	Online
Warranty:	1year

Send Inquiry

Product Description

Basic Information

Model NO.:

SL0.5-1

Application:

Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane

Lift Mechanism:

Scissor Lift

Driven Type:

Hydraulic

Moves:

Stationary

Feature:

Explosion-Proof, Insulating

Certification:

Transport Package:

Wooden Box

Origin:

China

Specification:

customized

Product Description

Model	Loading (Kg)	Min/Max height (mm)	Platform size (mm)	Bottom size (mm)	Lift time (s)	Weight (Kg)
EW1001	1000	205/990	1300*820	1240*640	20-25	160
EW1002	1000	205/990	1600*1000	1240*640	20-25	186
EW1003	1000	240/1300	1700*850	1580*640	30-35	200
EW1004	1000	240/1300	1700*1000	1580*640	30-35	210
EW1005	1000	240/1300	2000*850	1580*640	30-35	212
EW1006	1000	240/1300	2000*1000	1580*640	30-35	223
EW1007	1000	240/1300	1700*1500	1580*1320	30-40	365
EW1008	1000	240/1300	2000*1700	1580*1320	30-40	430
EW2001	2000	230/1000	1300*850	1220*785	20-25	235
EW2002	2000	230/1000	1600*1000	1220*785	20-25	268
EW2003	2000	250/1300	1700*850	1600*785	25-35	289
EW2004	2000	250/1300	1700*1000	1600*785	25-35	300
EW2005	2000	250/1300	2000*850	1600*785	25-35	300
EW2006	2000	250/1300	2000*1000	1600*785	25-35	315
EW2007	2000	250/1400	1700*1500	1600*1435	25-35	415
EW2008	2000	250/1400	2000*1800	1600*1435	25-35	500
EW4001	4000	240/1050	1700*1200	1600*900	30-40	375
EW4002	4000	240/1050	2000*1200	1600*900	30-40	405
EW4003	4000	300/1400	2000*1000	1980*900	30-40	470
EW4004	4000	300/1400	2000*1200	1980*900	35-40	490
EW4005	4000	300/1400	2200*1000	1980*900	35-40	480
EW4006	4000	300/1400	2200*1200	1980*900	35-40	505
EW4007	4000	350/1300	1700*1500	1620*1400	35-45	570
EW4008	4000	350/1300	2200*1800	1620*1400	35-45	655

Key Features

Scissor Lift Platform for Car Double Scissor Lift Table Cargo Loading Lift Platform Fixed Lift Platform Hydraulic Goods Lift Work Table Platform

Frequently Asked Questions

Q1: What is the maximum load capacity for the stationary scissor lift?

A: Our standard models can handle loads ranging from 1,000kg up to 4,000kg, depending on the specific model selected.

Q2: Are these lift platforms suitable for outdoor environments?

A: Yes, these stationary cargo lifts are designed for both indoor and outdoor warehouse applications, featuring explosion-proof and insulating features.

Q3: Can the platform size be customized?

A: Absolutely. All specifications, including platform dimensions and lifting heights, can be customized to meet your specific workspace requirements.

Q4: What certifications do the scissor lift tables hold?

A: All our scissor lift platforms are CE certified, ensuring they meet international safety and quality standards.

Q5: What is the driven type for this mechanism?

A: These units utilize a high-performance hydraulic driven system for smooth and reliable vertical lifting operations.

Q6: How are the products packaged for international shipping?

A: For safe transit, each lift platform is securely packed in a robust wooden box to prevent damage during transportation.
