| Model NO. | GKS28 |
|---|---|
| Type | Self-propelled |
| Certification | ISO9000, CCC, CE |
| Emission Standard | Euro 6 |
| Horsepower | 150-250hp |
| Payload | 20T |
| Fuel | Diesel |
| Transmission Type | Automatic |
| Drive Wheel | 4x2 |
| Condition | New |

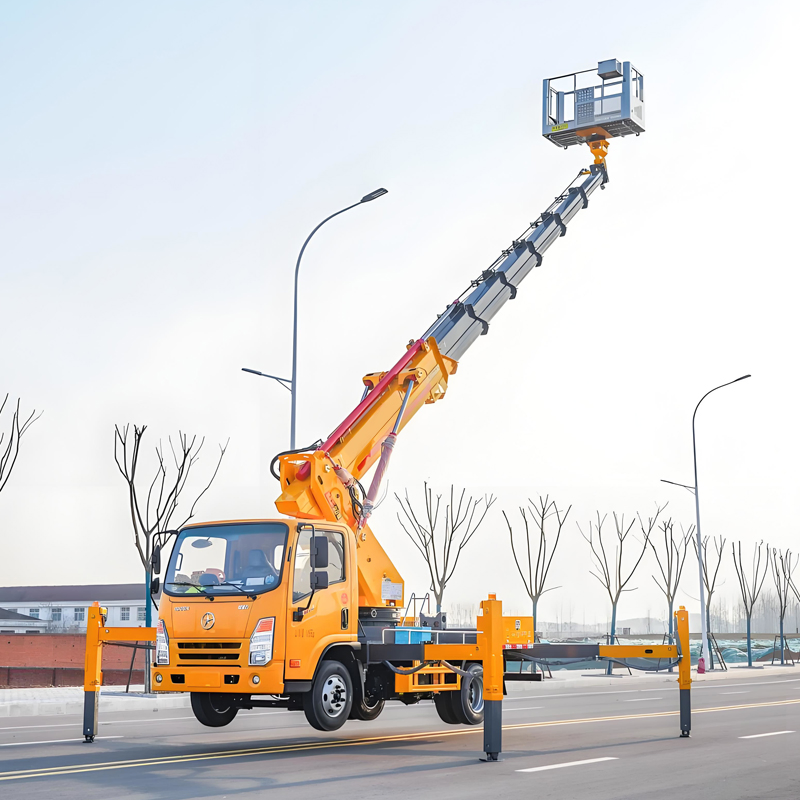

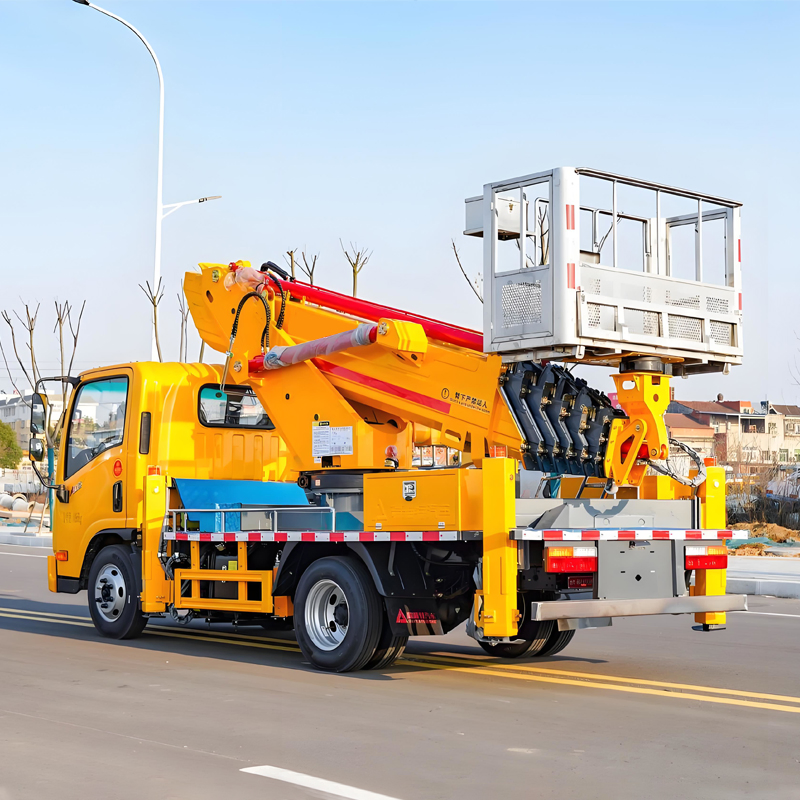

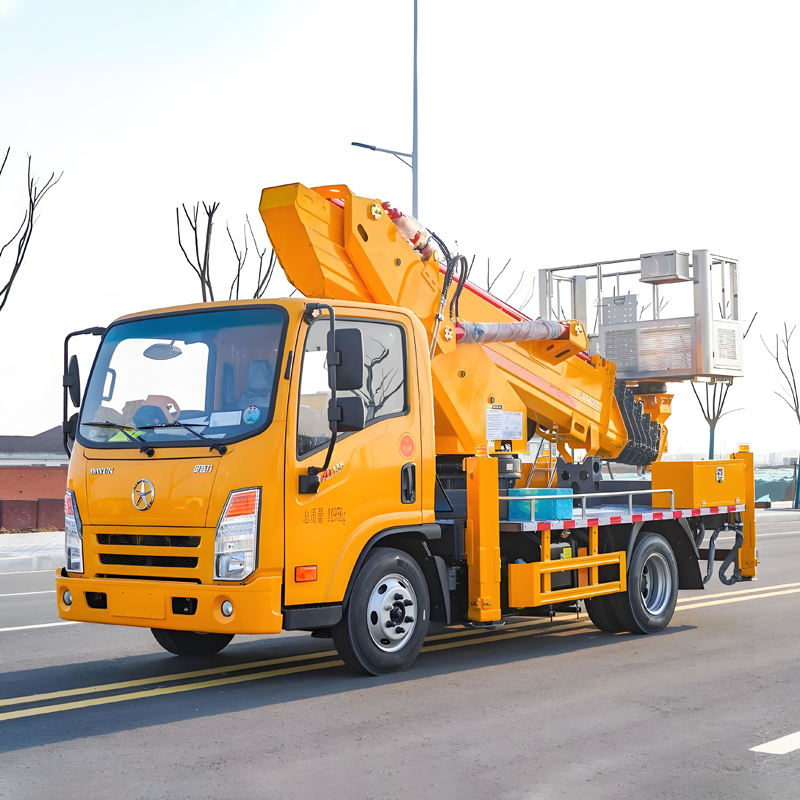

| Name | 10-56 M High-Altitude Operation Trucks |
| Boom Form | (Five/Sixth Section) Eighteen-Side Working Arms |
| Legs | X-Type Hydraulic Legs, Individually Adjustable |
| Telescopic Structure | Oil Cylinder Steel Wire Rope Type |
| Rotation Device | 360 Degree Continuous Rotation |
| Rated Load | 200kg |
High-quality Aerial Work Platform
Our aerial work platforms offer flexible height selection, ranging from 10 meters to 56 meters, suitable for a wide range of industrial and construction operations. These platforms are designed to focus on safety and are equipped with advanced anti-fall system and emergency stop buttons to ensure the safety of operators. At the same time, the stability of the platform has been rigorously tested, which can adapt to complex working environments, and is extremely simple to operate, improving work efficiency.

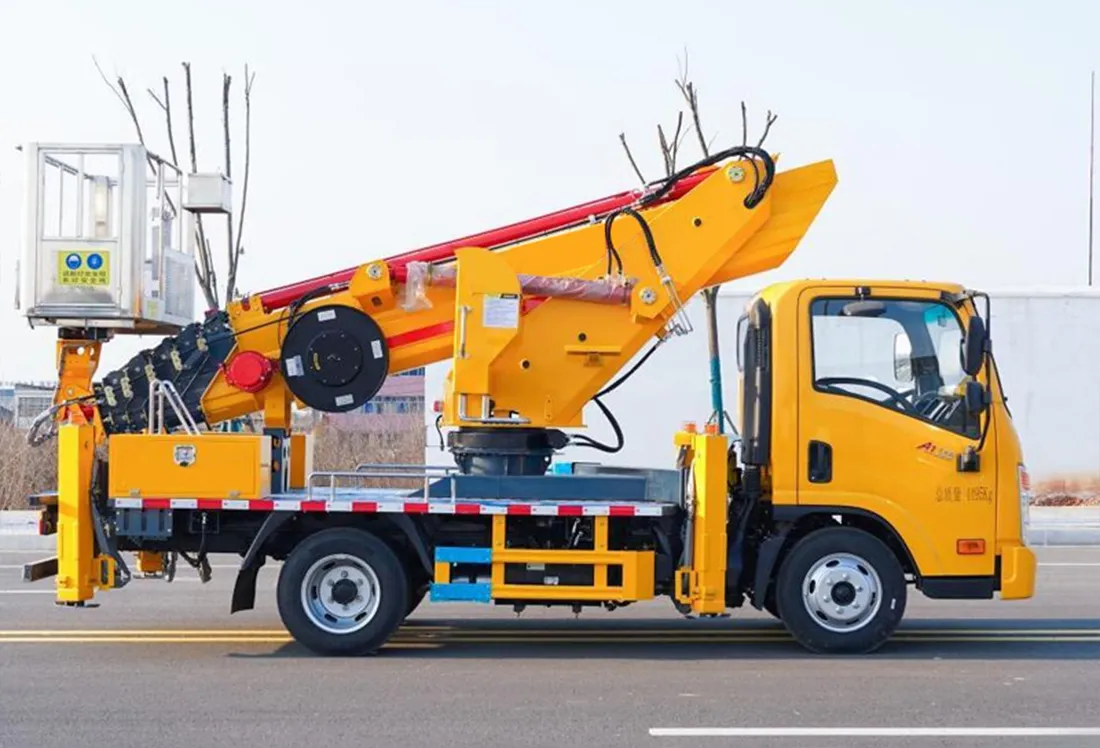

Left

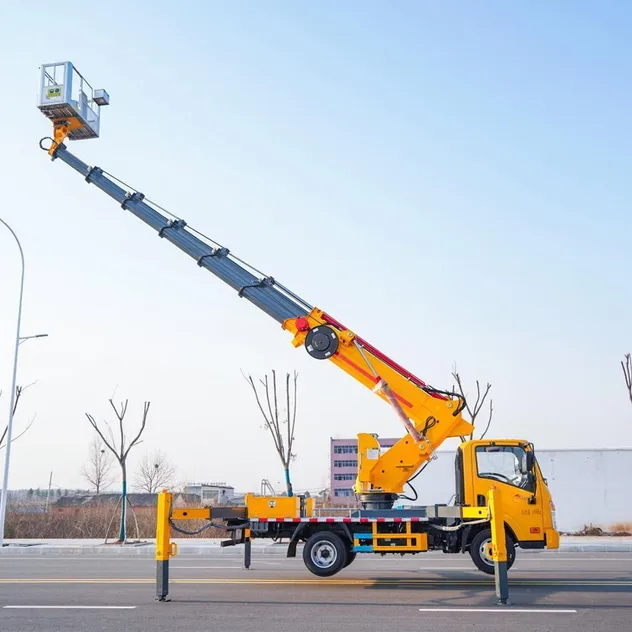

Right
Front
| Main Technical Parameters | ||
|---|---|---|

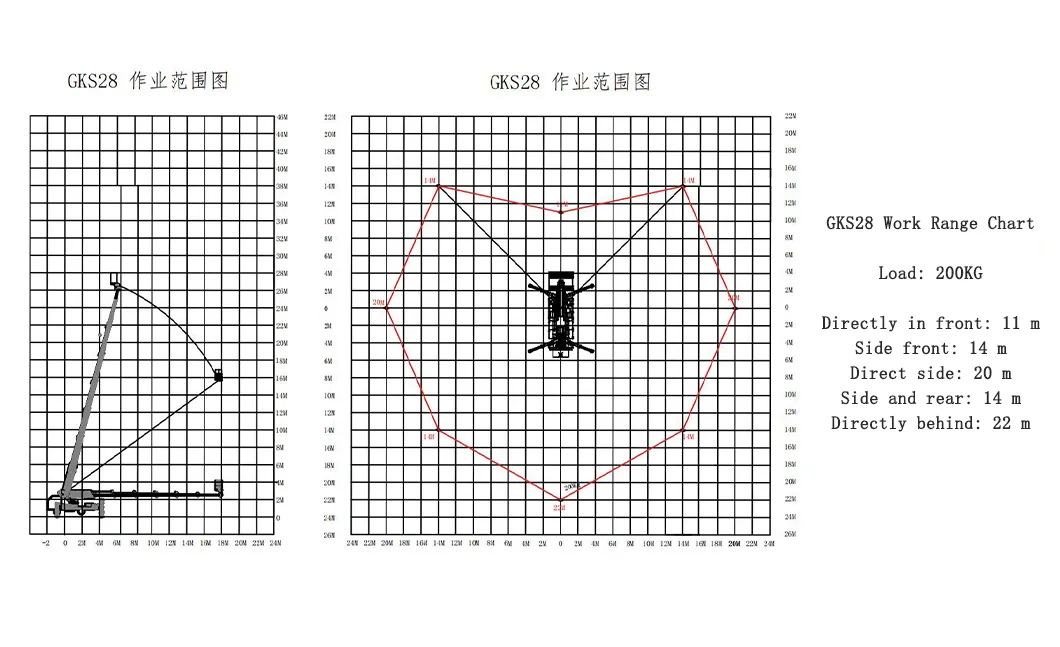

| Maximum working height | 28m | 40m |
| Total size | 5998*2080*2680mm | 8900*2380*3650mm |
| Total mass | 4495kg | 14500kg |
| Rated load | 200kg | 400kg |
| Working platform | (1400/1800)*700*(1200/1000)mm | 3000*1200*900mm |
| Leg span (lateral) | 4462mm | 7205mm |
| Leg span (longitudinal) | 4918mm | 7400mm |
| Boom form | Eighteen-Side Arms | Seven-section polygonal |
| Rotation device | 360 degree | |

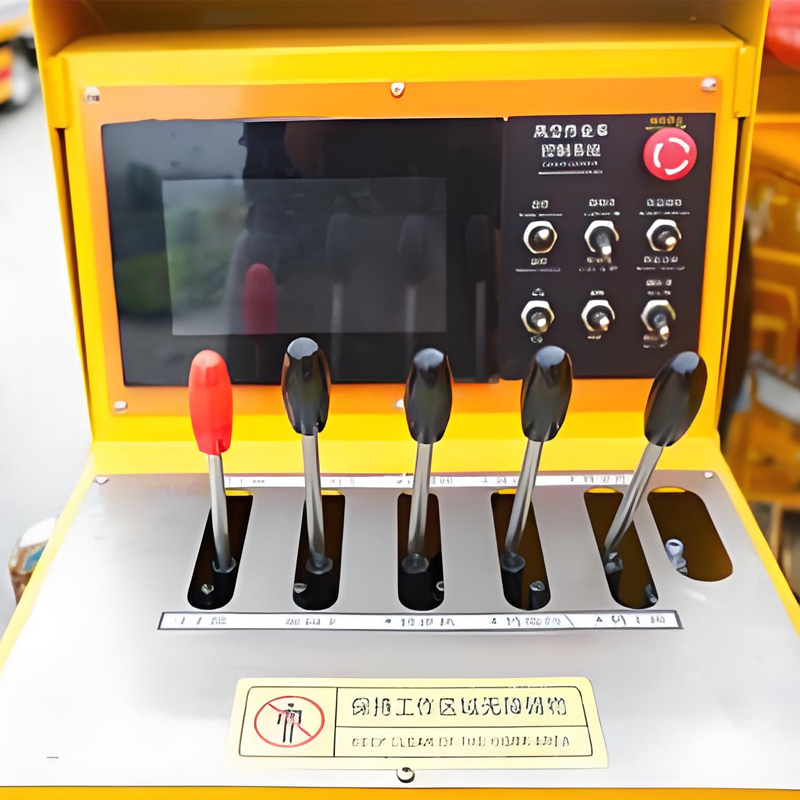

| Operation mode | remote control/electric control/manual | |
