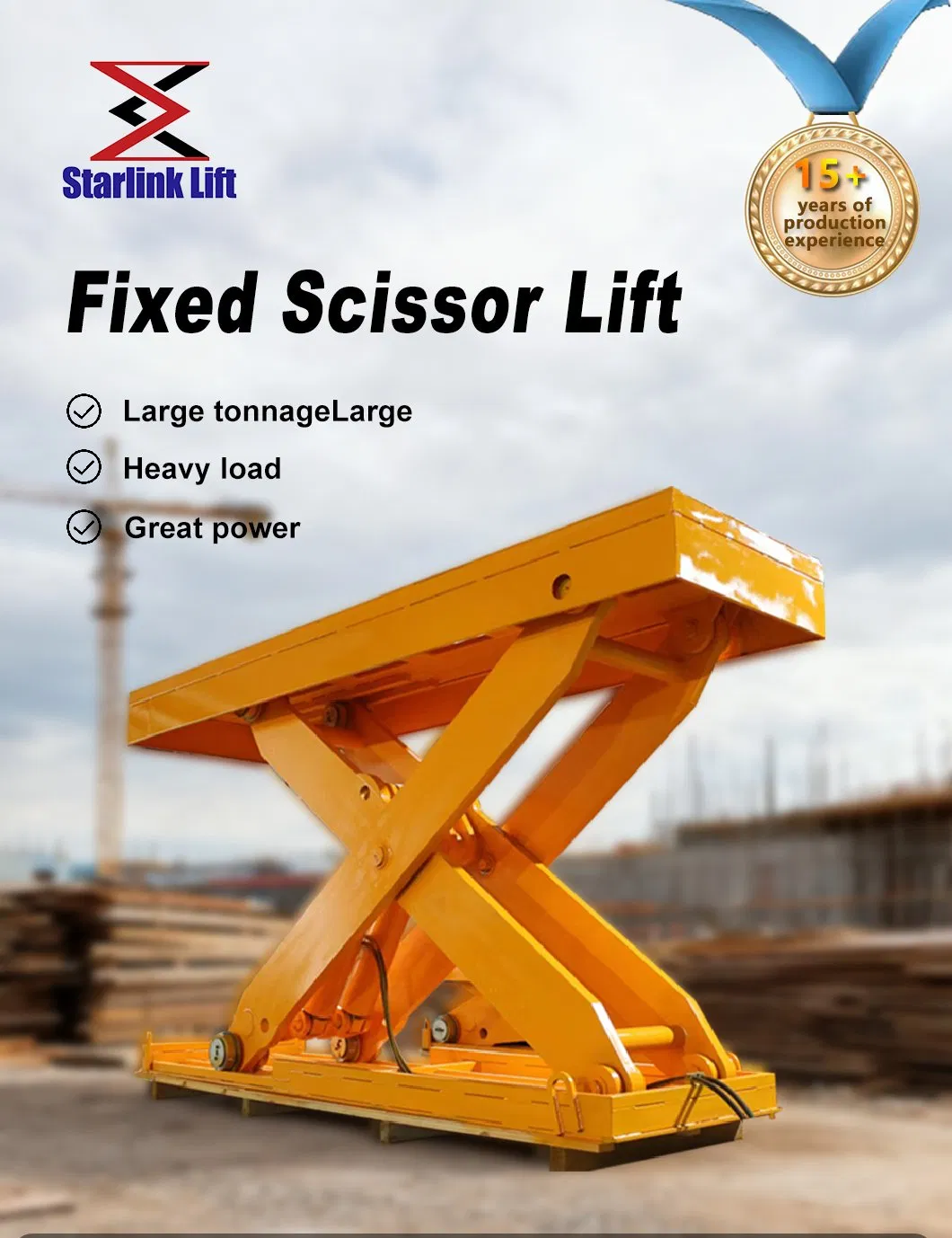

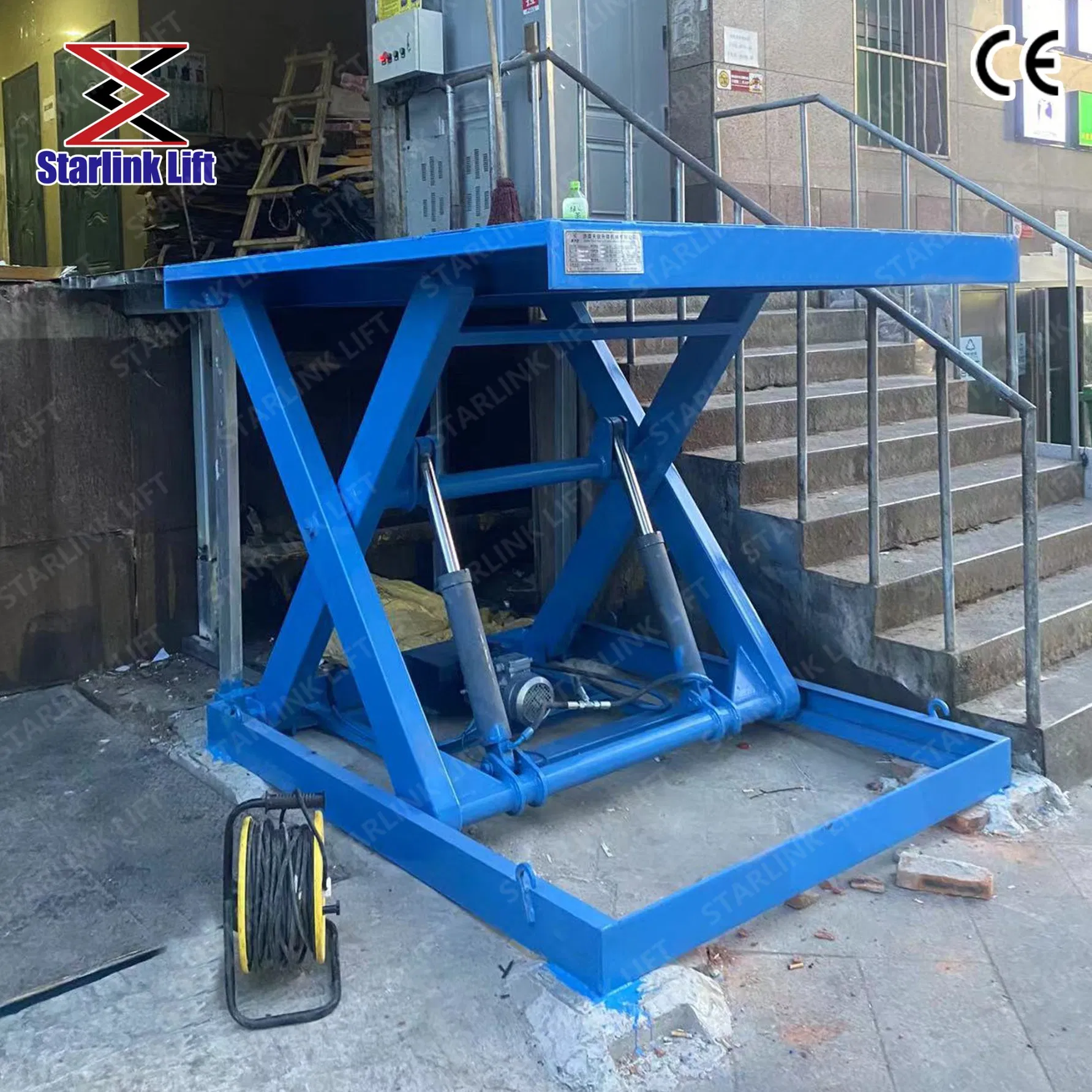

A fixed hydraulic lift is essential transportation equipment designed to move goods between different heights efficiently. Recognized for its significant weight capacity, stability, and safety features, this stationary scissor lift is a specialized form of lifting machinery. It is primarily utilized for transporting cargo between building floors, mezzanines, and is increasingly popular for vehicle handling in multi-level garages and basements.
| Model | Load (kg) | CH (mm) | Stroke (mm) | L x W (mm) | Voltage (V) |
|---|---|---|---|---|---|
| SLGJ2.5-3 | 2500 | 500 | 3000 | 2500*5500 | 220/380/415 |
| SLGJ3-3 | 3000 | 500 | 3000 | 2500*5500 | 220/380/415 |
| SLGJ4-3 | 4000 | 600 | 3000 | 2500*5500 | 220/380/415 |
| SLGJ5-3 | 5000 | 600 | 3000 | 2500*5500 | 220/380/415 |
| SLGJ3-4.5 | 3000 | 700 | 4500 | 2500*5500 | 220/380/415 |
| SLGJ4-6 | 4000 | 800 | 6000 | 2500*5500 | 220/380/415 |
| Customizable solutions can be provided according to special requirements. | |||||

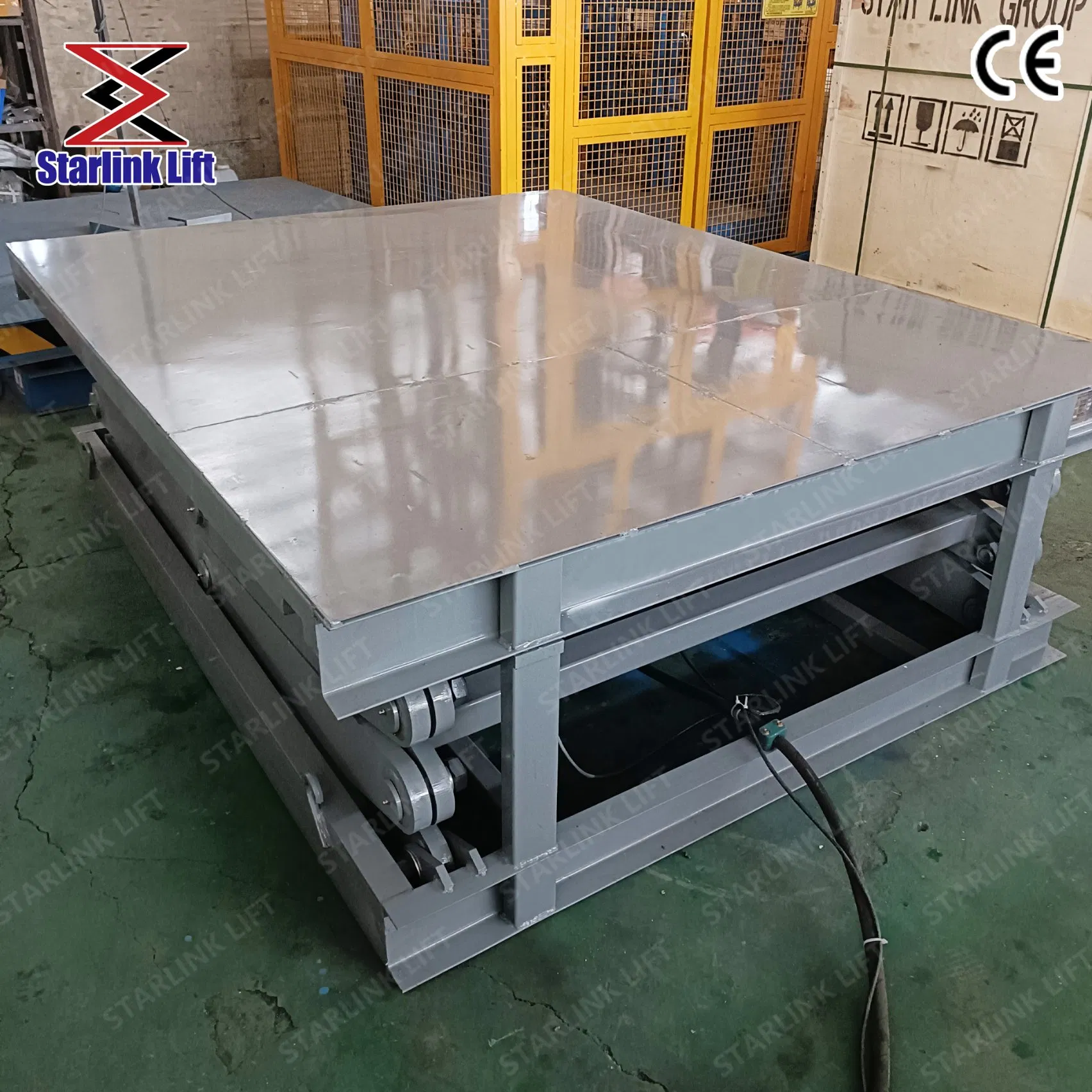

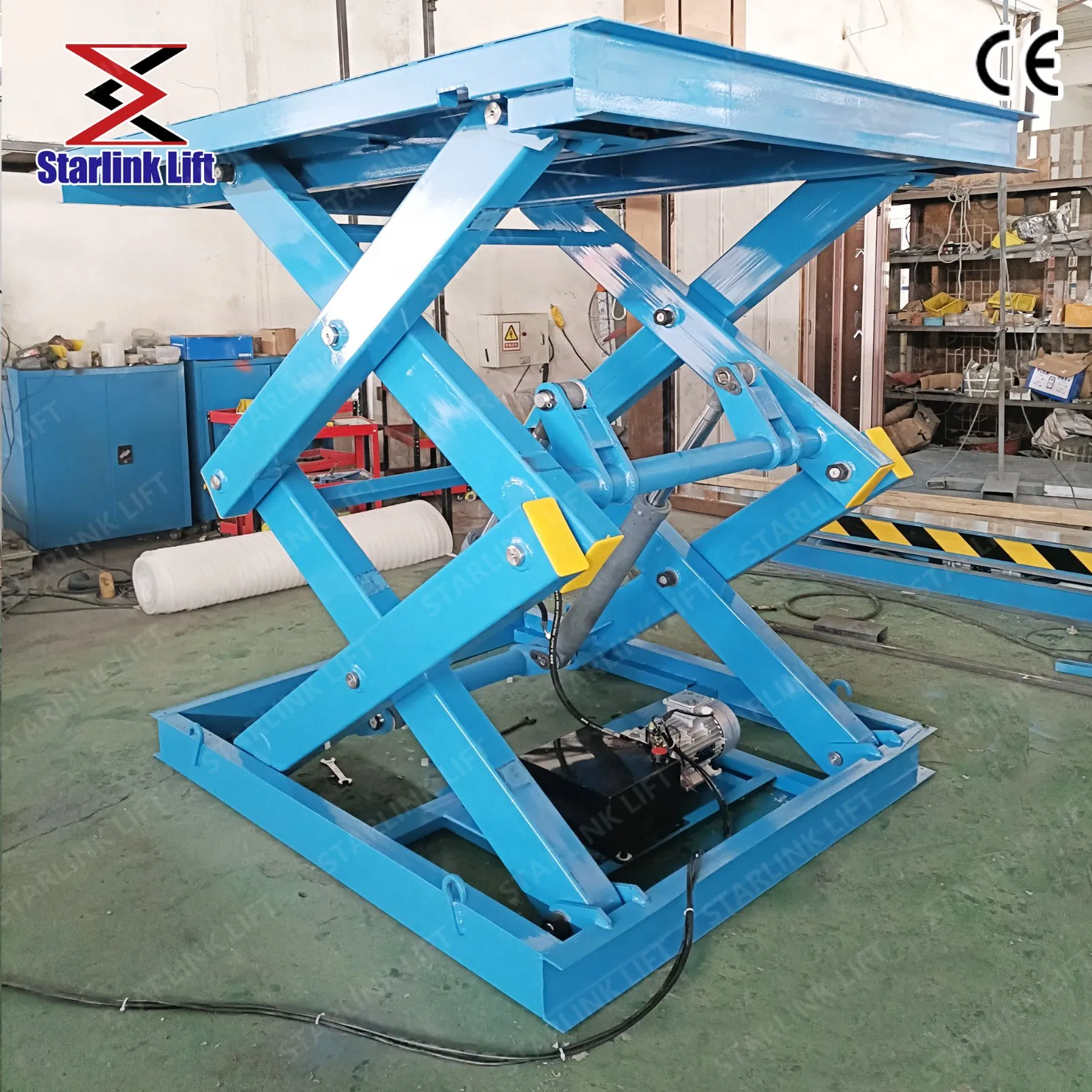

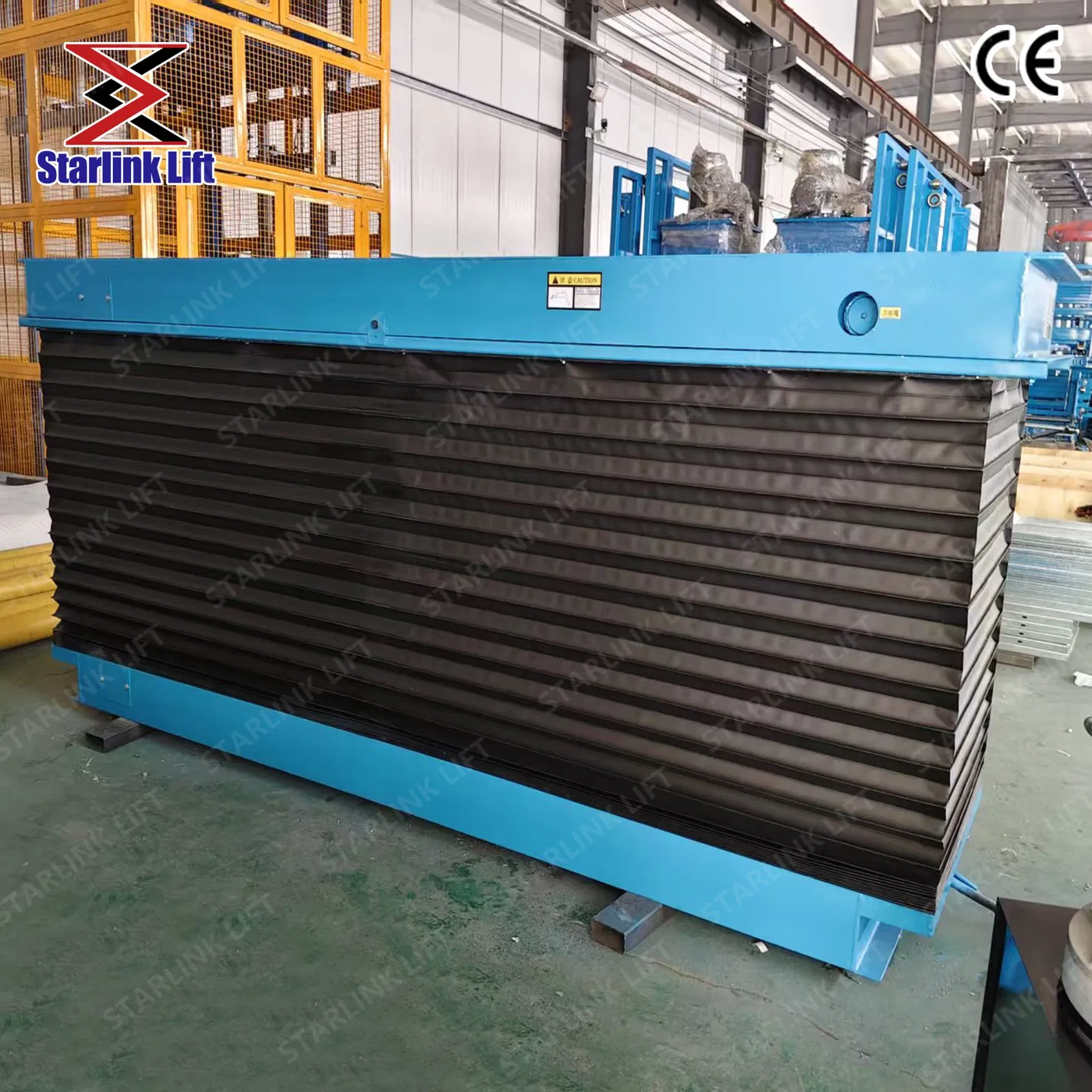

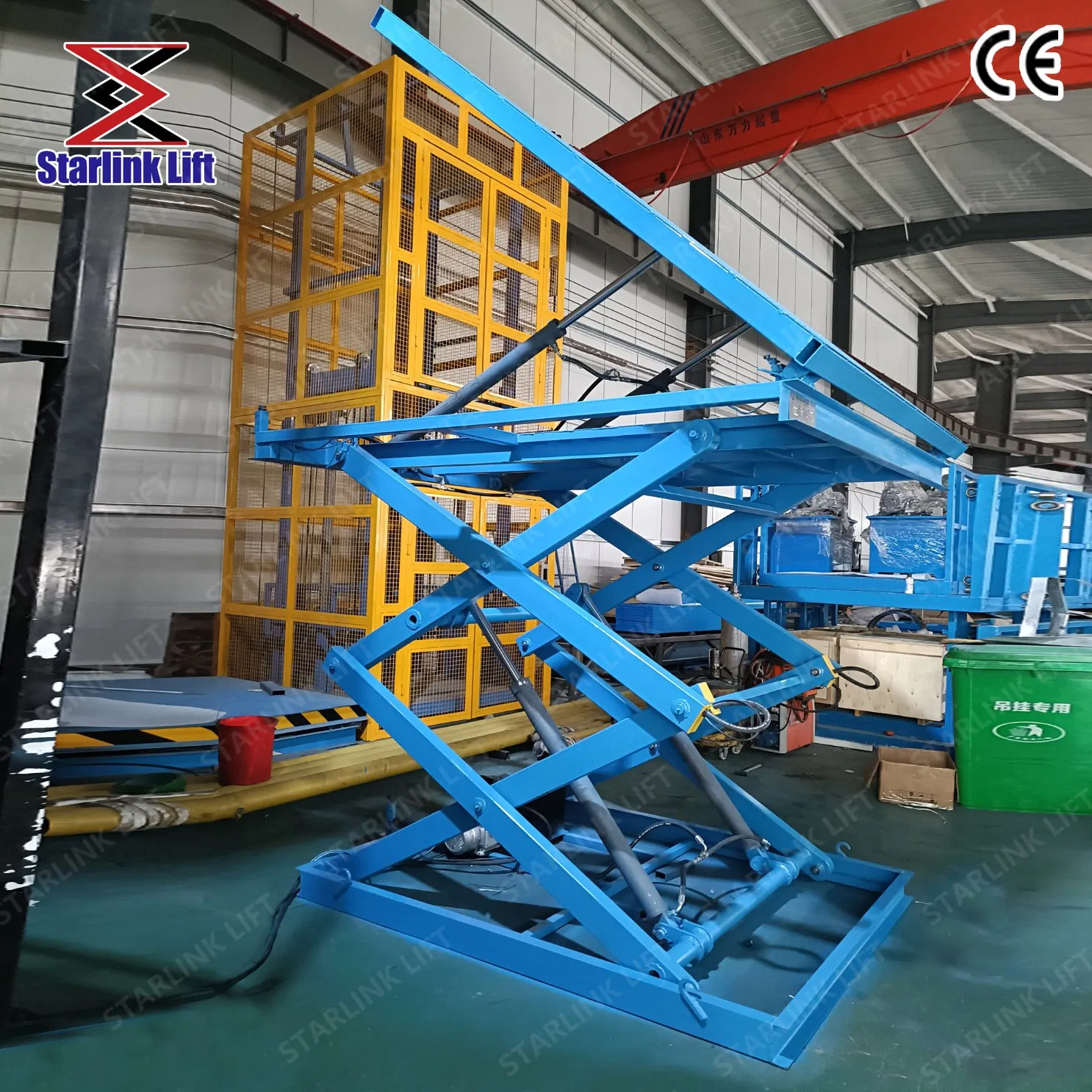

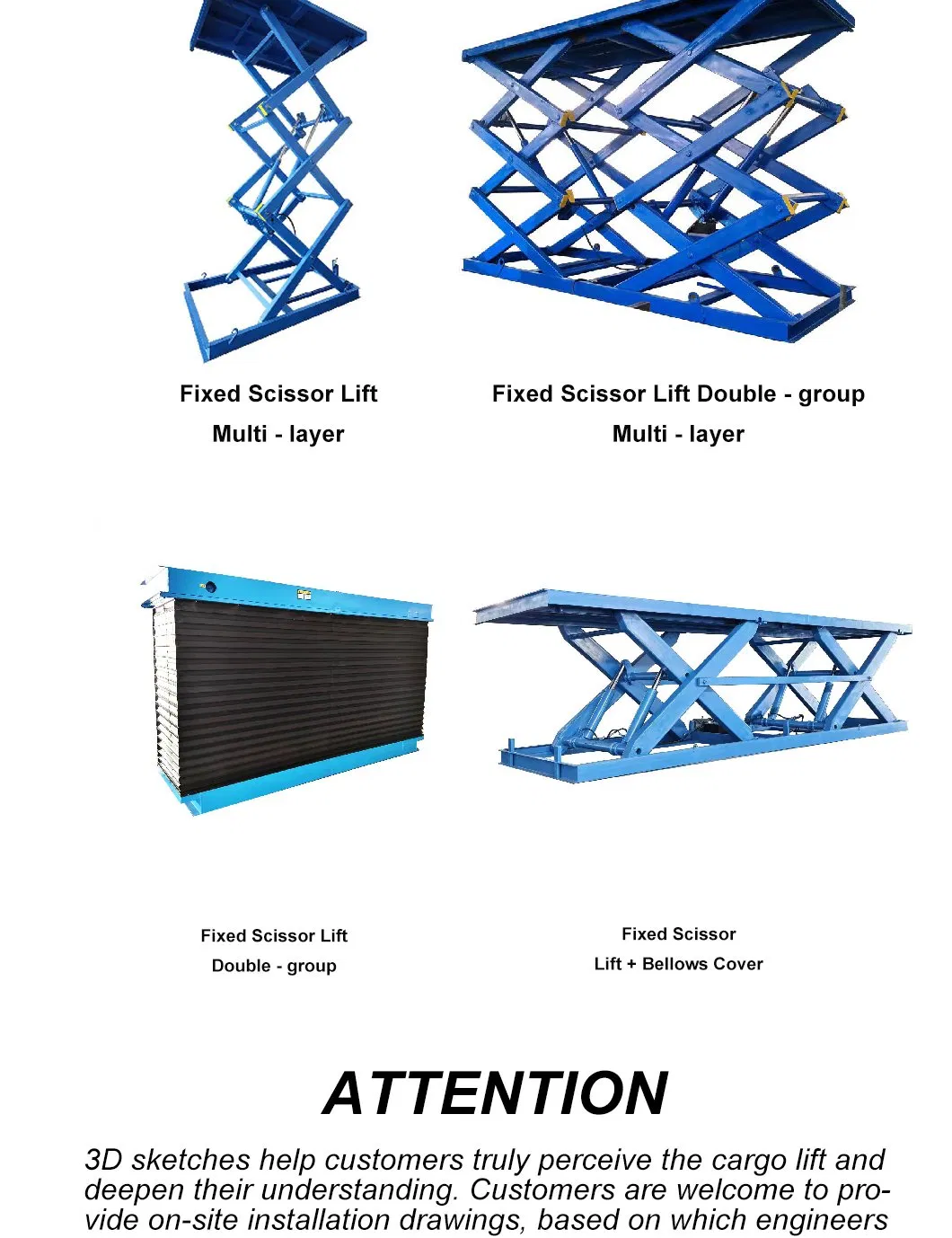

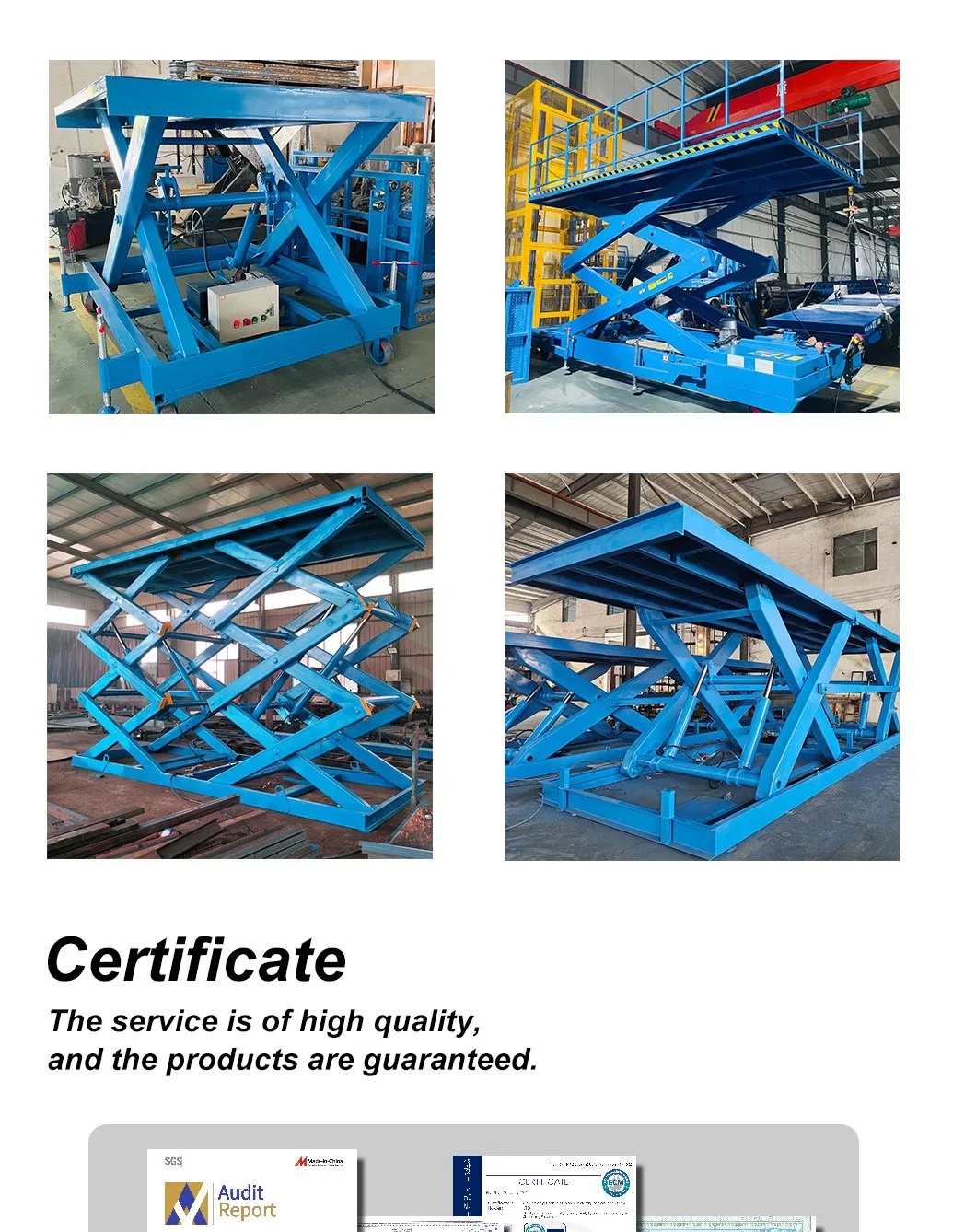

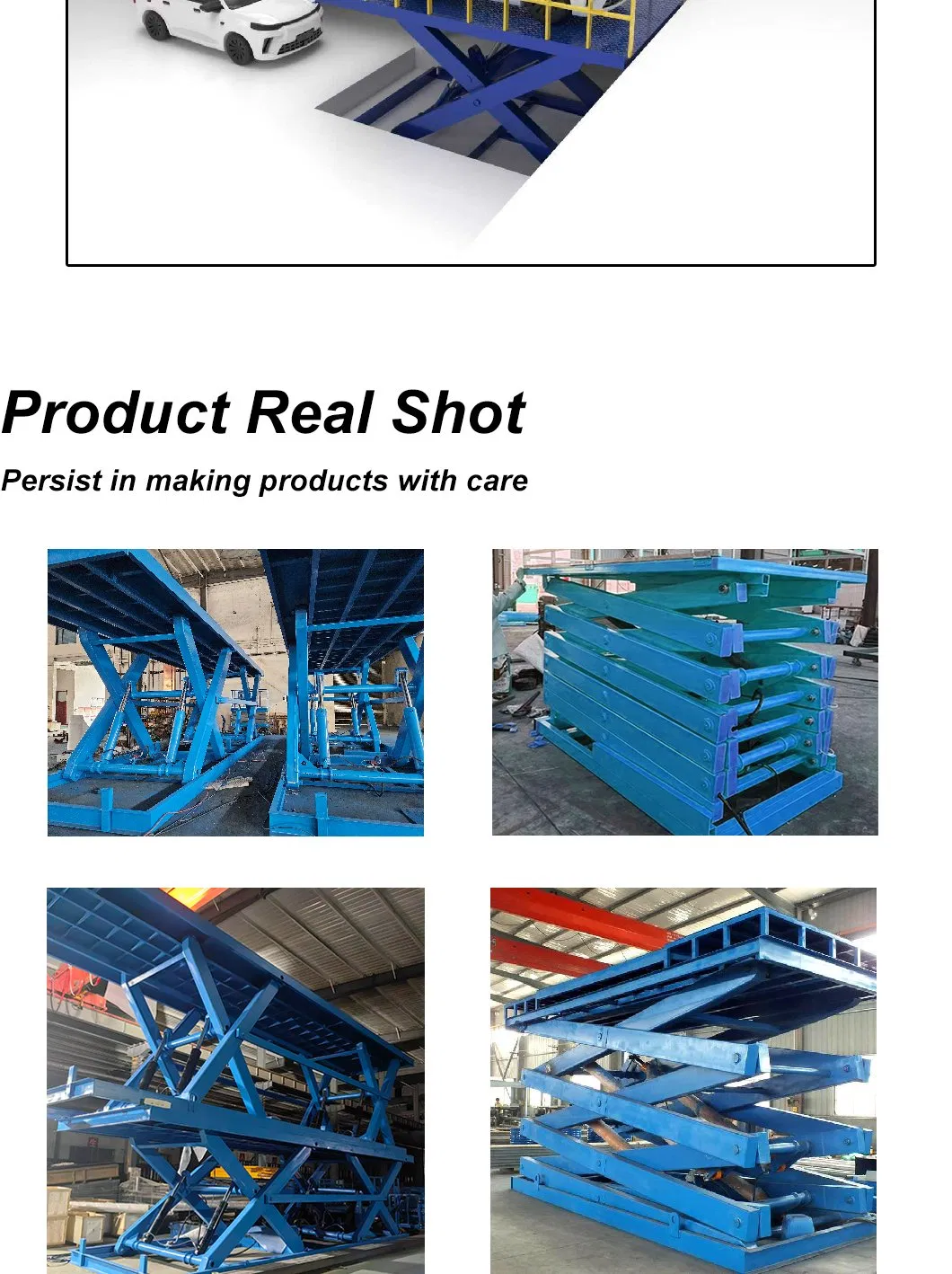

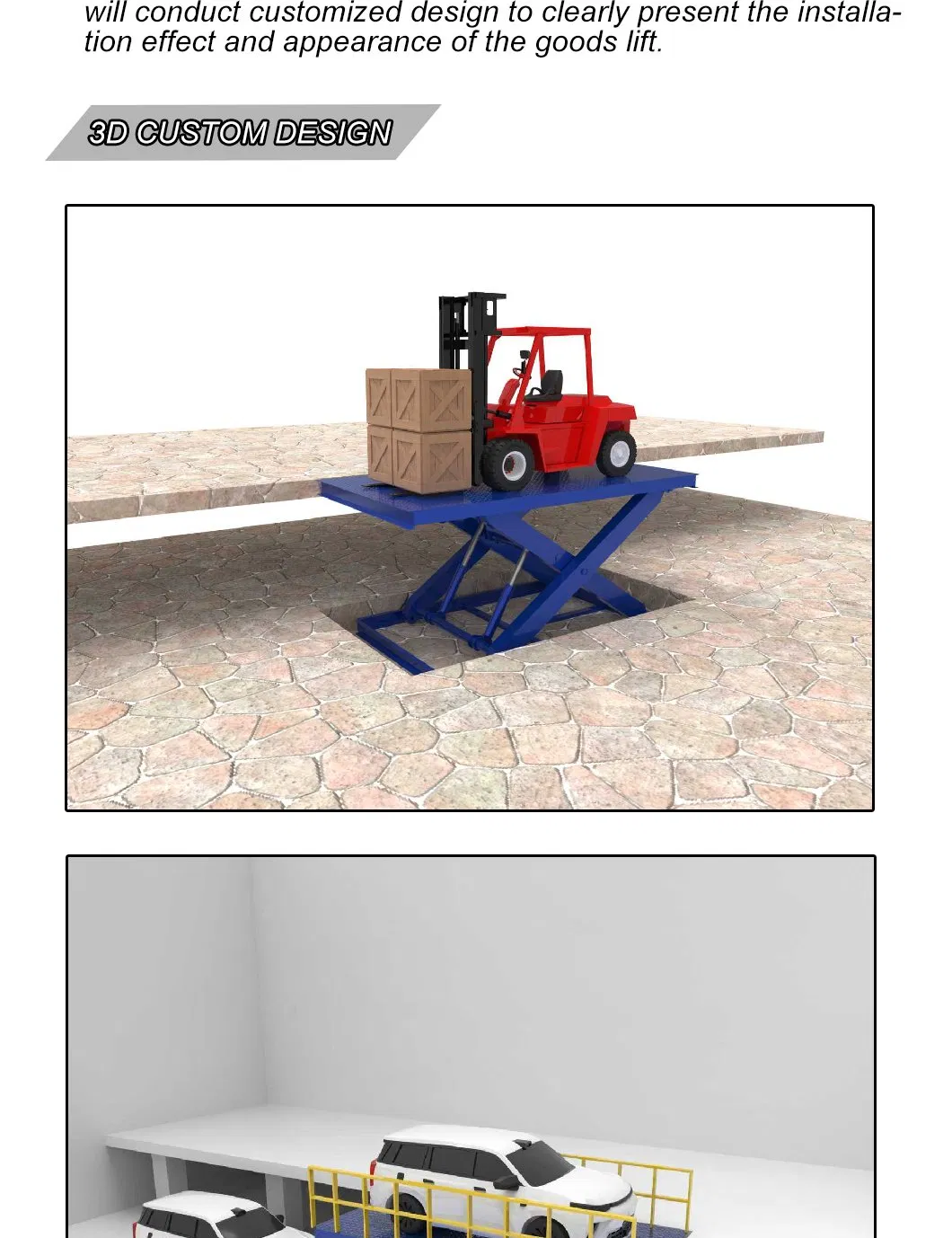

The design of each lifting platform can be tailored to meet specific requirements such as building height, shelf configuration, and the dimensions of the objects being transported. Below are various installations and configurations of our stationary scissor lift tables.
