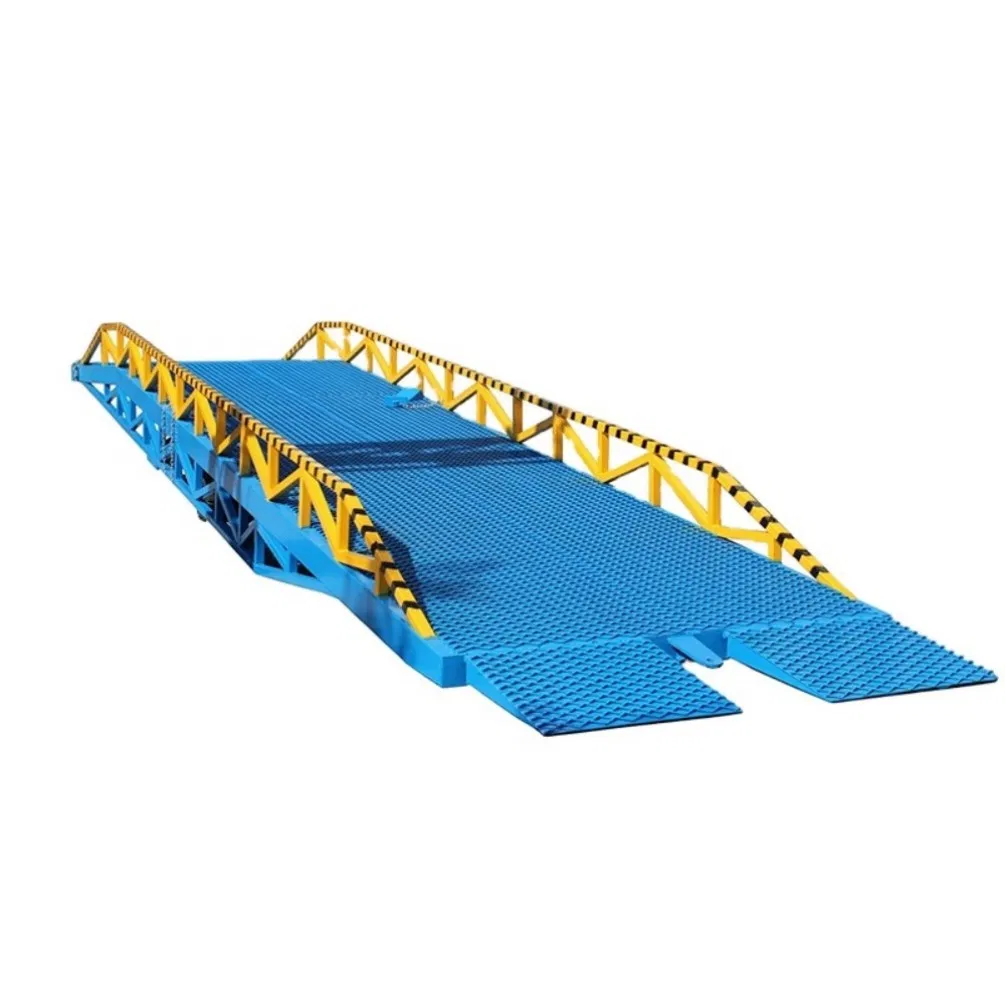

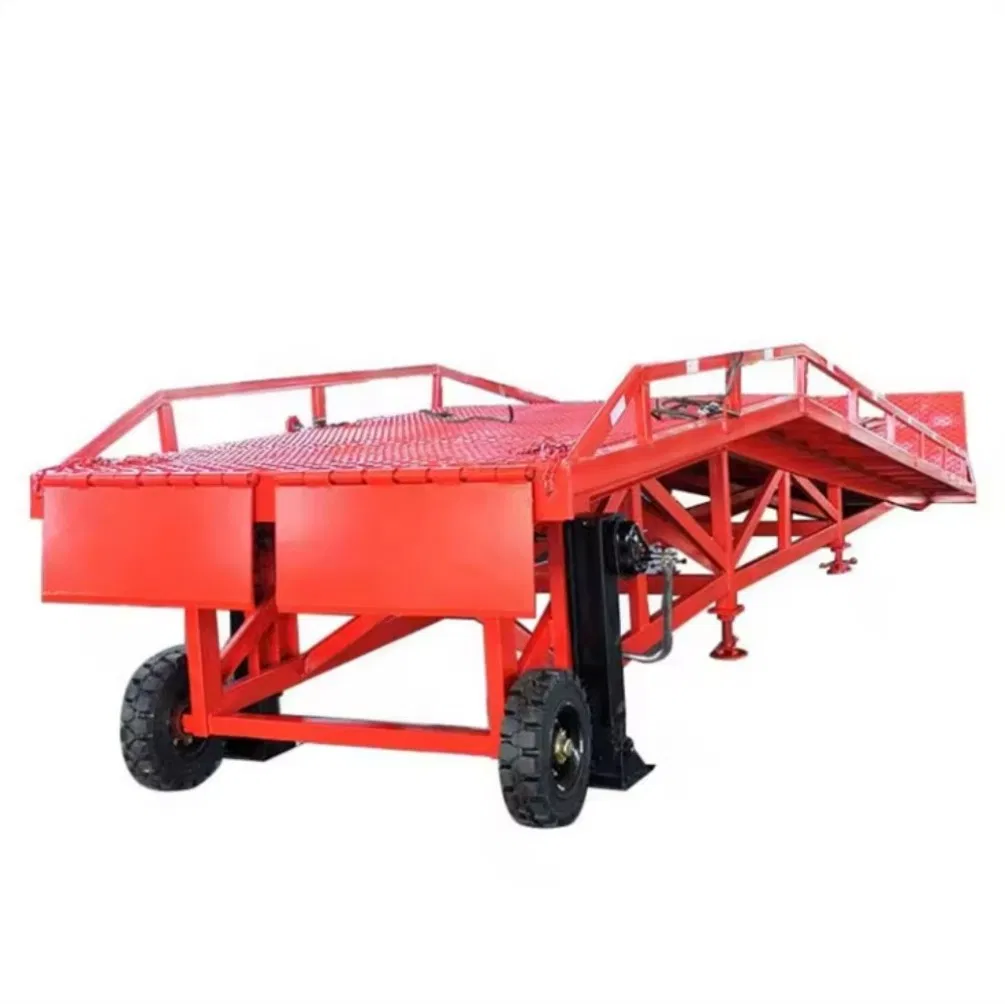

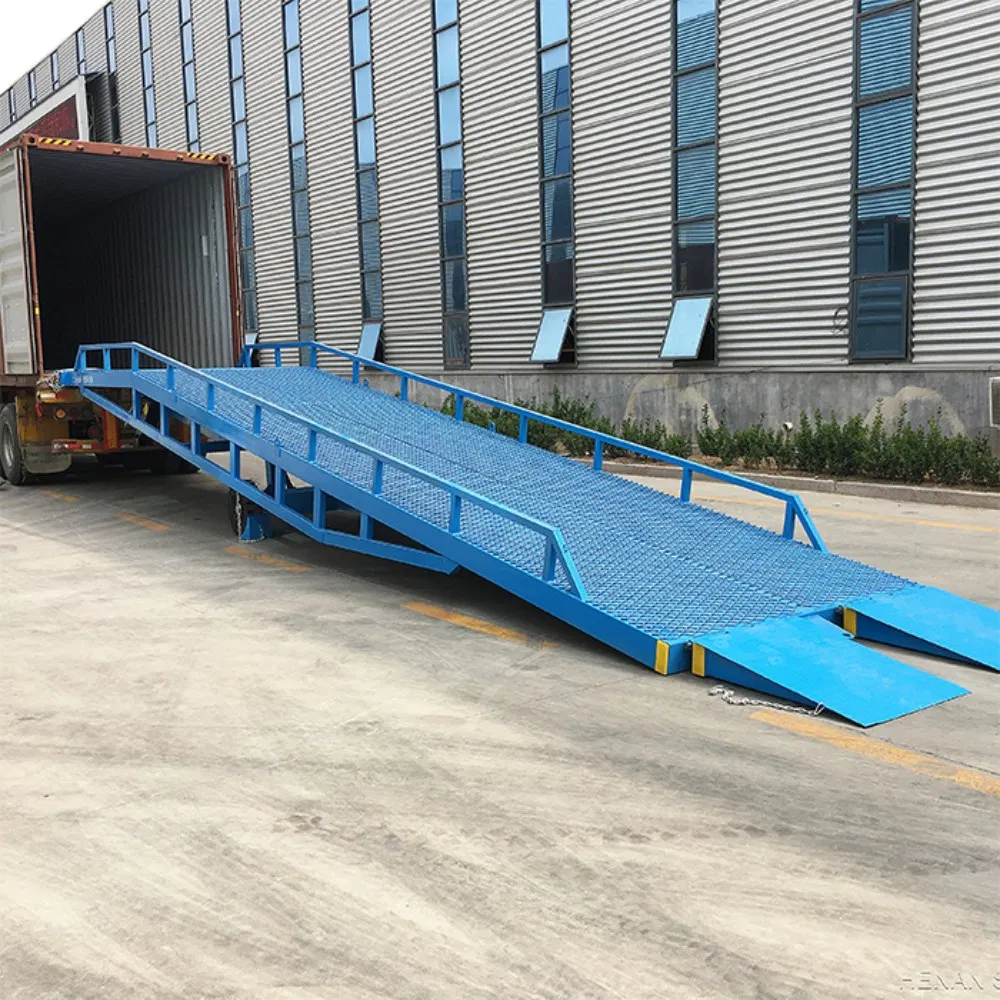

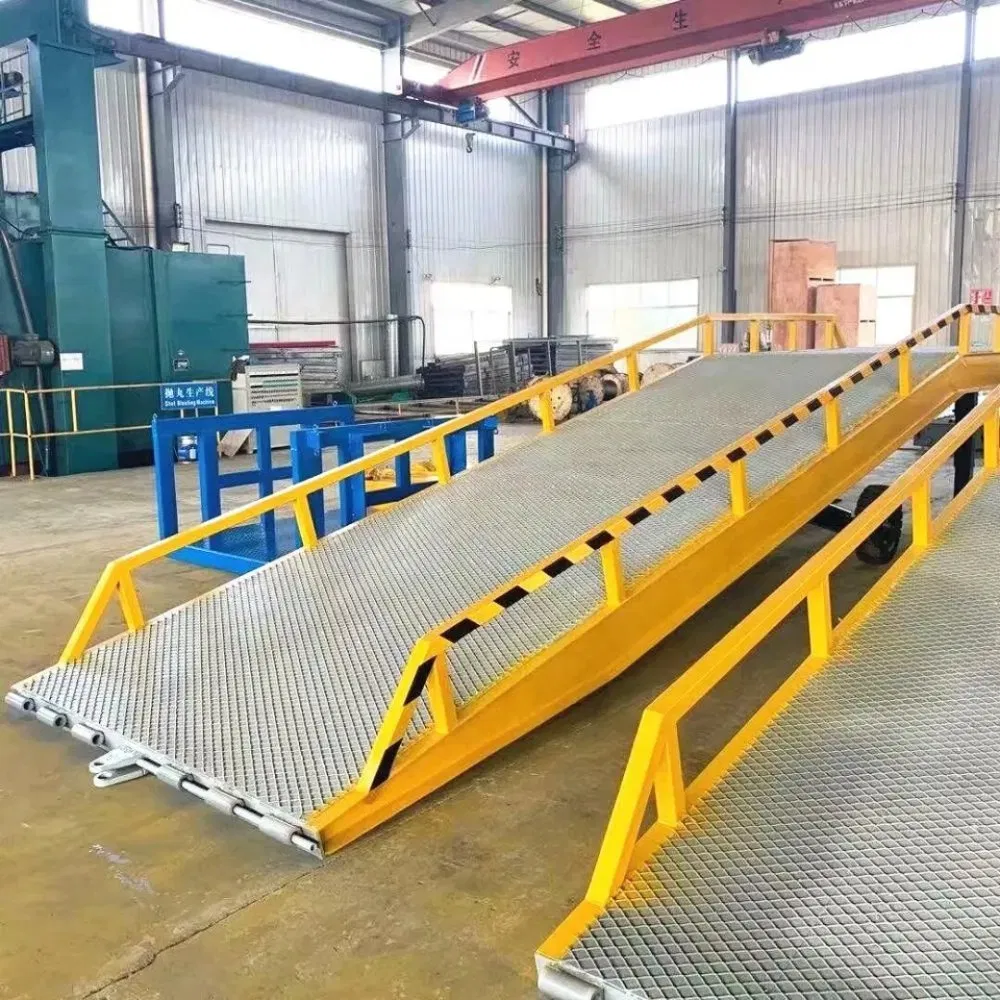

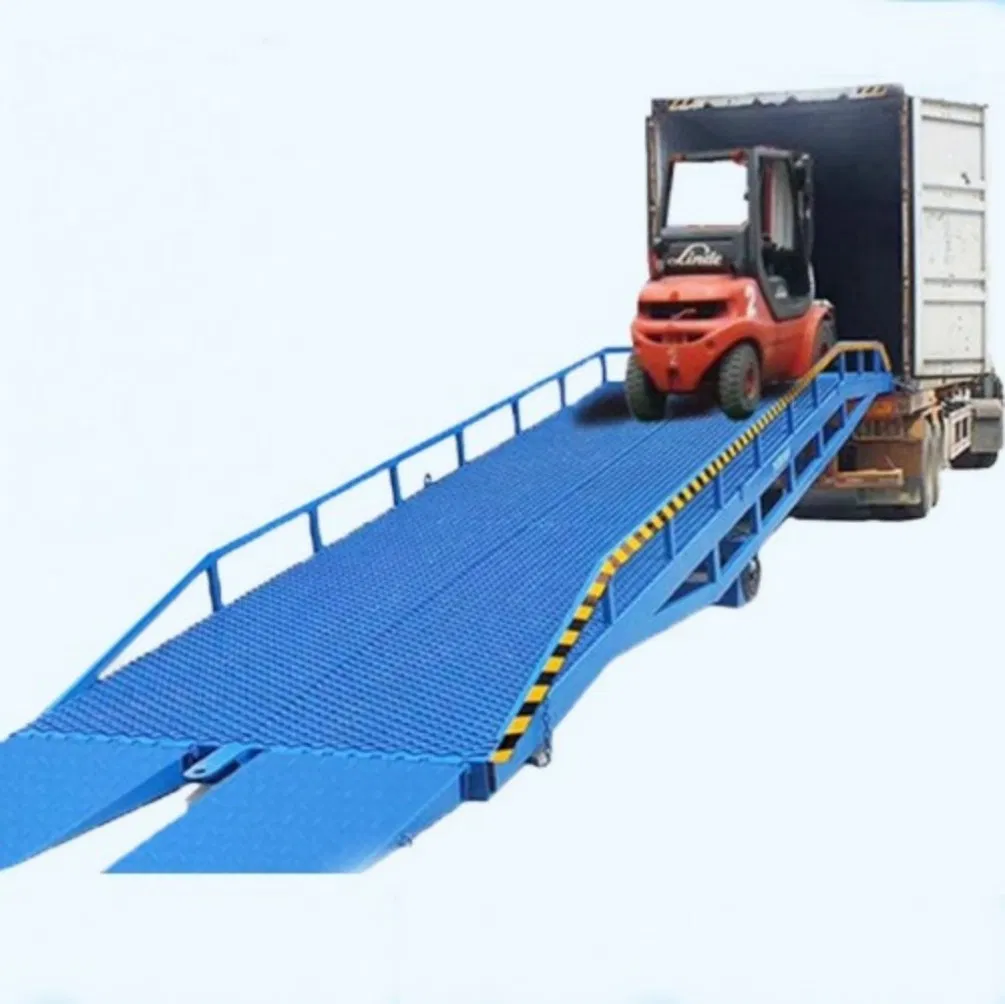

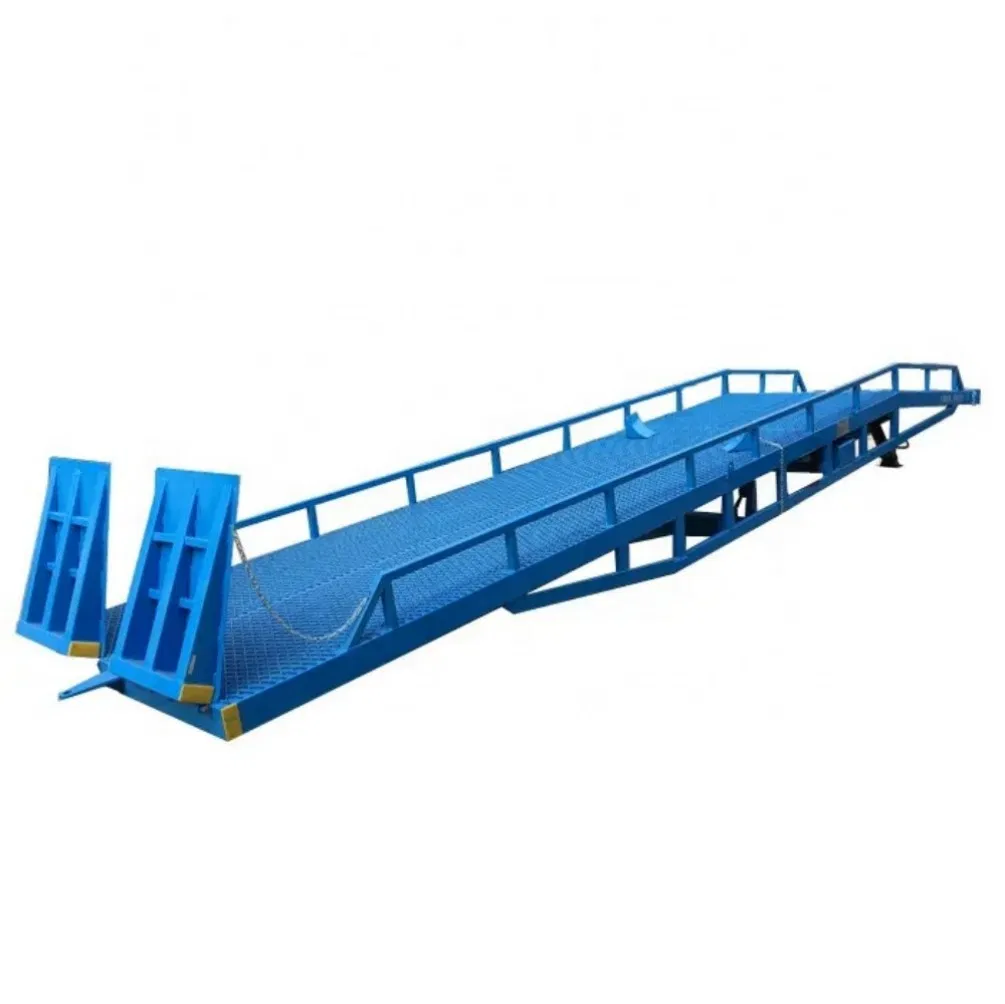

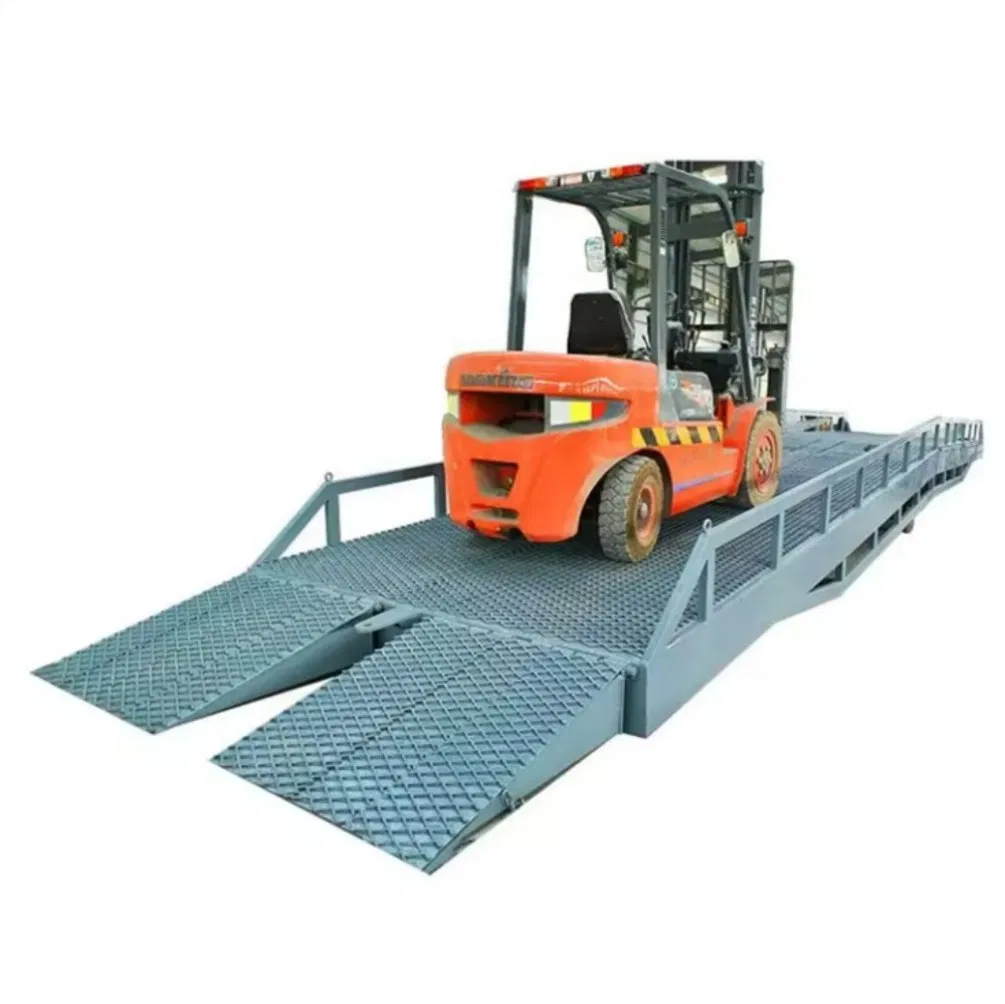

The mobile loading ramp is the auxiliary equipment for cargo loading and unloading used in conjunction with forklift. The height can be adjusted according to the height of the automobile compartment; the forklift can be driven into the interior of the compartment directly through the equipment for the batch loading and unloading of goods. It enables enterprises to reduce labor, improve work efficiency, and obtain greater economic benefits.
| Product Type | Load Capacity (T) | Overall Size (mm) | Machine Weight (kg) | Adjustable Size (mm) | Power |
|---|---|---|---|---|---|
| DCQY-6 | 6 | 11300*2100*1100 | 2480 | 1100-1800 | Manual or AC/DC power |
| DCQY-8 | 8 | 11300*2100*1100 | 2550 | 1100-1800 | |
| DCQY-10 | 10 | 11300*2100*1100 | 2630 | 1100-1800 | |
| DCQY-12 | 12 | 11300*2100*1100 | 2800 | 1100-1800 | |
| DCQY-15 | 15 | 11500*2200*1100 | 3500 | 1100-1800 |

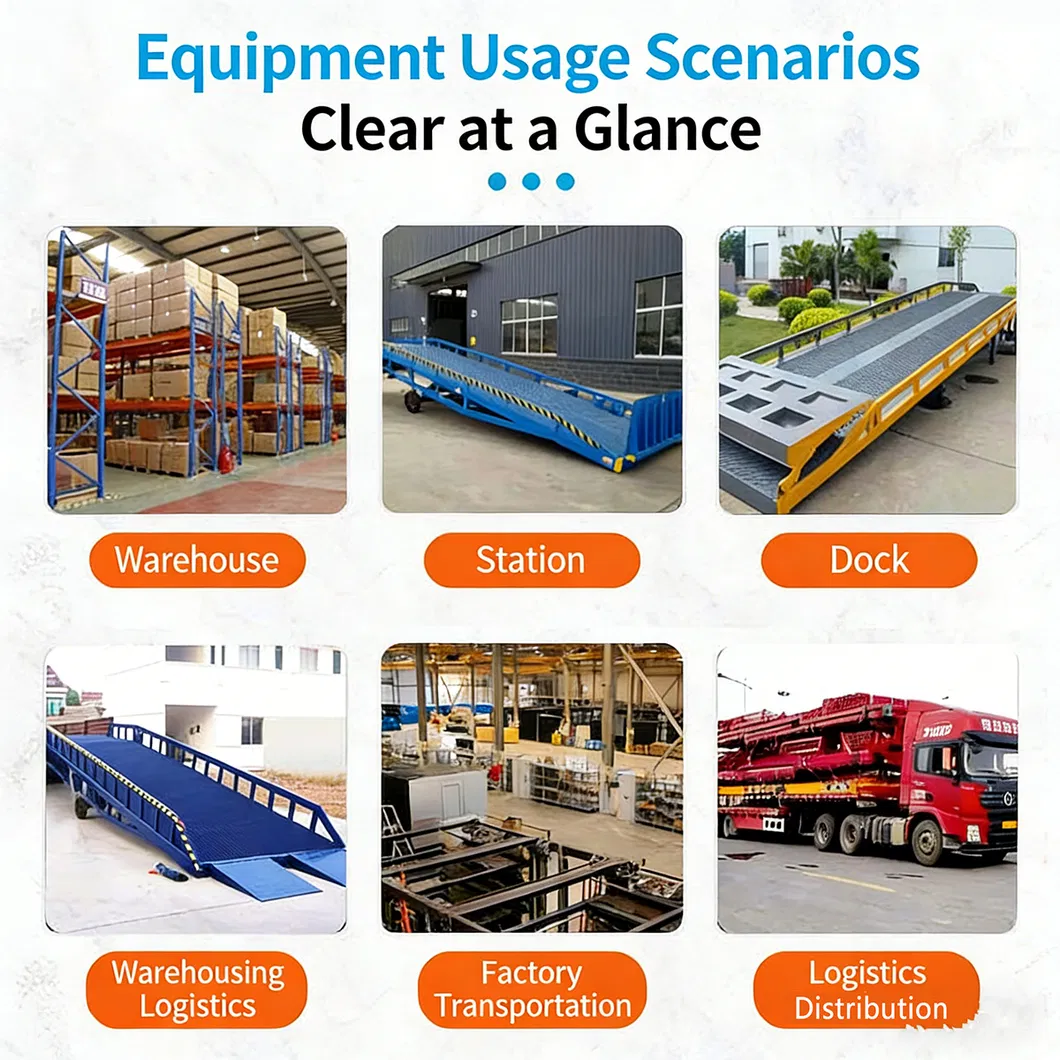

Our products are widely used in ports, stations, warehouses, and other loading areas. Special designs are available for size and load-bearing capacity based on user needs. The ramp installs on the side of the dock, flush with the floor level.

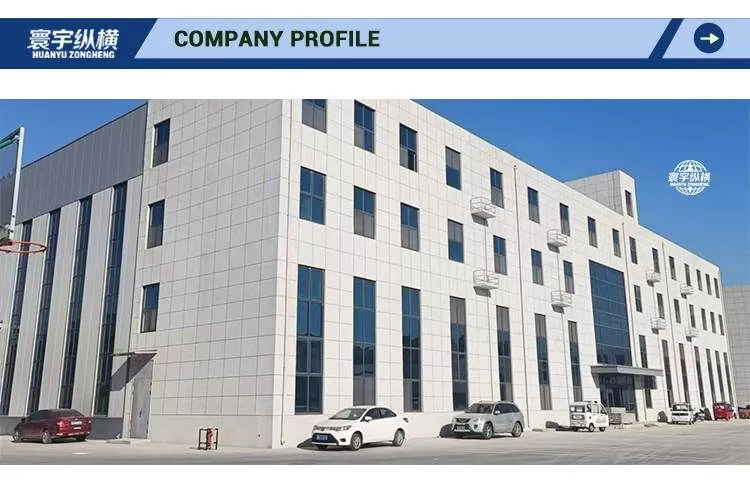

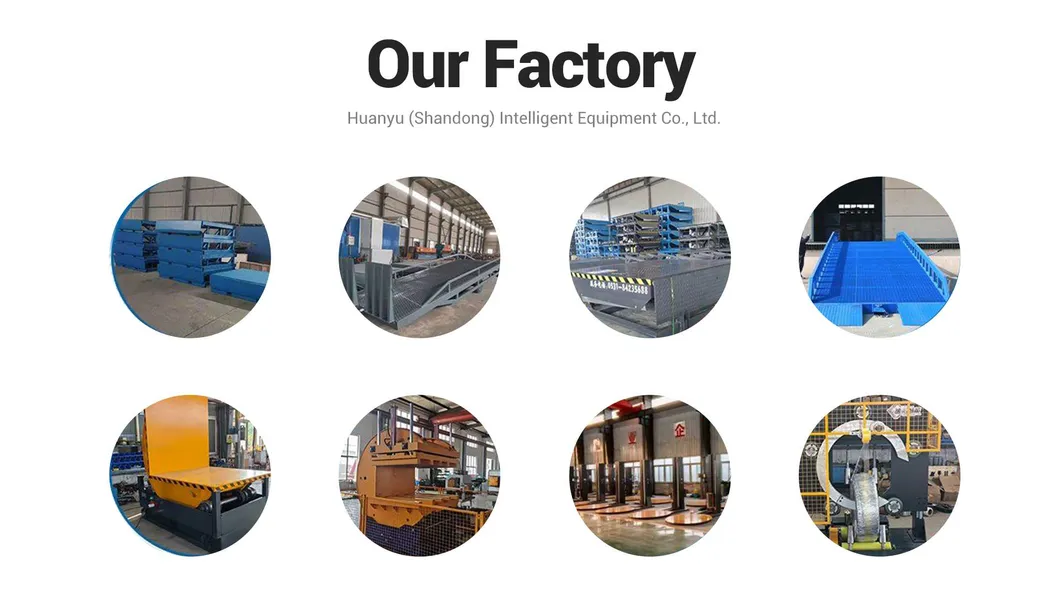

We are a modern technology-based manufacturing enterprise integrating design, production, sales, and service. Our product portfolio includes Wrapping Machines, lifting work platforms, and vehicle boarding bridges.
The equipment produced has obtained ISO system certification, CE safety certification, and multiple national invention patents. Complying with industry standards, our products are widely used in glass products, papermaking, chemicals, food, and metallurgy industries worldwide.
