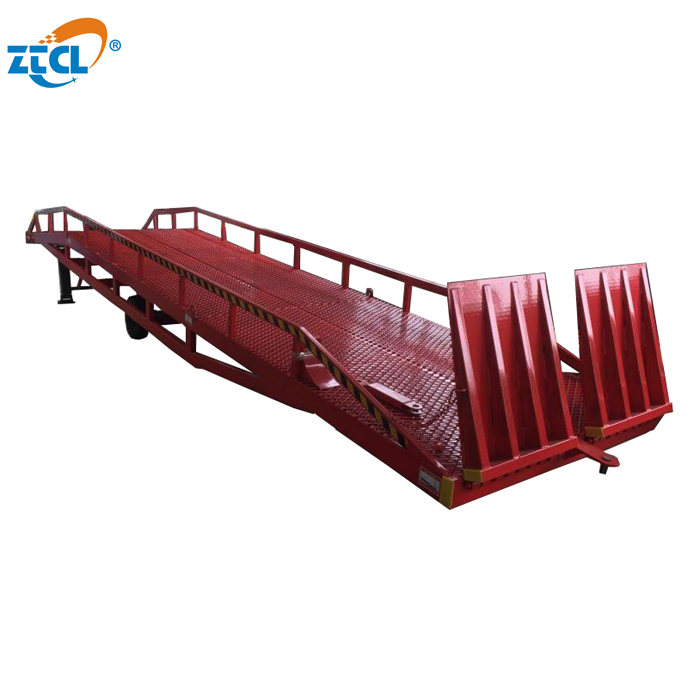

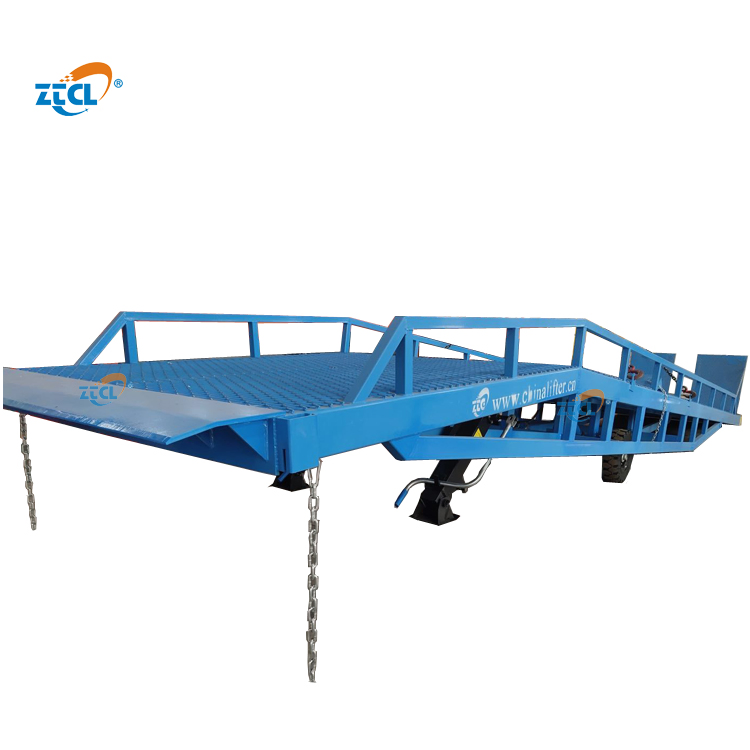

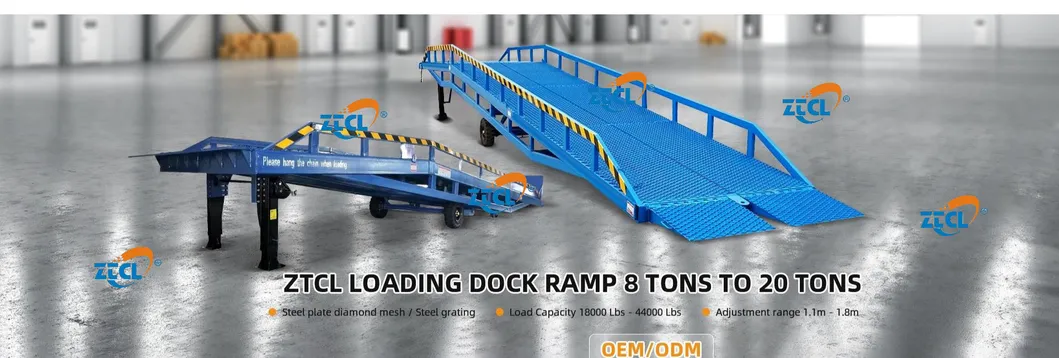

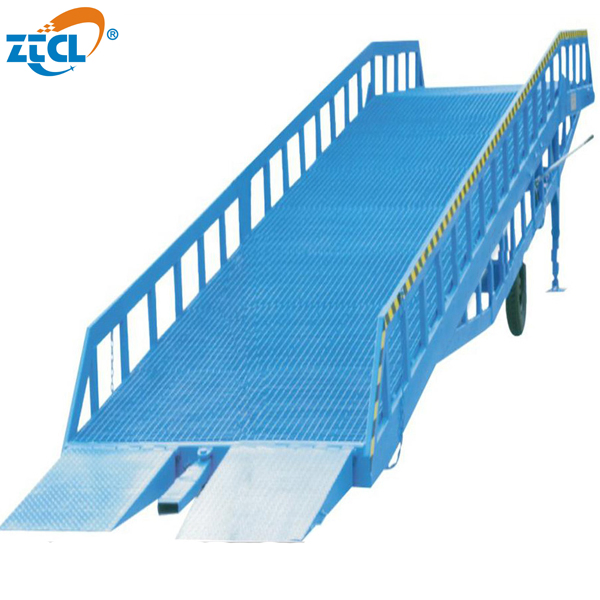

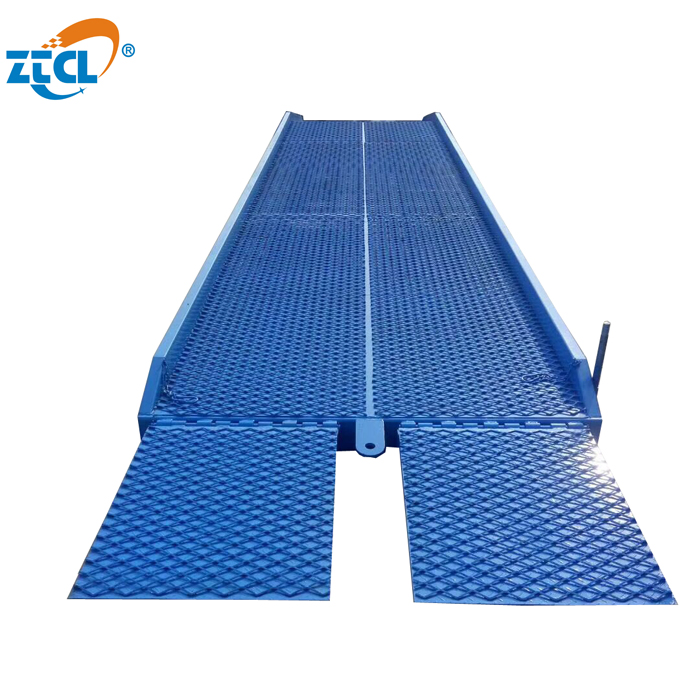

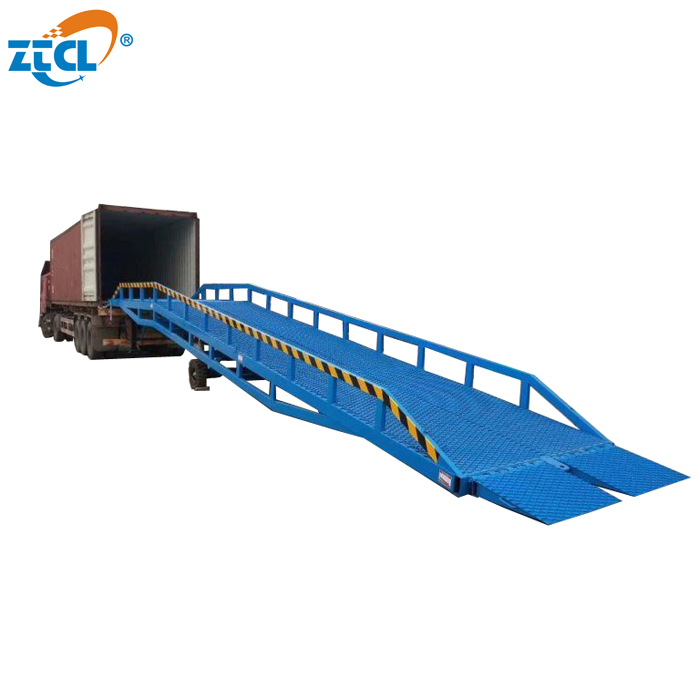

Mobile loading ramp is cargo handling and forklift auxiliary equipment. It features adjustable height according to the level of automobile car or truck. It allows forklifts to drive directly through the device into the interior of the vehicle for bulk cargo handling. With only a single person operation, you can achieve rapid loading and unloading of goods, significantly reducing labor costs and improving efficiency.

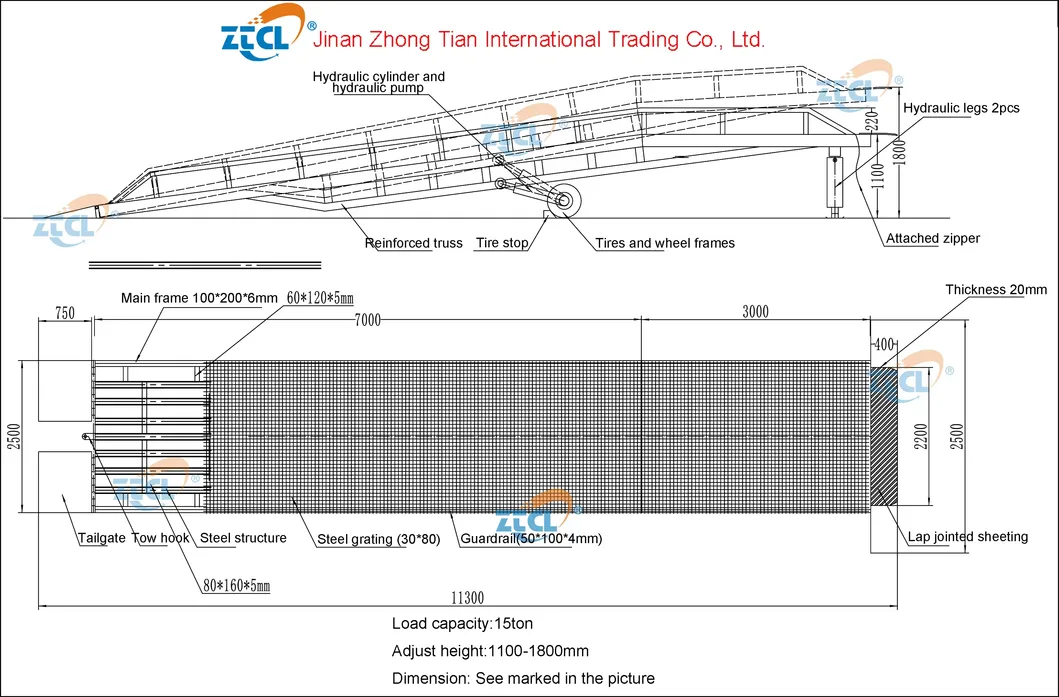

| Model | ZTDCQY-6 | ZTDCQY-8 | ZTDCQY-10 | ZTDCQY-12 | ZTDCQY-15 |
|---|---|---|---|---|---|
| Load | 6t | 8t | 10t | 12t | 15t |
| Overall size | 11300*2100*1100mm | ||||
| Slope length | 7150mm(L) | ||||
| Platform length | 3000mm(L) | ||||
| Width | 2100mm | ||||
| Adjustable range | 1100-1800mm | ||||

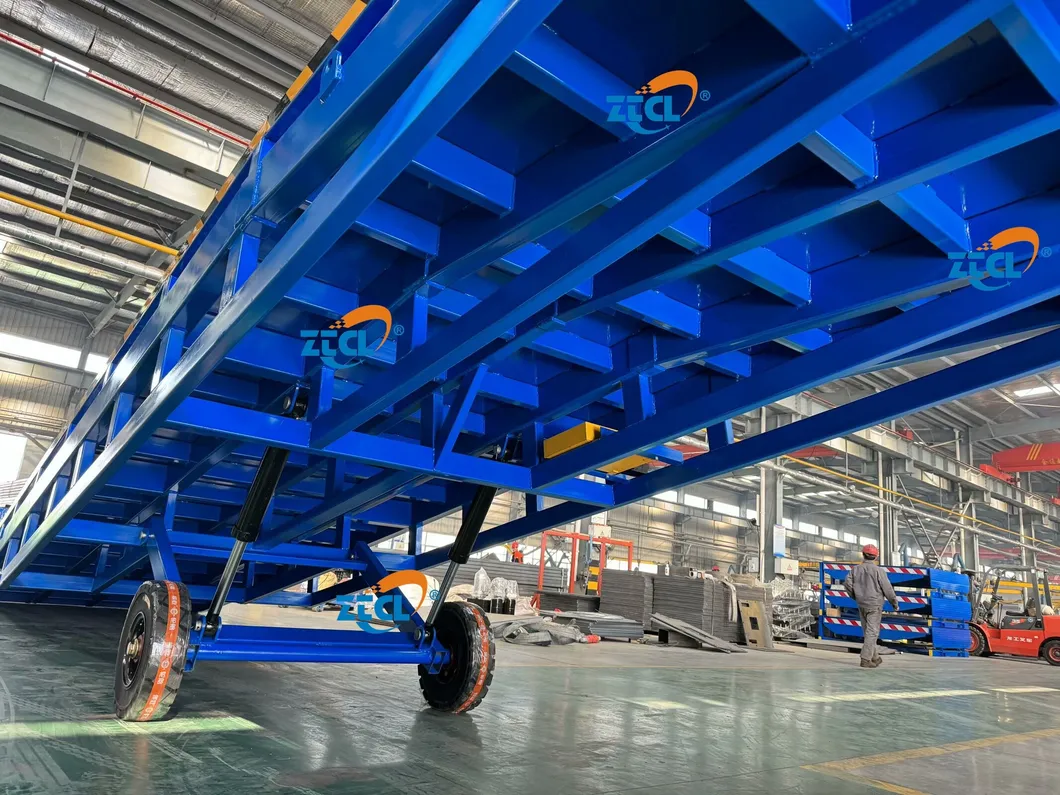

| Main beam | 160*80*4mm rectangular pipe (4 beams) | 200*100*5mm (5 beams) | 200*100*6mm (5 beams) | ||

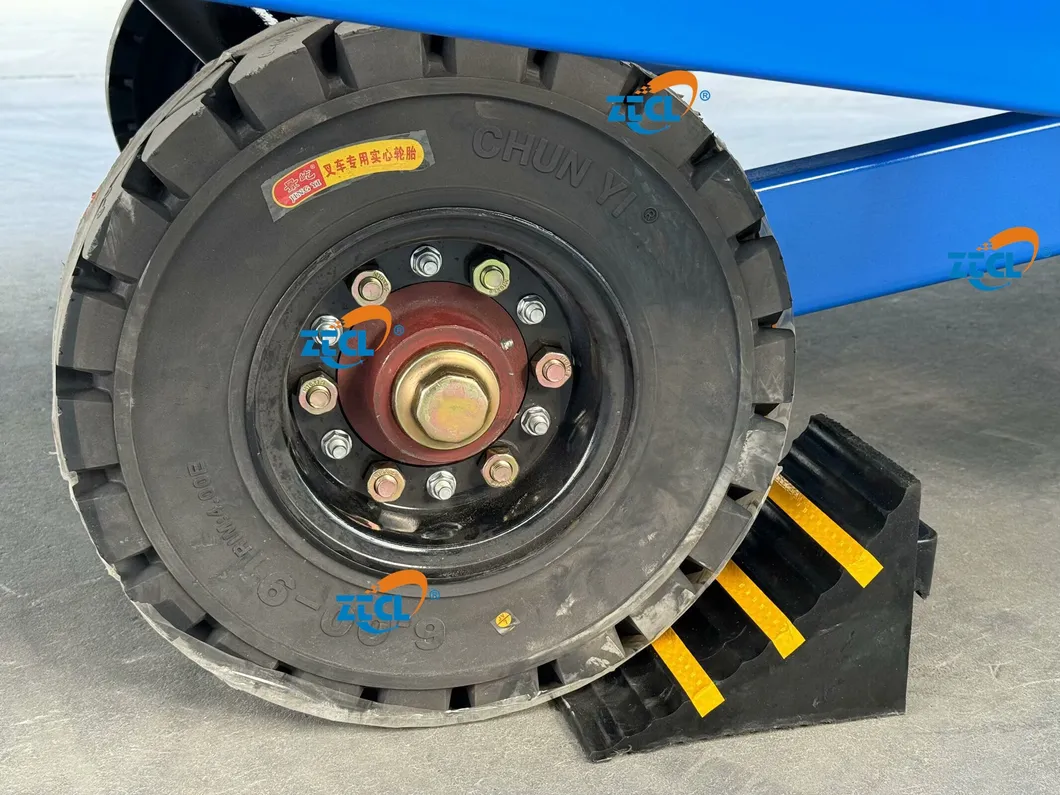

| Solid tire | 600-9 | 600-9 | 600-9 | 700-9 | 700-9 |
| Paint Color | Blue, Red, Grey, Black | ||||
