Basic Specifications
Model NO.:HD-HYQ10

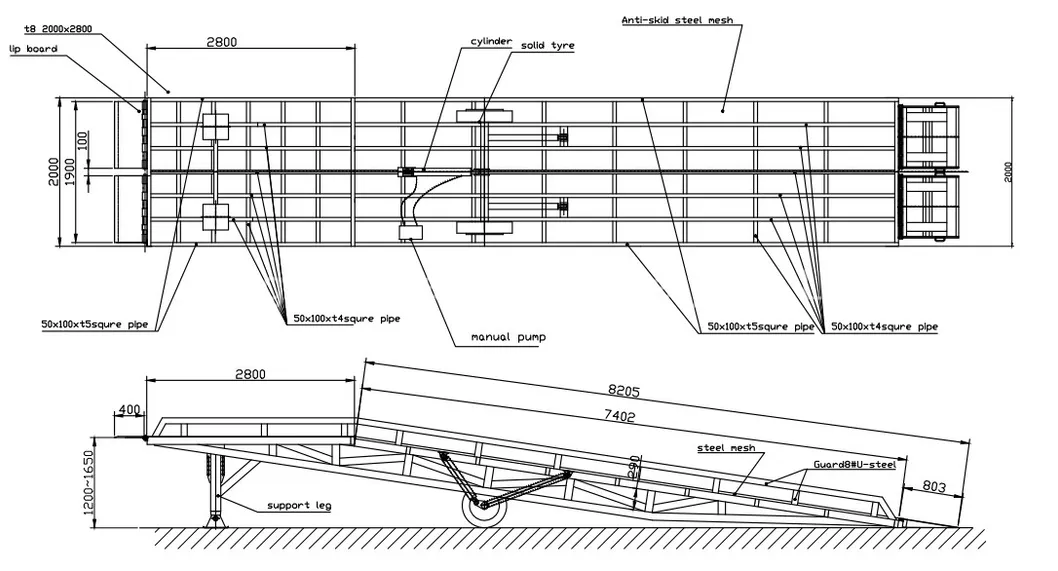

Platform Length:2800mm
Slope Length:8200mm
Dynamic Capacity:10ton /15ton/20ton
Adjust Range:1200~1650mm
Self-Weight:2850kg
Operate Manner:Manual by Hydraulic Pump
Hydraulic Pump:Italy Brand
Material:Q235B(Sgc400)+Zinc-Plated Steel Mesh
Solid Tyres:600mm Diameter
Safety Curb:250mm Height
HS Code:8428909090
Product Description

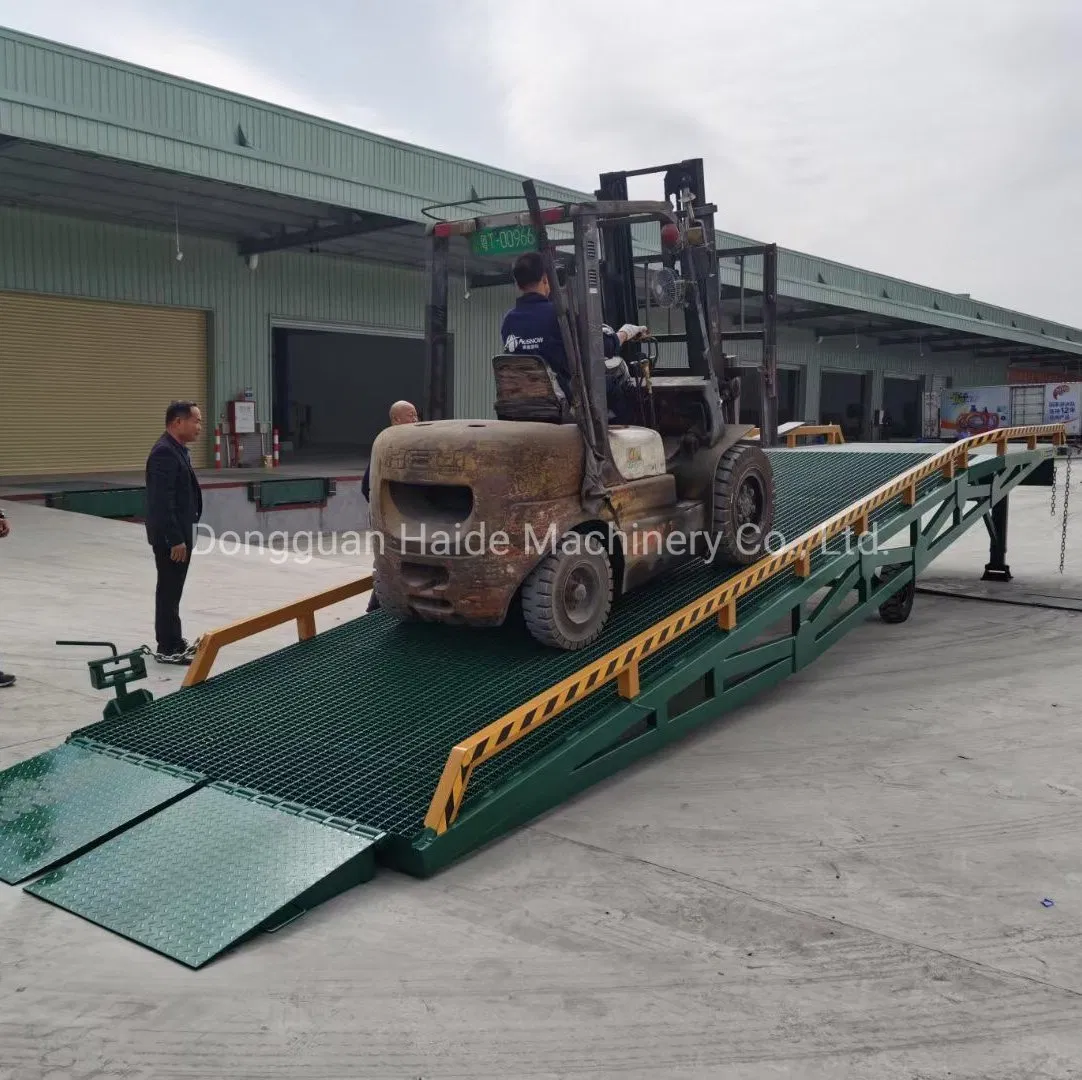

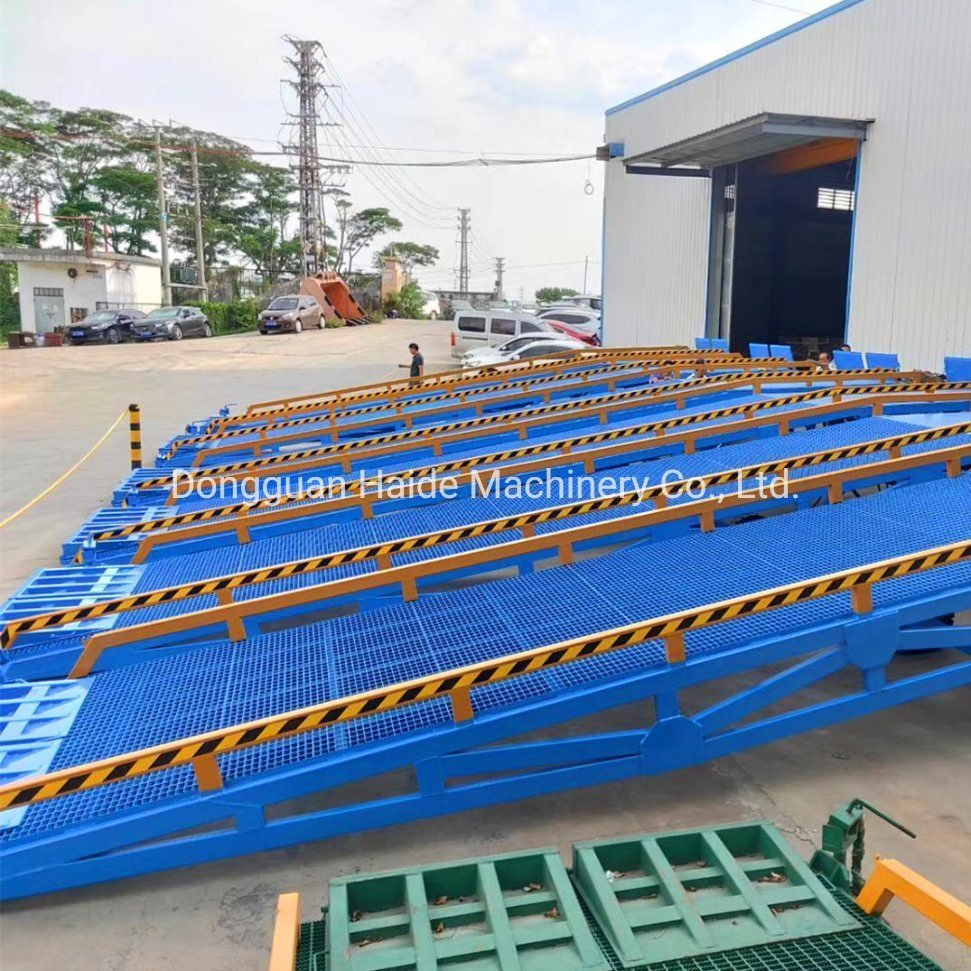

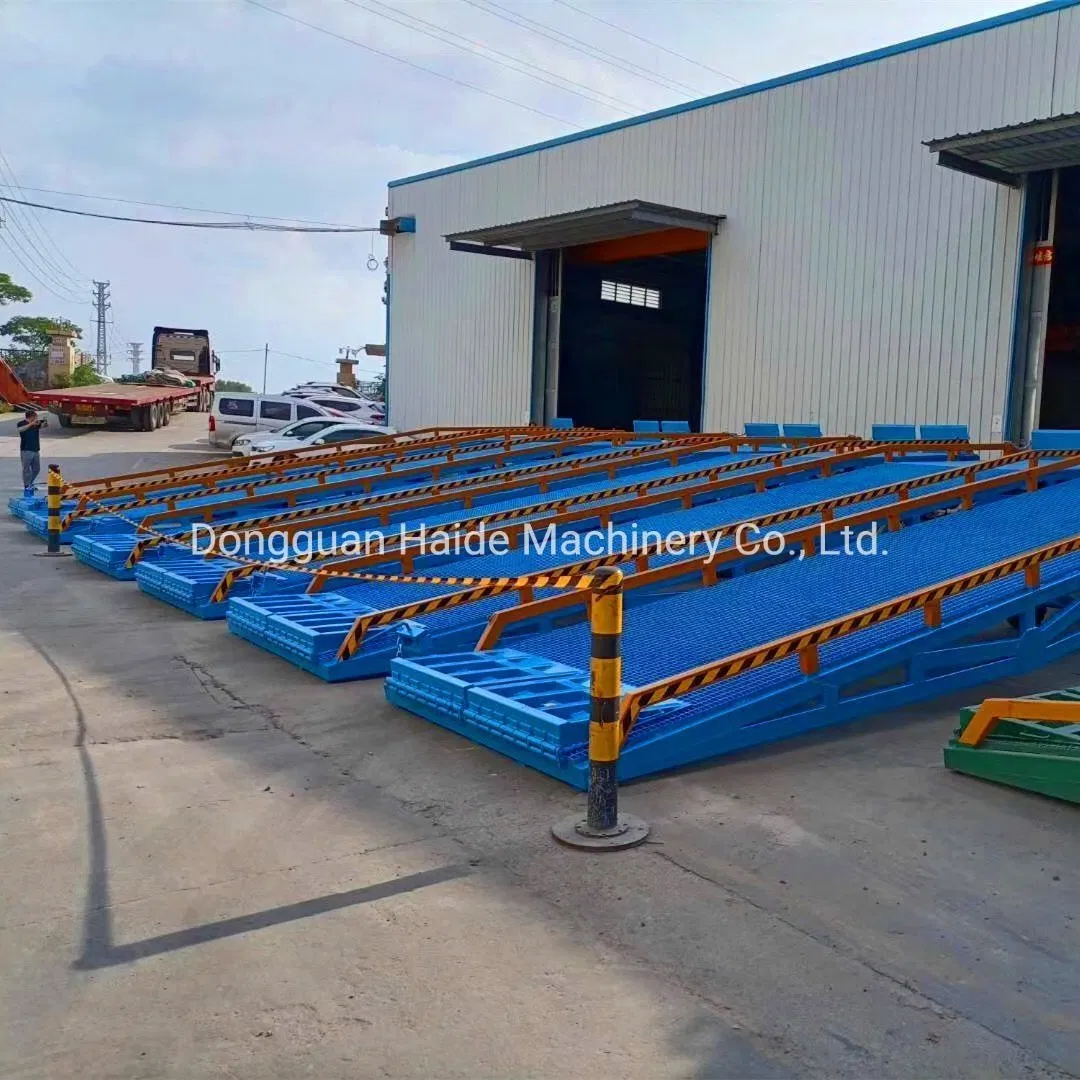

CE-Approved Mobile Container Loading Ramp
High-performance 10Ton/15Ton/20Ton mobile dock ramps designed for efficient container loading and unloading.
| Width | 2000mm |
| Total length | 11050mm |
| Capacity | 10ton, 15ton, 20ton |
| Adjust range | 1200~1700mm |
| Manual pump | Import from Italy, brand is "Oiltec" |
| Ramp weight | 3200kg |
| Warranty | 1 year for hydraulic system, 5 years for steel structure |
| Tyre | Solid tyre |
| CE No. | DGS12082902 |

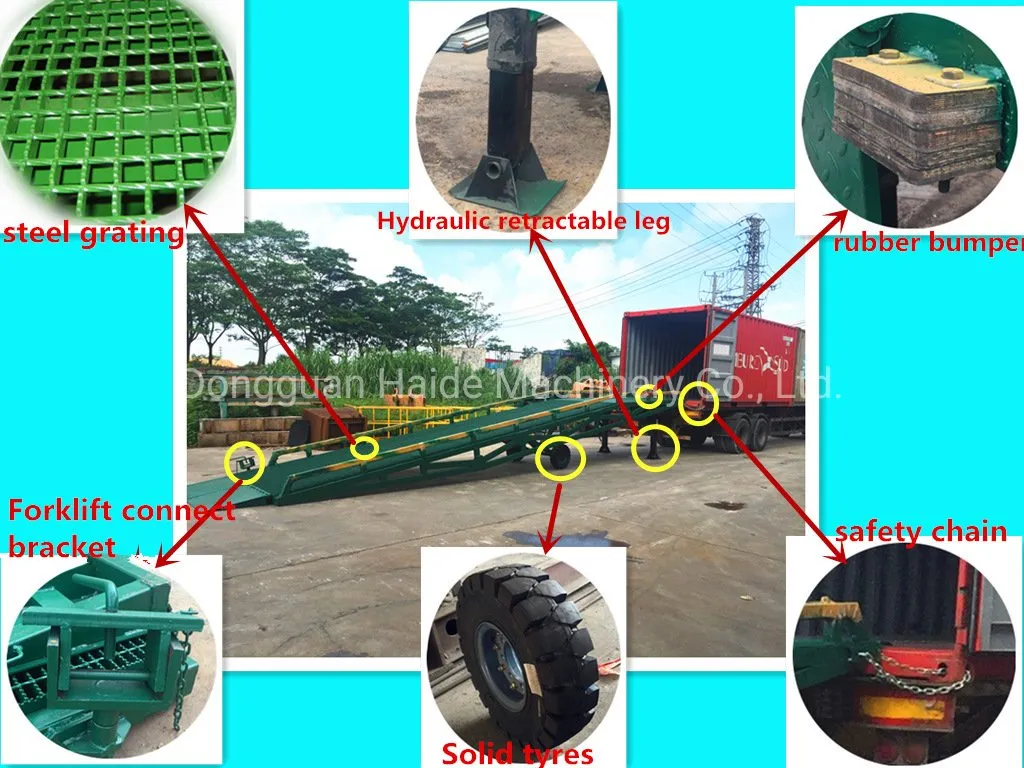

Key Features & Advantages
✔
Floating Lip Design: Two moveable lips facilitate free lateral floating when the truck floor moves up and down.
✔

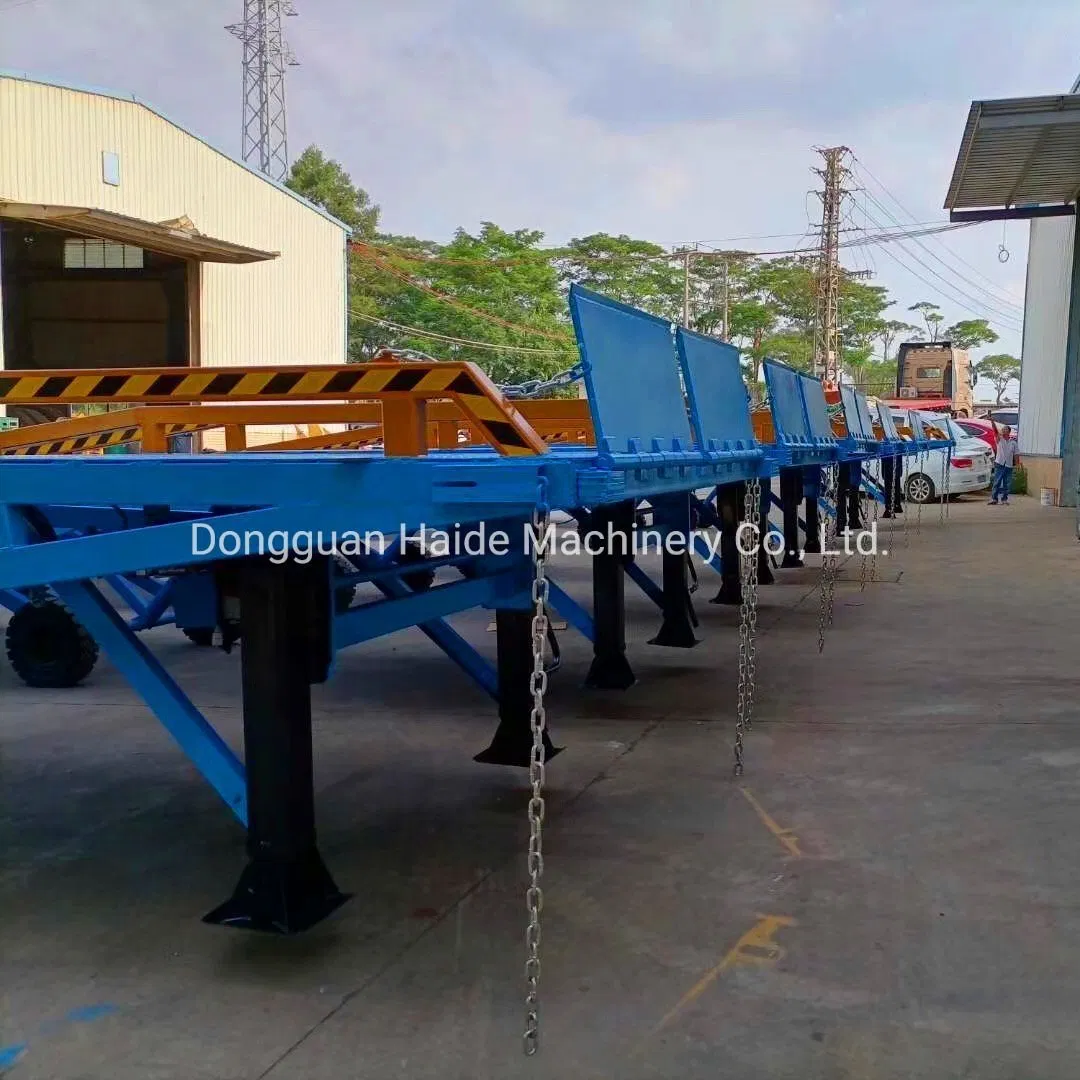

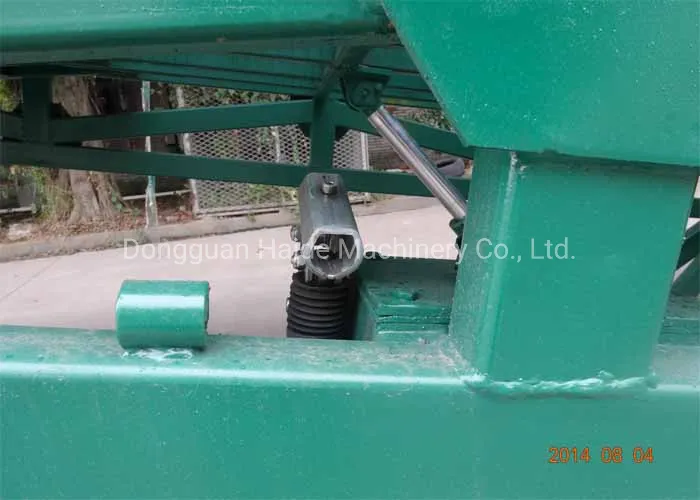

Hydraulic Support: Two hydraulic retractable legs sustain heavy loads during operation.
✔

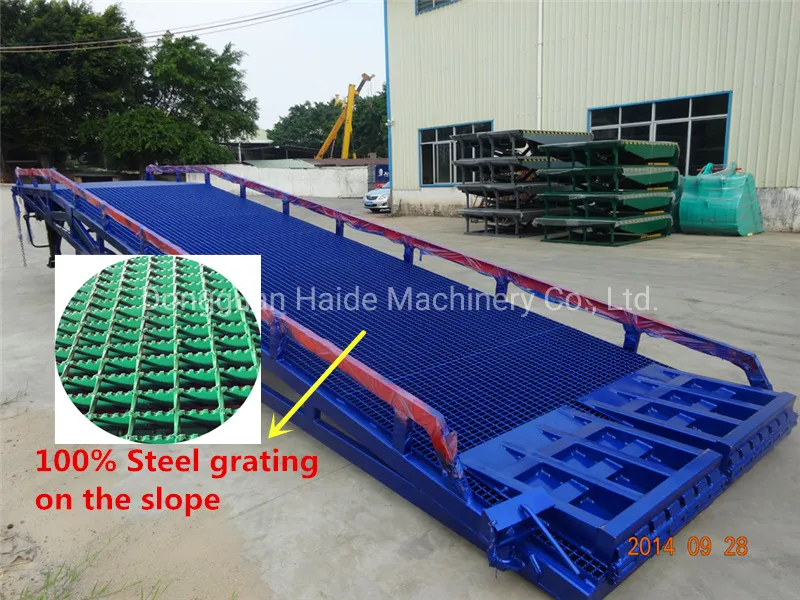

Anti-Skid Surface: Steel grating on the slope prevents forklifts from slipping during operation.
✔
Durable Construction: Sand-blasted steel structure with baked painting (170ºC) for maximum rust resistance.
✔

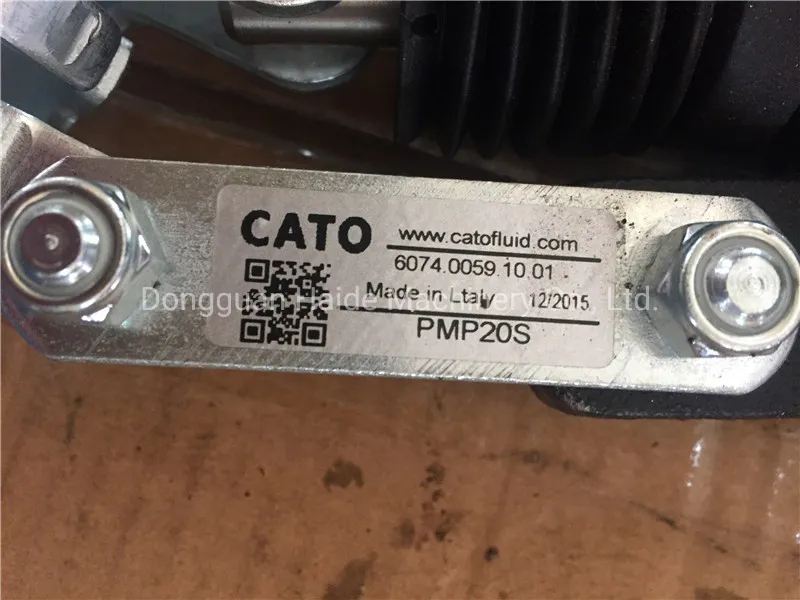

Manual Operation: Italy "Oiltec" hydraulic pump allows for easy manual operation without electrical power.

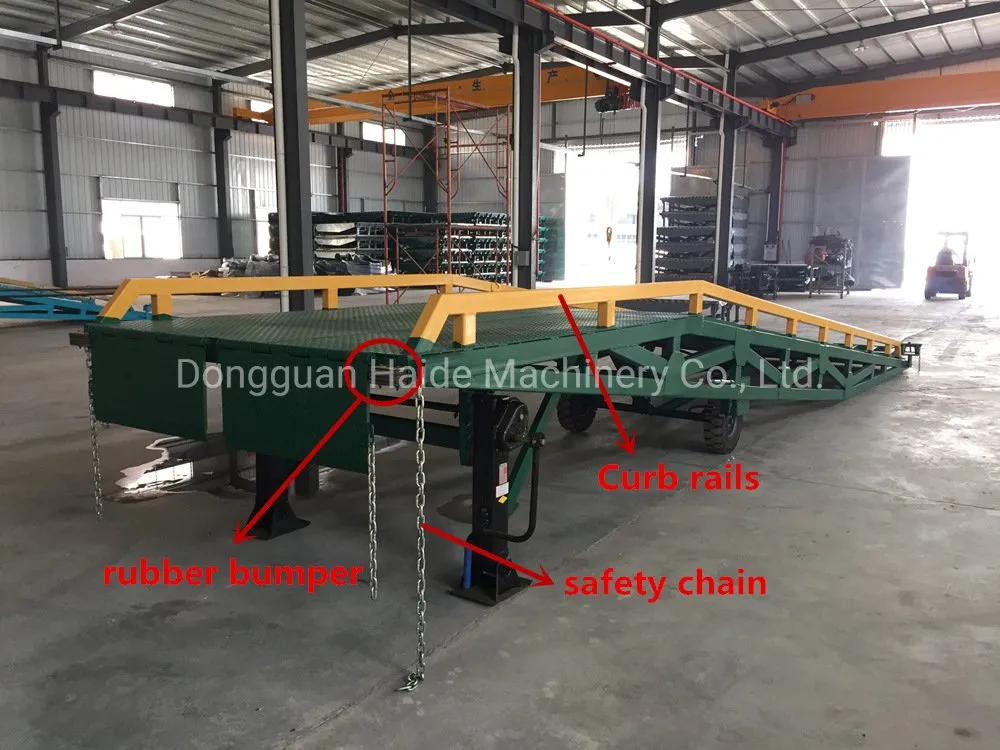

★ Safety First: Includes guard rails for direction, safety chains for truck securing, and rubber bumpers to absorb shocks.
Frequently Asked Questions
What load capacities are available for this mobile ramp?
We offer three standard dynamic capacities: 10 Ton, 15 Ton, and 20 Ton to suit various loading requirements.
Does the ramp require an electrical power supply?
No, it uses a high-quality manual hydraulic pump from the Italian brand "Oiltec," allowing for easy operation anywhere without the need for electricity.
How does the ramp handle slippery conditions?
The slope floor is constructed with zinc-plated steel grating, providing excellent anti-skid performance even in wet or oily conditions.
Can the ramp be moved easily around the yard?

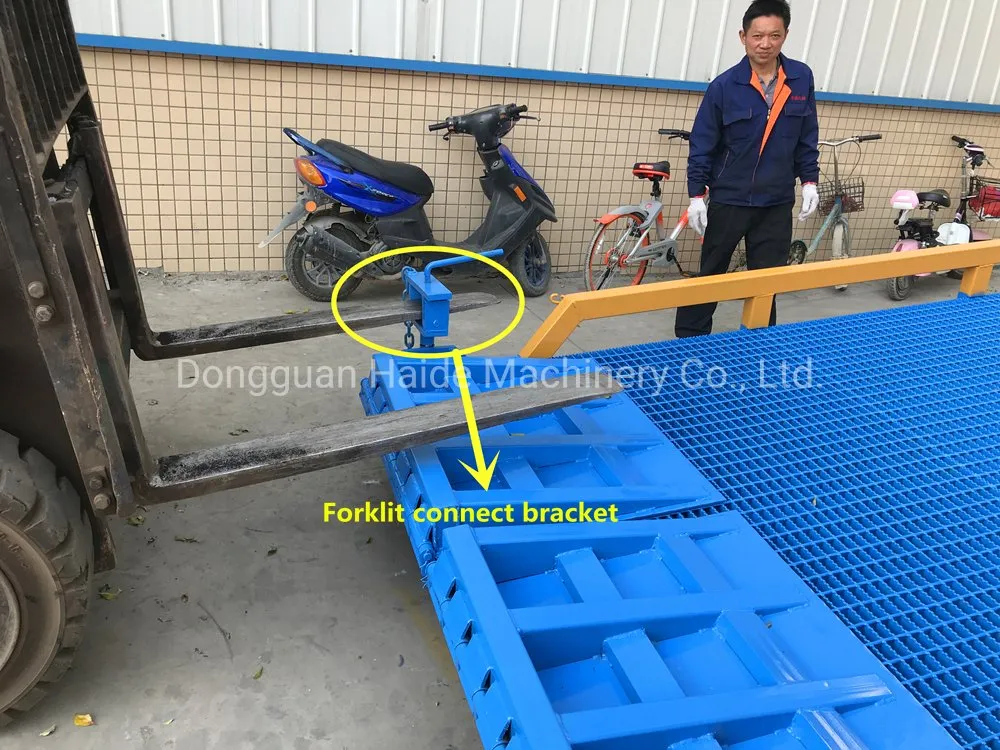

Yes, it features solid tyres for excellent traction and an end bracket that allows the ramp to be easily towed by a forklift.
What is the warranty period for this product?
We provide a 1-year warranty for the hydraulic system and a 5-year warranty for the main steel structure.
Is it possible to customize the dimensions?
Yes, the dimensions for every part can be customized to suit your actual demand and specific site requirements.
