Product Description

ℹ

Basic Specifications

Model NO.
GTJZ08
Application
Workshop, Shipboard, Warehouse, Building
Lift Mechanism
Scissor Lift
Moves
Self-propelled
Driven Type
AC Electric
Certification
CE, ISO 9001
Platform Size
2090*800mm
Battery
24V
★

Product Advantages

GTJZ model full electric work platform, both driving and lifting are powered by electricity. It offers the following advantages:

  • Low noise to operate in quiet work environments
  • Steady moving, efficient energy saving
  • Excellent maneuverability in tight spaces
  • Utilize work space effectively
  • Easy access to battery box and power module
  • Maximize durability with efficient security protection
  • Smooth deceleration & accurate positioning
  • Maintenance-free operation
📊

Technical Parameters

Parameter Item Specifications
Max. Working Height9.8m
Max. Platform Height7.8m
Platform Dimensions2.27×0.86×1.1m
Length-stowed2.43m
Width-stowed0.89m
Height-stowed2.35m
Max. Lift Capacity320kg
Weight2260kg
Gradeability-stowed25%
Turning Radius0/2.1m
Battery24V/200Ah
Charger24V/36A
📷

Detailed Photos

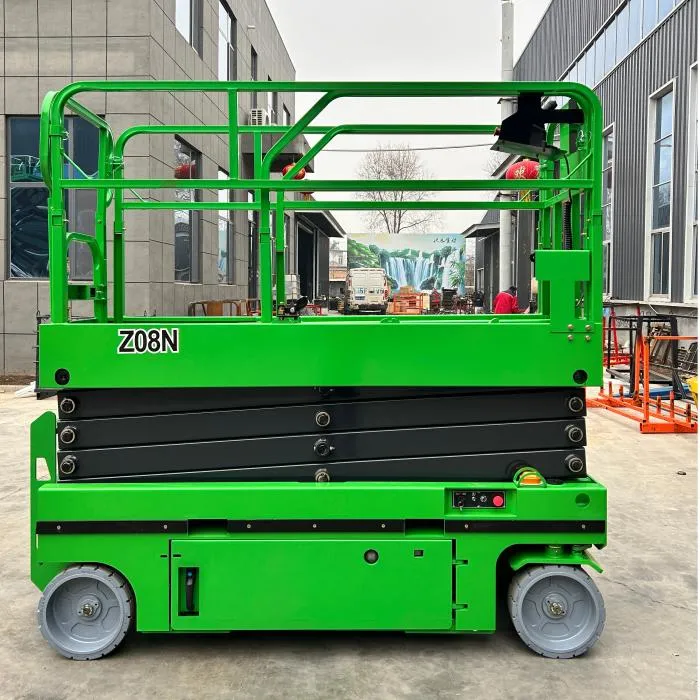

Scissor Lift Photo 1

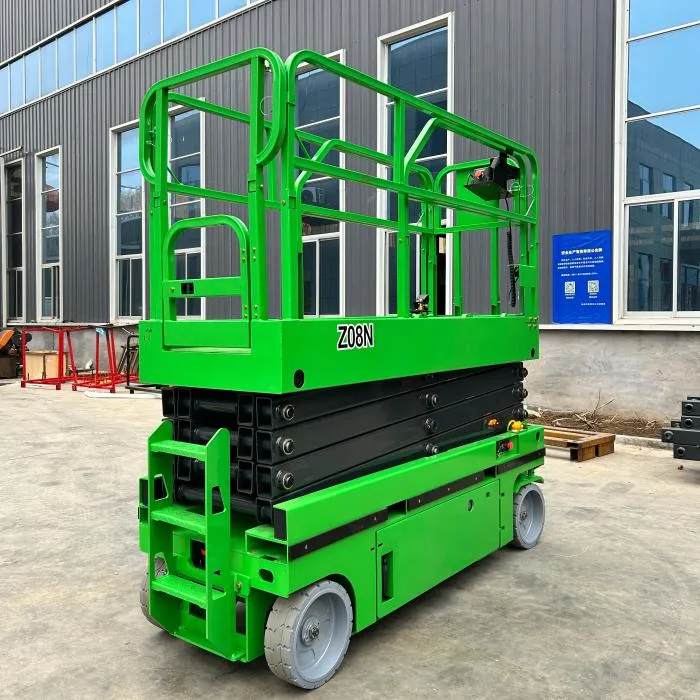

Scissor Lift Photo 2
Scissor Lift Photo 3
Scissor Lift Photo 4

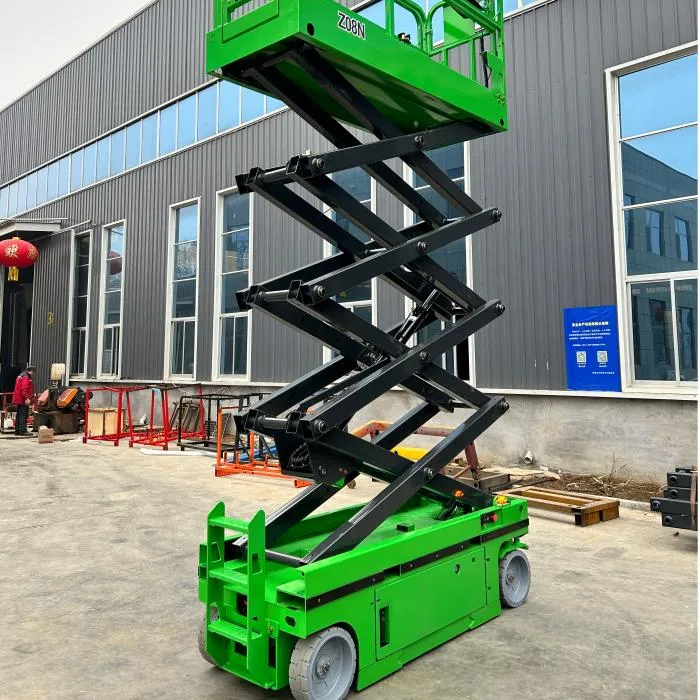

Scissor Lift Photo 5

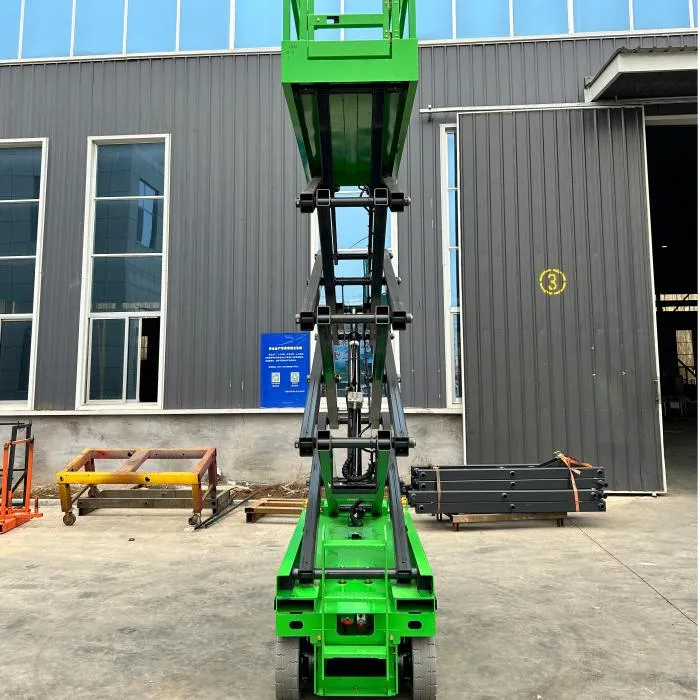

Scissor Lift Photo 6
Technical Drawing 1 Technical Drawing 2 Technical Drawing 3 Technical Drawing 4 Technical Drawing 5
❓

Frequently Asked Questions

What is the maximum working height of the GTJZ08?
The maximum working height of this model is 9.8 meters, with a platform height of 7.8 meters.
What is the lifting capacity of this electric scissor lift?
The maximum lift capacity is 320kg, which can accommodate up to 2 occupants on the platform.
Is the platform suitable for indoor use?
Yes, it features low-noise operation and solid non-marking tires, making it ideal for indoor environments like warehouses and workshops.
What power source does it use?
It is powered by a 24V/200Ah battery system with a 24V/36A charger included.
Can the platform be extended?
Yes, it includes a slide-out platform extension deck with a length of 0.9m for increased workspace.
What is the gradeability of the GTJZ08?
The machine has a gradeability of 25% when in the stowed position.
