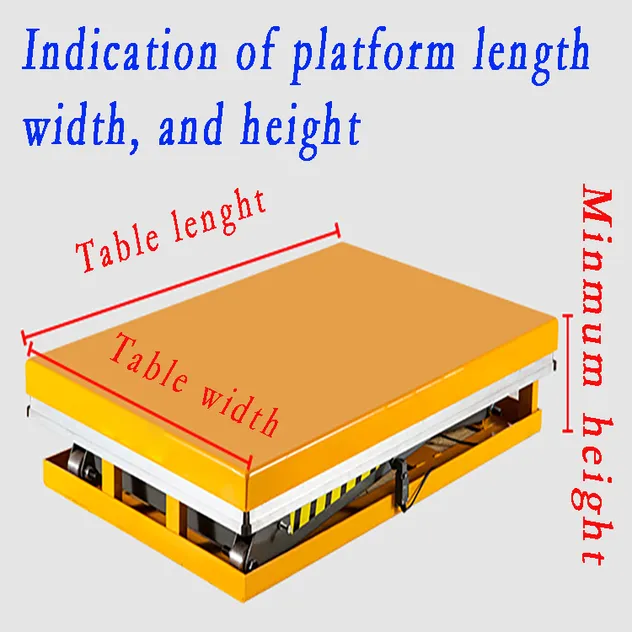

| Model | Load (kg) | Min Height (mm) | Max Height (mm) | Workbench Size (mm) | Voltage (v) | Weight (kg) |
|---|---|---|---|---|---|---|
| SJG-01 | 1000 | 205 | 990 | 1300*820 | 380/220 | 180 |
| SJG-02 | 1000 | 205 | 990 | 1600*1000 | 380/220 | 200 |
| SJG-03 | 1000 | 240 | 1300 | 1700*850 | 380/220 | 220 |
| SJG-04 | 1000 | 240 | 1300 | 1700*1000 | 380/220 | 230 |
| SJG-05 | 1000 | 240 | 1300 | 2000*850 | 380/220 | 230 |
| SJG-06 | 1000 | 240 | 1300 | 2000*1000 | 380/220 | 230 |

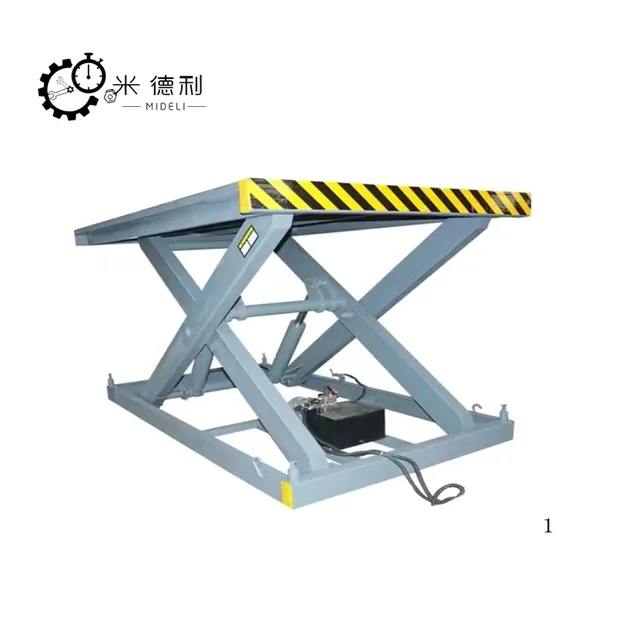

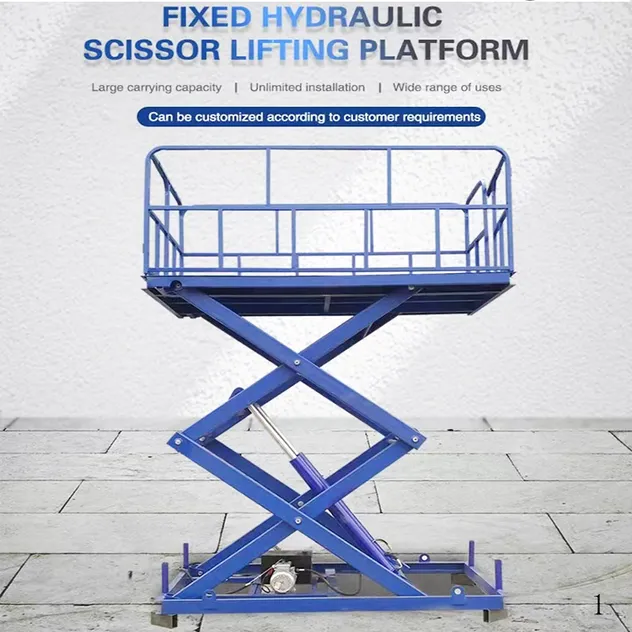

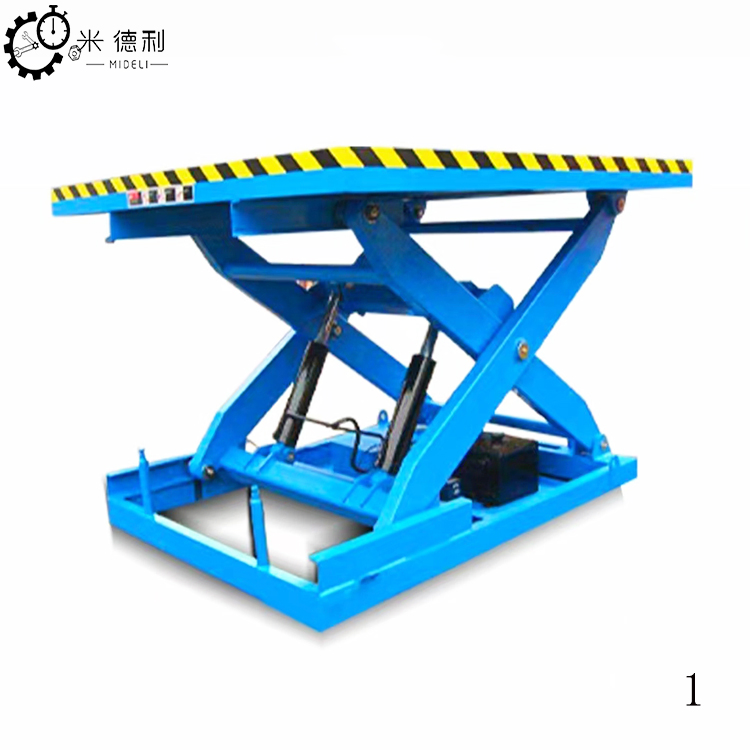

Fixed Scissor Hydraulic Lifting Platform

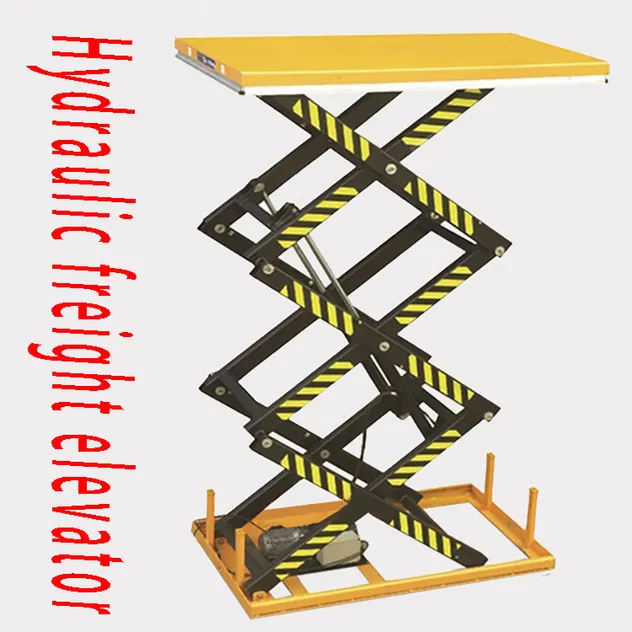

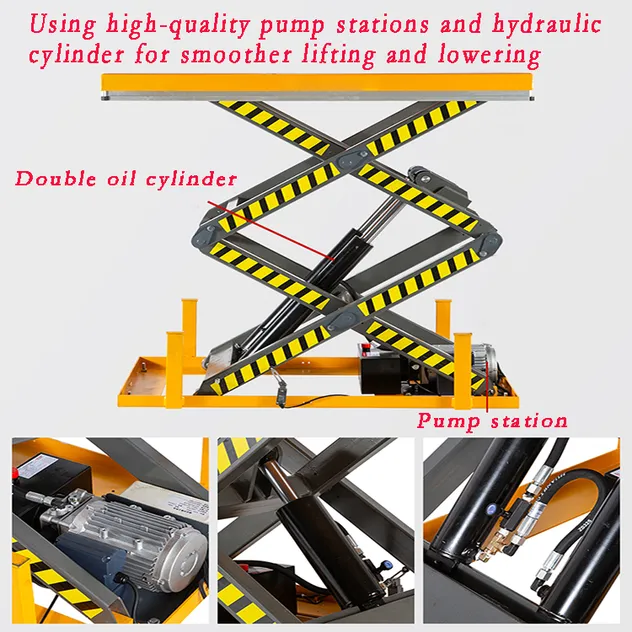

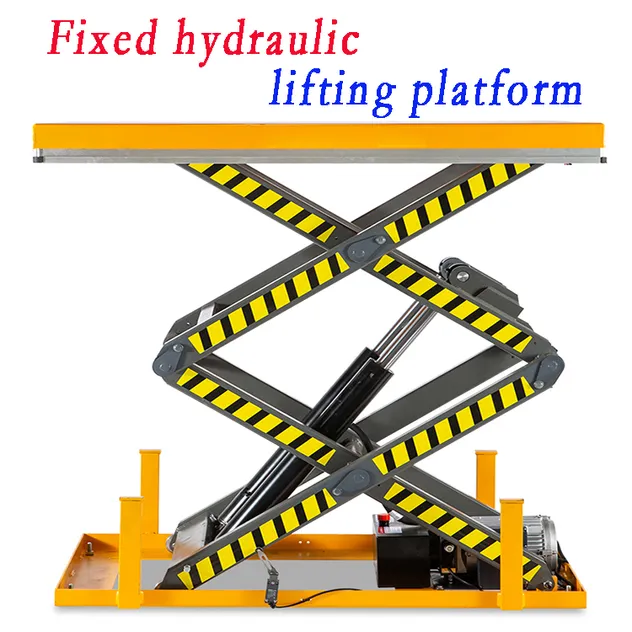

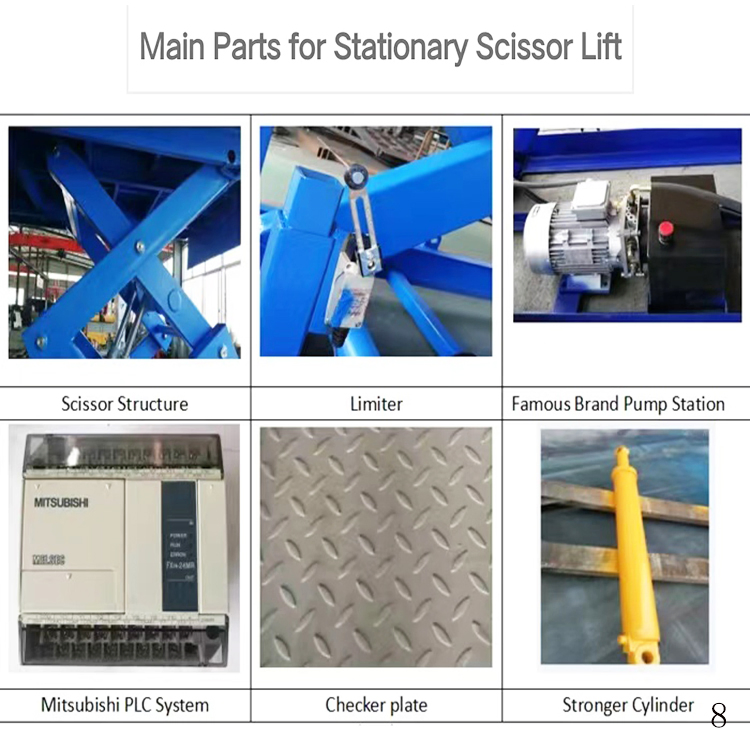

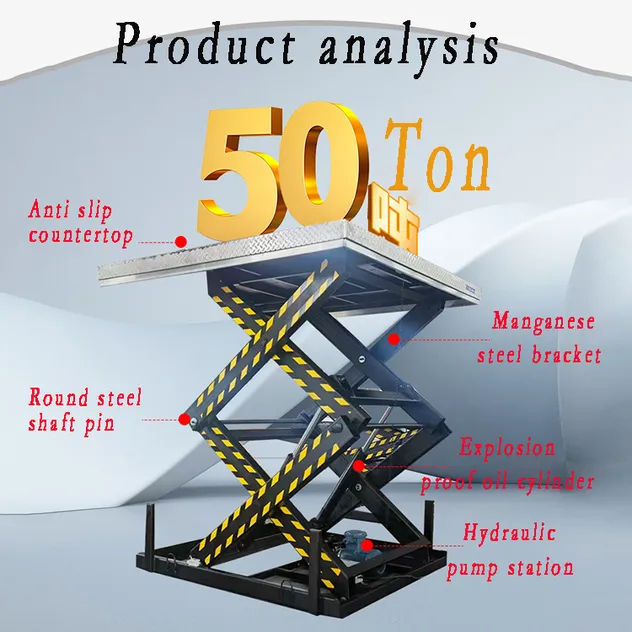

This fixed hydraulic lifting platform adopts a double scissor arm structure design, combined with a high-strength manganese steel material scissor arm and load-bearing platform. The overall load-bearing capacity is strong, which can meet various heavy load needs such as cargo lifting, production line operations, warehouse stacking, etc. in industrial scenarios. The core hydraulic system uses high-quality seals and precision hydraulic cylinders, ensuring a smooth lifting process without any jerks, and has good anti leakage performance.

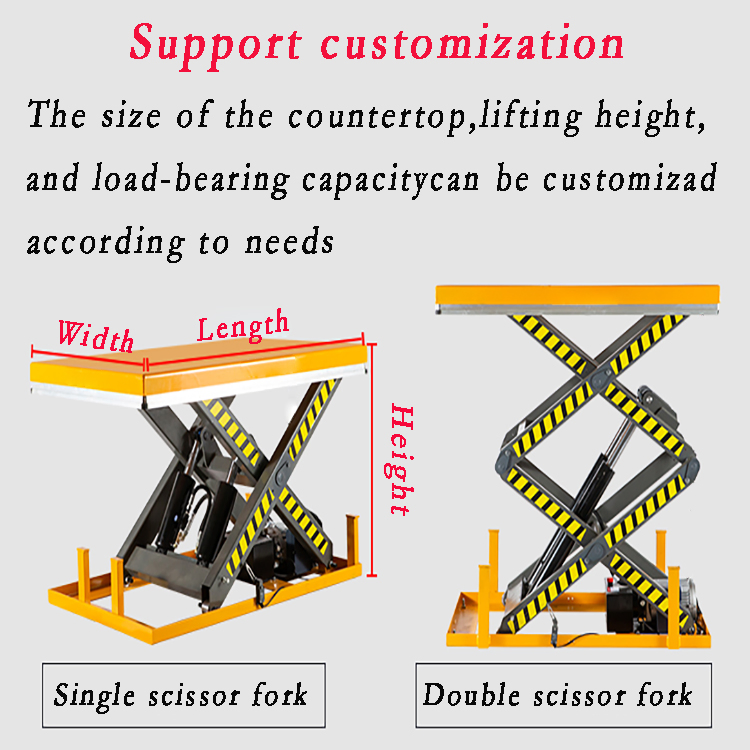

The lifting height and load parameters can be customized according to customer working conditions, with a maximum lifting height of up to 6 meters and a rated load coverage of 500kg-5 tons.

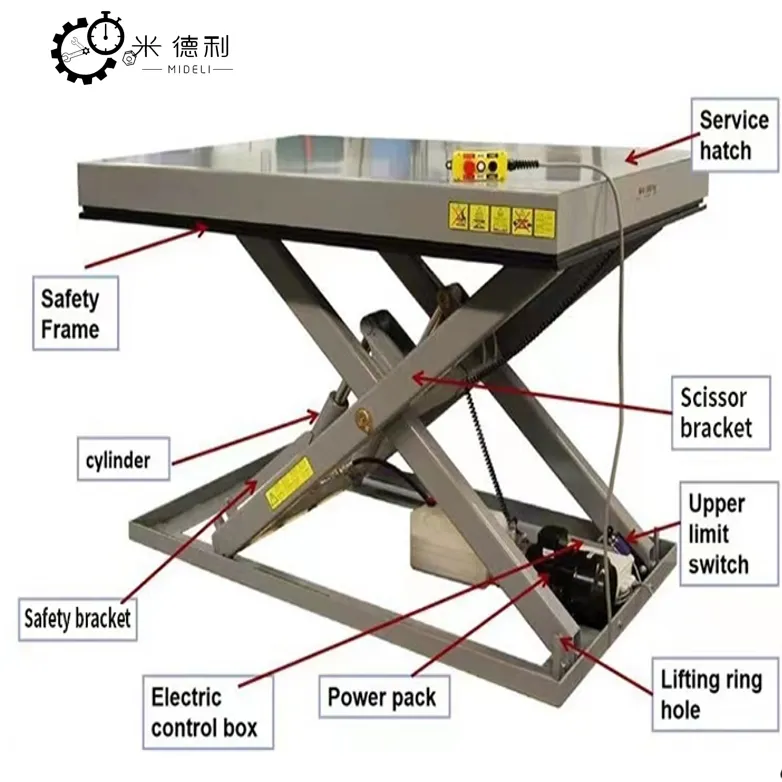

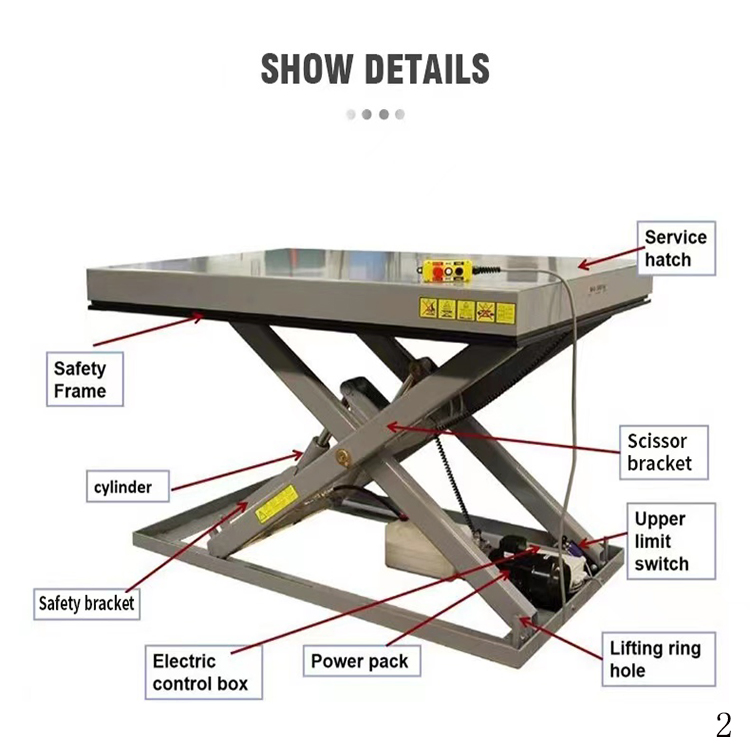

The equipment is equipped with a non slip and wear-resistant patterned steel platform, and the scissor arm is affixed with yellow and black warning stripes to enhance operational safety; A stable steel structure base is set at the bottom, which can be directly fixed to the ground or pre embedded for installation, suitable for fixed operation points such as workshops, warehouses, logistics centers, etc.

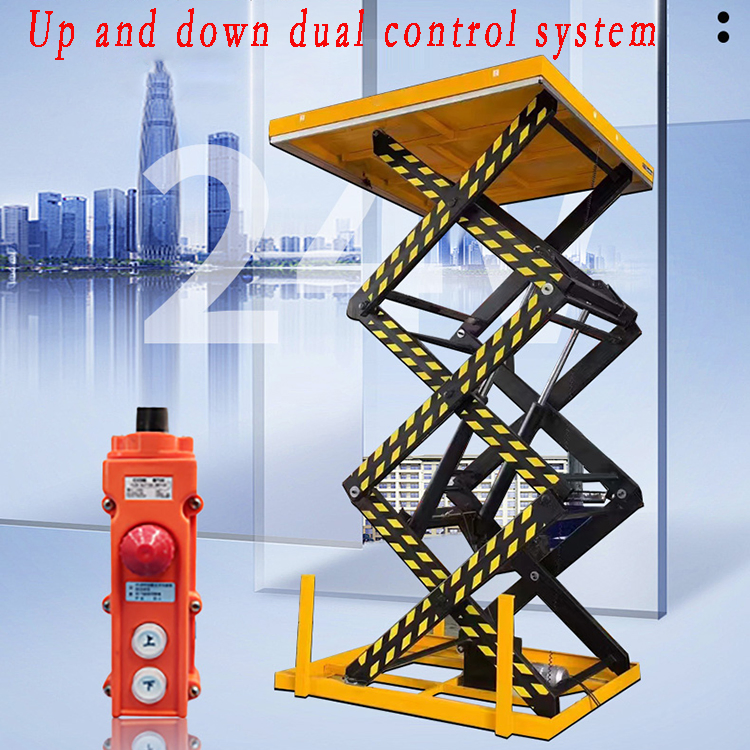

The electric hydraulic drive method is paired with a convenient button style control panel, which is easy to operate and user-friendly. At the same time, it is equipped with safety devices such as overload protection and emergency stop, effectively reducing operational risks. The overall design is compact, occupying small space, and easy to maintain, making it an efficient and safe material lifting solution for industrial automation production and warehousing logistics.

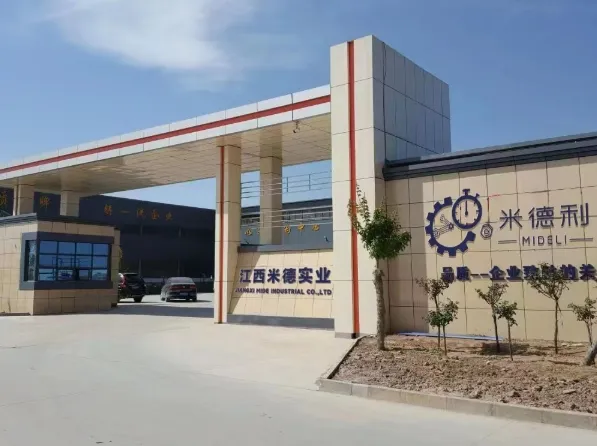

We have been focused on selling crane parts, lifts, hoists for more than 8 years. We are a member of Quality Inspection Association and also the vice-chairman of Heavy Machinery Industry Association and have our own trademark, factory and some partner factories. We have successfully cooperated with customers from all over the world, such as Russia, Argentina. We always believe Quality Forges Brand, Integrity Builds Future. We are looking forward to cooperating and making friends with our customers from all over the world!
