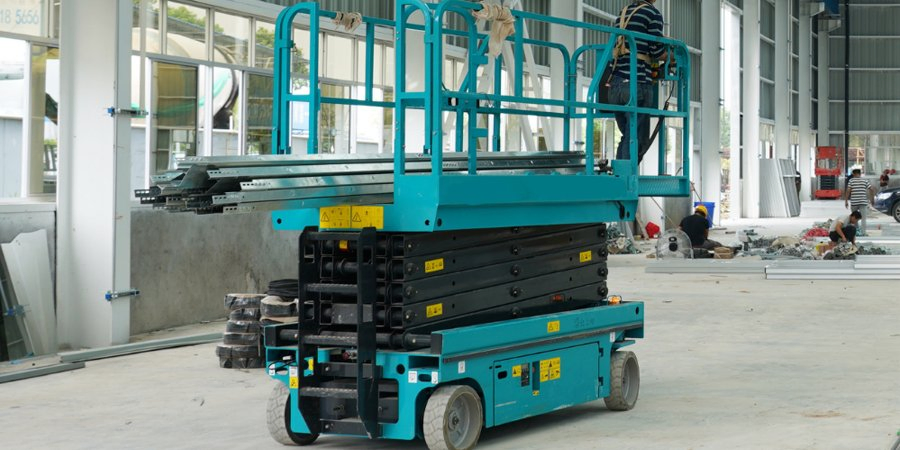

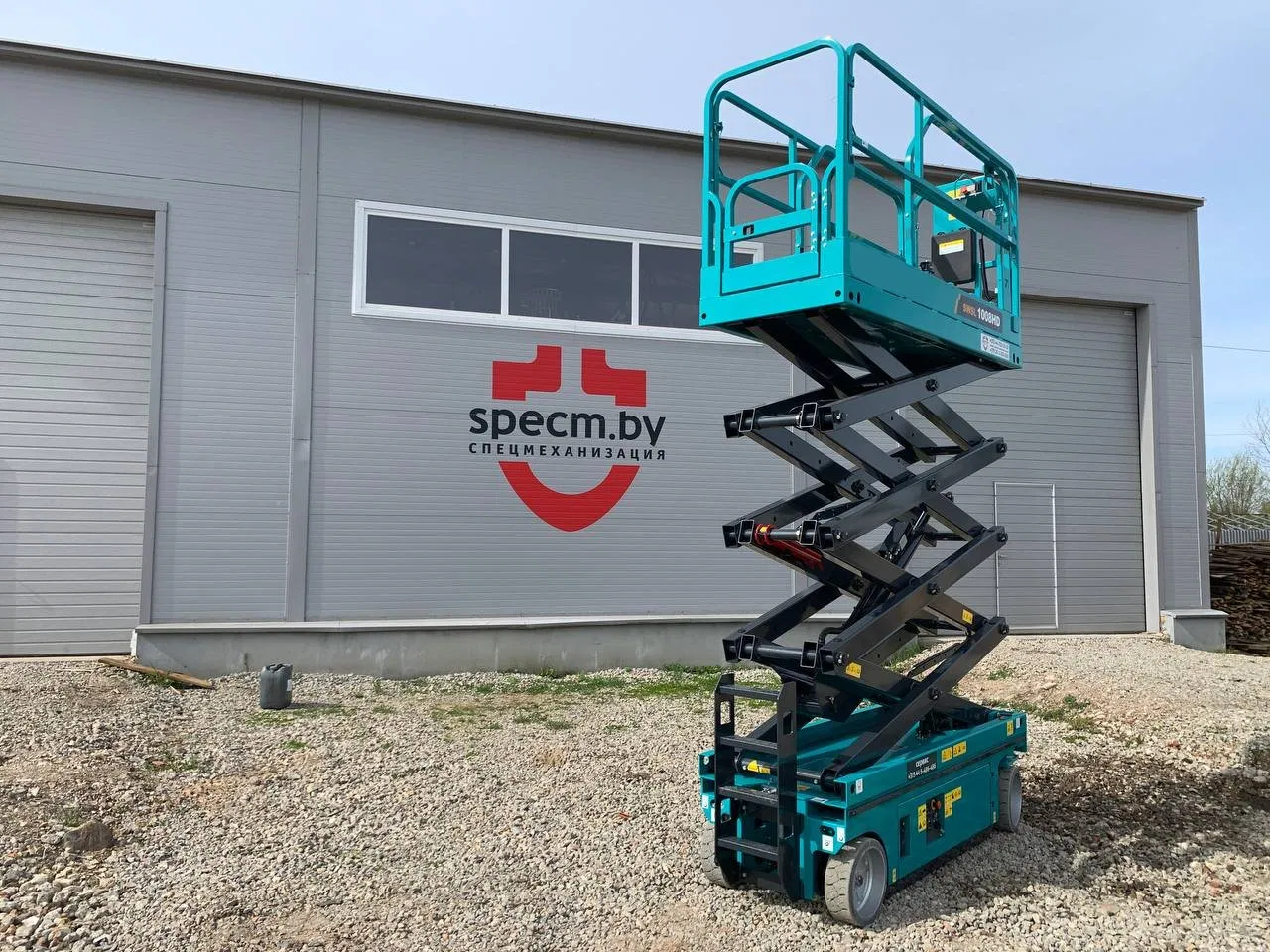

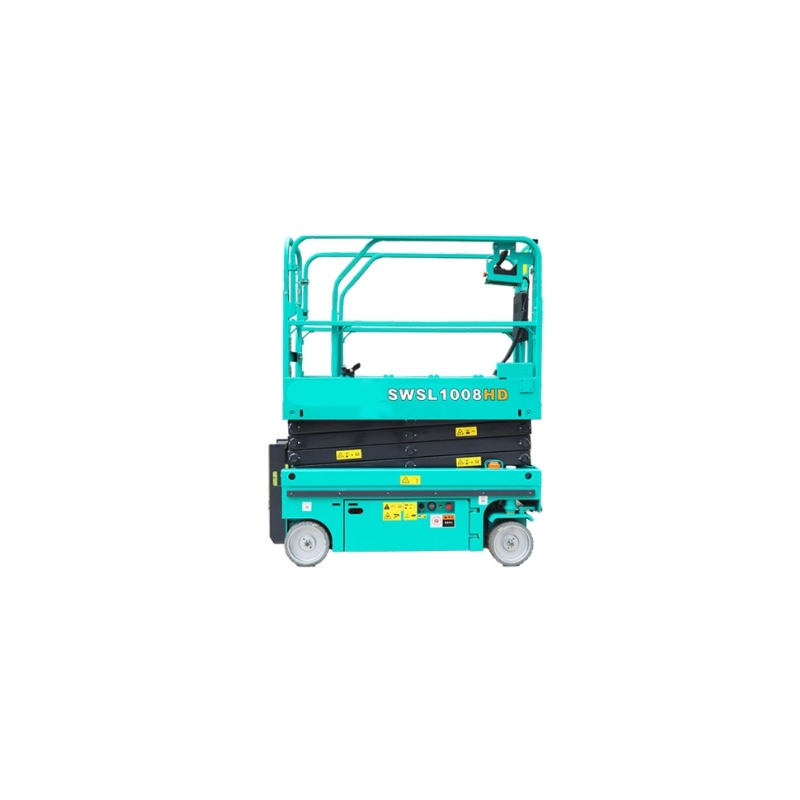

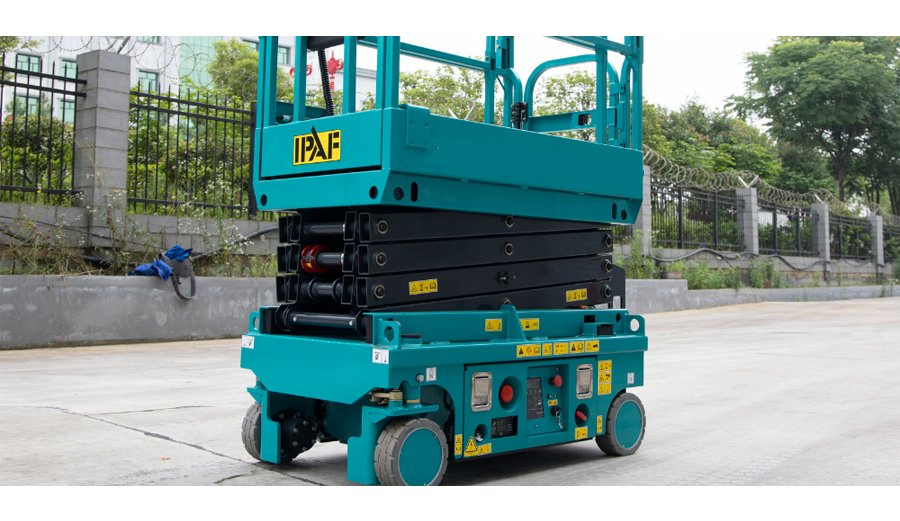

10m Lifting Height Electric Scissor Lifts 10m Aerial Work Platform Swsl1008HD
10m Lifting Height Electric Scissor Lifts 10m Aerial Work Platform Swsl1008HD
10m Lifting Height Electric Scissor Lifts 10m Aerial Work Platform Swsl1008HD
10m Lifting Height Electric Scissor Lifts 10m Aerial Work Platform Swsl1008HD
10m Lifting Height Electric Scissor Lifts 10m Aerial Work Platform Swsl1008HD
1 / 5
10m Lifting Height Electric Scissor Lifts 10m Aerial Work Platform Swsl1008HD
10m Lifting Height Electric Scissor Lifts 10m Aerial Work Platform Swsl1008HD
10m Lifting Height Electric Scissor Lifts 10m Aerial Work Platform Swsl1008HD
10m Lifting Height Electric Scissor Lifts 10m Aerial Work Platform Swsl1008HD
10m Lifting Height Electric Scissor Lifts 10m Aerial Work Platform Swsl1008HD

10m Lifting Height Electric Scissor Lifts 10m Aerial Work Platform Swsl1008HD

Customization: Available
After-sales Service: Provided
Warranty: 1 Year
Send Inquiry

Product Description

i
Basic Information
Model
SWSL1008HD-Li
Application
Workshop, Shipboard, Warehouse, Building Crane
Lift Mechanism
Scissor Lift
Driven Type
DC
Max Operating Height
10m
Rated Load
230kg
Certification
GS, CE, RoHS, ISO 9001
Max Workers
2
✓
Product Description
  • ● Driven by a travel variable-displacement motor; DC motor hydraulic drive system.
  • ● Fitted as standard with maintenance-free battery, zero maintenance throughout its entire life cycle.
  • ● Dual-acting, free-knuckle block steering system with a small turning radius.
  • ● Proportional joystick for precise speed control of lifting and travel.
  • ● Open-style door-row structure for easy maintenance and inspection.
  • ● All structural components are fully electrocoated, offering strong rust and corrosion protection.
📊
Technical Parameters
Maximum working height10m
Maximum platform height8m
Height of retracted platform1.26m
Length of working platform2.27m
Extension dimension of platform0.9m
Width of working platform0.81m
Overall length2.46m
Overall width0.83m
Wheel base1.87m
Rated load230kg
Safe working load (Extended)113kg
Travel speed (Retracted)3.2km/h
Turning radius (Outside)2.1m
Ascending/descending speed32s/40s
📷
Product Gallery
Scissor Lift View 1
Scissor Lift View 2
Scissor Lift View 3
Scissor Lift View 4
Scissor Lift View 5
Scissor Lift View 6
Scissor Lift View 7
Scissor Lift View 8
?
Frequently Asked Questions
What is the maximum working height of the SWSL1008HD-Li?
The maximum working height for this model is 10 meters, with a maximum platform height of 8 meters.
What type of battery does this scissor lift use?
It comes standard with a maintenance-free battery, requiring zero maintenance throughout its entire life cycle.
How many workers can the platform accommodate?
The platform is designed to safely accommodate a maximum of 2 workers simultaneously.
Is the lift protected against outdoor corrosion?
Yes, all structural components are fully electrocoated to provide superior protection against rust and corrosion.
What is the turning radius of this equipment?
It features an inside turning radius of 0m and an outside turning radius of 2.1m, making it highly maneuverable in tight spaces.
Can the platform be extended for more reaching space?
Yes, the platform has an extension dimension of 0.9 meters with a safe working load of 113kg on the extended portion.
