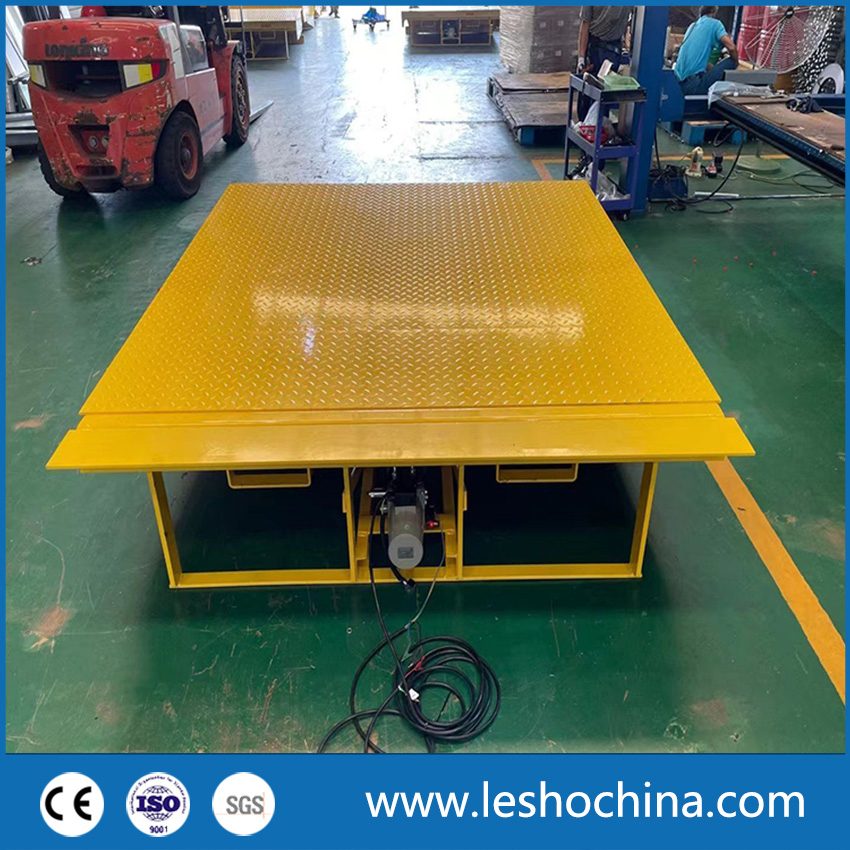

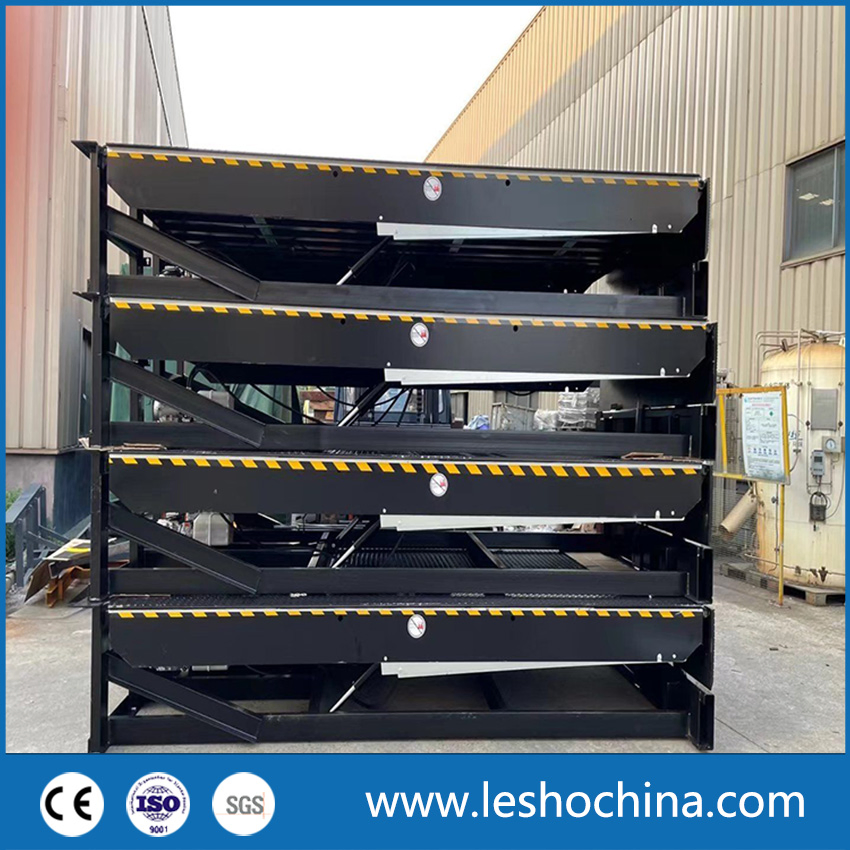

Automatic Stationary Fixed Hydraulic Dock Leveler or Dock Ramp
Application:
The dock leveler is the best solution to adjust the height difference between the loading platform and the container truck. The height can be adjusted arbitrarily, the adjustment range is large, the loading and unloading efficiency is improved, and the manpower is saved.
Widely used for warehouses, stations, docks, warehouse logistics bases, postal transportation, logistics distribution, etc.
Loading Capacity and Type Selection:
| Dynamic load | Panel thickness | Panel reinforcement | Mouth plate | Base frame | Static load | Forklift range |
|---|---|---|---|---|---|---|
| 5 tons | 6mm | 4mmL steel | 12mm | 60 channel steel | 8 tons | 2.5 tons plug-in |
| 8 tons | 8mm | 4mmL steel | 16mm | 100 channel steel | 11 tons | 3.5 tons plug-in |
| 10 tons | 8mm | 14 # I-beam | 16mm | 100 channel steel | 13 tons | 5 tons plug-in |
| 14 tons | 10mm | 16# I-beam | 16mm | 100 channel steel | 17 tons | 6 tons plug-in |

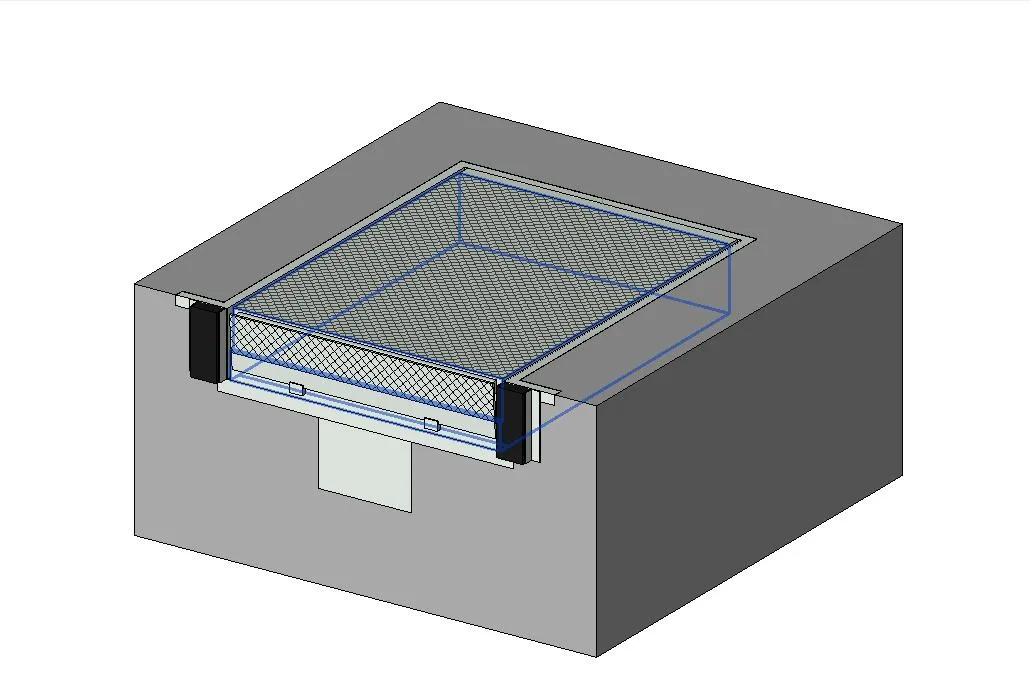

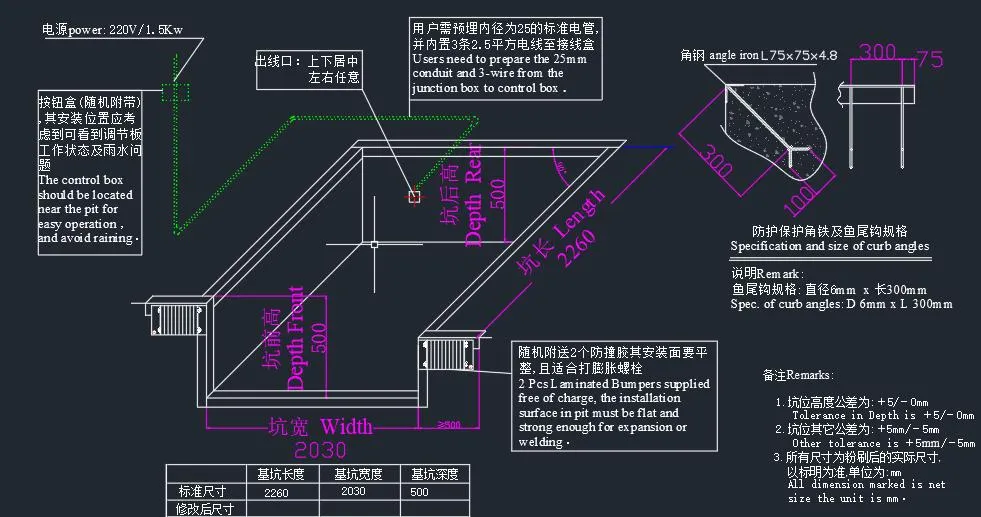

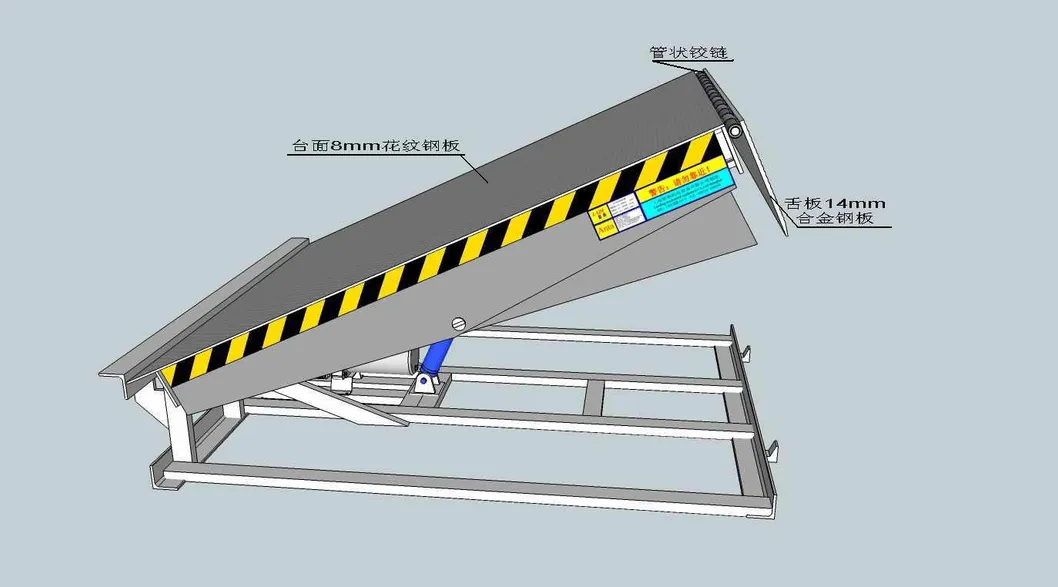

CAD Drawing & Dimensions:
Accurate shop drawings show the pit dimension clearly, ensuring accurate construction.
Most widely used Standard sizes:

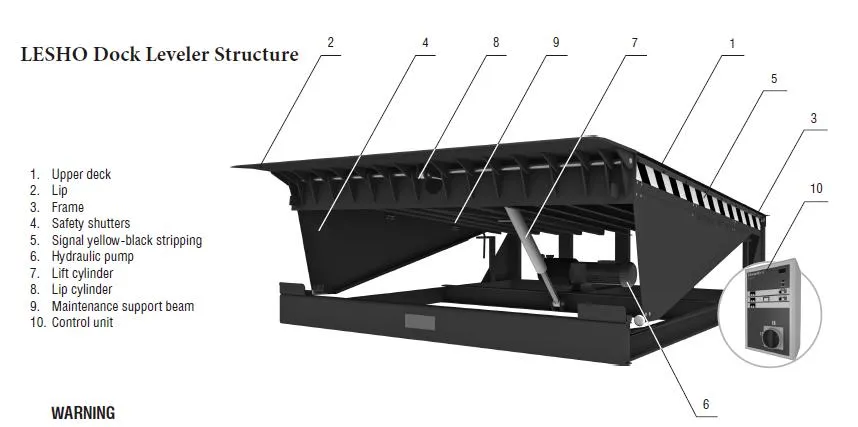

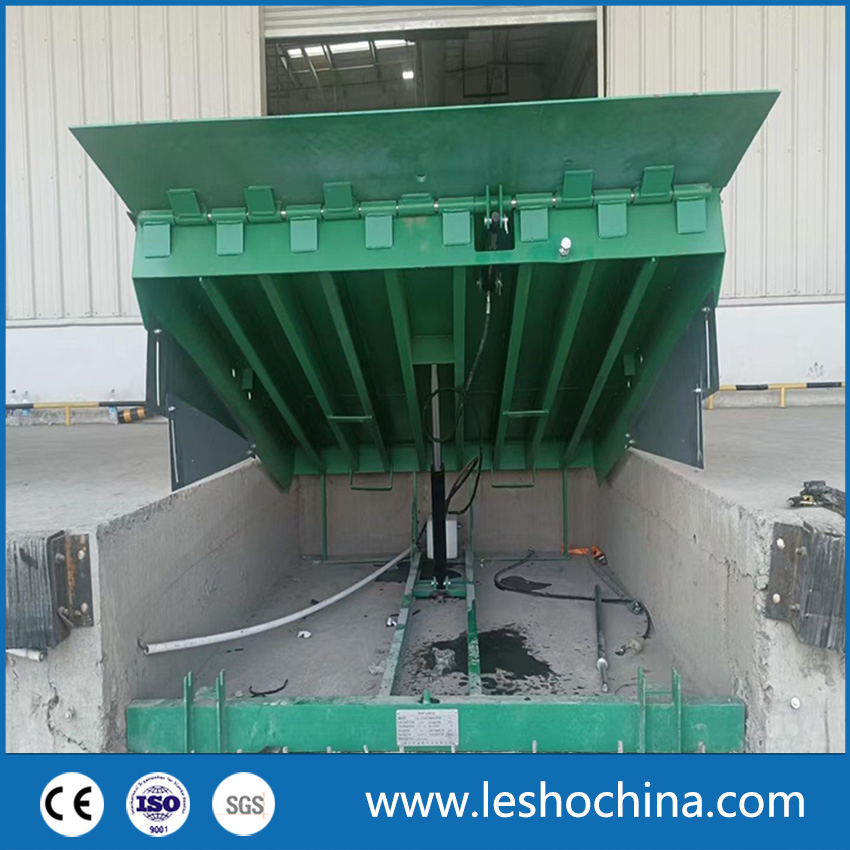

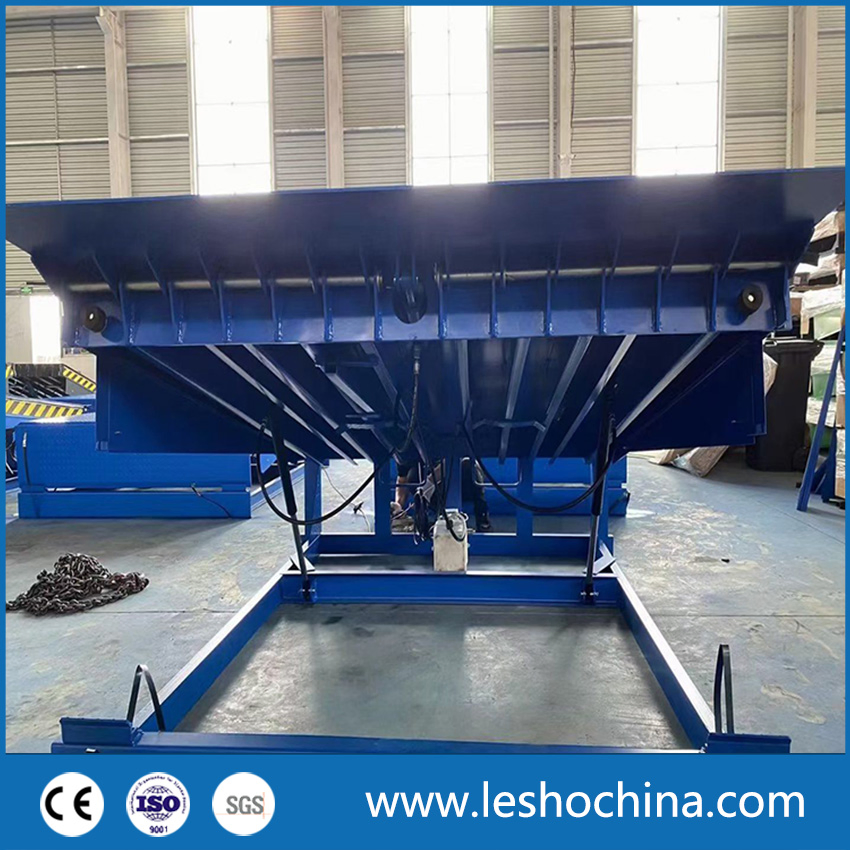

Main Platform Features:

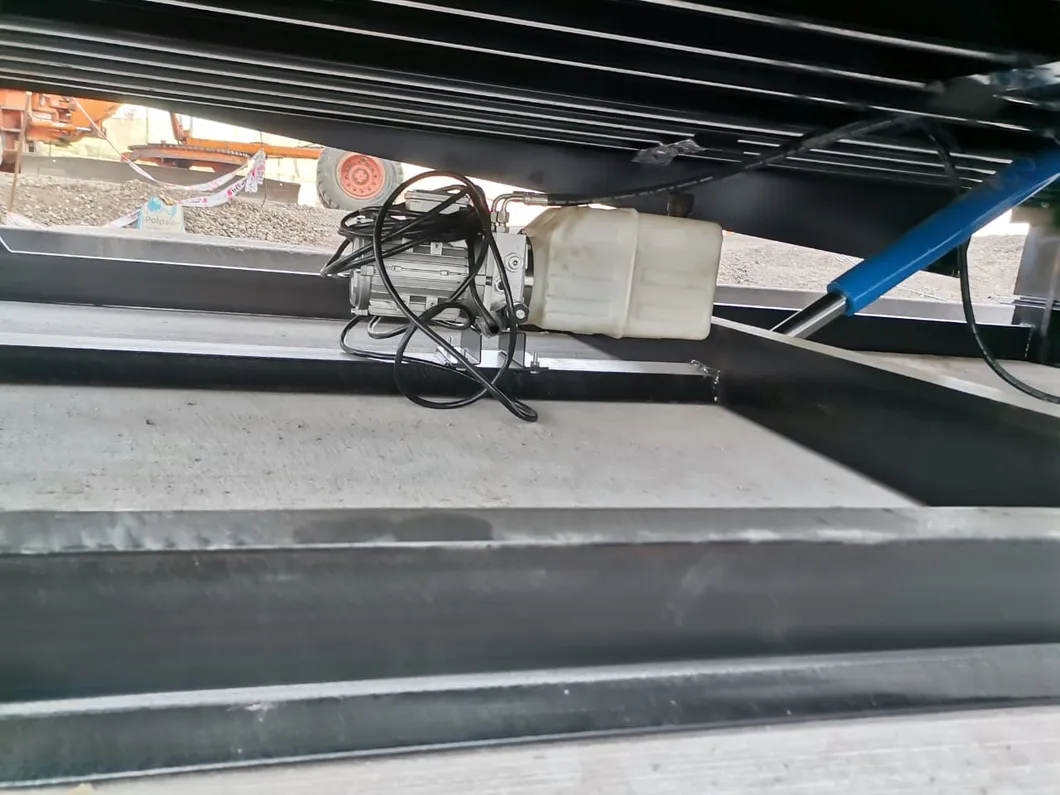

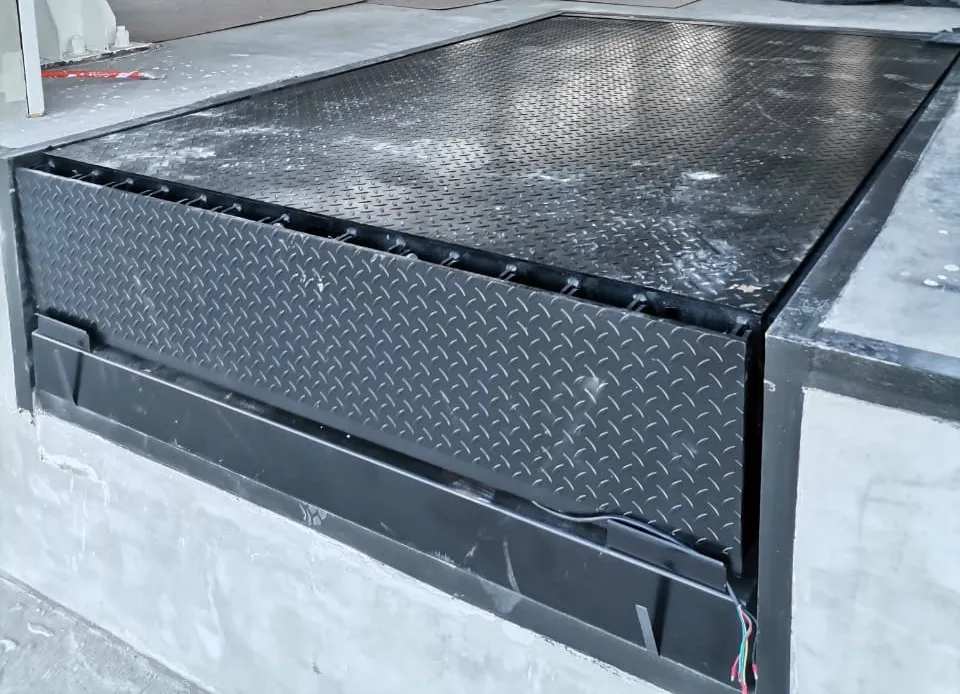

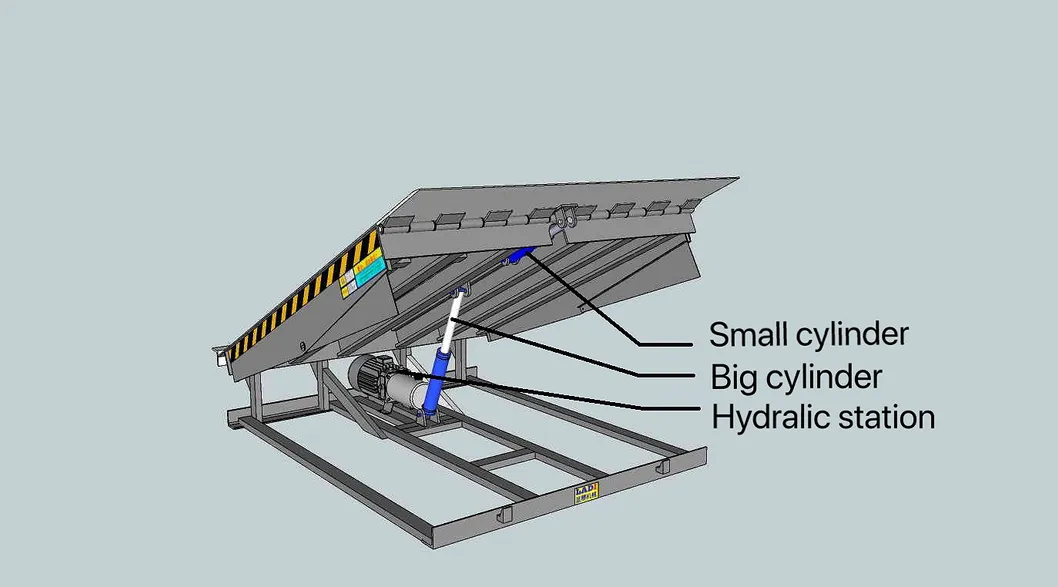

Top Lip & Hydraulic Motor:

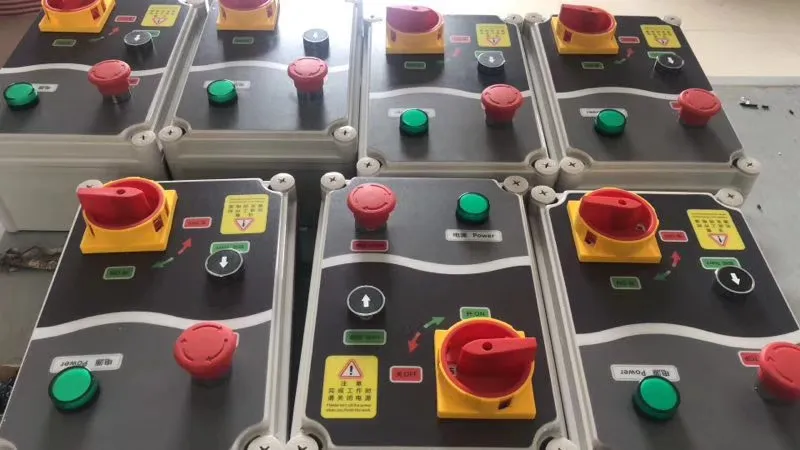

Control Panel & Safety:
Multiple-function controller includes Operation buttons, Power-switch, and Emergency stop for worker protection.

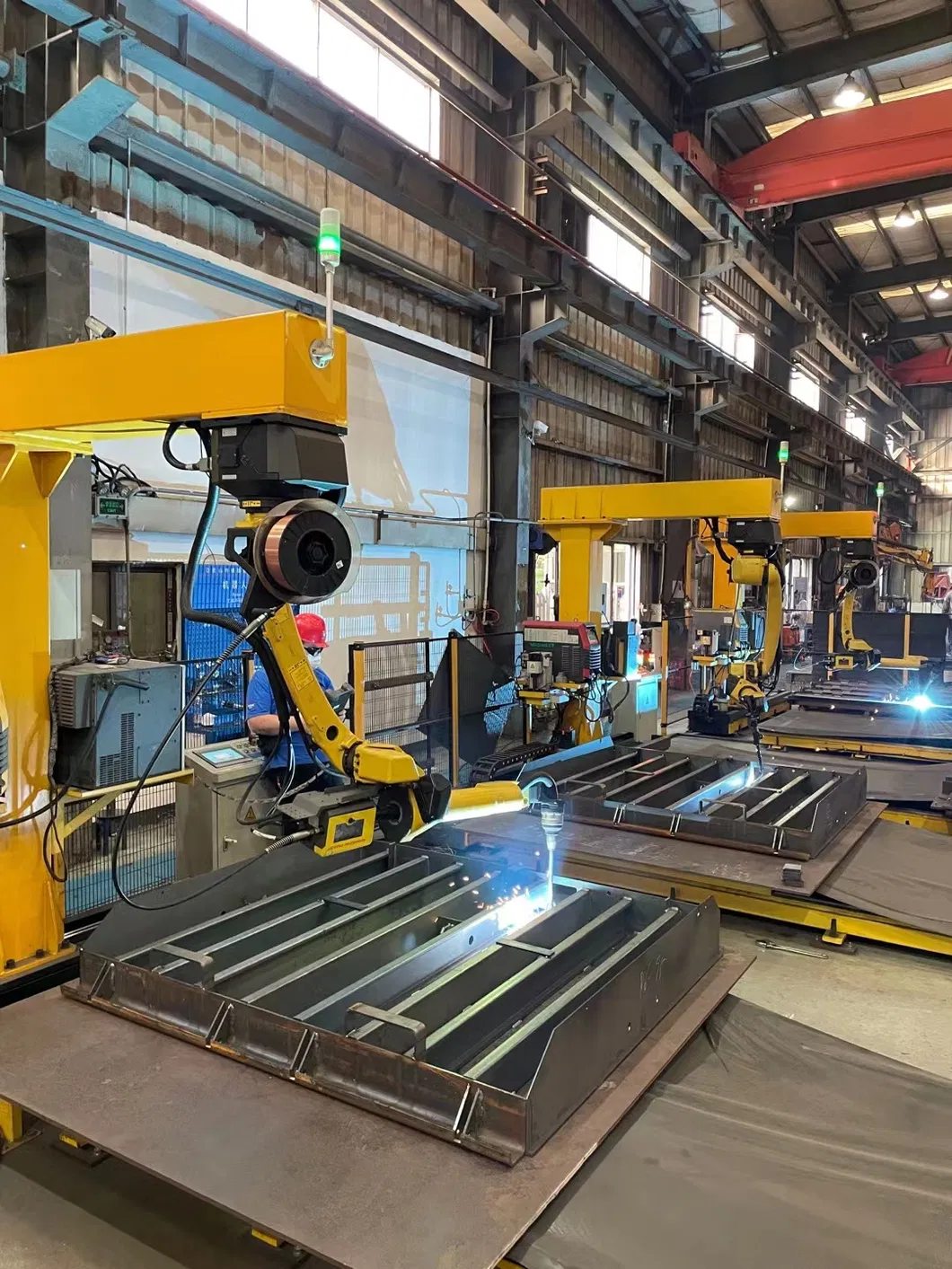

Welding Precision:

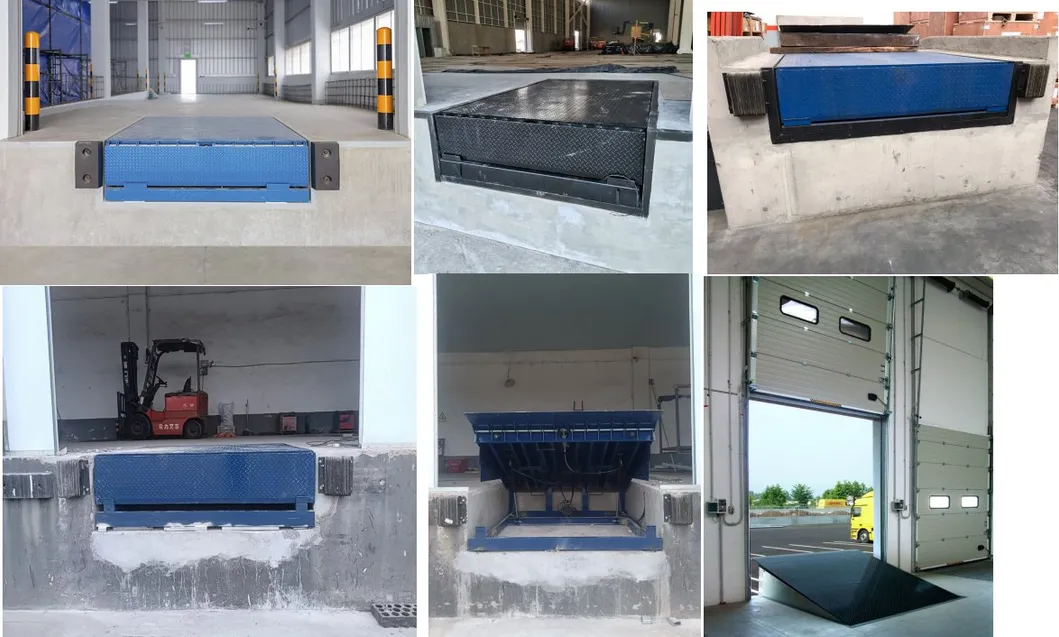

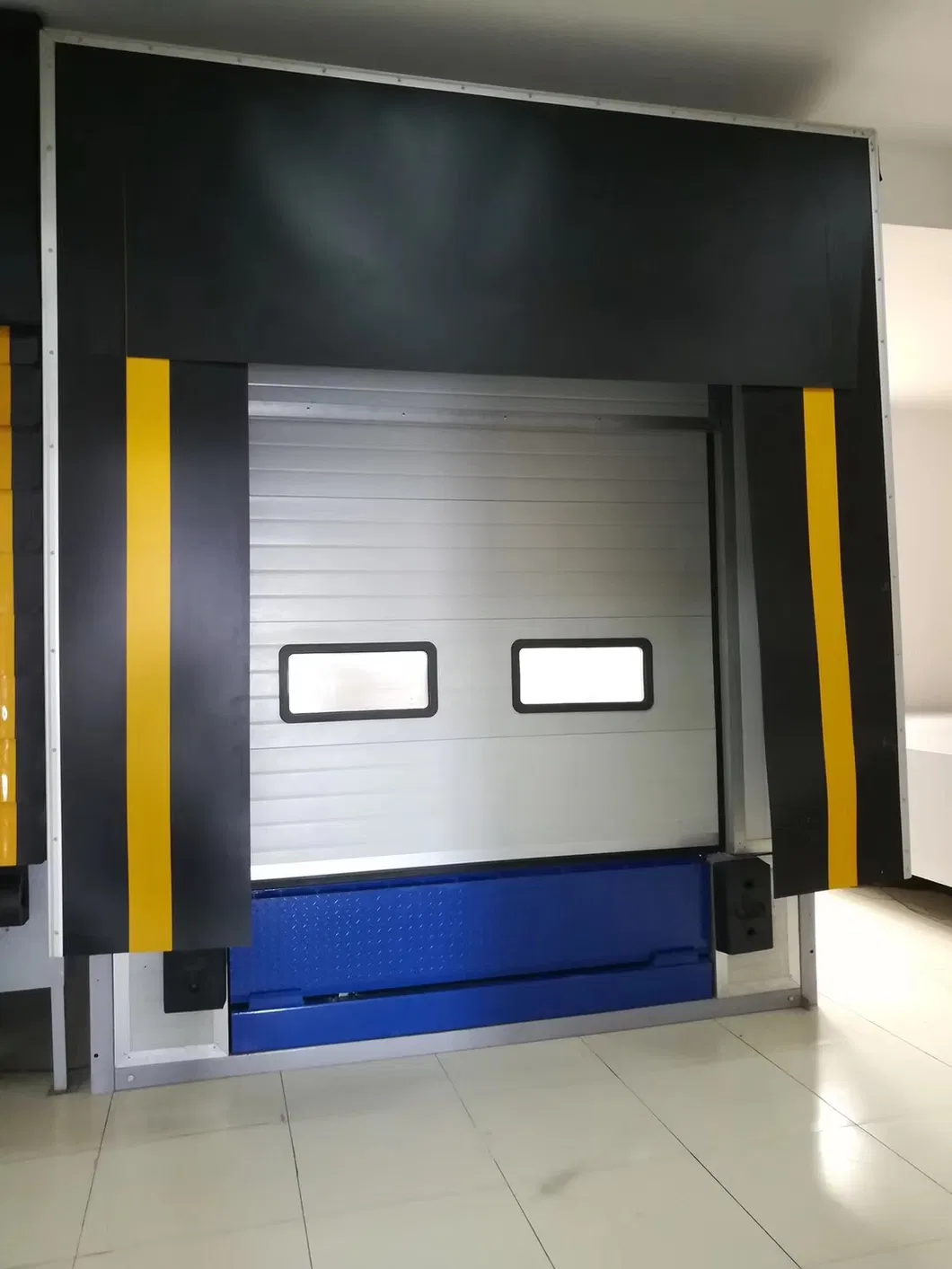

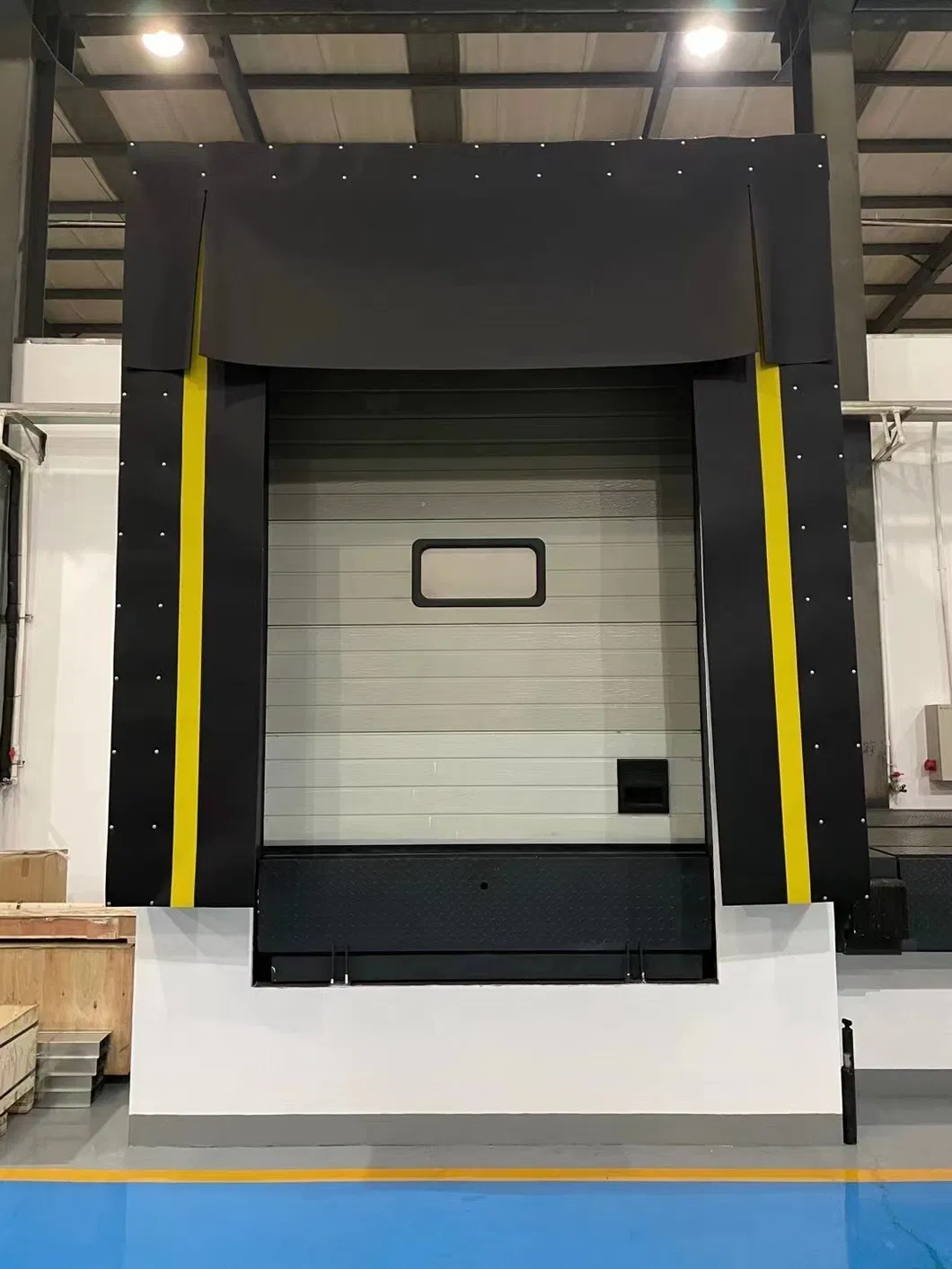

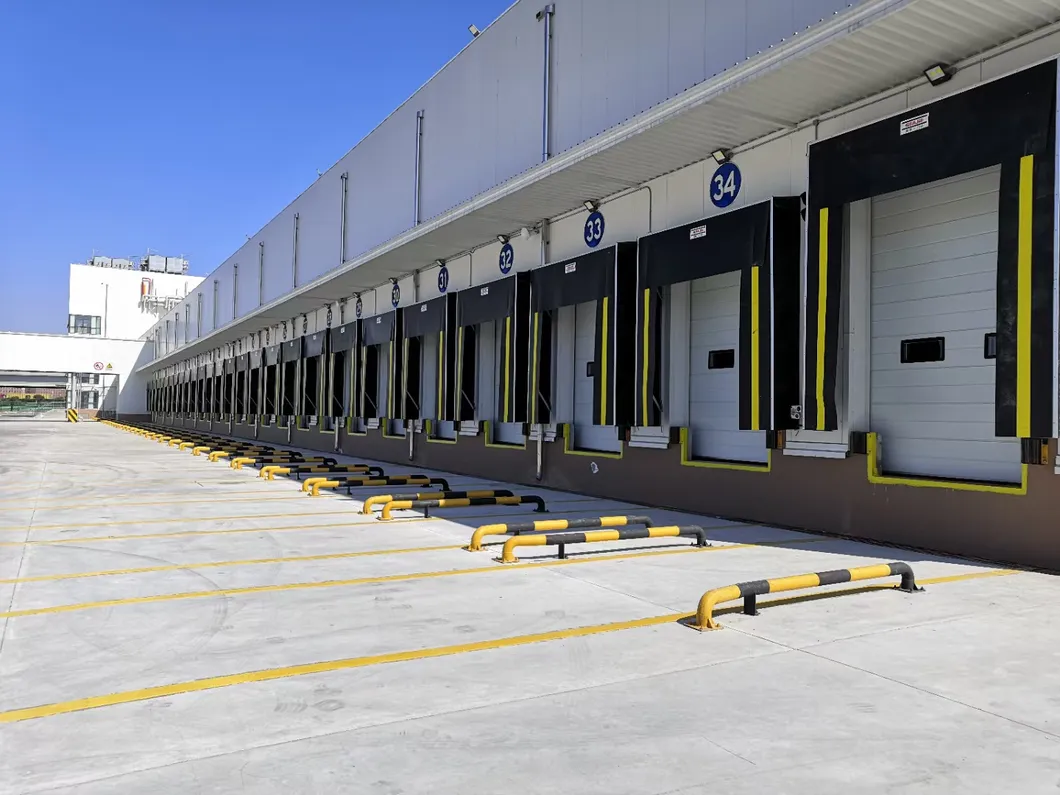

Complete Loading Bay Solution:
We supply whole set solutions including Dock Leveler, Sectional Door, and Dock Shelter.

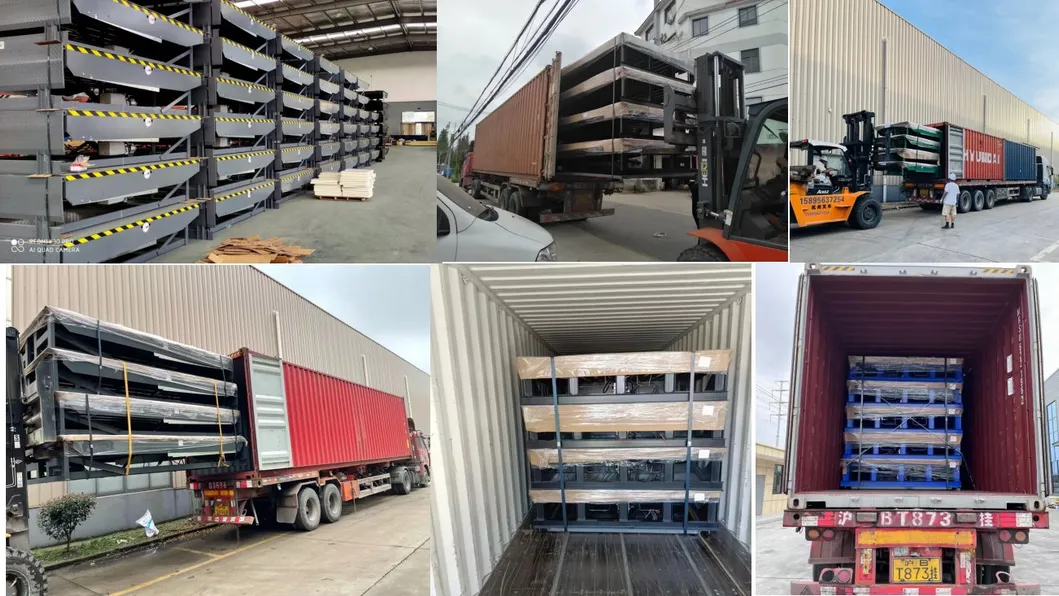

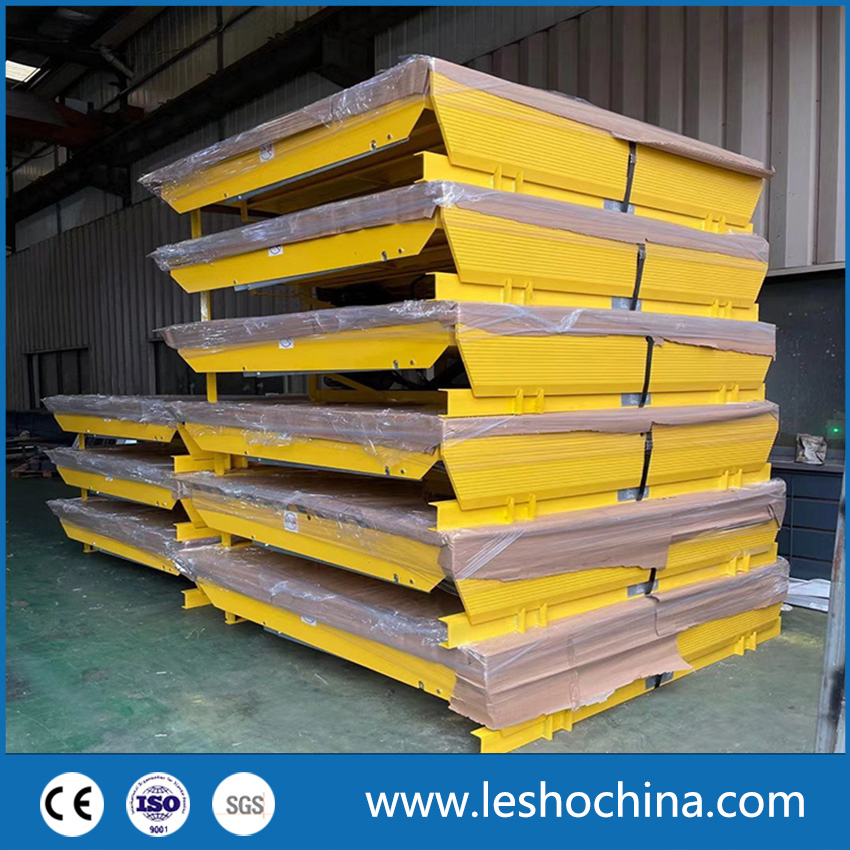

Packing and Loading:
Standard size: L2000*W2000*H600 mm. One 40ft HQ container can load 20 sets; One 20ft container can load 8 sets.
