Product Description

Basic Information

Model NO.

YLQB Lift Work Platform

Application

Workshop Crane

Lift Mechanism

Articulated Lift

Carrying Capacity

Weight Level

Moves

Moving

Driven Type

Hydraulic

Running Mode

Moving

Feature

Explosion-Proof

Certification

Working Height

9.5m

Platform Size

850*650 mm

Load

160-200kg

Hot Sales

Product Description

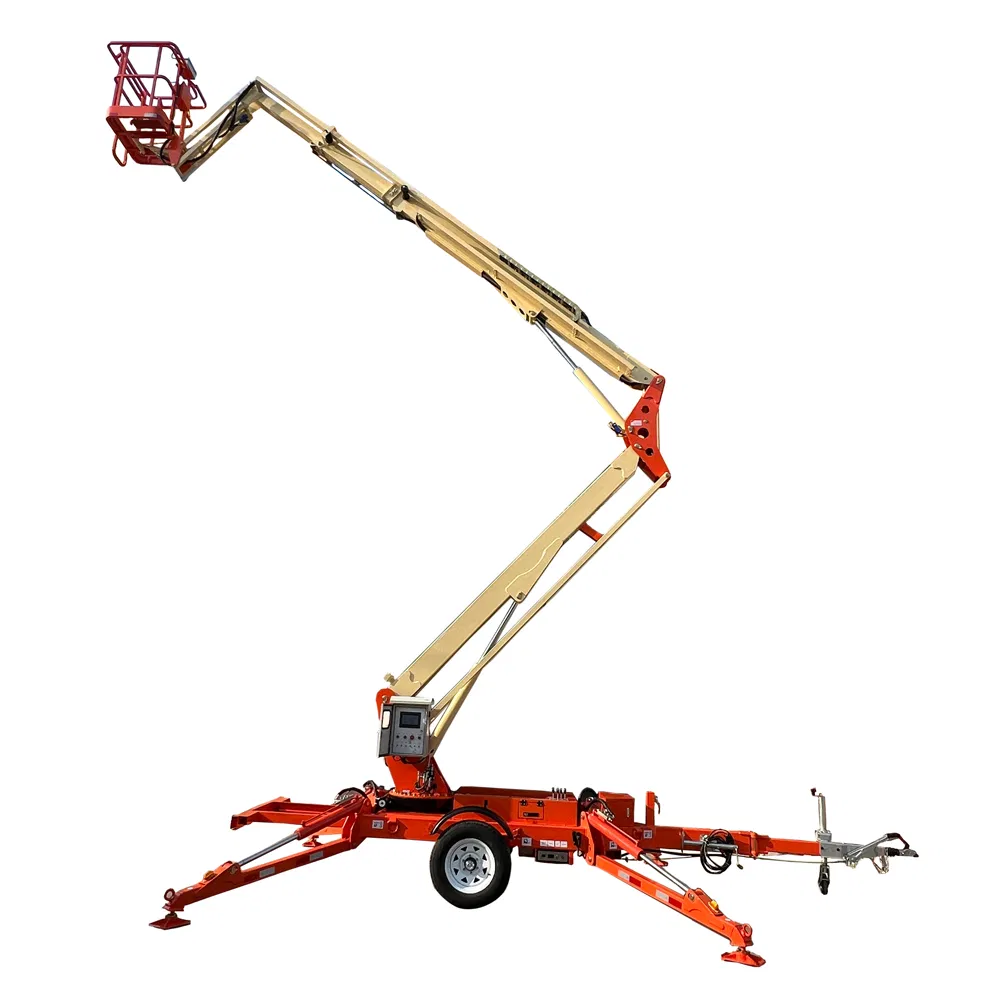

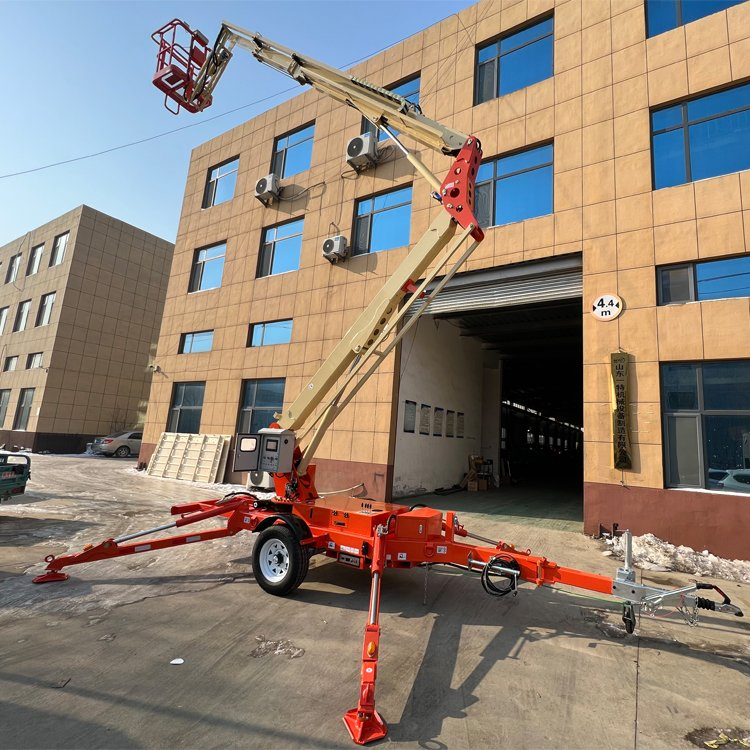

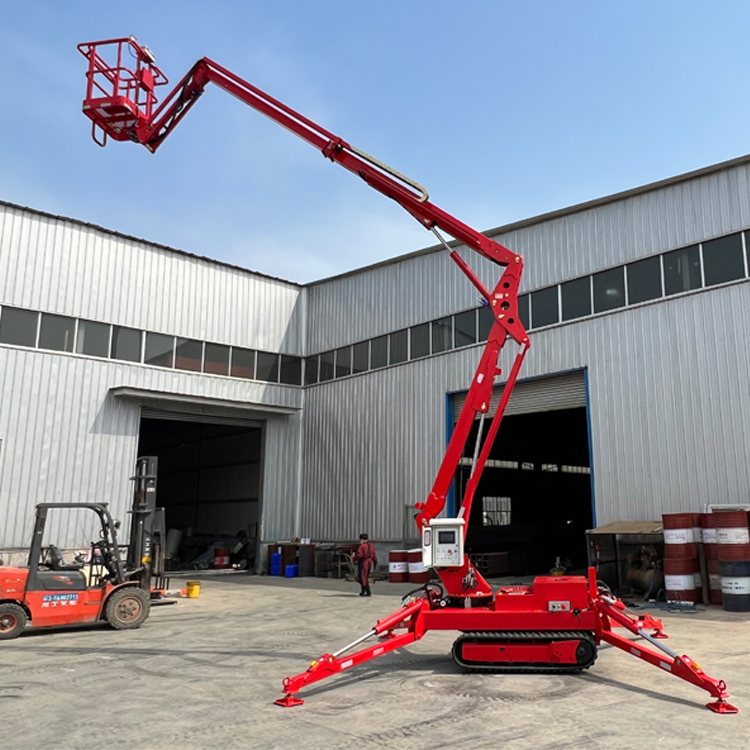

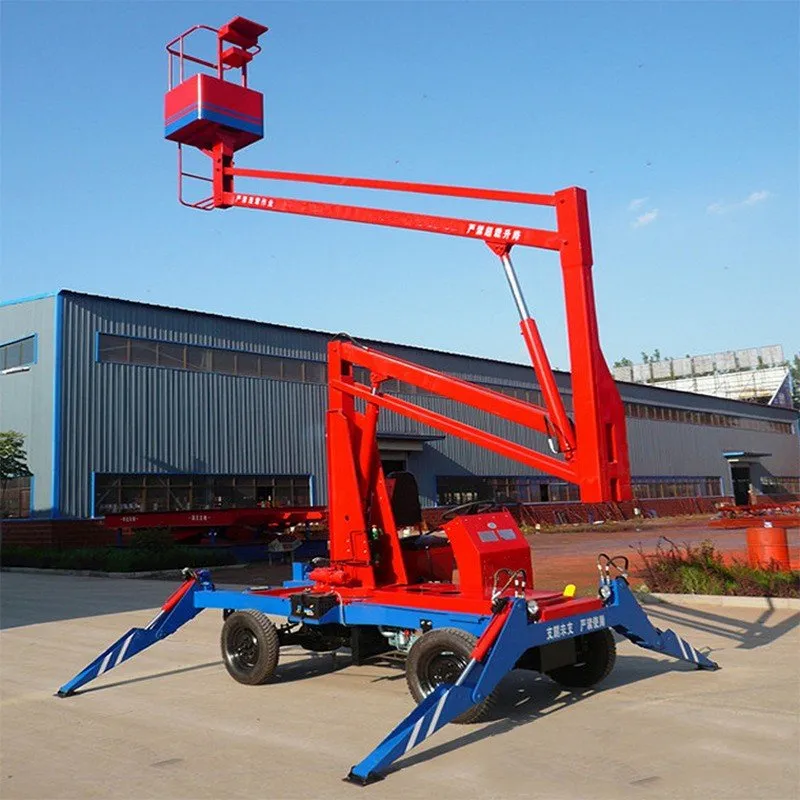

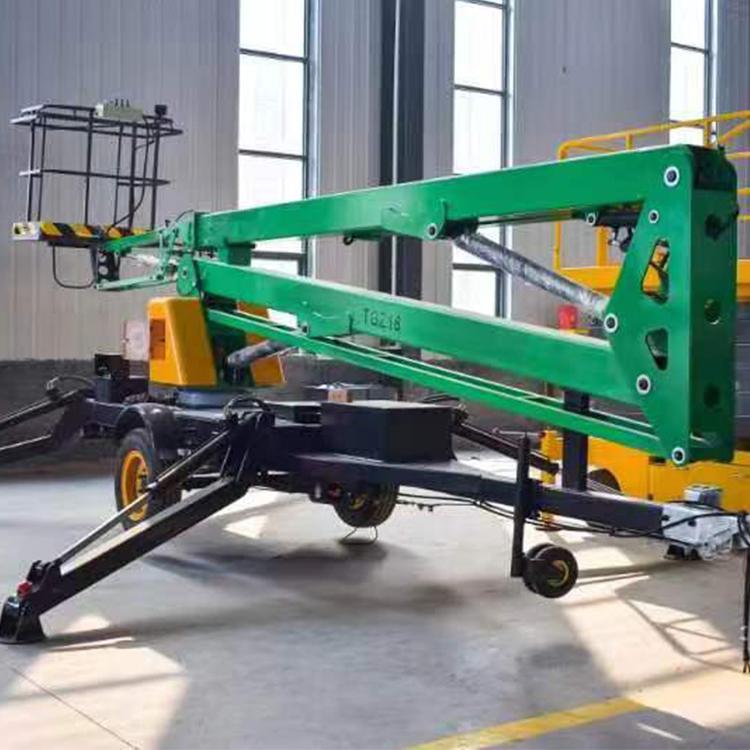

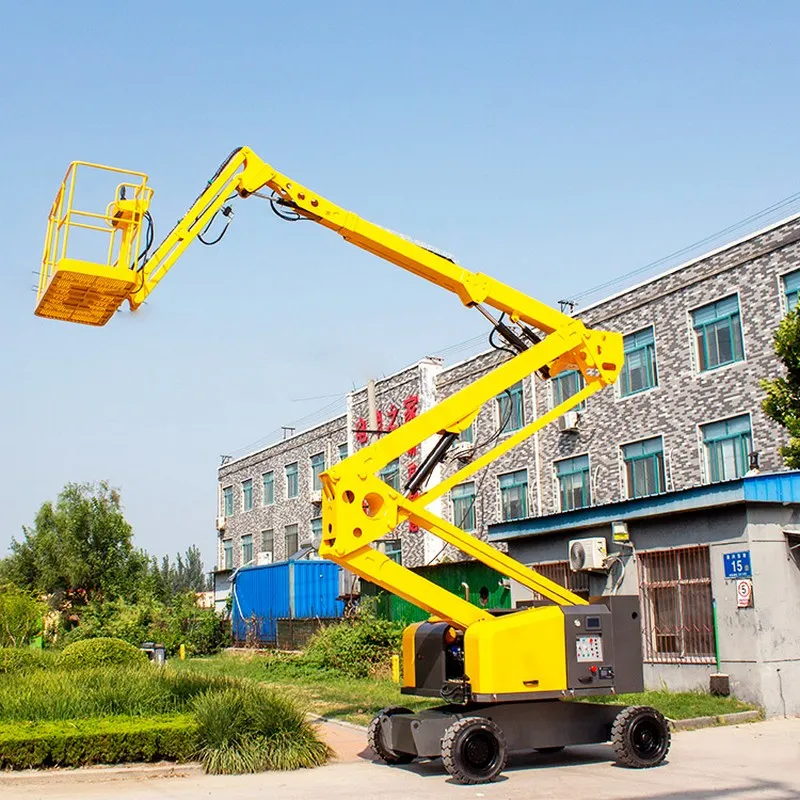

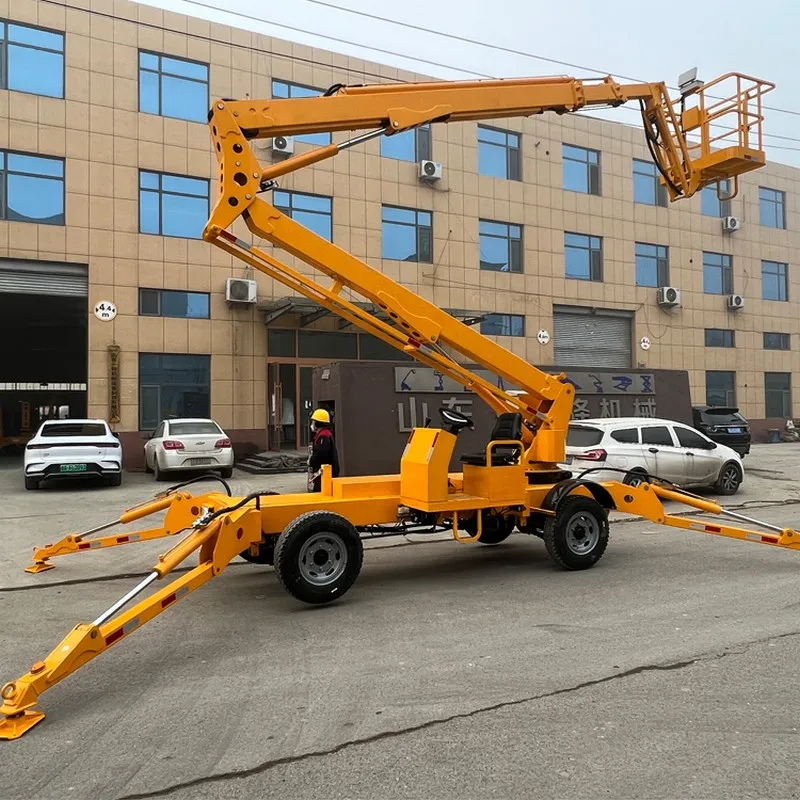

Introduction of Construction Industry Electric Battery Scaffold Hydraulic Crank-Arm Lifting Table Truck Mounted Articulated Boom Lift Work Platform

The crank-arm lifting platform can be divided into straight arm and crank arm according to the way of arm deployment. It is widely used in factories, automatic warehouses, exhibition halls, wharves, construction, decoration, logistics, power, transportation, petroleum, chemical, hotels, gymnasiums, and other high-altitude operations and maintenance. It can be designed and manufactured according to individual requirements.

Key Features

★

The turntable rotates 360 degrees.

★

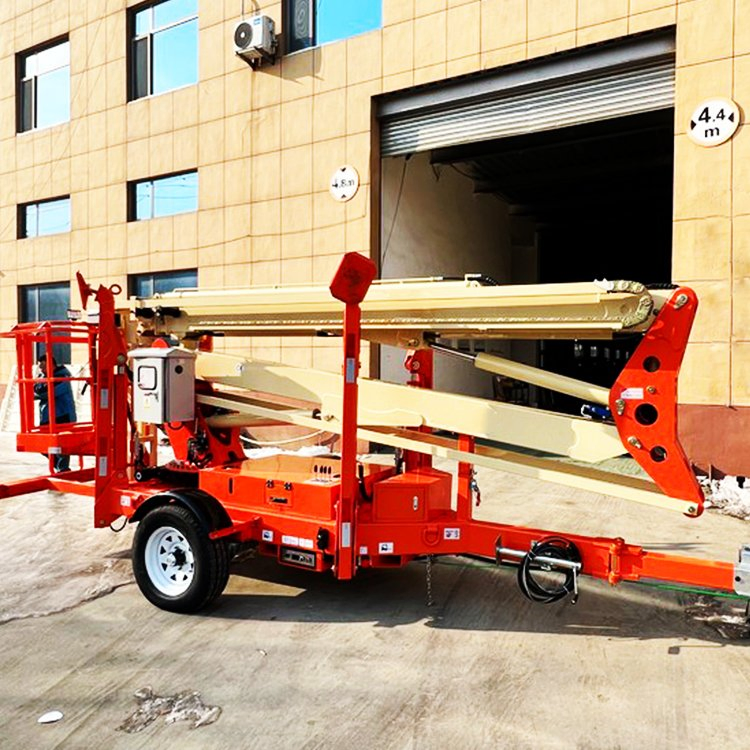

Storage height 2 meters, easy to pass through the doorway.

★

Easily works in crowded sites.

★

Loading limited safety protection.

★

Two people work with tools at the same time.

★

Control of all actions with single handle.

★

Fast lifting speed, zero tail swing, suitable for small space places.

★

Durable, reliable and easy to maintain.

Product Parameters

Model	Working Height	Platform Size	Dimensions	Max Working Radius	Load	Total Weight
YLQB-8	9.5m	850*650 mm	410017002700	2.5m	160-200kg	1600kg
YLQB-10.5	12m	850*650 mm	410017002700	2.5m	160-200kg	1600kg
YLQB-12	13.5m	850*650 mm	410017003050	3.8m	160-200kg	1700kg
YLQB-12.5	14m	850*650 mm	410017003050	3.8m	160-200kg	1700kg
YLQB-13	14.5m	850*650 mm	410017003250	4m	160-200kg	1800kg
YLQB-13.5	15m	850*650 mm	410017003250	4m	160-200kg	1800kg
YLQB-14	16m	850*650 mm	410017003250	4.2m	160-200kg	1900kg

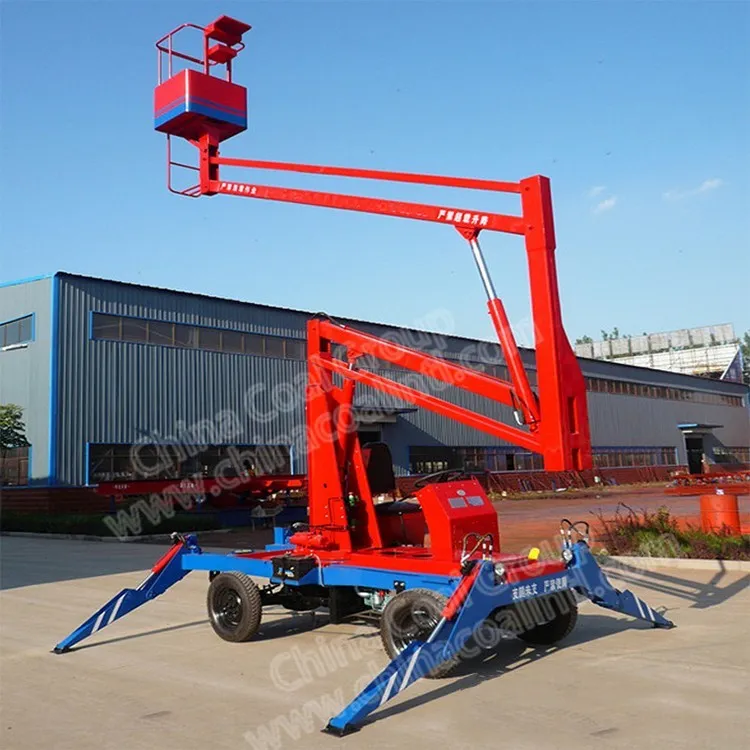

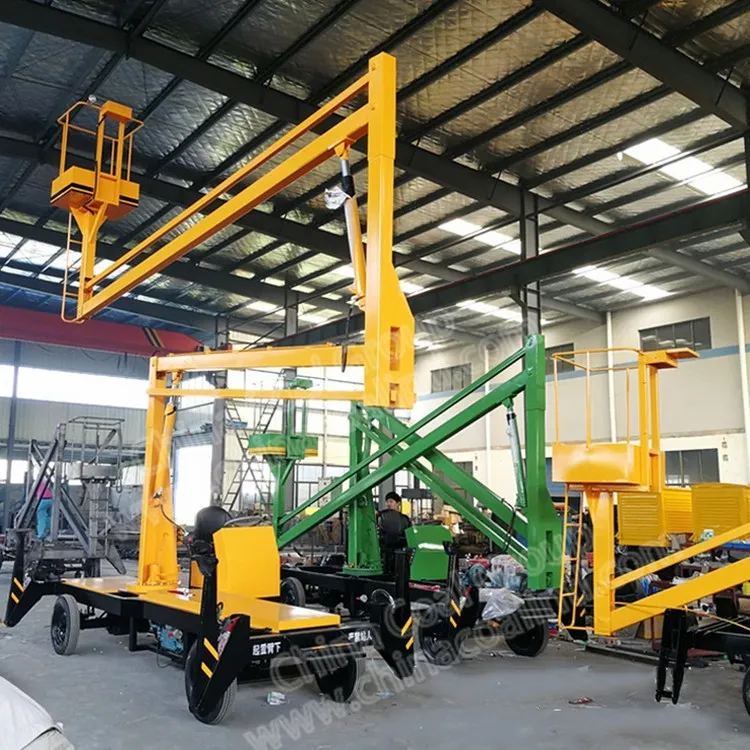

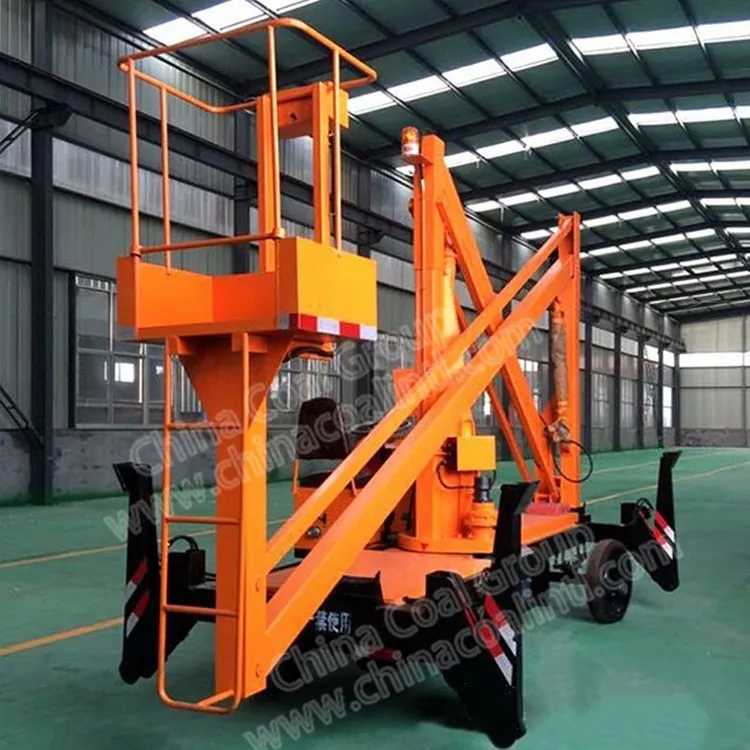

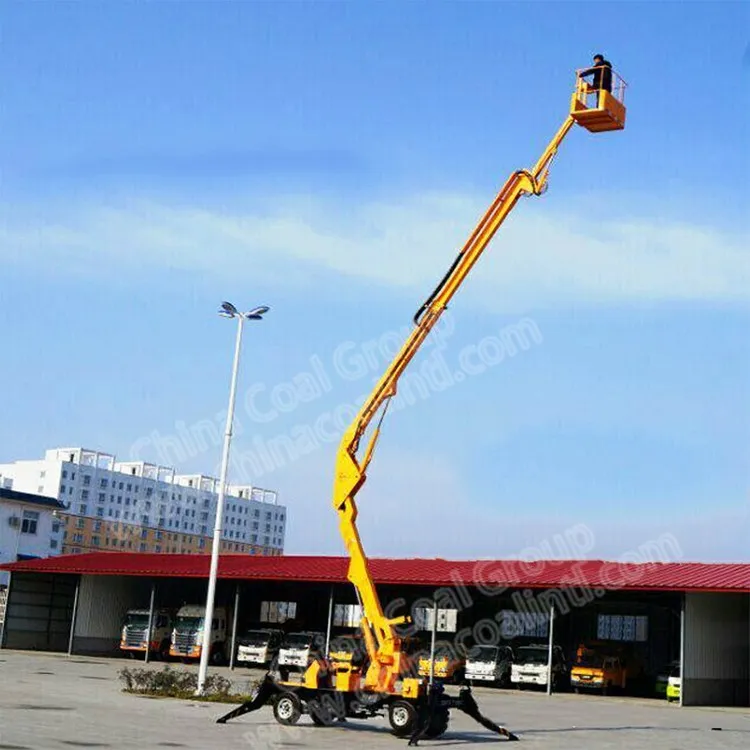

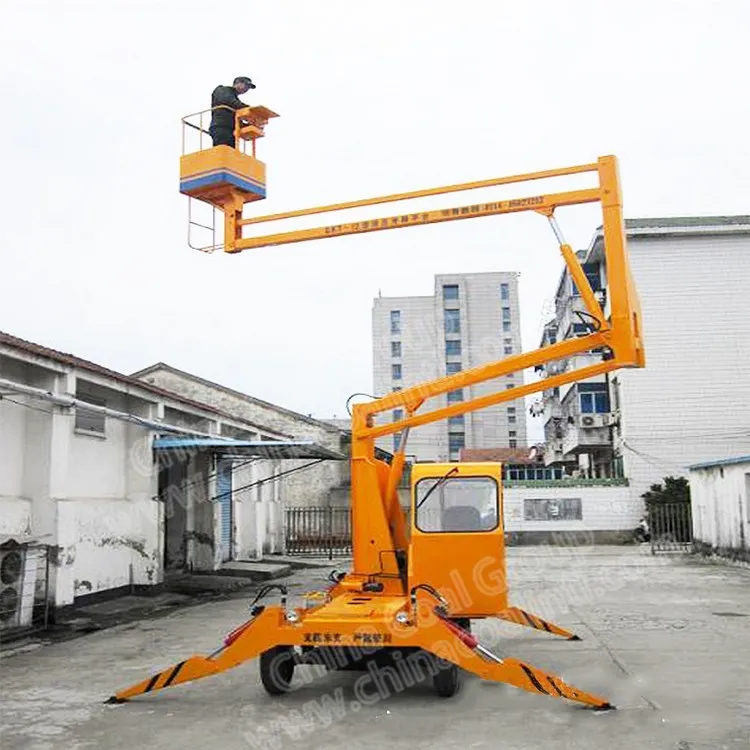

Detailed Photos

Certifications & Global Presence

Customer Visits

Exhibition

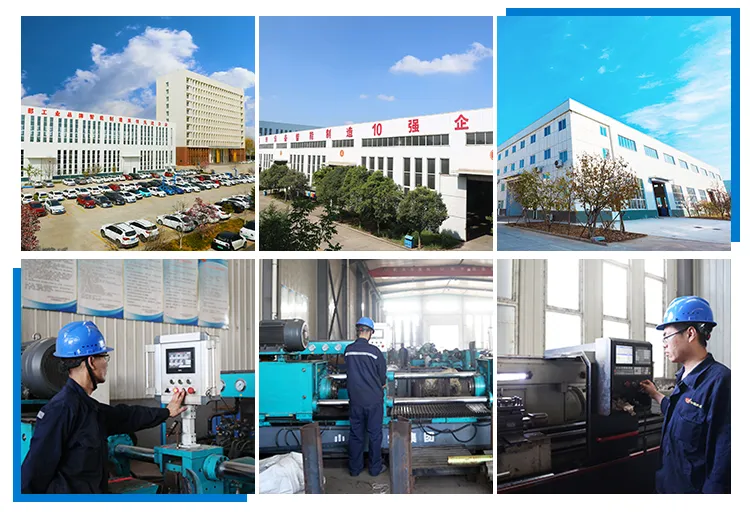

Production Capacity

Frequently Asked Questions

What is the maximum working height available for this series?

The YLQB series offers various models with working heights ranging from 9.5 meters up to a maximum of 16 meters.

What is the load capacity of the articulated boom lift?

The equipment is designed to carry a load between 160kg to 200kg, which safely accommodates two workers with their tools.

Can the platform operate in narrow indoor spaces?

Yes, the platform features zero tail swing and a compact storage height of 2 meters, making it ideal for passing through standard doors and working in crowded sites.

Does the turntable support full rotation?

Yes, the turntable is designed to rotate a full 360 degrees for maximum operational flexibility.

What type of drive system does the lift use?

The lift uses a reliable hydraulic driven system, ensuring smooth operation and fast lifting speeds.

Is the platform easy to control?

Absolutely. All actions are controlled via a single handle, allowing for precise and intuitive movement during high-altitude tasks.
