Hydraulic Car Parking Heavy Duty Lifting Platform with CE Eac

Customization:	Available
After-sales Service:	12 Months
Warranty:	1 Year, 5 Years Structure and 1 Year Part

Send Inquiry

Product Description

Basic Information

Model NO.

FP-VRC

Type

Hydraulic Parking Lift

Lifting Capacity

2,000-10,000 Kg

Driving Type

Hydraulic

Certification

CE, ISO, CCC

Lift Mode

Hydraulic Cylinder

Power Supply

380V 60Hz 3p

Finish

Spray Paint

Production Time

28 Days

Working Mode

Quasi Unmanned

Key Features

⚙️ Precision System

High precision hydraulic driven system for smooth operation.

🛡️ High Safety

Equipped with high strength double chains and mechanical anti-falling locks.

🎮 Easy Control

Simple operation with low failure rate and adjustable screw rods for balance.

🚀 High Efficiency

High-capacity pump tank ensures impressive lifting speeds.

🎨 Customizable

Platform size, capacity, and color can be customized to requirements.

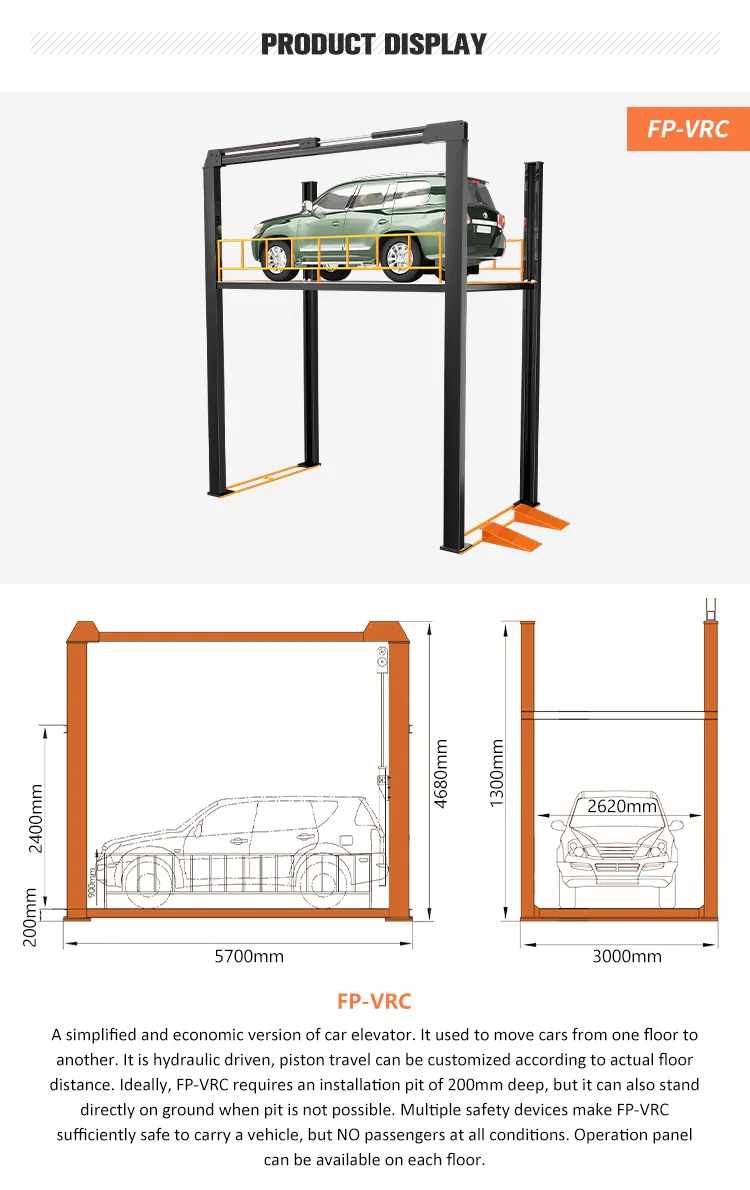

Technical Specifications

Model	S-VRC
Lifting capacity	2,000-10,000 kg (customized)
Lifting height	3,000-15,000 mm (customized)
Platform width	2000mm-6000mm (customized)
Platform length	2000mm-5000mm (customized)
Platform material	Diamond steel sheet / Optional Aluminum

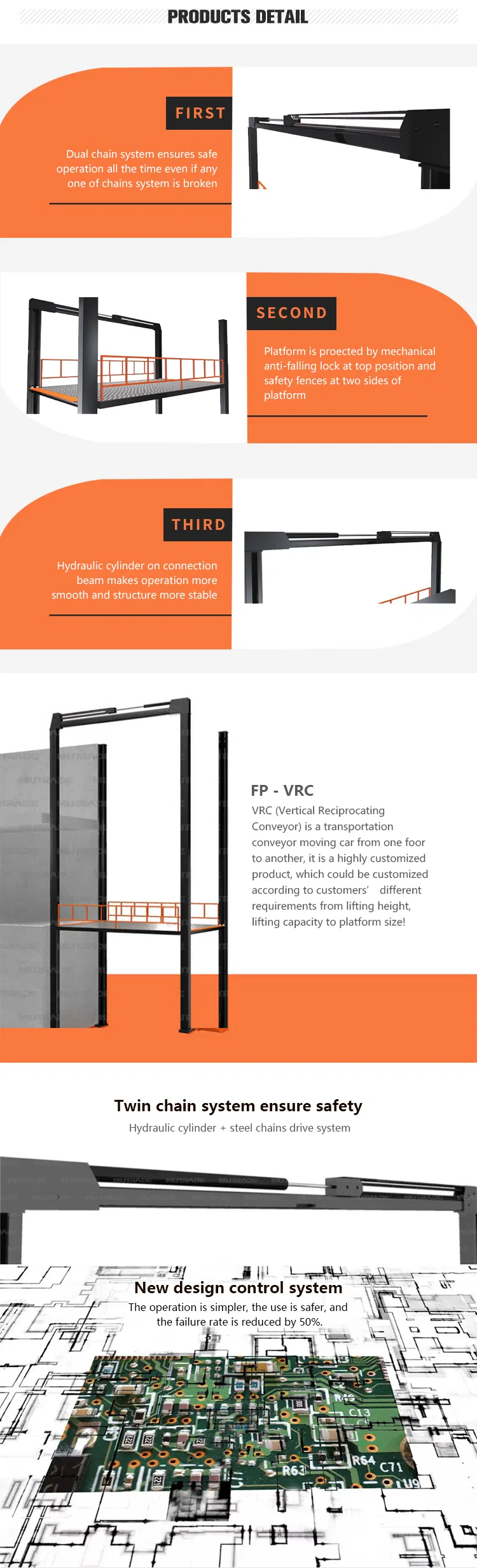

Drive mode	Hydraulic (cylinder with double steel chains)
Operation	Button switch / Optional remote controller
Power pack	4 kw hydraulic power pump
Lifting speed	4m/min
Safety devices	Mechanical anti-falling lock

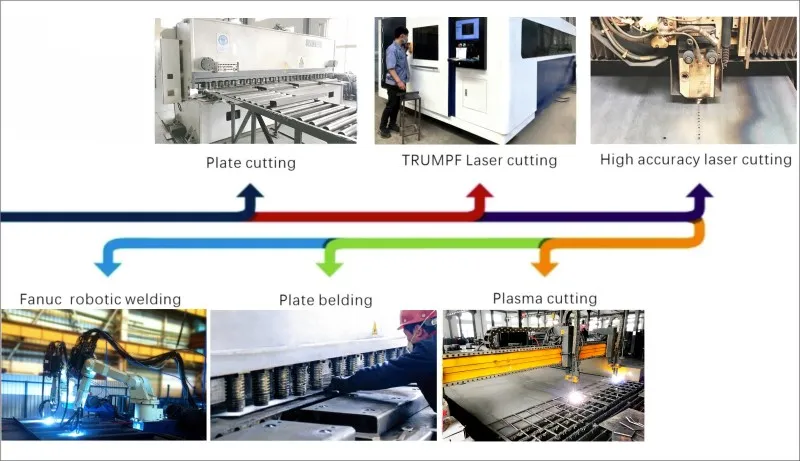

Production & Quality

Frequently Asked Questions

What is the maximum weight capacity of the FP-VRC?

The standard capacity ranges from 2,000kg to 10,000kg, and it can be customized based on your specific heavy-duty requirements.

Can the platform dimensions be adjusted for large vehicles?

Yes, the platform length and width are customizable, with standard widths up to 6000mm and lengths up to 5000mm or more upon request.

What safety mechanisms are included in the design?

Safety is our priority. The lift includes a high-strength double chain system, mechanical anti-falling locks, and an adjustable screw rod system to ensure the platform remains perfectly balanced.

How long does it take to produce and deliver the lift?

The standard production time is approximately 28 days. Shipping time depends on the final destination and port requirements.

Is the lifting platform suitable for outdoor installation?

The equipment features a spray paint finish. For outdoor use, we recommend specific treatments or covers to protect the hydraulic power pack and electrical components from the elements.

What power supply is required for operation?

The system typically requires a 380V, 3-phase power supply, though specific voltage configurations can often be adjusted to meet local standards.
