📑 Basic Information
Application
Workshop, Shipboard, Warehouse, Building
Lift Mechanism
Scissor Lift
Feature
Explosion-Proof, Insulating
Certification
GS, CE, RoHS, ISO 9001, ANSI
Production Capacity
20,000 Units / Year
🚀 Product Description

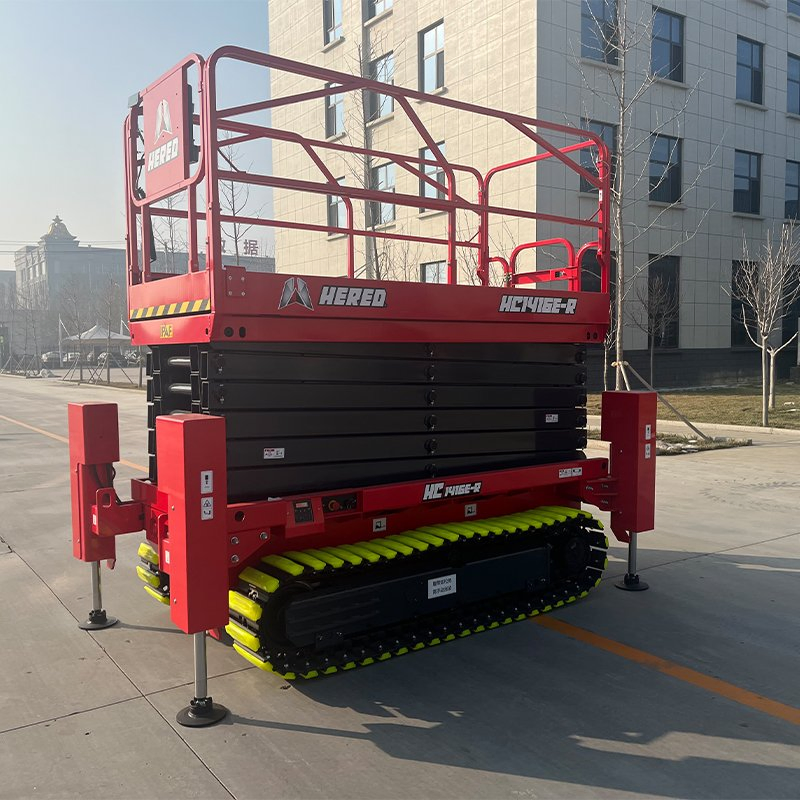

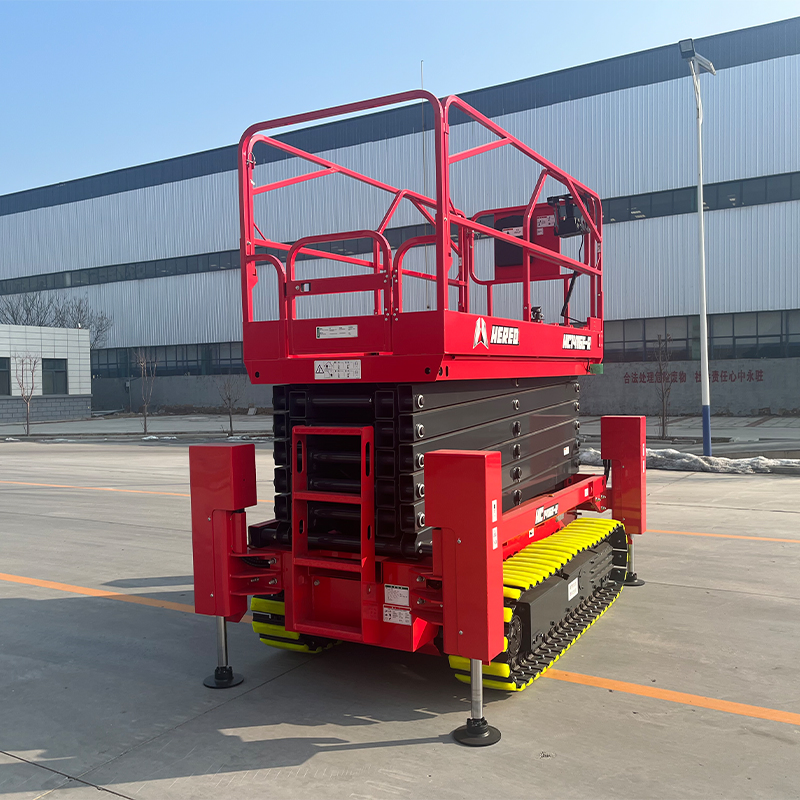

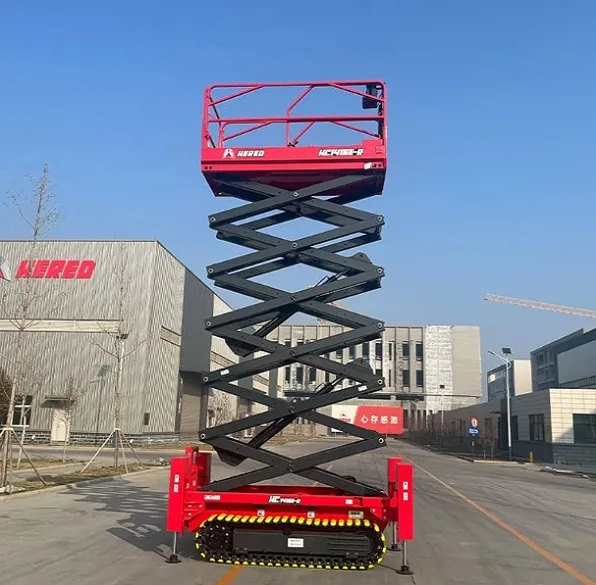

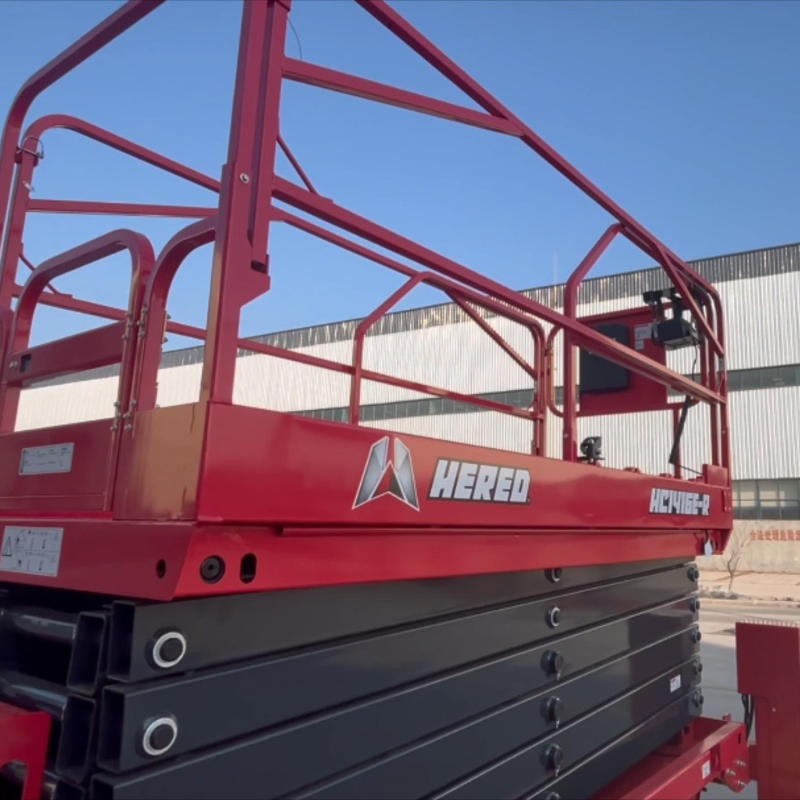

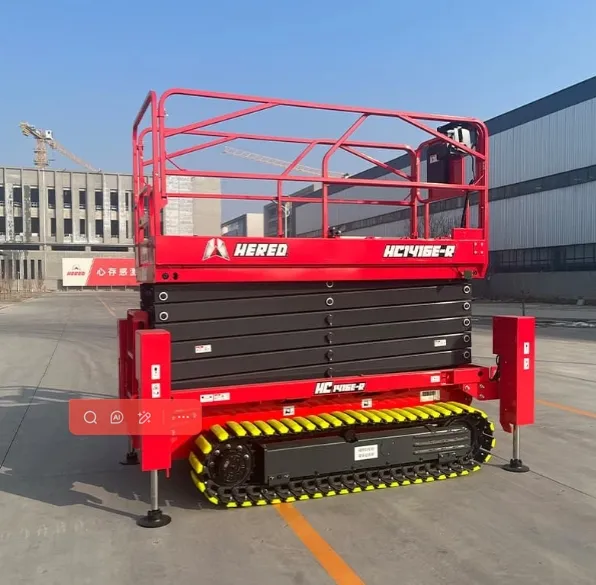

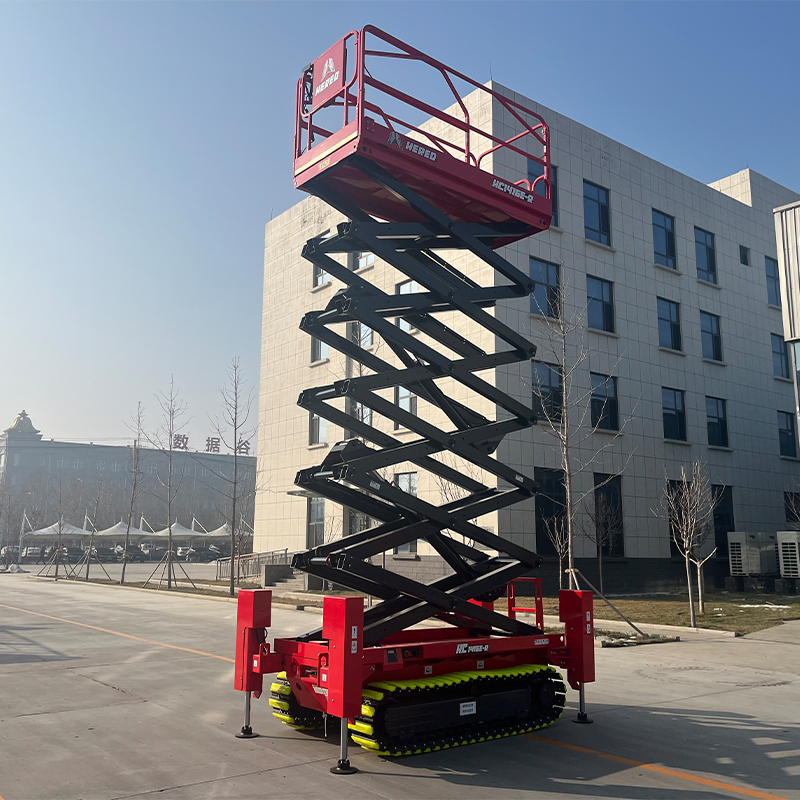

Crawler Scissor Lift
Crawler scissor lifts are lightweight and have rubber tracks for smooth, fast and safe passage through difficult road conditions. This kind of scissor lift runs on standard AC power, have zero emissions and are environmentally friendly. With tracked wheel frame, these scissor lift platforms can climb slopes with ease, and their narrow chassis allows passage through doorway, courtyards, standard doorways and public buildings. This makes the compact crawler scissor lift ideal for a variety of jobs both indoors and outdoors.
Key Advantages:
- Large capacity batteries, strong endurance.
- Compact structure, light weight, accessible through elevators.
- Motor and crawler drive, low noise, stronger passing ability.
- Direction of rotation in situ, suitable for small space work.
- Can walk slowly when raised, greatly improving work efficiency.
- Weighted chassis, no need for support legs when working.
- Strong adaptability to complex road conditions.

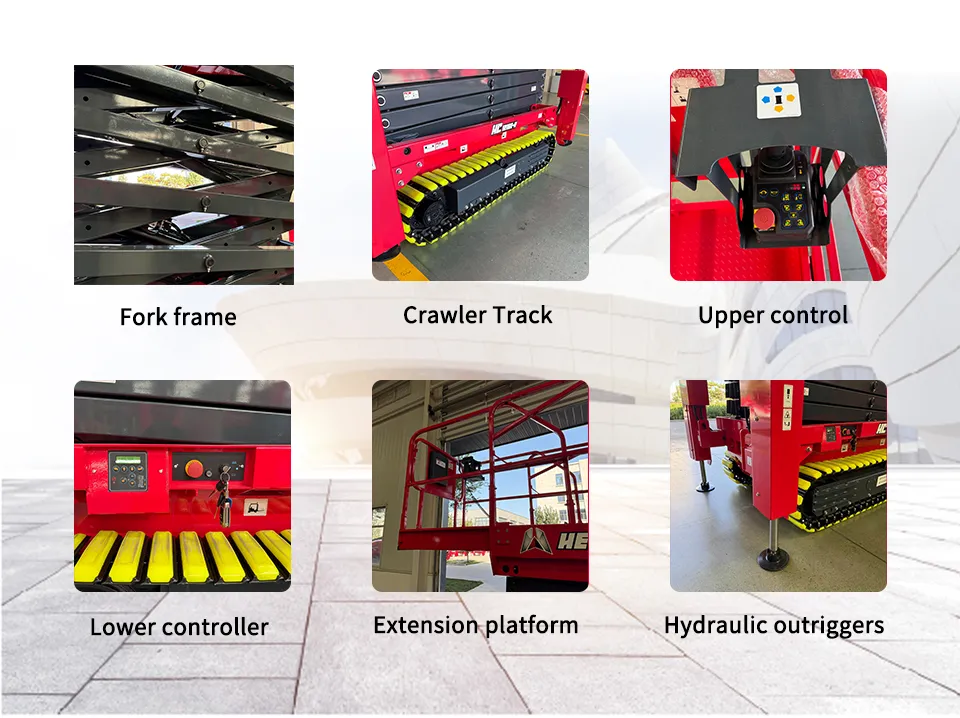

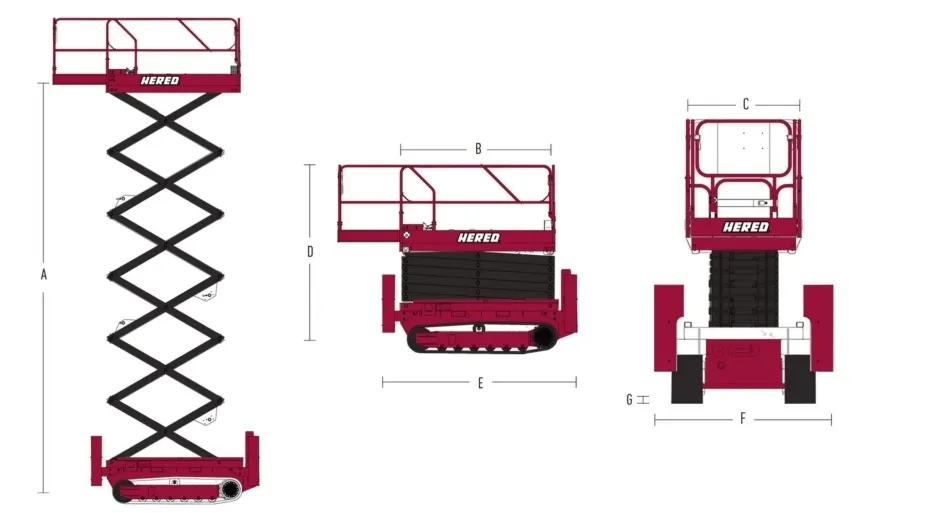

🔍 Detail Display
Depending on different environments such as indoors, outdoors, flat terrain, or rugged terrain, customers can choose the appropriate type of scissor lift.
📊 Specification
| MODEL: HC1416E-R |
|---|
| Max. Platform Height (In/out) | 13.8m / 13.8m |
| Max. Working Height (In/out) | 15.8m / 15.8m |
| Platform Dimension (L*W) | 2.64m * 1.12m |
| Extension Size | 0.9m |
| Overall Width | 1.6m |
| Ground Clearance | 146mm |
| PERFORMANCE |
|---|
| Platform Capacity | 250kg |
| Drive Speed (Stowed) | 4km/h |
| Gradeability | 40% |
| Up/Down Time | 76/53s |
| POWER & WEIGHT |
|---|
| Batteries (V/Ah) | 8X6V / 300Ah |
| Total Weight | 4150kg |

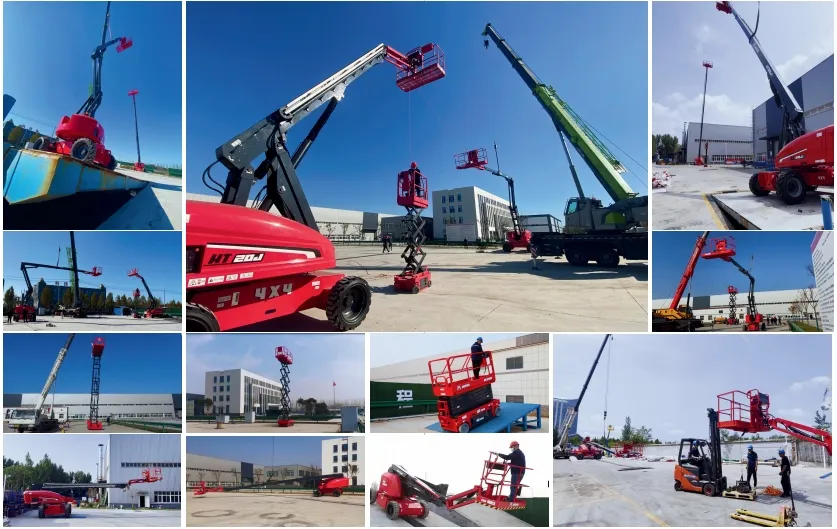

Professional test site ensures design safety. The product has passed 100,000 fatigue tests, climbing ability, potholes, rollover and other safety tests.

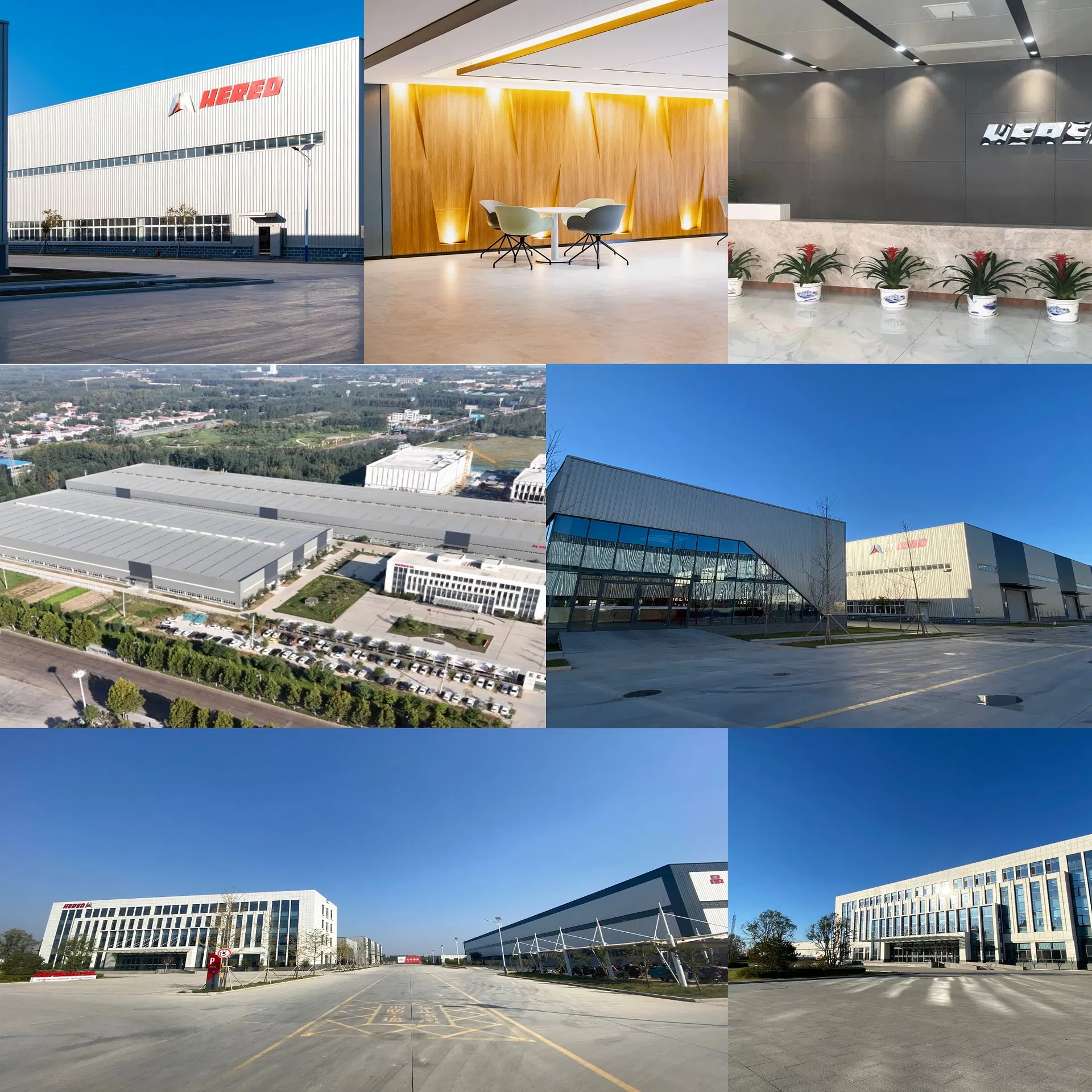

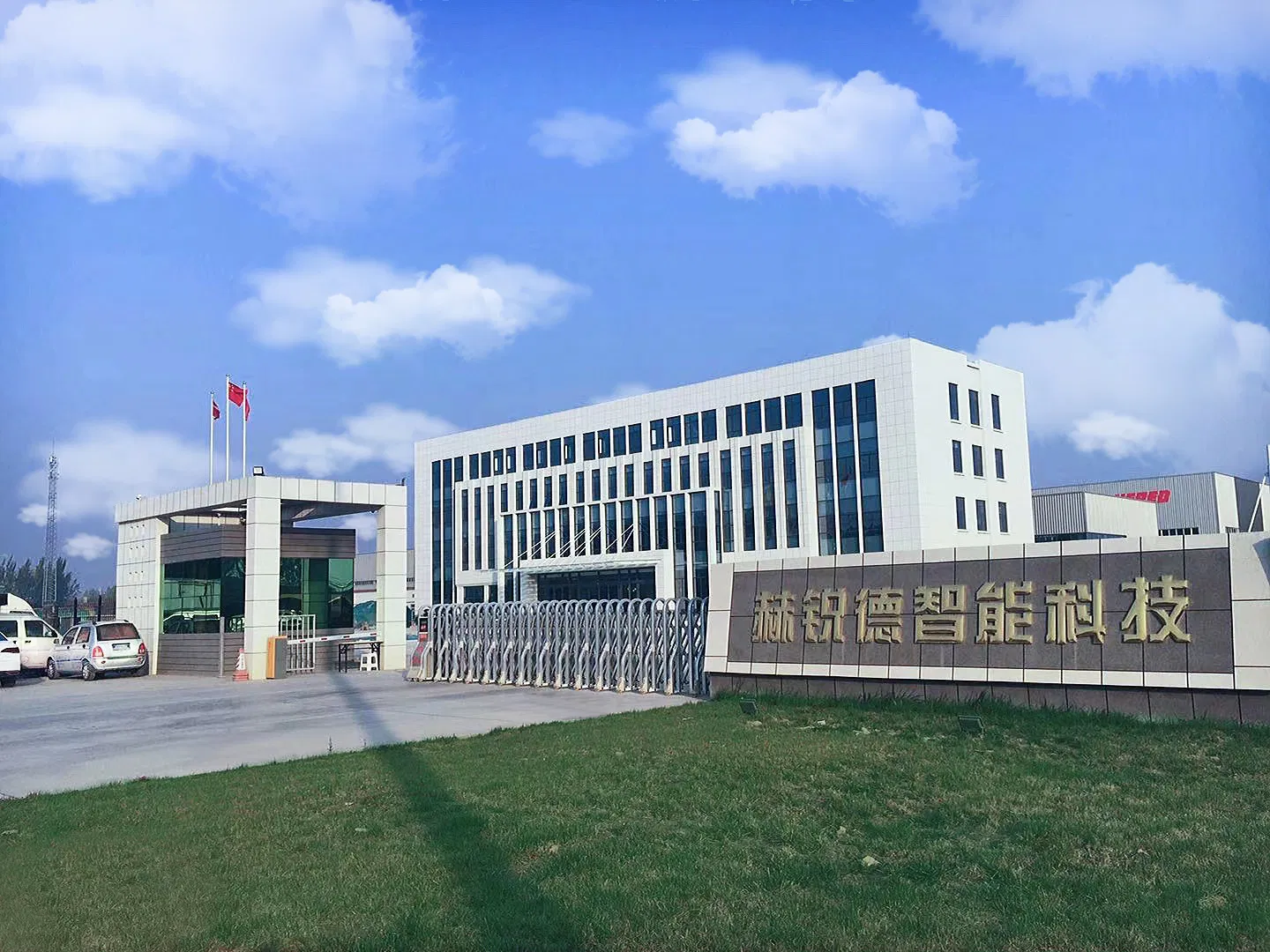

🏢 Company Profile

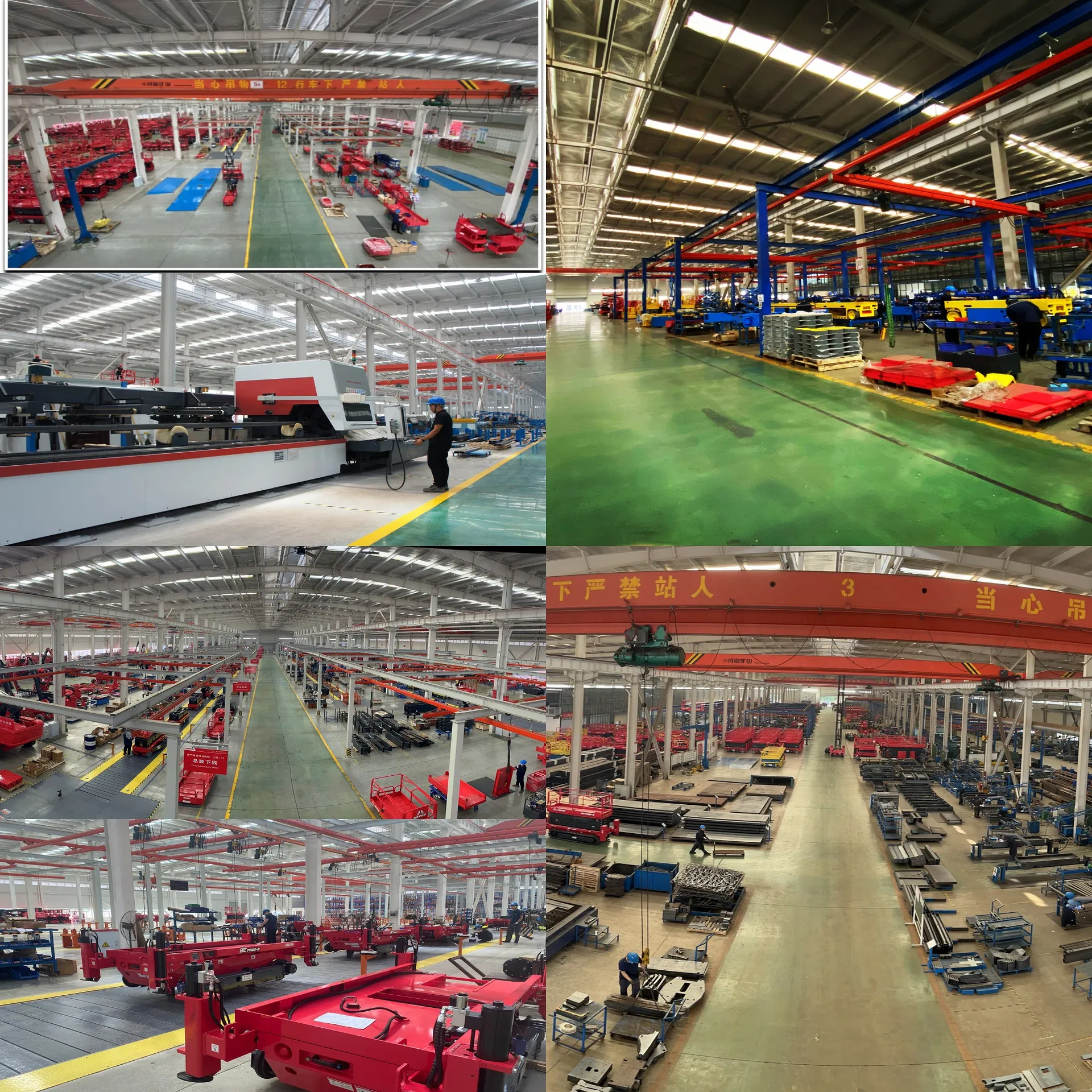

The company is a modern manufacturing enterprise integrating research and development, manufacturing, sales, and service of aerial work platforms. Established as an intelligent aerial equipment manufacturing leader, the company features five series of aerial work platforms: self-propelled scissor lifts, rough terrain scissor lifts, crawler scissor lifts, telescopic boom lifts, and articulated boom lifts. The products are safe, efficient, and intelligent, serving as high-quality replacements for traditional scaffolding in various industrial applications. Rated as a national high-tech enterprise, the company maintains a professional technology center and digital workshop to ensure product excellence.

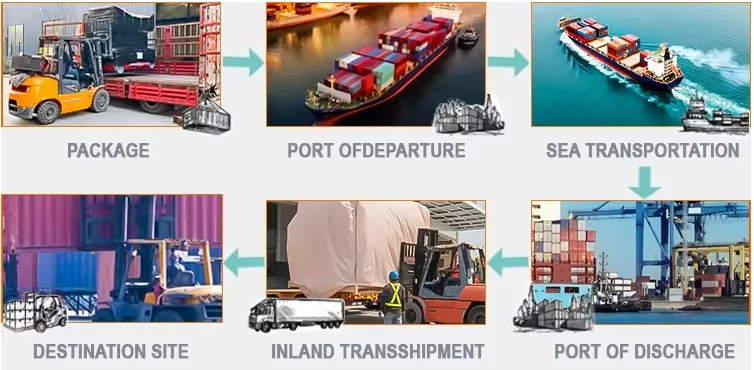

📦 Packaging & Shipping
Standard packaging ensures safety during international transit. Products are secured with high-quality materials and stretch film.
❓ Frequently Asked Questions
Do you supply customized service?
Yes, we provide customized services including specific colors and customized designs to meet your requirements.
Can you print our logo on the products?
Yes, we can apply custom logos and branding on the equipment as per your request.
What is the Minimum Order Quantity (MOQ)?
Our standard MOQ is 1 unit. You are welcome to purchase a sample to verify the quality before placing a bulk order.
What are the available payment methods?
We accept various payment methods including L/C, T/T, Money Gram, and Western Union.
What is your monthly supply capacity?
Our production facility can supply up to 10,000 pieces per month.
What is the typical delivery time?
Delivery usually takes 15-30 days after the order is confirmed, depending on the order quantity and specific requirements.
