Electric Self Articulated High-Altitude Work Platform 45m Arc-Shaped Arm Hydraulic Mobile Lifting Platform New Condition Diesel

Customization: Available
After-sales Service: Video Technical Support, Free Spare Parts
Type: S

Product Description

i

Basic Information

CertificationISO9000, CCC, CE
Emission StandardEuro 2
Horsepower150-250hp
Payload200kgs
FuelDiesel
TransmissionAutomatic
Drive Wheel4x2
ConditionNew
Max. Work Height32m
ChassisFAW Jiefang
★

Product Description

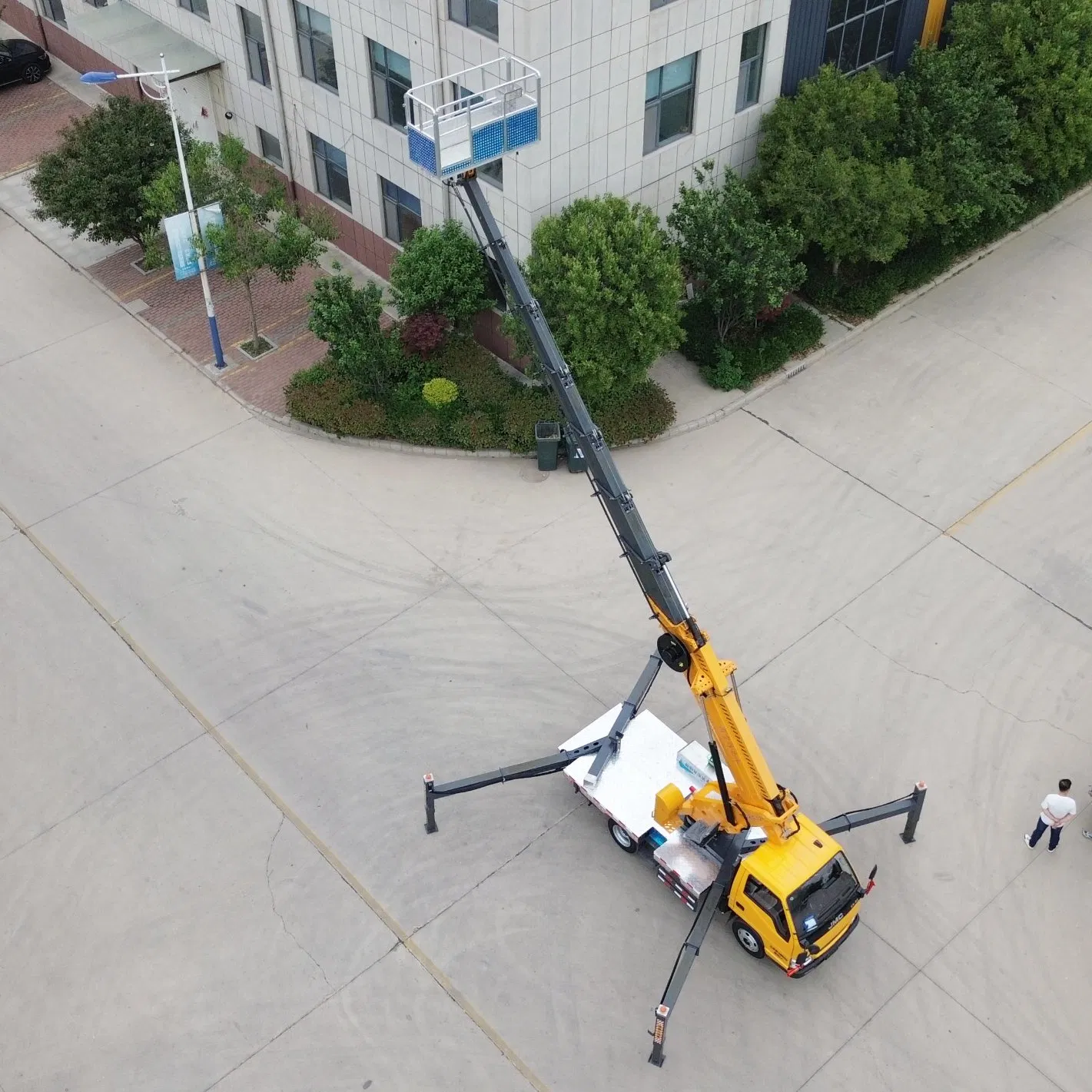

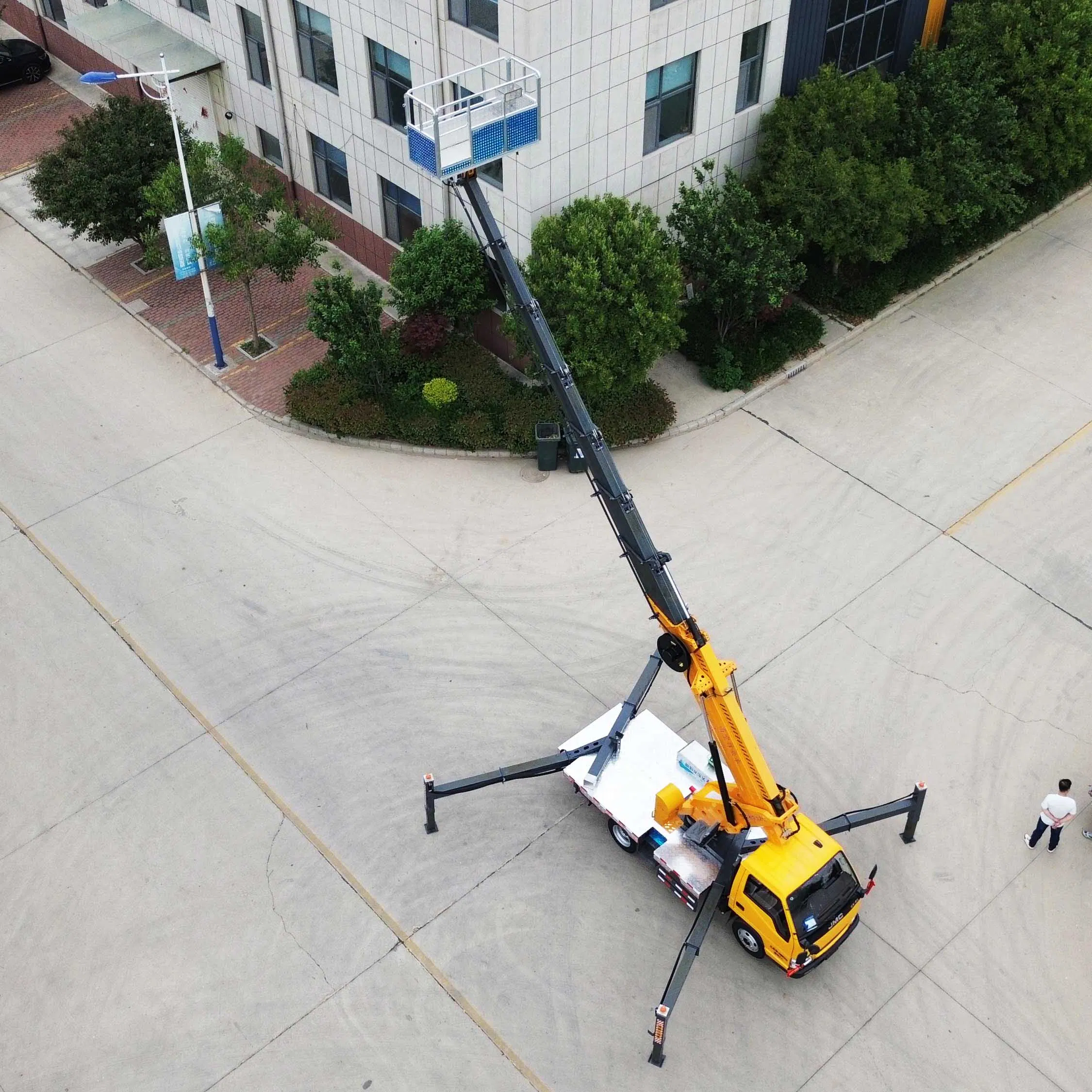

Truck Mounted Aerial Work Vehicle 32M

The aerial work vehicle adopts a reliable chassis and is equipped with a 150 horsepower full diesel engine, providing a lifting capacity of up to 32 meters. It features a 200 kilogram suspension basket, air brake system, and double hydraulic support legs. With 650 semi-steel wire tires, the vehicle offers three operation modes: remote control, electronic control, and manual. Its large span and high stability make it the primary choice for high-altitude operations such as construction and decoration.

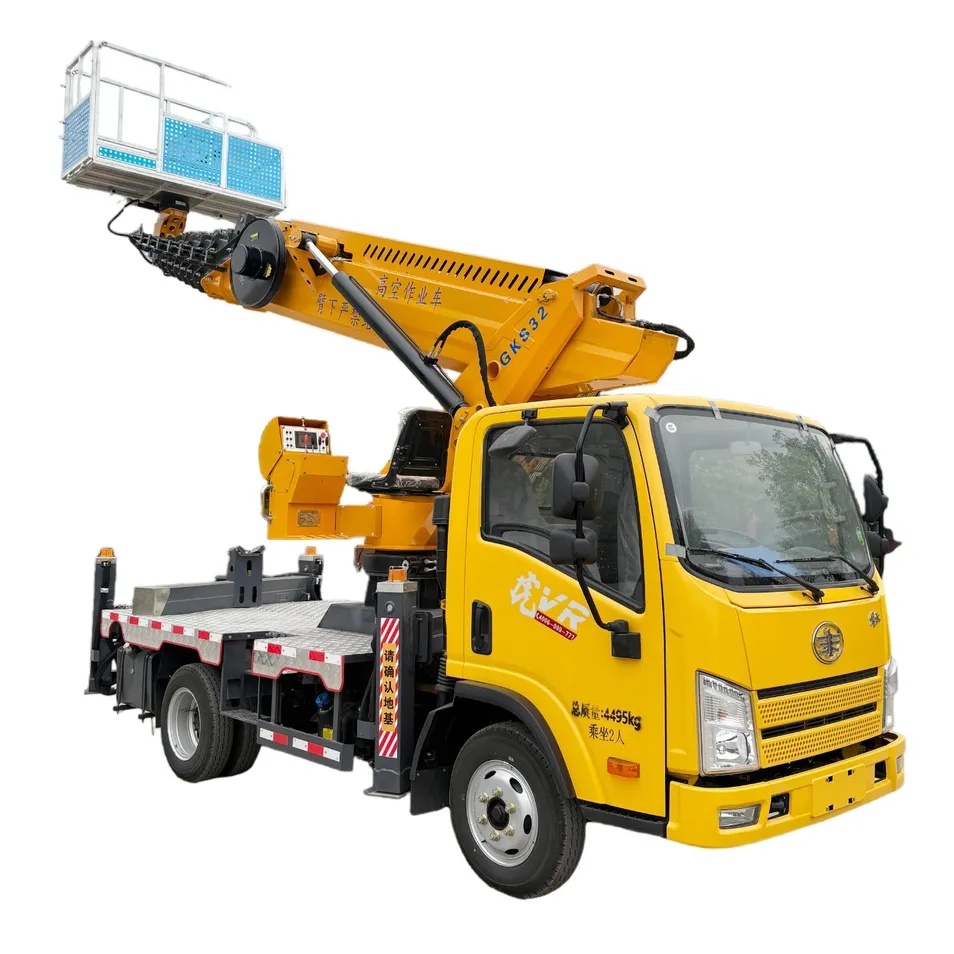

Aerial Work Vehicle Specification

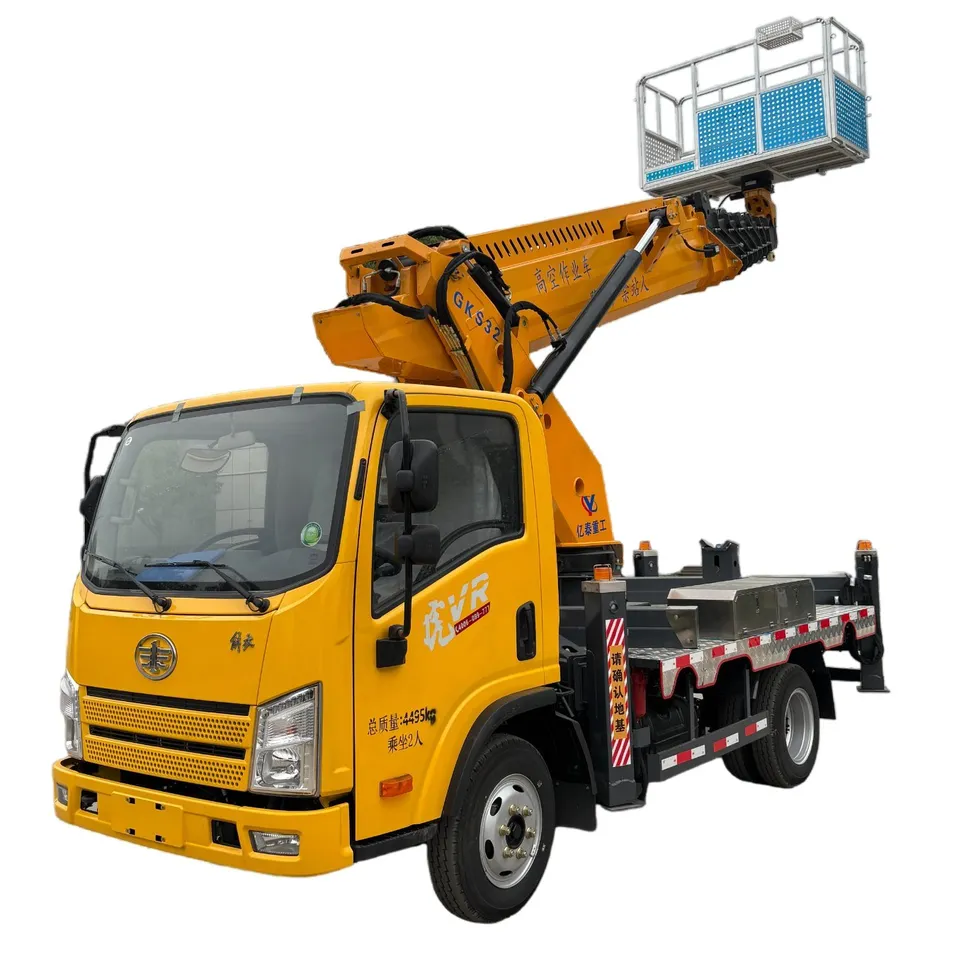

Aerial Work Vehicle Configuration
⚙

Key Technical Specifications

ModelJFGKS32
Total Length5998mm
Max. Work Height32m
Max. Work Radius16m
Transverse Span6200mm
Longitudinal Span5700mm
Wheelbase2800mm
Platform Load200KG

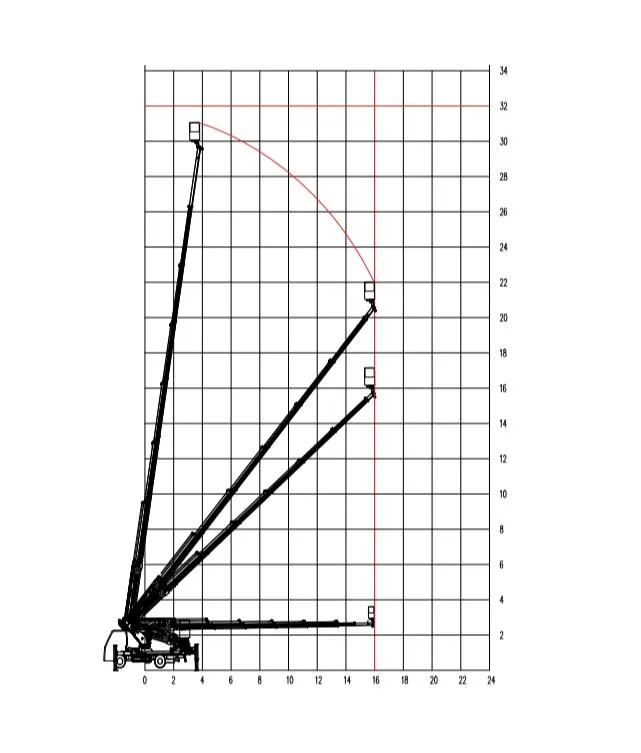

Technical Drawing
🛠

System Configuration

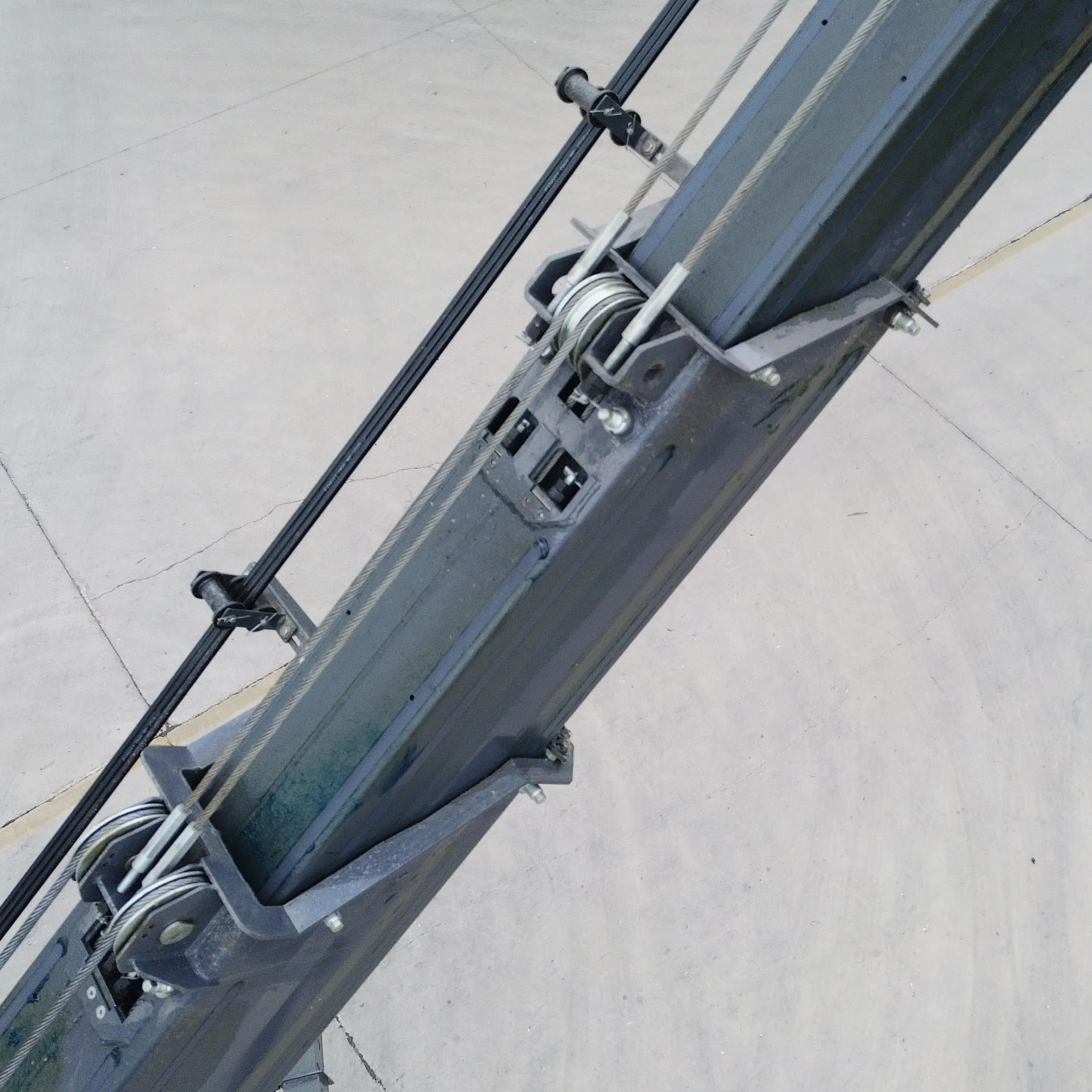

  • Boom Type: 8-Stage Drum-Shaped Polygonal Section Boom
  • Rotator: 21 inch disc worm gear integrated turntable & 360 degree rotation
  • Control: Electro-hydraulic proportional control system (Remote + Ground)
  • Leveling: Hydraulic Auto-Leveling System
  • Safety: Upper/Lower Interlock System & E-Stop
  • Monitoring: Dual-Axis Tilt Status Detection
🏢

Production Excellence

As a vehicle manufacturing enterprise that integrates product design, scientific research, and sales, the factory strictly adheres to a customer-centric service philosophy. The facility features advanced assembly lines, comprehensive quality inspection processes, and a large warehousing center. Equipment includes large-scale laser cutting machines, CNC bending machines, and robotic welding assembly lines to ensure top-tier product quality.

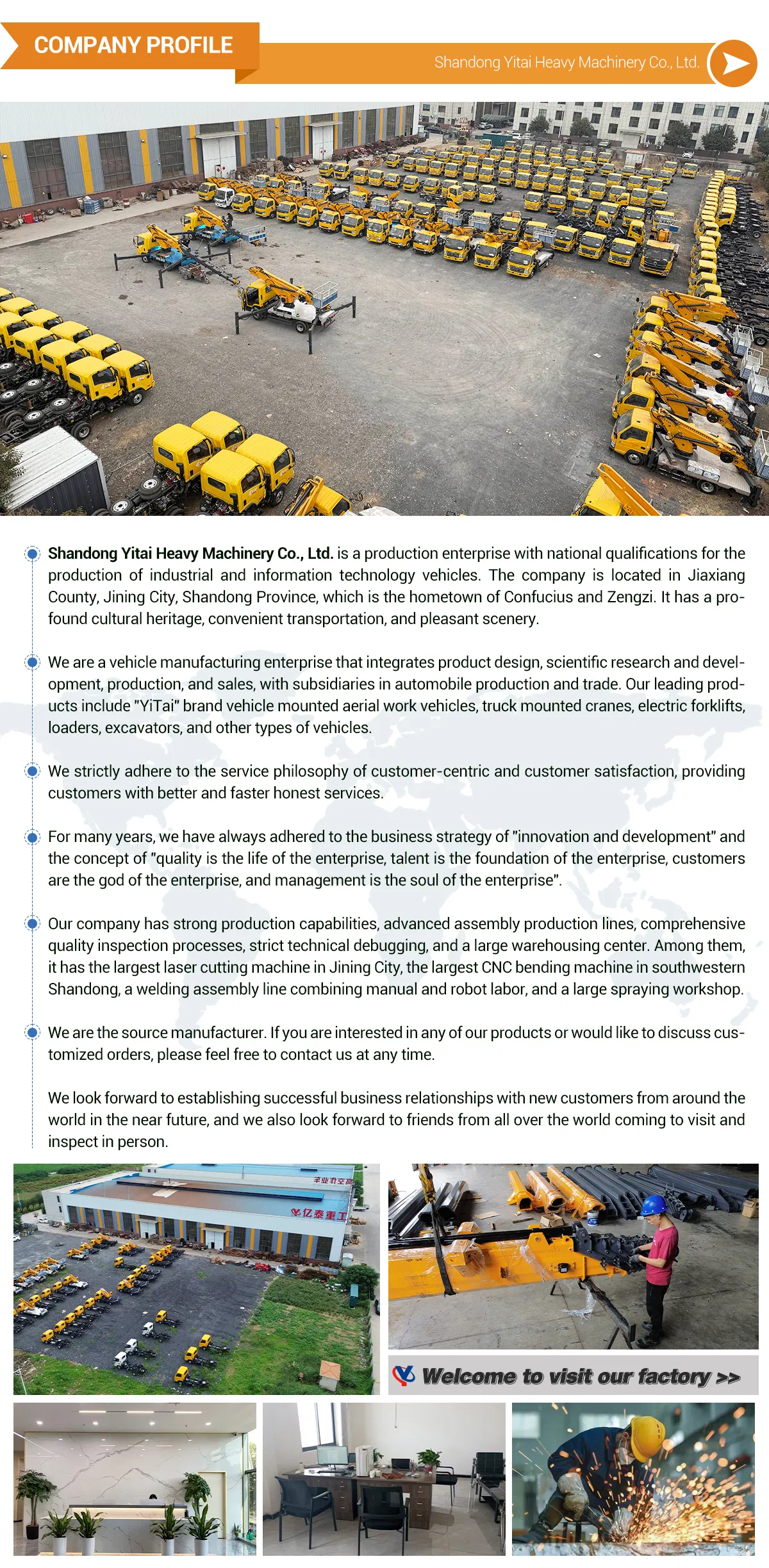

Factory Overview

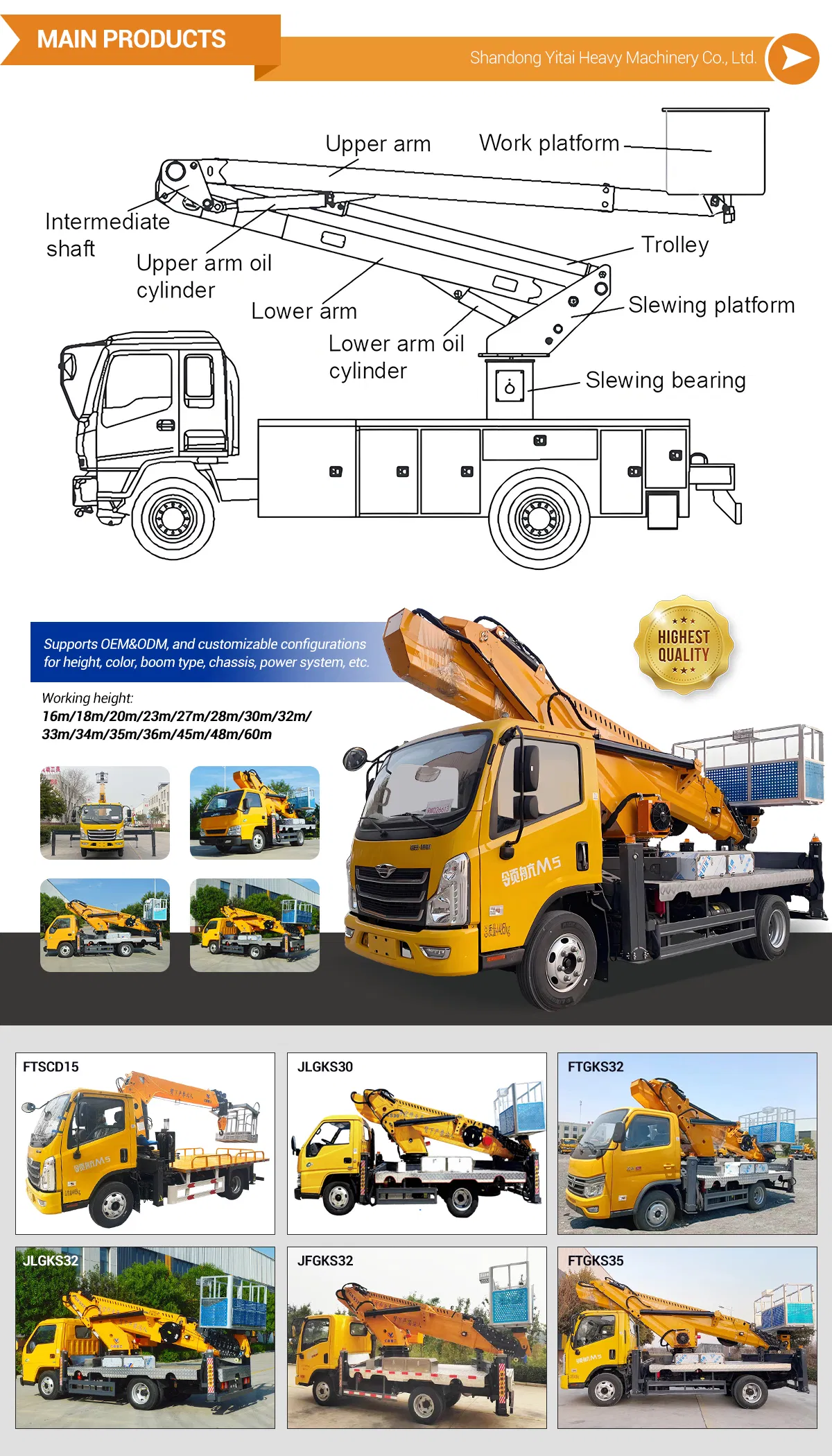

Manufacturing
Quality Control
Workshop
Product Display
?

Frequently Asked Questions

What is the maximum working height available?
We offer a range of working heights; models below 60 meters can be fully customized to suit your specific project needs.
What is the maximum load capacity of the platform?
The standard aerial work platform has a maximum carrying capacity of 200 kilograms, and we support customization for personalized requirements.
Can these vehicles operate on uneven terrain?
Yes, our telescopic arm lifts are designed with a drive system and swing shaft capable of operating on slopes up to 24°, ensuring ground stability during use.
How often is maintenance required?
New vehicles should have their fuel tank/filter cleaned and oil replaced after the first 200 hours. Normally, maintenance is recommended every six months.
What safety features are included?
All units come with built-in safety features such as tilt sensors, overload protection, emergency descent systems, and upper/lower interlock systems.
How do I choose between electric and diesel power?
Electric models are ideal for zero-emission indoor use, while diesel units provide extended runtime and higher torque for outdoor rough terrain.
