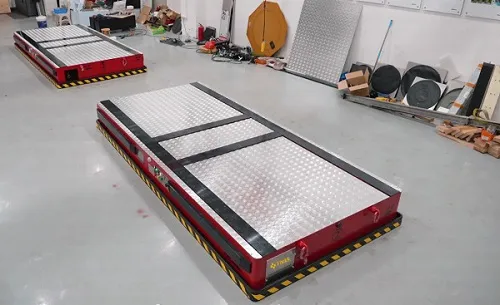

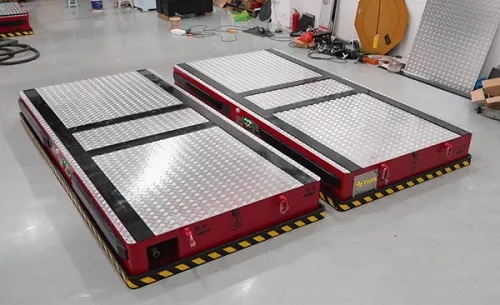

Omni-Directional Movement: Air Cushion Vehicles are equipped with six steering modes, allowing for omnidirectional movement. This means that the vehicles can move in any direction, including sideways and diagonally, making it an easy Air transport platform to move around obstacles and tight corners.

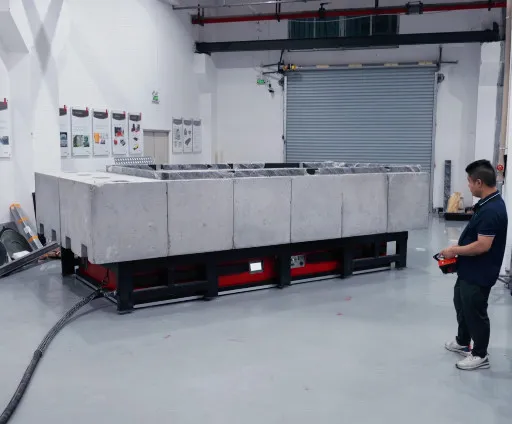

Compact Size and Footprint: These vehicles have a compact size and footprint, making them portable and easy to relocate within a facility. They do not require permanent installation and can be utilized in any facility with compressed air. This flexibility allows for efficient use of floor space and eliminates the need for complex installation processes.

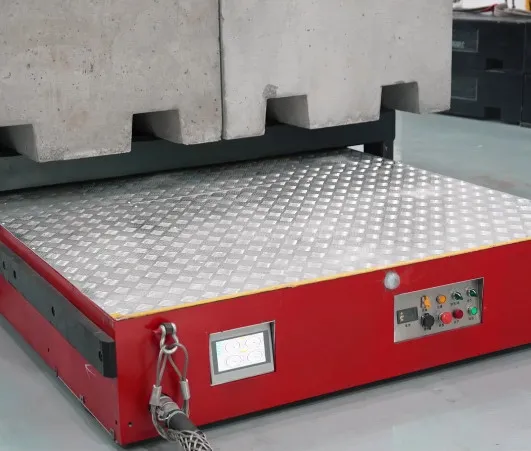

Inherently Safe: These Air Cushion Vehicles provide a low profile transport, ensuring stability and safety during operation. They eliminate the need for risky rigging operations, reducing the risk of accidents and injuries. The vehicles also provide exceptional operator visibility, allowing for clear sight lines and improved safety.
Minimizes Floor Loading: Designed to minimize floor loading, the platform allows loads to be transported over standard floors without the need for additional site work. This minimizes damage to expensive epoxy-coated floors and reduces the need for costly floor repairs.

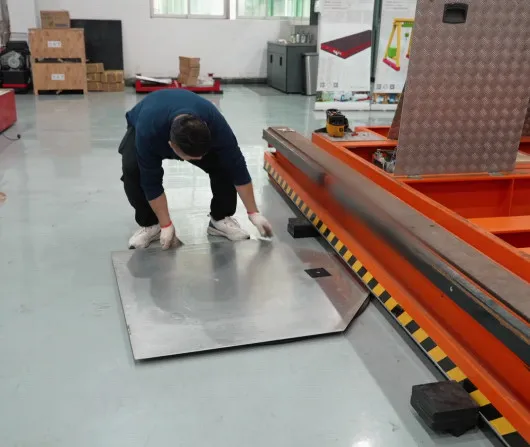

Easy to Implement: These vehicles operate on standard floors, such as machine-troweled and sealed concrete. They do not require complex installation processes, unlike expensive cranes or conveyors. This makes them easy to implement and integrate into existing manufacturing processes.

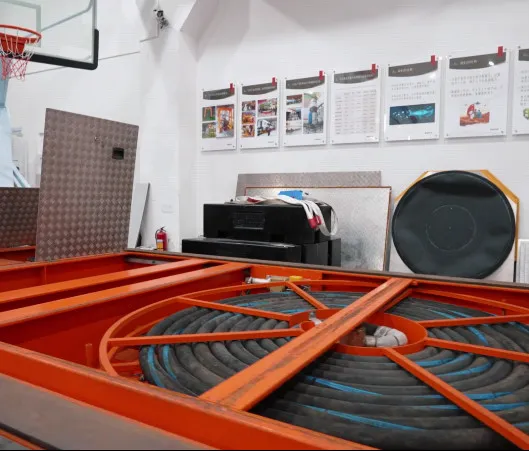

Equipped with cutting-edge Aero-Caster technology and specialized drive systems, these vehicles enable operators to move multi-ton loads with ease, precision, and utmost safety. Whether it's a 200-ton nacelle application or aerospace tooling, they are designed to handle even the most demanding tasks.

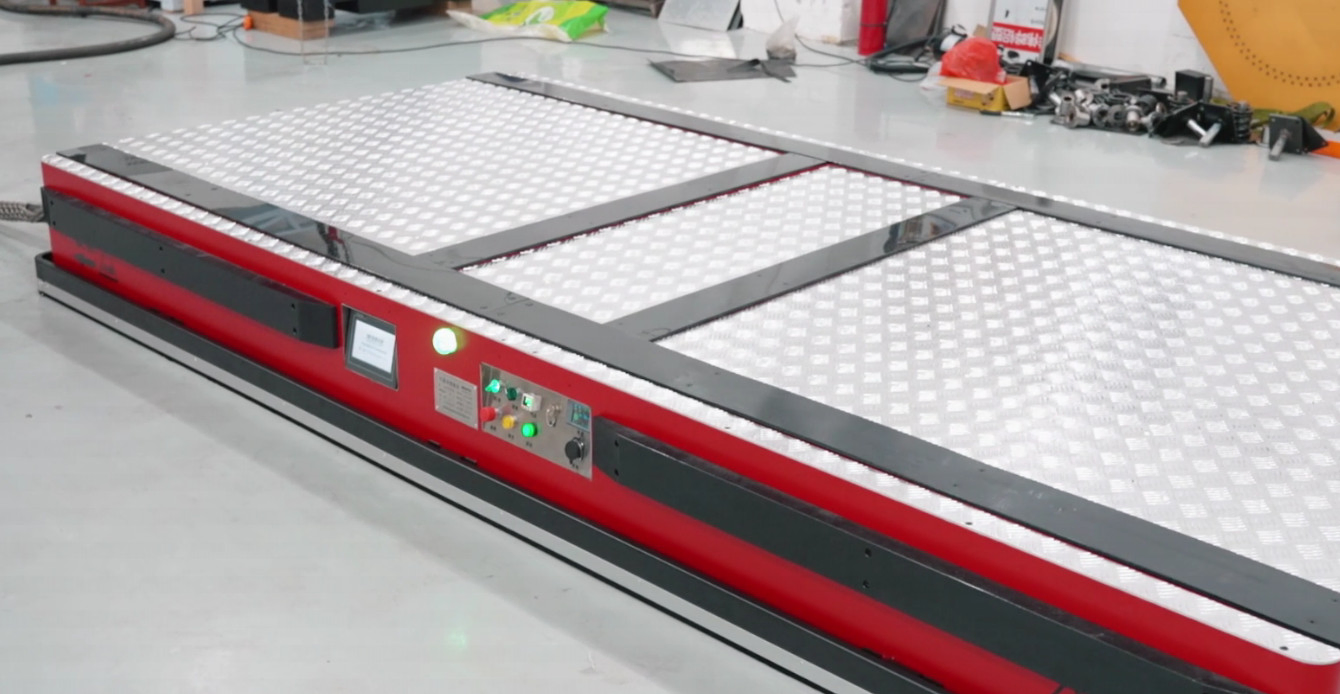

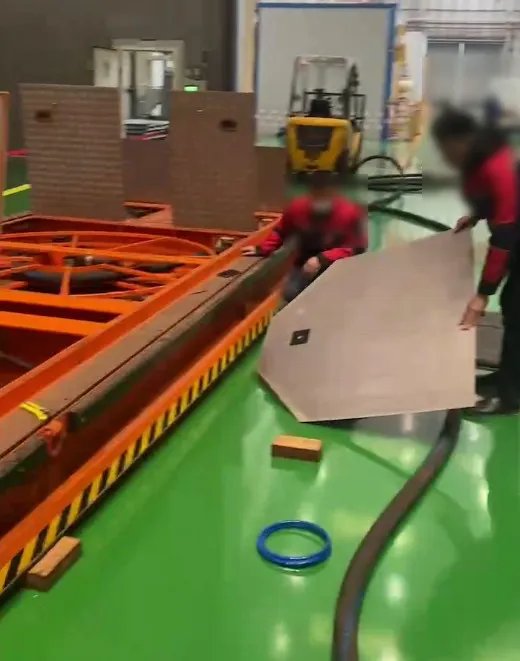

The vehicles come equipped with various features that enhance their performance: a sturdy welded steel frame meeting AWS requirements, ASME B30.1 compliant Slide-Mount Aero-Casters, and fully steerable powered drives. A state-of-the-art PLC control system and industrial NEMA-rated enclosures ensure optimal control, automatically compensating for different load weights and centers.
1. Cost Efficiency: Offers a cost-effective solution compared to drag chains, conveyors, and cranes. Investment for moving heavy weights over long distances is significantly lower.
2. Rapid Installation: Shorter installation time compared to other options, allowing for faster setup of move paths in new plants.
3. Superior Flexibility: Offers nine points of freedom or degrees of motion, including forward/backward, side-to-side, diagonal, 360° rotation, and indexing.

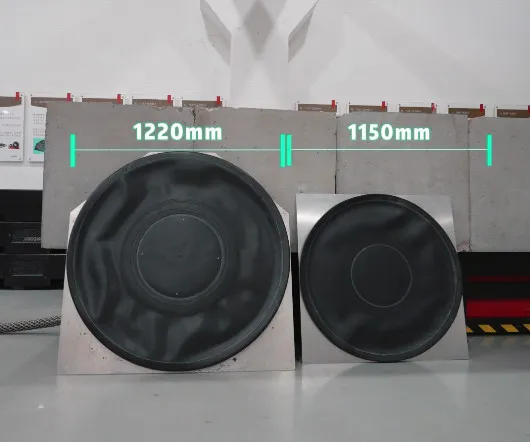

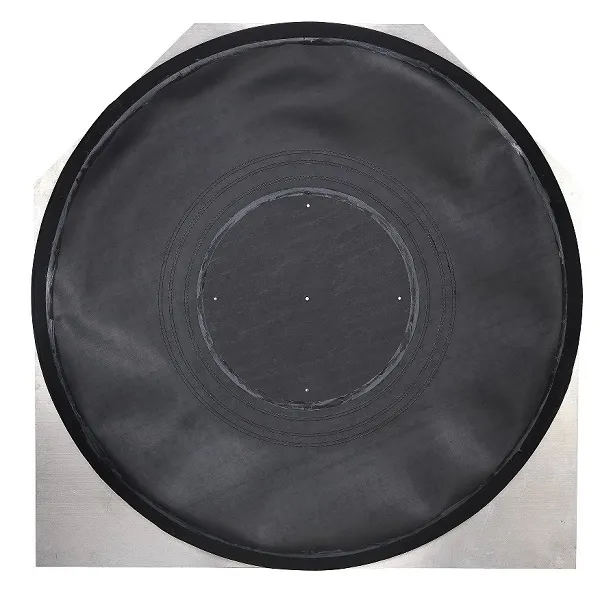

| Serial No. | Model | MAX Capacity (KG) | Max Air Pressure (bar) | Plate Size (mm) | Thickness (mm) | Air Intake Diameter |
|---|---|---|---|---|---|---|
| 1. | GB450 | 5200 | 4.5 | 450 | 15 | 3/4" |
| 2. | GB540 | 7200 | 4.5 | 540 | 18 | 3/4" |
| 3. | GB686 | 12000 | 4.5 | 686 | 20 | 3/4" |
| 4. | GB750 | 14500 | 4.5 | 750 | 25 | 3/4" |
| 5. | GB1020 | 28000 | 4.5 | 1020 | 25 | 3/4" |
| 6. | GB1150 | 36000 | 4.5 | 1150 | 25 | 3/4" |
| 7. | GB1220 | 40000 | 4.5 | 1220 | 25 | 3/4" |
