📊 Overview & Basic Info
Application
Workshop, Shipboard, Warehouse, Building
Drive Mode
Hydraulic Pressure
Control Mode
Wireless Remote Control
Certification
CE, ISO 9001
📦 Packaging & Delivery
Package Size
200.00cm * 250.00cm * 60.00cm
Transport Package
Wooden Box
📝 Product Description

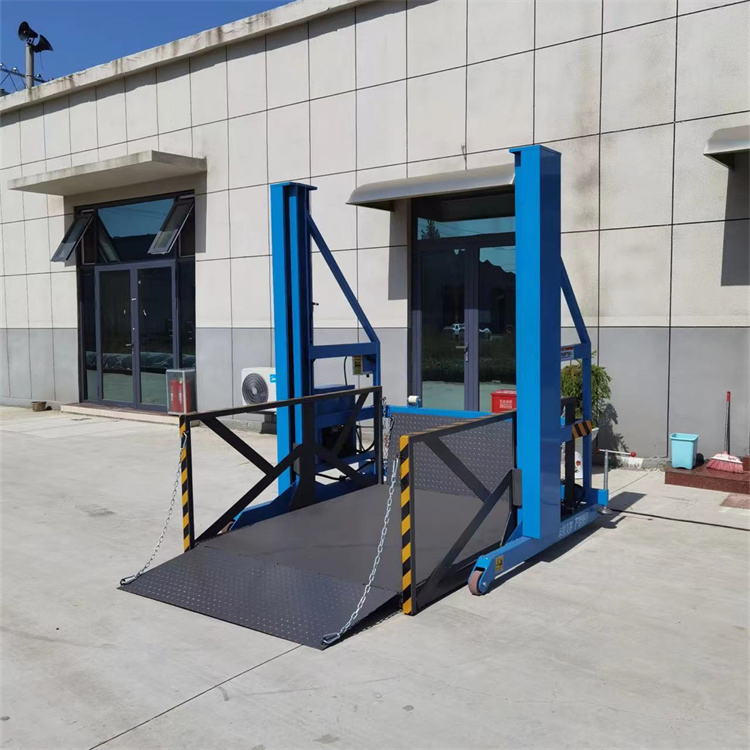

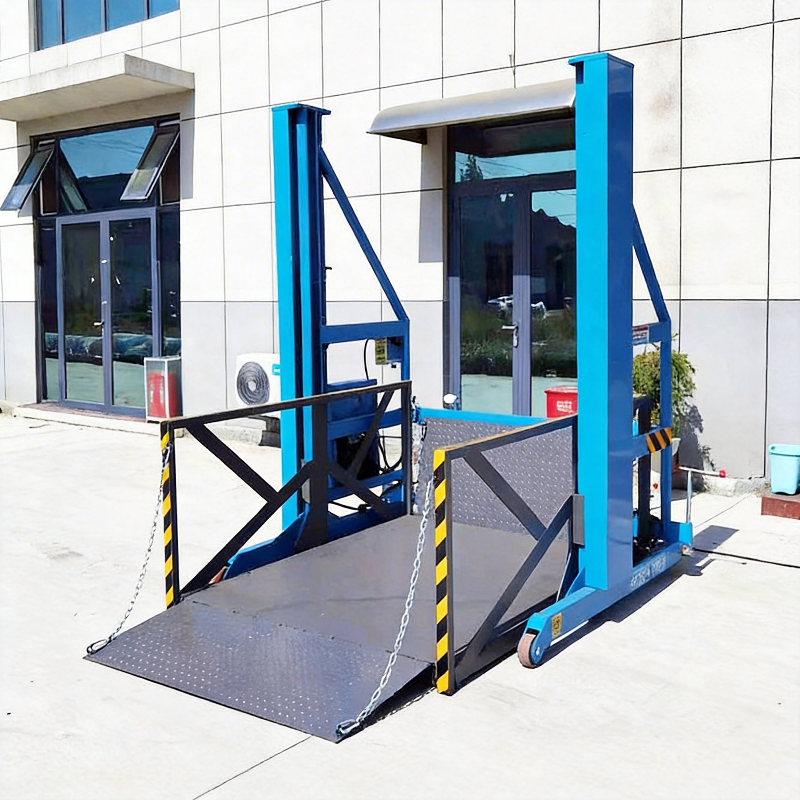

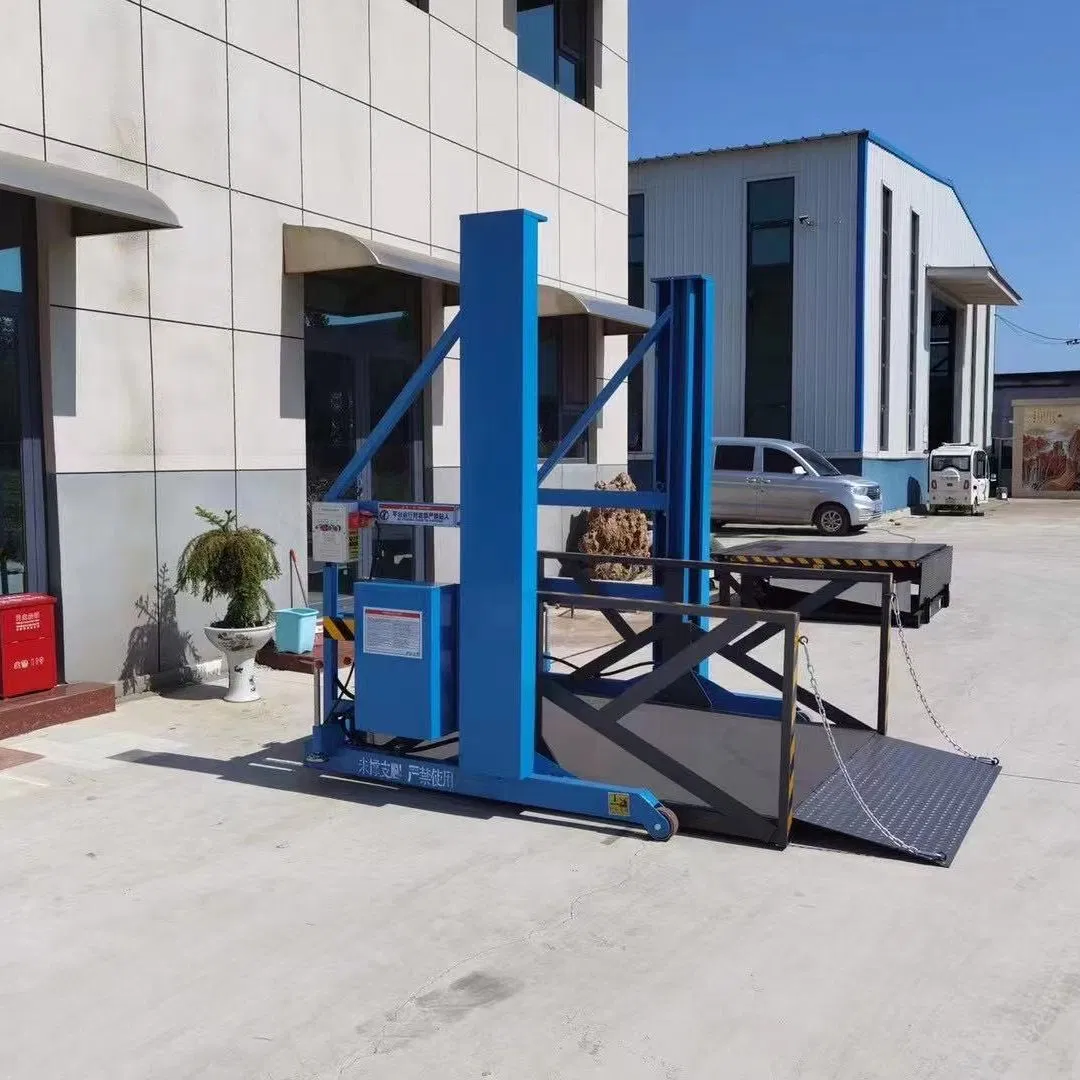

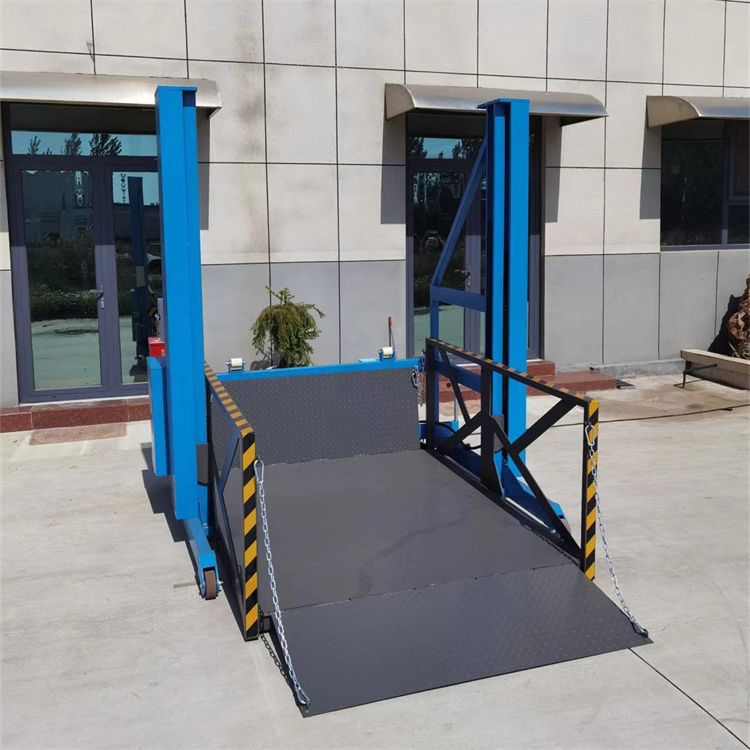

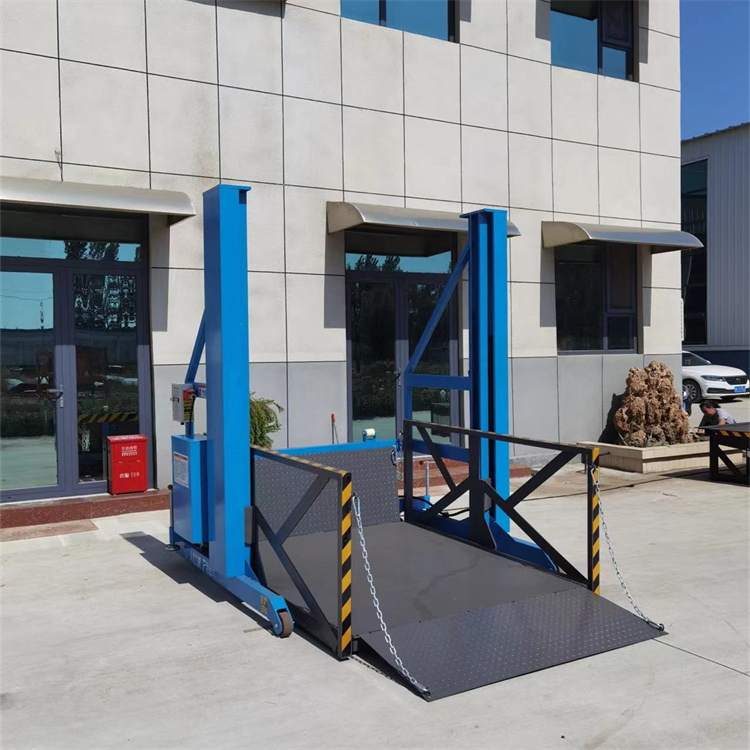

The mobile loading and unloading platform adopts a high-strength guide rail structure and hydraulic lifting. It offers convenient movement and requires no pit installation. It can be seamlessly used with manual or electric pallet trucks to achieve one-person rapid loading and unloading operations, serving as a safe and efficient modern logistical solution.
Control System: Controlled by 24V safe voltage with a wireless remote control for operator safety.
Protection: Equipped with an industrial waterproof aviation plug (IP44 protection degree).
Safety Features: Includes a power failure emergency descending device and a travel limit device.

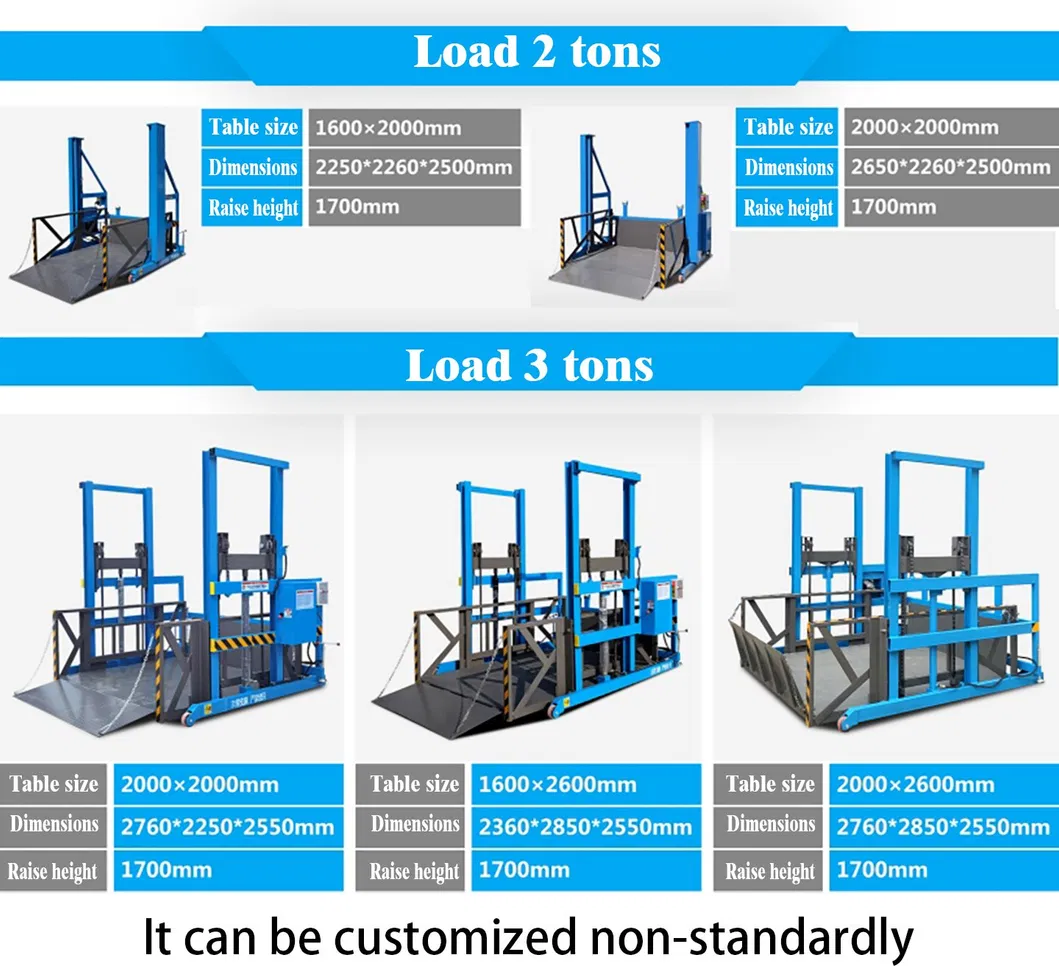

| Model |
Table Size |
Lifting Height |
Load Capacity |
Panel Material |
Power |
Dead Weight |
| SJYD-2T |

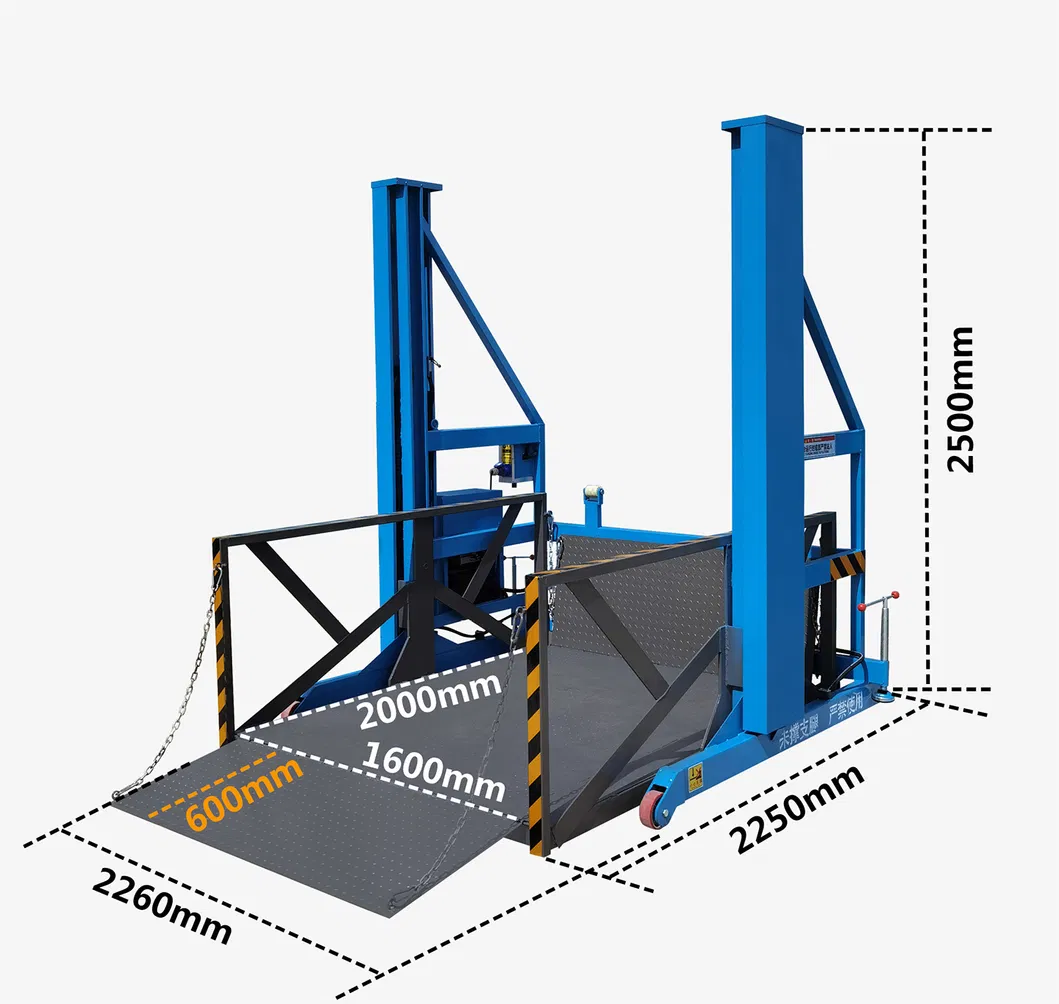

1600*2000mm |
1700mm |
2000KG |
4.5mm Patterned steel plate |
2.2kw/3kw |
718KG |

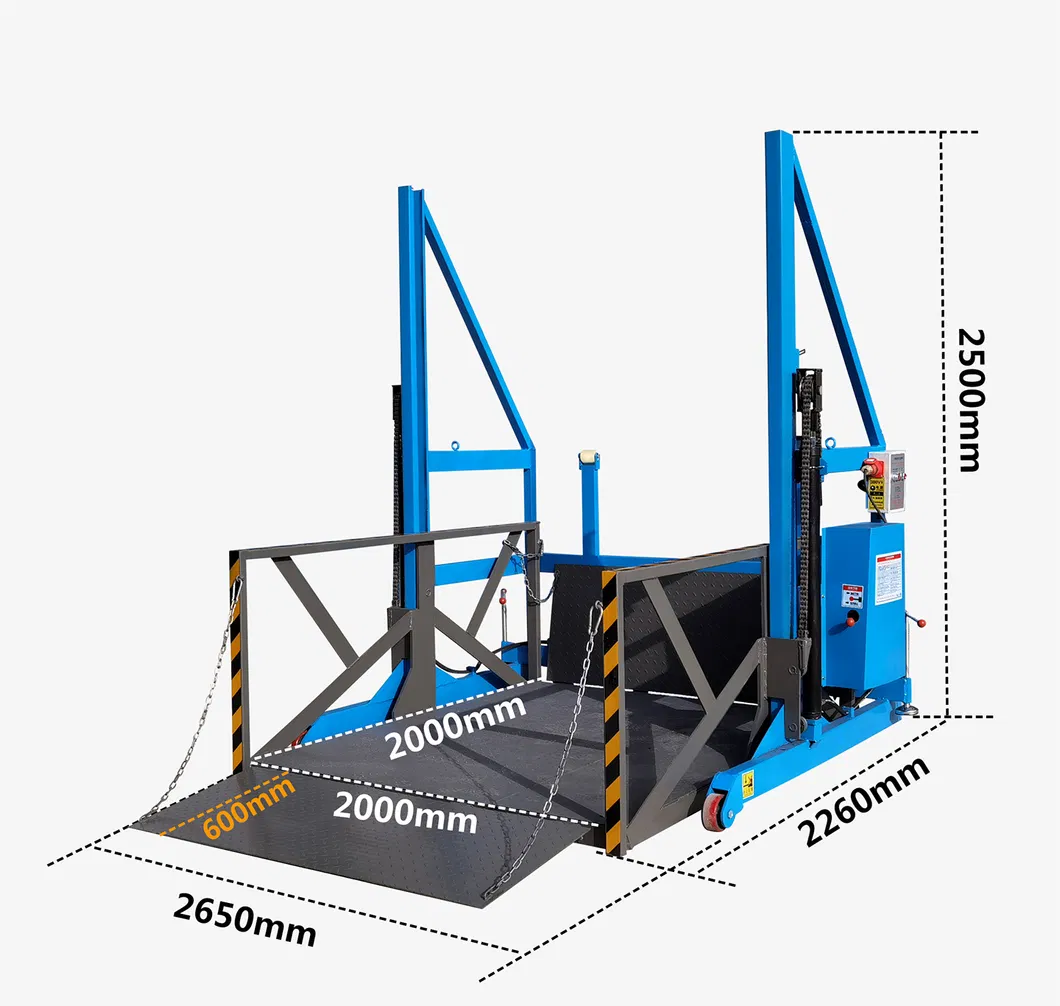

| 2000*2000mm |
1700mm |
2000KG |
4.5mm Patterned steel plate |
2.2kw/3kw |
800KG |
| SJYD-3T |
1600*2000mm |
1700mm |
3000KG |
4.5mm Patterned steel plate |
4kw |
988KG |
| 2000*2000mm |
1700mm |
3000KG |
4.5mm Patterned steel plate |
4kw |
1060KG |

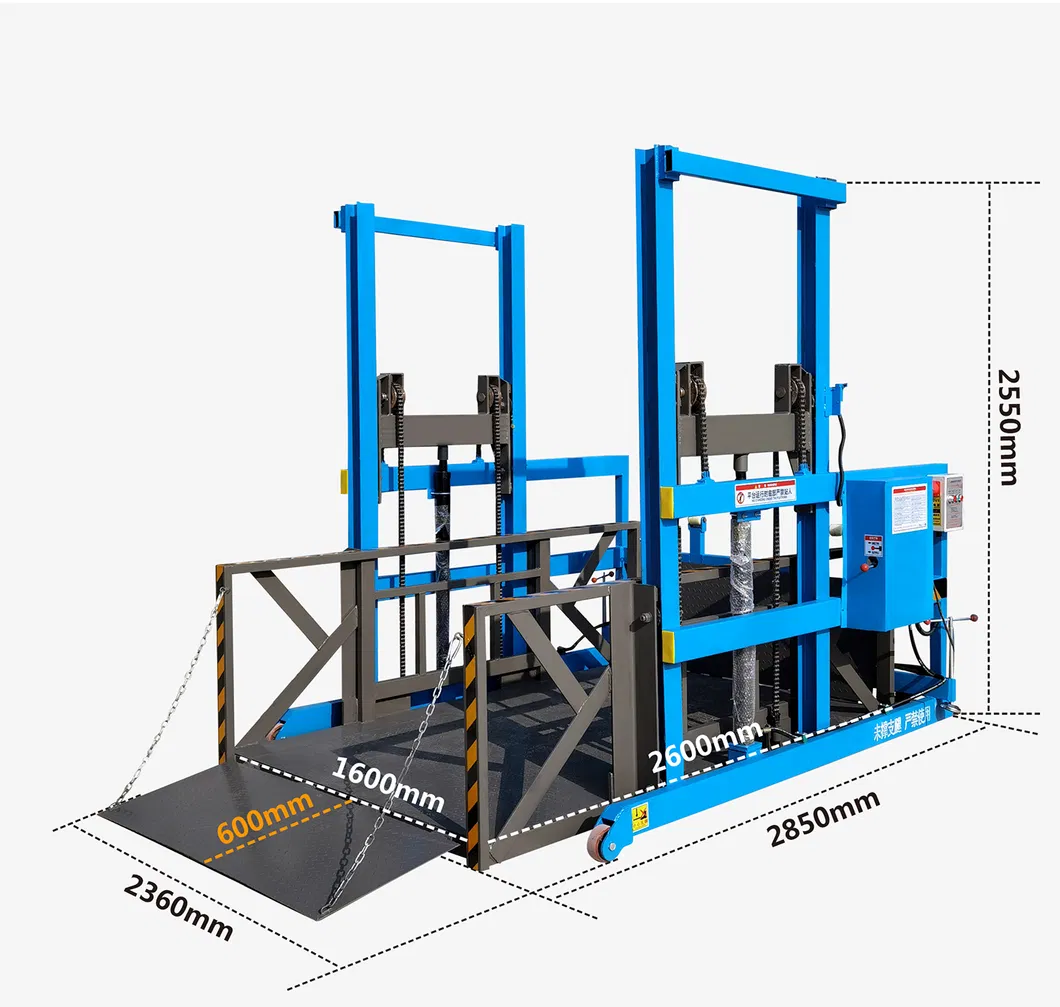

| 1600*2600mm |
1700mm |
3000KG |
4.5mm Patterned steel plate |
4kw |
1108KG |

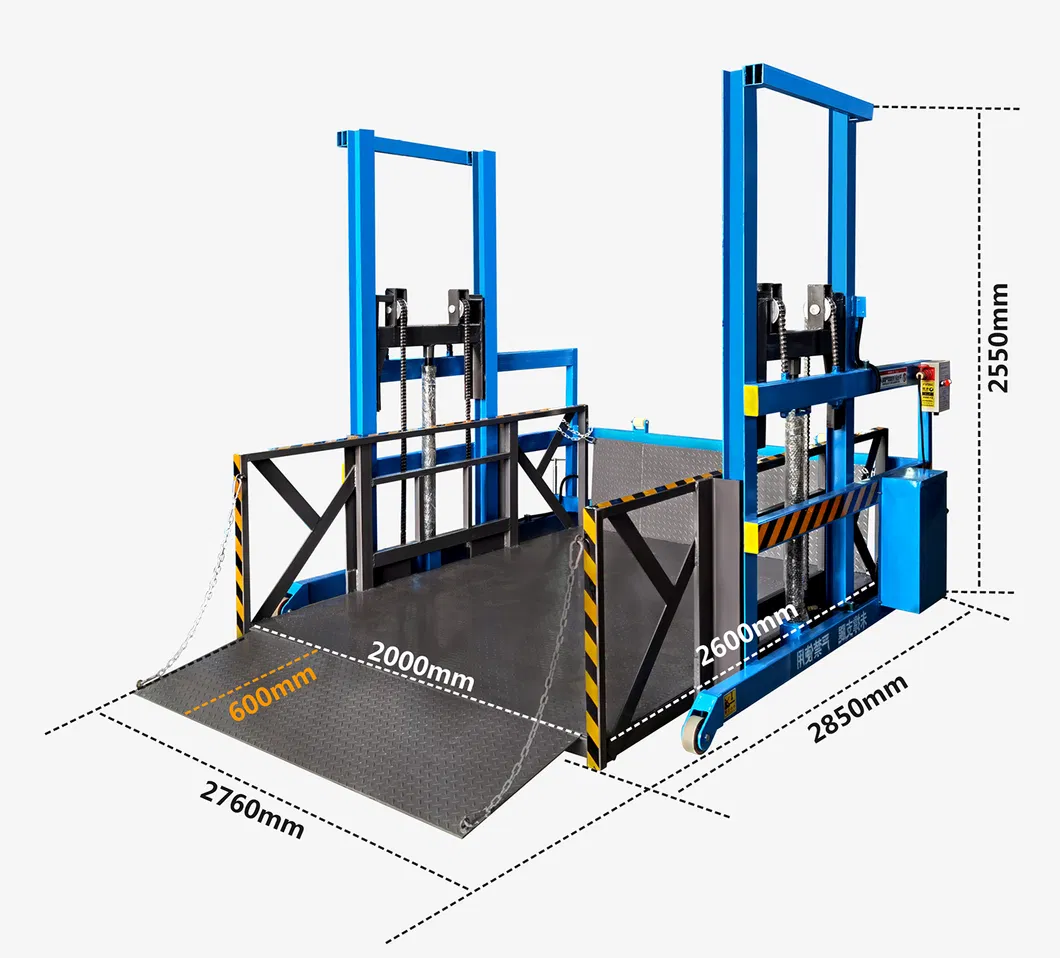

| 2000*2600mm |
1700mm |
3000KG |
4.5mm Patterned steel plate |
4kw |
1200KG |
📷 Product Gallery
❓ Frequently Asked Questions
What are the available load capacities for this platform?
The mobile unloading platform comes in two main capacities: 2000KG (2 Ton) and 3000KG (3 Ton) to suit different industrial needs.
Does this lifting platform require a pit for installation?
No, this platform is designed for mobile use and does not require any pit construction, making it highly flexible for various warehouse locations.
How is the platform operated?
It is operated using a 24V safe voltage wireless remote control, allowing for safe and efficient one-person operation.
Can it be used outdoors in rainy conditions?
Yes, the platform features a rainproof design and is equipped with an IP44 industrial waterproof aviation plug for outdoor reliability.
What safety mechanisms are included?
Safety features include an emergency descending device in case of power failure and a travel limit device to prevent over-extension.
What type of power supply does it use?
The system is AC driven, with power options ranging from 2.2kw to 4kw depending on the specific model and load requirements.
